I purchased an oil cut off valve for my 1974 Norton Commando which has two wires that have to be connected to the ignition switch to preclude starting the engine with the valve in the closed position.
There were no instructions on connecting the red and black wire to the ignition switch. When called, the seller said to connect the wires to the numbers 1 and 2 in the ignition switch.
I did so, but when ignition key is turned clockwise to the first position I still have a spark and the red ignition light is on.
When the key is turned anticlockwise to the first position there is no spark or ignition light until the oil valve is open, meaning it works in this position.
I would appreciate any advice in connecting the red and black wires to the correct connections on the back of the ignition switch, which are numbered 1 through 5.
Does the Mk III timing cover somehow reduce wet-sumping during storage?
Thank you for that info. No wonder Mk III timing covers bring a pretty penny on Fleabay.
I have no personal interest in adding an awsv, but a manual valve that cuts ignition in the OFF position would seem pretty foolproof.
https://www.nytimes.com/2010/06/21/us/21blowout.html?hpMuch remains unknown about the failure of this ultimate fail-safe device
I have not seen a single report of a problem with a manual valve AND INTERLOCK setup, lots with many years of use.-worntornThere have been reported engine seizures from just such valves. Why some insist on putting an obstruction in the oil pump supply is beyond me.
Note that your bike may not have the original Lucas 4 position switch. My Emgo replacement switch has a different connection path despite being sold as a replica of the Lucas part.Hi,
I purchased an oil cut off valve for my 1974 Norton Commando which has two wires that have to be connected to the ignition switch to preclude starting the engine with the valve in the closed position.
There were no instructions on connecting the red and black wire to the ignition switch. When called, the seller said to connect the wires to the numbers 1 and 2 in the ignition switch.
I did so, but when ignition key is turned clockwise to the first position I still have a spark and the red ignition light is on. When the key is turned anticlockwise to the first position there is no spark or ignition light until the oil valve is open, meaning it works in this position.
I would appreciate any advice in connecting the red and black wires to the correct connections on the back of the ignition switch, which are numbered 1 through 5.
Thanks in advance,
John D.
I can't see how that would work.
An ON/OFF switch connected as such would bypass the ignition switch when the oil valve is 'ON' but it wouldn't prevent the engine from being started with the valve 'OFF'.
That's as I'd expect. The red "ignition" light is a charge warning light so it's not part of the actual ignition circuit.
That key position is Parking Lights so there should be no sparks at that key position, but as I said, connecting the valve switch between terminals 1 and 2 would bypass the ignition switch when the valve is open.
There's no connection between any of the ignition switch terminals that would, and there are only 4 terminals on the standard ignition switch.
Yes, there are only four connections on the ignition switch; three are double connections and one is single. I can see numbers 1, 2, 4, and 5, but no number 3.
I am disappointed that the oil cutoff valve with the two wires cannot be configured to disable the spark when the valve is in the off position.
Note that your bike may not have the original Lucas 4 position switch. My Emgo replacement switch has a different connection path despite being sold as a replica of the Lucas part.

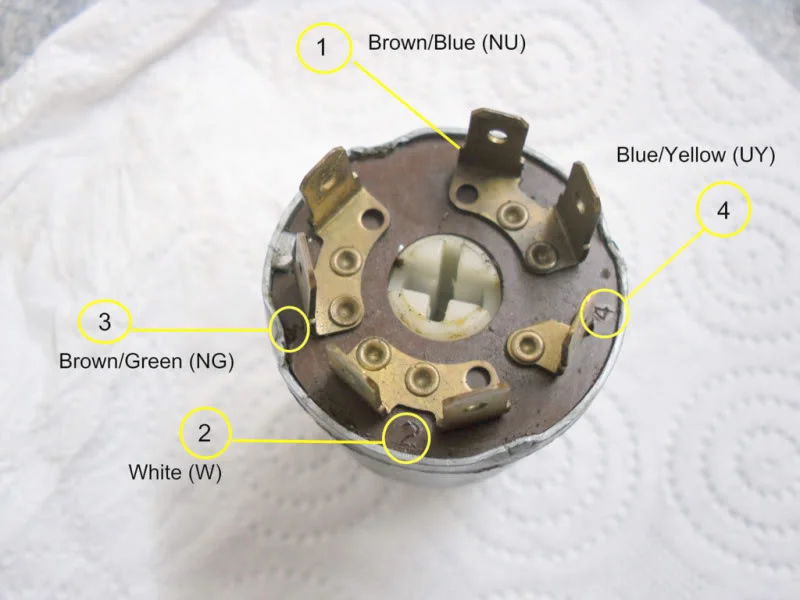

Anyway, no matter what you have, the best thing to do is pull out your volt meter and/or test lamp and check what wire goes hot when in the " Run without lights" switch position....that is the one you want to pull off, connect to your anti wet sump valve switch. (This was the white wire on my '74 850...check your schematic diagram). Then take the remaining wire from the AWSV and place it where you pulled the first one off the ignition switch. This puts the valve switch in series to the ignition circuit...current can only reach ignition if the valve switch is closed (which should only be happening when the valve is open to oil flow). Test everything to be sure.
I made up my own manual valve (using a 1/2" stainless ball valve in a brass casing from a hardware store) and fitted a normally closed 12v push button switch to the brass valve such that the operating arm pushes the switch button to open circuit when the valve is in closed position.
Works a treat.
Are you sure that "5" isn't a "3"?
Yes, it can, but not according to the instructions you were given by the valve supplier!
See Tornado's previous post for one option as connecting the cut-out switch wires between terminal 2 and the wire that normally connects to it (white) would do it (and also cut out other electrics such as the red warning light, brake light, horn and direction indicators).
An alternative would be to wire the switch into just the ignition circuit (so only the ignition is disabled but not the other electrics).
More information on that can be given if you need it.
