Hi,
I have just purchased one of these devices for my commando but it doesn't come with any wiring diagram or anything, so if anyone on here has fitted one I would appreciate you advice on how you wired it up.

Cheers
Paul


MK3 engine oil change with an ant-wet sumping valve

lol LOL until it goes boom!
www.accessnorton.com www.accessnorton.com

Engine & Transmission :: Engine Upper :: Oil Feed Pipes :: Anti Wet Sump Oil Pipe Tap With Switch - Magneto or Coil Ignition Systems

Anti Wet Sump Oil Pipe Tap With Switch - Magneto or Coil Ignition Systems A solution to a frequent problem of wet sumping. Available in two types - please selection option MAG TYPE: Magneto ignition engines - closed circuit - Tap OFF (to earth the magneto
www.feked.com www.feked.com
For which type of ignition system, points or electronic (if so, which type)?

L.A.B. said:

MK3 engine oil change with an ant-wet sumping valve

lol LOL until it goes boom!
www.accessnorton.com www.accessnorton.com

Engine & Transmission :: Engine Upper :: Oil Feed Pipes :: Anti Wet Sump Oil Pipe Tap With Switch - Magneto or Coil Ignition Systems

Anti Wet Sump Oil Pipe Tap With Switch - Magneto or Coil Ignition Systems A solution to a frequent problem of wet sumping. Available in two types - please selection option MAG TYPE: Magneto ignition engines - closed circuit - Tap OFF (to earth the magneto
www.feked.com www.feked.com
For which type of ignition system, points or electronic (if so, which type)?
Click to expand...
Hi,
I have got a tri-spark ignition system fitted.

Cheers
Paul

Dukepaul said:
I have got a tri-spark ignition system fitted.
Click to expand...

"Coil Type explained: Simply use the two wires on the switch to interrupt the power supply to your ignition system. This can be wired in series with the coil low tension wire, or a power feed wire to the ignition switch (care with amperage use) or a power feed to the electronic ignition unit."

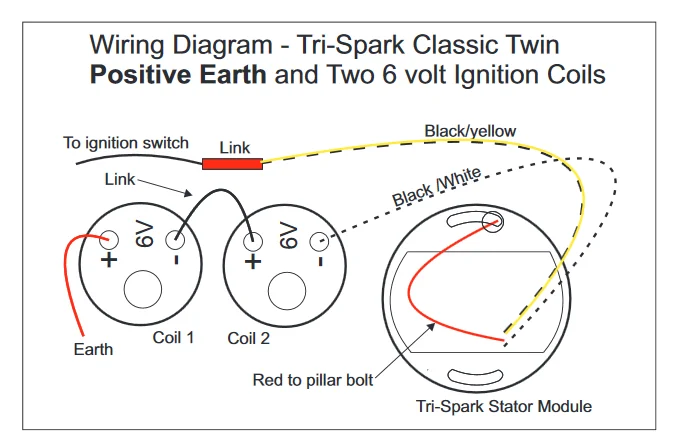

Feked anti-wet sump valve and switch

Ok, so (assuming it is standard positive earth), disconnect the Tri-Spark black/yellow from whatever 'ignition switch' (actually, kill button) wire it is connected to which can be a white/yellow or a white/blue (or white if the kill button has been bypassed) and connect the valve between those two wires. It may be necessary to extend the valve wires to do so.

Last edited:
L.A.B. said:
"Coil Type explained: Simply use the two wires on the switch to interrupt the power supply to your ignition system. This can be wired in series with the coil low tension wire, or a power feed wire to the ignition switch (care with amperage use) or a power feed to the electronic ignition unit."

Feked anti-wet sump valve and switch

Ok, so (assuming it is standard positive earth), disconnect the Tri-Spark black/yellow from whatever 'ignition switch' (actually, kill button) wire it is connected to which can be a white/yellow or a white/blue (or white if the kill button has been bypassed) and connect the valve between those two wires. It may be necessary to extend the valve wires to do so.
Click to expand...
Thanks, I will give that a go.

I connected my DIY AWS manually actuated valve micro switch to the power feed going to the ignition switch. Just unplgged the spade connector at the ign switch, plugged that onto one side of micro switch, took other wire from micro switch to the now unoccupied connection at ign switch. Done.

Tornado said:
I connected my DIY AWS manually actuated valve micro switch to the power feed going to the ignition switch. Just unplgged the spade connector at the ign switch, plugged that onto one side of micro switch, took other wire from micro switch to the now unoccupied connection at ign switch. Done.
Click to expand...
That is what I would do if I had the switch part on my dangerous manual kaboom ball valve. Kill the ignition at the source. (Recommended smiley face. :))

After checking Feked website, your valve is sold about 15 pounds.
Please, prepare yourself to spend 1000 pounds to rebuild your engine, for your valve stuck. It is up to you...

Sergio said:
After checking Feked website, your valve is sold about 15 pounds.
Please, prepare yourself to spend 1000 pounds to rebuild your engine, for your valve stuck. It is up to you...
Click to expand...
How can a manually operated valve get "stuck" in a closed position and not have the ign interupt also in the open/ign off position? That's just not going to happen.

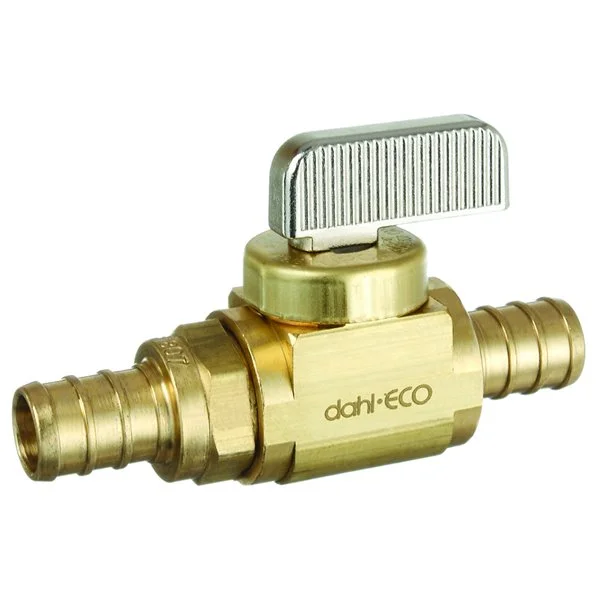

Here is what I"m using

Feked anti-wet sump valve and switch


I fitted the ign defeat switch using a bit of alu flat, drilled to fit over one of the barbs, epoxied in place. Works great, looks discreet.

Last edited:
Personally I would not trust these so called "automatic" anti drain valves, but on the other hand I do not see how a manual operated valve could get "stuck "in the closed position, also a electric ignition inhibit circuit on the manual valve will add extra safety.

This is a matter of personal preference. It would be nice to have one if there was no worry involved. I do not have the Strength of Character to use one even though I have an Oil Pressure Gauge installed. My Moral Shortcomings are obvious.
Frankly I worry about another break in the ignition circuit, not so much at start but as I ride.

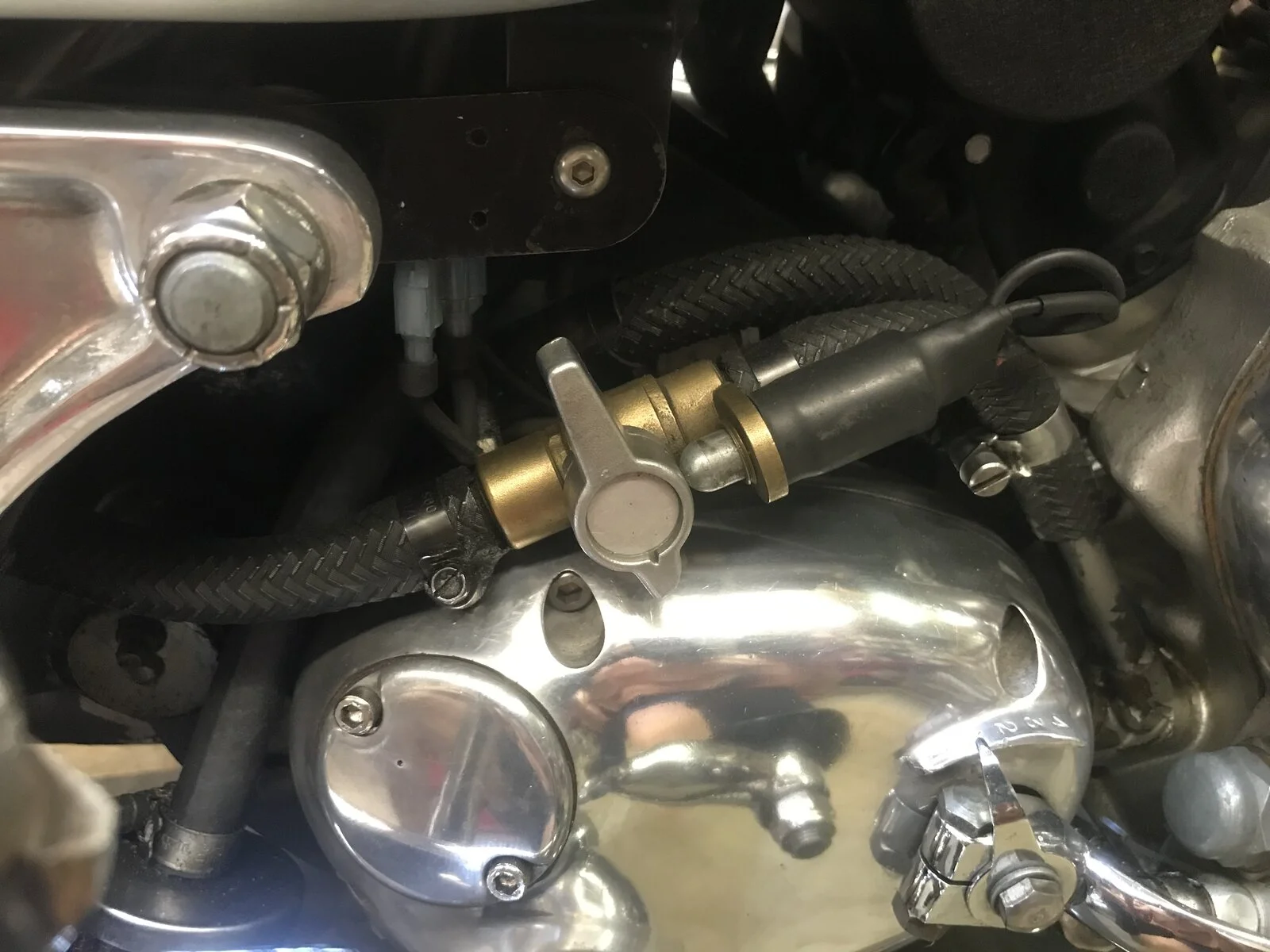

I have used this one from IronJohn now for 6 years now.I have it wired directly from the battery to the ignition switch so it shuts off all power to the bike.No problems.


Attachments

  • Feked anti-wet sump valve and switch
    236.4 KB · Views: 532
One wire battery pos ,one wire coils earth . Will not start until oil is flowing, simple and safe .

The switch fitted to the Feked valve is very tiny, I would recommend fitting a relay in the circuit.

@Dukepaul I use the Feked valve with switch that you mention - it works well, and I am pleased with it.


Someone on the Facebook group recently suggested wiring it in to the horn instead of the ignition system which I thought was a brilliant idea, and something I definitely plan to do over the winter months.

I thought of using a relay, as mentioned by @Peter R but decided against it, as I didn't like the idea of relying on a minature relay coil being energised to power my ignition circuit - just seemed like another point of failure and needless complexity to me.
