Pictures of your Norton Commandos

madass140 said:
Pictures of your Norton Commandos

Pictures of your Norton Commandos

Pictures of your Norton Commandos

Pictures of your Norton Commandos

Pictures of your Norton Commandos

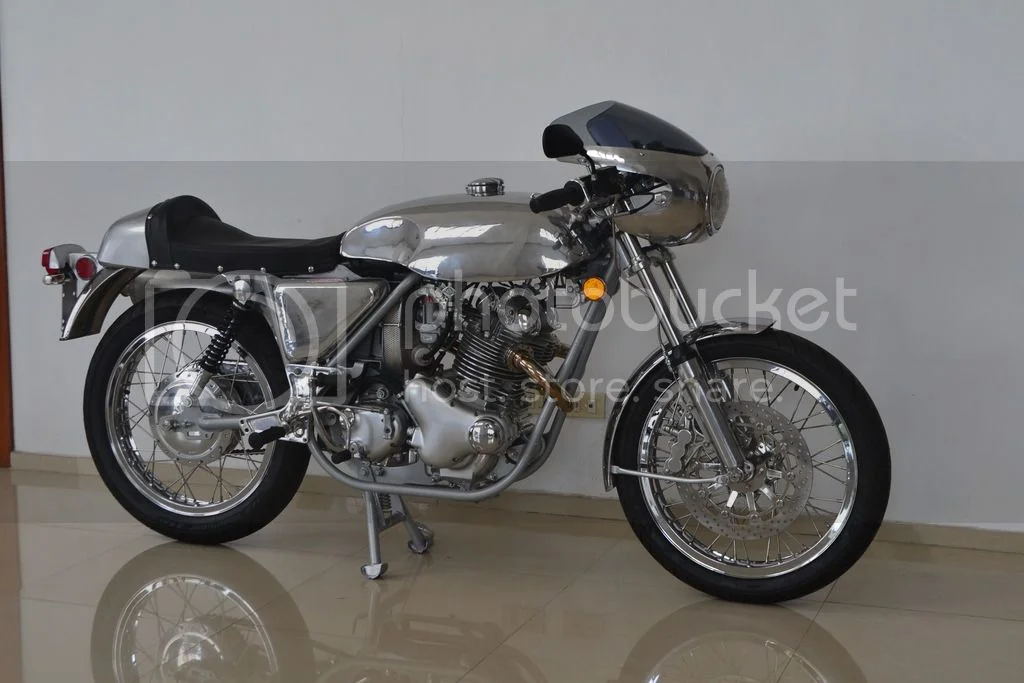

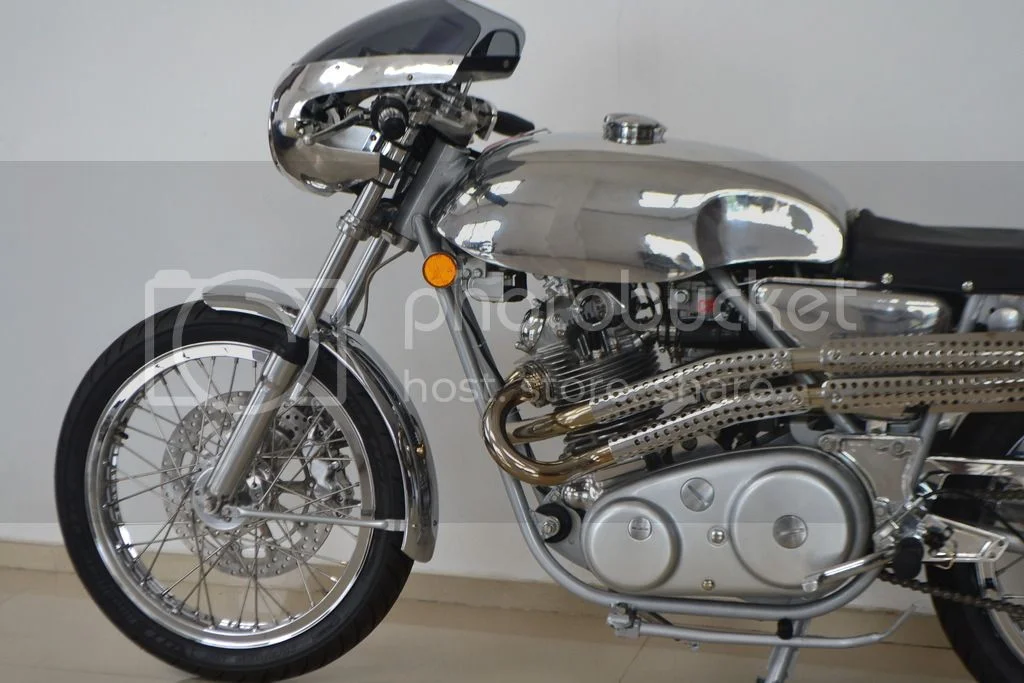

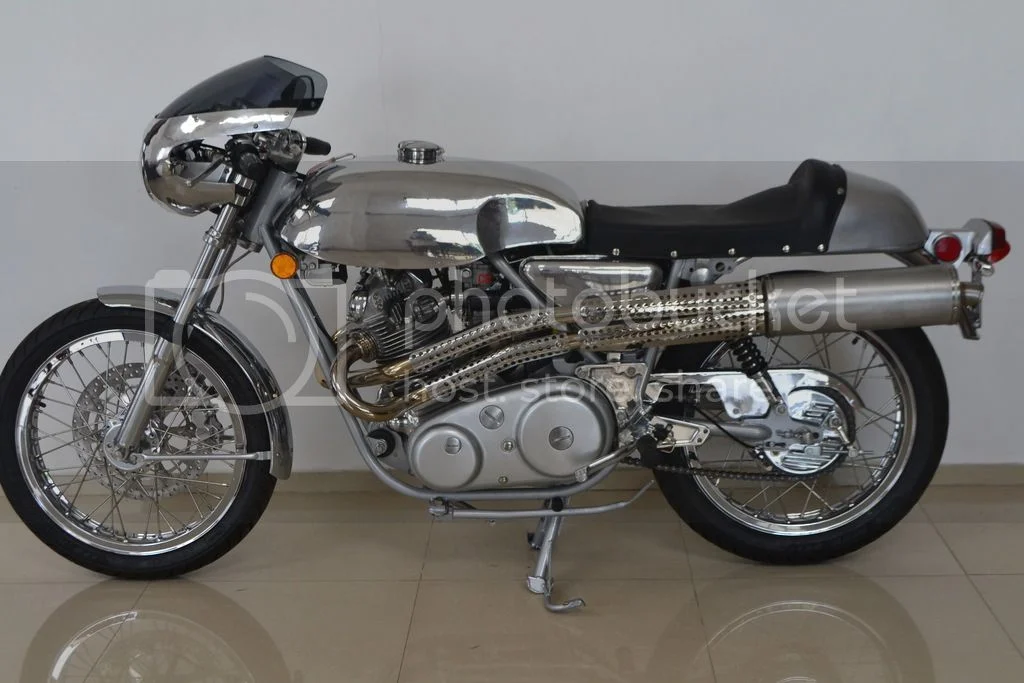

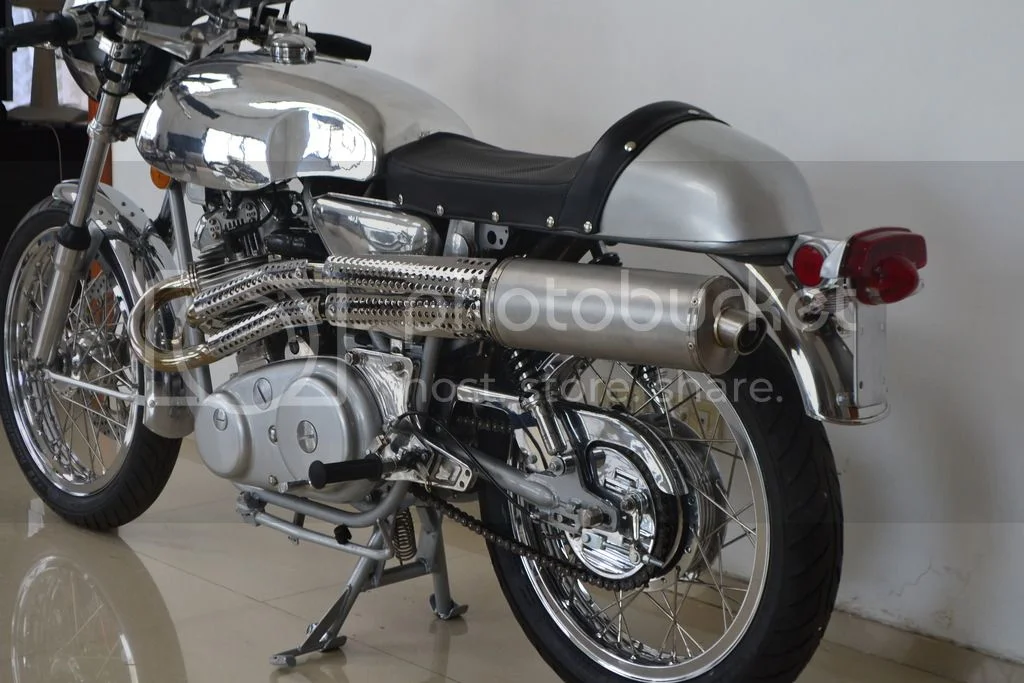

Put this together using a lot of my own production parts and a few one offs specifically for this project.
Genuine Norton parts consist of engine,tranny, 850 frame, eng mounts, strengthened swingarm,left fork slider, outer primary cover, early chainguard,fenders, stands, battery carrier Lucas 5-3/4" headlight and Lucas switch blocks.
My parts: my new rear cushdrive hub assembly, alloy brake,front replica disc hub, 320mm x 6piston brake kit,slider 1/2" M/cyl etc, alloy fork yokes,
clipon's,tank, sidecovers ,seat and taillight fairing WM3 x 19" flanged chromed alloy rims, stainless spokes. 1-1/2" stainless headers and stainless nuts.
my billet steel conrods (balanced 65%), lower left reedvalve block, rearsets, alloy fork damper tubes, inlet manifolds, air filter backing plate, Dave Taylor type head steady. rear shocks (a bit longer), dual adjusters on the tranny.
Other mods: Dunstall 810 cylinders,c/case breather mod,Comnoz reco'd head, Megacycle 560-00 cam,my billet steel rods, 33mm CRs carbs, shortened air filter,Alton Elec start,RGM belt drive in 7oz oil (mainly for the starter sprag), Daytona 1st gear set,clutch pushrod seal, TriSpark Ignition,Podtronics Reg, Harley coil ,Legendary Cycles electronic "Norton" instruments,vernier Iso's,MotoBatt battery, Leo Vince Superbike muffler shortened.

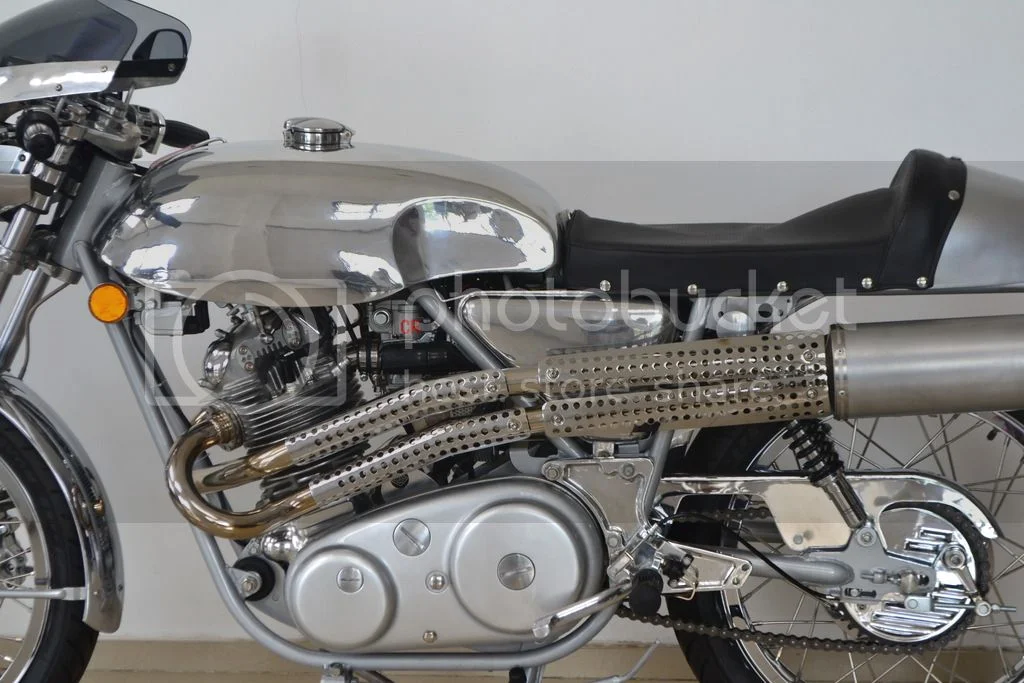

Muffler is actually mounted to the gearbox cradle ( a bit tricky)
My poor pics really dont do the bike justice, anyway it'll be a fun ride, come in at 380LBS dry
Click to expand...

:D Very nice. Our kit looks great with that outer casing. Thanks :D

:D Looks great! Thanks for fitting our kit :D
ntst8 said:
On the road again - PW3 cam, Alton starter, Hydraulic Clutch and Brembo Master Cylinder plus new switchgear added. :D
Recesses for the buttons on the carrier on the Norvil floating disc built up and machined correctly, carrier hard anodised. The recesses for the buttons were oversized ex factory it seems. :shock:
Click to expand...

Don,

Simply stunning! I like to see something new now and then, and the silver finish on the timing and primary cover is clever and looks sharp! Kudos!

Would love to post a picture of my mk3 fastback but am defeated by the site, so how does one do it? Interesting thing is the fairing, Its an Avon and I rode down to
wiltshire and bought the last one before the factory closed. It was initially developed for the Velocette 24hr record holder and was slightly modified to fit the Commando.
Avon did all the fibre glass for the Norton factory . Gives 10-15 mph on top end makes 90mph cruising a doddle - and you keep your feet dry!

Post your pics to a free photo hosting site like photobucket etc,
and then use the link to it inside the
Pictures of your Norton Commandos
markers to make it display here.

Could you order the fairing fitted from new through the Dealer, or is it added afterwards by the owner, or Dealer.
Old time pics show a lot of variations of fairings back then, not surprising given the English weather,
which have mostly vanished over the ensuing decades...

Thanks... will try that You could have ordered Norvil components and had them dealer fitted- This was the fairing supplied with the production racer . In practice probably only the sporting and custom bike dealers would have been prepared to do this. Dunstall did his own fairings ,as did Gus Kuhn . These came complete with fitting kits and could have been specified on a new bike. The Avon Fairing I first saw at the Racing and Sporting Motor Cycle show whose stand it was on not sure. The one fitted to my bike I rode down to the Avon factory and fitted in situ. They supplied a basic fitting kit , a fairing frame for the upper and brackets for the lowers. Its three piece . The perspex nose cone could be unscrewed and a solid glass fibre one put on . The idea was you could then go straight out on the track for pr events. I have never seen one on another Commando since. On Velo Thruxtons yes this is the fairing originally developed for the 24hr event and supplied for Nortons with different fittings.
Apparently it was developed in a wind tunnel the screen being adjusted shaped and angled so that water just blew straight over.

CanukNortonNut said:
needing said:
Winter riding in the countryside. Green is winter, brown is summer. :D
Ta.
Click to expand...
Nice to see a traveler. What is the range on the Roadster tank with your modified Amals?
Cheers,
Thomas
CNN
Click to expand...
Getting 50.5 mpg. Filling up before I find the true range. :D
Ta.

Hi Thomas CNN.
Home again. The mid-trip mpg I quoted above was for US gallon (damn you Google default).
The final figure is 58 miles per Imperial (UK) gallon.
If a Roadster tank is 3 Imp gallons then my calculated range is 174 miles (i.e. in Oz talk = 20.53 km per litre with a 13.5 litre tank for a range of 277 km).
Ta

Mighty clean & shiny bike, Dave.

If it runs anywhere near as nice as it looks, you must sure enjoy that bike!

Mine with Steve Maney exhaust system fitted

Thought I'd post some pics of mine in its current cafe racer guise cw the loaned Steve Maney racing exhaust...

Pictures of your Norton Commandos


Pictures of your Norton Commandos


Pictures of your Norton Commandos


Pictures of your Norton Commandos

Re: Mine with Steve Maney exhaust system fitted

that is simply a beautiful bike.

Fast Eddie said:
Thought I'd post some pics of mine in its current cafe racer guise cw the loaned Steve Maney racing exhaust...

ket.com/user/Bonkersbosley1/media/image.jpg1_zpsct84u2ew.jpg.html]
Pictures of your Norton Commandos
[/url]
Click to expand...

Re: Mine with Steve Maney exhaust system fitted

Fast Eddie said:
Thought I'd post some pics of mine in its current cafe racer guise cw the loaned Steve Maney racing exhaust...
Click to expand...
Just gorgeous!

i notice the carbs aren't original & dunno if maney offered a street exhaust, but guessing no, does the maney work on a stock engine?

84ok said:
i notice the carbs aren't original & dunno if maney offered a street exhaust, but guessing no, does the maney work on a stock engine?
Click to expand...

I don't know how a Maney exhaust would work on a stock motor.
I would point out though, that they are a racing system, designed with race cams etc in mind .
But I'd also point out that they are not available any more anyway!
