New (to me) Dominator

Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
14,972
Country flag

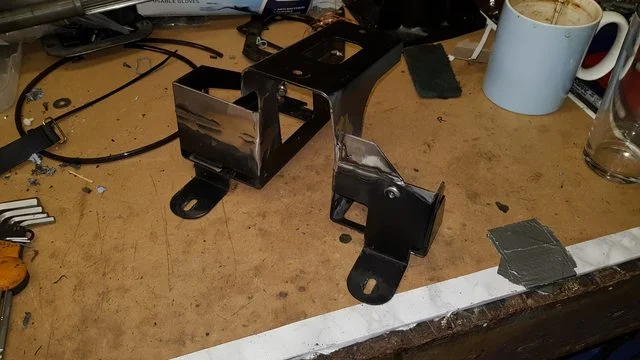

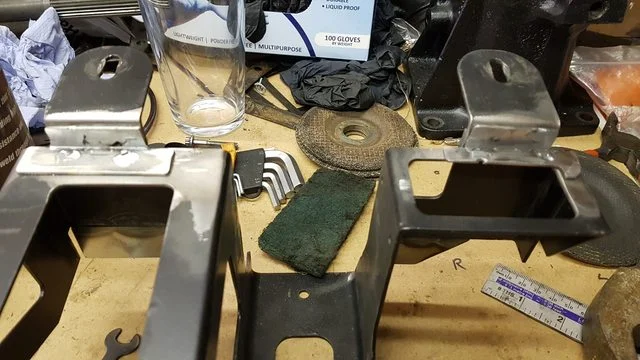

The two smaller parts in place:

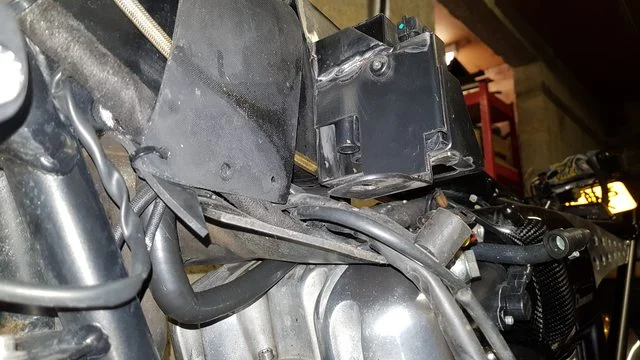

Test on the bike..

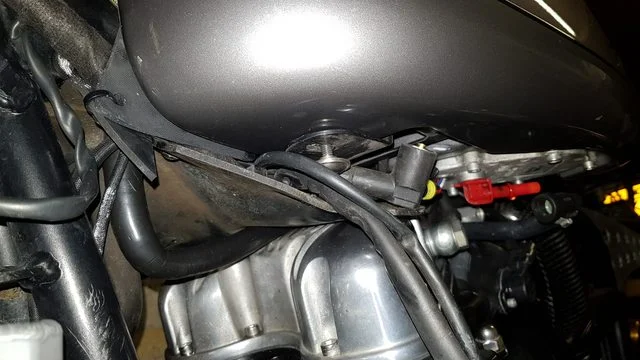

and finally with the tank and making sure the mounting screws still fit

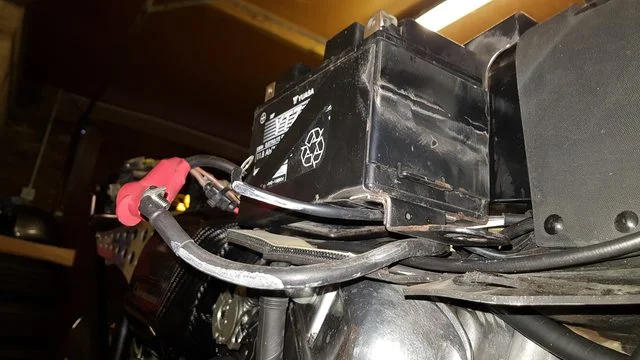

I wanted to keep the rear flush, as the battery and the coil mount right up against my new plates

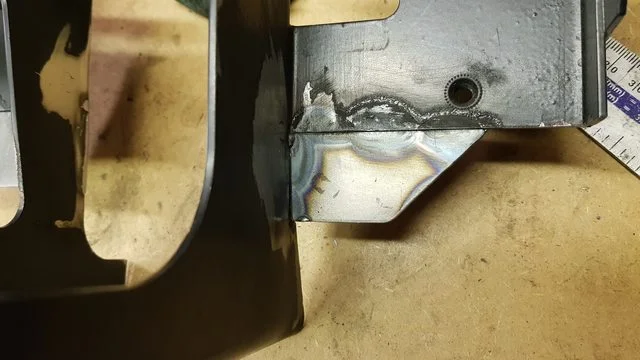

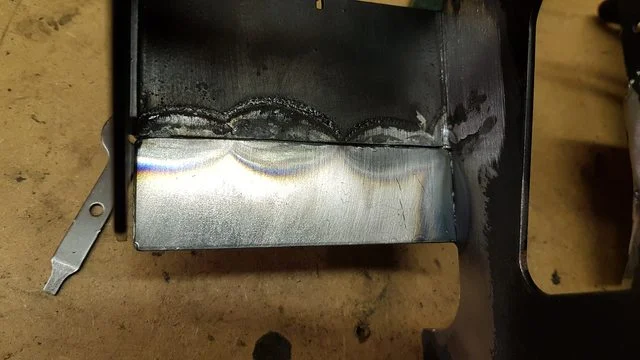

Closer inspection seems to indicate reasonable weld penetration, but might run a couple of weld seams here and grind right back to flush.

Pretty much done!
Seems to me your bike is in good hands !


Vernon240

VIP MEMBER
Joined
Mar 18, 2021
Messages
163
Country flag

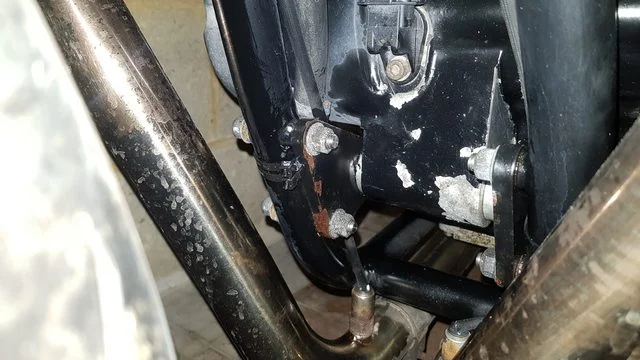

Have a few things on order, so while I'm waiting, I wanted to take a look at this area, as it annoys me:


I want to clean up the engine mounts, clean up and repaint the front of the engine and replace those locking nuts. The socket bolts are A4 stainless, so are ok..slightly surprised to find A4 hardware, but I guess they are OK in this application.

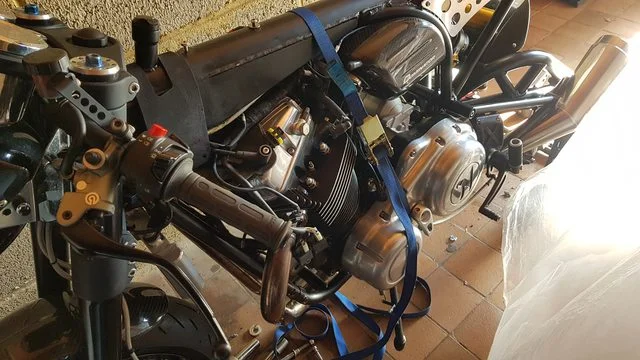

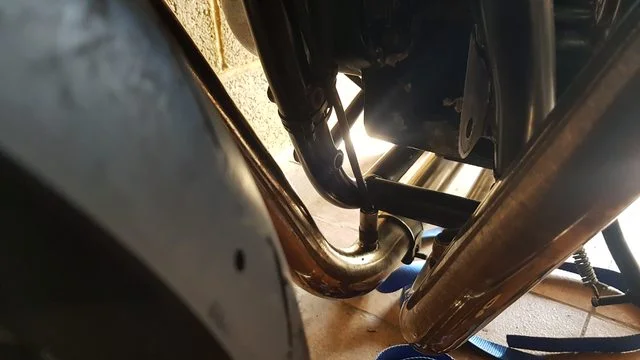

Engine supported, just in case this is needed..there are two mounts at the back, but want to add extra support while I removed the front engine mounts.

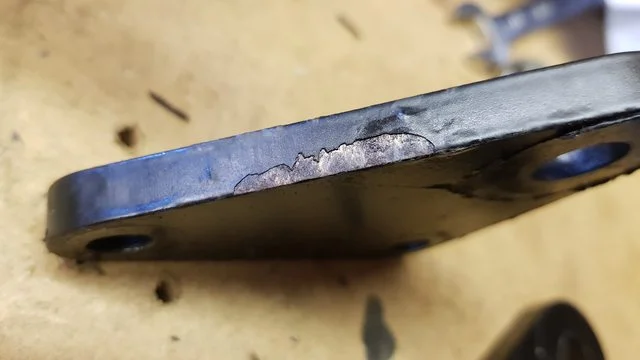

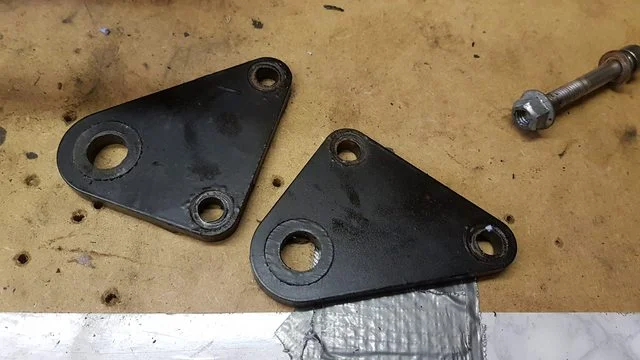

This is why I'm not a fan of powder coating..at least in impact areas. Typically it doesn't have a primer..although I know some process do...but once chipped/damaged, rust starts and the powder coat flakes off. Looks like a laser cut plate though!


Joined
Jan 16, 2015
Messages
3,894
Country flag
Have a few things on order, so while I'm waiting, I wanted to take a look at this area, as it annoys me:


I want to clean up the engine mounts, clean up and repaint the front of the engine and replace those locking nuts. The socket bolts are A4 stainless, so are ok..slightly surprised to find A4 hardware, but I guess they are OK in this application.

Engine supported, just in case this is needed..there are two mounts at the back, but want to add extra support while I removed the front engine mounts.







This is why I'm not a fan of powder coating..at least in impact areas. Typically it doesn't have a primer..although I know some process do...but once chipped/damaged, rust starts and the powder coat flakes off. Looks like a laser cut plate though!

Looks like salt damage ?


Voodooo

VIP MEMBER
Joined
Aug 10, 2016
Messages
1,382
Country flag
Have a few things on order, so while I'm waiting, I wanted to take a look at this area, as it annoys me:


I want to clean up the engine mounts, clean up and repaint the front of the engine and replace those locking nuts. The socket bolts are A4 stainless, so are ok..slightly surprised to find A4 hardware, but I guess they are OK in this application.

Engine supported, just in case this is needed..there are two mounts at the back, but want to add extra support while I removed the front engine mounts.







This is why I'm not a fan of powder coating..at least in impact areas. Typically it doesn't have a primer..although I know some process do...but once chipped/damaged, rust starts and the powder coat flakes off. Looks like a laser cut plate though!

100% agree about the lack of powder coating. Another problem is some places don’t even sand blast before powder coating. Makes the surface less to adhere too


Vernon240

VIP MEMBER
Joined
Mar 18, 2021
Messages
163
Country flag
Looks like salt damage ?
Highly likely, we salt our roads here. I normally coat my bikes in ACF50 for the ones I'll ride through the winter...just one really....so I'll need to abrade this back to a sound base before applying paint on the block. The plates will be blasted and painted, the nuts replaced! It will transform this area. The sensor will be checked as well, plus new retaining bolt.


Vernon240

VIP MEMBER
Joined
Mar 18, 2021
Messages
163
Country flag
The guys at CNW have come through though! vent kit, some tools and a battery matt...all for my vintage motorcycle!



Voodooo

VIP MEMBER
Joined
Aug 10, 2016
Messages
1,382
Country flag
Highly likely, we salt our roads here. I normally coat my bikes in ACF50 for the ones I'll ride through the winter...just one really....so I'll need to abrade this back to a sound base before applying paint on the block. The plates will be blasted and painted, the nuts replaced! It will transform this area. The sensor will be checked as well, plus new retaining bolt.
Do you guys have POR 15 available where you are in the world?



Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
14,972
Country flag
This is the stuff that magazines and internet videos score highest in the U.K.:


I recently did a rather more amateurish test myself and found the same result for XCP Rust Blocker. ACF50 appeared to be not much better than WD40 to me:



Vernon240

VIP MEMBER
Joined
Mar 18, 2021
Messages
163
Country flag
Do you guys have POR 15 available where you are in the world?

Yep, there is a specialist supplier here. I think it’s more for ferrous substrates, but I’m pretty sure they do aluminium primer.


Vernon240

VIP MEMBER
Joined
Mar 18, 2021
Messages
163
Country flag
This is the stuff that magazines and internet videos score highest in the U.K.:


I recently did a rather more amateurish test myself and found the same result for XCP Rust Blocker. ACF50 appeared to be not much better than WD40 to me:


I’ve heard the same....will pick up some....ACF50 is what I have in the garage right now and seems to be doing ok, but xcp does seem to get better reviews now.


MAK

VIP MEMBER
Joined
Mar 15, 2018
Messages
274
Country flag
I’ve heard the same....will pick up some....ACF50 is what I have in the garage right now and seems to be doing ok, but xcp does seem to get better reviews now.
Buy cheap paint sprayer for your compressor and spray bike.
Under the tank and everywhere.
Avoid wheels,brakes footrests.
It will creep.
Let it drip for a while.
Wipe of excess with a cloth. I then use a small paintbrush to dab onto places that are near brakes etc.ACF-50 is good and I apply it once a year. The new XPC range is also very good.


Vernon240

VIP MEMBER
Joined
Mar 18, 2021
Messages
163
Country flag
Buy cheap paint sprayer for your compressor and spray bike.
Under the tank and everywhere.
Avoid wheels,brakes footrests.
It will creep.
Let it drip for a while.
Wipe of excess with a cloth. I then use a small paintbrush to dab onto places that are near brakes etc.ACF-50 is good and I apply it once a year. The new XPC range is also very good.
Yep, exactly what I have. One of those small guns...half a litre capacity or so. I’ve found a little goes a long way! I’m going to get the bike back together with the refurbished parts, then I’ll do exactly that. I’d normally do before winter, but in this case, I think it’s good advice to do now. I keep hearing good things about xcp. Is it the same, as in you can spray it everywhere, excepting wheels, tryres brakes and controls?


cliffa

VIP MEMBER
Joined
May 26, 2013
Messages
2,018
Country flag
XCP are sponsoring Edd China's new YouTube channel, and he also has a film on their website..



MAK

VIP MEMBER
Joined
Mar 15, 2018
Messages
274
Country flag
XCP are sponsoring Edd China's new YouTube channel, and he also has a film on their website..

I have just bought five litres but have not sprayed it yet,it seems more viscous and should clag on a bit longer ,as we say.
It’s also made in Scotland not China.


Clive

VIP MEMBER
Joined
Jun 9, 2017
Messages
751
Country flag
Hi - I am a great fan of just spraying chain wax around. It's designed to stick and some claim to have rust resistant chemicals. Use it a lot under car bonnet and chassis bits. Also Dinitrol products are great. They do a really good paintable rust converting spray which leaves a protective film. I used to own a Jaguar XKR so have extensive experience in the subject ;)

My current list of bad areas are;

Engine mounts - surely someone can create a CAD file and get some stainless ones made???? Anyone?????
Swingarm hugger mount
Where the rear light bodywork thing screws to the rear frame - water sits in the screw wells?
Under seat cross plate by where air filter top cover screws on.
Wheel spindles as described elsewhere.


Vernon240

VIP MEMBER
Joined
Mar 18, 2021
Messages
163
Country flag
I have just bought five litres but have not sprayed it yet,it seems more viscous and should clag on a bit longer ,as we say.
It’s also made in Scotland not China.
Well, all for buying local. Think I'll order some and try it out!


Vernon240

VIP MEMBER
Joined
Mar 18, 2021
Messages
163
Country flag
Hi - I am a great fan of just spraying chain wax around. It's designed to stick and some claim to have rust resistant chemicals. Use it a lot under car bonnet and chassis bits. Also Dinitrol products are great. They do a really good paintable rust converting spray which leaves a protective film. I used to own a Jaguar XKR so have extensive experience in the subject ;)

My current list of bad areas are;

Engine mounts - surely someone can create a CAD file and get some stainless ones made???? Anyone?????
Swingarm hugger mount
Where the rear light bodywork thing screws to the rear frame - water sits in the screw wells?
Under seat cross plate by where air filter top cover screws on.
Wheel spindles as described elsewhere.
Yep, some stainless would be nice. There might be an engineering company who could copy them as well. I remember passing some drawings to a local company who made some bits for me for another project...might be worth a call when things are open. Solutions are right now, blast and repaint (I've use Halfords truck bed paint...called something like that...it was a slightly textured finish I used on a project as it had to match an existing mount for another bit of kit, but proved to be very hard wearing) but another option might be to have them chromed for some bling, or simply cad plated then painted for protection.

Dinitol really good. Use it inside chassis sections especially..back of Bumpers. I like my crusty Fords as well......although not so crusty now, I want to keep them the way they are!
