961 sensor thread

I've replaced 4 Sensors ( Speed,Temperature,Cam And TPS) so far. The only one with markings on it was the TPS which was a CTS Unit. Does that mean the ones without markings were knockoffs of the real thing ?

Hi , Its hard to say . My bike did not have Bosch sensors from the factory. Is your bike running ok now ?

speirmoor said:
I've replaced 4 Sensors ( Speed,Temperature,Cam And TPS) so far. The only one with markings on it was the TPS which was a CTS Unit. Does that mean the ones without markings were knockoffs of the real thing ?
Click to expand...
It’s a bit of a lottery unless you’re super cautious where you buy - luckilly I’ve only been bitten once with a TPS (no markings at all and clearly a Chinese knock-off).

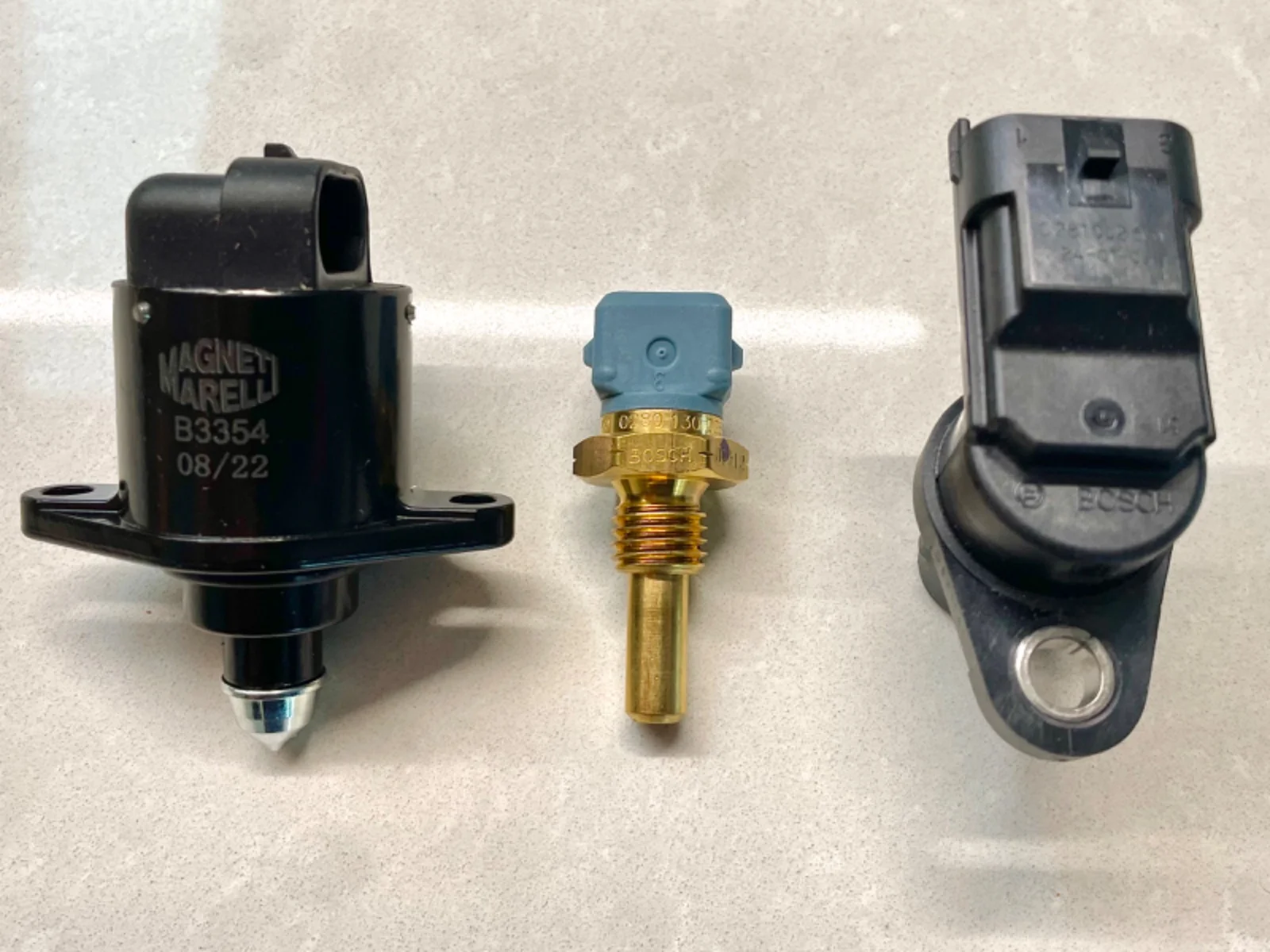

Head temp and Cam (phase) sensor are shown here (along with IAM) - all are marked with OEM detail, as was the packaging. Not what you want to hear mate, but I would be suspicious of any sensor/relay that didn’t have OEM markings. Happy to be proven wrong though if anyone knows better - Tony is certainly more tech savvy than I.


Last edited:
Stephen_Spencer said:
It’s a bit of a lottery unless you’re super cautious where you buy - luckilly I’ve only been bitten once with a TPS (no markings at all and clearly a Chinese knock-off).

Head temp and Cam (phase) sensor are shown here (along with IAM) - all are marked with OEM detail, as was the packaging. Not what you want to hear mate, but I would be suspicious of any sensor/relay that didn’t have OEM markings. Happy to be proven wrong though if anyone knows better - Tony is certainly more tech savvy than I.
Click to expand...
I obtained Genuine Bosch and Marelli for replacement. I meant 3 sensors on the bike from when I bought it new had no manufacturer markings. I'm wondering if these are knock offs? I'll get pix of them later

Also realized last night that I have an air temp sensor on the Domi which will need to be replaced.
I didn't see anything on the Alternate parts list, are we still using the Honeywell ES110-0016 ?

speirmoor said:
Also realized last night that I have an air temp sensor on the Domi which will need to be replaced.
I didn't see anything on the Alternate parts list, are we still using the Honeywell ES110-0016 ?
Click to expand...
Yes , I am using Honeywell .

speirmoor said:
I obtained Genuine Bosch and Marelli for replacement. I meant 3 sensors on the bike from when I bought it new had no manufacturer markings. I'm wondering if these are knock offs? I'll get pix of them later
Click to expand...
Not how I read your post…doh 😄 ! Good news if she’s running better! The knock offs will certainly do as spares.

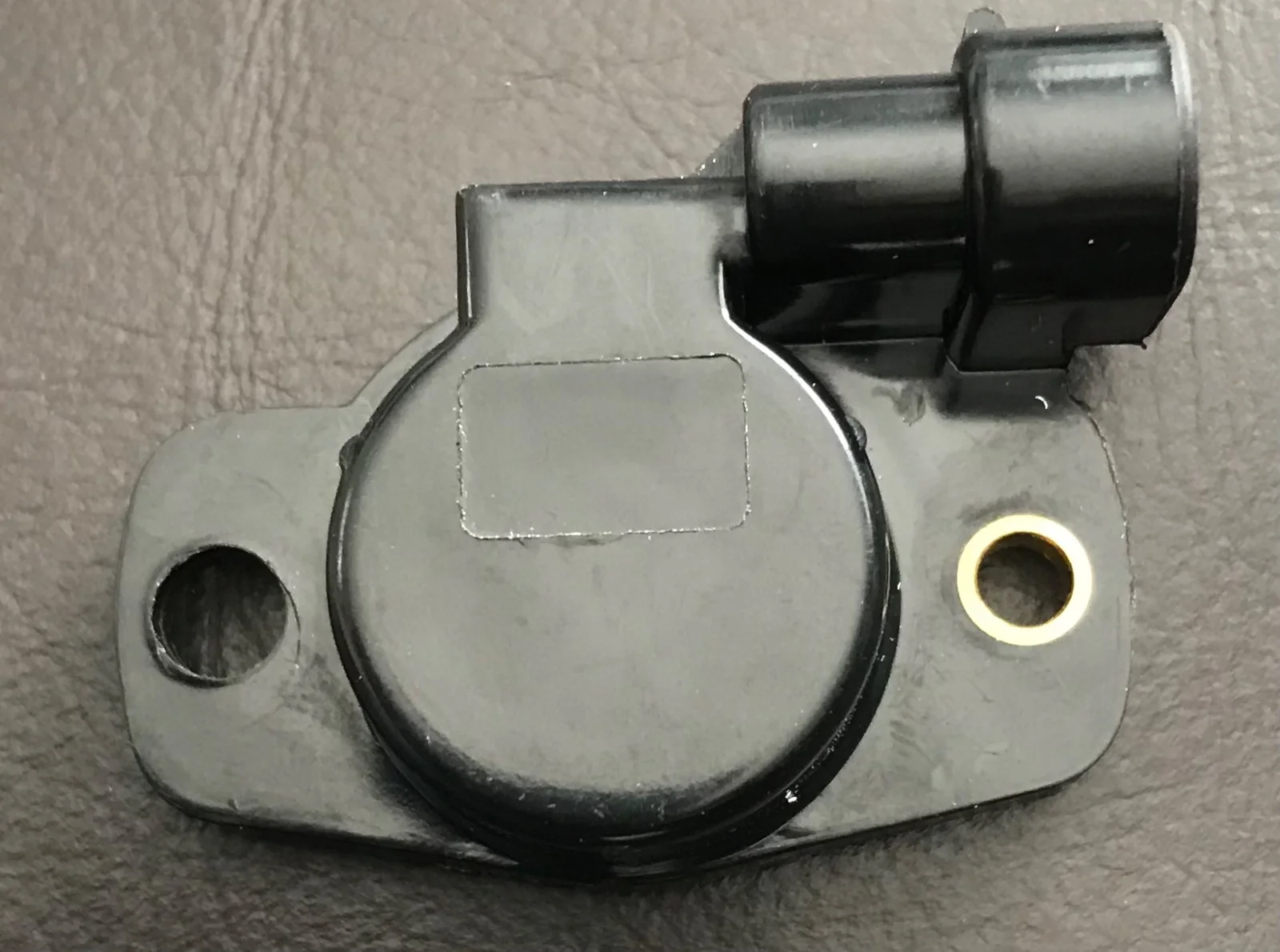

This piece of Chinese junk got Gary out of trouble a couple of weeks ago👍.

961 sensor thread

speirmoor said:
Also realized last night that I have an air temp sensor on the Domi which will need to be replaced.
I didn't see anything on the Alternate parts list, are we still using the Honeywell ES110-0016 ?
Click to expand...
Update for this Honeywell part # is ES110-0001 if anyone else is looking for one. The first # is no longer available

[td][/td]

It depends what supplier you check with. The prices have almost tripled for these. I can still get the ES110-0001 and ES110-0016 . My supplier shows that the ES110-0001 is discontinued but still have stock. Both of these have the correct thread for the airbox fitting. If you don't need the M10 thread then there are more to choose from like I did (no airbox) . The price each is cheaper too if you don't need M10 thread . Here is the spec sheet :

Last edited:

Last edited:
TonyA said:
It depends what supplier you check with. The prices have almost tripled for these. I can still get the ES110-0001 and ES110-0016 . My supplier shows that the ES110-0001 is discontinued but still have stock. Both of these have the correct thread for the airbox fitting. If you don't need the M10 thread then there are more to choose from like I did (no airbox) . The price each is cheaper too if you don't need M10 thread . Here is the spec sheet :
Click to expand...
I may have posted those #'s a bit prematurely as I can't find anyone who has either in stock. Most say back ordered and others discontinued.
What do you think of ES110-0004 ? It has a shrouded thermistor tip vs exposed thermistor tip. These seem readily available and the shrouded tip would be better in an oily mist enviroment

speirmoor said:
I may have posted those #'s a bit prematurely as I can't find anyone who has either in stock. Most say back ordered and others discontinued.
What do you think of ES110-0004 ? It has a shrouded thermistor tip vs exposed thermistor tip. These seem readily available and the shrouded tip would be better in an oily mist enviroment
Click to expand...
It may work OK , I have never tried a shrouded tip. Have you tried on line components ?


TonyA said:
It may work OK , I have never tried a shrouded tip. Have you tried on line components ?

Click to expand...
No I havent, thanks for the lead and I see they have plenty. I've earned more about these Air Sensors in the last 24hrs than one needs to and now I'm interested in finding an alternate with the same specs as our bikes use. I'll let you know how it goes

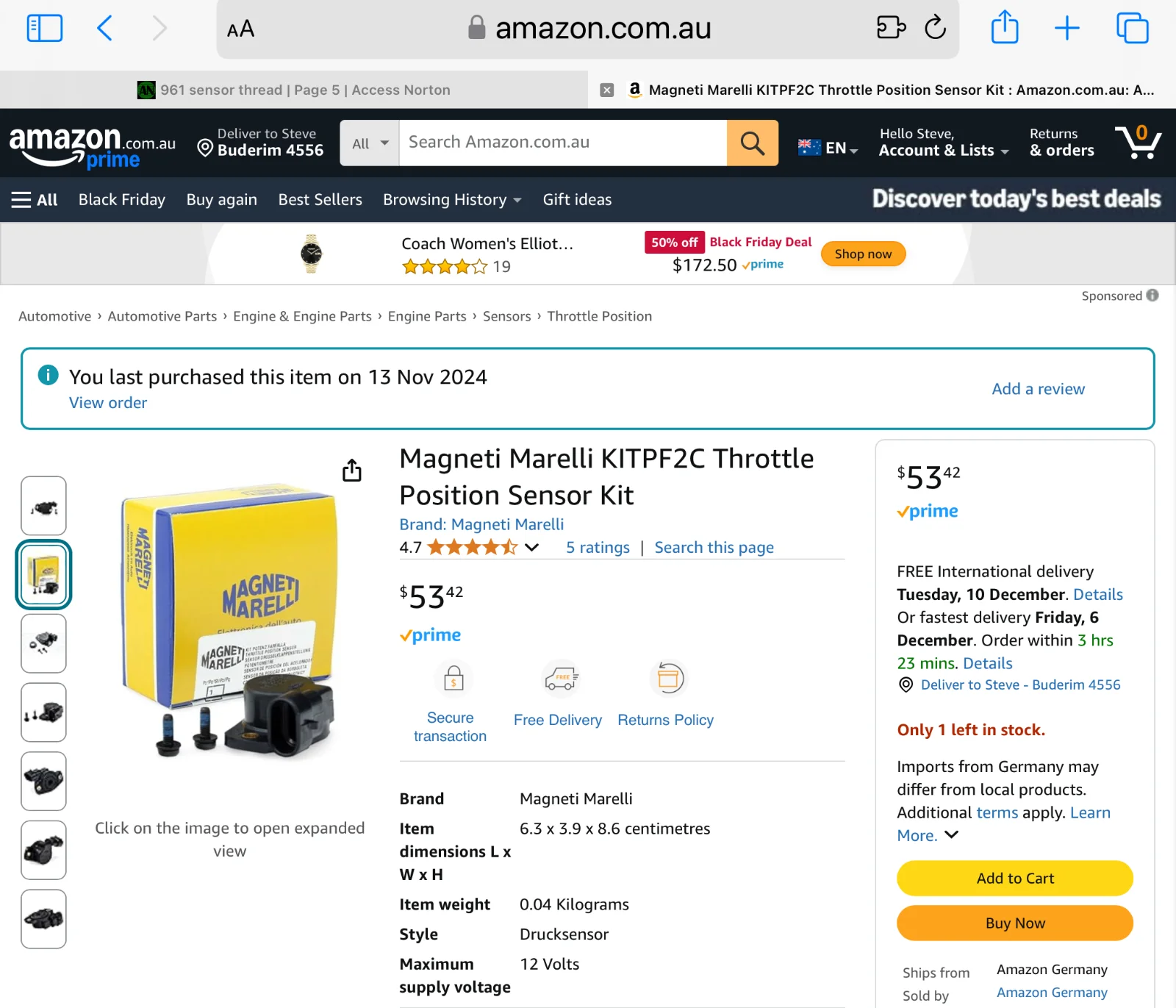

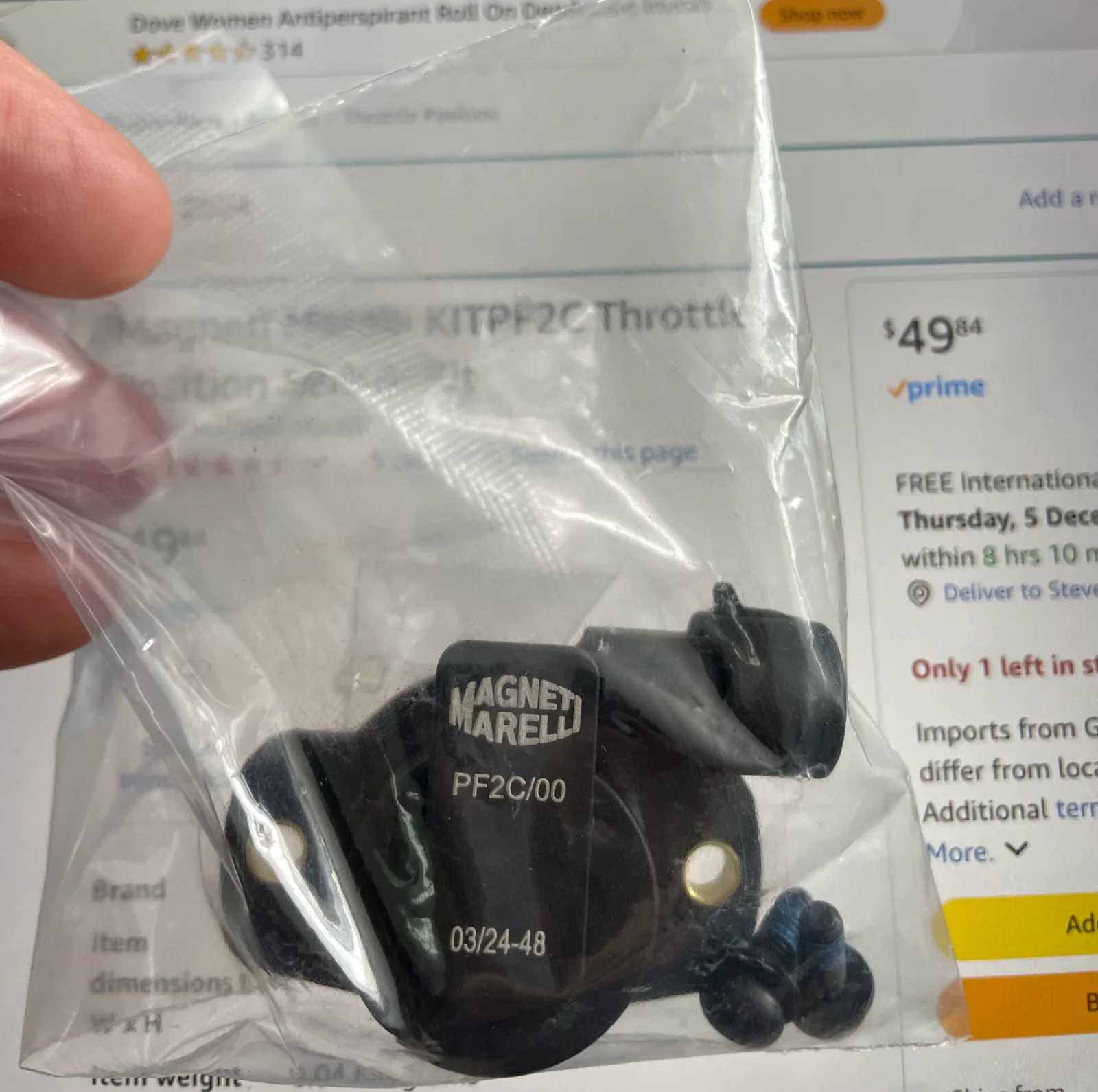

This Amazon supplier is a good source for the TPS. Genuine Magneti Marelli - not the Chinese rip-offs others are peddling as genuine. Good price. Only has one left but worth watching if they advertise further.


IMG_1129.webp IMG_6916.webp

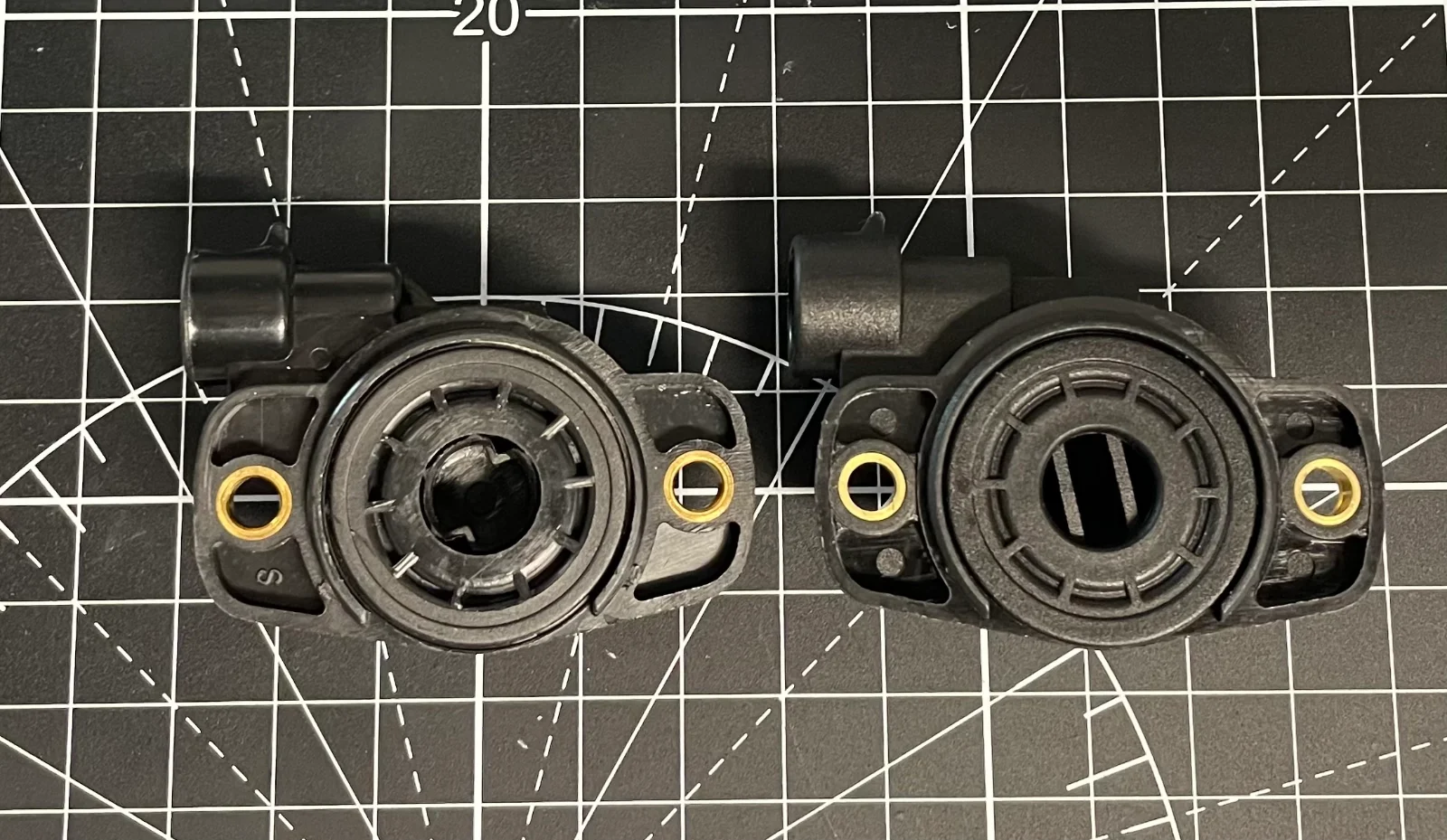

Rear engagement face appears slightly different in configuration. Haven’t tried to fit it - anyone see a problem with the different configuration?


Chiiiiiiinees left - genuine right.

KITPF2C is the same code that I got on EBay earlier this year and it works fine. Mine doesn't have the writing in white. Its a Renault Part #

speirmoor said:
KITPF2C is the same code that I got on EBay earlier this year and it works fine. Mine doesn't have the writing in white. Its a Renault Part #
Click to expand...
The TPS is a bit problematic, mainly because there are so many Chinese copies being advertised as genuine - buyer has no idea until it arrives on the doormat. Same with most of the sensors/relays I guess. Worth recording decent suppliers on this thread.

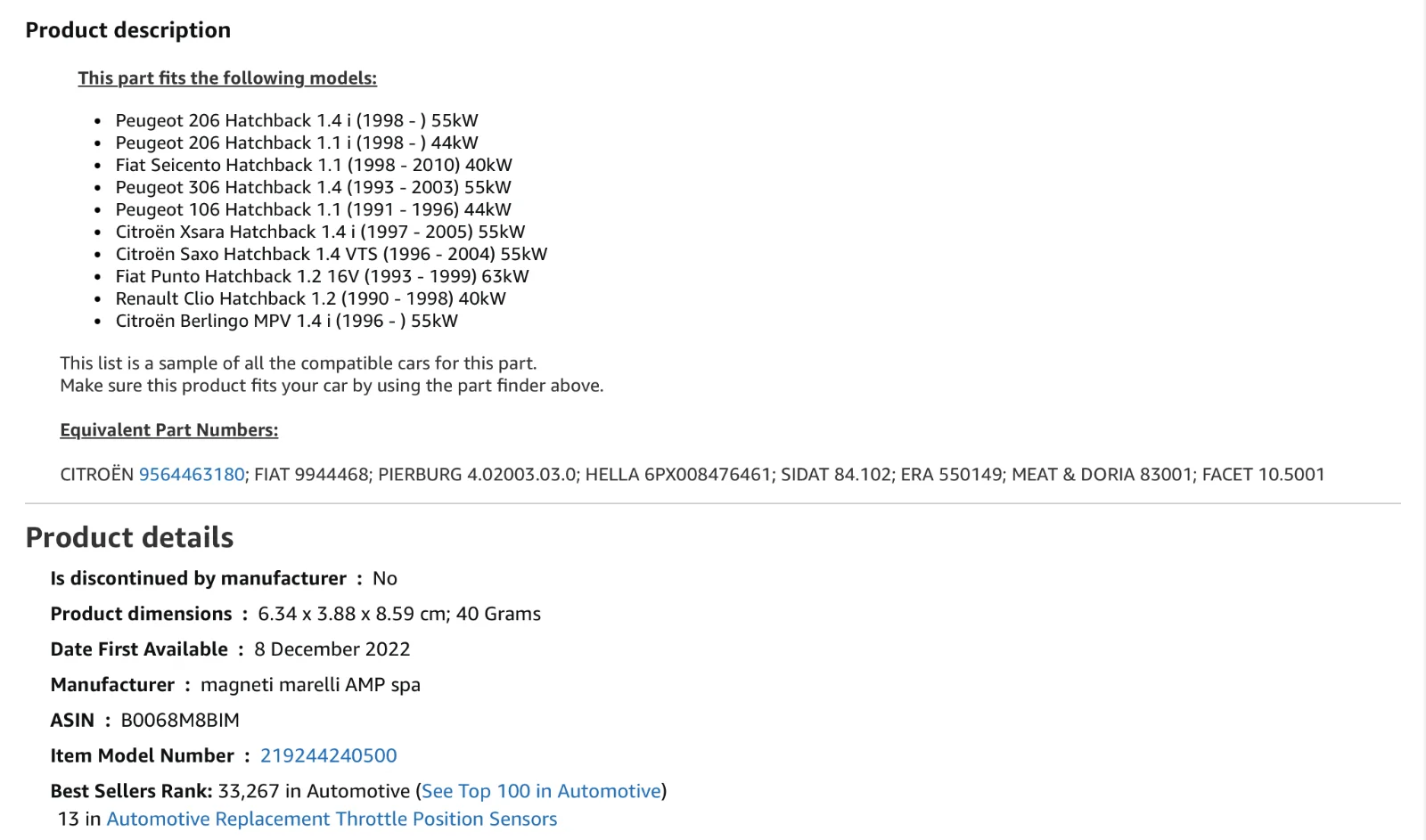

The genuine TPS is MM, but they have this part manufactured under license by CTS (the original make of the TPS on my bike) for a range of other users I’m told. My guess is we could access a genuine item through the parts department of any of the below car dealerships.

Maybe worth making this thread a sticky?
