$129 for the front fender from CNW is too pricey?
https://coloradonortonworks.net/cnw-steel-front-fender.html
You may want to rethink this whole process because if that scares you then wait until you get to the expensive stuff.
https://coloradonortonworks.net/cnw-steel-front-fender.html
You may want to rethink this whole process because if that scares you then wait until you get to the expensive stuff.
- Joined
- Oct 10, 2018
- Messages
- 160
Ive a front fender plus other bits en route from Matt.I get to pay shipping to UK,plus import duties. I bite the bullet and buy the best stuff.The bike deserves it.
- Joined
- Jun 10, 2013
- Messages
- 95

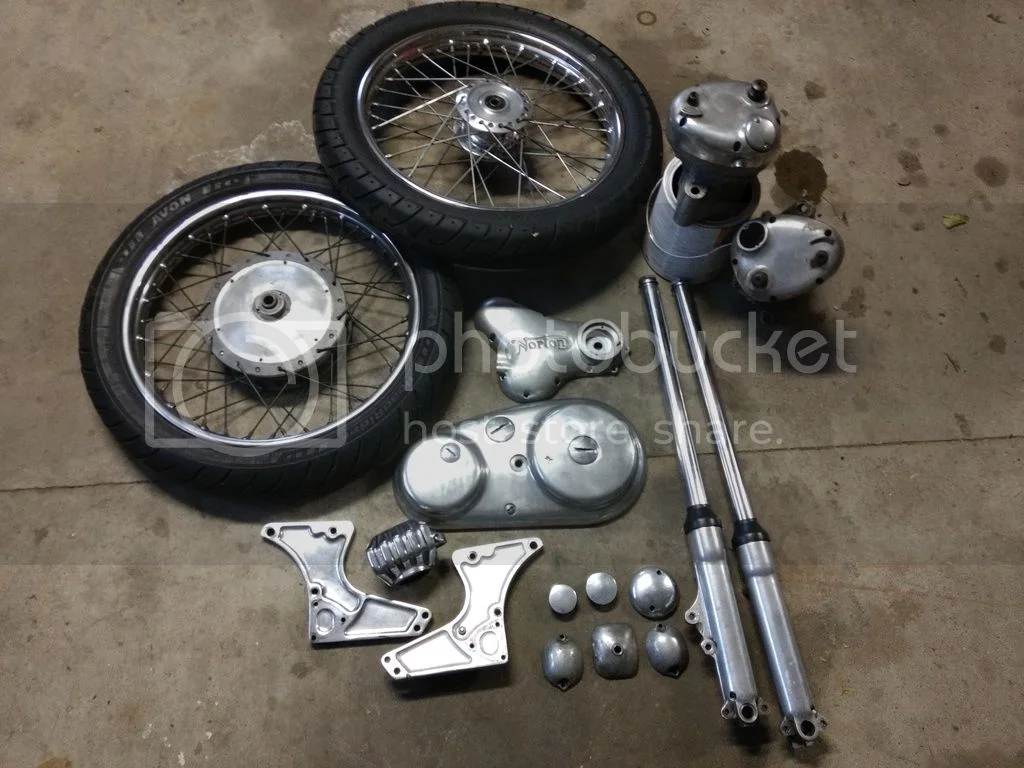

I beg to differ...

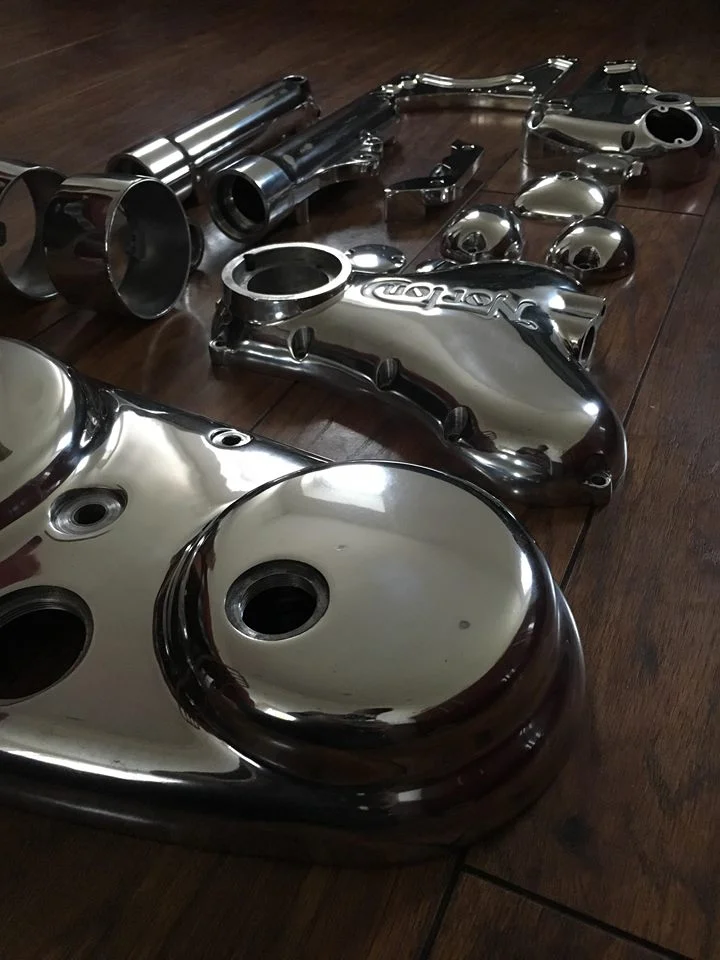

"BEFORE"
"AFTER"
Those parts sparkle. I'm glad you "differed"with me. I thought I had gotten my info from a reliable source. However looking at your before and after pictures has me rethinking.
- Joined
- Jun 10, 2013
- Messages
- 95
Last edited:
- Joined
- Jun 10, 2013
- Messages
- 95
I'm running into issues polishing the brake caliper. The grey compound is sticking and clumping on the surface of the caliper. This clumping prevents the cutting.
What I did to resolve the problem is clean the buffing wheel with the spur tool. I was thinking maybe the wheel was dirty and contaminated from previous jobs. I ran the spur wheel and dressed the wheel with grey compound. This did nothing. As soon as touched the caliper to the wheel the compound clumped on to the surface again.
I'm thinking I may have bad compound,(unlikely), or the caliper is too cold, (temperature) and needs to be warmed up before cutting will take place.
As far as pressure, I'm applying very little pressure and gradually increasing pressure.
I experimented by applying compound and immediatedly applying heavy pressure. Still the compound clumps.
Any thoughts?
Fast Eddie
VIP MEMBER
- Joined
- Oct 4, 2013
- Messages
- 21,594
You need heat, through friction, to melt the compound.
You also need the right amount of compound, too little and it won’t polish, too much and it will clump and streak on the alloy.
A frustratingly tricky process until you’ve got the knack!
You also need the right amount of compound, too little and it won’t polish, too much and it will clump and streak on the alloy.
A frustratingly tricky process until you’ve got the knack!
- Joined
- Nov 11, 2013
- Messages
- 5,396
- Joined
- Jun 10, 2013
- Messages
- 95
Thanks fast Eddie. That is exactly what is happening. The compound is streaking and clumping on the alloy. And Im pretty sure it's because of lack of heat. My garage temp at the time was probably 45 degrees give or take.
The alloy is too cold. I'll bring the alloy in the house to warm up. (Maybe keep it on the woodstove hearth). Then make another go at it.
I have some other metric bike alloys I can practice on.

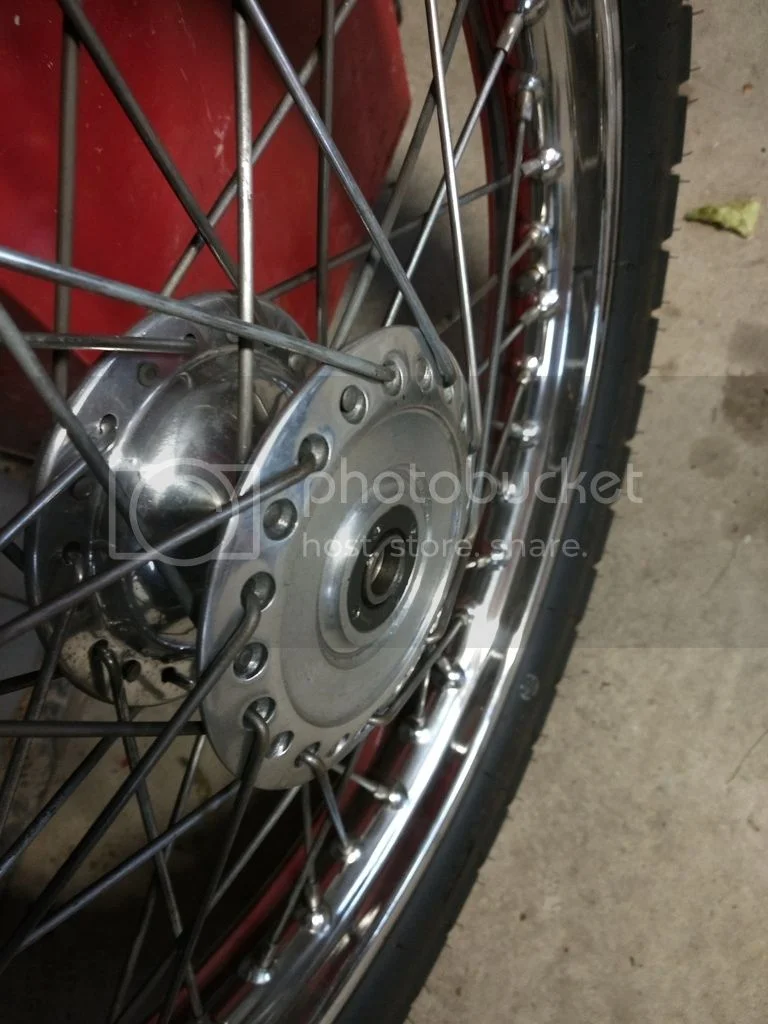

I did the front wheel hub earlier this summer and it turned out well. Rather quick and painless. Heat.....
However, I need er polished it with a loose flannel wheel to give it that deep luster shine. Next time the wheels apart it will get polished again.
Last edited by a moderator:
- Joined
- Jun 10, 2013
- Messages
- 95
"You need heat, through friction, tomelt the compound."
I get that I need heat from friction and is partp of the process. Getting the alloy heated is tricky.
Pressing and Holding alloy to the wheel with or without compound with eventually create the needed heat.
I just don't want to cause damage to the alloy and or wheel while bringing it up to temp.
But I suppose the wheel isn't cutting until the alloy is brought up to temp and compound applied. So probably holding the alloy to the wheel is the way to go.
I won't polish anymore until I have gotten more advice fromfthise more experienced than I.
Shining/buffing metal is an area of interest to me. It's dirty fun.
- Joined
- Jun 10, 2013
- Messages
- 95
Oops I meant alloy.
grandpaul
VIP MEMBER
- Joined
- Jan 15, 2008
- Messages
- 13,585
Just the front brake lever and shifter (it's a '75 model, not alloy on earlier bikes)
- Joined
- Oct 10, 2018
- Messages
- 160
Just paid his invoice.£774.Not cheap, but does a great job,and I trust ihm.
- Joined
- Jun 10, 2013
- Messages
- 95
Those parts came out fantastic looking. Now to get them installed without scratching. Steady and slow.
- Joined
- Jun 10, 2013
- Messages
- 95
Today I took some pics of the engine components (Head and valves, crankshaft, rocker arms, and bearings, swingarm spindles, casings). Also, a picture of the new swingarm spindle.

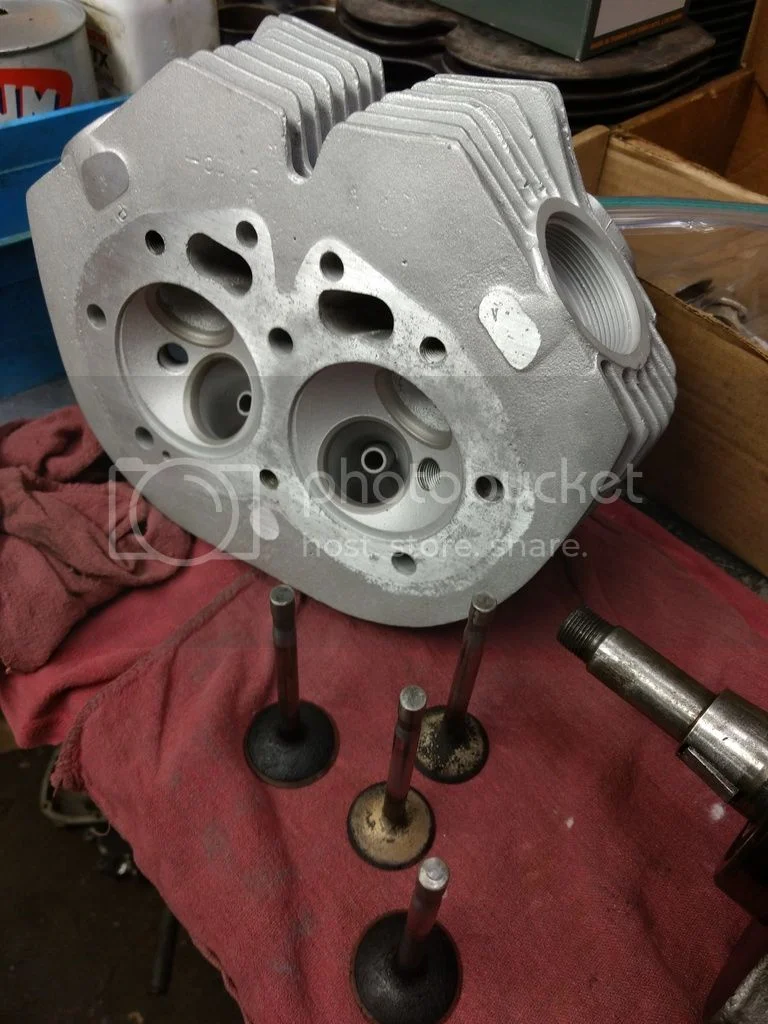

The head and valves, Not too bad. Turned out pretty clean. Maybe someone can share with me. Do some people put clear finish on the heads? Seems like CNW bikes have a spray finish on the engines.

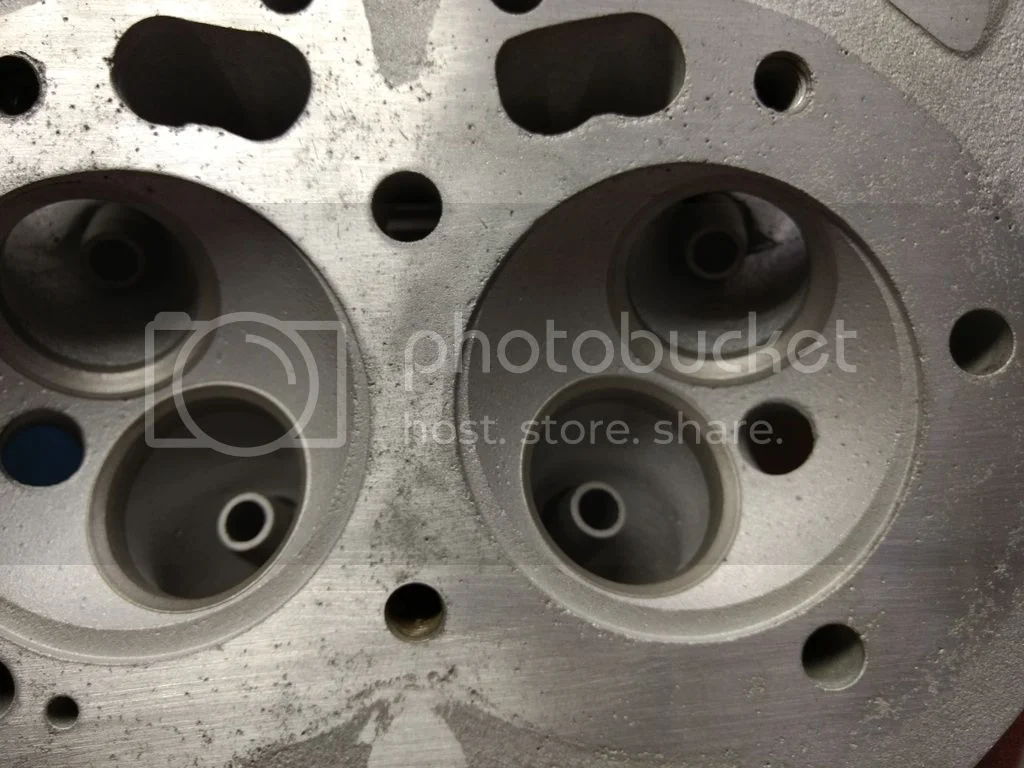

A close up. I put sandpaper on the drill press table and run the head across it several times. Very little warpage. Plenty of pin sized pits. No biggy

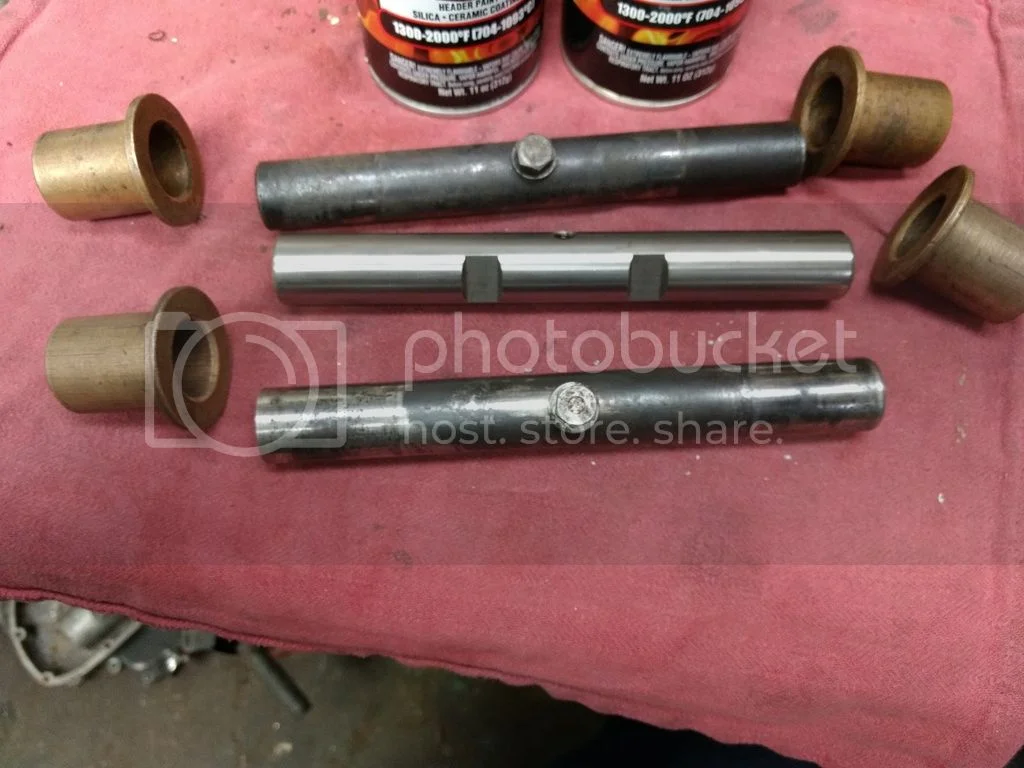

The three spindles. The new one comes with the slots. Im still debating whether or not to do the spindle upgrade.

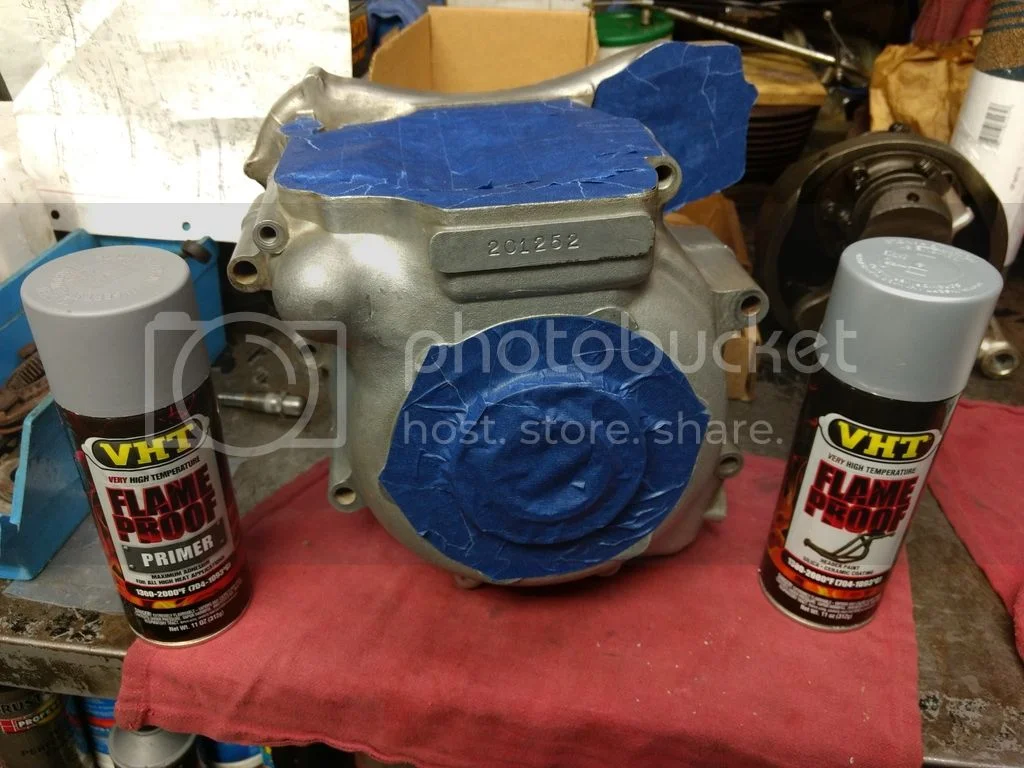

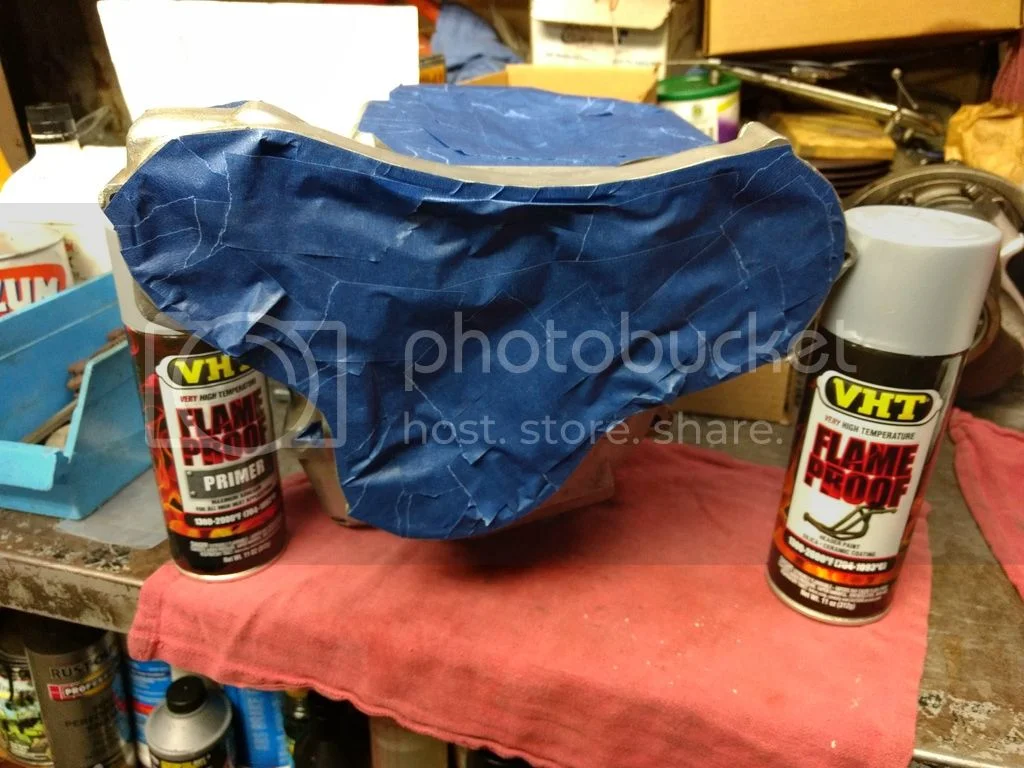

I've been reading old brits and VHT SP117 seems to be the color of choice for the cases. Today I taped the cases. Waiting for a warmer day to paint them.
The head and valves, Not too bad. Turned out pretty clean. Maybe someone can share with me. Do some people put clear finish on the heads? Seems like CNW bikes have a spray finish on the engines.
A close up. I put sandpaper on the drill press table and run the head across it several times. Very little warpage. Plenty of pin sized pits. No biggy
The three spindles. The new one comes with the slots. Im still debating whether or not to do the spindle upgrade.
I've been reading old brits and VHT SP117 seems to be the color of choice for the cases. Today I taped the cases. Waiting for a warmer day to paint them.
- Joined
- Jun 10, 2013
- Messages
- 95
And last but not least is the crankcase. I find it unique how Norton put the lobes of the crankshaft on parallel with each other.
Tomorrow I will be tearing into the crankshaft and cleaning it up. I will also get the gasket kit 0ordered tomorrow.
The jug (no picture) has been lightly sandblasted. It will need to be bored as some deep rust pits have accumulated since sitting so long.
I'll try to get some pics of it.
What product is used to paint the jug black? Rust-Oleum gloss black?
Tomorrow I will be tearing into the crankshaft and cleaning it up. I will also get the gasket kit 0ordered tomorrow.
The jug (no picture) has been lightly sandblasted. It will need to be bored as some deep rust pits have accumulated since sitting so long.
I'll try to get some pics of it.
What product is used to paint the jug black? Rust-Oleum gloss black?
o0norton0o
VIP MEMBER
- Joined
- Apr 27, 2015
- Messages
- 1,997
Re the spindle upgrade:
the late model spindle with the 2 flat spots is used with the late model engine cradle, which has to dual wedge bolt fixing mechanism, so you need the proper cradle to use that spindle.
If you use the engine cradle with the single bolt swingarm tube, you can do the kegler clamp modification to bring it up to late model performance specs. You can buy the clamps from NYC norton already to go. (I made my own some years ago and it cured my bike's snake like handling. I think it's a must-do for bikes with the early single bolt swingarm tube.
the late model spindle with the 2 flat spots is used with the late model engine cradle, which has to dual wedge bolt fixing mechanism, so you need the proper cradle to use that spindle.
If you use the engine cradle with the single bolt swingarm tube, you can do the kegler clamp modification to bring it up to late model performance specs. You can buy the clamps from NYC norton already to go. (I made my own some years ago and it cured my bike's snake like handling. I think it's a must-do for bikes with the early single bolt swingarm tube.
