What year/model? What am I missing?

marshg246 said:

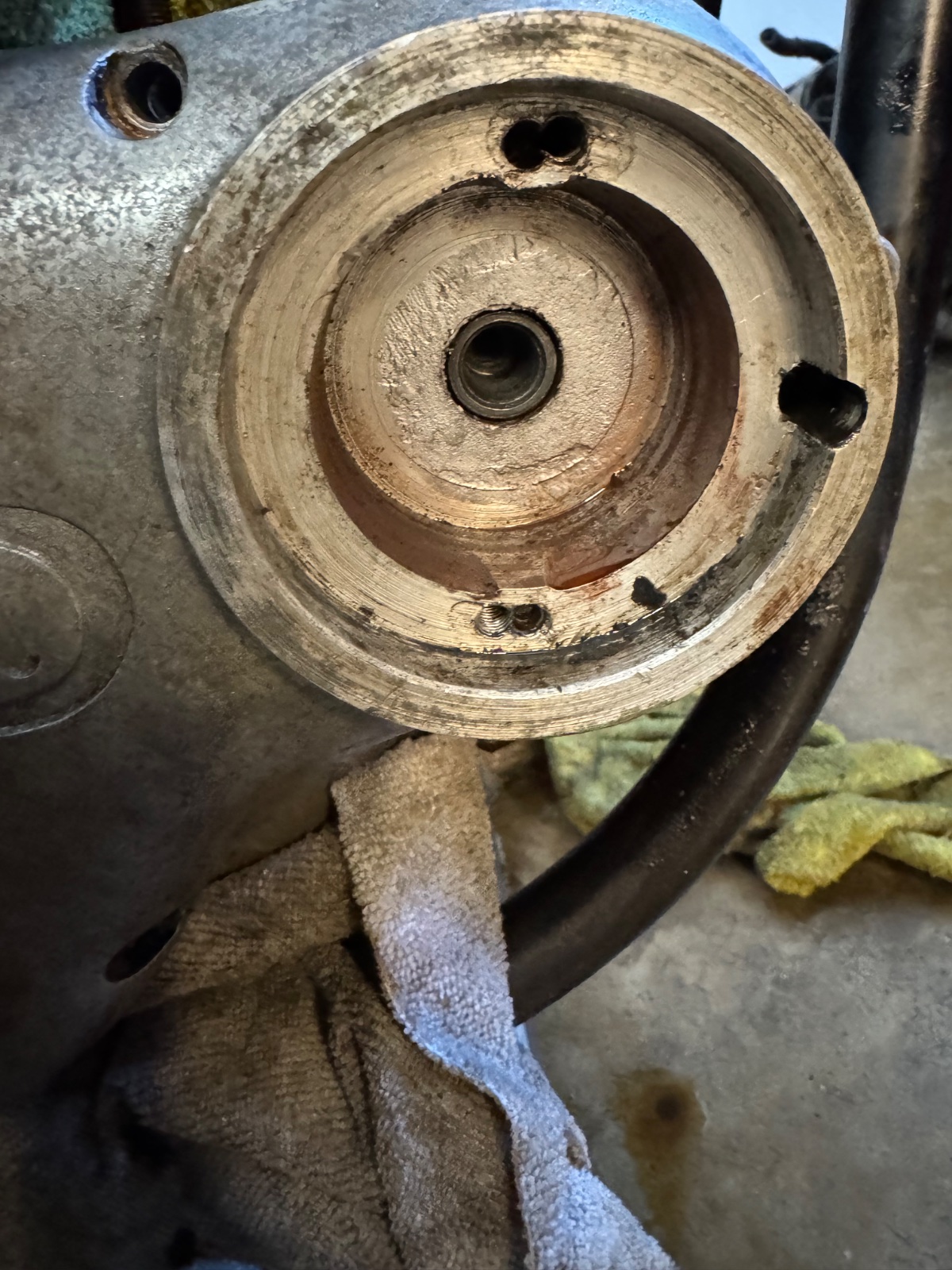

Right. I have no idea why someone would do that rather than using a thread insert. I would either replace that cover with a nice used one or although expensive: https://andover-norton.co.uk/en/shop-details-2/16717/timing-cover-750-850-mk3-c-w-all-fittings which includes a safe anti-wet sump valve.
Click to expand...
Is that just a later style cover? Isn’t available at Andover but I found one on eBay.

www.ebay.com

1974 Norton Commando 850 Electric Start Timing Cover 2726 | eBay

Looks to be in okay condition.
www.ebay.com

macvittiemotorcycles said:
Is that just a later style cover? Isn’t available at Andover but I found one on eBay.

www.ebay.com

1974 Norton Commando 850 Electric Start Timing Cover 2726 | eBay

Looks to be in okay condition.
www.ebay.com
Click to expand...
that ebay is the one, as used on the Mk3 version of Commando.It has the extra inspection cap so that timing chain tension can be checked without taking cover off/disturbing ignition timing. It also has different internal components to help with wet sumping as Greg has said, though these should be checked as it is not new.

macvittiemotorcycles said:
Is that just a later style cover? Isn’t available at Andover but I found one on eBay.

www.ebay.com

1974 Norton Commando 850 Electric Start Timing Cover 2726 | eBay

Looks to be in okay condition.
www.ebay.com
Click to expand...
Yes, it is actually a MKIII cover. The one on eBay has the added value of a pressure relief valve which you may or may not need. That seller is pretty good about accepting offers and since the new one is nearly $400 delivered, his current price is not bad. The new one comes with the various seals, but you'll need a complete gasket set and the ones from AN include all gaskets and seals so that's not a big deal.

The eBay one has been bead blasted and appears to be missing the valve and spring. If you buy that, you will need these that don't come in the gasket set: 06.6190 (MKIII-type oil pump seal), 06.6198 (valve spring), 06.6199 (valve). All available from AN.

You get three tries at offers. I would start at $125 and see how it goes.

He also has an aution ending today for a direct replacement cover: https://www.ebay.com/itm/1767704435...AHB91X&hash=item292856e936:g:2DYAAOSwA~Zm6bwW

checking for tweaked yokes
(click on link directly below for more info)
G

Post in thread 'New project, but missing VIN plate'

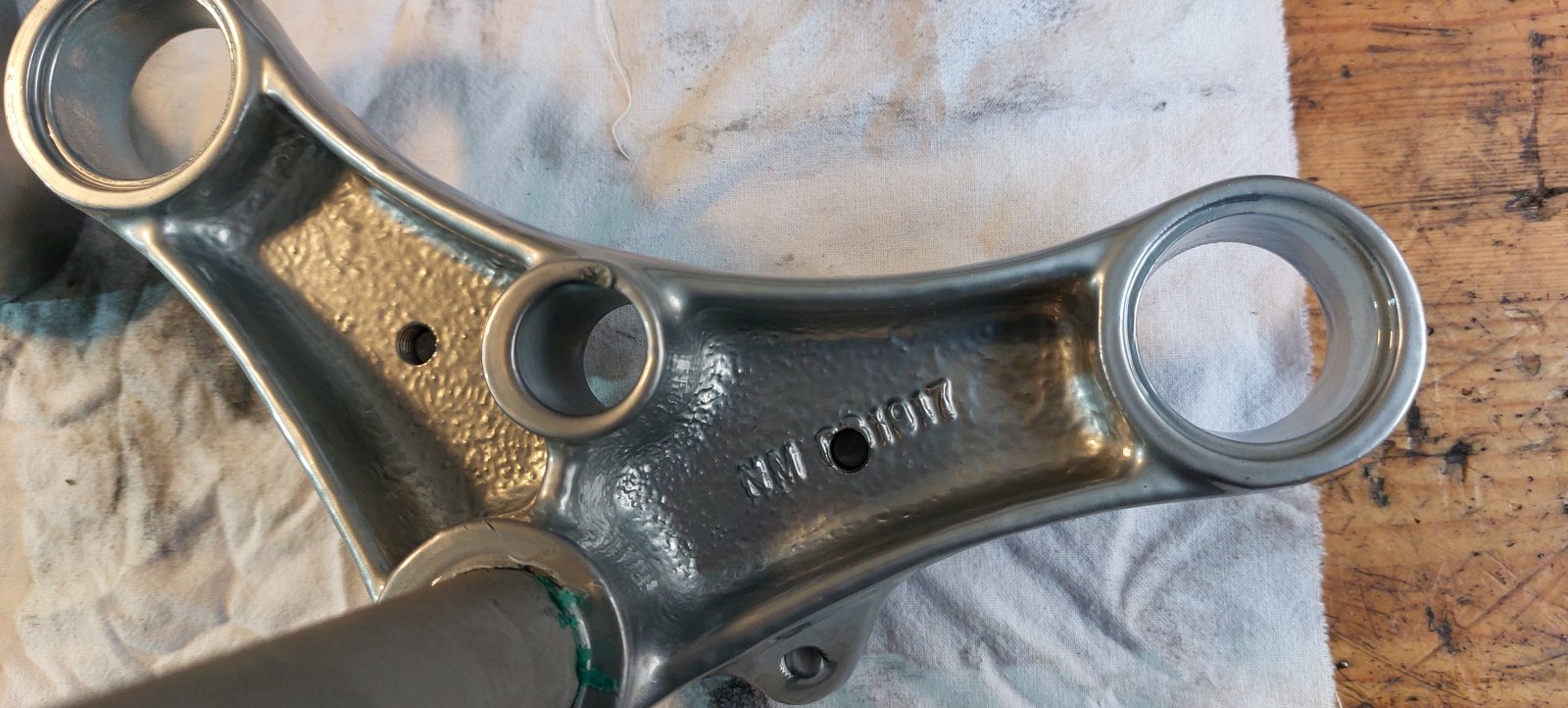

Coming back to my yokes: I finally managed to get a matching top yoke on ebay, stamped with NM 061917 to match my existing bottom yoke 061916. Got them both nicely powder coated, only to realise while trying to insert a stanchion, that the bottom one is bent way out of line:

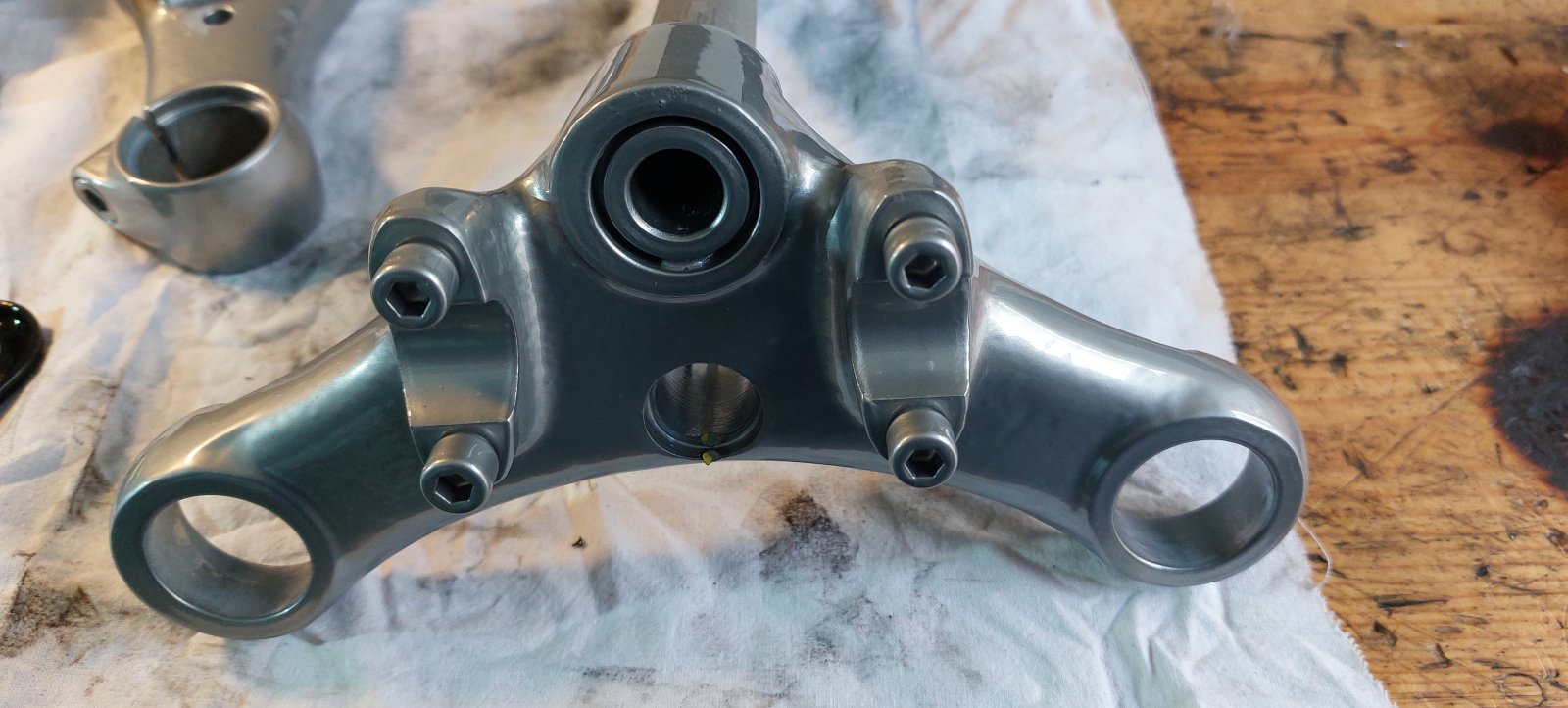

Nicely finished:
New project, but missing VIN plate


New project, but missing VIN plate

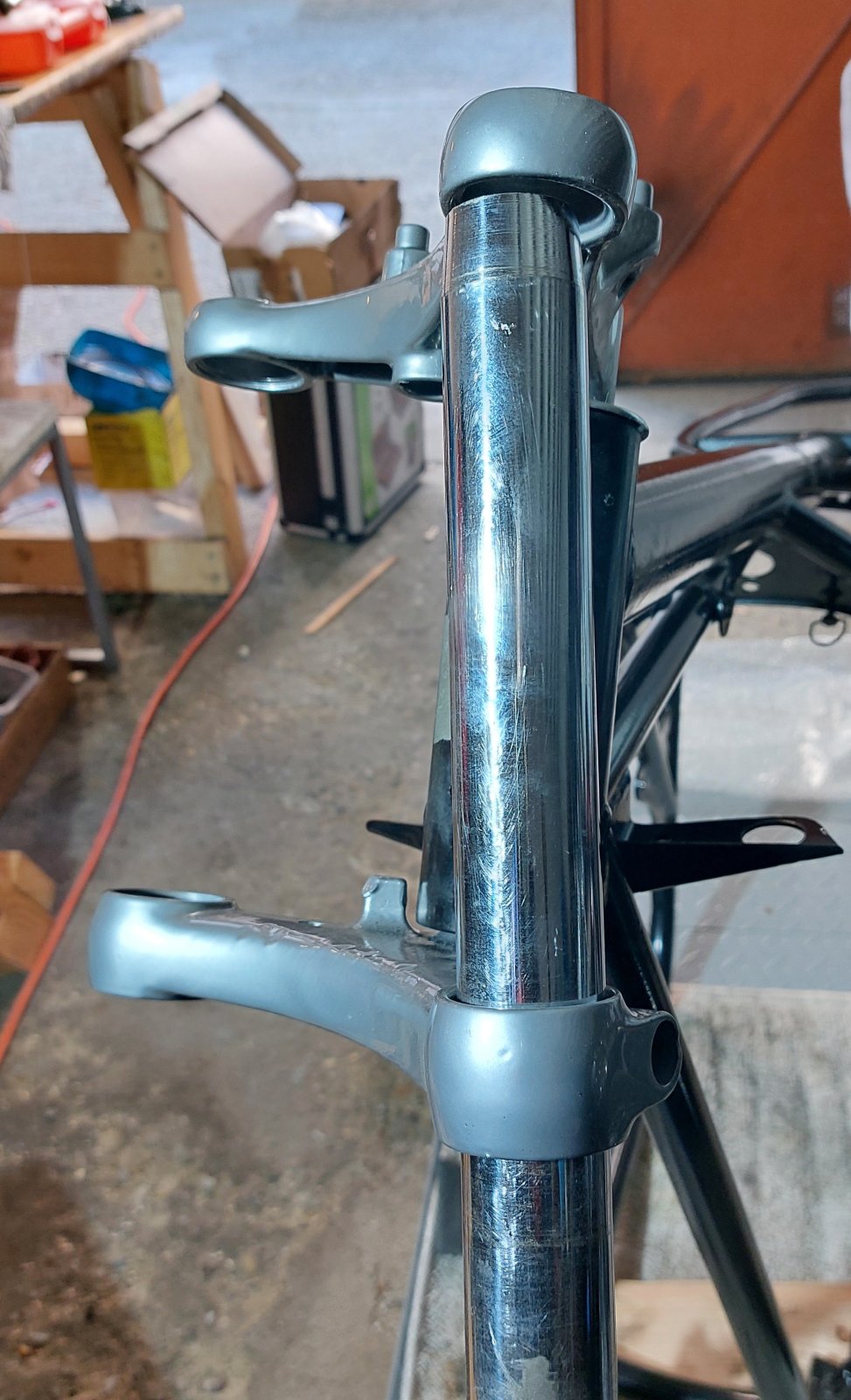

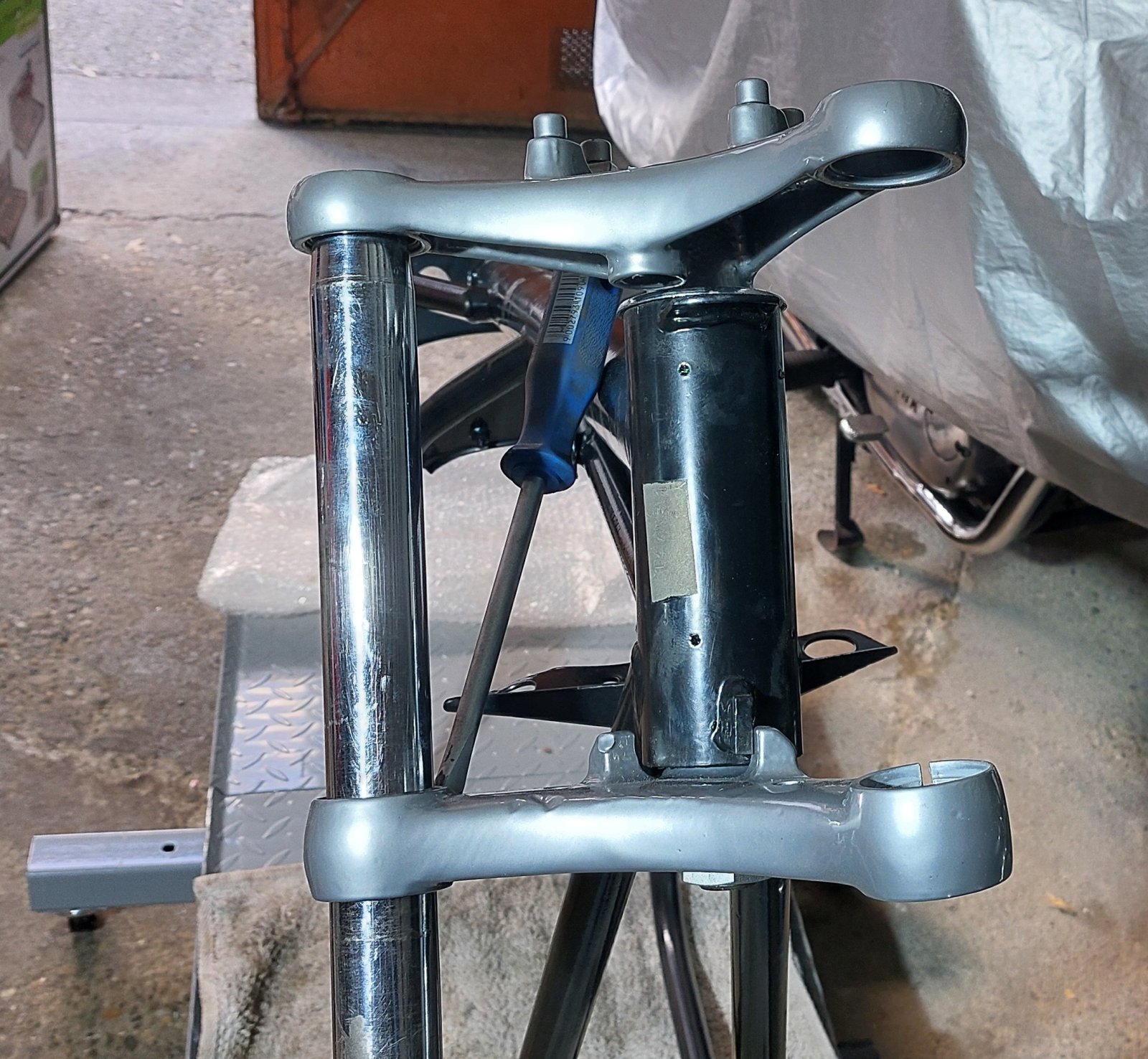

Quite obviously bent yet I didn't notice it before:
New project, but missing VIN plate


New project, but missing VIN plate


I guess it must be pretty hard to get it back into exactly the correct shape. Or is there a technique for this? Preferably one that won't ruin my nice new finish.

Last edited:
Question: If I plan to upgrade the center stand to the later style stand, would it make more sense to also get a later style engine cradle rather than widening the center stand holes on the early cradle?

Do the later style cradles fit for all engines?

macvittiemotorcycles said:
would it make more sense to also get a later style engine cradle rather than widening the center stand holes on the early cradle?
Click to expand...

Your original 1970 centre stand mounts onto the frame so there shouldn't be any stand holes in the cradle if it's the 1970 type.

L.A.B. said:
Your original 1970 centre stand mounts onto the frame so there shouldn't be any stand holes in the cradle if it's the 1970 type.
Click to expand...
Got it. I just re-read your earlier post.

Therefore my question is if I do plan to convert to later style center stand (which mounts to the cradle correct?) would it make most sense to just get a later style cradle or try to drill my current cradle? just preference?

macvittiemotorcycles said:
Thanks. And I would be going with this type cetner stand?

andover-norton.co.uk

Andover Norton - CENTRE STAND (06.3051) (06.2192) ENGINE NO.141783 ONWARDS - 06.4031

CENTRE STAND (06.3051) (06.2192) ENGINE NO.141783 ONWARDS
andover-norton.co.uk
Click to expand...
I don't know where to find it right now, but you'll need a drawing with dimensions of where to drill the holes. There is little room for error with the placement of those holes. You'll also need to know where to drill the oil filter housing holes - again not a lot of room for error.

marshg246 said:
I don't know where to find it right now, but you'll need a drawing with dimensions of where to drill the holes. There is little room for error with the placement of those holes. You'll also need to know where to drill the oil filter housing holes - again not a lot of room for error.
Click to expand...
Good to know. Thank you. Let me know if you find the drawing, ill do some searching.

My early cradle doesn't have oil filter holes as the early models did not have an oil filter (at least thats my understanding, this is my first Norton)
