SCS Delta 400 Users Group

Vernon240

VIP MEMBER
Joined
Mar 18, 2021
Messages
389
Country flag
Awesome work Gojuu. I'll try it out when I can get out again......I'll have to work on makin a maore accessable ODB port...getting to it on a Domi is a PITA right now!

Joined
Jan 16, 2015
Messages
4,617
Country flag
@TonyA having already adjusted fueling with the Dyno Jet - I think you're going to get a surprise when you see the difference this timing makes.
OH Baby ! I Can hardly wait , it was fun before and now will be a real treat. ! :)

Last edited:

Gojuu

VIP MEMBER
Joined
Nov 27, 2021
Messages
191
Country flag
So, by way of an update.

I'm getting more used to the details in the Delta now, and am looking to explore extra sensors.

I had considered that having a map sensor may put me in a position to improve the tune of the bike. I reached out to SCS regarding their thoughts on what additional sensors may be a good way forwards for better tuning. Interestingly their response was that all the input sensor pinouts of the ECU are used by the bike in its current state. This may offer something by way of explanation as to why Norton went back to OMEX. If they needed a MAP sensor to assist with emissions (for Euro 4?), the additional sensor not being available to be added to the Delta could possibly lead them back to OMEX.

edit: I have been assured it wasn't that by someone who definitely knows.....

Having said that, I note that there appears to be some capability in the ECU to assign pinouts, so will review if removing the IAC has given me anything available.

Last edited:
Joined
Jan 16, 2015
Messages
4,617
Country flag
And more to this point , the OMEX bikes 2016 and earlier (not Euro 4) had the Tilt Circuit module to add these extra inputs. The 2016 and earlier OMEX has even less input pins than SC Delta !

Joined
Jan 16, 2015
Messages
4,617
Country flag
So, by way of an update.

I'm getting more used to the details in the Delta now, and am looking to explore extra sensors.

I had considered that having a map sensor may put me in a position to improve the tune of the bike. I reached out to SCS regarding their thoughts on what additional sensors may be a good way forwards for better tuning. Interestingly their response was that all the input sensor pinouts of the ECU are used by the bike in its current state. This may offer something by way of explanation as to why Norton went back to OMEX. If they needed a MAP sensor to assist with emissions (for Euro 4?), the additional sensor not being available to be added to the Delta could possibly lead them back to OMEX.

edit: I have been assured it wasn't that by someone who definitely knows.....

Having said that, I note that there appears to be some capability in the ECU to assign pinouts, so will review if removing the IAC has given me anything available.
And more to this point , the OMEX bikes 2016 and earlier (not Euro 4) had the Tilt Circuit module to add these extra inputs. The 2016 and earlier OMEX has even less input pins than SC Delta !

Joined
Nov 1, 2015
Messages
108
Country flag
Hello,

One question with the Delta 400 my rev counter /tacho is not workig, with the oem ECU is working.
Any idea?

Kind Regards


Gojuu

VIP MEMBER
Joined
Nov 27, 2021
Messages
191
Country flag
Y
Hello,

One question with the Delta 400 my rev counter /tacho is not workig, with the oem ECU is working.
Any idea?

Kind Regards
A few quick thoughts; is the tachometer gauge display working in the sxTune software, and have you tried loading an alternat map?

The software has a “compare” function, you could try using that between two maps and seeing what settings are different - most likely in the output screen?

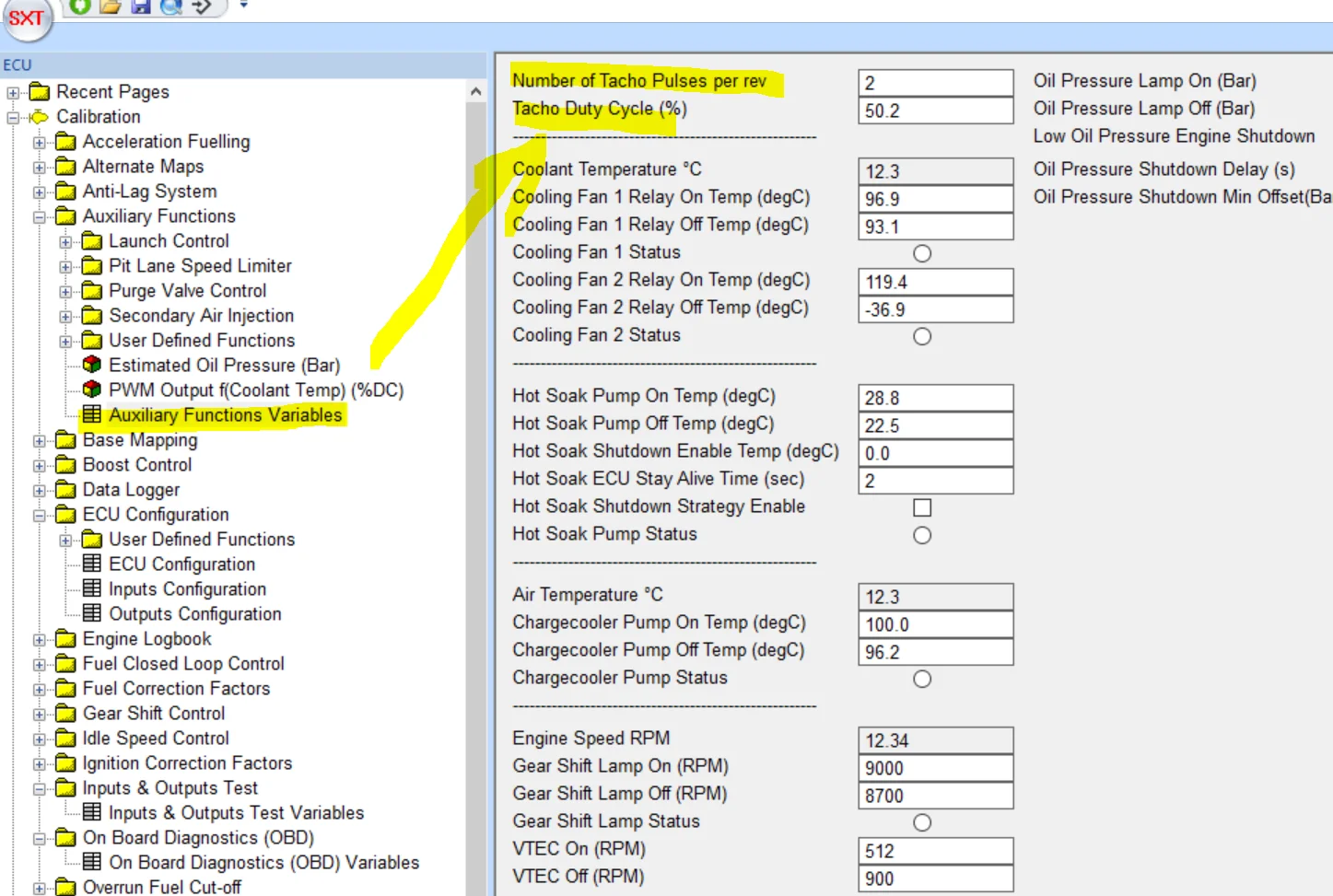

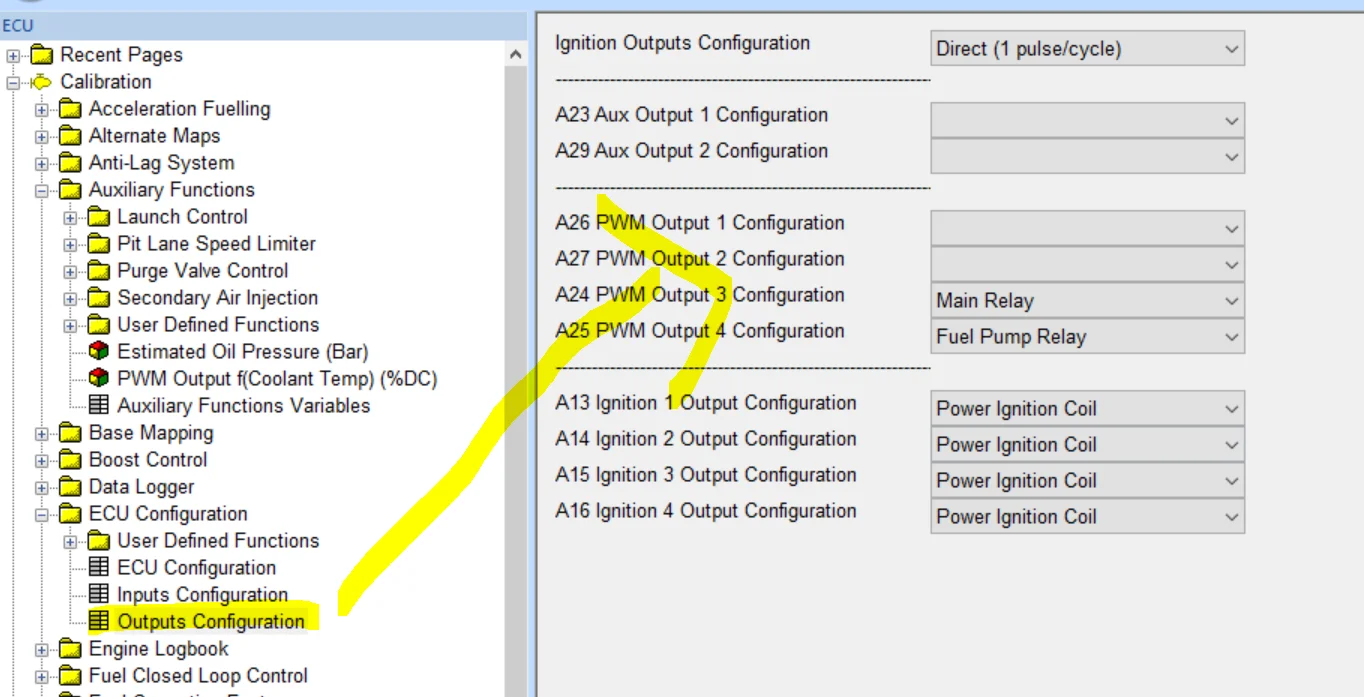

Some general settings to check are here:

SCS Delta 400 Users Group


&

SCS Delta 400 Users Group

Last edited:
Joined
Jan 16, 2015
Messages
4,617
Country flag
You can get good help by email from SCS Delta Matt Payne. You can contact them from their website . My page reads the same as above.
What type of ECU did you have previously ?

Last edited:
Joined
Nov 1, 2015
Messages
108
Country flag
The OEM is Typhoon, the settings are the same shown at Gojuu´s page.
The tacho/RPM counter is moving, but very slowly and shows wrong revs. It looks like overdamped.
With the typhoon ECU is everything working.

Joined
Jan 16, 2015
Messages
4,617
Country flag
The OEM is Typhoon, the settings are the same shown at Gojuu´s page.
The tacho/RPM counter is moving, but very slowly and shows wrong revs. It looks like overdamped.
With the typhoon ECU is everything working.
Hello Panetone , Did you get a response from SCS Delta about the rev counter pulses ?

Joined
Jan 16, 2015
Messages
4,617
Country flag
Are the rev counts about half ? Does SCS Delta offer you a new ECU ? Do you have the Delta 400 S , or Delta 400 ? It shouldn't matter but just curious. The tacho pulses come from the ECU and based on cam sensor pulses hence the 2 pulses per rev. Maybe change the cam sensor or check diode or ask for a new ECU ?

Joined
Mar 14, 2022
Messages
12
Country flag
Are the rev counts about half ? Does SCS Delta offer you a new ECU ? Do you have the Delta 400 S , or Delta 400 ? It shouldn't matter but just curious. The tacho pulses come from the ECU and based on cam sensor pulses hence the 2 pulses per rev. Maybe change the cam sensor or check diode or ask for a new ECU ?
what is the difference between 400s & 400 ecu
