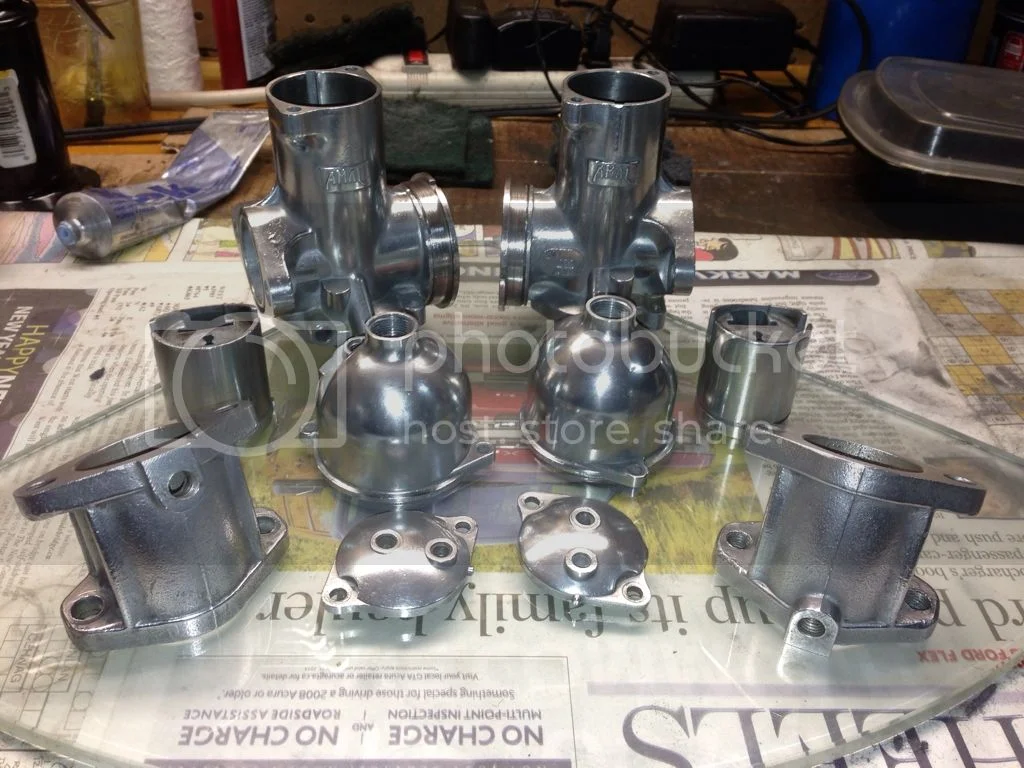

Finished the other carb this evening. just have to blow them out with air later, as it is 1130pm and the wife gets a little upset if I fire up the compressor at that hour.
One Roller One Basket Here We Go Again!

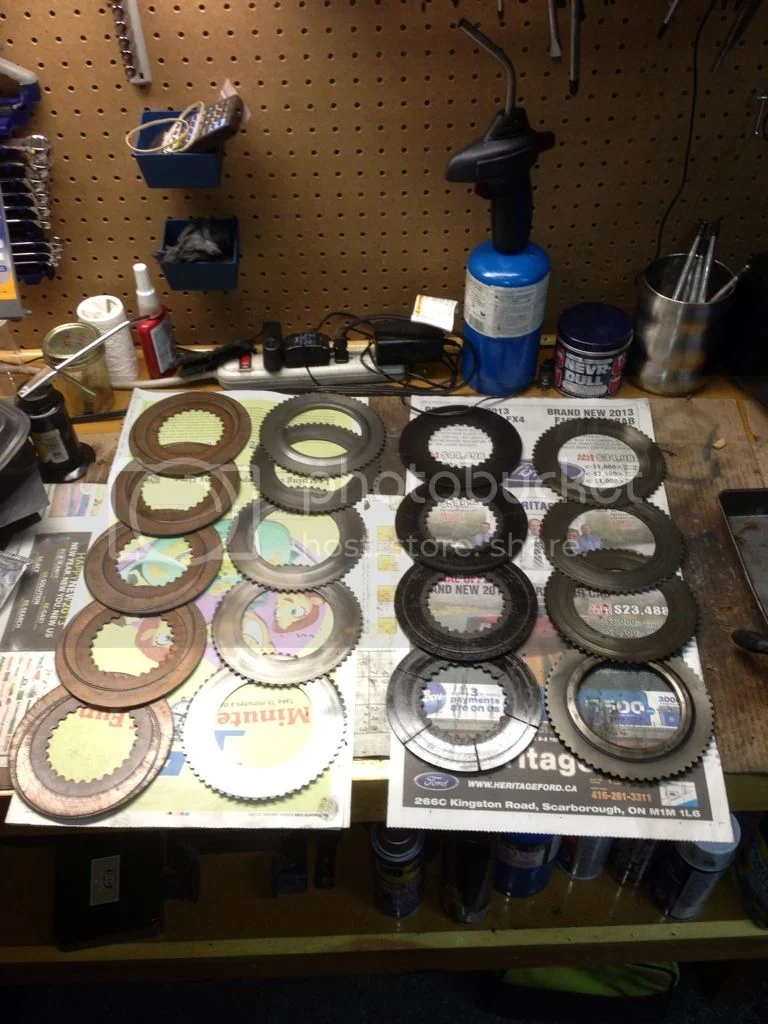

So I have pulled the plates from the clutch baskets of the 71 and 73.
Off hand does anyone know what years had the hardened clutch centre? I ask as I have read a bit about the bronze plates ruining clutch hub centres.
I was thinking of using some of these parts to make my 72 combat an easier pull on the clutch by adjusting the stack height.

One Roller One Basket Here We Go Again!

staticmoves said:
Off hand does anyone know what years had the hardened clutch centre? I ask as I have read a bit about the bronze plates ruining clutch hub centres.
Click to expand...

Bronze plates will also wear the hardened centres eventually.

Hardened clutch centres were supposedly fitted at the same time the 5 bronze clutch plates were introduced according to factory service release N3/28, so from serial 212278-on (late '72).

L.A.B. said:
staticmoves said:
Off hand does anyone know what years had the hardened clutch centre? I ask as I have read a bit about the bronze plates ruining clutch hub centres.
Click to expand...

Bronze plates will also wear the hardened centres eventually.

Hardened clutch centres were supposedly fitted at the same time the 5 bronze clutch plates were introduced according to factory service release N3/28, so from serial 212278-on (late '72).
Click to expand...

I noticed that the centre on the 73 that these bronze plates came from is slightly worn, I think it will still be quite serviceable.
Not sure if I will be using the bronze plates.

been a while again since the last post. the project has been progressing slowly as life has its ways of keeping you busy.
however the good news is progress has been made.

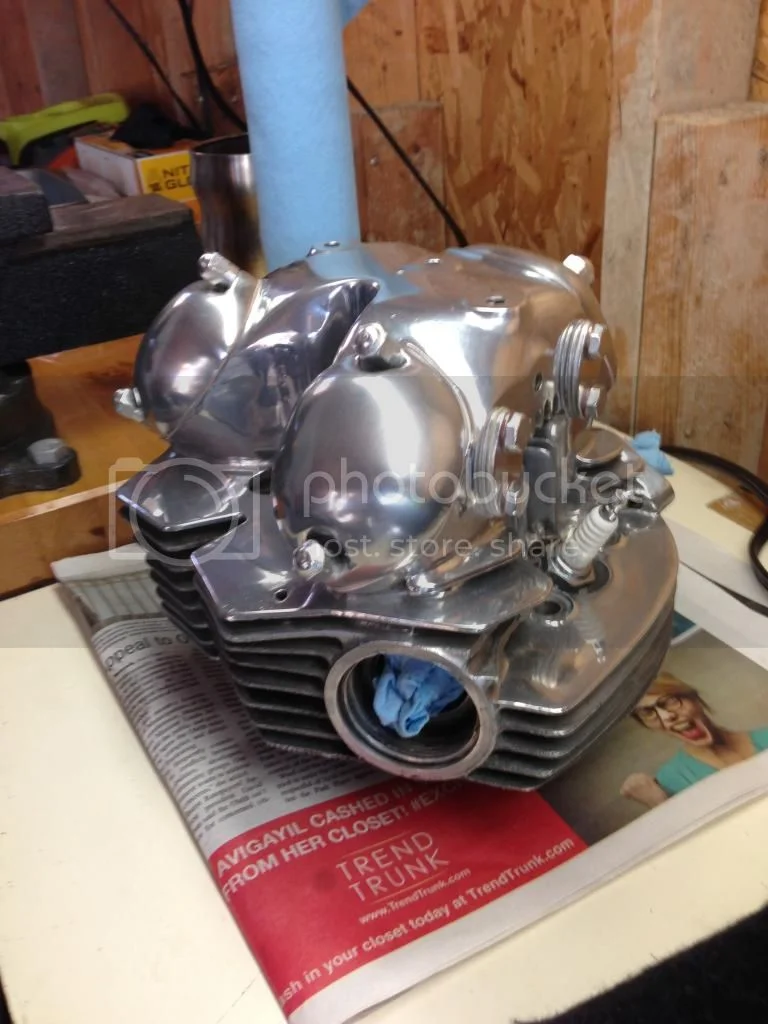

Decoked and cleaned the head, re ground valves in, replaced springs, heat washers and inlet stem seals.

One Roller One Basket Here We Go Again!

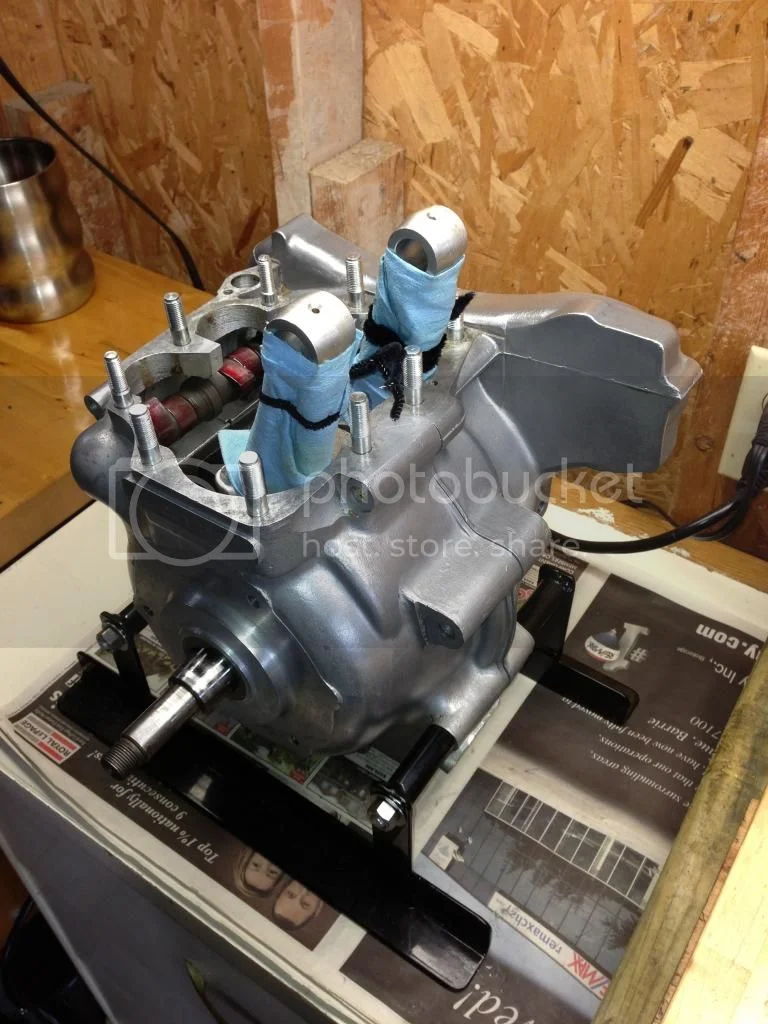

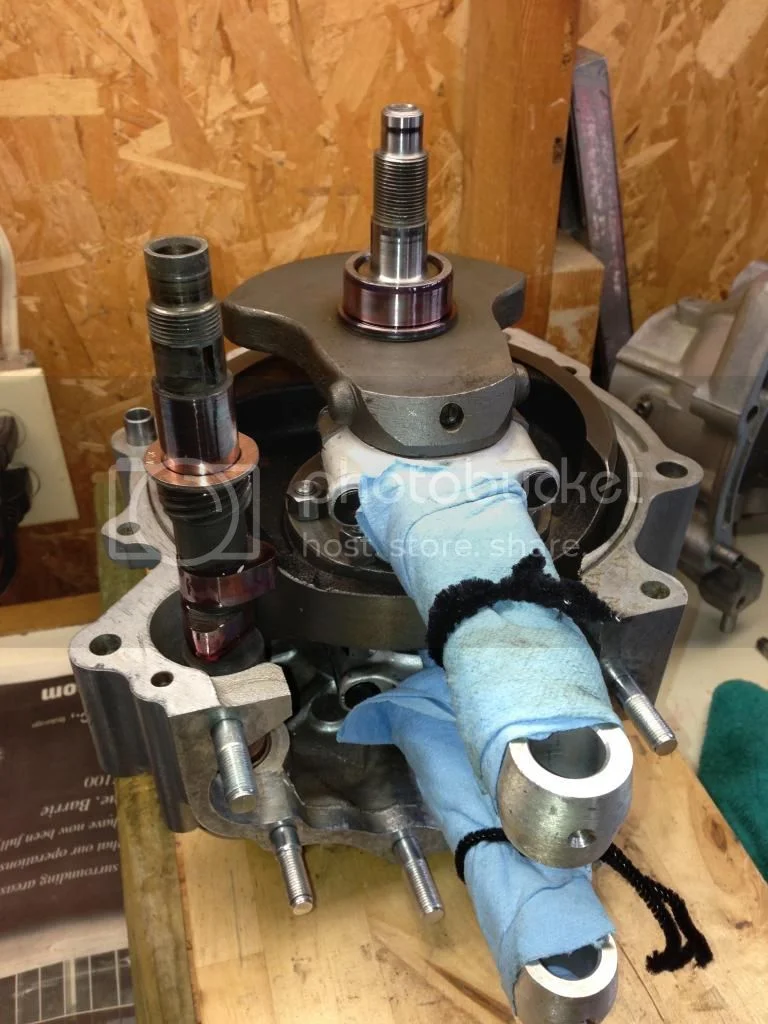

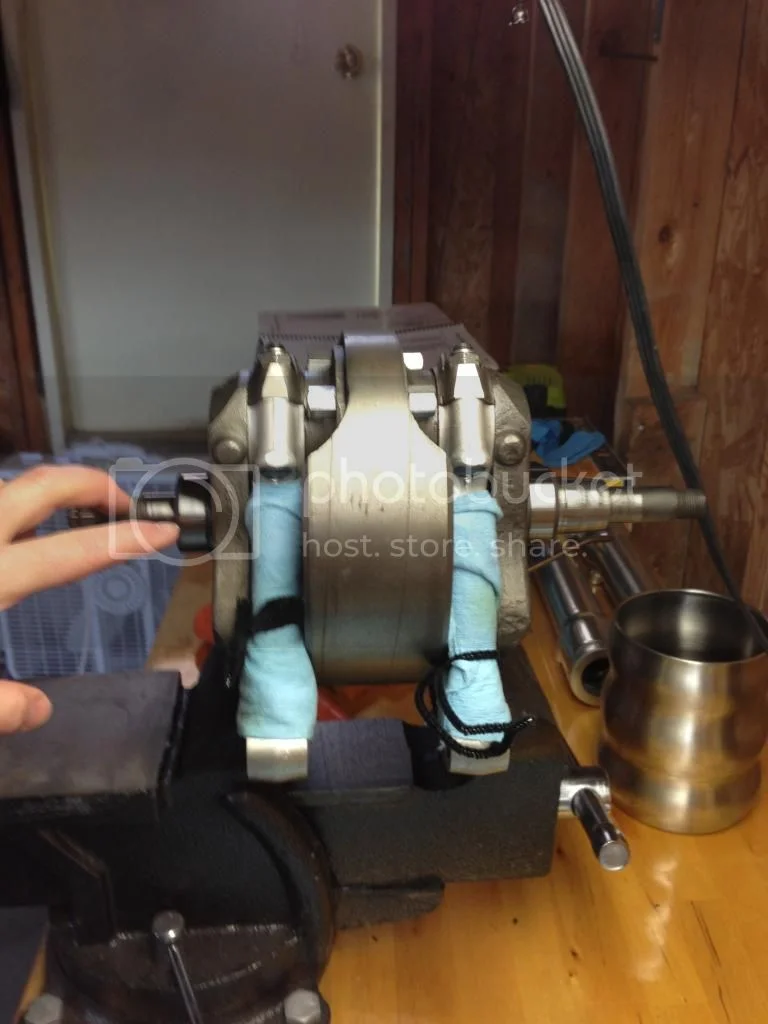

New conrod shells and main bearing shoulders pressed on.

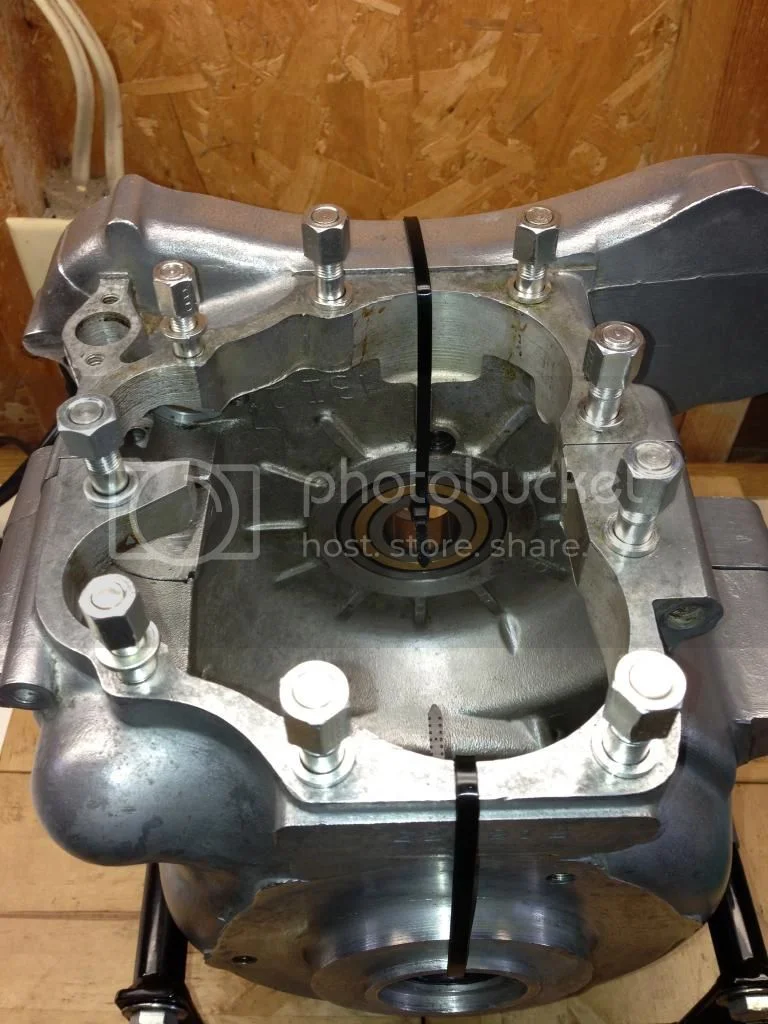

sludge trap cleaned out, thought it was clean already for the most part.

One Roller One Basket Here We Go Again!

permatex assembly lube on shells, cam lobes and bearing surface and superblend shoulders.

One Roller One Basket Here We Go Again!

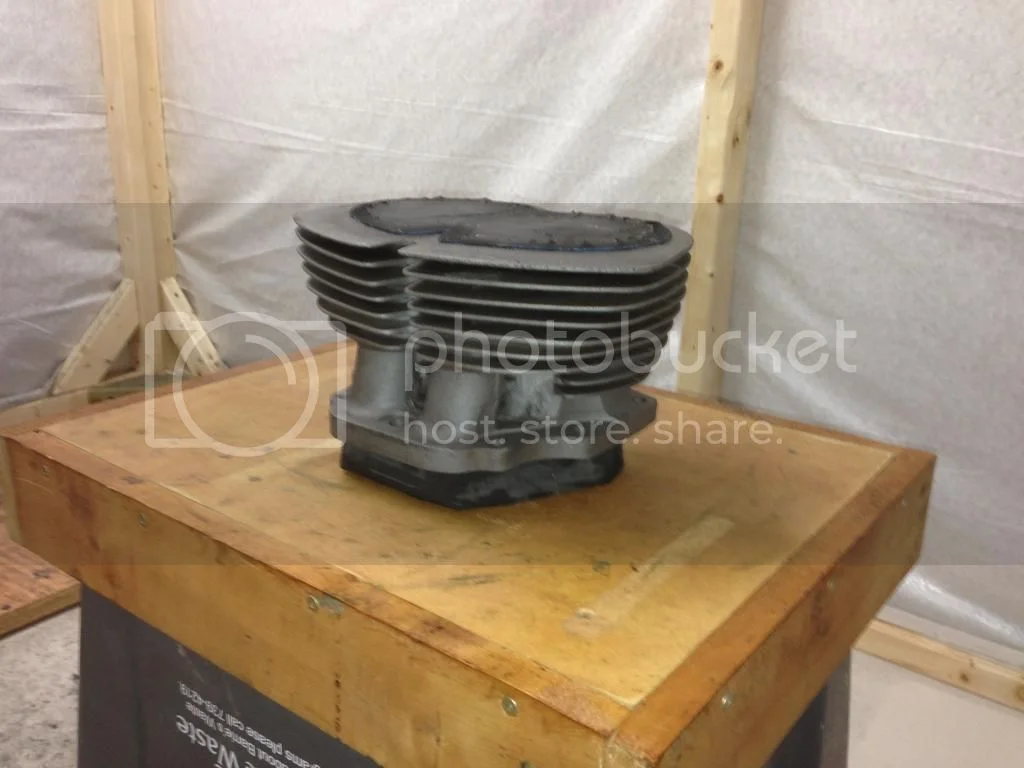

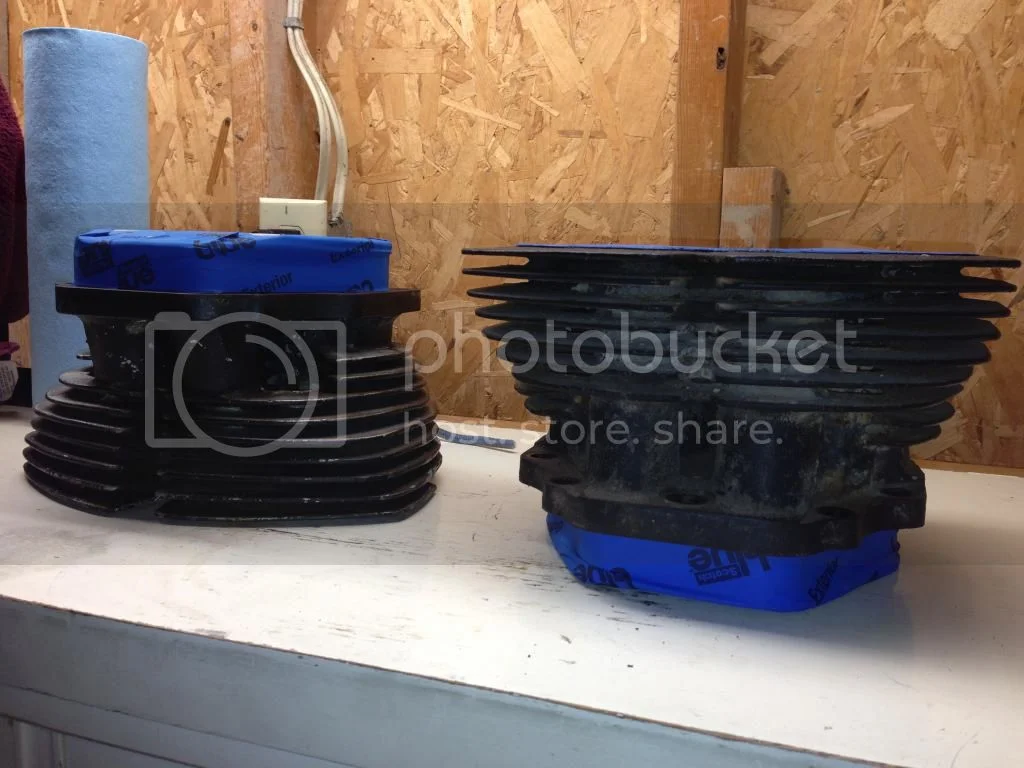

Prepped barrels for bead blasting.

One Roller One Basket Here We Go Again!


One Roller One Basket Here We Go Again!

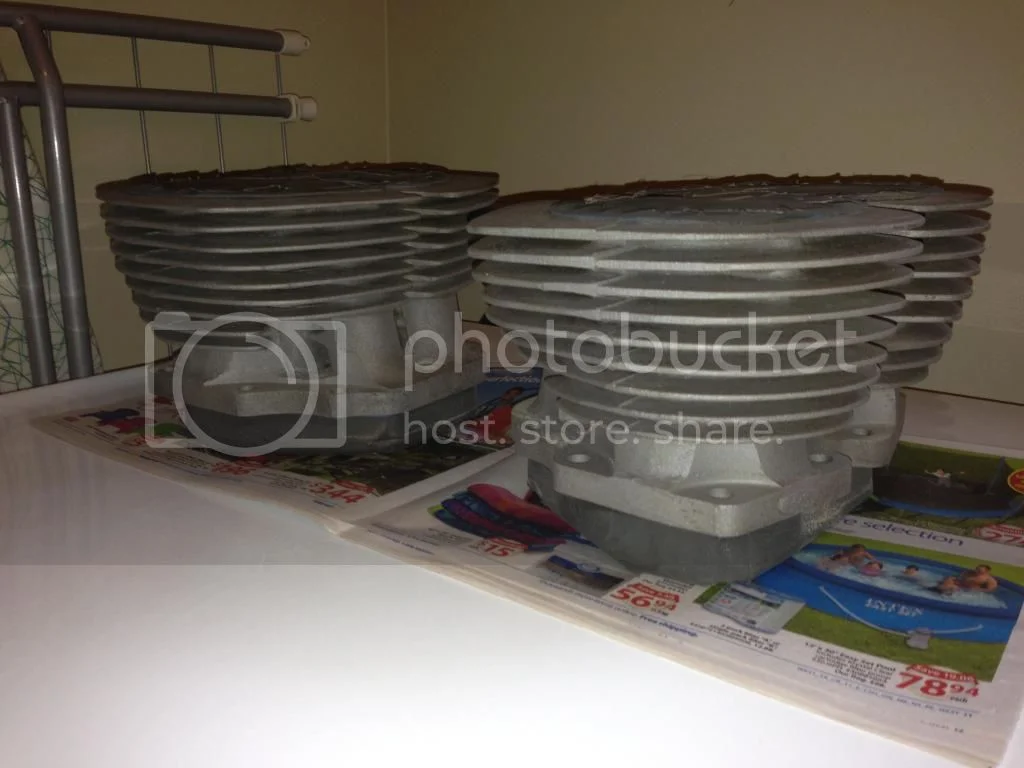

ready for paint

One Roller One Basket Here We Go Again!

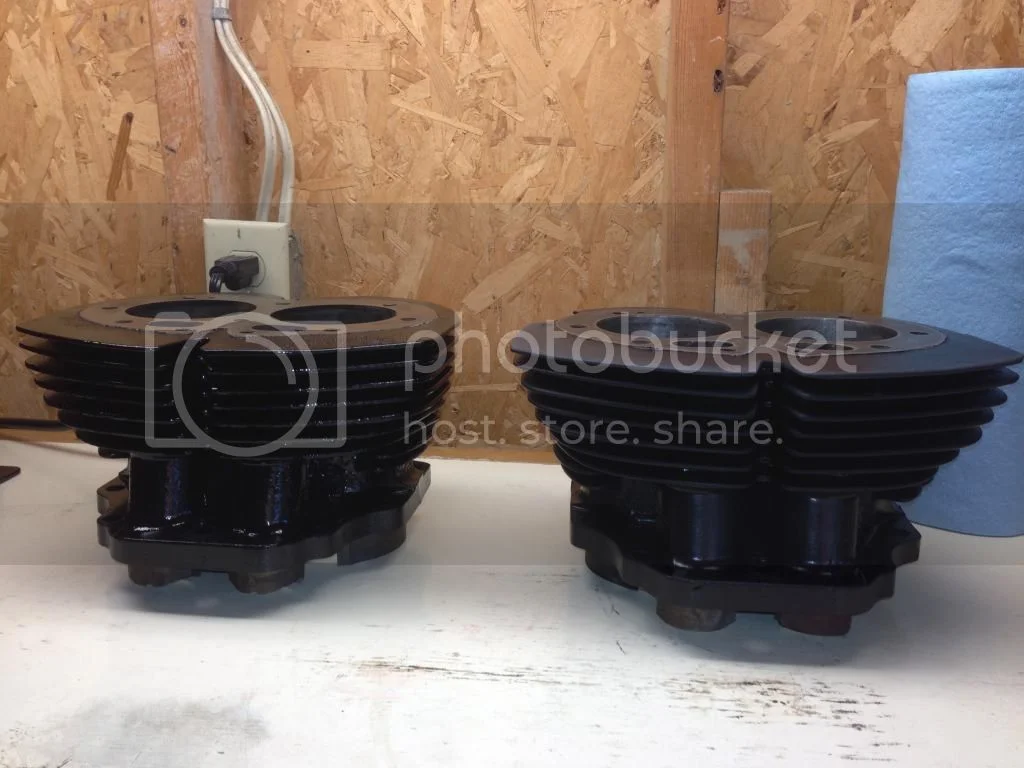

painted and barrels on left baked, barrels on right not yet baked.

One Roller One Basket Here We Go Again!

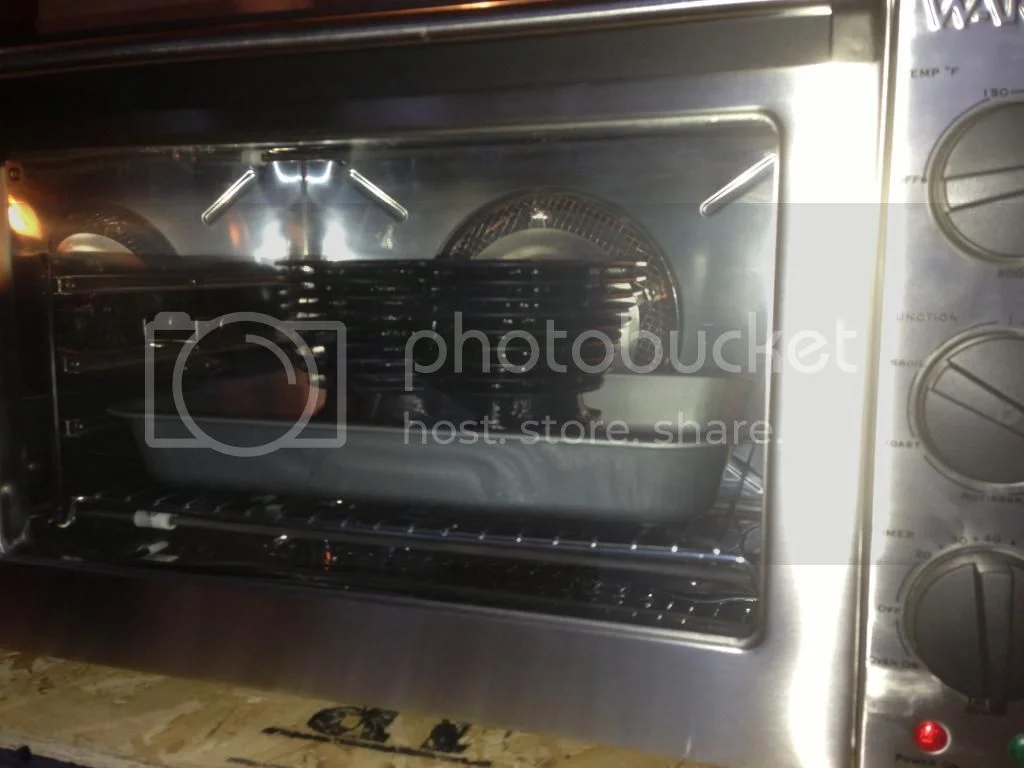

300F for 2hrs for curing.

One Roller One Basket Here We Go Again!

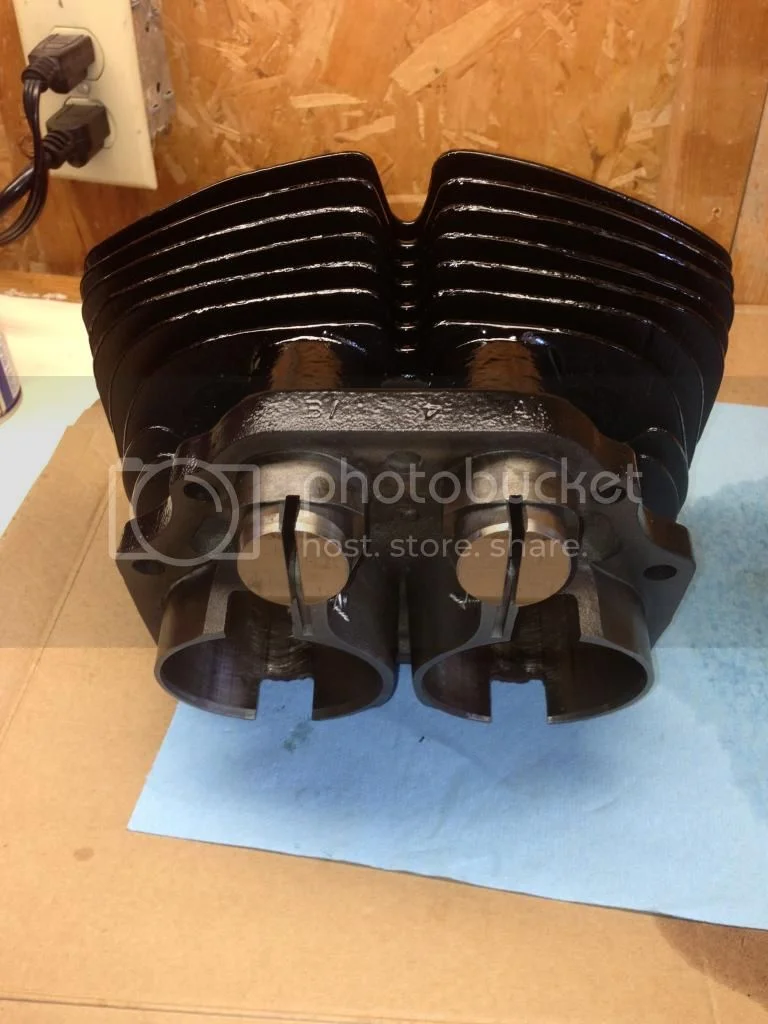

staticmoves said:

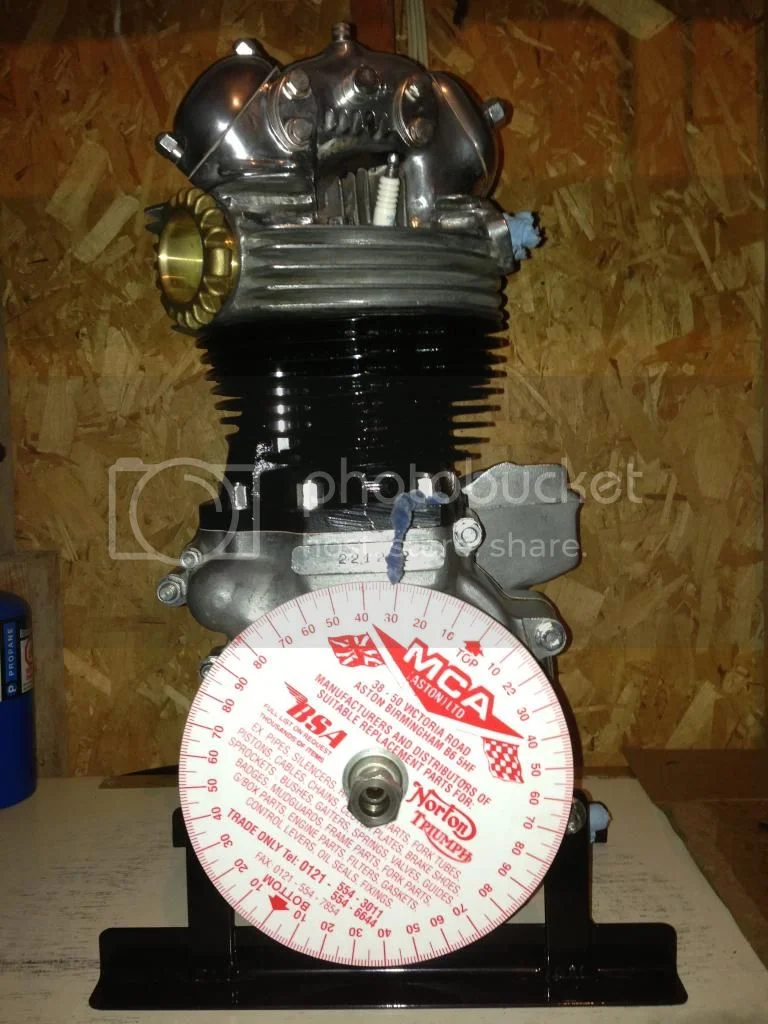

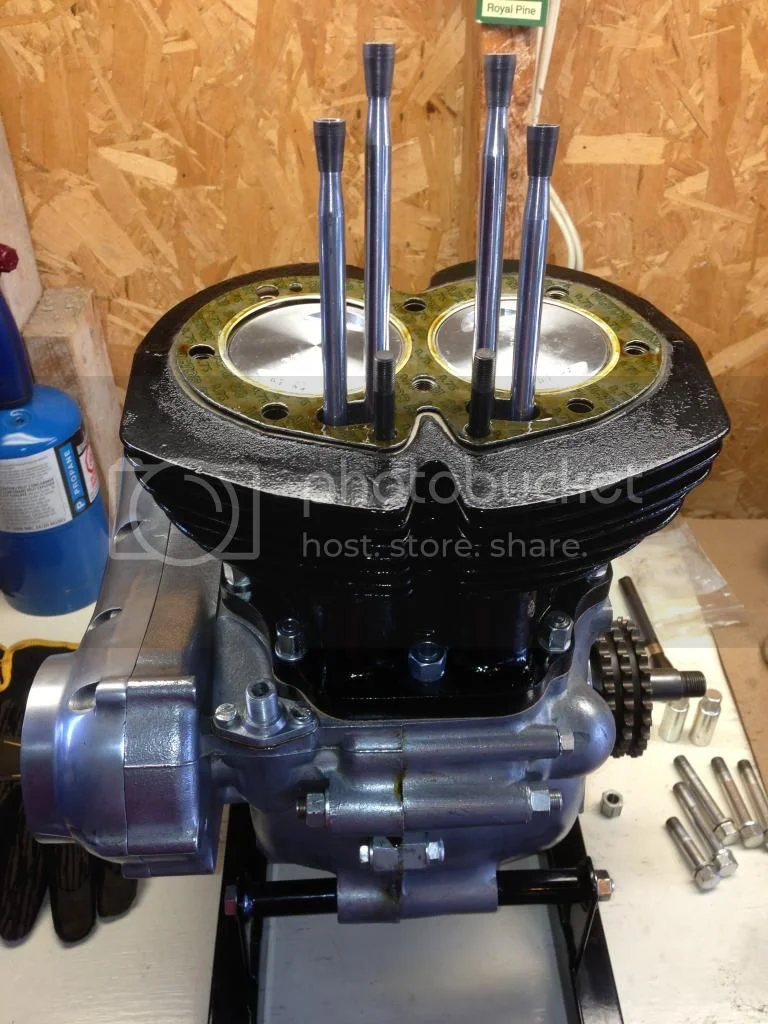

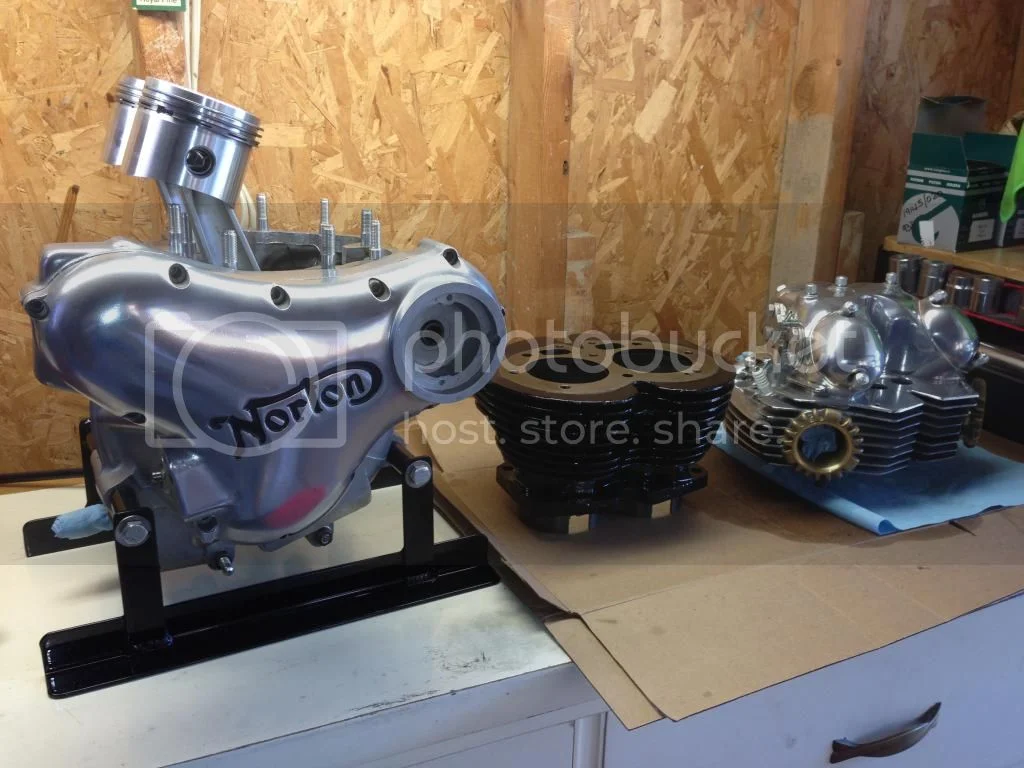

A thing of beauty

One Roller One Basket Here We Go Again!
Click to expand...

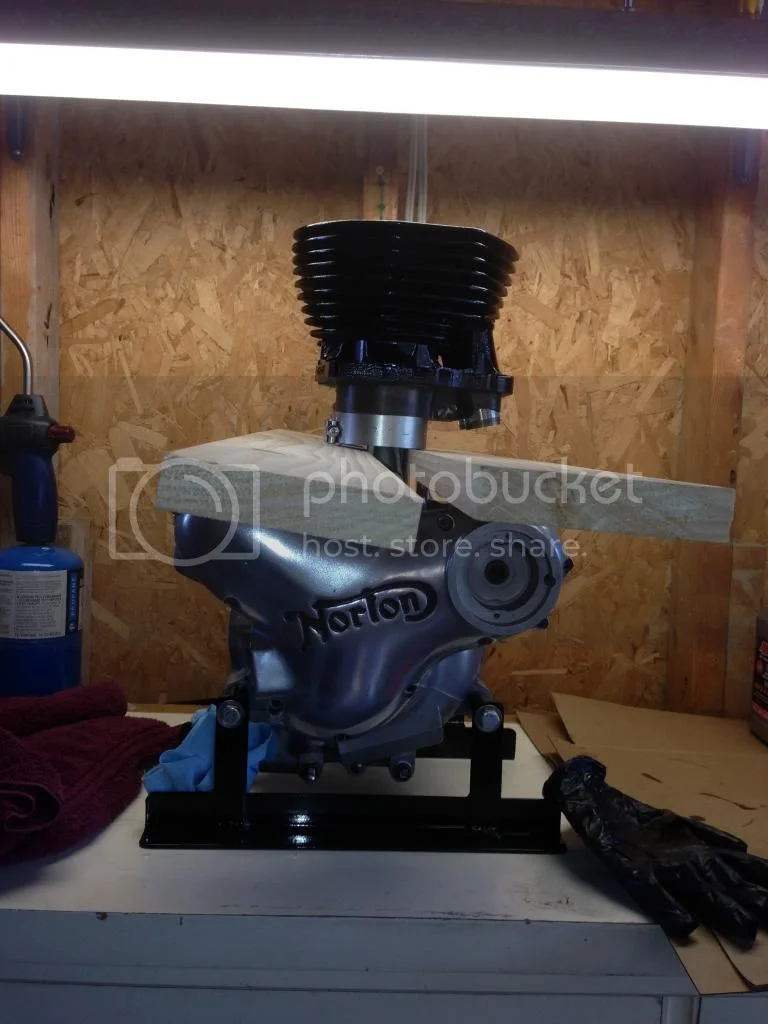

Glad to see that, unlike the PO, you got the pistons in the right way this time! At least he didn't try starting it that way. btw, what paint did you use on the bores? I hope to be doing a top-end this winter, and would like a good paint for the jugs.

Nathan

staticmoves said:

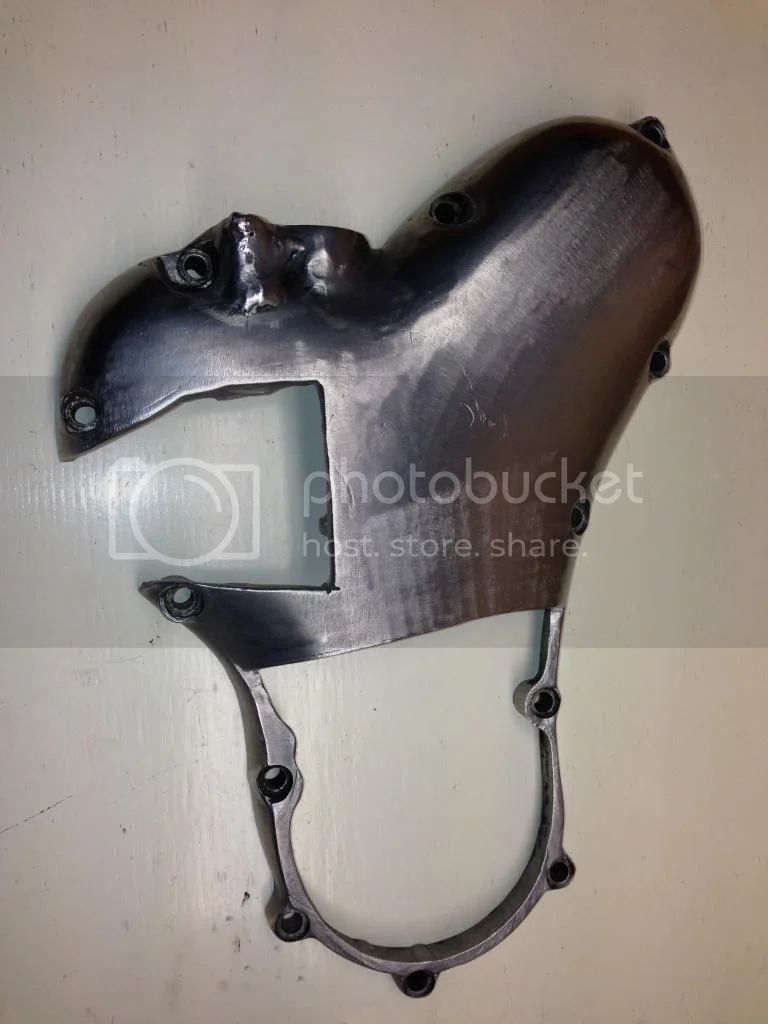

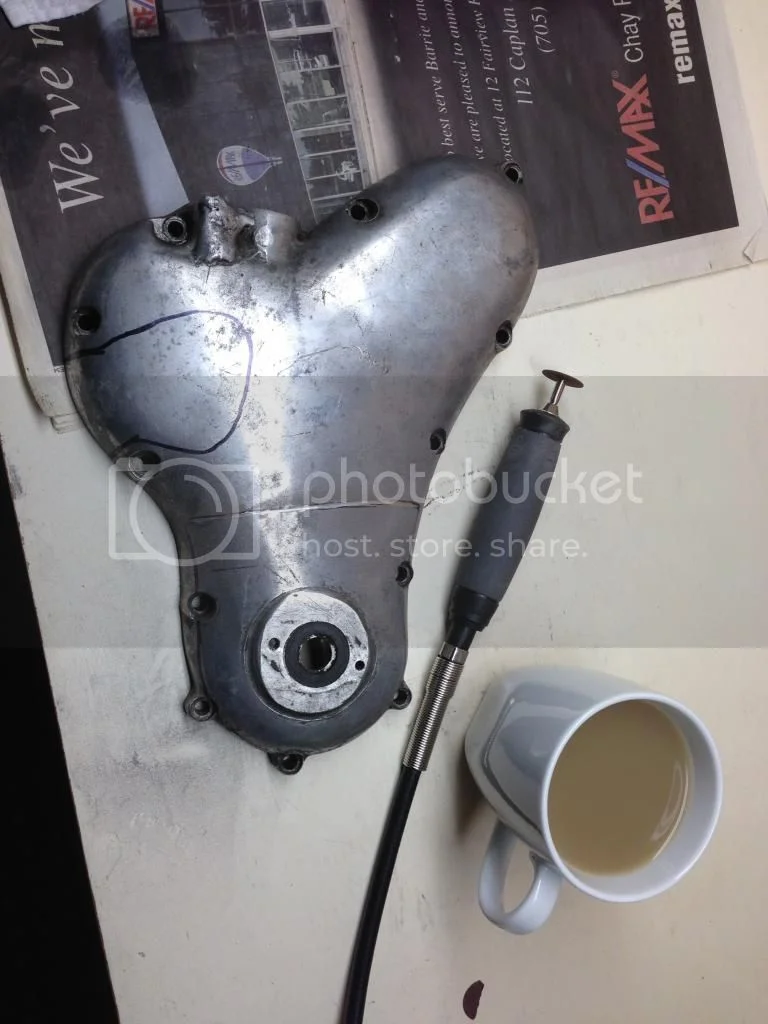

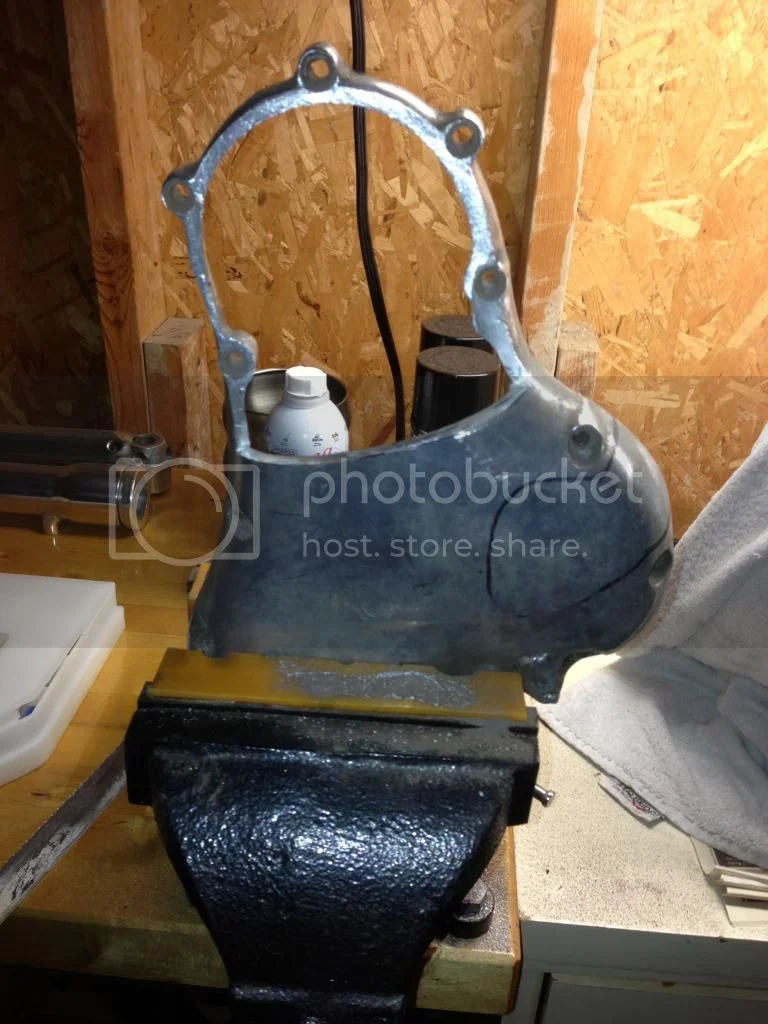

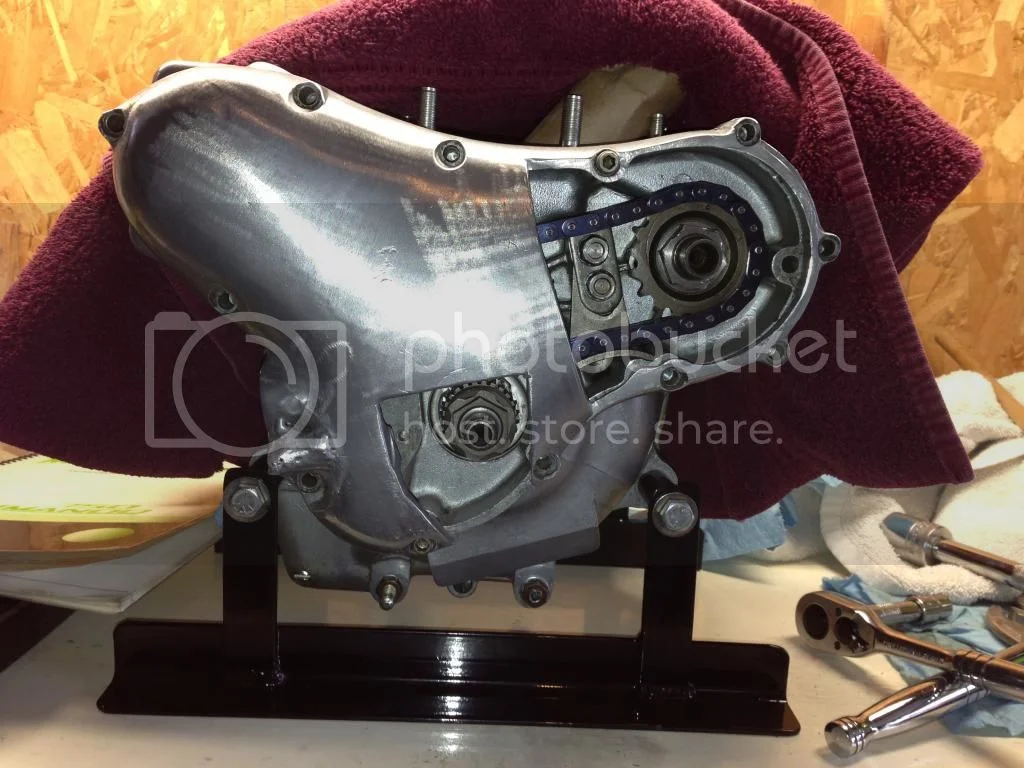

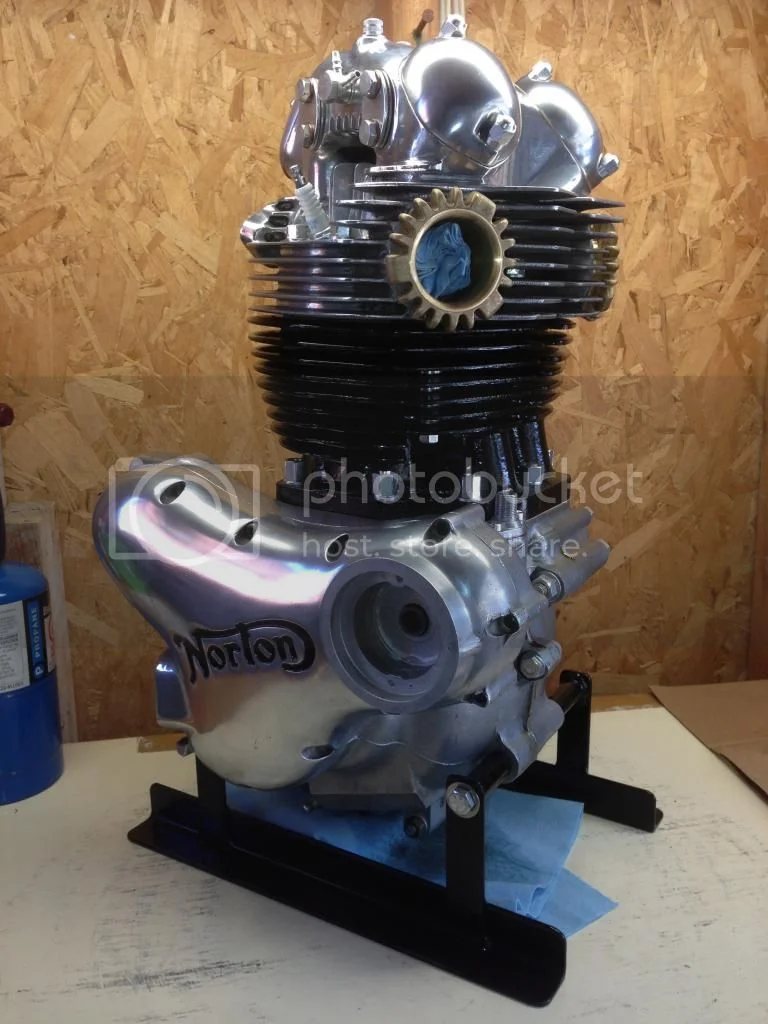

needed a cutaway timing cover, $20 for damaged and weld repaired cover.

One Roller One Basket Here We Go Again!


One Roller One Basket Here We Go Again!


One Roller One Basket Here We Go Again!


One Roller One Basket Here We Go Again!
Click to expand...

I have the old type cut away timing cover much like the one you have made. But i found that it only engages on the idler spindle by about 1mm as these type are ment for the twin chain magneto equipped engines. So be careful when using or AN now make a plate of about £20 so no need to make your own.

Nater_Potater said:
staticmoves said:
A thing of beauty

One Roller One Basket Here We Go Again!
Click to expand...

Glad to see that, unlike the PO, you got the pistons in the right way this time! At least he didn't try starting it that way. btw, what paint did you use on the bores? I hope to be doing a top-end this winter, and would like a good paint for the jugs.

Nathan
Click to expand...


Hey Nate

Used Dupli-Color Gloss Black engine Enamel. Then oven cured after I believe 24hrs after painting. I called them to get the specifics, they were very helpful on the phone.

toppy said:
staticmoves said:
needed a cutaway timing cover, $20 for damaged and weld repaired cover.

One Roller One Basket Here We Go Again!


One Roller One Basket Here We Go Again!


One Roller One Basket Here We Go Again!


One Roller One Basket Here We Go Again!
Click to expand...

I have the old type cut away timing cover much like the one you have made. But i found that it only engages on the idler spindle by about 1mm as these type are ment for the twin chain magneto equipped engines. So be careful when using or AN now make a plate of about £20 so no need to make your own.
Click to expand...


Yes.. I peered through the cut out during fitment to eye up satisfactory engagement. the difference in depth is about 1" from commando. so not a lot of coverage indeed.

Hey, you are in luck, there is a great gentleman on Morrow street with a bike frame table that has forgotten more about brit bikes than I know! He recently did close to 20 commando frames through a few S ont. bike repair shops, you would recognise the names. He repaired my squished down tubes from a previous install, oil cooler or highway footrests, and charged me $ 70.00. Send me an email and I'll forward the info. I have a '68 and had the front drum stiffener kit, radiused the linings to match drum, etc. and it still sucked! I now have a '75 hub, grimeca twin pot kit with floating disc, 2 finger front brake! Oh, by the way we could be neighbors, I'm 20 mins SOB (south of Barrie!). Cheers!
