The weld : head stock to down tube drifts away at the bottom and does not connect anything .. shows porr concentration

Ian James said:
The weld : head stock to down tube drifts away at the bottom and does not connect anything .. shows porr concentration
Click to expand...
You're a bit quick on the criticism for someone who's only joined a week ago.
The clear coat will obviously show "flaws" that are invisible under paint.

Ian James said:
The weld : head stock to down tube drifts away at the bottom and does not connect anything .. shows porr concentration
Click to expand...
I don't see anything wrong with that welding? But then I'm not a bronze welder

robs ss said:
You're a bit quick on the criticism for someone who's only joined a week ago.
The clear coat will obviously show "flaws" that are invisible under paint.
Click to expand...
He may have a point though, difficult from photographs but I think I would ask for an opinion on that and I can Sif bronze weld.

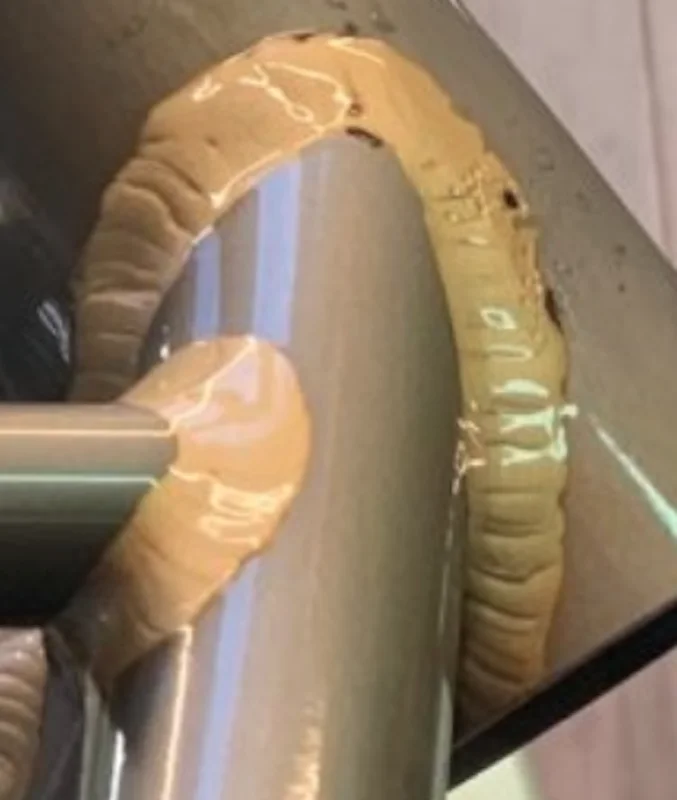

Screenshot 2020-12-23 at 14.05.10.png

Last edited:
See vid below for porting a Full Auto head. Expect more mid range and top end. Flowing/opening the ports won't do anything for the low end. Do not remove any material from the port floor.


Ian James said:
I joined a year ago , been welding for 55 years
Click to expand...
Hi Iam,
I am open to critiscims even if you are member only one day.
I will take a closer look to the weld to day.
The frame was made by Roger Titchmarch, the man that own the rights from Collin Seeley and also the jigs.
It's well know that the welding from Titchmarch are better as the one from Collin Seeley.
The frame was made by Titchmarch and sale to Minovation racing UK and the sale the frame to Kenny Cumings NY.
I can not imagine that this very experimented mens will let pas a frame with a bad weld.
Yves

yves norton seeley said:
I did a jump to my wokshop to day and inspect the weld, I am not a expert but I don't see anything wrong.
Yves
Click to expand...
In post 25 the picture looks like the weld at the bottom isn't making full contact from the headstock to the down tube,
But it's probably the angle of the photo

yves norton seeley said:
Hi Iam,
I am open to critiscims even if you are member only one day.
I will take a closer look to the weld to day.
The frame was made by Roger Titchmarch, the man that own the rights from Collin Seeley and also the jigs.
It's well know that the welding from Titchmarch are better as the one from Collin Seeley.
The frame was made by Titchmarch and sale to Minovation racing UK and the sale the frame to Kenny Cumings NY.
I can not imagine that this very experimented mens will let pas a frame with a bad weld.
Yves
Click to expand...
I hope that I am wrong however small things like porosity and run offs are easily overlooked and subsequently can leed to failure. I wish you great sucess with your build and look forward to seeing more of it Cheers Ian

The little black line/spec at the end point makes it appear that the weld is adjacent the end of the tube rather than half on it. If the black line is the end of the tube, it is a problem.
If the black line is just a bit of gunk and the weld is where it should be, straddling both pieces, then there's no problem.

worntorn said:
The little black line/spec at the end point makes it appear that the weld is adjacent the end of the tube rather than half on it. If the black line is the end of the tube, it is a problem.
If the black line is just a bit of gunk and the weld is where it should be, straddling both pieces, then there's no problem.
Click to expand...
I will make new pics rom the weld, so you will see there is nothing wrong
Yves

No pics needed Yves, I believe you. My first thought was it's a nice weld, then saw the bit of crud that might make things appear off kilter.

Glen

Hi there,
what I did before XMas:
Mounting the triple clamps with new conical bearings.
Ride to Herman for blast the Fullauto head and Maney cylinder, they will be finish tomorow.
I discover some scratches inside cylinder, after mesurment the cylinder is 73.02mm, Jim Schmidt advice 73.00 for his pistons, so I will rebore the cylinder to 73.50
Next week I wish to change one of the forks legs and put new tires, mounting the fork and the weels.
Keep you posted
Yves

Rebuilt the Sunburst

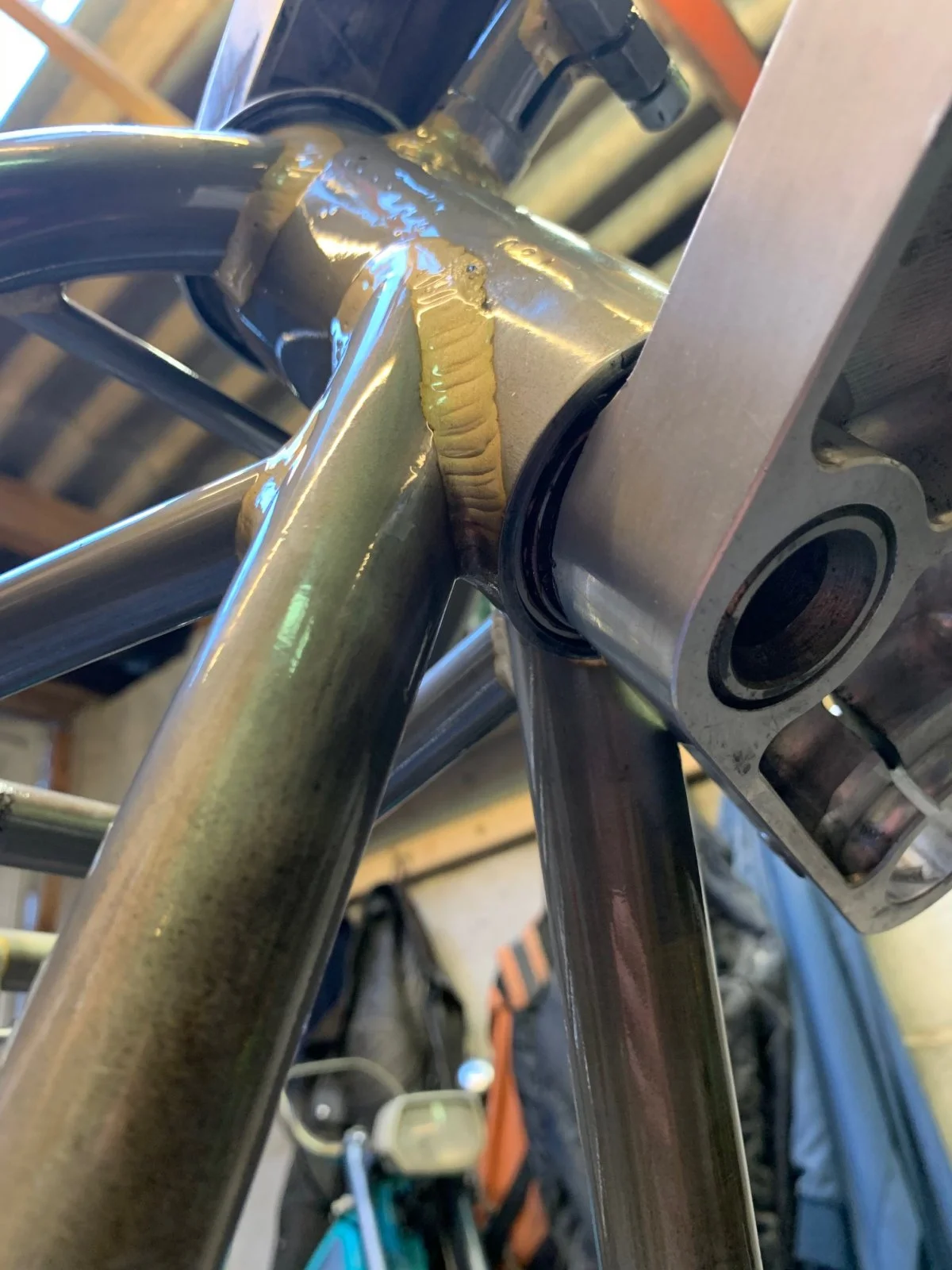

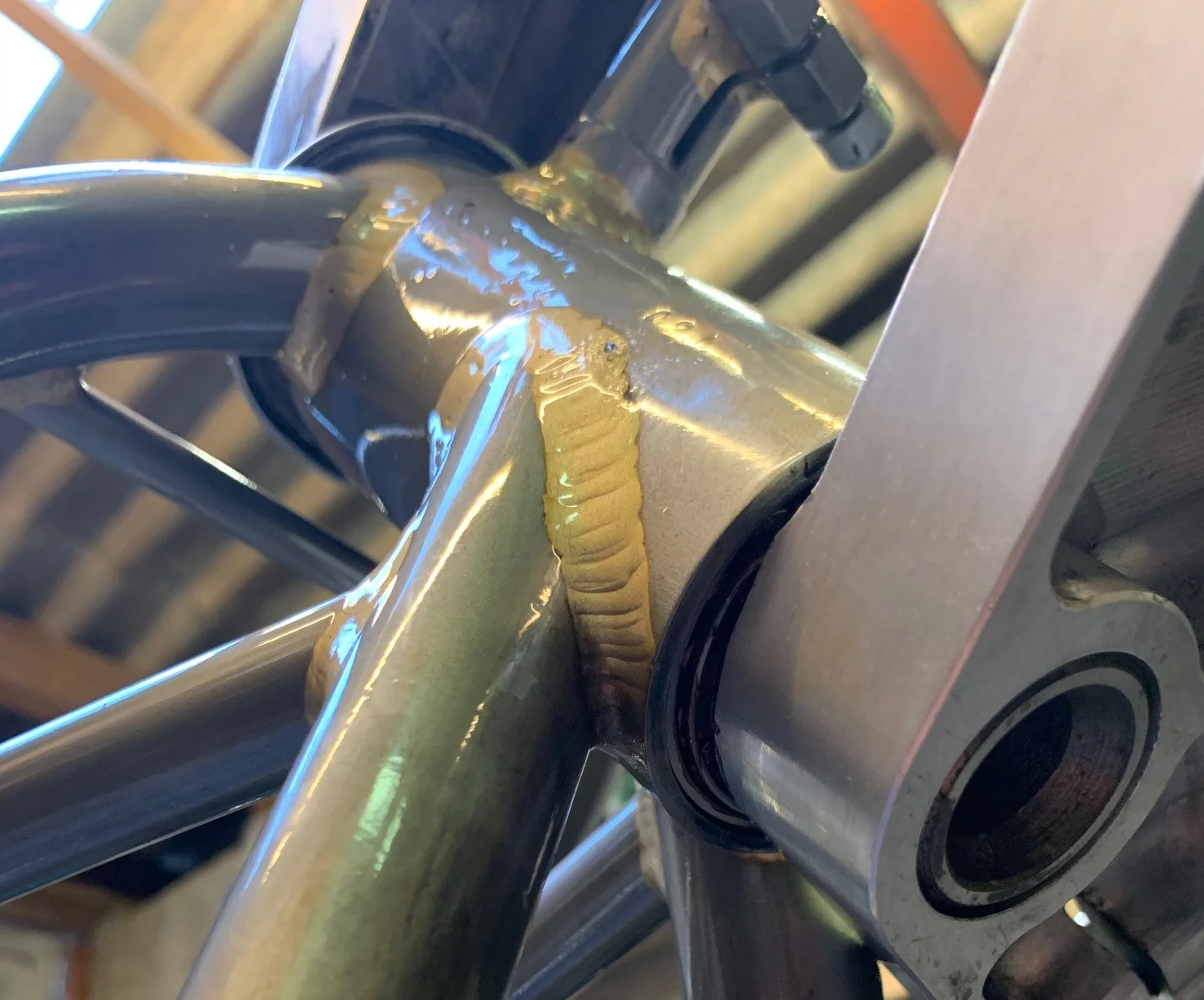

Here another pic from the welding, to me must be OK no?
Rebuilt the Sunburst

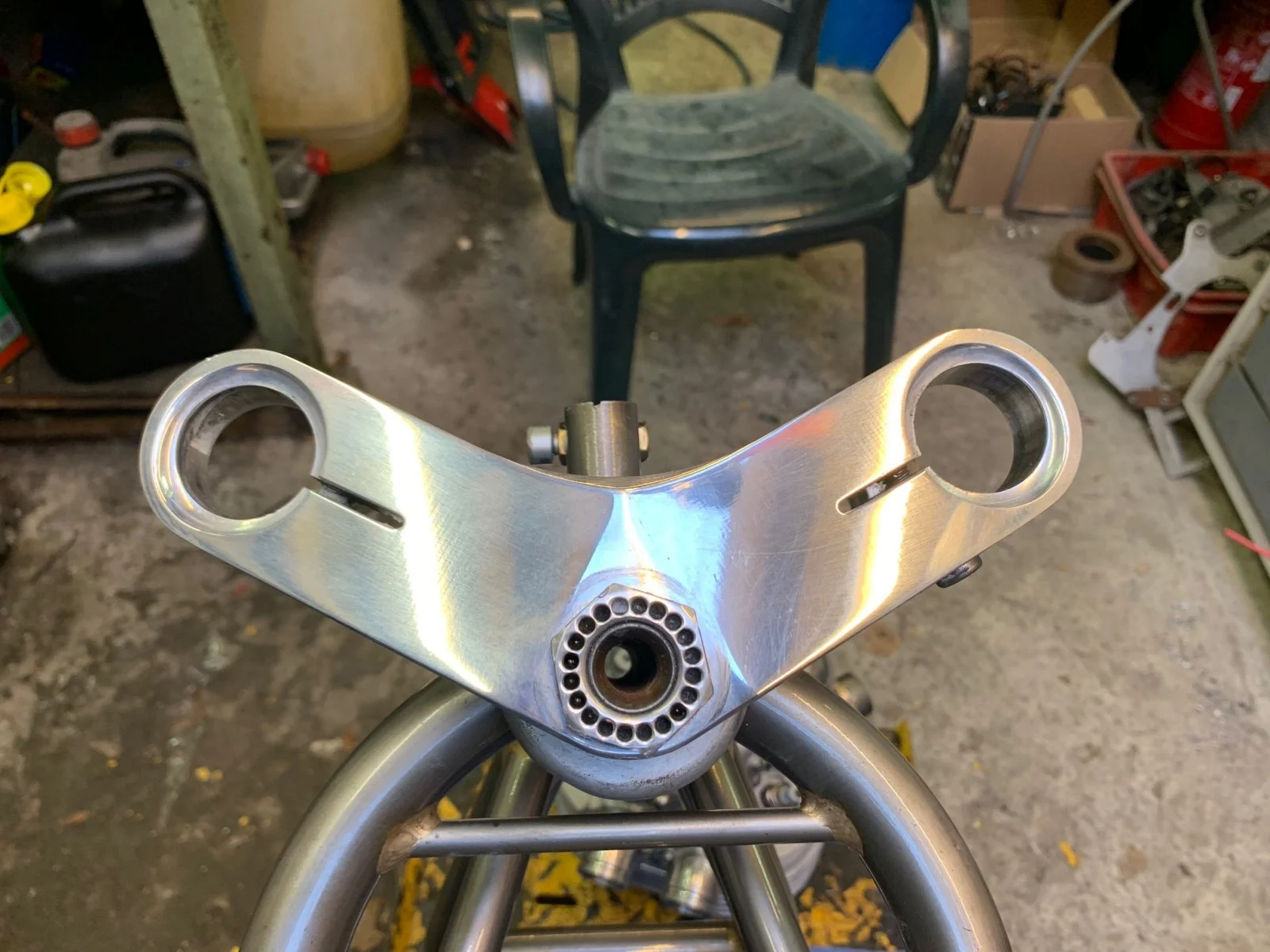

Minovation triple trees mounted with new bearings
Rebuilt the Sunburst

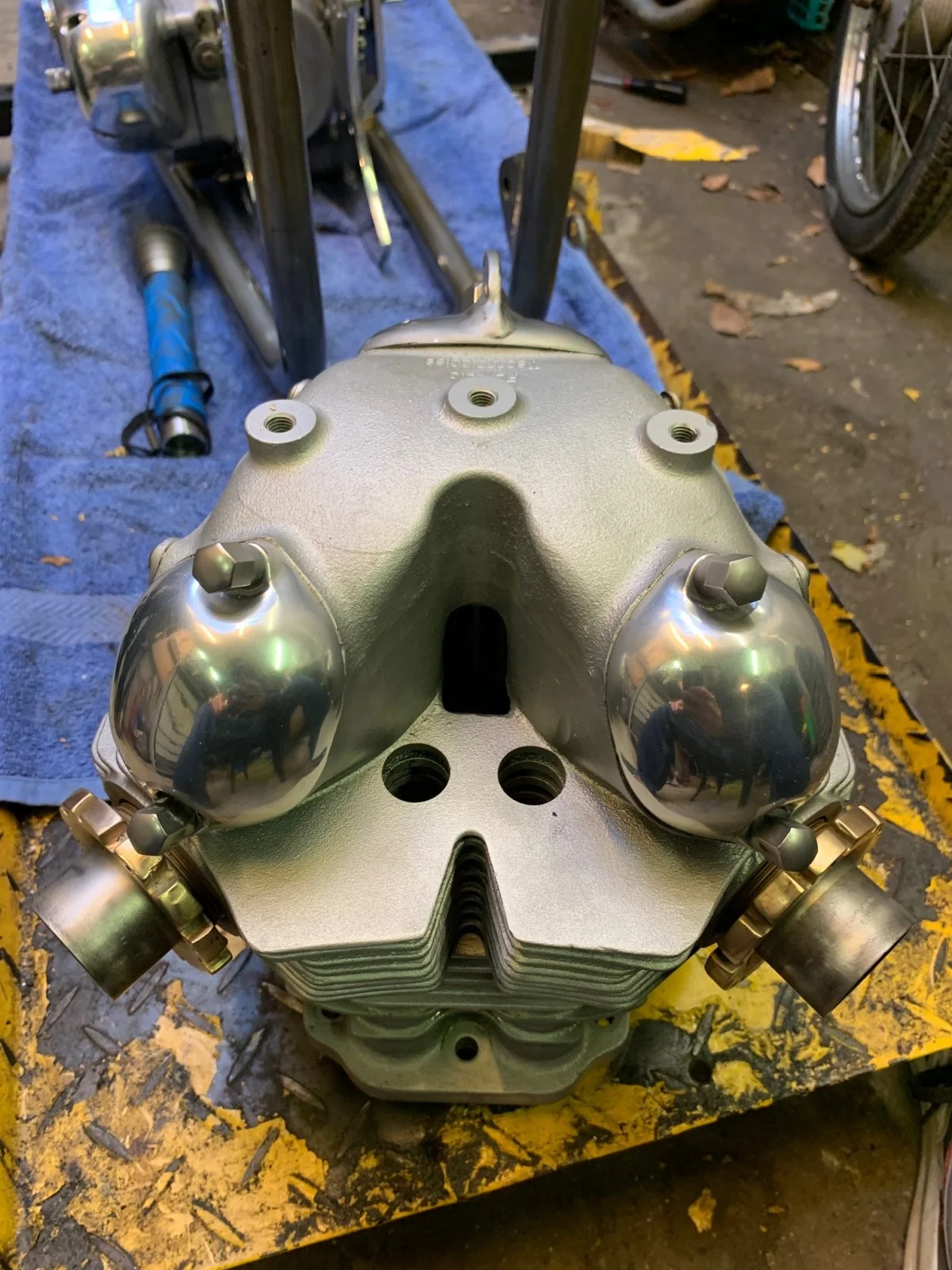

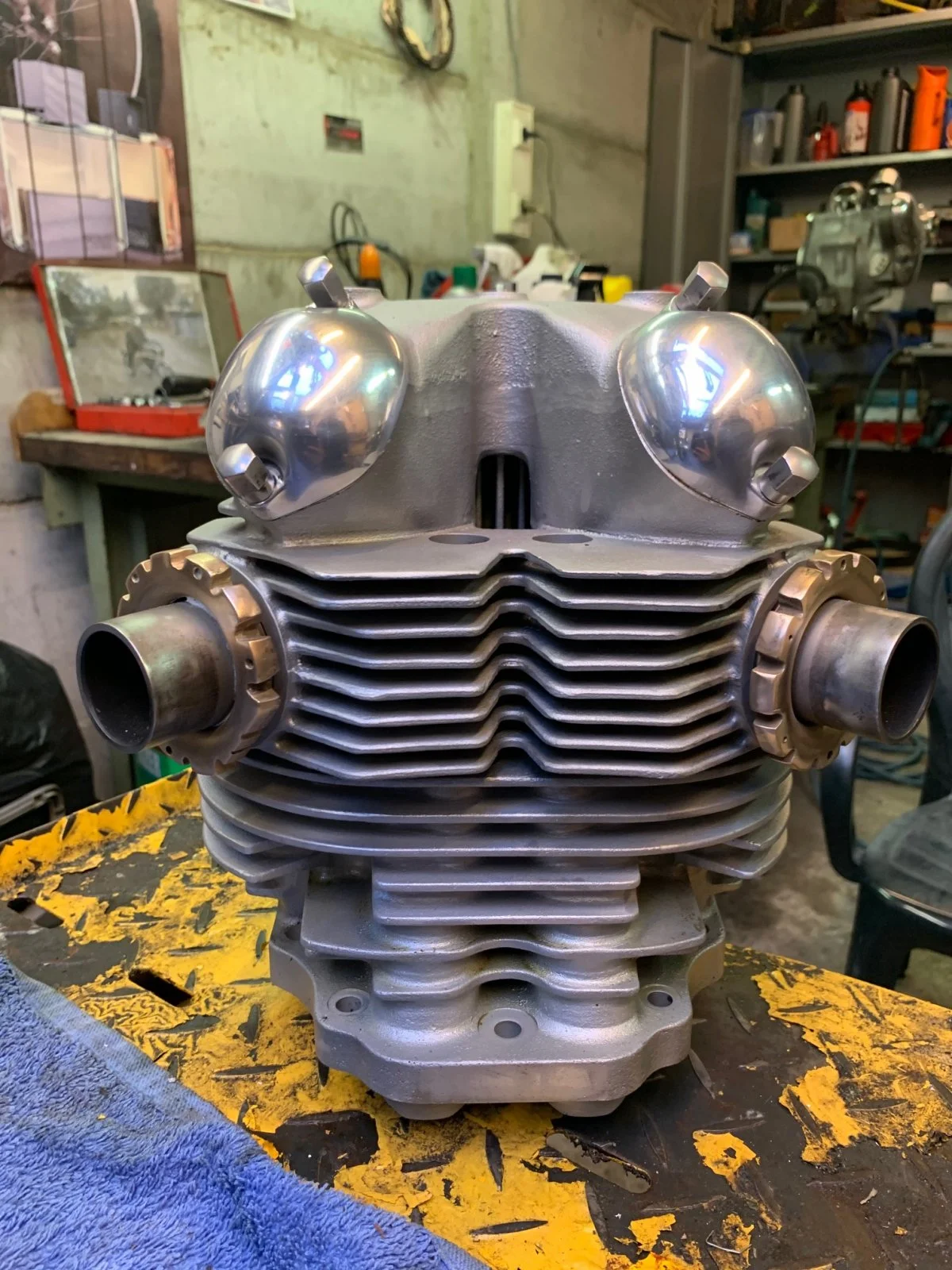

Head and cylinder blasted by Herman aka Mutanawe, perfect job Herman!
Rebuilt the Sunburst

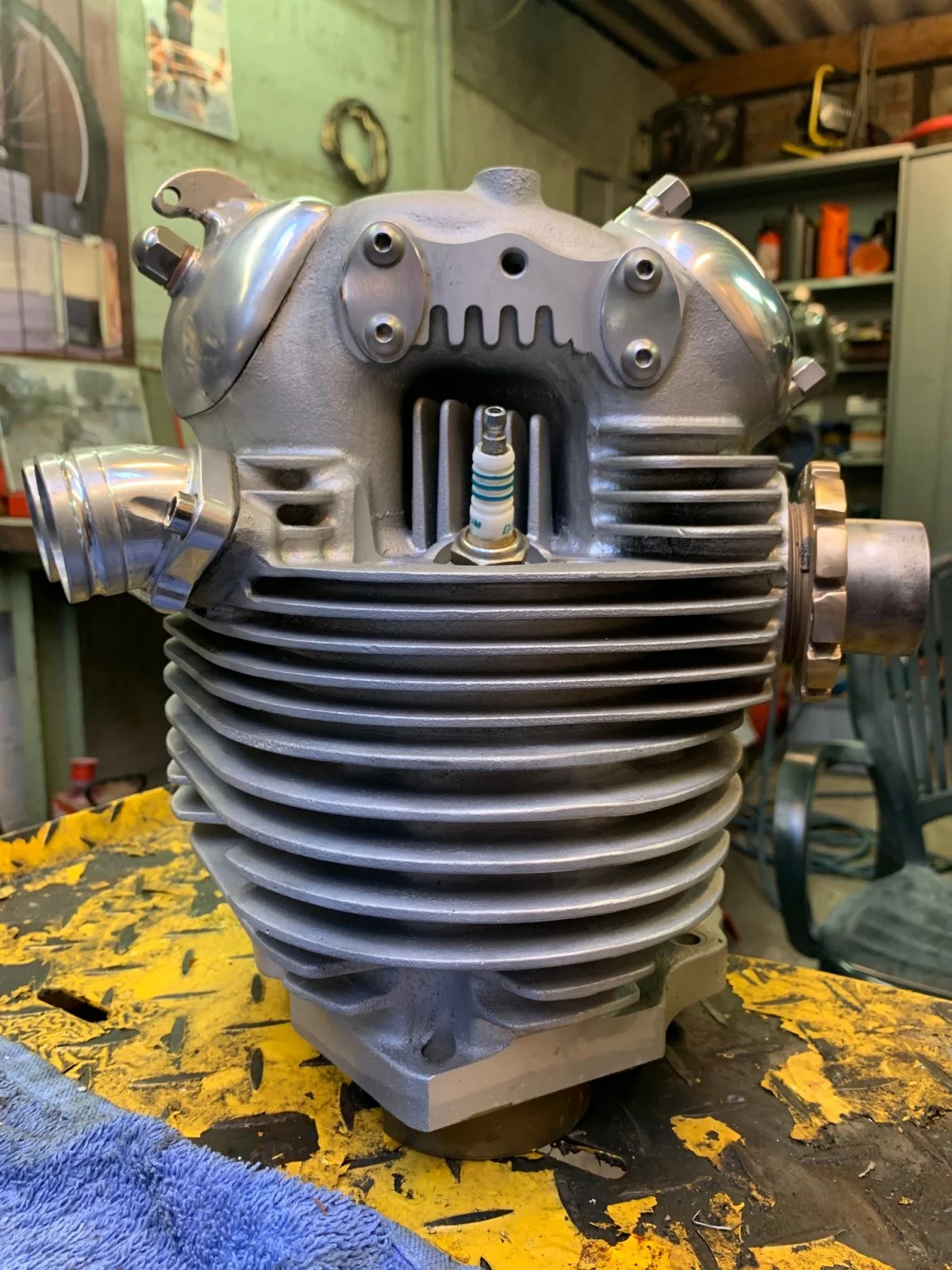

The cylinder head is empty, rockers and valves out
Rebuilt the Sunburst

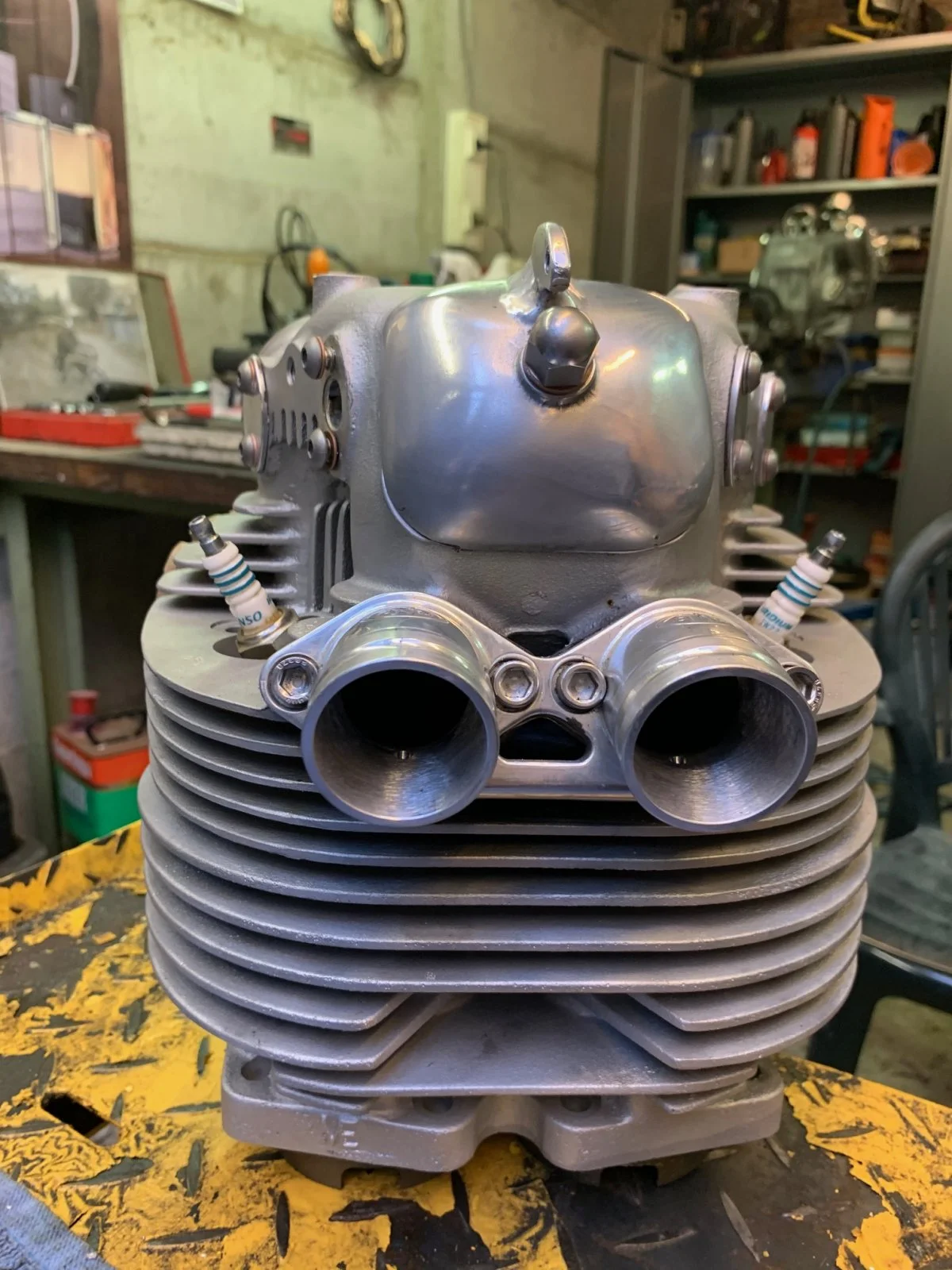

Why do I weld a piece on top of the inlet cover? The cover is from my former engine
Rebuilt the Sunburst

Inlet manifold by Matt CNW


Attachments

  • Rebuilt the Sunburst
    126.2 KB · Views: 270
