Norton Villiers Commando 1968 Re commissioning an adventures at 30

Joined
Feb 6, 2011
Messages
752
Country flag
Thanks mate :) that's interesting to know one other thing I was wondering might be a daft question but I'll ask anyway do the headbolts have any stretch issues an does anyone have a measurement to check to them

Joined
Feb 6, 2011
Messages
752
Country flag
Bit of a longshot has anyone got a photo of the wiring runs around the battery tray area, can't remember which bit's go through the tray holes, also does it run up the lh side of the frame?

Thanks in advance,

Joined
Feb 6, 2011
Messages
752
Country flag

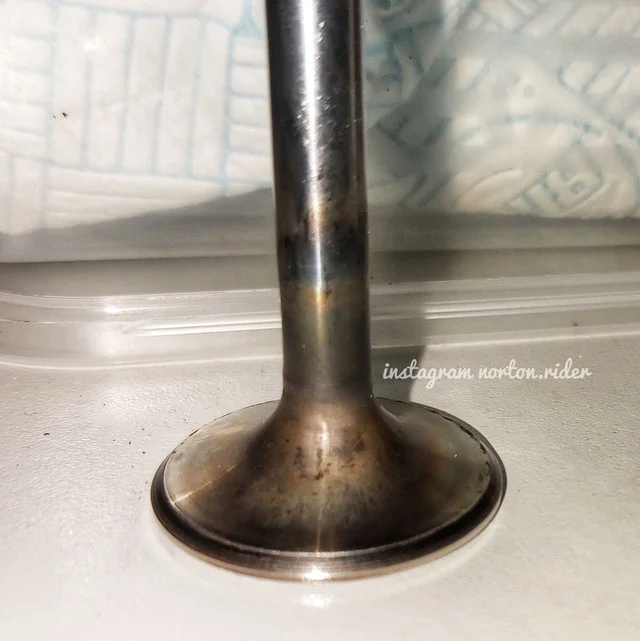

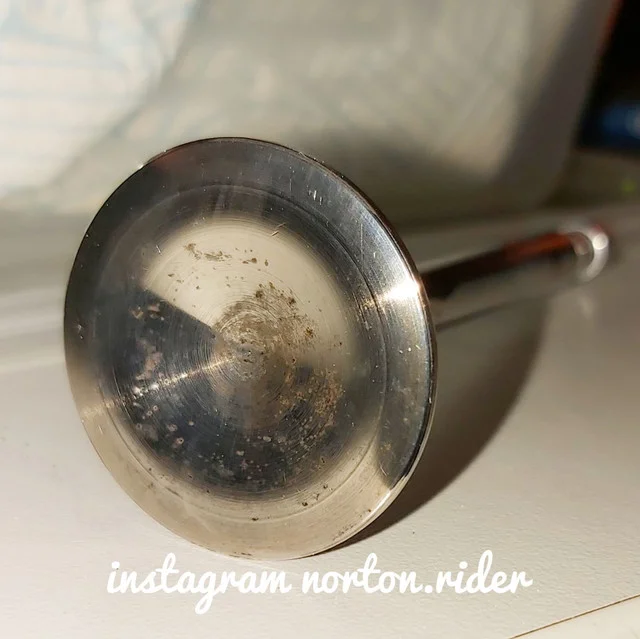

A mini update for today on the Progress. After referring to Normans book I'm pretty sure I'm gonna put some new valves in her while I'm at it.



Last edited:
Joined
Feb 6, 2011
Messages
752
Country flag

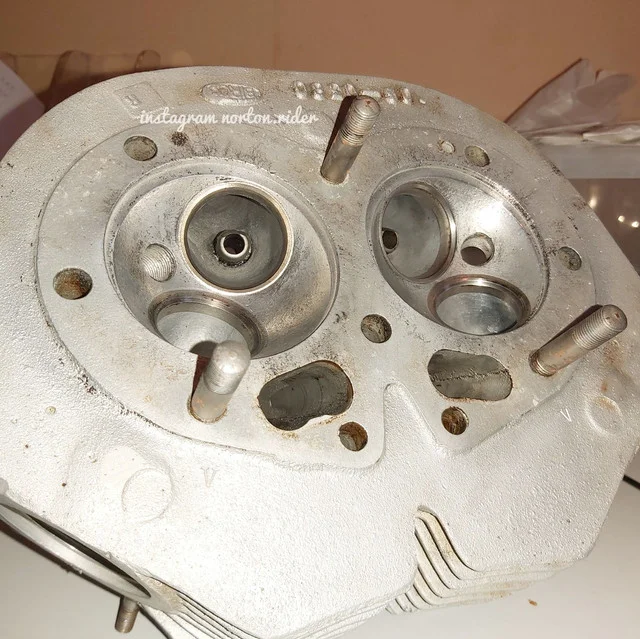

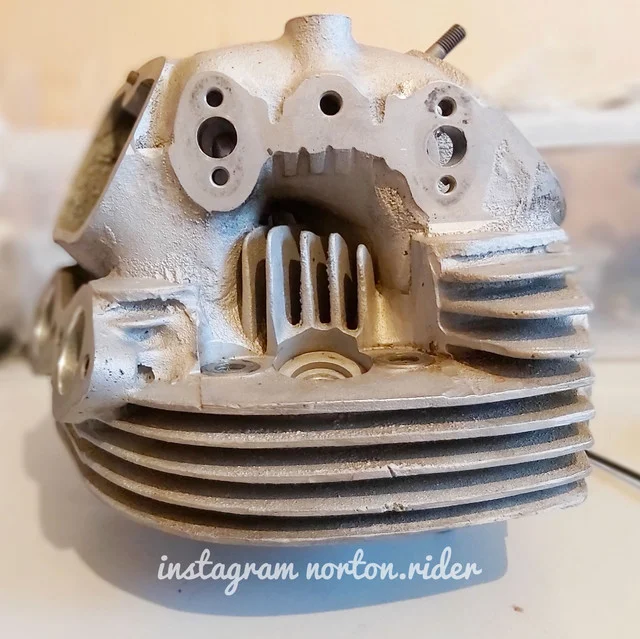

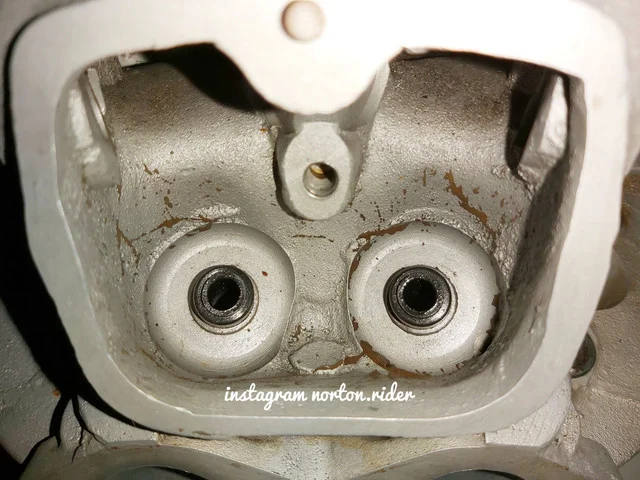

Well looks like I just came to a grinding hault everyone drat!

Got some serious thinking to do now with regards to the head certainly going to need valves, guides n springs n maybe new valve seats.










Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
16,457
Country flag
As TW says, looks like someone’s (misguided IMHO) attempt at a tuning mod.

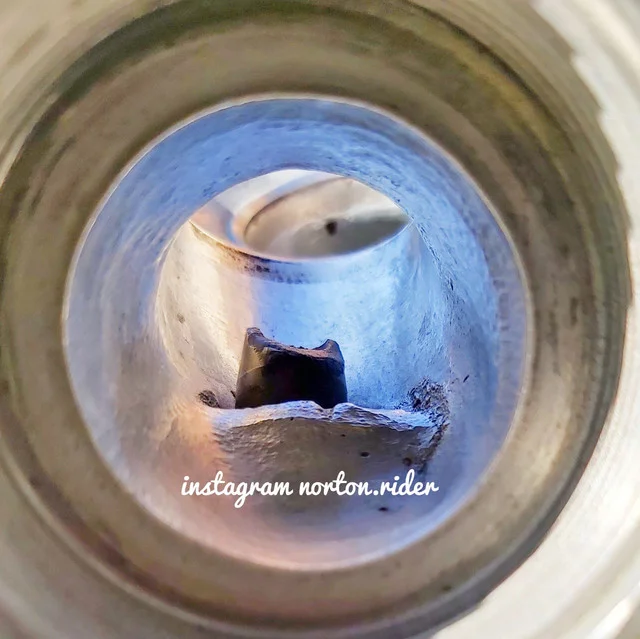

One guide looks to have quite a bit missing, over zealous tuning there I assume. The issue is it’s a large amount of valve support missing. IMHO I’d probably go new valves and guides in this.

Fortunately, standard valves and guides are not expensive.

Why do you say it might need seats? Unless they are very recessed due to wear and prior cutting and grinding, they should be ok. From the pics you posted, I thought they looked ok?

Last edited:
Joined
Feb 6, 2011
Messages
752
Country flag

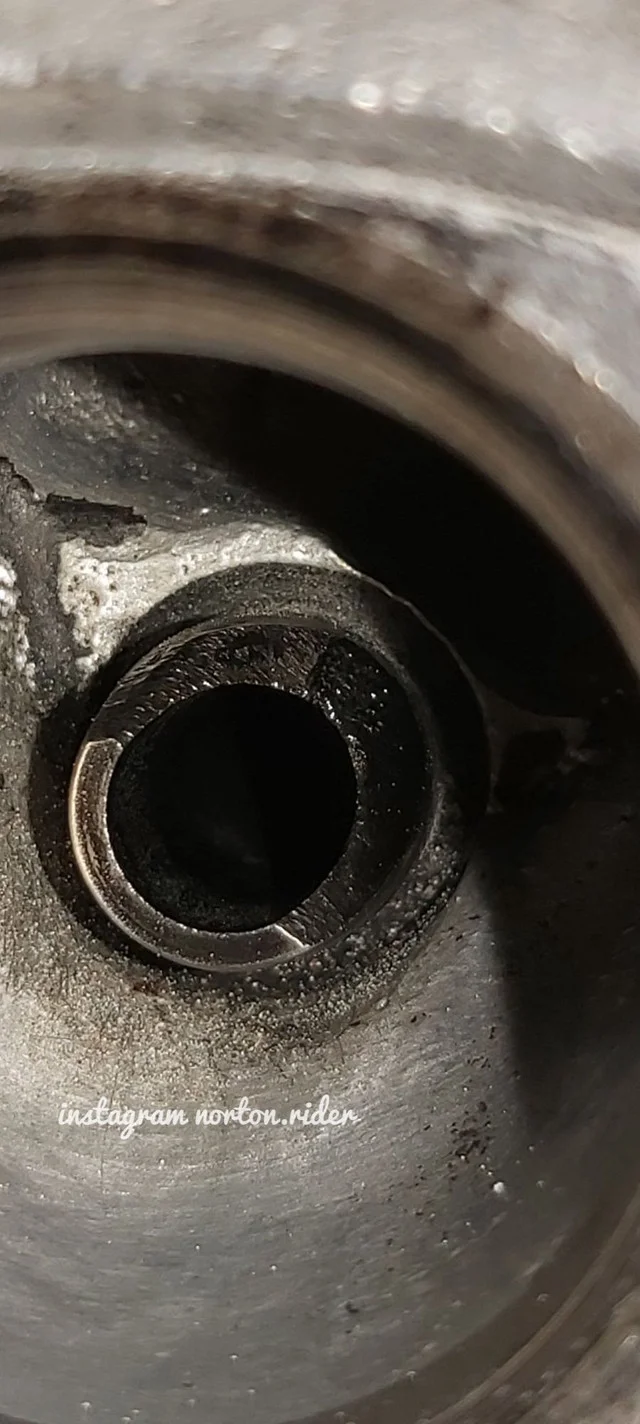

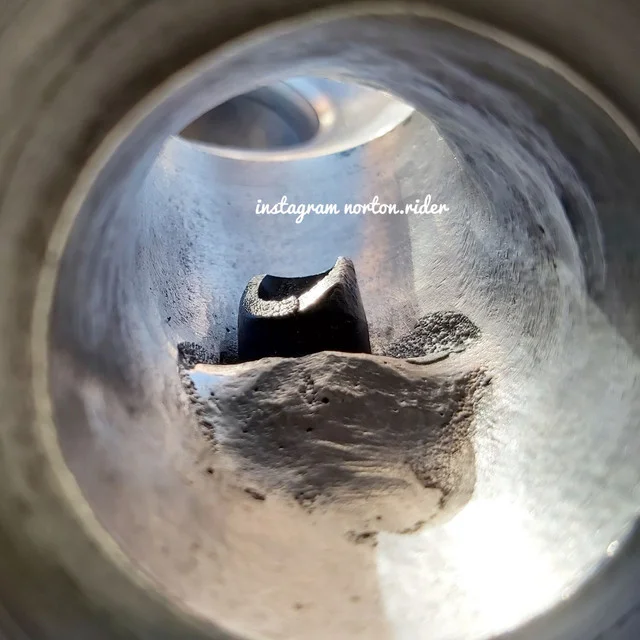

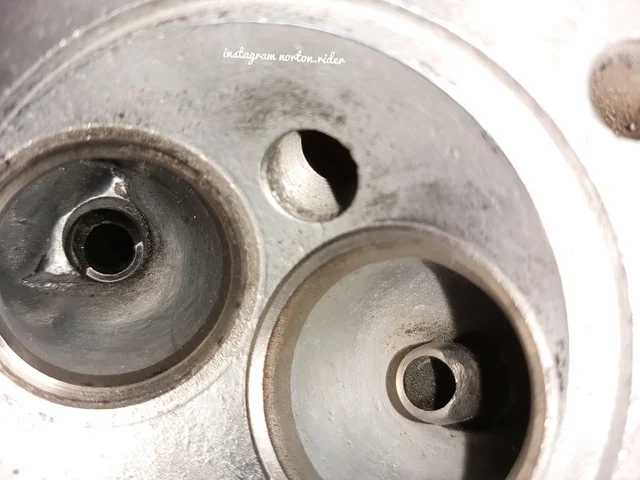

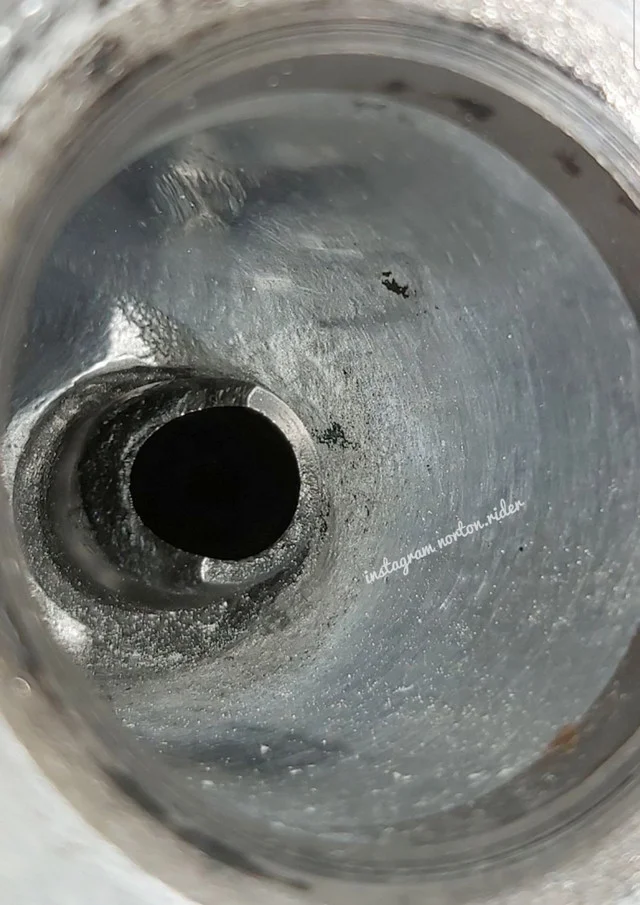

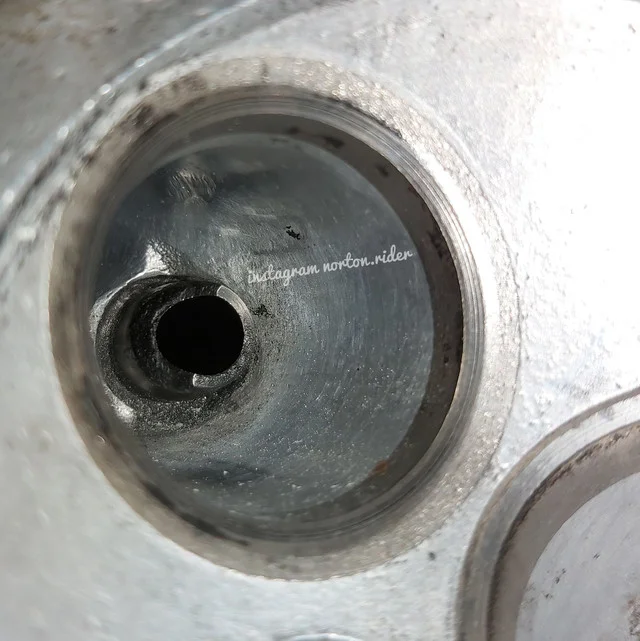

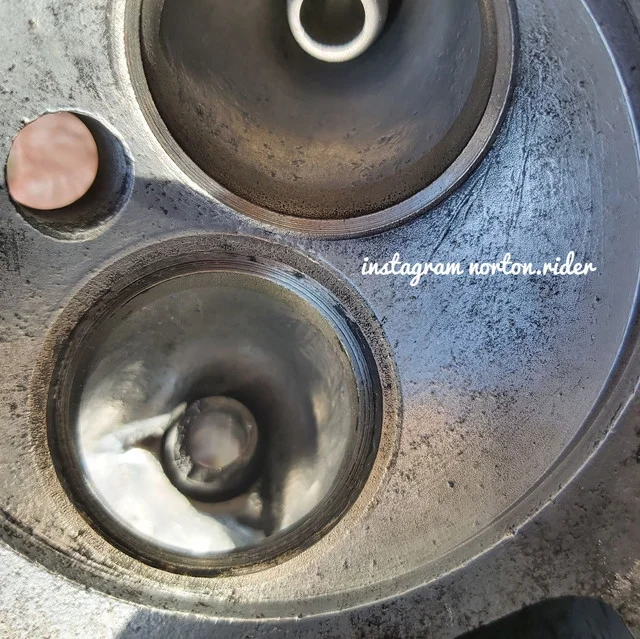

Managed to get two better mobile pics looks like someone's got a bit giddy with a dremel or they smashed both the exhaust valves at some point maybe but thats only a guess. Looking at the ports it looks like they have got really giddy with some idea in there head haha! Pun intended. I was a bit concerned about the scoring on the seats Eddie but I am still learning about these things.



Joined
Feb 6, 2011
Messages
752
Country flag
I must admit Paul thats been running through my mind depending on what I could track a 68' head down for.


baz

VIP MEMBER
Joined
May 26, 2010
Messages
3,632
Country flag
I must admit Paul thats been running through my mind depending on what I could track a 68' head down for.
What do the inlet ports look like? Have they been opened up?
I think they should be 28mm on an early head
If it were mine I would fit new valve guides and valves and cut the seats and give it a go
It doesn't look like it's been skimmed to get the compression higher or anything like that
Can you post some more photos up?
If you decide to do the valve guides yourself take lots of advice first , there's lots of pitfalls with replacing valve guides on commandos
Keep us informed what you plan to do
Cheers


Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
16,457
Country flag
Wot Baz sed...

Unless the ports have been butchered oversize I can’t see why you need a new head?

The seats look like they’ll be fine with a light cut and valves & guides are cheap.

Joined
Feb 6, 2011
Messages
752
Country flag

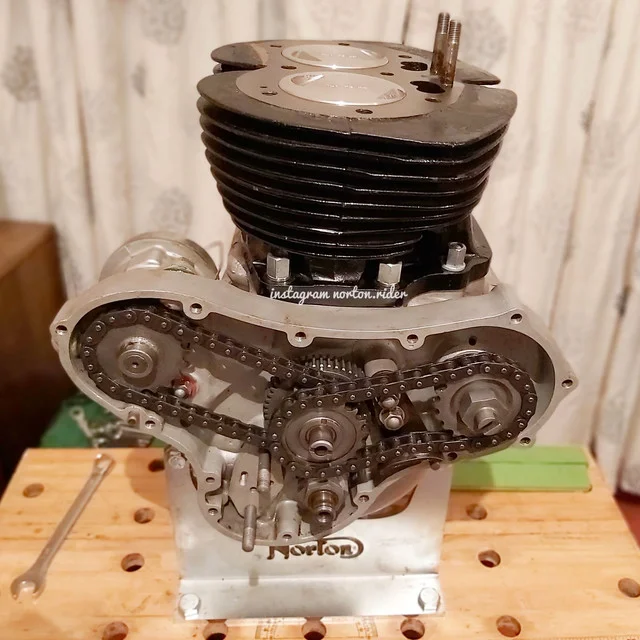

Cooking on gas guys :) cylinder is fitted.

Had a few quotes on putting the guides in new seats so gonna explore getting a better 68 head first as there's other bits id like to fix on it as well so looks like it could be more cost effective to get a replacment. Missed out on a nos one for 300 quid the other week sods law always when you arnt looking lol.



Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
16,457
Country flag
New seats ?!

Please post more close up pics, I do not believe you need new seats. I think they just need a gentle cutting.


baz

VIP MEMBER
Joined
May 26, 2010
Messages
3,632
Country flag
You don't need new valve seats
A set of guides and valves cut in properly will sort you out imo

Joined
Feb 6, 2011
Messages
752
Country flag
Sorry it took a bit lads got distracted doing some body work on the rd250lc lol hopefully letting that got for a second ww2 bike.

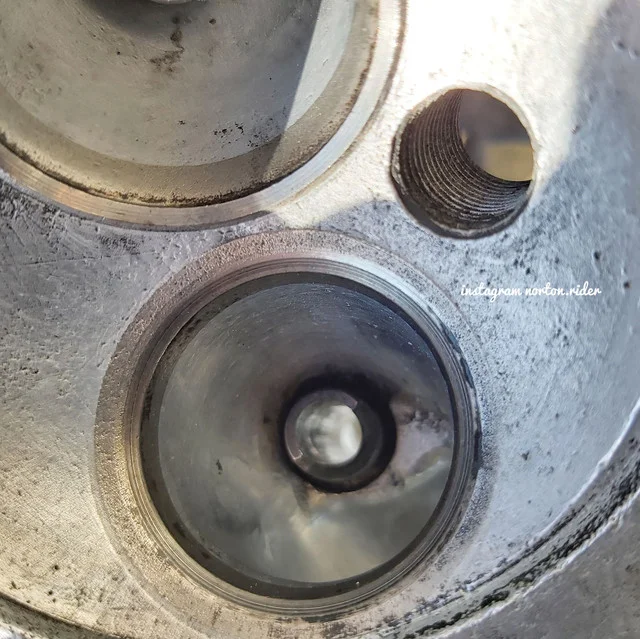

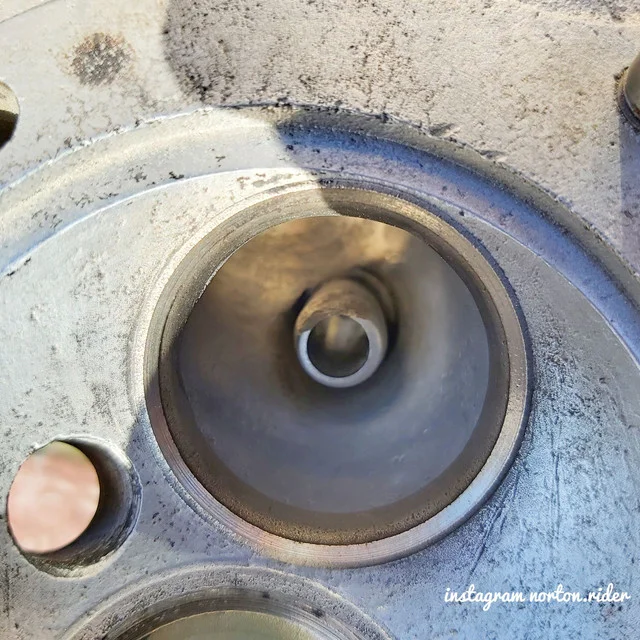

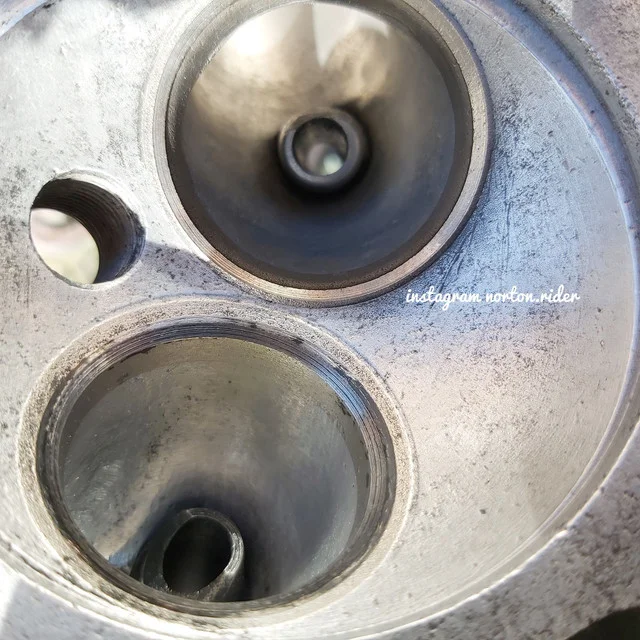

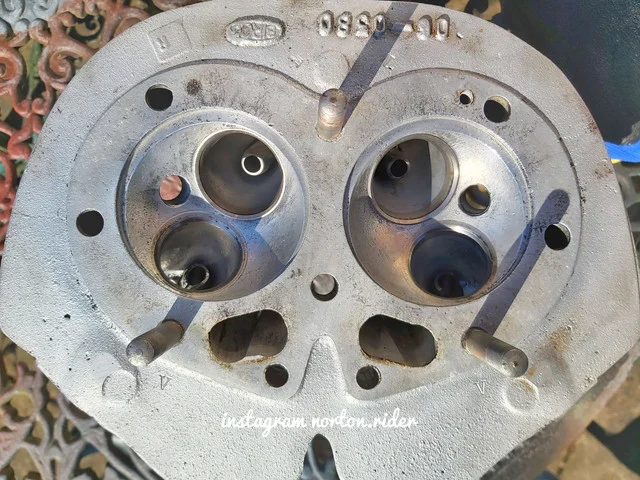

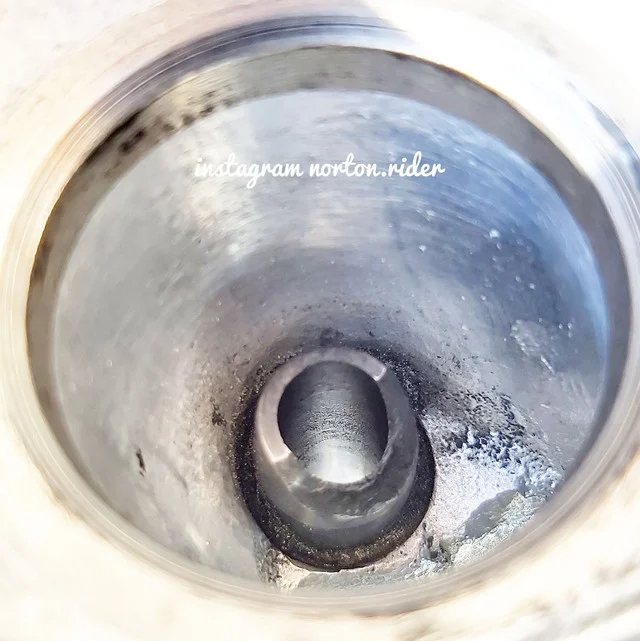

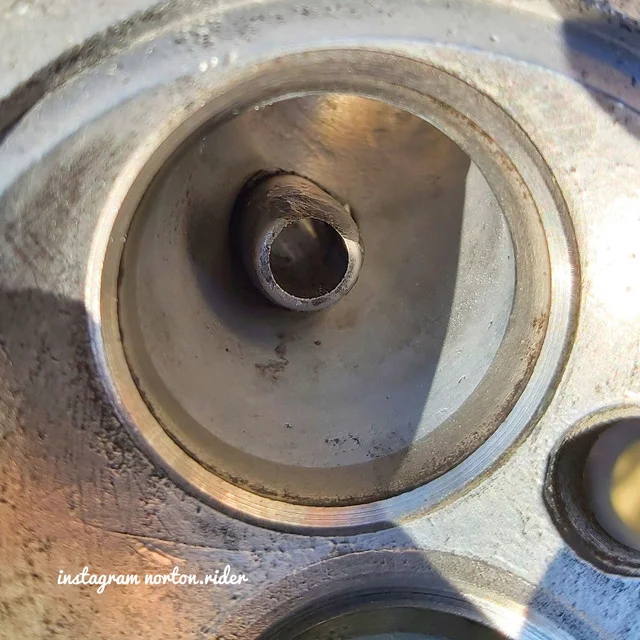

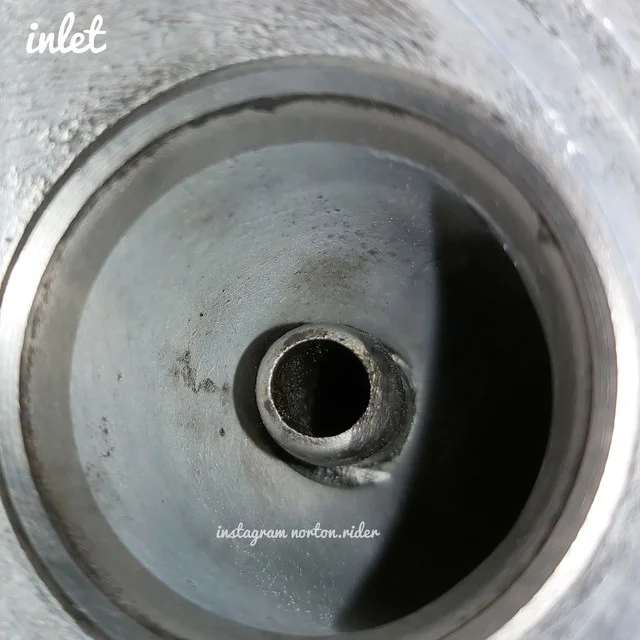

Heres some pics of the guides and seats.
