Norton 961 Alternate parts list.

cliffa said:
Folks,

As the future of parts for our bikes is uncertain I'm collating a list of alternate parts for 961's. This is purely a list, so please don't start commenting, comparing one against the other or generally derailing (as has been know to happen on the odd occasion here) :rolleyes: I've already mentioned this to Jerry and if we can keep it in a common format he will see about putting together a sticky list. So here is what I've got together so far. Feel free to add, but please just the description, manufacturer and their part number plus any helpful notes as you see below. Alternatively just P.M. me and I will add to the list. (It will probably be neater that way actually)

AIR FILTER
BMC FM983/08

OIL FILTER
Mann HU610X
Bosch P9147
WIX WL7227

OIL FILTER COVER O-RING ( Dimensions 66mm ID x 2mm )
McMaster-Carr Part # 1009CINC

CLUTCH PARTS
Friction Plates EBC CK2255 (same as Yamaha TDM850 & other Yamaha)
Springs EBC CSK126
Complete Clutch Set EBC SRK51 (Steel Plates , Friction Plates , Springs)
Clutch holding tool EBC CT008SP (same as Yamaha FZR750)
Alternate clutch holding tool ( cheaper than the EBC one)
www.ebay.co.uk

Norton 961 Clutch Holding Tool | eBay

Find many great new & used options and get the best deals for Norton 961 Clutch Holding Tool at the best online prices at eBay! Free delivery for many products!
www.ebay.co.uk

CUSH DRIVE RUBBERS
Talon TCDR-1 (use Silkolene Pro RG2 racing grease)

SPROCKETS
Front Talon TG62052518
Rear Talon TR351525 is the reference, then the number of teeth can be chosen and becomes TR351 50 525 for a 50 tooth sprocket.

AIR PRESSURE SENSOR
Yamaha 1WS-82380-00 (Has a green sticker)

SPARK PLUGS
NGK CR9E (standard - threaded tip)
NGK CR9EB (standard - solid tip)
NGK CR9EIX (Iridium)

CAM SENSOR
Bosch 0232103037

CRANK POSITION SENSOR
Electrex P6-500 (500 Ohm)

HEAD TEMP SENSOR
Bosch 0280130026
Honeywell ES120-0030

TIP OVER SWITCH
Triumph T2502405 (Switch , Fall Detection)

RELAYS
Honda 38502-MCS-G01
Omron G8HN-1C4T-RH
Durite 0-728-13 ( reportedly these are prone to failure).
Bosch Automotive 332201107

IGNITION COIL PACK
Bosch 0221503035

IGNITION KEY
Cagiva / Ducati 800084071 ( made by Zadi )

BRAKE PADS

FRONT (Goldline radial calipers with 4 pads USD forks)
Goldfren 177
EBC FA322
Brembo 07BB33SA
Lucas TRW MCB721SV

FRONT (Brembo axial non USD fork)
Goldfren 141
EBC FA244
Brembo 07BB33SA

FRONT (grey radial caliper USD forks)
EBC FA630HH
Goldfren 328
Lucas TRW MCB856SV

REAR (all models)
EBC FA266
Brembo 07BB20CC

STARTER MOTOR (same as Buell Blast & Harley Sportster)
Nippon Denso TN128000-8453
Harley 31391-91 (same as Buell Blast)

ALTERNATOR
Rotor
Norton 530001
Electrex World RO961
Stator Generator with Crank Sensor
Norton 5300003
Elextrex World G961

FUEL PUMP
Bosch 69613 (0 580 453 407) It requires a 1/2" tubular spacer - the white piece in this image.

FUEL PUMP CONNECTOR (That's the red piece in this image.)
Ford 1072003 or 1330328
Gutsibits FUA30000




FUEL PUMP O-ring
McMaster Carr # 1295N668 (Chemical-Resistant Viton® Fluoroelastomer O-Ring 5 mm Wide, 90 mm ID)

FUEL PUMP SPIGOT
Dorman part no. 800-123 (https://www.dormanproducts.com/p-49076-800-123.aspx)

FUEL PRESSURE REGULATOR (Make sure you have the right pressure setting. 3.5 bar)
Ducati 28340031A
Aprilia (tbc)
Cycleworks SKU FPR35KCA (KTM Husaberg https://ca-cycleworks.com/fpr35k.html )

FUEL FILTER
MAHLE KL 145

THROTTLE POSITION SENSOR (TPS)
Harley-Davidson 27629-01
Twin Power 933-1006
Magneti Marelli PF2C

FUEL INJECTOR NOZZLE
Intermotor FJ647

IDLE AIR VALVE / IDLE AIR MOTOR
Lowe 57177
Magneti Marelli 8001063373638
Siemens / VDO D95177

INDICATOR
Aprilia 349582 (also fitted to many Triumph)
Click to expand...

Hello, I'm new here and my first contribution. I have a 2018 Sport Anniversary that I got August 2021. Would like to add to this parts compilation. My bike has Brembo brake & clutch pumps that use the Ducati 916/748 levers of models up to 1998. I dunno what previous model years use but as soon as I got the bike I recognised 'em - having owned a 916 Strada for 18 yrs... I've swapped 'em out for some cool black CNC alloy fully adjustables found on fleabay. When I've figured out how to contribute fully I'll upload some pix. Furthermore, I've devised a rider seat securing mod that dispenses with the utterly hopeless 'two bolts' in favour of a proper latch. If anyone is interested?

Jon said:
Hello, I'm new here and my first contribution. I have a 2018 Sport Anniversary that I got August 2021. Would like to add to this parts compilation. My bike has Brembo brake & clutch pumps that use the Ducati 916/748 levers of models up to 1998. I dunno what previous model years use but as soon as I got the bike I recognised 'em - having owned a 916 Strada for 18 yrs... I've swapped 'em out for some cool black CNC alloy fully adjustables found on fleabay. When I've figured out how to contribute fully I'll upload some pix. Furthermore, I've devised a rider seat securing mod that dispenses with the utterly hopeless 'two bolts' in favour of a proper latch. If anyone is interested?
Click to expand...

Definitely interested in the seat mod, and thanks for the info on the controls. Please continue posting details.

Ken

Jon said:
Hello, I'm new here and my first contribution. I have a 2018 Sport Anniversary that I got August 2021. Would like to add to this parts compilation. My bike has Brembo brake & clutch pumps that use the Ducati 916/748 levers of models up to 1998. I dunno what previous model years use but as soon as I got the bike I recognised 'em - having owned a 916 Strada for 18 yrs... I've swapped 'em out for some cool black CNC alloy fully adjustables found on fleabay. When I've figured out how to contribute fully I'll upload some pix. Furthermore, I've devised a rider seat securing mod that dispenses with the utterly hopeless 'two bolts' in favour of a proper latch. If anyone is interested?
Click to expand...
Welcome Jon, all info. on replacement parts or improvements very welcome thanks. For the seat mod perhaps start another thread though? ( it will be easier to find). and will be quite popular by the sounds of it. If you want to upload pics directly sign up as a VIP member, otherwise choose a hosting site such as Google drive, and paste the link in your post.

Cheers,

cliffa.

@cliffa Whilst I know this isn't stricly a part - it might help.

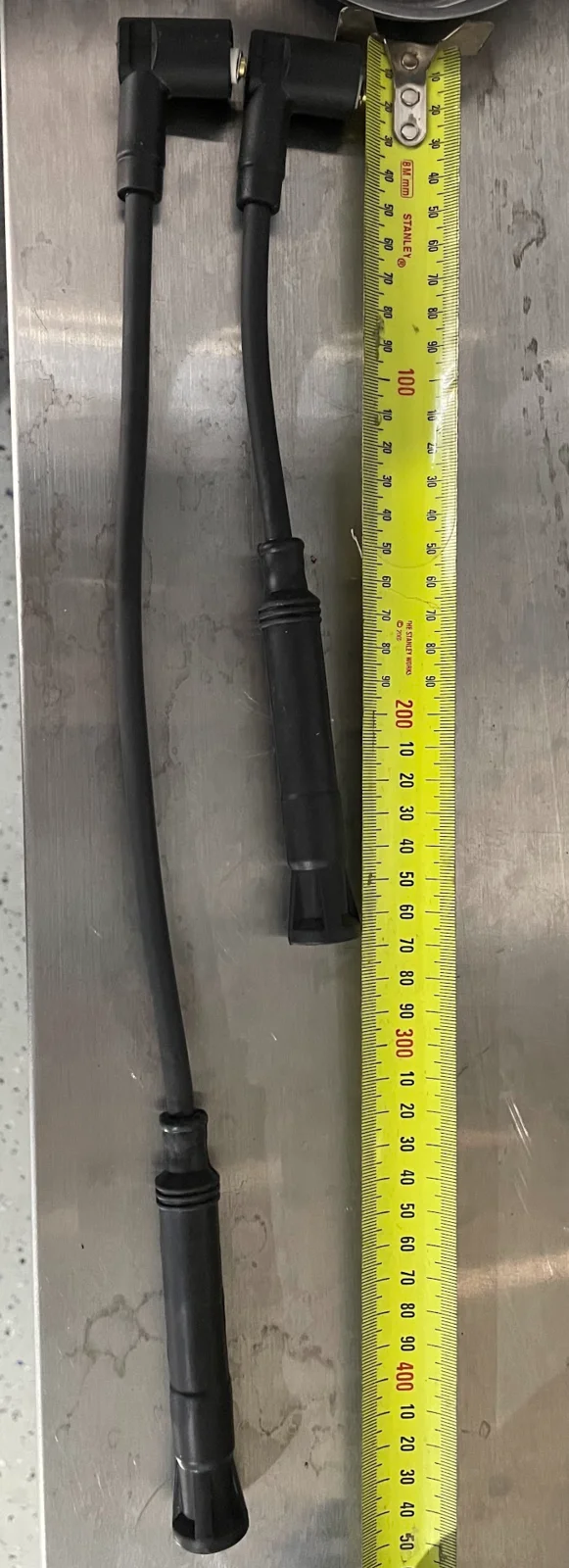

I went searching for replacement plug leads and the thing I didn't know was the length.

Maybe we could record the lengths in the alternate parts list? That way if someone needs leads they can just get leads in the correct length.

Based on below - I'd make the CONDUCTOR (where the clip sits on the plug rather than the boot) length 220mm and 400mm with the boot extending past that.

Norton 961 Alternate parts list.

A few more to add:

Gauge surround, chrome, VDO part number: A2C5319291801
Mount / Standoff, VDO part number: A2C59510854
Mode button (the one in the middle of the dash), VDO part number: 240 205

I’ve been looking everywhere for the Domi and Commando tail light lenses. Anyone have any luck with these?
They were made by Tri.o.m

Im also looking for a Domi Naked tail with the Union Jack in matte finish.
Thank you all.

I was told that the lamp is the same as a Buell Firebolt, but not had any confirmation. It certainly looks like it though…

www.ebay.co.uk

2006 & 2007 Buell XB XB9 XB12 Firebolt Rear Tail Brake Light Lamp Housing & Lens | eBay

XB9R Firebolt: 2006 & 2007. XB12R Firebolt: 2006 & 2007. Manufacturer: Buell. Fits Make:Buell. This is a used tail light. C3 Quality Parts is your leading source for quality used motorcycle parts at exceptional prices.
www.ebay.co.uk

If anybody can confirm we can add another part to the ever growing list.

The Domi light is easy enough to find via google images, and then follow back to a vendor. I matched up the same design, but in red as for me the red lamp suits the bike better than the clear. The American Domi tail light was different to UK spec though, wider and flatter from what I recall.

Stu Bodycote said:
The Domi light is easy enough to find via google images, and then follow back to a vendor. I matched up the same design, but in red as for me the red lamp suits the bike better than the clear. The American Domi tail light was different to UK spec though, wider and flatter from what I recall.
Click to expand...
Correct. I have the UK clear and it is not even the same bolt spacing. I tried doing all kinds of google searches here and nothing comes up. I’d like to find a new Red Domi tail light and also a commando tail light.

cliffa said:
I was told that the lamp is the same as a Buell Firebolt, but not had any confirmation. It certainly looks like it though…

www.ebay.co.uk

2006 & 2007 Buell XB XB9 XB12 Firebolt Rear Tail Brake Light Lamp Housing & Lens | eBay

XB9R Firebolt: 2006 & 2007. XB12R Firebolt: 2006 & 2007. Manufacturer: Buell. Fits Make:Buell. This is a used tail light. C3 Quality Parts is your leading source for quality used motorcycle parts at exceptional prices.
www.ebay.co.uk

If anybody can confirm we can add another part to the ever growing list.
Click to expand...
Thank you. I just found this because of your help and I ordered one to see if it’s a match. I’ll let you all know if it fits the Commando.


Attachments

  • Norton 961 Alternate parts list.
    50.1 KB · Views: 176
Last edited by a moderator:
Some time ago I did an online search for the codes printed on the light and it came out that it is the same code as the V7 and California 1100 Guzzi light, the manufacturer is Italian ECIE srl.
Visually it is the right one, but I have not made any tests

Claudio said:
Some time ago I did an online search for the codes printed on the light and it came out that it is the same code as the V7 and California 1100 Guzzi light, the manufacturer is Italian ECIE srl.
Visually it is the right one, but I have not made any tests
Click to expand...
This would make sense that Norton would buy European parts . The sourcing from Europe would have been easier and cheaper for Norton.

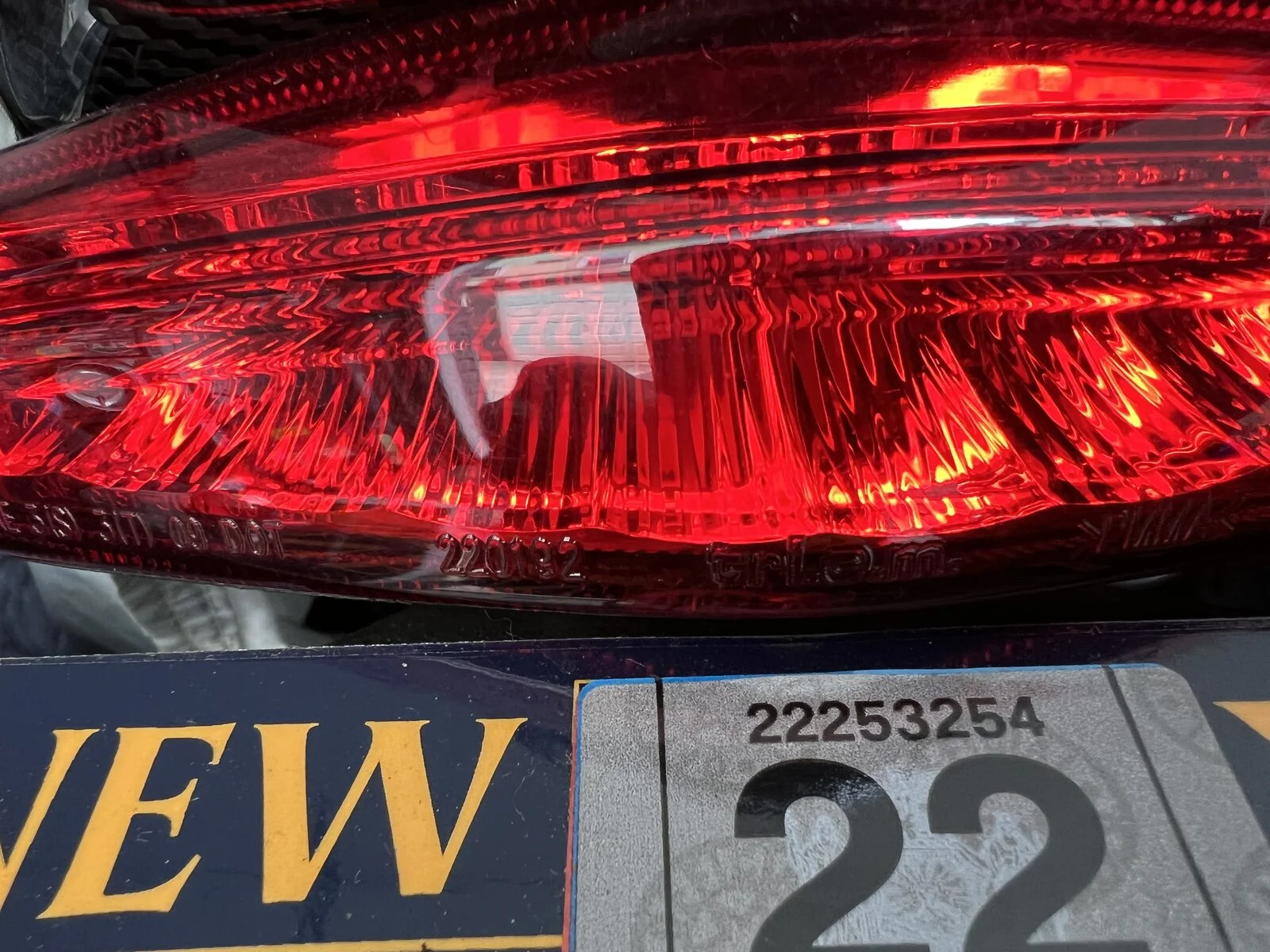

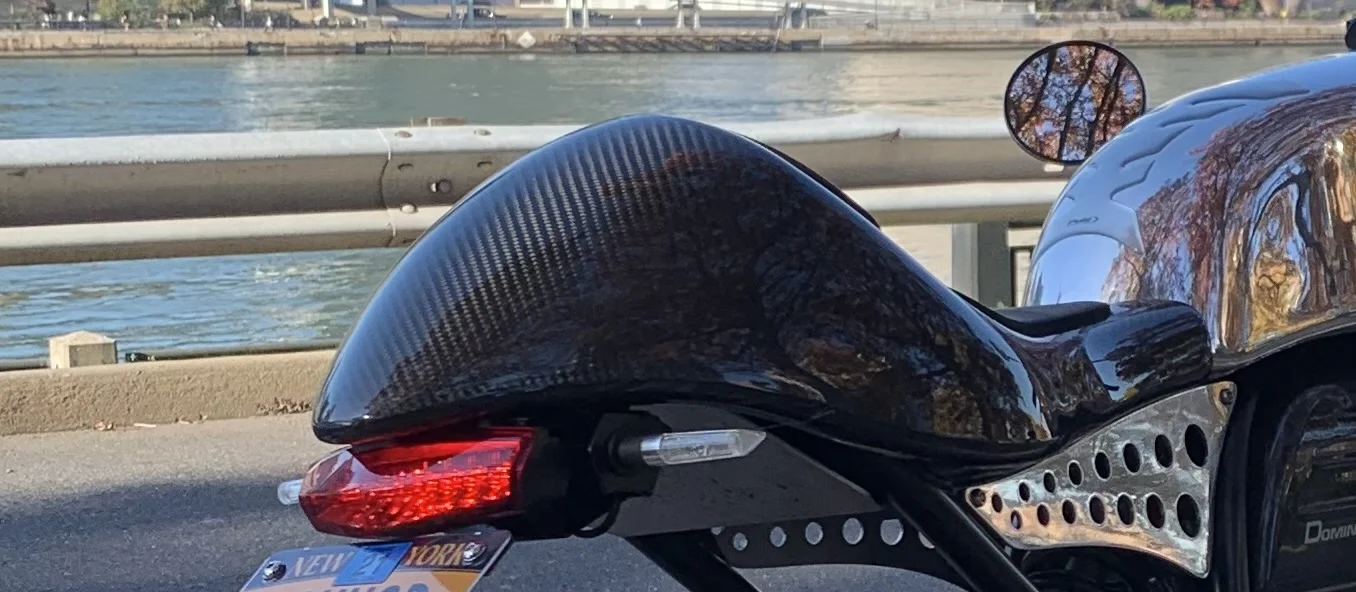

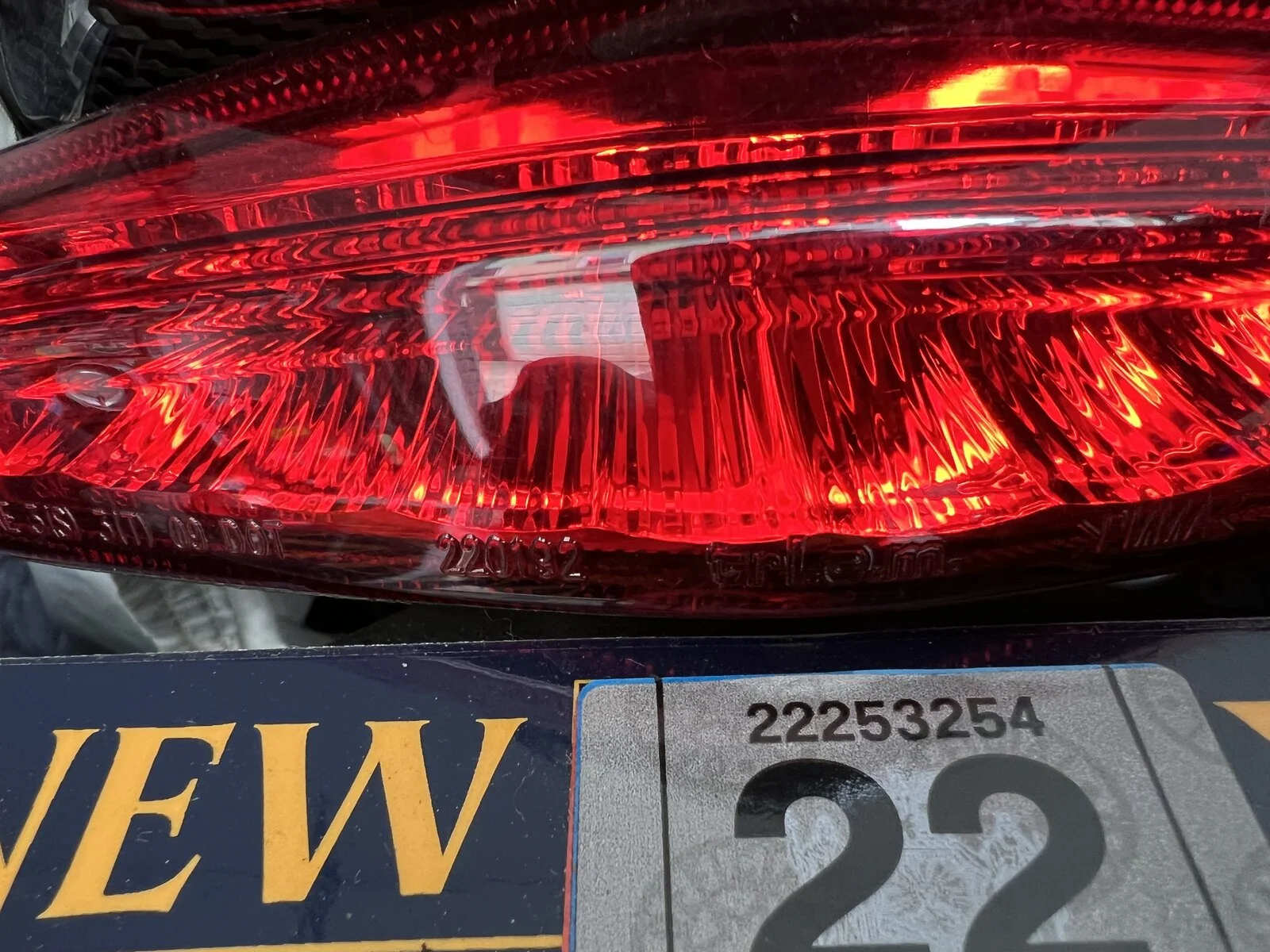

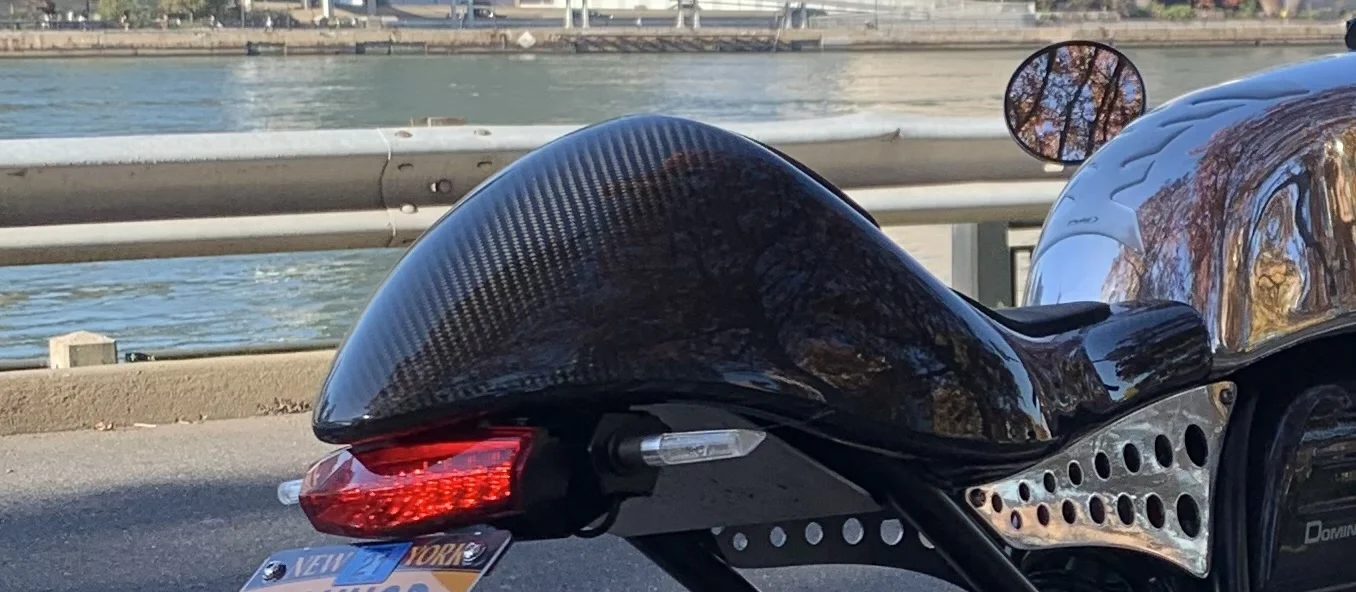

I had a look at my USA Dominator rear light yesterday and it looks like a tri.o.m unit, Spelt just like that with the lowercase "t" and those periods. Looks like the model# is 220192
Has anyone info on this company. Not much online about them
Norton 961 Alternate parts list.
Norton 961 Alternate parts list.

That's a
speirmoor said:
I had a look at my USA Dominator rear light yesterday and it looks like a tri.o.m unit, Spelt just like that with the lowercase "t" and those periods. Looks like the model# is 220192
Has anyone info on this company. Not much online about them
View attachment 86121View attachment 86122
Click to expand...
That's a tough one. Tri.O.m seem to be a big supplier to Vespa and according to this page have been bought out by a company called Varroc.


Can someone just confirm that idle air motor part number please, as Ive not ordered any for a while, and what Ive jotted down differs? Ive got Löwe 57770 as being standard fitment, and 57174 being the same unit but with the connector at 12 o'clock, as apposed to 9 o'clock.
Cheers!

City Garage said:
yes, they also run hotter than omron or bosch which I think leads to quicker failures. That's just my observations but from using a temperature gun to check them as well.
Click to expand...
Cheers again for this suggestion.....Ive got through around 25 of them since last year, not a single failure to report (touch wood)!
Only problem now is sourcing them, out of stock with my main supplier in Germany at present.

Stu Bodycote said:
Can someone just confirm that idle air motor part number please, as Ive not ordered any for a while, and what Ive jotted down differs? Ive got Löwe 57770 as being standard fitment, and 57174 being the same unit but with the connector at 12 o'clock, as apposed to 9 o'clock.
Cheers!
Click to expand...
  • Lowe 57177
  • Magneti Marelli 8001063373638
  • Siemens / VDO D95177
I am not sure of the connector at 12 oclock p/n
