Norton 961 Alternate parts list.

Stu Bodycote said:
Dunno, never known them to use anything but Yamaha. I was using Yamaha plates there in 2016, and they were still using them when it went belly up. The BOM just states Yamaha as the supplier. Cant find a buy in price for the frictions, I'll have another look later. But they were buying in Yamaha steels at £4.48 each, circa 2018.
Click to expand...
It would have been around 2009 - 2010 when the discussion was made to use Vesrah, as the cost of using Fowlers wasn't sustainable. I remember one of the design engineers talking to me about it. I assumed that they had progressed with it, but it looks like it was either short lived or never happened.

Nikoli said:
It would have been around 2009 - 2010 when the discussion was made to use Vesrah, as the cost of using Fowlers wasn't sustainable. I remember one of the design engineers talking to me about it. I assumed that they had progressed with it, but it looks like it was either short lived or never happened.
Click to expand...
Vesrah are probably one of those unreasonable type of suppliers who expect their invoices to be paid!
So if they were selected as suppliers, praps not for long.

With the reputation that Garner Norton had any new supplier who was using invoice insurance from the like of Euler Hermes

www.eulerhermes.com

Allianz Trade | Global trade credit insurance leader

Manage credit risk, protect your cash flow and grow your company safely thanks to Allianz trade's trade credit insurance, surety and business fraud solutions.
www.eulerhermes.com www.eulerhermes.com

would have been told Garner Norton would not be covered by the policy so were on their own.

I was working for one firm that had the US parent company go into Chapter 11, any existing suppliers with EH policies could carry on supplying but no new supplier could get cover. So it became cash in advance if we wanted goods from new suppliers with invoice insurance.

Fast Eddie said:
Vesrah are probably one of those unreasonable type of suppliers who expect their invoices to be paid!
So if they were selected as suppliers, praps not for long.
Click to expand...
so like the many engineering firms from the early days that are probably claiming against the receivers then!

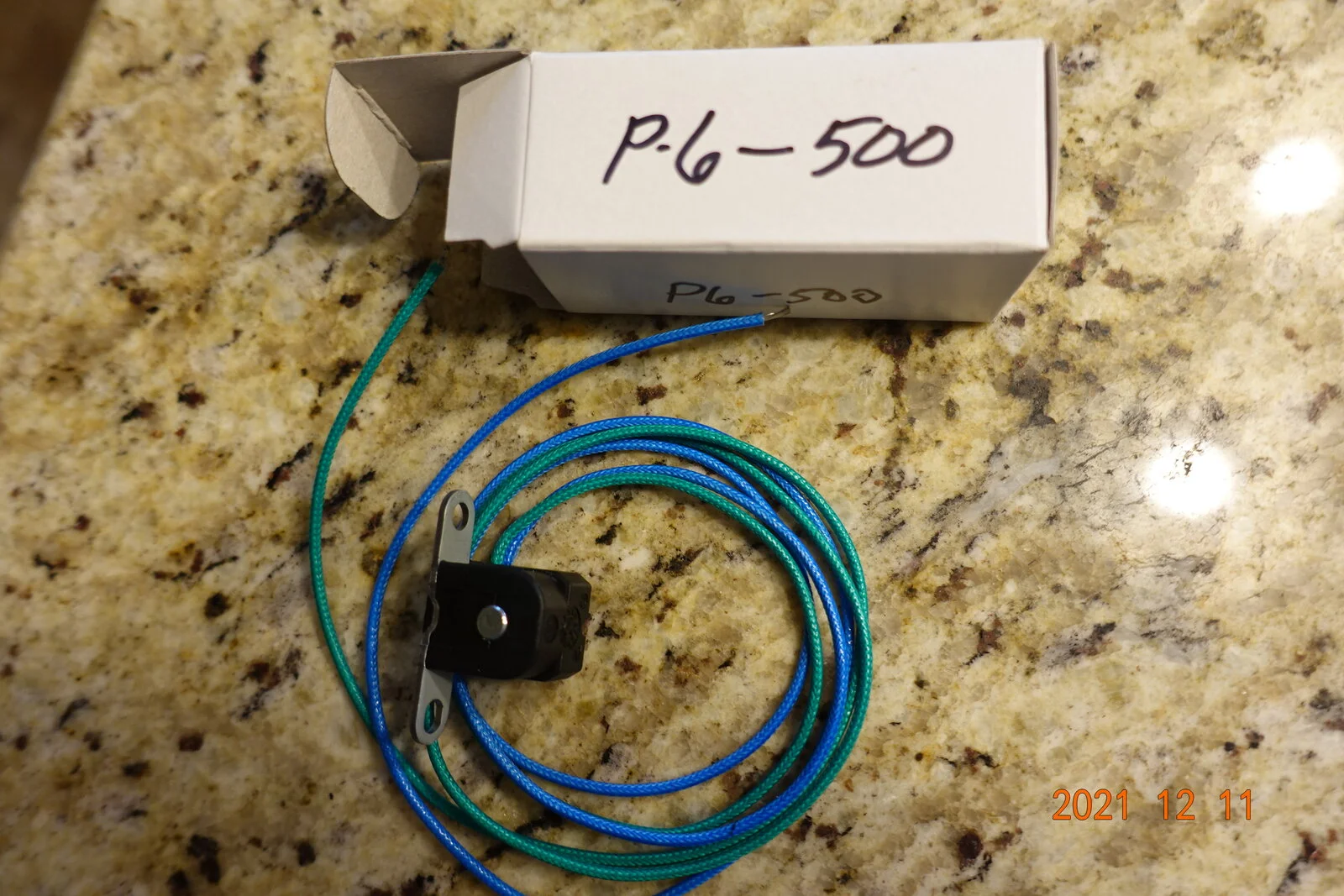

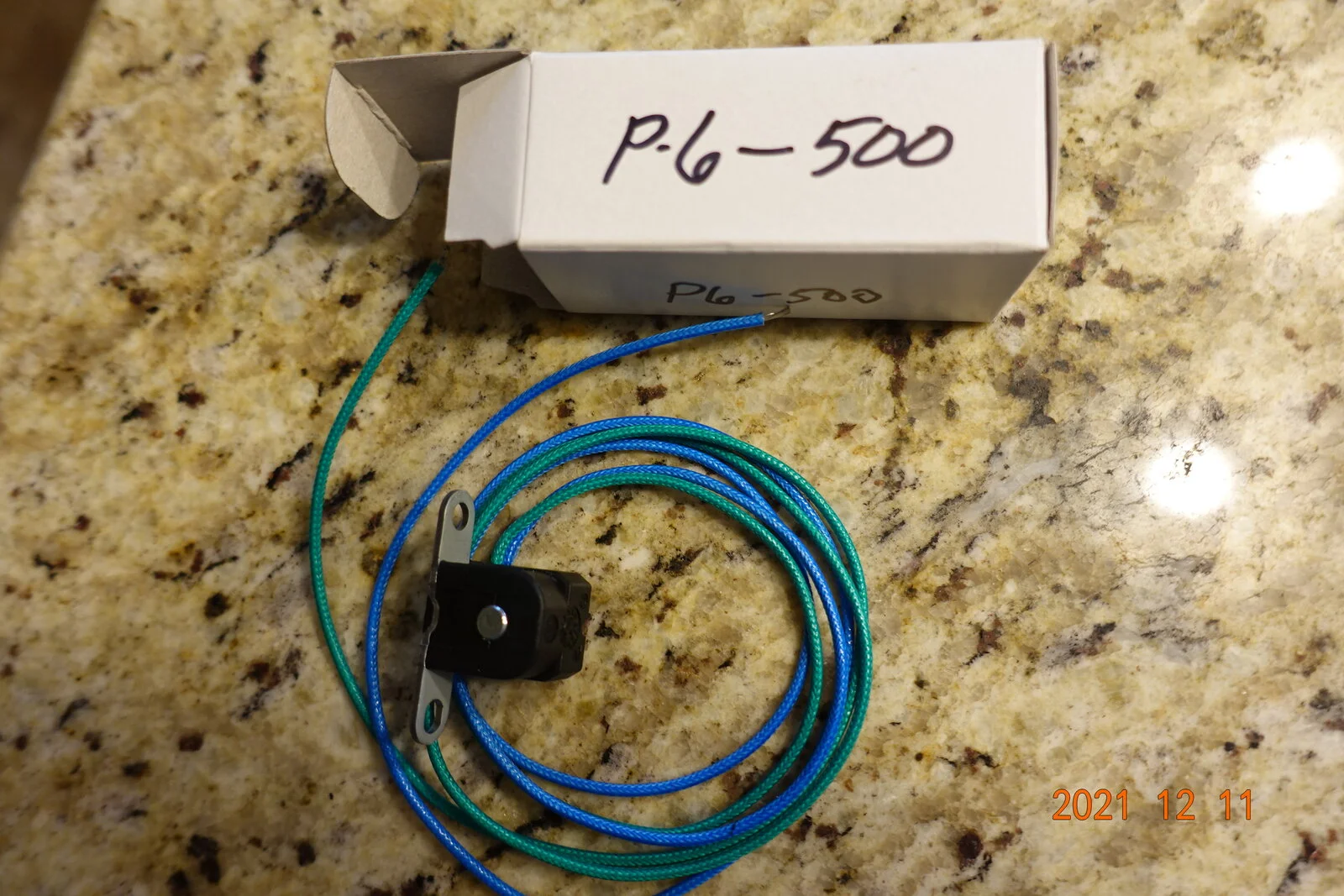

Electrex Crank sensor only part number is P6-500, 500 ohms. It also fits many Japanese bikes. Maybe some one will recognize it and give us a "Honda" number Norton 961 Alternate parts list.

mean gene said:
Electrex Crank sensor only part number is P6-500, 500 ohms. It also fits many Japanese bikes. Maybe some one will recognize it and give us a "Honda" numberView attachment 83347
Click to expand...
Thank you Gene !! I have added that info to the top of the thread. Always check there first as Jerry is rammed at the moment so the "List" is not up to date yet.

I see from you other post she fired up immediately - Happy Days !! :) :) :)

Last edited:
cliffa said:
Folks,

As the future of parts for our bikes is uncertain I'm collating a list of alternate parts for 961's. This is purely a list, so please don't start commenting, comparing one against the other or generally derailing (as has been know to happen on the odd occasion here) :rolleyes: I've already mentioned this to Jerry and if we can keep it in a common format he will see about putting together a sticky list. So here is what I've got together so far. Feel free to add, but please just the description, manufacturer and their part number plus any helpful notes as you see below. Alternatively just P.M. me and I will add to the list. (It will probably be neater that way actually)

AIR FILTER
BMC FM983/08

OIL FILTER
Mann HU610X
Bosch P9147
WIX WL7227

OIL FILTER COVER O-RING ( Dimensions 66mm ID x 2mm )
McMaster-Carr Part # 1009CINC

CLUTCH PARTS
Friction Plates EBC CK2255 (same as Yamaha TDM850 & other Yamaha)
Springs EBC CSK126
Complete Clutch Set EBC SRK51 (Steel Plates , Friction Plates , Springs)
Clutch holding tool EBC CT008SP (same as Yamaha FZR750)
Alternate clutch holding tool ( cheaper than the EBC one)
www.ebay.co.uk

Norton 961 Clutch Holding Tool | eBay

Find many great new & used options and get the best deals for Norton 961 Clutch Holding Tool at the best online prices at eBay! Free delivery for many products!
www.ebay.co.uk

CUSH DRIVE RUBBERS
Talon TCDR-1 (use Silkolene Pro RG2 racing grease)

SPROCKETS
Front Talon TG62052518
Rear Talon TR351525 is the reference, then the number of teeth can be chosen and becomes TR351 50 525 for a 50 tooth sprocket.

AIR PRESSURE SENSOR
Yamaha 1WS-82380-00 (Has a green sticker)

SPARK PLUGS
NGK CR9E (standard - threaded tip)
NGK CR9EB (standard - solid tip)
NGK CR9EIX (Iridium)

CAM SENSOR
Bosch 0232103037

CRANK POSITION SENSOR
Electrex P6-500 (500 Ohm)

HEAD TEMP SENSOR
Bosch 0280130026
Honeywell ES120-0030

TIP OVER SWITCH
Triumph T2502405 (Switch , Fall Detection)

RELAYS
Honda 38502-MCS-G01
Omron G8HN-1C4T-RH
Durite 0-728-13 ( reportedly these are prone to failure).
Bosch Automotive 332201107

IGNITION COIL PACK
Bosch 0221503035

BRAKE PADS

FRONT (Goldline radial calipers with 4 pads USD forks)
Goldfren 177
EBC FA322
Brembo 07BB33SA
Lucas TRW MCB721SV

FRONT (Brembo axial non USD fork)
Goldfren 141
EBC FA244
Brembo 07BB33SA

FRONT (grey radial caliper USD forks)
EBC FA630HH
Goldfren 328
Lucas TRW MCB856SV

REAR (all models)
EBC FA266
Brembo 07BB20CC

STARTER MOTOR (same as Buell Blast & Harley Sportster)
Nippon Denso TN128000-8453
Harley 31391-91 (same as Buell Blast)

ALTERNATOR
Rotor
Norton 530001
Electrex World RO961
Stator Generator with Crank Sensor
Norton 5300003
Elextrex World G961

FUEL PUMP
Bosch 69613 (0 580 453 407) It requires a 1/2" tubular spacer - the white piece in this image.

FUEL PUMP CONNECTOR (That's the red piece in this image.)
Ford 1072003 or 1330328
Gutsibits FUA30000




FUEL PUMP O-ring
McMaster Carr # 1295N668 (Chemical-Resistant Viton® Fluoroelastomer O-Ring 5 mm Wide, 90 mm ID)

FUEL PUMP SPIGOT
Dorman part no. 800-123 (https://www.dormanproducts.com/p-49076-800-123.aspx)

FUEL PRESSURE REGULATOR (Make sure you have the right pressure setting. 3.5 bar)
Ducati 28340031A
Aprilia (tbc)
Cycleworks SKU FPR35KCA (KTM Husaberg https://ca-cycleworks.com/fpr35k.html )

FUEL FILTER
MAHLE KL 145

THROTTLE POSITION SENSOR (TPS)
Harley-Davidson 27629-01
Twin Power 933-1006
Magneti Marelli PF2C

FUEL INJECTOR NOZZLE
Intermotor FJ647

IDLE AIR VALVE / IDLE AIR MOTOR
Lowe 57177
Magneti Marelli 8001063373638
Siemens / VDO D95177

INDICATOR
Aprilia 349582 (also fitted to many Triumph)
Click to expand...

Really useful list. I fitted indicators from a Daytona 955i (year 2000) - looks the same but with a ‘springy stalk.’ Triumph part number T2705200 (Indicator Assembly).

Lincolnshire Poacher said:
Really useful list. I fitted indicators from a Daytona 955i (year 2000) - looks the same but with a ‘springy stalk.’ Triumph part number T2705200 (Indicator Assembly).
Click to expand...
Thank you Sir. I'm sure they fit & work fine, but isn't that indicator a slightly different shape to the 961 ?

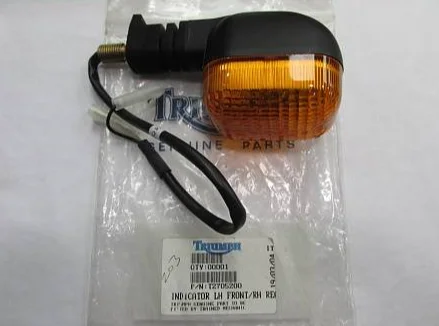

2000 595 / 955 Part no. T2705200

Norton 961 Alternate parts list.

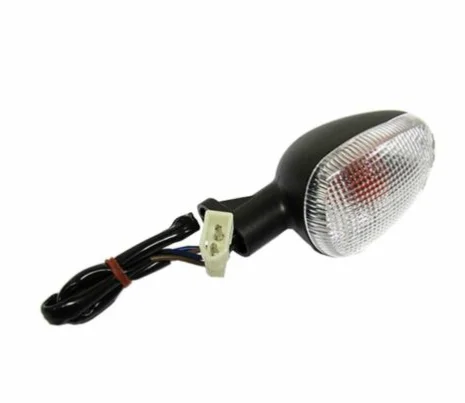

As fitted to 961 (Which I think is the same as Aprilia / Triumph 675 / Speed triple)..

Norton 961 Alternate parts list.

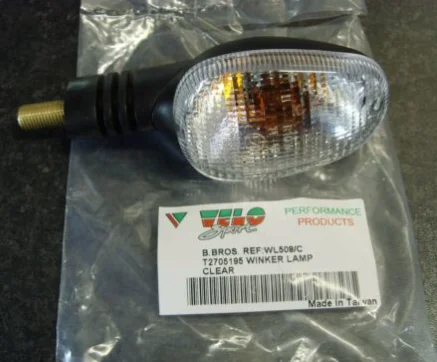

Or a flexible version ( by the looks of it) part no. T2705195



Norton 961 Alternate parts list.


Cheers,

cliffa.


Attachments

  • Norton 961 Alternate parts list.
    75.3 KB · Views: 166
cliffa said:
Thank you Sir. I'm sure they fit & work fine, but isn't that indicator a slightly different shape to the 961 ?

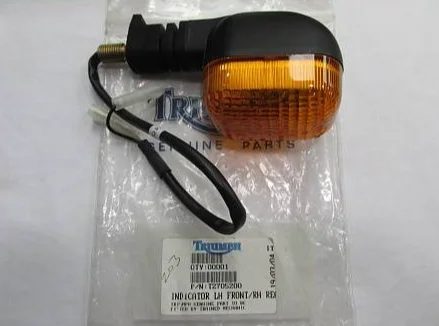

2000 595 / 955 Part no. T2705200

View attachment 83593

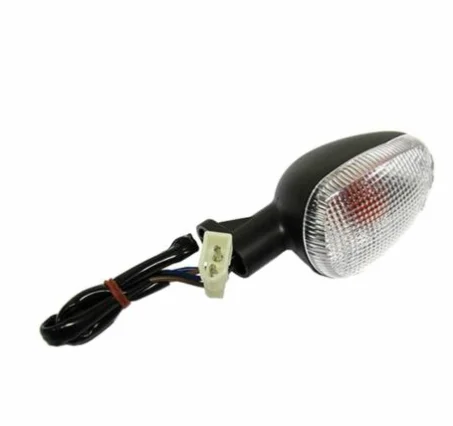

As fitted to 961 (Which I think is the same as Aprilia / Triumph 675 / Speed triple)..

View attachment 83596

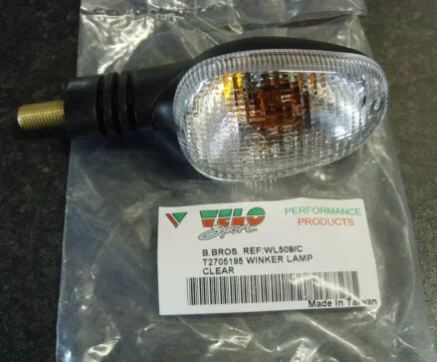

Or a flexible version ( by the looks of it) part no. T2705195



View attachment 83595

Cheers,

cliffa.
Click to expand...
Dear Cliffa you are absolutely right - my sincere apologies to all for any confusion.

Happy New Year!

cliffa said:
Folks,

As the future of parts for our bikes is uncertain I'm collating a list of alternate parts for 961's. This is purely a list, so please don't start commenting, comparing one against the other or generally derailing (as has been know to happen on the odd occasion here) :rolleyes: I've already mentioned this to Jerry and if we can keep it in a common format he will see about putting together a sticky list. So here is what I've got together so far. Feel free to add, but please just the description, manufacturer and their part number plus any helpful notes as you see below. Alternatively just P.M. me and I will add to the list. (It will probably be neater that way actually)

AIR FILTER
BMC FM983/08

OIL FILTER
Mann HU610X
Bosch P9147
WIX WL7227

OIL FILTER COVER O-RING ( Dimensions 66mm ID x 2mm )
McMaster-Carr Part # 1009CINC

CLUTCH PARTS
Friction Plates EBC CK2255 (same as Yamaha TDM850 & other Yamaha)
Springs EBC CSK126
Complete Clutch Set EBC SRK51 (Steel Plates , Friction Plates , Springs)
Clutch holding tool EBC CT008SP (same as Yamaha FZR750)
Alternate clutch holding tool ( cheaper than the EBC one)
www.ebay.co.uk

Norton 961 Clutch Holding Tool | eBay

Find many great new & used options and get the best deals for Norton 961 Clutch Holding Tool at the best online prices at eBay! Free delivery for many products!
www.ebay.co.uk

CUSH DRIVE RUBBERS
Talon TCDR-1 (use Silkolene Pro RG2 racing grease)

SPROCKETS
Front Talon TG62052518
Rear Talon TR351525 is the reference, then the number of teeth can be chosen and becomes TR351 50 525 for a 50 tooth sprocket.

AIR PRESSURE SENSOR
Yamaha 1WS-82380-00 (Has a green sticker)

SPARK PLUGS
NGK CR9E (standard - threaded tip)
NGK CR9EB (standard - solid tip)
NGK CR9EIX (Iridium)

CAM SENSOR
Bosch 0232103037

CRANK POSITION SENSOR
Electrex P6-500 (500 Ohm)

HEAD TEMP SENSOR
Bosch 0280130026
Honeywell ES120-0030

TIP OVER SWITCH
Triumph T2502405 (Switch , Fall Detection)

RELAYS
Honda 38502-MCS-G01
Omron G8HN-1C4T-RH
Durite 0-728-13 ( reportedly these are prone to failure).
Bosch Automotive 332201107

IGNITION COIL PACK
Bosch 0221503035

BRAKE PADS

FRONT (Goldline radial calipers with 4 pads USD forks)
Goldfren 177
EBC FA322
Brembo 07BB33SA
Lucas TRW MCB721SV

FRONT (Brembo axial non USD fork)
Goldfren 141
EBC FA244
Brembo 07BB33SA

FRONT (grey radial caliper USD forks)
EBC FA630HH
Goldfren 328
Lucas TRW MCB856SV

REAR (all models)
EBC FA266
Brembo 07BB20CC

STARTER MOTOR (same as Buell Blast & Harley Sportster)
Nippon Denso TN128000-8453
Harley 31391-91 (same as Buell Blast)

ALTERNATOR
Rotor
Norton 530001
Electrex World RO961
Stator Generator with Crank Sensor
Norton 5300003
Elextrex World G961

FUEL PUMP
Bosch 69613 (0 580 453 407) It requires a 1/2" tubular spacer - the white piece in this image.

FUEL PUMP CONNECTOR (That's the red piece in this image.)
Ford 1072003 or 1330328
Gutsibits FUA30000




FUEL PUMP O-ring
McMaster Carr # 1295N668 (Chemical-Resistant Viton® Fluoroelastomer O-Ring 5 mm Wide, 90 mm ID)

FUEL PUMP SPIGOT
Dorman part no. 800-123 (https://www.dormanproducts.com/p-49076-800-123.aspx)

FUEL PRESSURE REGULATOR (Make sure you have the right pressure setting. 3.5 bar)
Ducati 28340031A
Aprilia (tbc)
Cycleworks SKU FPR35KCA (KTM Husaberg https://ca-cycleworks.com/fpr35k.html )

FUEL FILTER
MAHLE KL 145

THROTTLE POSITION SENSOR (TPS)
Harley-Davidson 27629-01
Twin Power 933-1006
Magneti Marelli PF2C

FUEL INJECTOR NOZZLE
Intermotor FJ647

IDLE AIR VALVE / IDLE AIR MOTOR
Lowe 57177
Magneti Marelli 8001063373638
Siemens / VDO D95177

INDICATOR
Aprilia 349582 (also fitted to many Triumph)
Click to expand...

cliffa said:
Folks,

As the future of parts for our bikes is uncertain I'm collating a list of alternate parts for 961's. This is purely a list, so please don't start commenting, comparing one against the other or generally derailing (as has been know to happen on the odd occasion here) :rolleyes: I've already mentioned this to Jerry and if we can keep it in a common format he will see about putting together a sticky list. So here is what I've got together so far. Feel free to add, but please just the description, manufacturer and their part number plus any helpful notes as you see below. Alternatively just P.M. me and I will add to the list. (It will probably be neater that way actually)

AIR FILTER
BMC FM983/08

OIL FILTER
Mann HU610X
Bosch P9147
WIX WL7227

OIL FILTER COVER O-RING ( Dimensions 66mm ID x 2mm )
McMaster-Carr Part # 1009CINC

CLUTCH PARTS
Friction Plates EBC CK2255 (same as Yamaha TDM850 & other Yamaha)
Springs EBC CSK126
Complete Clutch Set EBC SRK51 (Steel Plates , Friction Plates , Springs)
Clutch holding tool EBC CT008SP (same as Yamaha FZR750)
Alternate clutch holding tool ( cheaper than the EBC one)
www.ebay.co.uk

Norton 961 Clutch Holding Tool | eBay

Find many great new & used options and get the best deals for Norton 961 Clutch Holding Tool at the best online prices at eBay! Free delivery for many products!
www.ebay.co.uk

CUSH DRIVE RUBBERS
Talon TCDR-1 (use Silkolene Pro RG2 racing grease)

SPROCKETS
Front Talon TG62052518
Rear Talon TR351525 is the reference, then the number of teeth can be chosen and becomes TR351 50 525 for a 50 tooth sprocket.

AIR PRESSURE SENSOR
Yamaha 1WS-82380-00 (Has a green sticker)

SPARK PLUGS
NGK CR9E (standard - threaded tip)
NGK CR9EB (standard - solid tip)
NGK CR9EIX (Iridium)

CAM SENSOR
Bosch 0232103037

CRANK POSITION SENSOR
Electrex P6-500 (500 Ohm)

HEAD TEMP SENSOR
Bosch 0280130026
Honeywell ES120-0030

TIP OVER SWITCH
Triumph T2502405 (Switch , Fall Detection)

RELAYS
Honda 38502-MCS-G01
Omron G8HN-1C4T-RH
Durite 0-728-13 ( reportedly these are prone to failure).
Bosch Automotive 332201107

IGNITION COIL PACK
Bosch 0221503035

BRAKE PADS

FRONT (Goldline radial calipers with 4 pads USD forks)
Goldfren 177
EBC FA322
Brembo 07BB33SA
Lucas TRW MCB721SV

FRONT (Brembo axial non USD fork)
Goldfren 141
EBC FA244
Brembo 07BB33SA

FRONT (grey radial caliper USD forks)
EBC FA630HH
Goldfren 328
Lucas TRW MCB856SV

REAR (all models)
EBC FA266
Brembo 07BB20CC

STARTER MOTOR (same as Buell Blast & Harley Sportster)
Nippon Denso TN128000-8453
Harley 31391-91 (same as Buell Blast)

ALTERNATOR
Rotor
Norton 530001
Electrex World RO961
Stator Generator with Crank Sensor
Norton 5300003
Elextrex World G961

FUEL PUMP
Bosch 69613 (0 580 453 407) It requires a 1/2" tubular spacer - the white piece in this image.

FUEL PUMP CONNECTOR (That's the red piece in this image.)
Ford 1072003 or 1330328
Gutsibits FUA30000




FUEL PUMP O-ring
McMaster Carr # 1295N668 (Chemical-Resistant Viton® Fluoroelastomer O-Ring 5 mm Wide, 90 mm ID)

FUEL PUMP SPIGOT
Dorman part no. 800-123 (https://www.dormanproducts.com/p-49076-800-123.aspx)

FUEL PRESSURE REGULATOR (Make sure you have the right pressure setting. 3.5 bar)
Ducati 28340031A
Aprilia (tbc)
Cycleworks SKU FPR35KCA (KTM Husaberg https://ca-cycleworks.com/fpr35k.html )

FUEL FILTER
MAHLE KL 145

THROTTLE POSITION SENSOR (TPS)
Harley-Davidson 27629-01
Twin Power 933-1006
Magneti Marelli PF2C

FUEL INJECTOR NOZZLE
Intermotor FJ647

IDLE AIR VALVE / IDLE AIR MOTOR
Lowe 57177
Magneti Marelli 8001063373638
Siemens / VDO D95177

INDICATOR
Aprilia 349582 (also fitted to many Triumph)
Click to expand...

Hi Cliffa do you know what the rear brake switch is ??? Cheers

Last edited:
Hi Noel, no info on it so far otherwise it would be on the list, however it's a Brembo switch for a single banjo which presumably are much the same except for the electrical connection on the end? I don't have access to my bike at the moment, so if you can look at the connection there are loads on eBay, for example :

www.ebay.co.uk

Brembo Brake Light Switch M10 X 1.25 Single Banjo - 0626MQ21 | eBay

M10 x 1.0 are used on all Genuine Brembo Master Cylinders. Use Single or Double depends on if you want to plug one or two banjo. Brembo Part number -0626MQ21. Simply substitute the initial brake bolt with this accessory and connect its two wires to the OEM switch stop wires.
www.ebay.co.uk

Hope that helps.

cliffa.

Hi All,

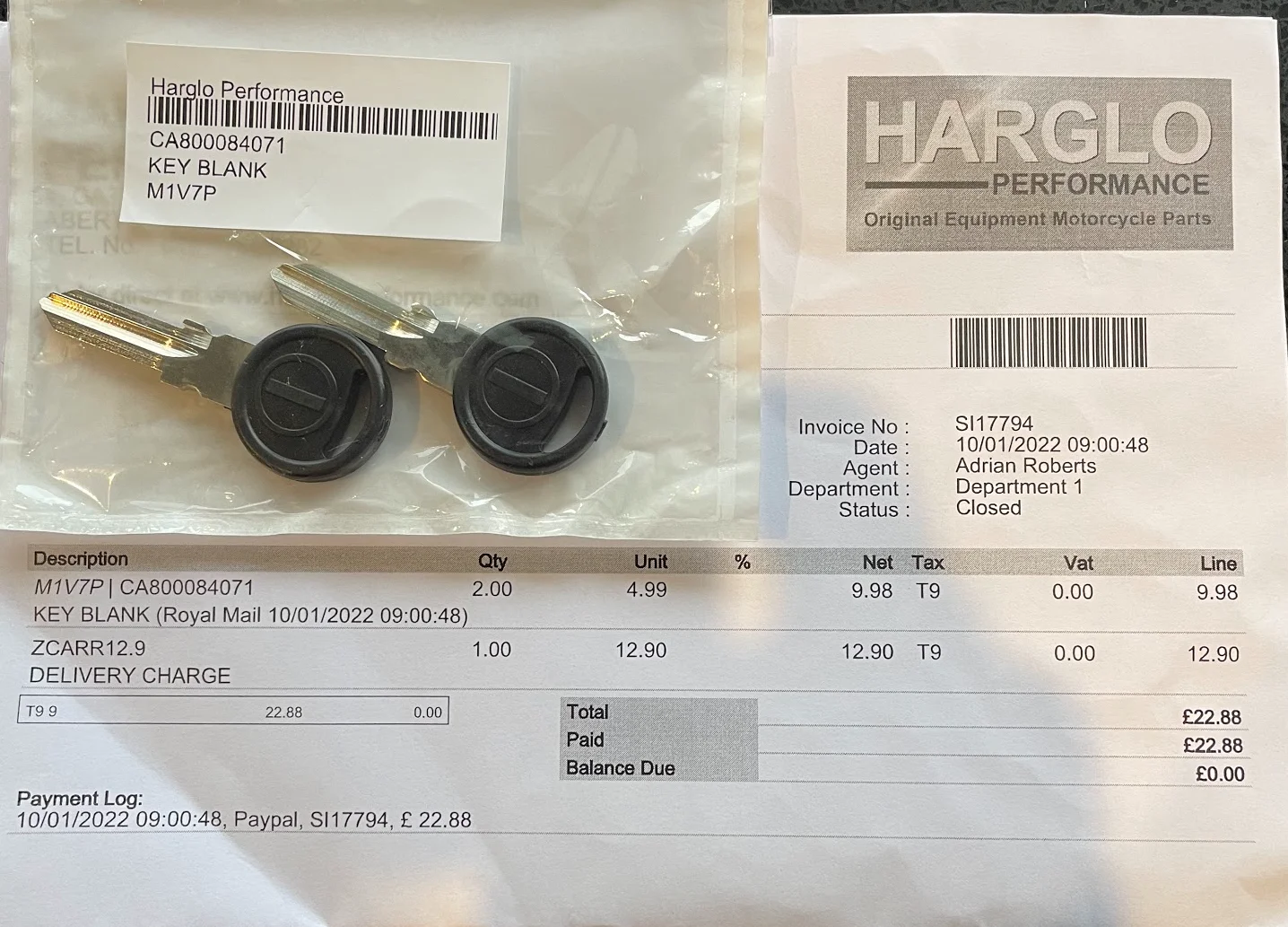

Whilst only a minor part, a key blank for a Cagiva, part number CA800084071 appears to be an exact match for my bike. The logo on the key some will recognize as a Zadi, which possibly means some ignition components are manufactured by them.

Picture is as per:

Harglo, blimey that's a blast from the past. A very familiar name to us Morini owners, as they used to be the U.K. importer.

Thanks for taking the time to post this. Yes Zadi supply the ignition locks to loads of euro bikes. I'll add it to the top of the thread and ask Jerry to add it to the list.

cliffa said:
Harglo, blimey that's a blast from the past. A very familiar name to us Morini owners, as they used to be the U.K. importer.

Thanks for taking the time to post this. Yes Zadi supply the ignition locks to loads of euro bikes. I'll add it to the top of the thread and ask Jerry to add it to the list.
Click to expand...
Actually I did a bit of digging and it seems the part number is 800084071, and you can find them on eBay etc. using that number. Harglo must add the CA bit as a Cagiva identifier.

You must log in or register to reply here.
Back
Top
