Marks Norton Commando Rebuild

elefantrider

Joined

Apr 6, 2013

Messages

1,448

• Aug 20, 2016

• #81

Chrome, cad and paint looking great.

Re. mountings for later centerstand….. Do you mean the stepped bushings? I thought your 71 centerstand looked serviceable.



B

Brownymark

Joined

Apr 15, 2015

Messages

67

• Aug 20, 2016

• #82

Hi elefantrider - thanks for the compliment. It is later centre stand so I have got the correct stepped bushings now but the holes in the cradle are too small. I think someone has fitted the later (stronger stand) but with the original bushings which are a very loose fit.



B

Brownymark

Joined

Apr 15, 2015

Messages

67

• Aug 21, 2016

• #83

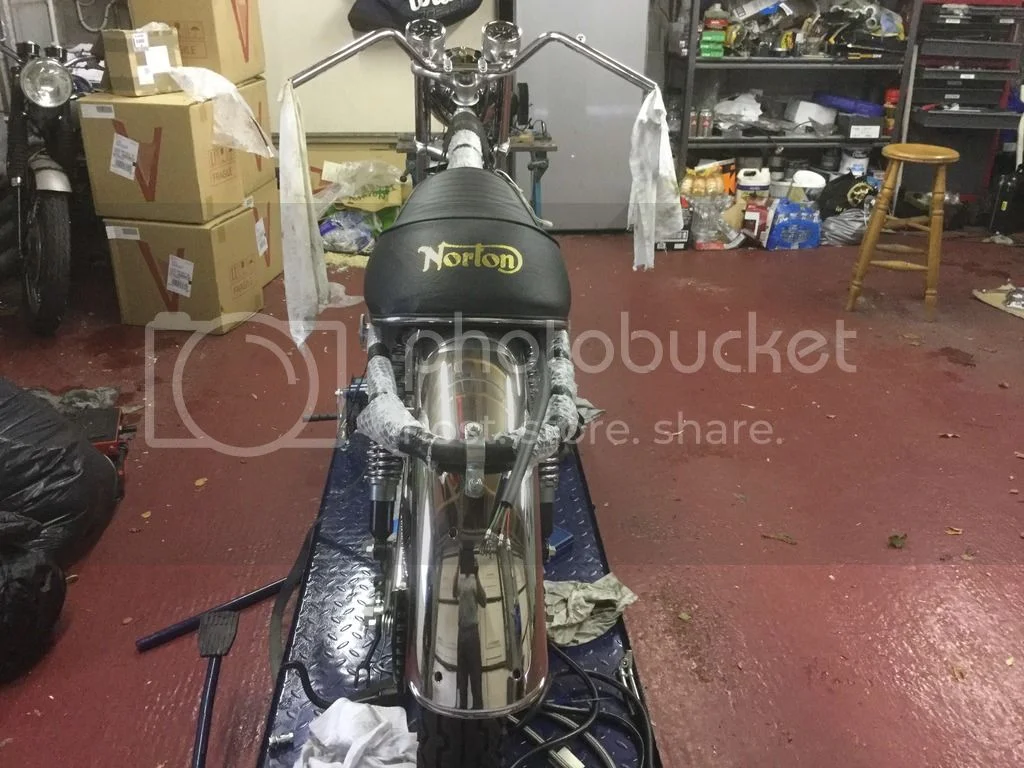

Mudguard drilled and fitted:

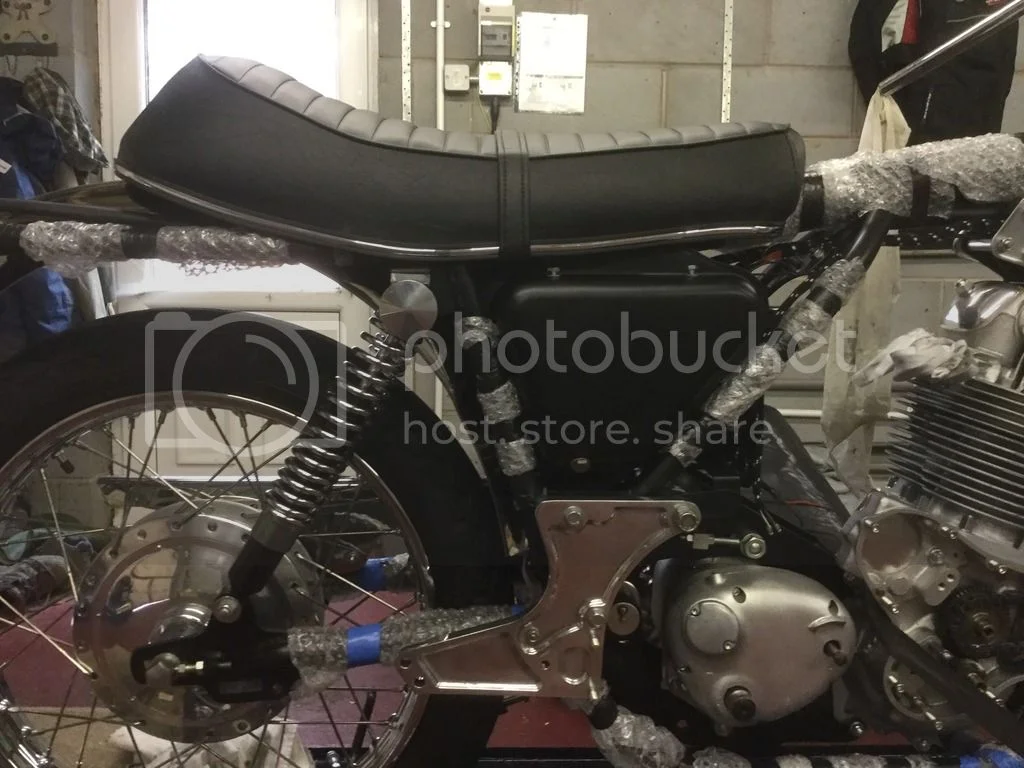

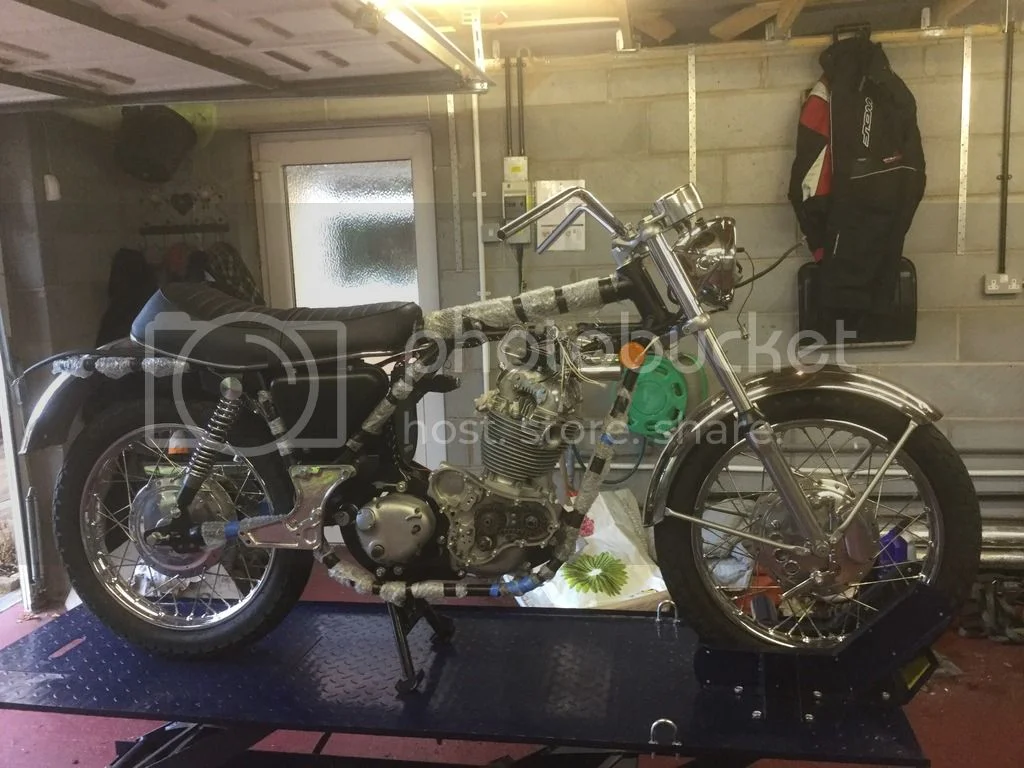

Seat test fitted:

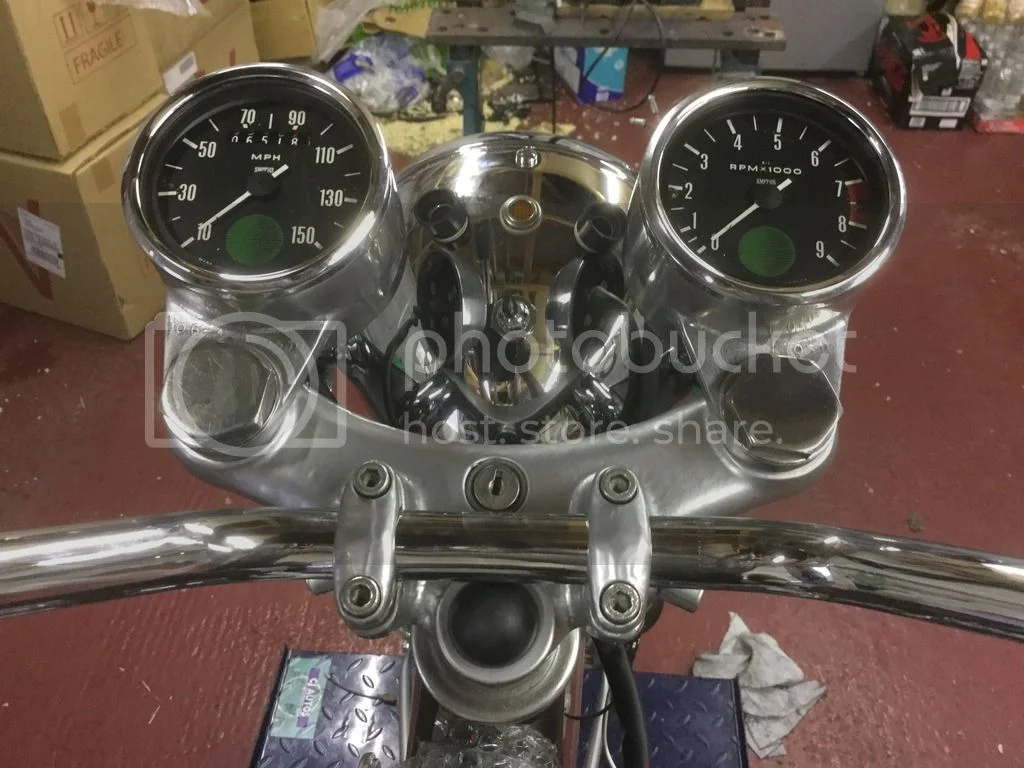

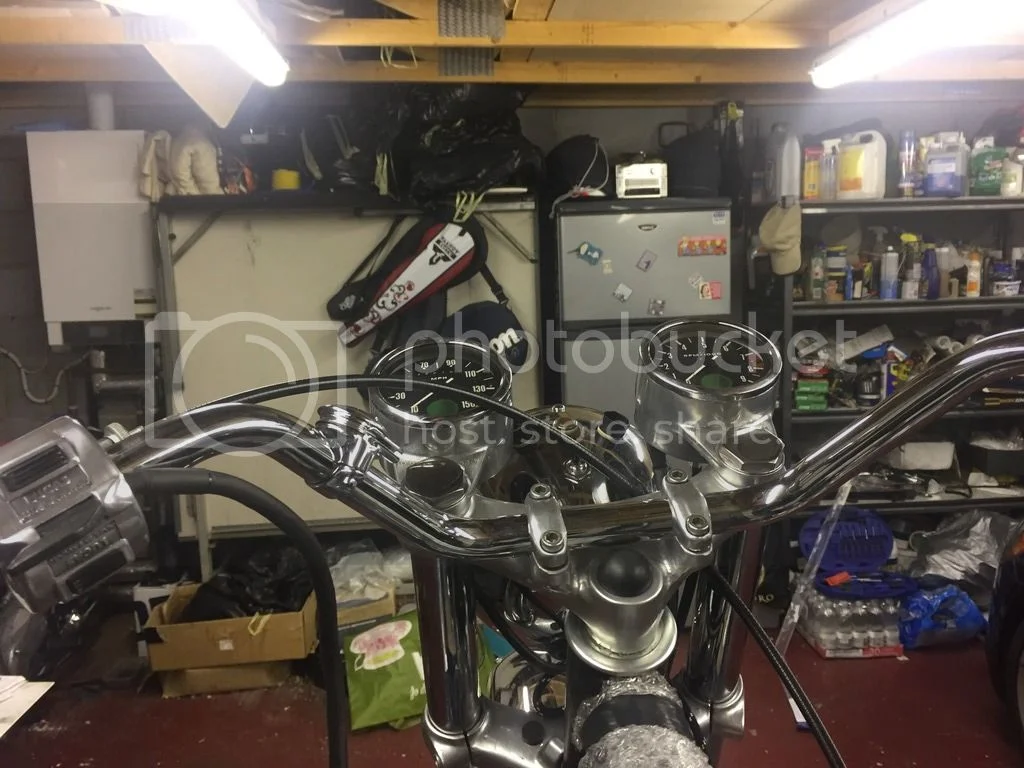

Clocks fitted:

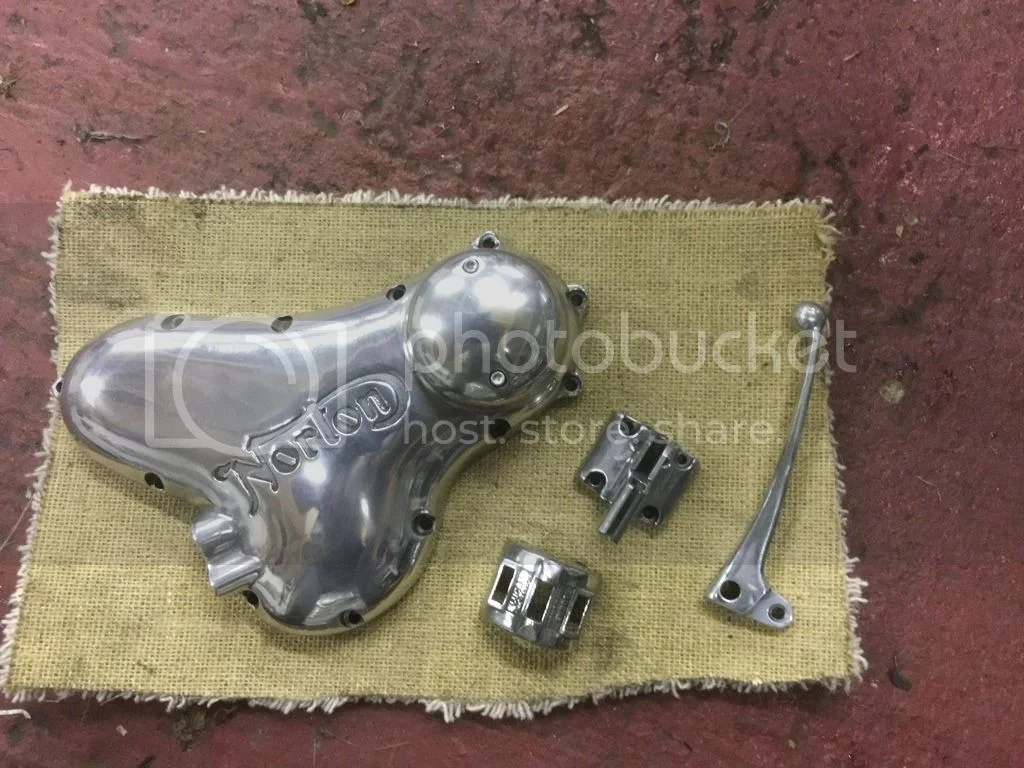

Some more polishing done:



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,468

• Aug 21, 2016

• #84

Brownymark said:

Click to expand...

The rear tyre looks to be left of the frame centre line.



B

Brownymark

Joined

Apr 15, 2015

Messages

67

• Aug 21, 2016

• #85

It may well be, but nothing final aligned and fully tightened yet.



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,468

• Aug 21, 2016

• #86

Brownymark said:

It may well be, but nothing final aligned and fully tightened yet.

Click to expand...

Ok, as it's not unknown for some Commando rear wheels (rims) to be offset to the left so I thought I should mention it. :wink:



B

Brownymark

Joined

Apr 15, 2015

Messages

67

• Aug 21, 2016

• #87

Comments / suggestions welcome all the time, without this site and input from you and all the other very knowledgeable members I would not be at the stage I am currently at with the build.



Fast Eddie

VIP MEMBER

Joined

Oct 4, 2013

Messages

21,720

• Aug 21, 2016

• #88

Nice seat sir.

Poor choices of seat often detract badly from an otherwise good build IMHO. That's not the case here!

If you don't mind me asking: Exactly which model / variant is it, and where did you get it from?



elefantrider

Joined

Apr 6, 2013

Messages

1,448

• Aug 22, 2016

• #89

Fast Eddie said:

Nice seat sir.

Poor choices of seat often detract badly from an otherwise good build IMHO. That's not the case here!

If you don't mind me asking: Exactly which model / variant is it, and where did you get it from?

Click to expand...

X2……… is that a new cover or entire new seat?



B

Brownymark

Joined

Apr 15, 2015

Messages

67

• Aug 22, 2016

• #90

Its the original base & foam recovered by R K Leighton in Birmingham - great service and I agree a fantastic job at a very reasonable price.

When I visited him to take the seat in and see his setup, he said the cover may not suit the purists as his mandrels for making the covers are either 1/4" or 1/8" narrower (can't remember which) than the original Norton covers, this did not concern me as I intend to ride it not show it and I think it looks great



B

Brownymark

Joined

Apr 15, 2015

Messages

67

• Aug 22, 2016

• #91

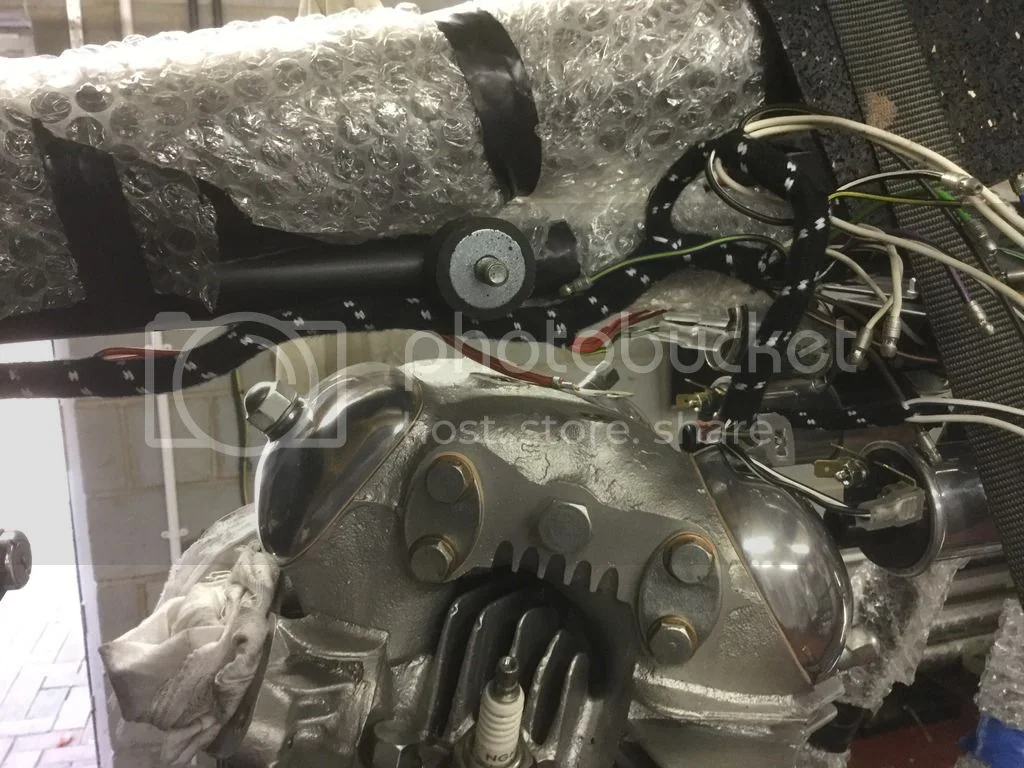

Cradle drilled out using technique from one of swooshdave's earlier posts - removed head steady:

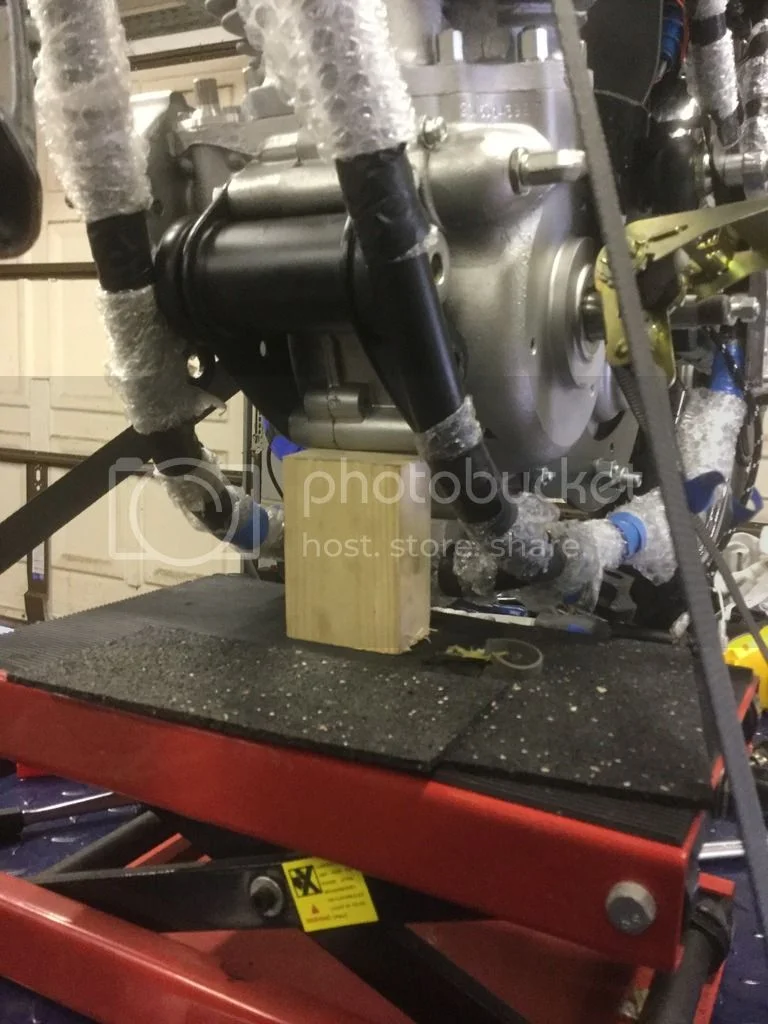

Removed front ending mount bolt and jacked up the engine:
URL=http://s1194.photobucket.com/user/Brownymark/media/image_zpstot8d3ru.jpeg.html]

[/URL]

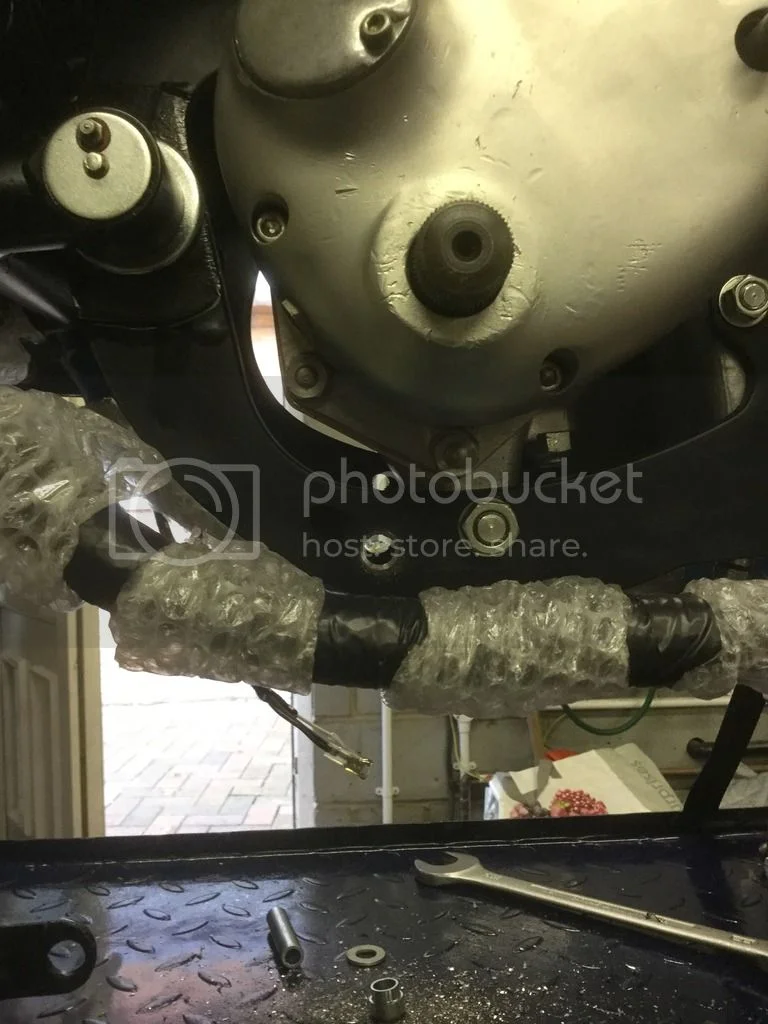

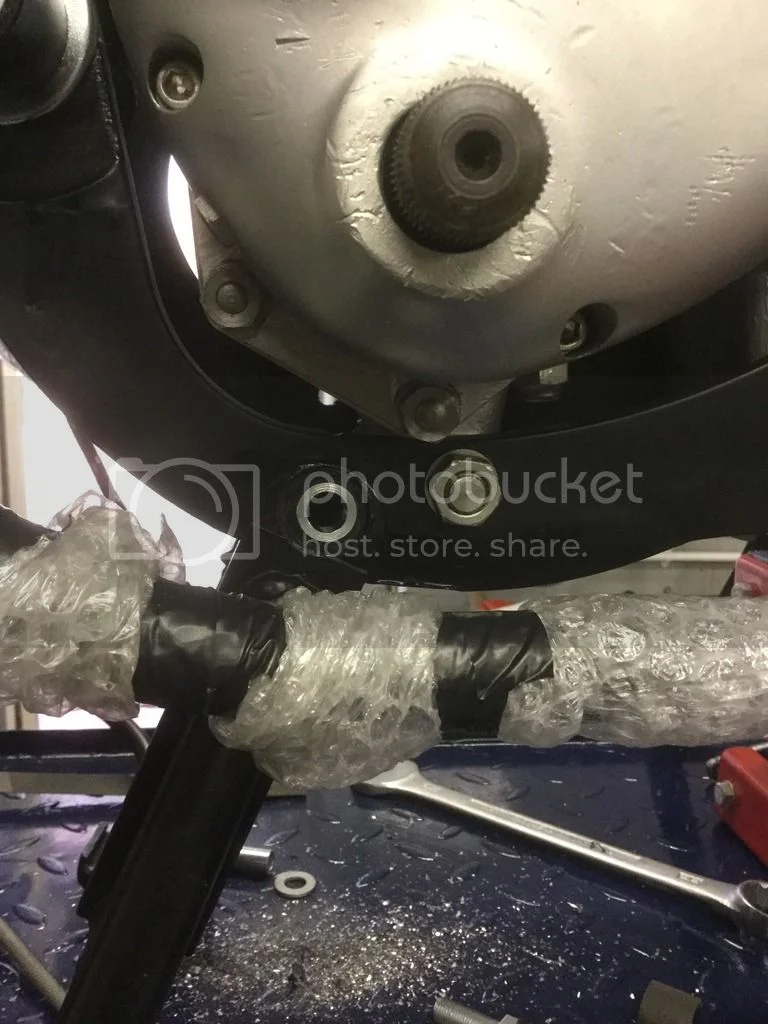

Drilled out holes:

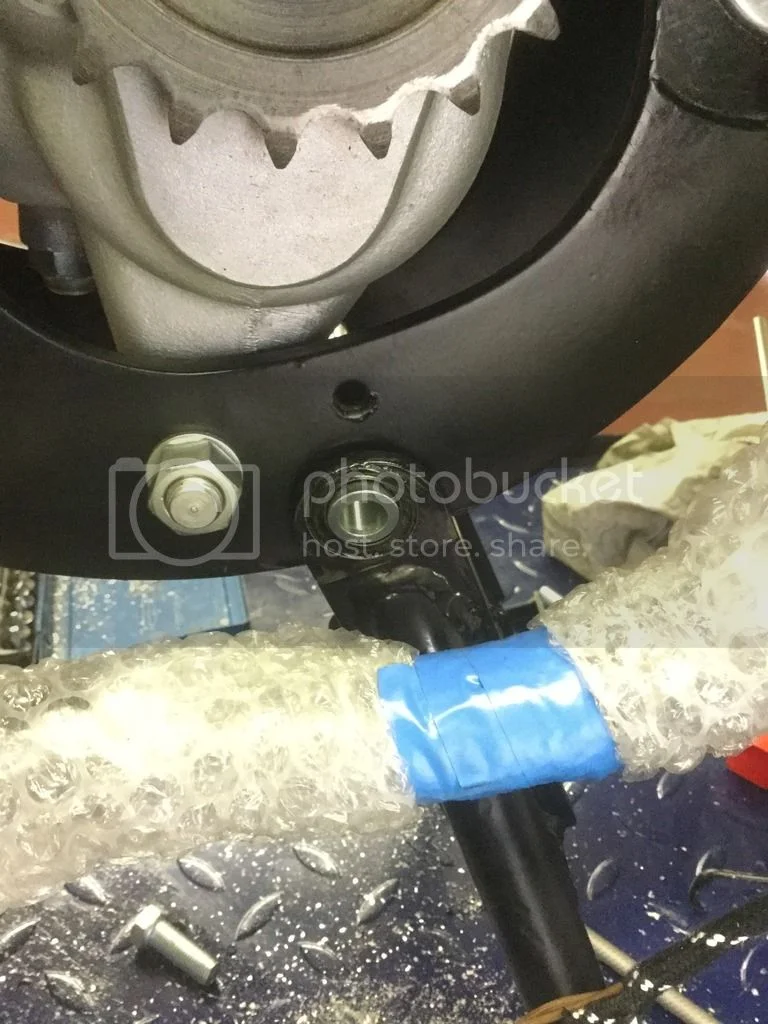

A 14.5 mm diameter drill was just about perfect size, bushes fit nicely:

Painted drilled out holes, lots of grease, bike now back on centre stand, nice to have straps out the way and some more room to work:



B

Brownymark

Joined

Apr 15, 2015

Messages

67

• Oct 10, 2016

• #92

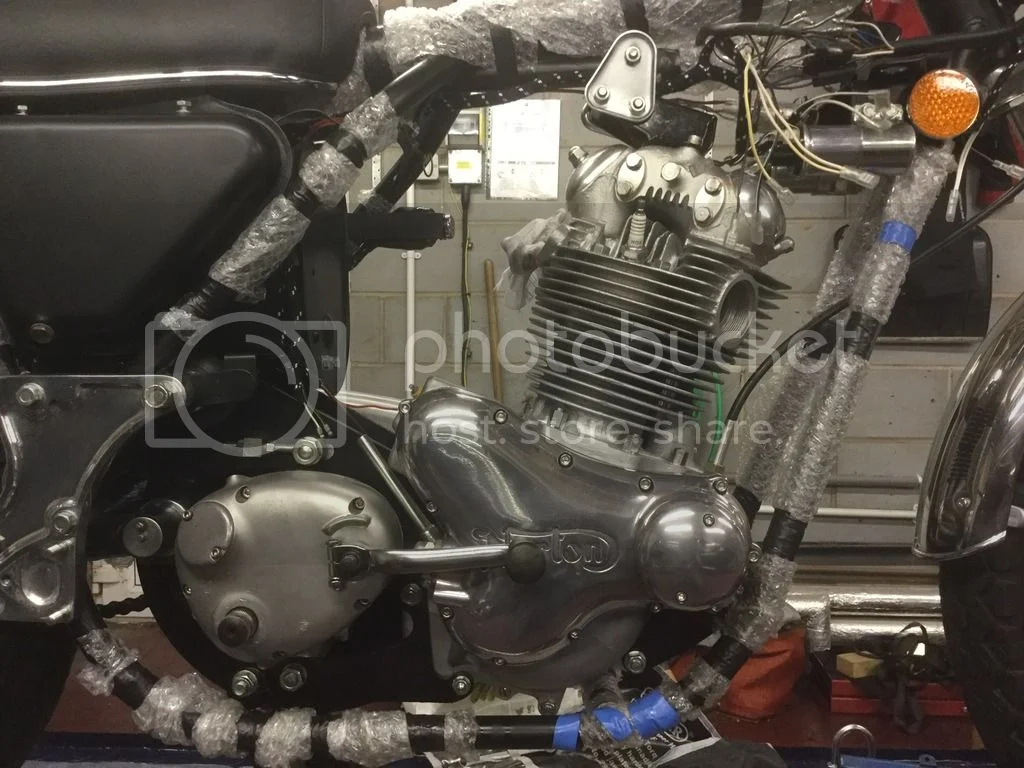

Been a while now but finally some more progress this weekend, timing side finished (not gearbox cover):

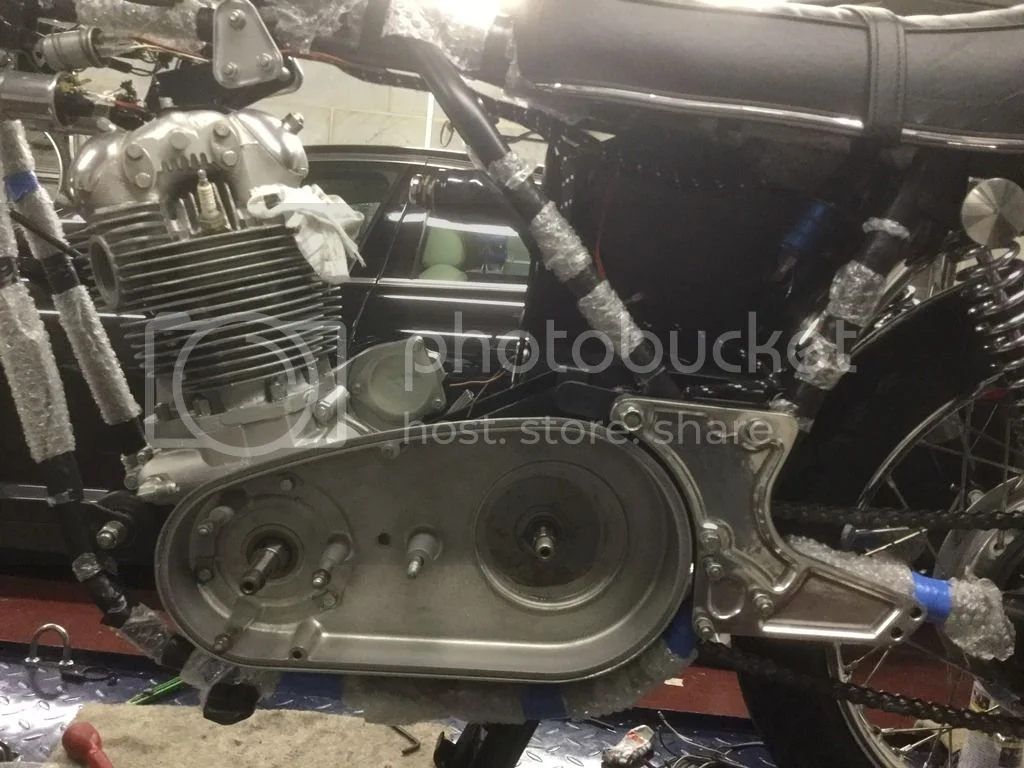

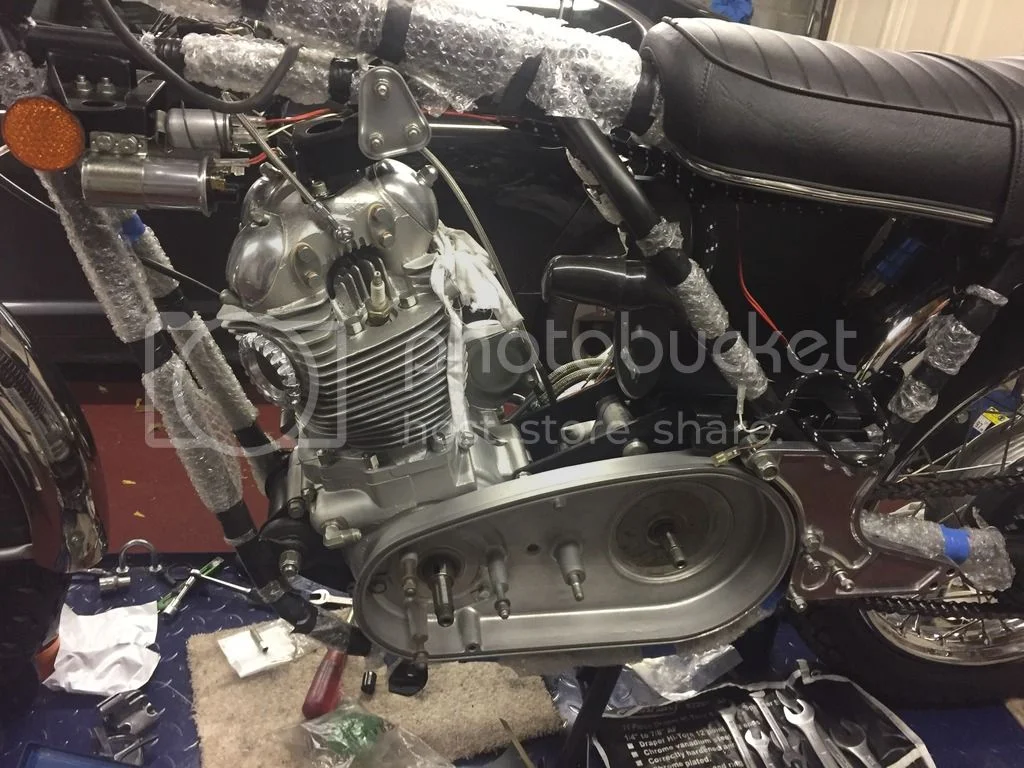

Primary side inner cover fitted:

Also some other minor items, hopefully progress will improve as winter months set in.



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,468

• Oct 10, 2016

• #93

Front mudguard is back to front. :wink:

Brownymark said:

Click to expand...



B

Brownymark

Joined

Apr 15, 2015

Messages

67

• Oct 10, 2016

• #94

Well spotted LAB - deliberate mistake (I wish!) that is what is so good about this forum - I guess my nice clean engine would not have remained so as things are...

Thank you



grandpaul

VIP MEMBER

Joined

Jan 15, 2008

Messages

13,613

• Oct 11, 2016

• #95

Brownymark said:

Primary side inner cover fitted...

Click to expand...

I trust you shimmed the stand-off lug behind the center through-bolt properly, so you don't crack the case when you tighten up the outer nut?

There should be no gap behind the cover.



B

Brownymark

Joined

Apr 15, 2015

Messages

67

• Oct 11, 2016

• #96

Hi grandpaul - yes I did, a nice snug fit.

Cheers, Mark



B

Brownymark

Joined

Apr 15, 2015

Messages

67

• Oct 25, 2016

• #97

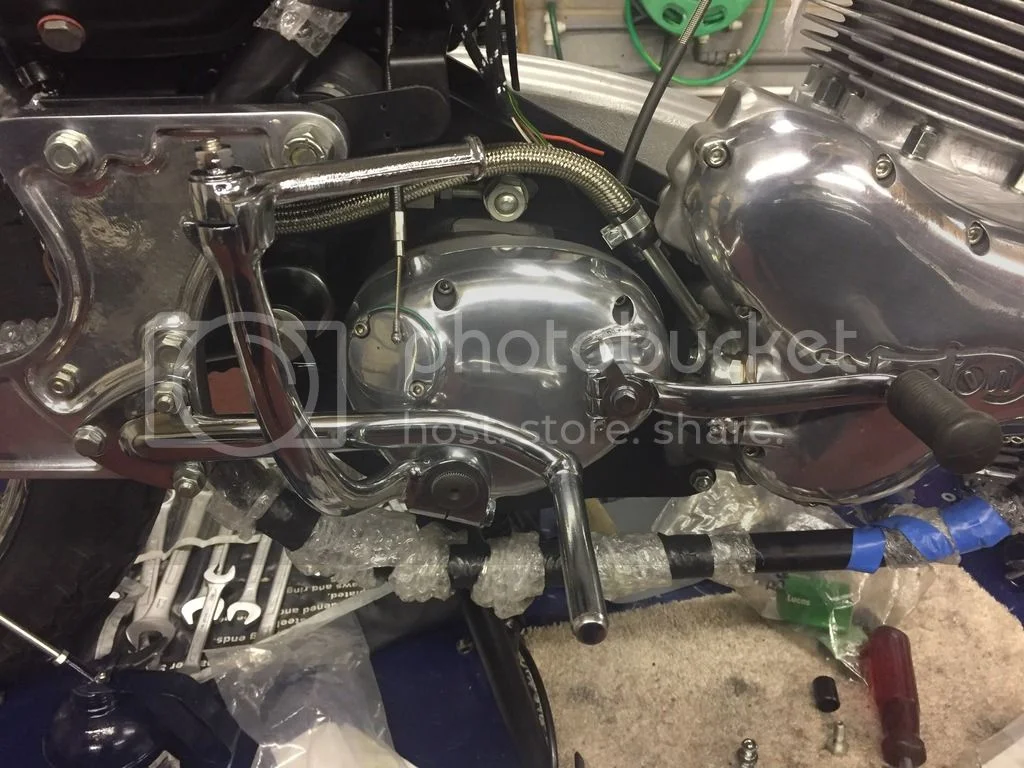

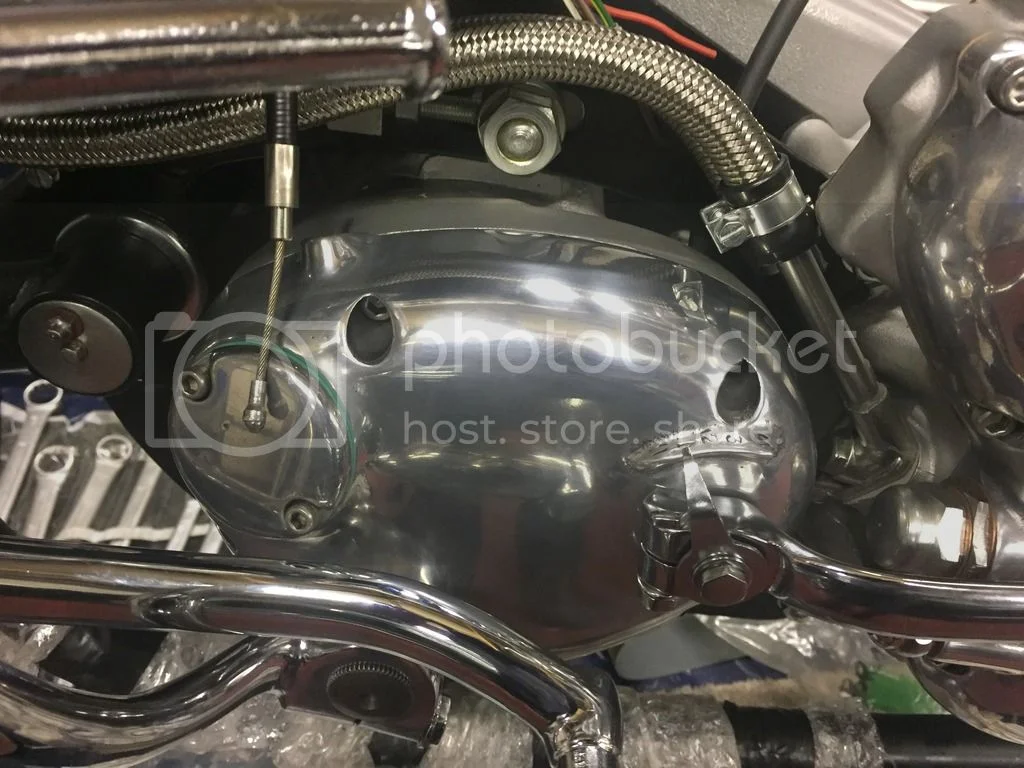

Finally got round to polishing the gearbox cover:

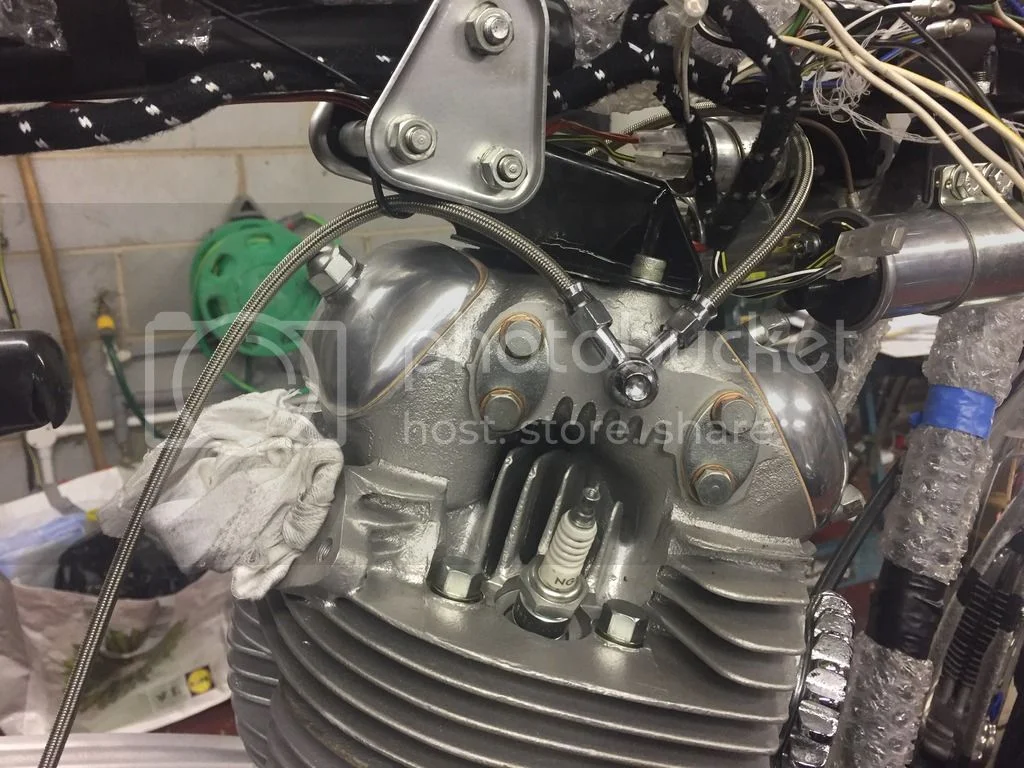

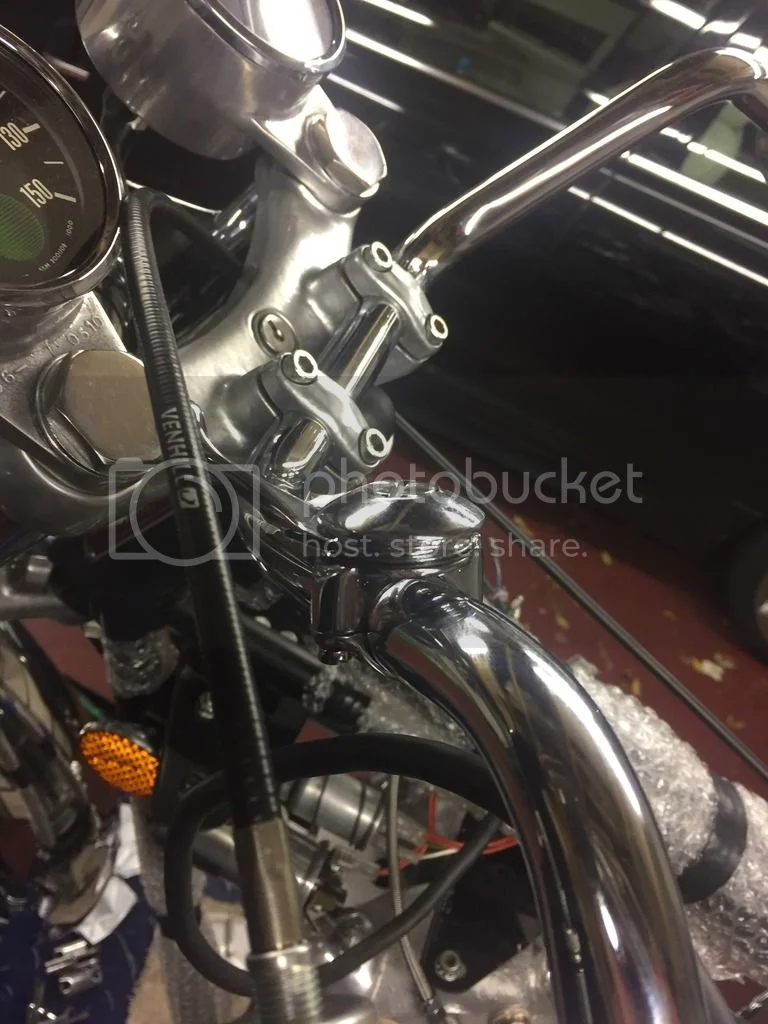

Started experimenting with oil line and cable routings following guidance in various posts from the site:

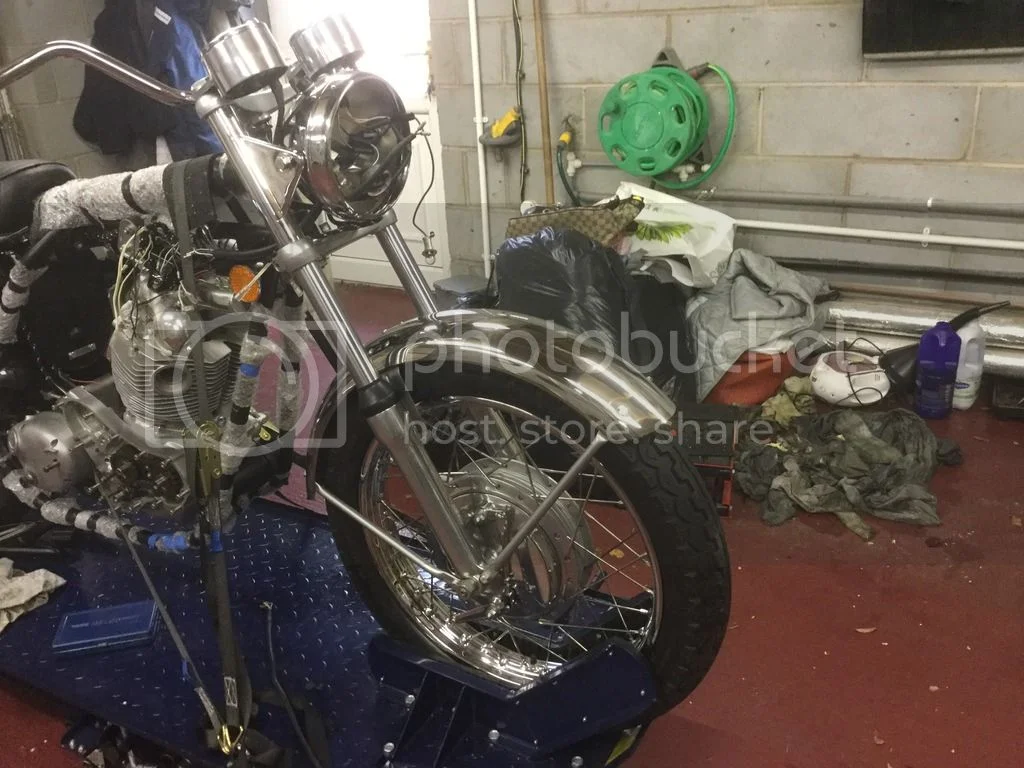

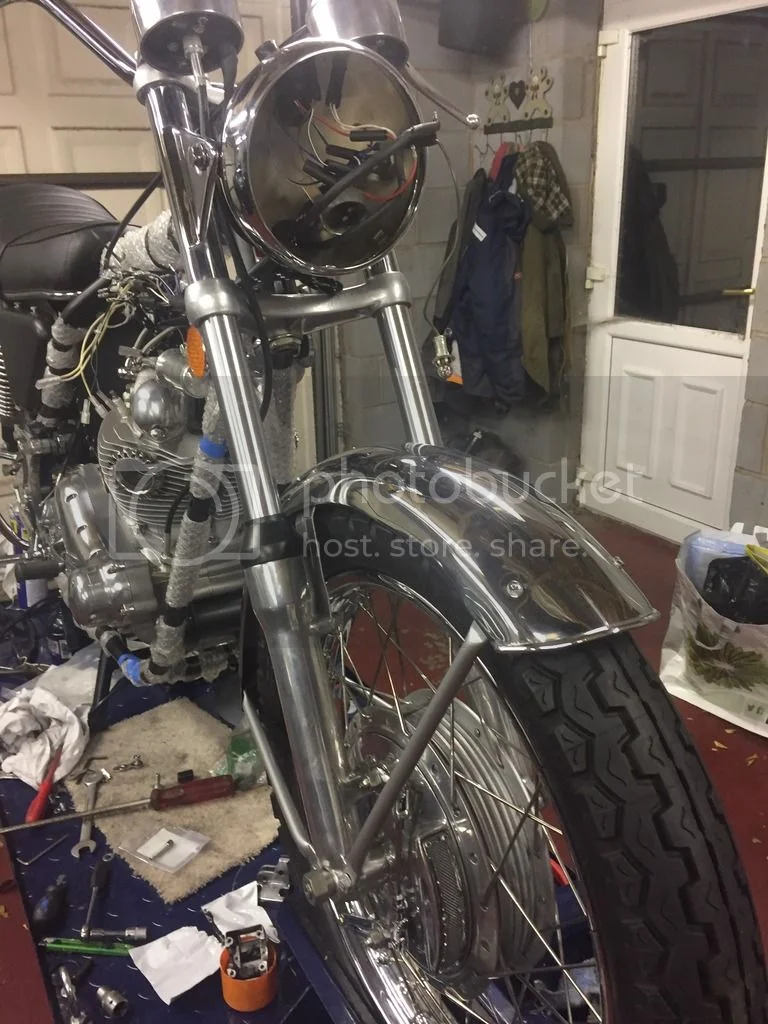

Front mudguard on the right way round now (thanks LAB):

I don't know why some of the photos are rotated 90deg - they are the correct way round in Photobucket?
Feels like its getting closer at last!



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,468

• Oct 25, 2016

• #98

Brownymark said:

I don't know why some of the photos are rotated 90deg - they are the correct way round in Photobucket?

Click to expand...

It appears to be a Photobucket problem.

They have been doing some site maintenance recently so might be something to do with that.
If it doesn't sort itself out, you could try uploading those photos again.



B

Brownymark

Joined

Apr 15, 2015

Messages

67

• Oct 25, 2016

• #99

Hello LAB,
I tried removing problem photos & reinserting but no change I'm afraid.



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,468

• Oct 25, 2016

• #100

Brownymark said:

Hello LAB,
I tried removing problem photos & reinserting but no change I'm afraid.

Click to expand...

I think you need to delete them from Photobucket and re-upload them.
