Marks Norton Commando Rebuild
- Thread starter Brownymark
- Start date
- Joined
- Apr 15, 2015
- Messages
- 67
Thank you grandpaul, yes aqua=blasted - very pleased with the outcome.
A sensible move on the tires. We were motor-home owners for several years and often did only about 2000 mies in a season, which is fairly typical for mainly weekend or short trip use. General consensus among the RV community is to replace tires every 7 years, regardless of wear. When we bought our final one it was 8 years old, based on its "house build" date and still had the original tires it wore when Ford drove the chassis to the RV manufacturer maybe 18 months earlier. New tires were the first things I bought when we got it home. It was a dually chassis, so 6 tires were needed. We never used the spare wheel, and I don't think the original owner had either. It was still stashed away under the propane tank, with its OEM tire, when we sold the rig 4 years later.
- Joined
- Apr 15, 2015
- Messages
- 67

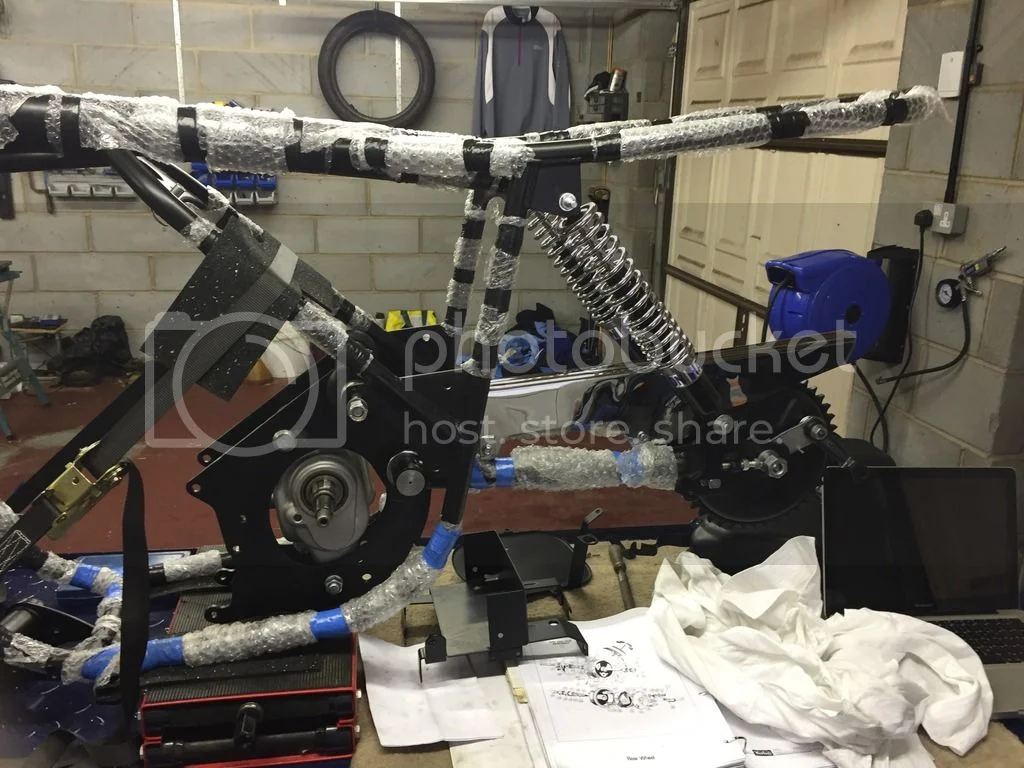

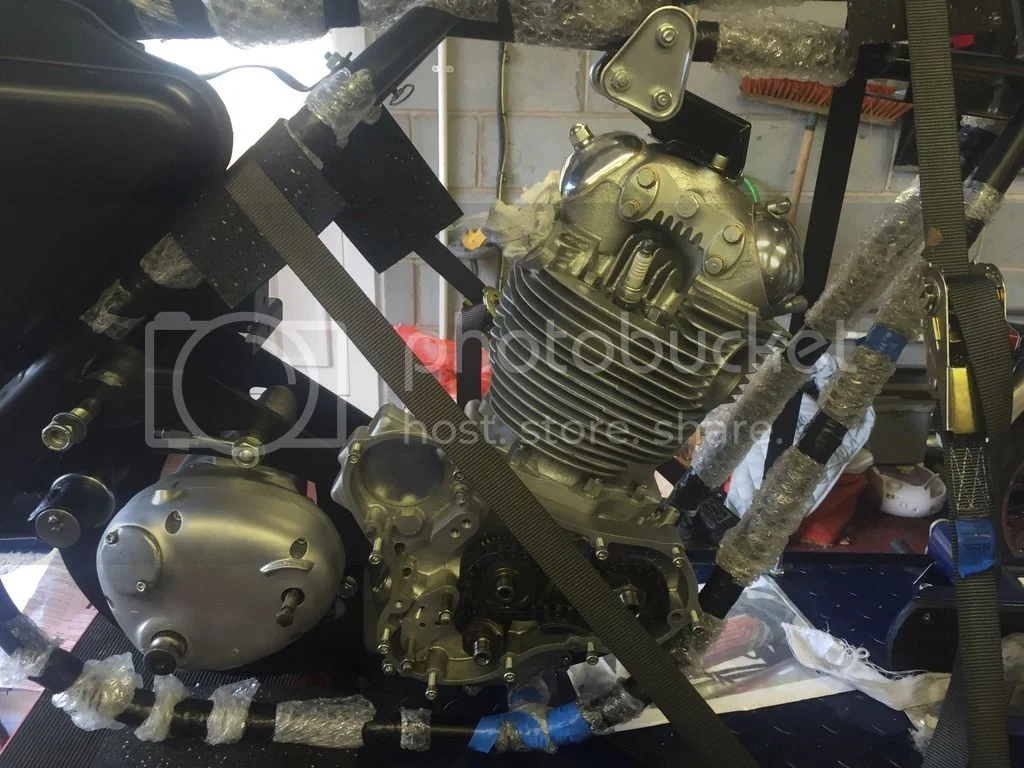

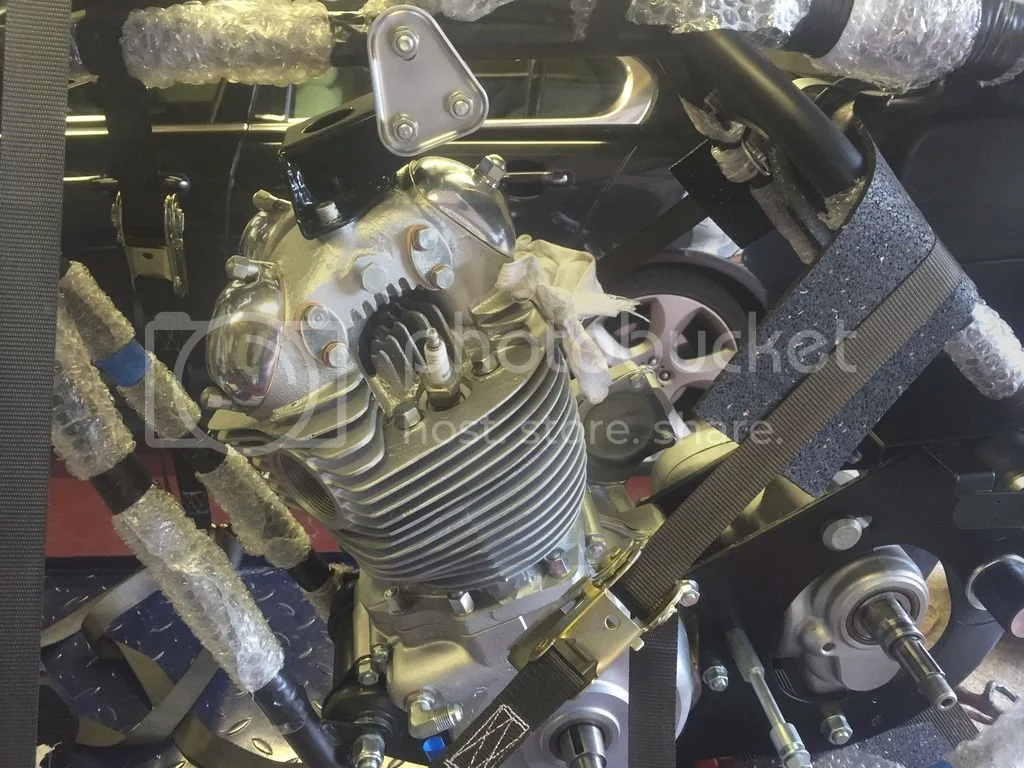

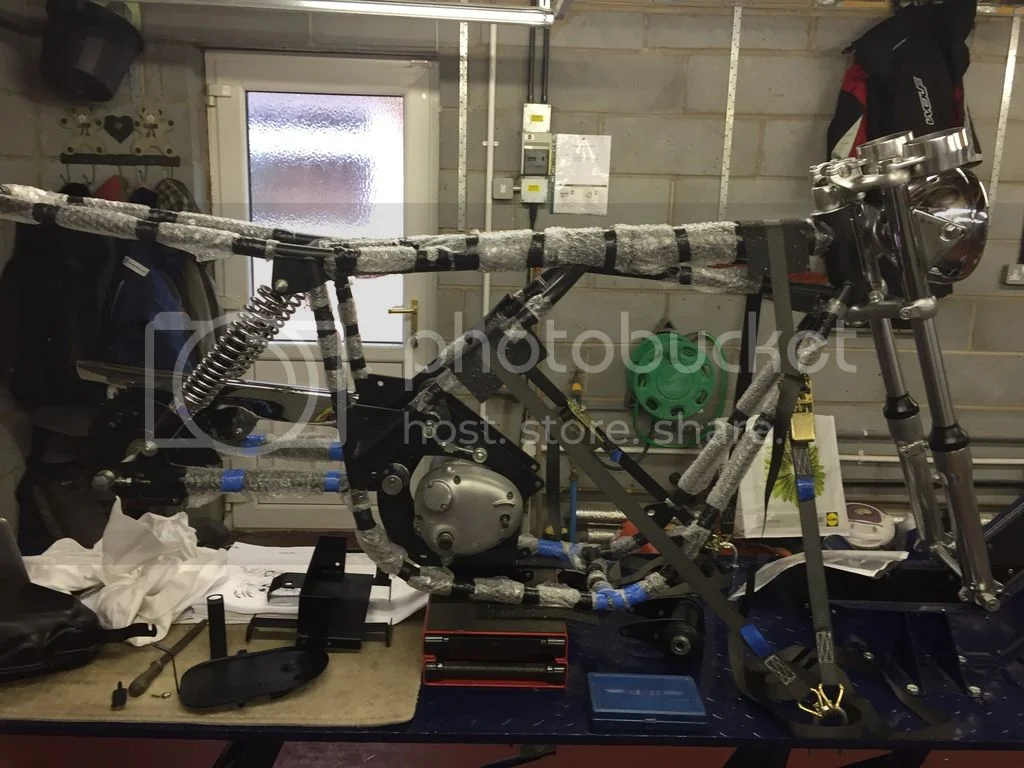

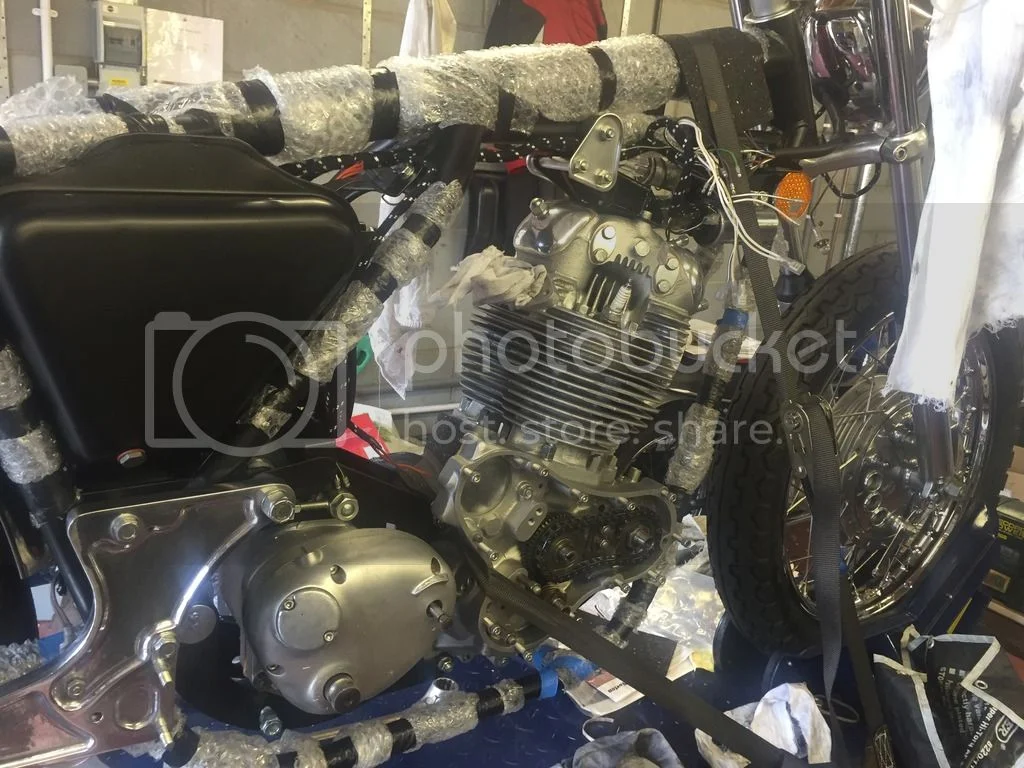

Beginning to look like a bike again - gearbox outer cover still to be polished.
- Joined
- Apr 15, 2015
- Messages
- 67

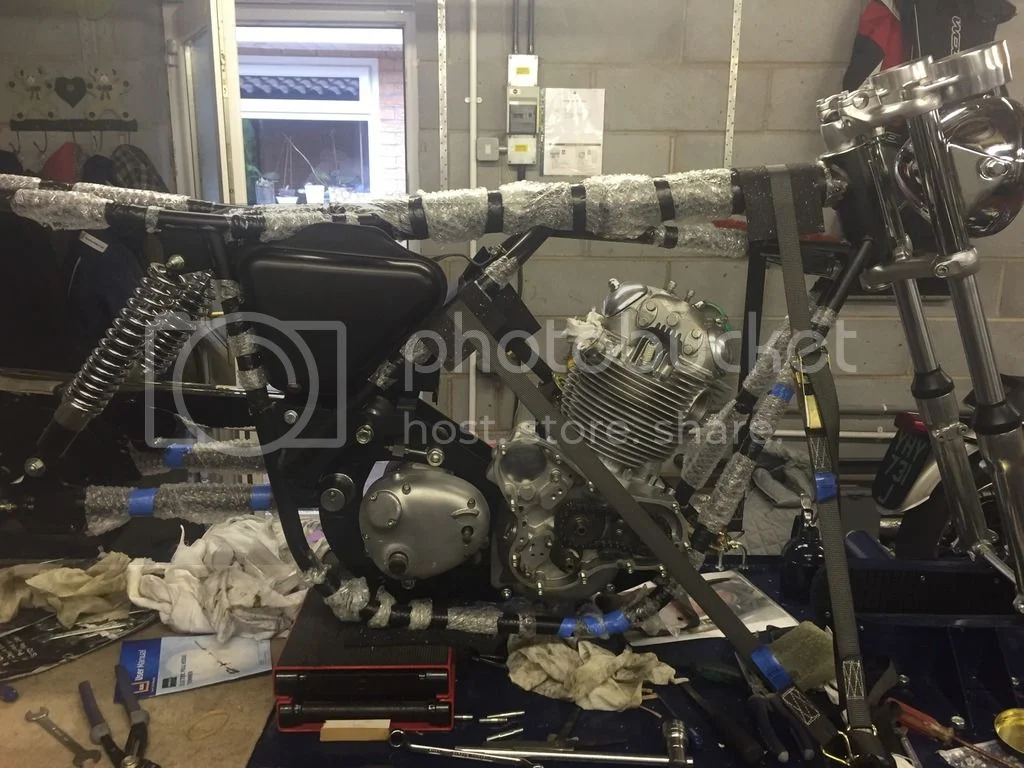

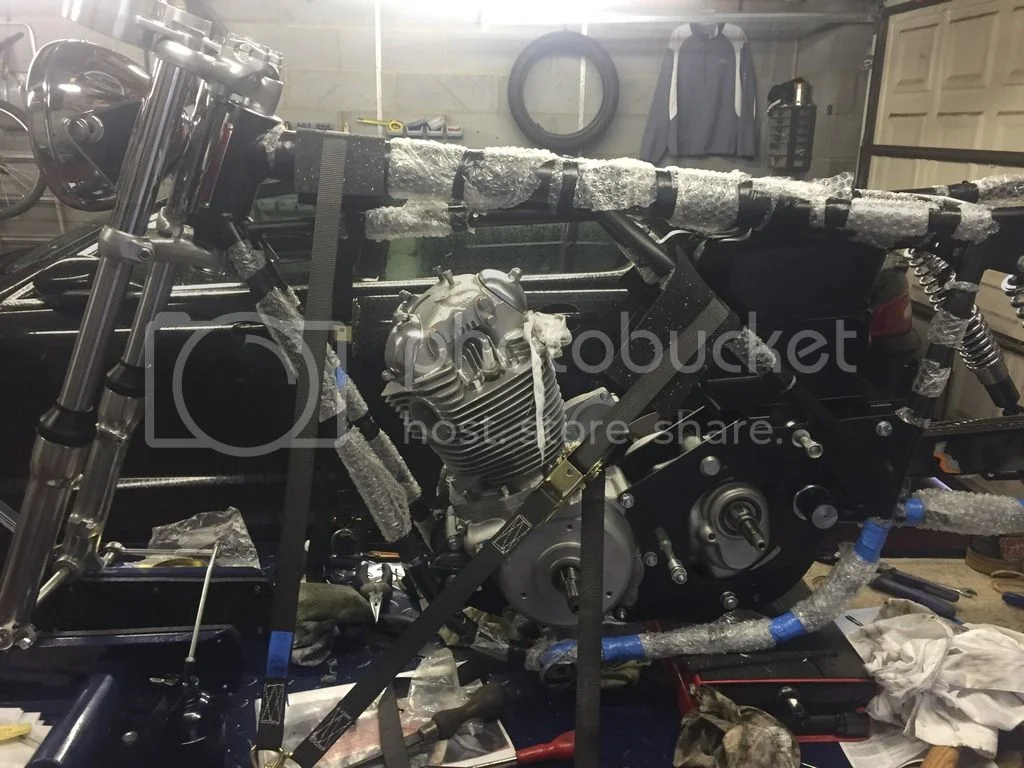

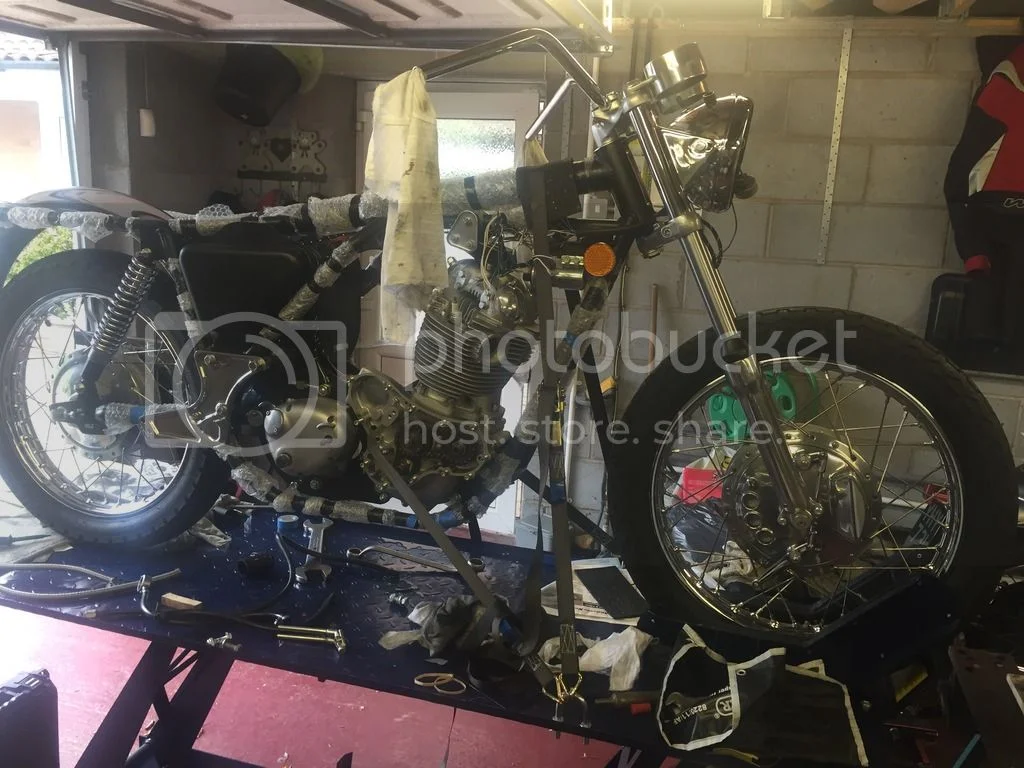

Slow but steady progress:-
Wiring loom next I think.
Wiring loom next I think.
- Joined
- Apr 15, 2015
- Messages
- 67

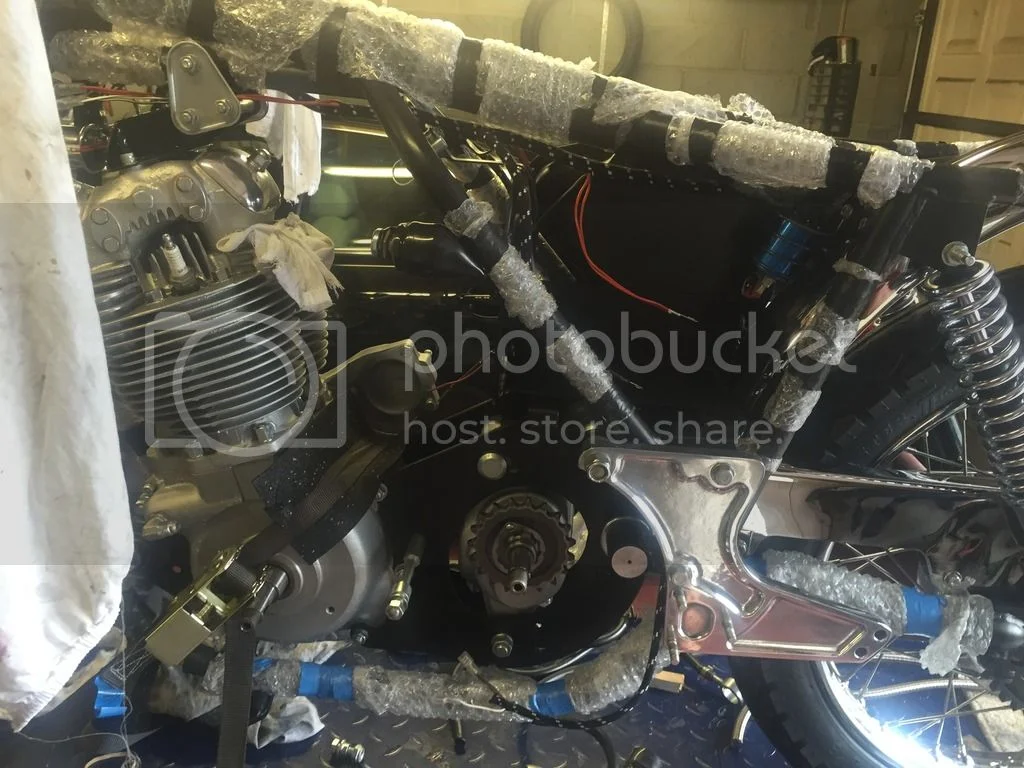

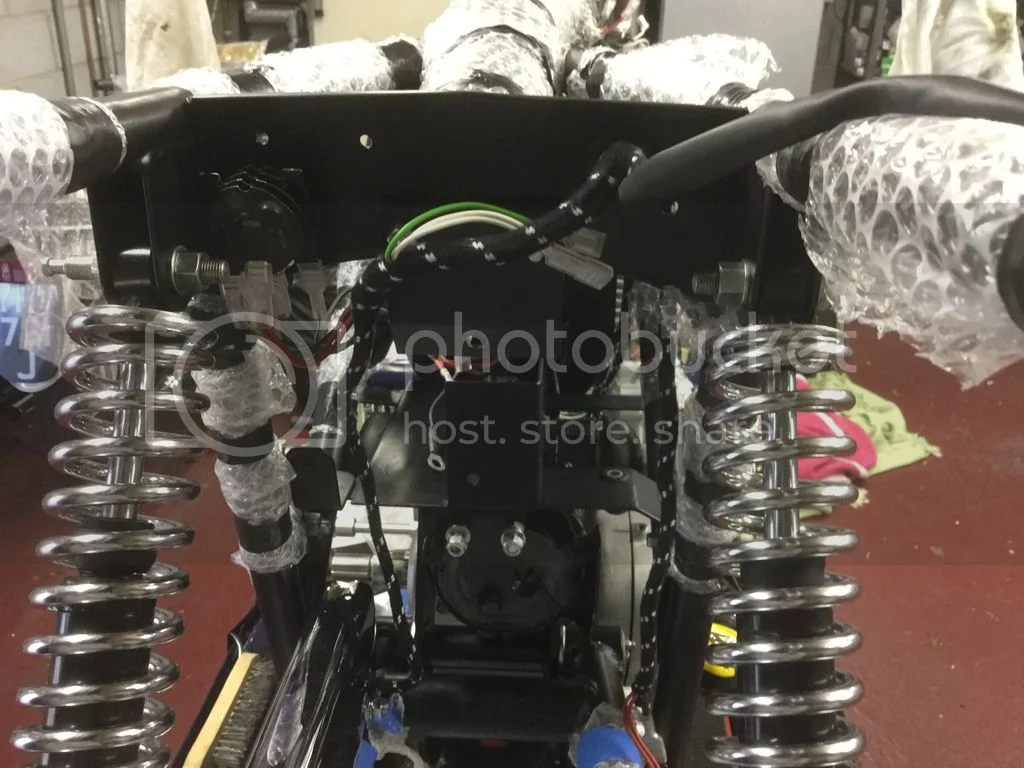

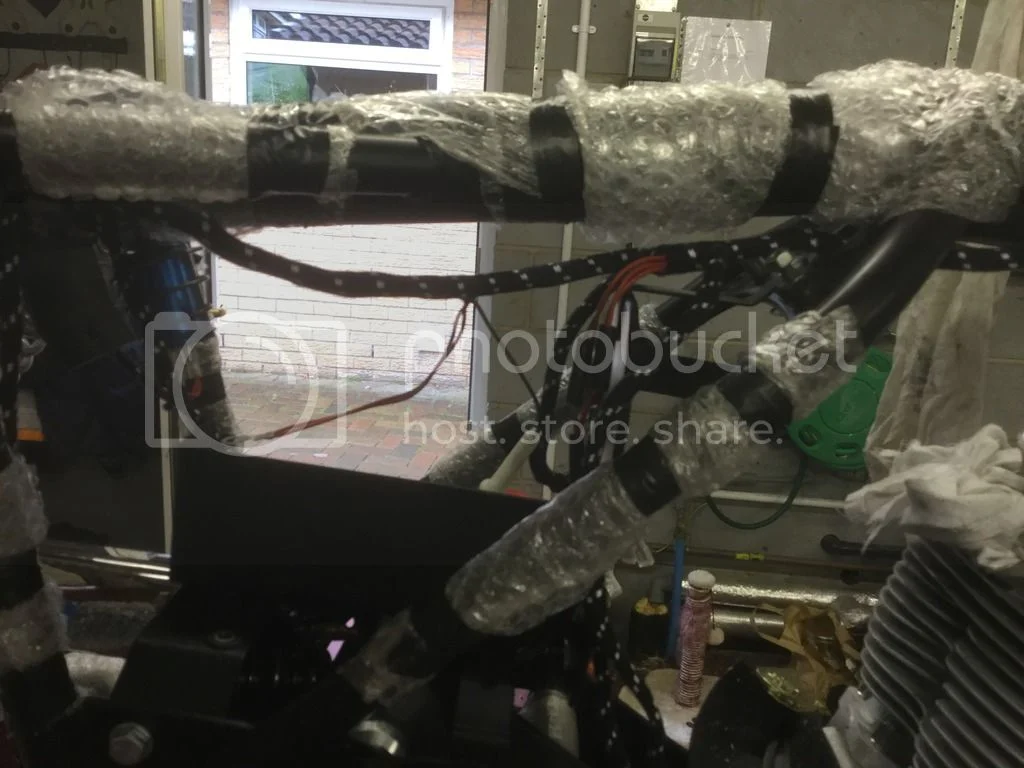

Wiring going well with new loom:

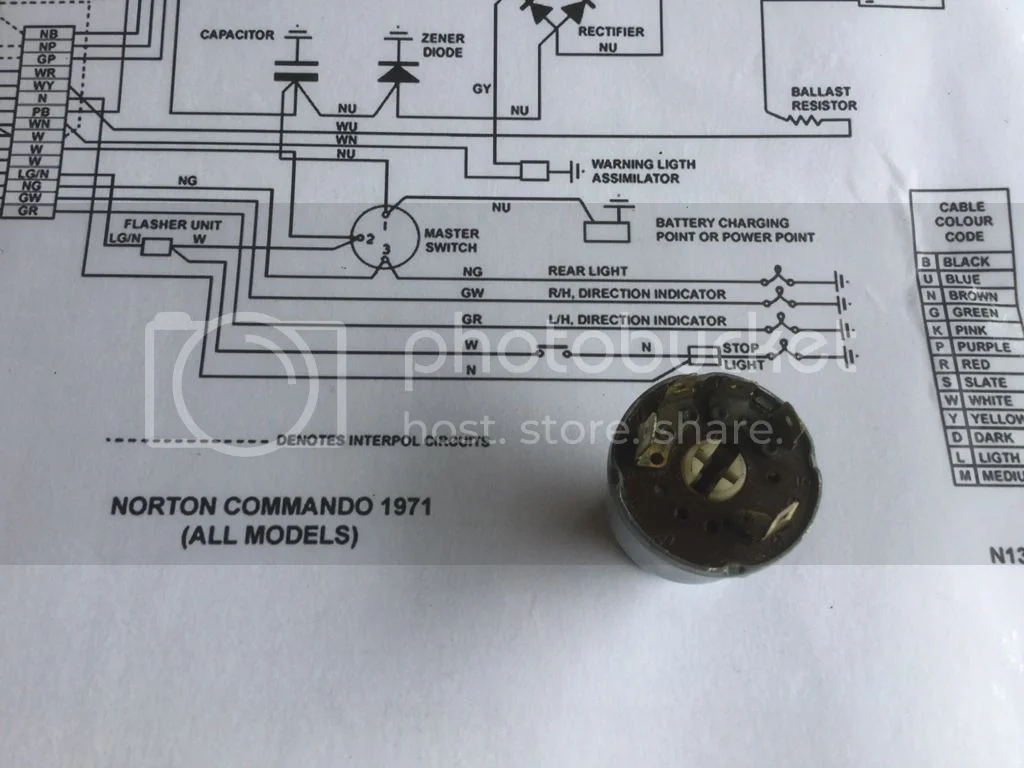

Need some guidance with ignition wiring, my switch has three terminals:
Wiring diagram for 71 shows three different wire colours to switch yet my loom has four wires:
I am not sure where to connect the blue/green, I have searched the site but cannot find a similar one, any guidance would be very much appreciated.
Cheers, Mark
Need some guidance with ignition wiring, my switch has three terminals:
Wiring diagram for 71 shows three different wire colours to switch yet my loom has four wires:
I am not sure where to connect the blue/green, I have searched the site but cannot find a similar one, any guidance would be very much appreciated.
Cheers, Mark
- Joined
- Nov 20, 2004
- Messages
- 20,468
Brownymark said:
Your harness is to 1972 spec.
That "blue/green" (headlamp feed) is actually blue/yellow [UY], (see 1972-on wiring diag.], so for a '3' terminal ignition switch, connect the blue/yellow to terminal 3 along with the brown/green (other lighting) [NG] (or fit a 4 terminal switch with UY on t4) in which case you will probably have to connect UY to the headlamp switch (as '72 w/diag.) instead of NG.
Another alternative would be to leave UY completely disconnected and connect NG to the headlamp switch (as per the '71 w/diagram)
- Joined
- Apr 15, 2015
- Messages
- 67
Hello LAB,
Thank you for the very prompt and helpful reply.
Terminal three only has a single spade connector whereas the other two are double so I guess I will need to joint them.
I want to keep the switch if I can as I have had new keys cut for it.
Many thanks again, Mark
Thank you for the very prompt and helpful reply.
Terminal three only has a single spade connector whereas the other two are double so I guess I will need to joint them.
I want to keep the switch if I can as I have had new keys cut for it.
Many thanks again, Mark
- Joined
- Nov 20, 2004
- Messages
- 20,468
Brownymark said:
Then I suggest you do it the alternative way. Leave UY completely disconnected and connect NG to the headlamp selector switch.
If the front harness section is new and also to '72 spec. then it may have a UY headlamp switch wire that can be connected to NG?
- Joined
- Apr 15, 2015
- Messages
- 67
Hi LAB,

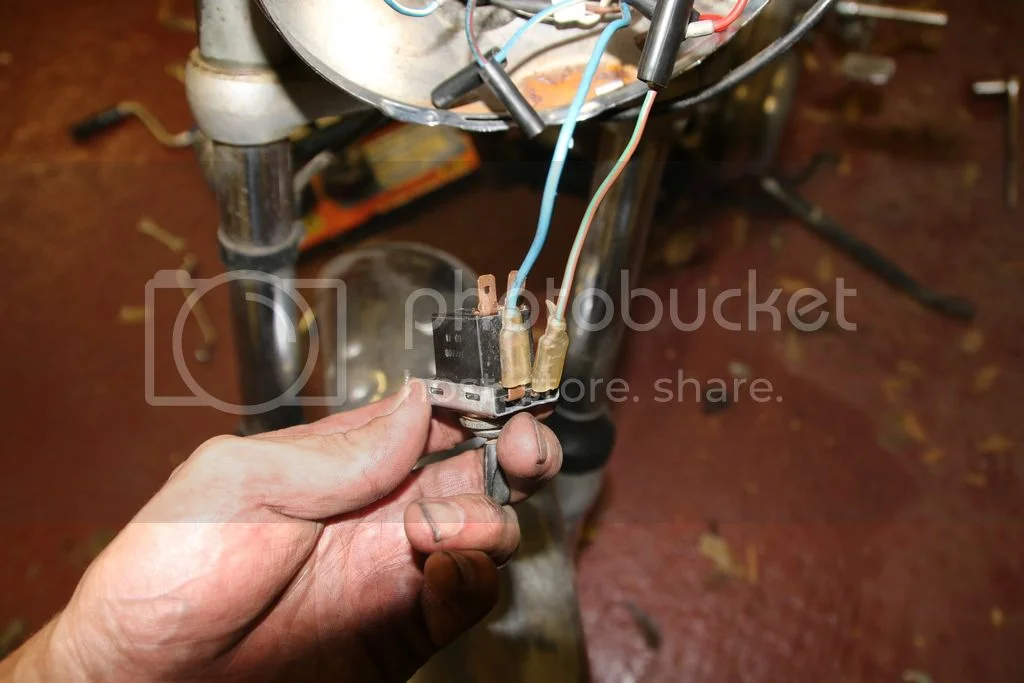

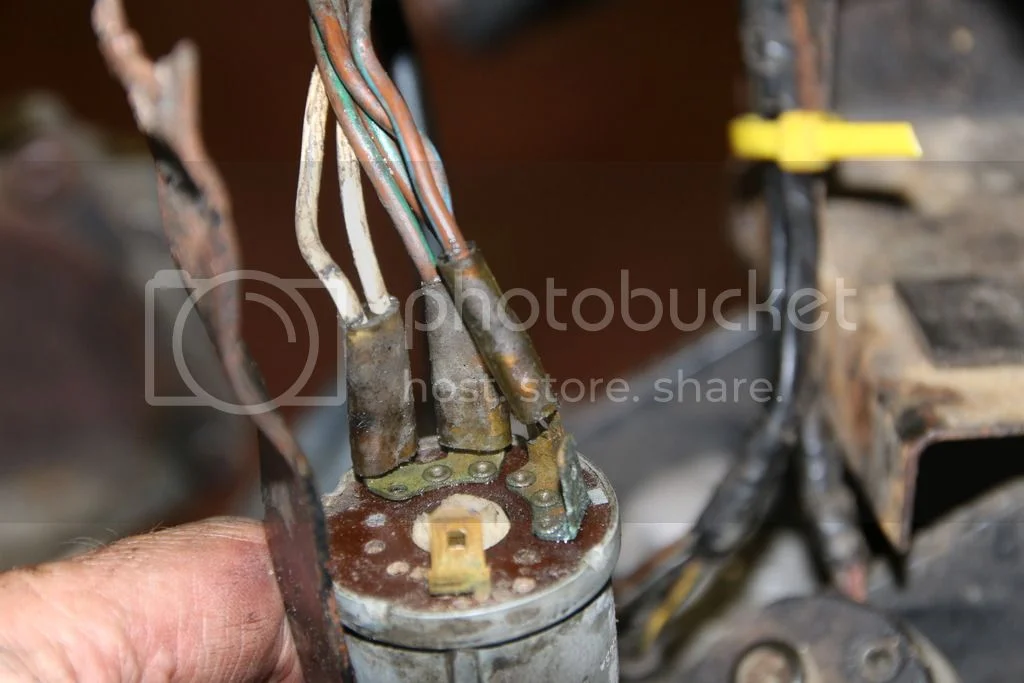

Thanks again, the picture below shows how the switch was wired when I got the bike which I guess is incorrect (it has not run for many years)

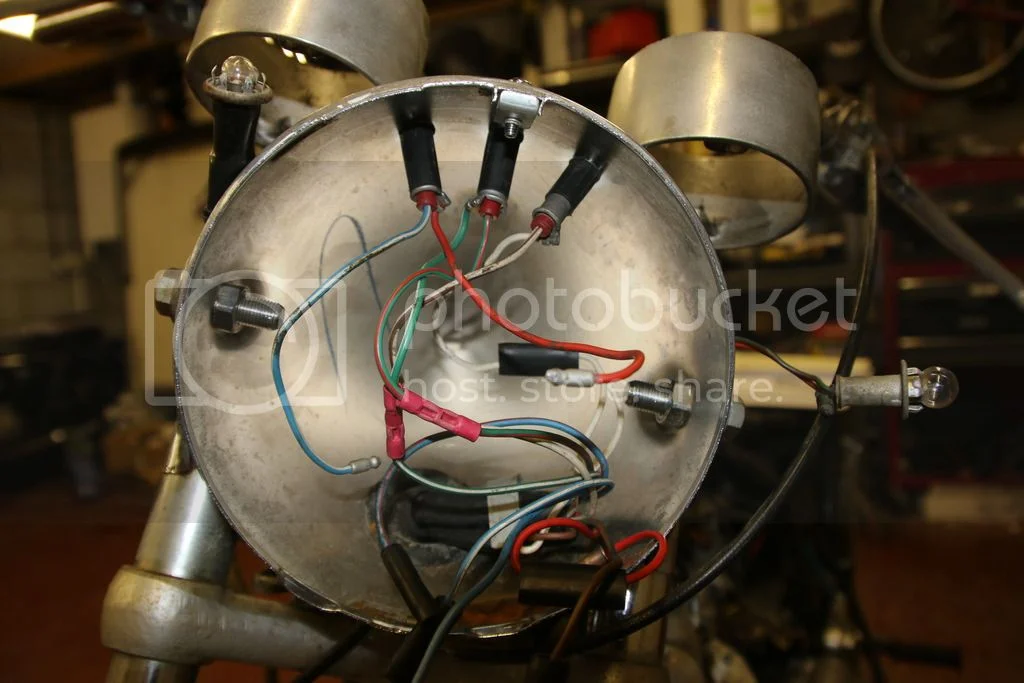

The following two pictures show how the headlamp was wired:

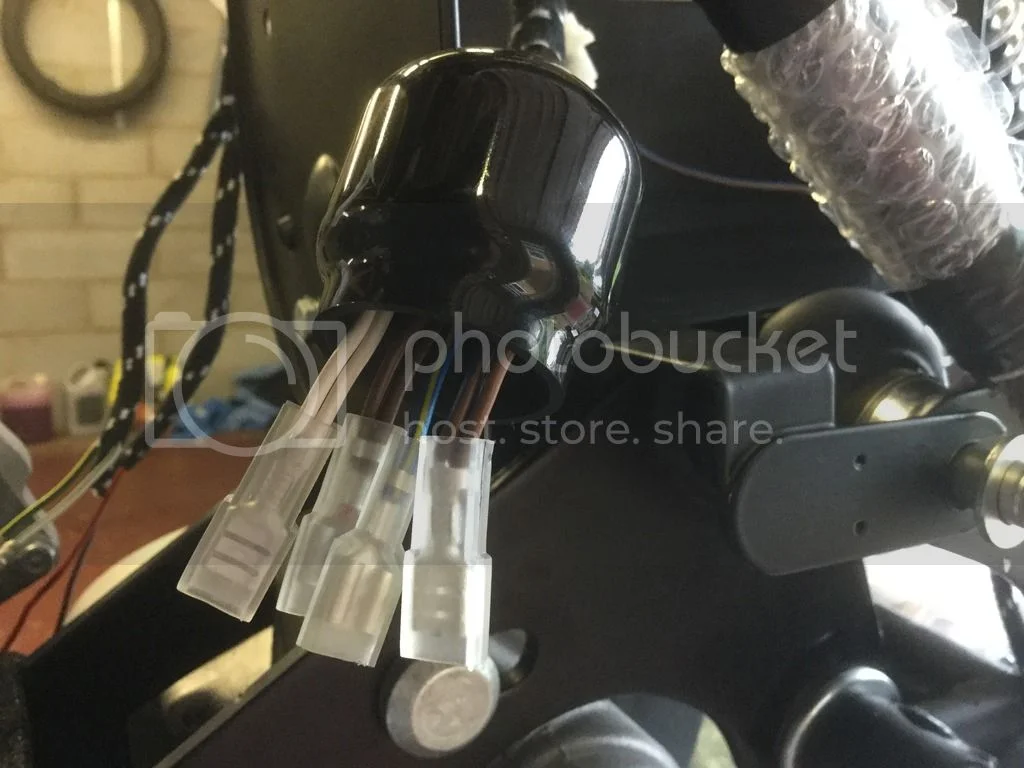

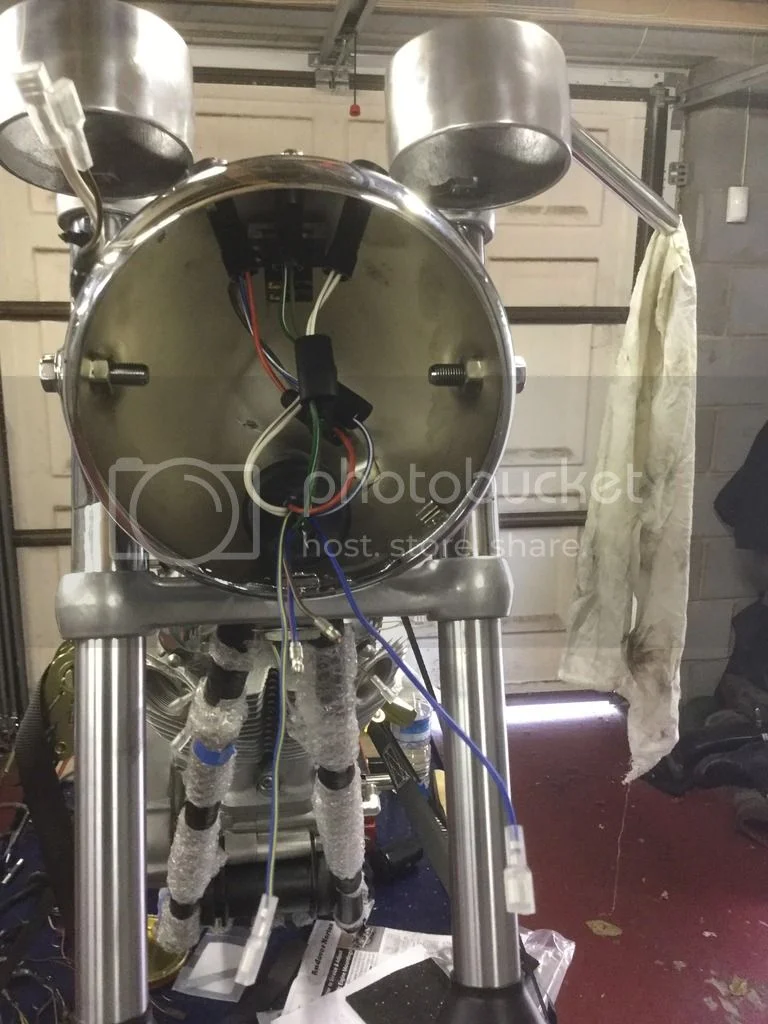

The final picture is the new headlamp loom which I am currently installing:
Does this look correct?
Cheers, Mark
Thanks again, the picture below shows how the switch was wired when I got the bike which I guess is incorrect (it has not run for many years)
The following two pictures show how the headlamp was wired:
The final picture is the new headlamp loom which I am currently installing:
Does this look correct?
Cheers, Mark
- Joined
- Nov 20, 2004
- Messages
- 20,468
Brownymark said:
Well, with the wires connected as they are, the lights would come on with the ignition. The number 2 terminal has broken off the switch.
Brownymark said:
It's difficult to tell from the photos, however, IF the longer wire hanging straight down in that last photo is the UY (so goes to the headlamp selector switch for '72 spec.) then the other end needs to be connected to NG brown/green rather than UY in the main harness section.
- Joined
- Apr 15, 2015
- Messages
- 67
Thanks LAB, the two long wires in the new headlamp loom are U (Blue) UY (Blue/Yellow).
i was just going to connect the blue to the switch as it was wired previously?
i was just going to connect the blue to the switch as it was wired previously?
- Joined
- Apr 15, 2015
- Messages
- 67
Thanks again LAB and apologies if I am appearing somewhat thick, so I am leaving UY disconnected at the ignition switch but connecting it to the headlamp switch?
Is it correct that only two wires are connected to the two top connectors of the headlamp switch (as my previous picture) with nothing on the two lower terminals?
Cheers again, Mark
Is it correct that only two wires are connected to the two top connectors of the headlamp switch (as my previous picture) with nothing on the two lower terminals?
Cheers again, Mark
- Joined
- Nov 20, 2004
- Messages
- 20,468
Brownymark said:
Yes, leave both ends of the main harness section UY disconnected.
Connect one end of the headlamp harness UY to the headlamp switch and the other end to NG from the main harness section.
Brownymark said:
If that's how it was then yes, as it is a simple ON/OFF selector for the headlamp, so if desired, the other lights (pilot, tail, instruments) can be ON but the headlamp switched OFF when 'Ign. and lights' or 'Parking lights' are selected at the ignition switch.
- Joined
- Apr 15, 2015
- Messages
- 67
Thanks LAB - beer time will resume in the morning!
- Joined
- Apr 15, 2015
- Messages
- 67

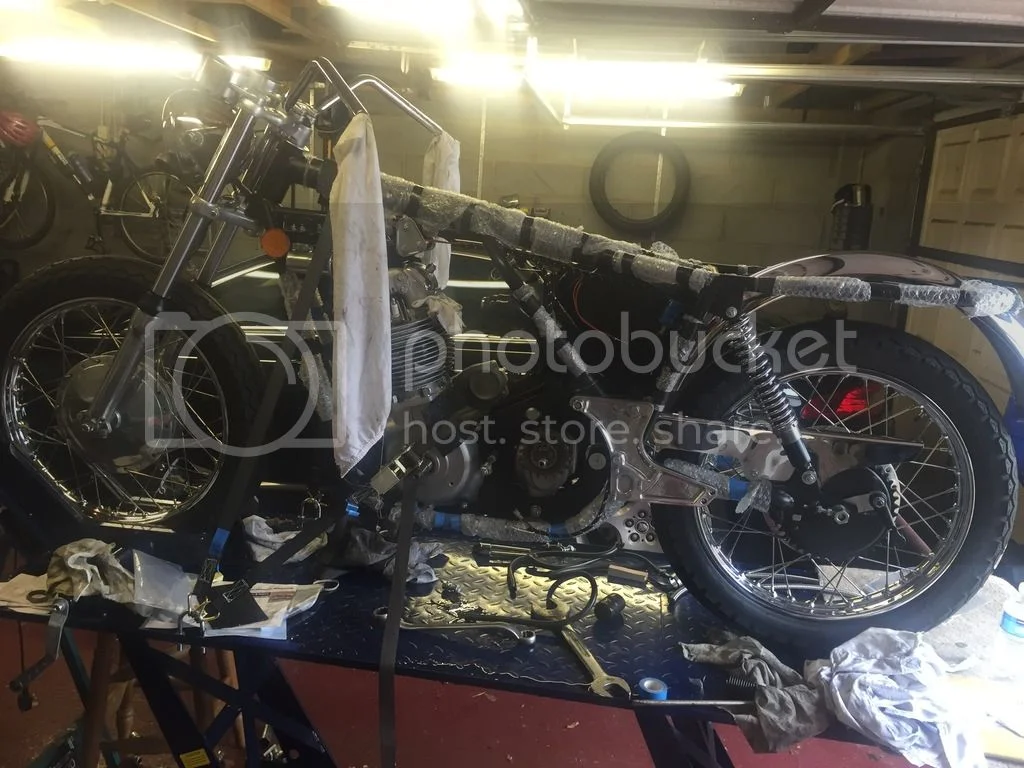

Back on two wheels
- Joined
- Apr 15, 2015
- Messages
- 67

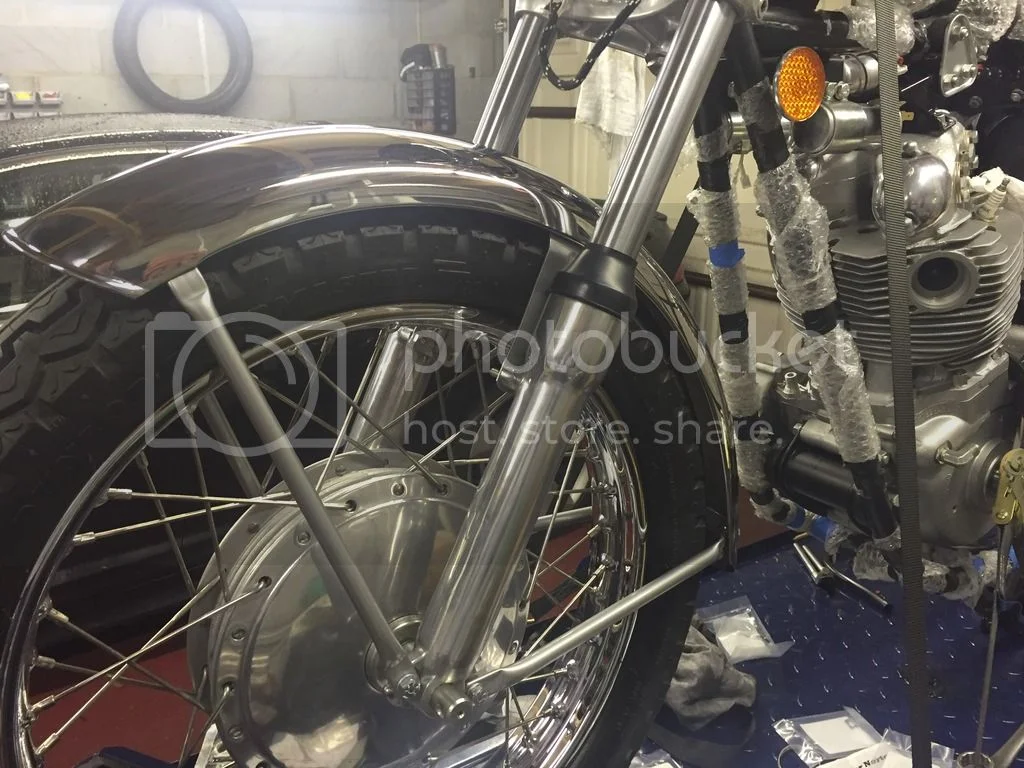

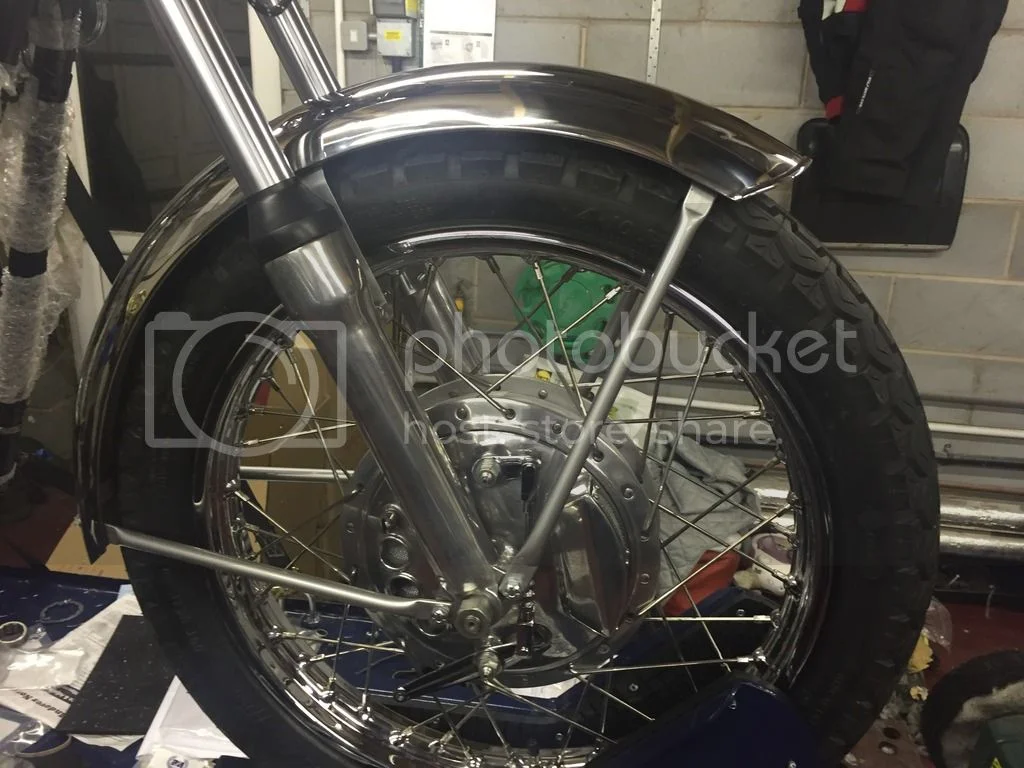

Front mudguard semi fitted;
Need to drill for front stay.
Mountings for later centre stand arrived - need to drill out gearbox cradle which does not look easy mounted in frame without a very compact right angle drill! Busy weekend ahead...
Great progress in all the threads still learning everyday - keep up the great support network
Need to drill for front stay.
Mountings for later centre stand arrived - need to drill out gearbox cradle which does not look easy mounted in frame without a very compact right angle drill! Busy weekend ahead...
Great progress in all the threads still learning everyday - keep up the great support network
