Grant's Featherbed Special

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034
I could then slide the freshly built stanchions and sliders into the triple trees.


Attachments

  • 169.JPG
    423.6 KB · Views: 269

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

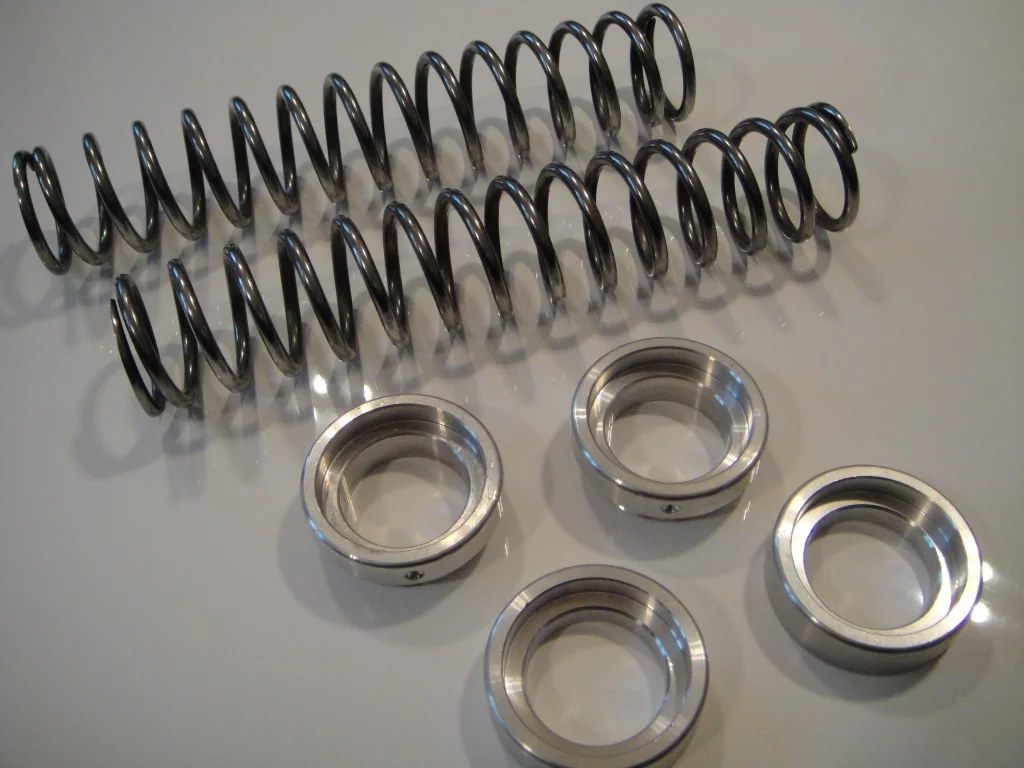

I am using external springs - these are 197mm Seeley springs (very short considering the standard ones are 231mm)

I got them from Andy at Molnar Precision http://www.manx.co.uk

Andy is a great source for stainless steel bits.
He makes things to a very high quality, and always ensures that he uses the correct materials!


Attachments

  • 170.JPG
    506.9 KB · Views: 269

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

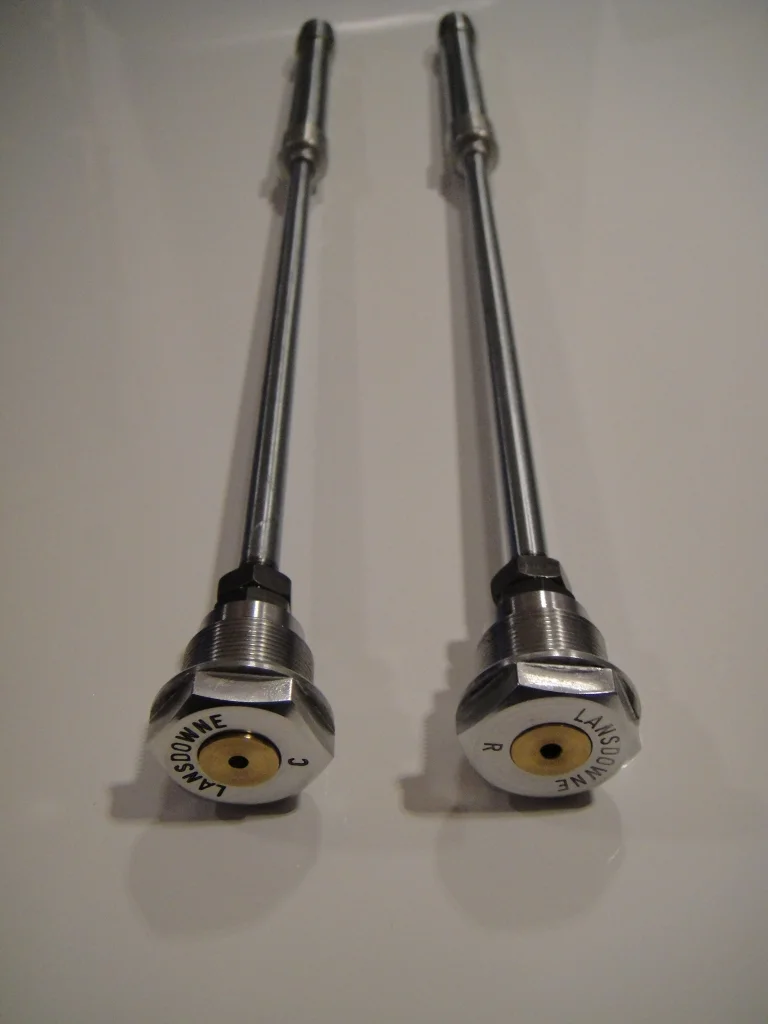

Of course, the dampers would be from John at Lansdowne Engineering http://lansdowne-engineering.co.uk/



I really love what John has done for the world of Norton with these.

One side sets Compression characteristics, and the other side is adjustable for rebound characteristics.

Having felt a set of forks that ride on Lansdowne damper cartridges, this decision was an absolute no brainer.

John makes a few different types of cartridges - three different lengths (Commando, Dominator and Manx) and with the option of Internal and External springs.

These are the Manx ones, for an external spring.


Attachments

  • 171.JPG
    431.9 KB · Views: 286

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

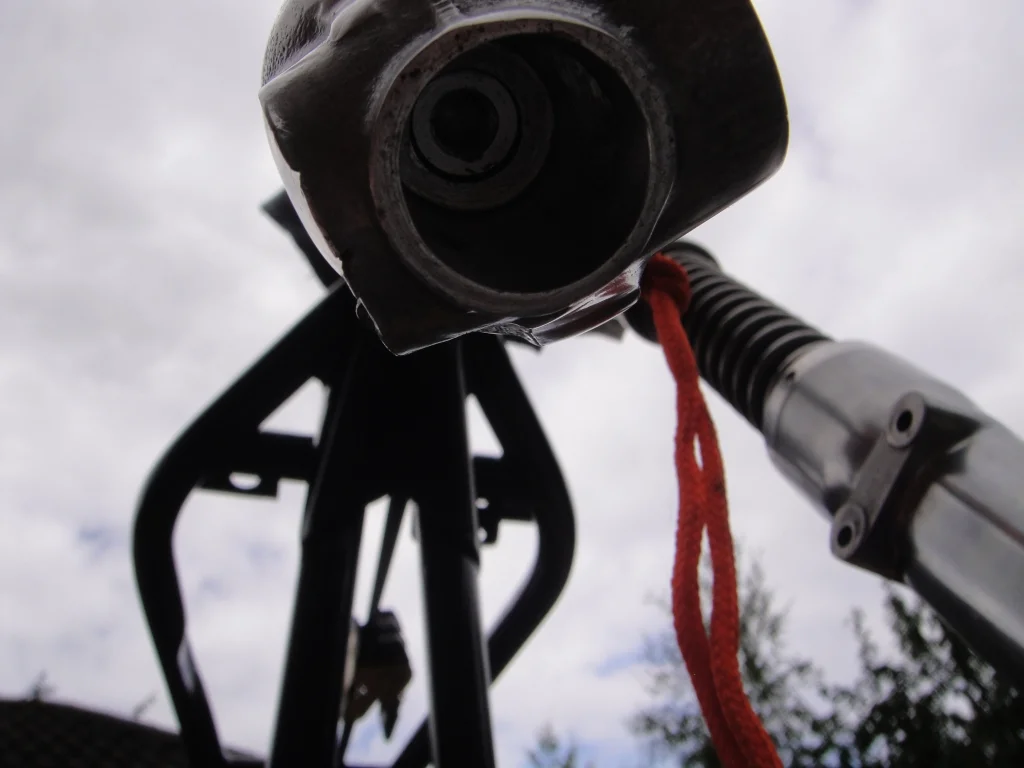

When fitting the Lansdowne cartridges, it is important that they are pulled down, and engage well into the base of the slider.



This is a bit of a fiddly job, but the easiest way i found was to compress the fork using a ratchet strap, then pull the damper cartridge down into the hole by screwing in a long piece of studding.


Attachments

  • 172.JPG
    372.2 KB · Views: 267

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

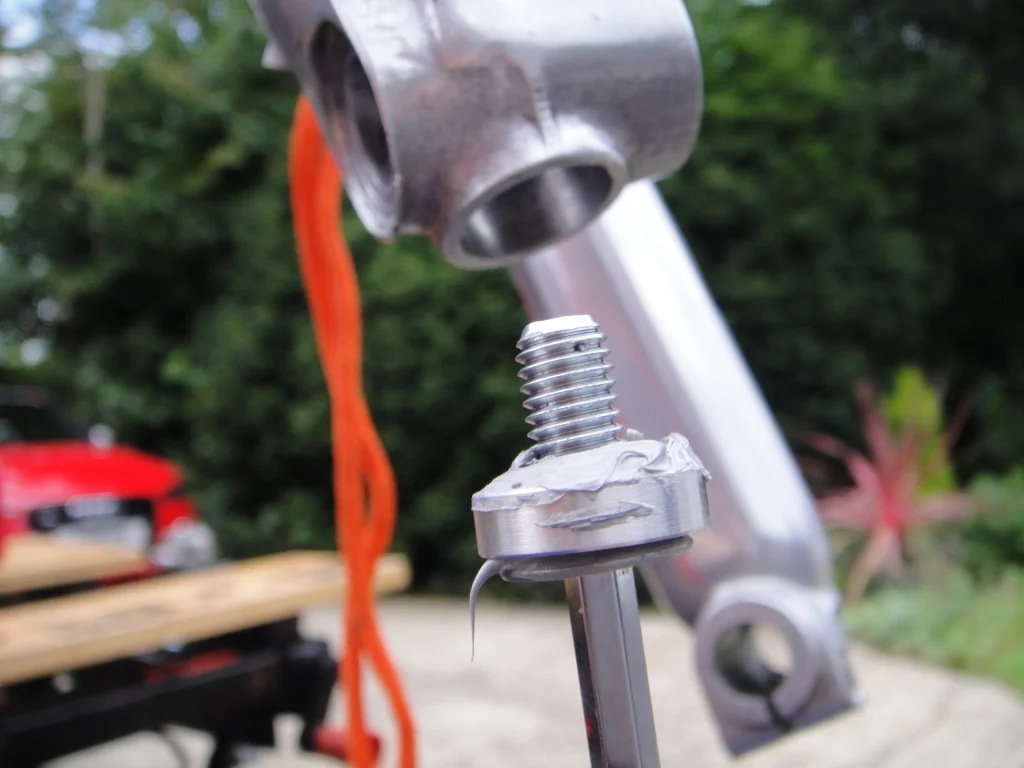

Making sure these don't leak is really important, so i spread some of my magic Loctite 5699 Grey Sealant on both the retaining bolt and the big aluminium washer.

This has proved to work really well!


Attachments

  • 173.JPG
    433.2 KB · Views: 275

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

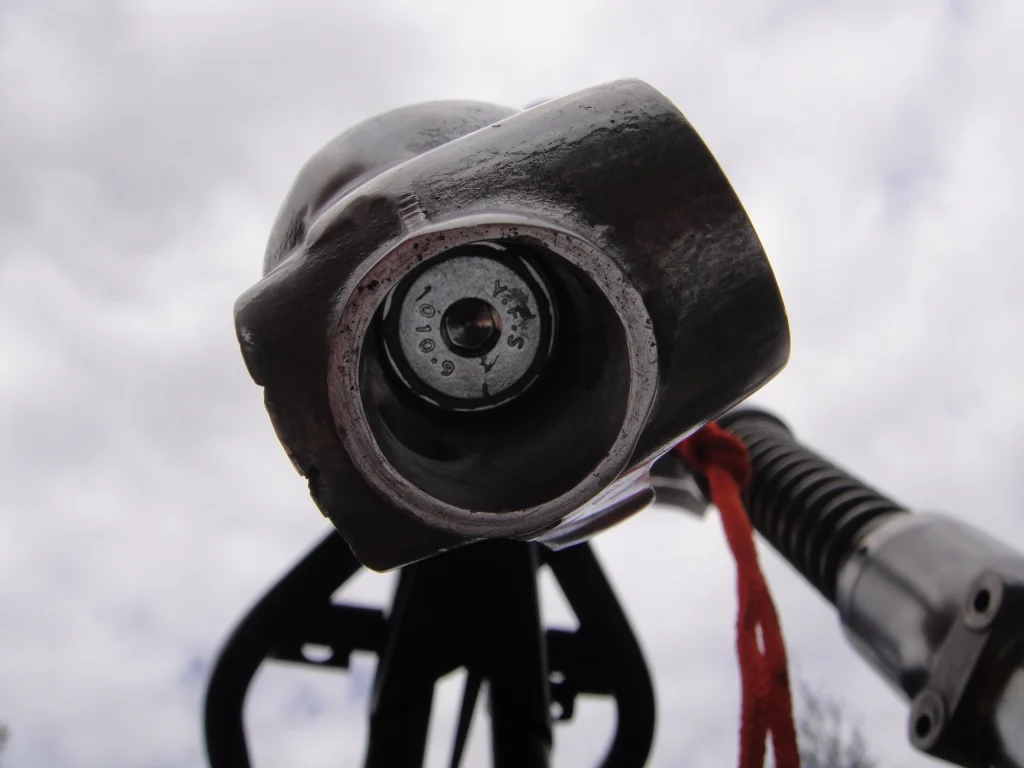

With the stars aligned, I could then tighten up the retaining bolt using a long allen key



You can see there is just the perfect amount of sealant that has squidged out around the retaining bolt!
This will provide a good, oil tight seal.


Attachments

  • 174.JPG
    379.5 KB · Views: 277

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

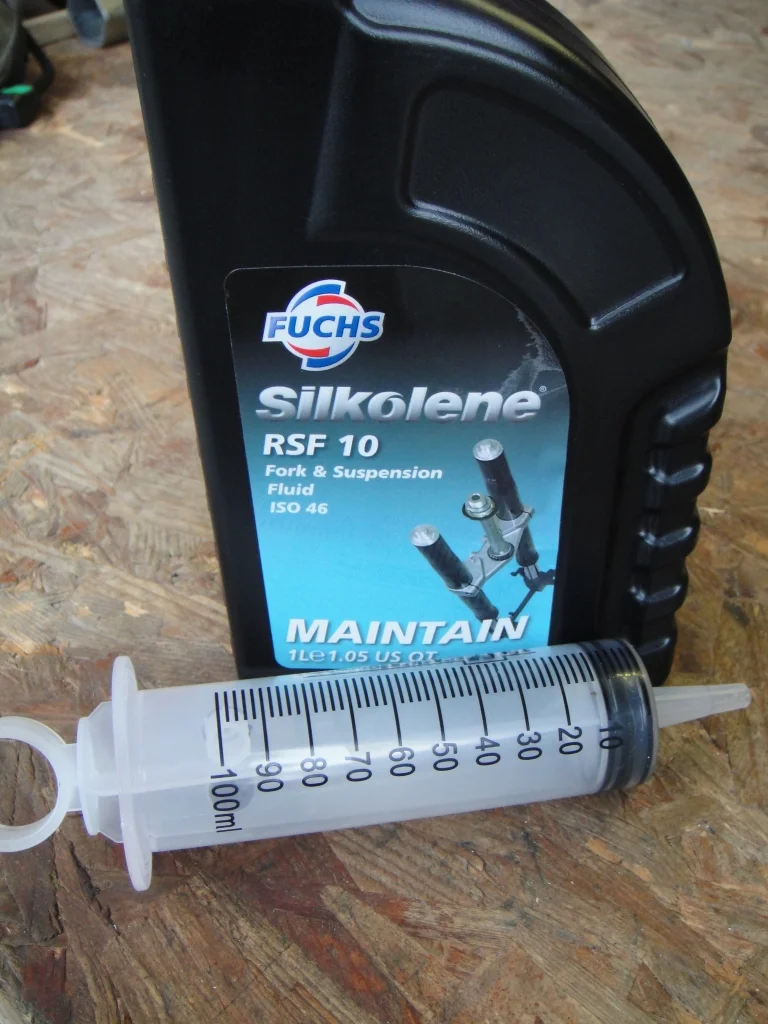

As recommended by John, each fork is filled with 150ml of SAE 10 fork fluid

A syringe is by far the easiest and less messy way to do this job!


Attachments

  • 175.JPG
    563 KB · Views: 257

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

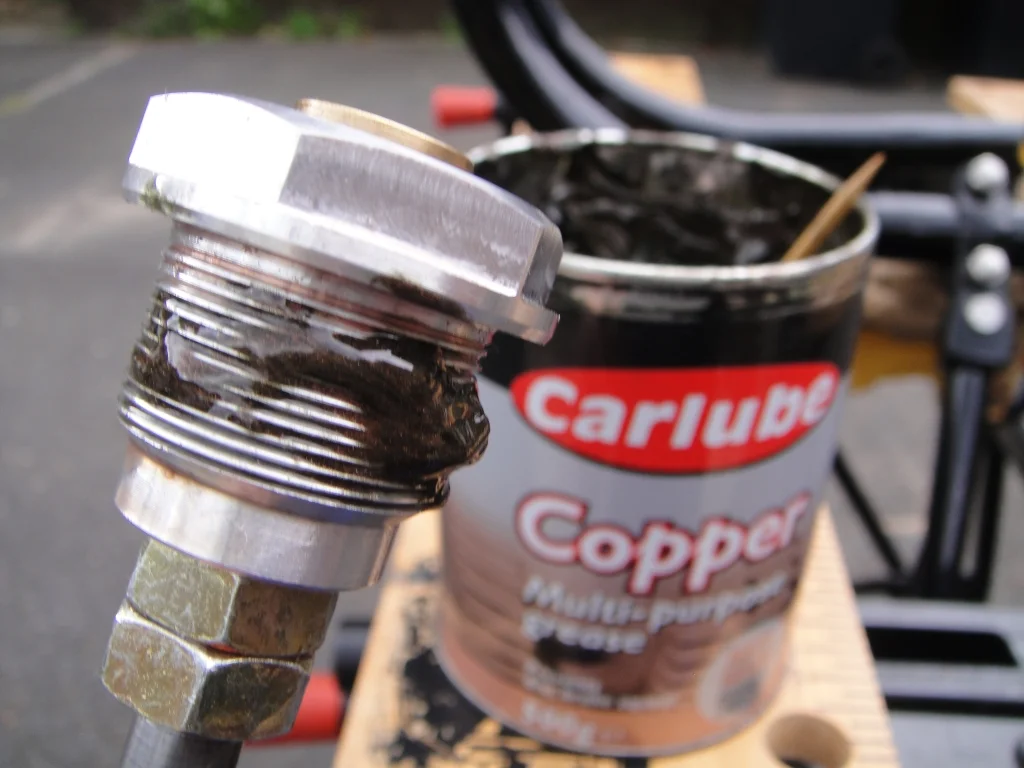

A good slug of Copaslip between the top nut and stanchion is definitely needed here!


Attachments

  • 176.JPG
    460.2 KB · Views: 265

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

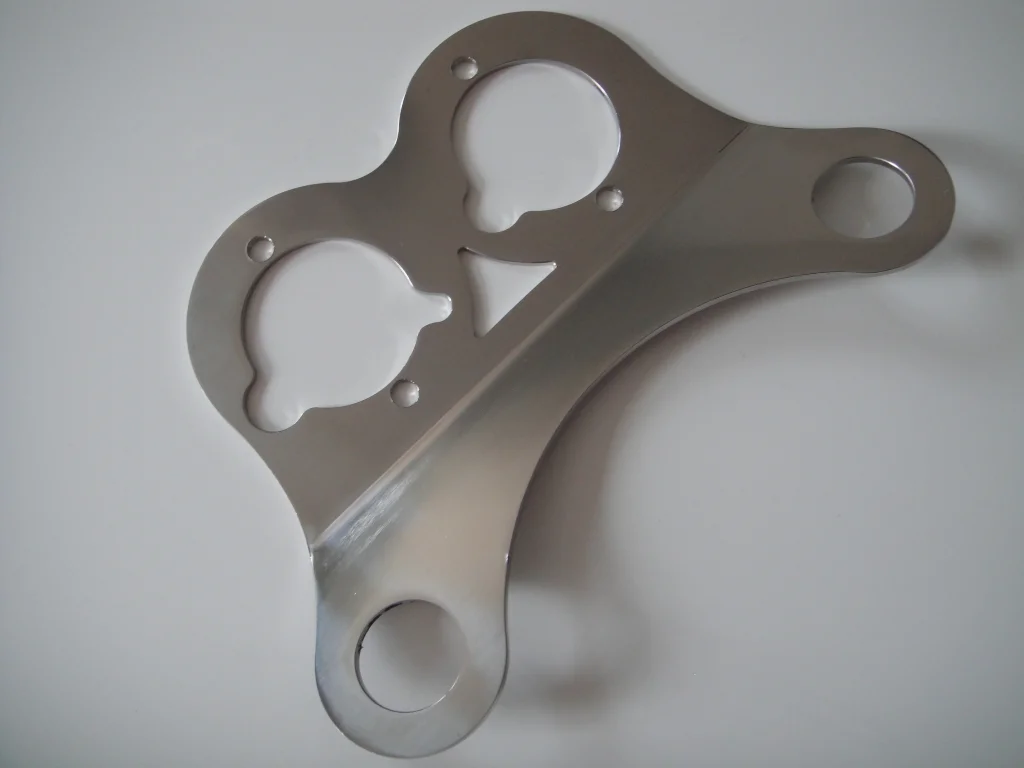

I got this stainless instrument bracket from Chris Knight Motorcycles http://www.chris-knight-mcs.co.uk/

It is a really nice, heavy gauge stainless piece, and i particularly like it because it puts the instruments close together.
I tried the Unity bracket initially, but it just wasn't the look that i wanted.


Attachments

  • 177.JPG
    392 KB · Views: 256

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

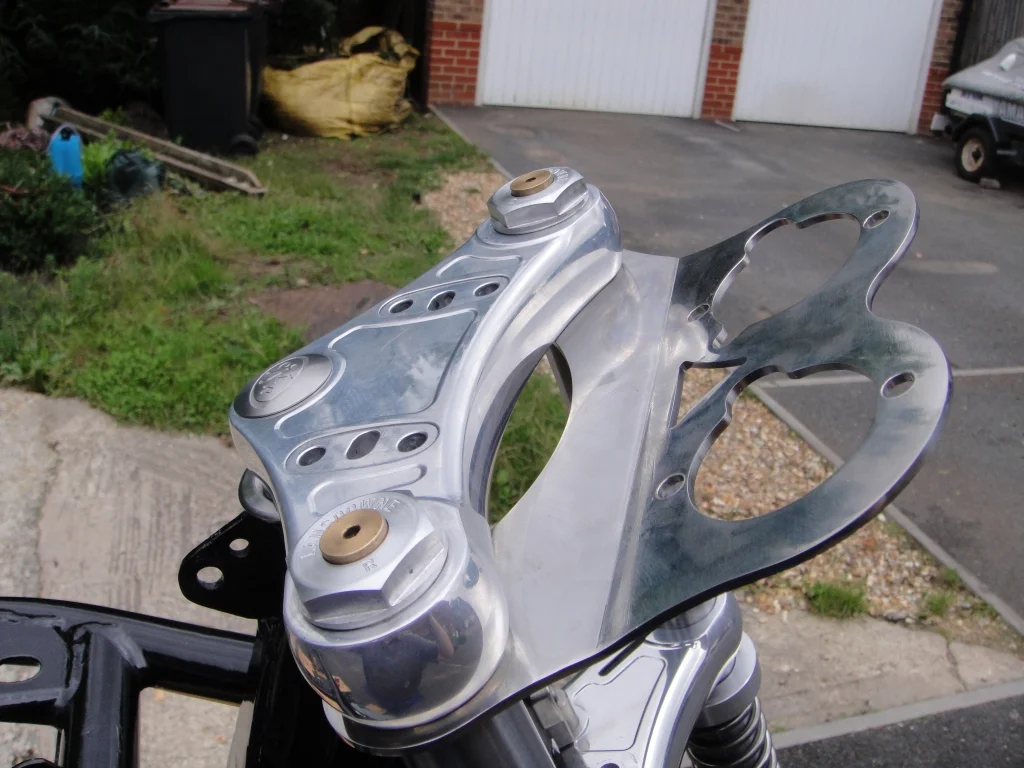

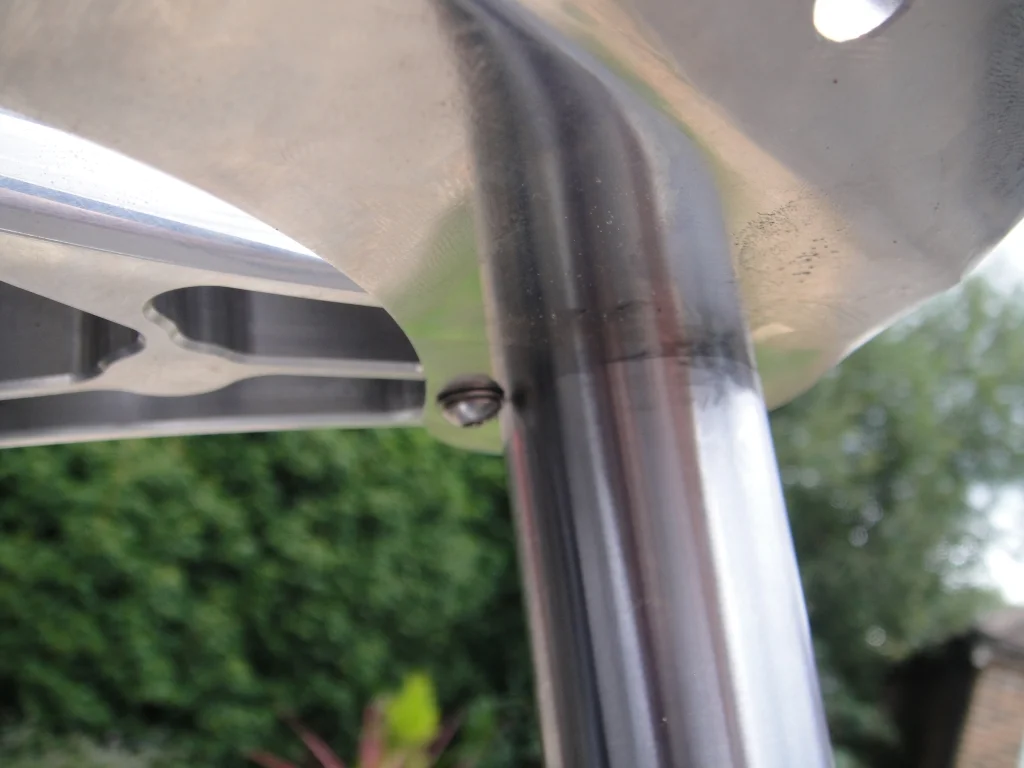

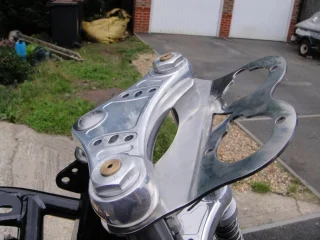

In a slight tweak to how it was intended, i wanted to sling the bracket under the top yoke.

This involved enlarging the holes so that the stanchions could pass through, and tapping out two small holes on the underside of the yoke to hold the bracket in place.

Maybe not to some people's liking, but I think this modification really makes the lines less cluttered.
My headlight will also be a little lower than standard, so this will also close up the gap, and keep everything balanced and in proportion.


Attachments

  • 178.JPG
    543.2 KB · Views: 261

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

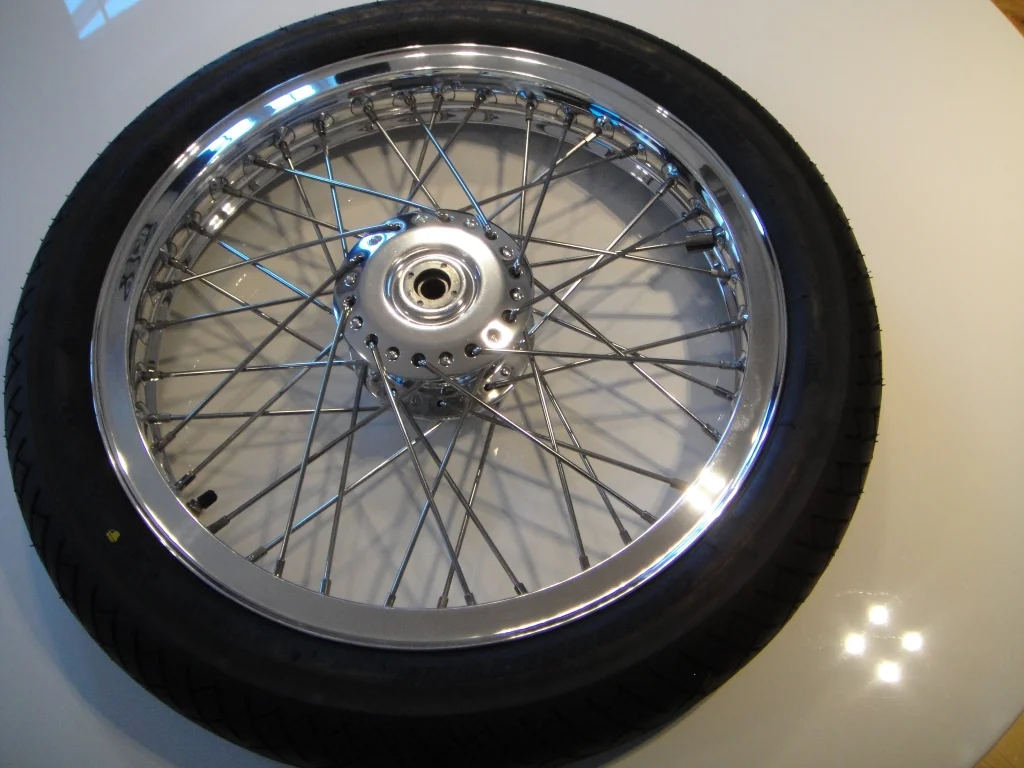

Now I could fit the front wheel.

This is a WM3 19" Excel shouldered rim with 8 gauge stainless spokes built by Buchanan's http://www.buchananspokes.com

These are THE ONLY people I trust to build wheels right!

The front tyre is a Bridgestone BT45 which is 100/90 in size


Attachments

  • 179.JPG
    538 KB · Views: 254

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

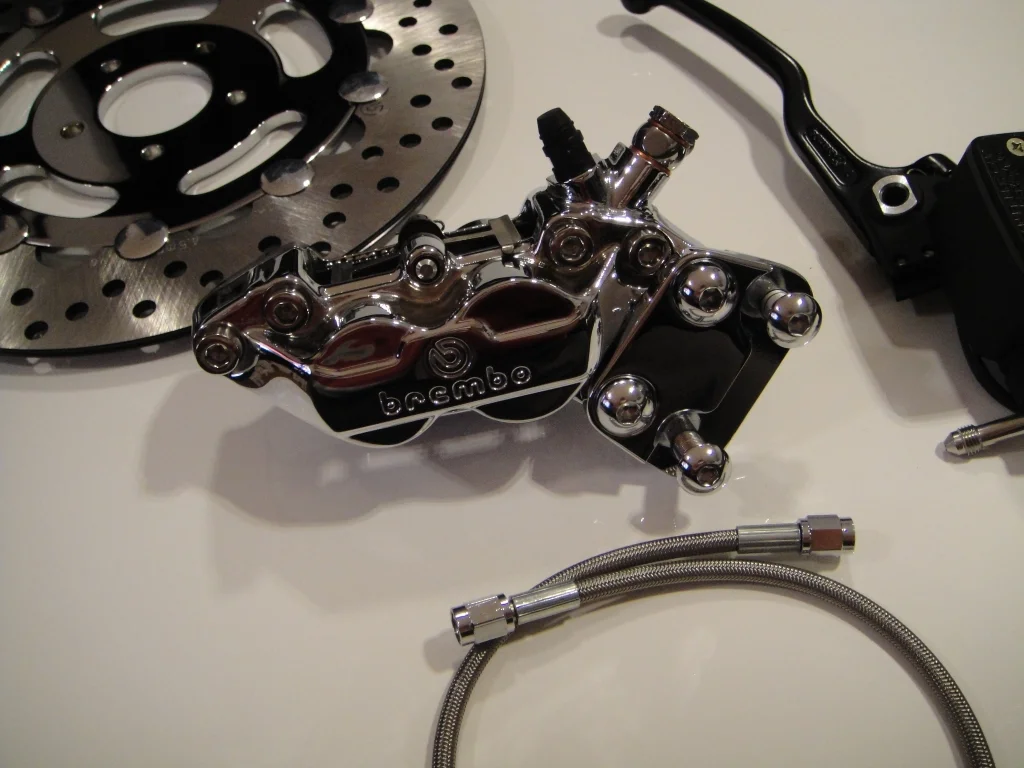

The front wheel will be sporting one of cNw's Brembo big brake kits



I toyed with the idea of a big twin (or even quad) leading shoe drum brake, and I know that when set up correctly they can be as good as or even better than a disc brake, but I just love the look of these so much!!!

I think it will be perfect for today's stop go traffic conditions!


Attachments

  • 180.JPG
    519.8 KB · Views: 250

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

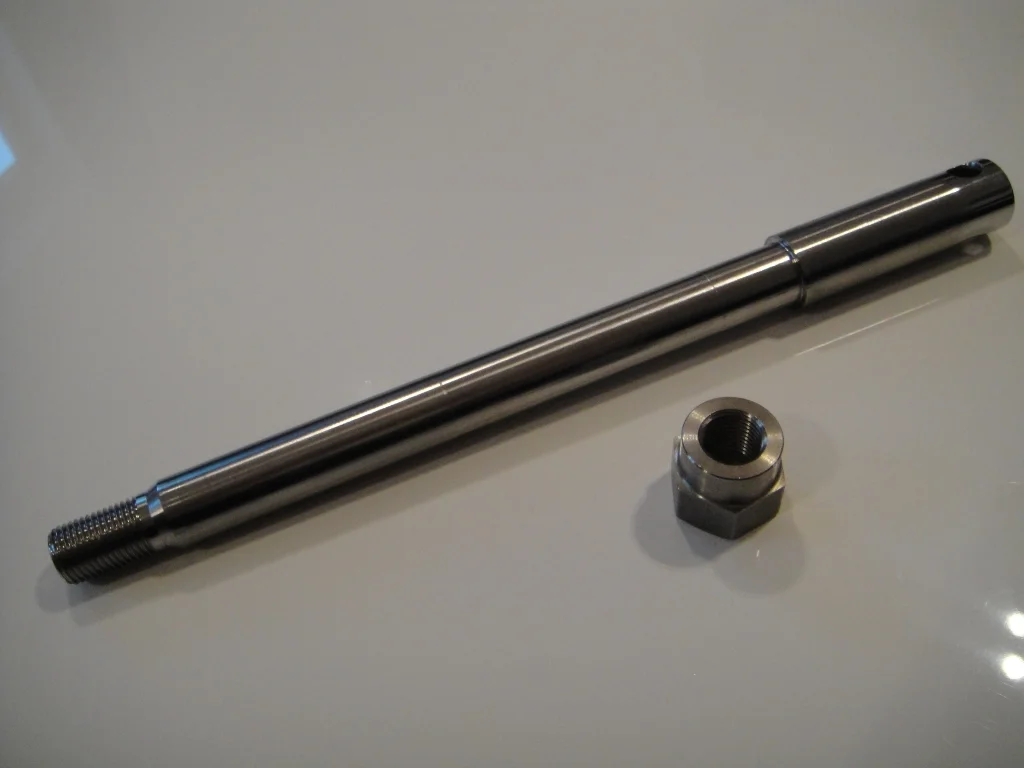

Finally, a new spindle means that I can assemble the wheel - the spacing on the ES2 was 7", so the original spindle was too short for my new 7 3/8" layout.


Attachments

  • 181.JPG
    410.7 KB · Views: 272

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

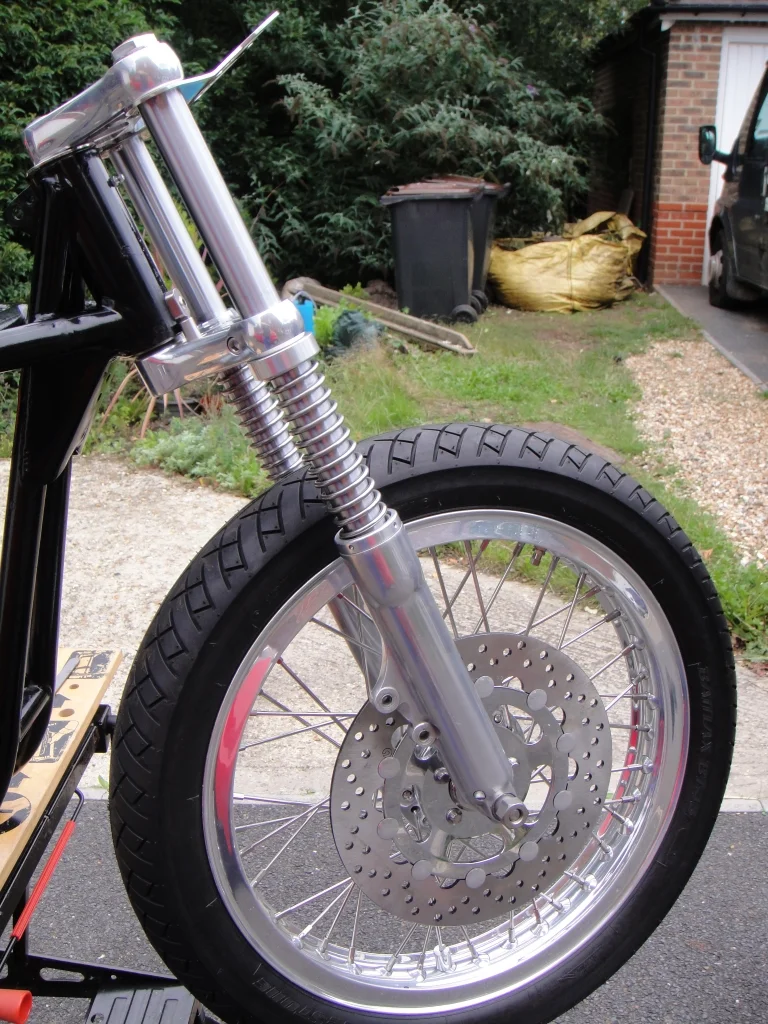

Front wheel installed - this really starts to give you an indication of how the bike is going to look!


Attachments

  • 182.JPG
    717.3 KB · Views: 269

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

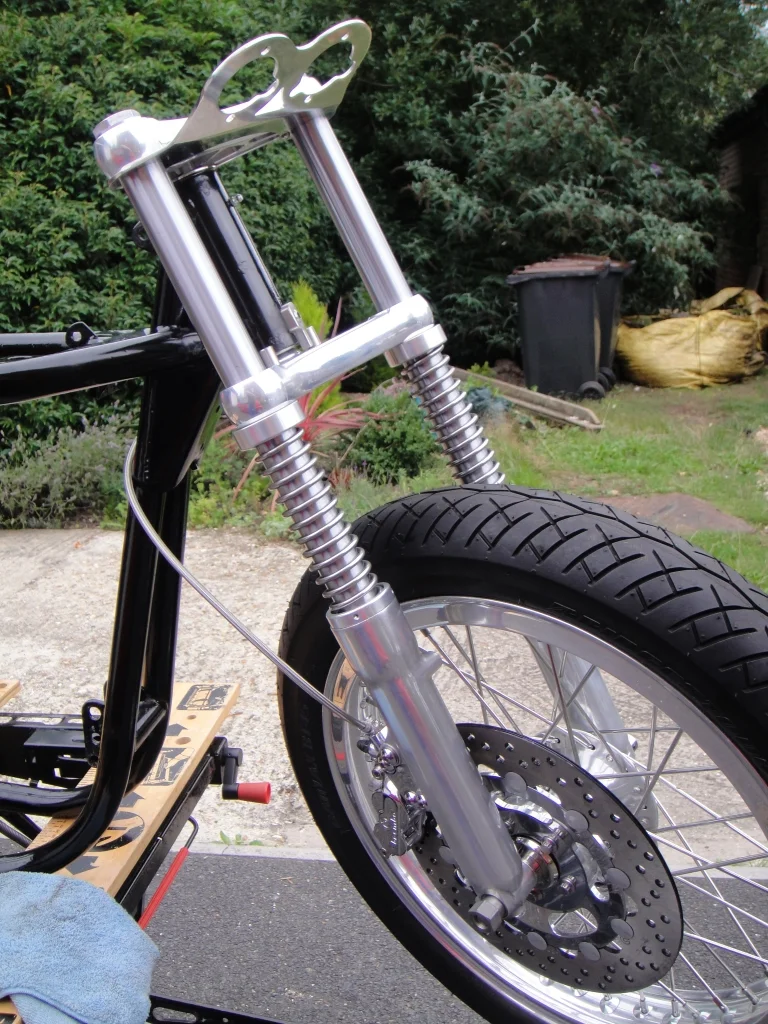

The Brembo caliper looks awesome, and of course the cNw fit and finish is perfect!


Attachments

  • 183.JPG
    736.9 KB · Views: 225

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

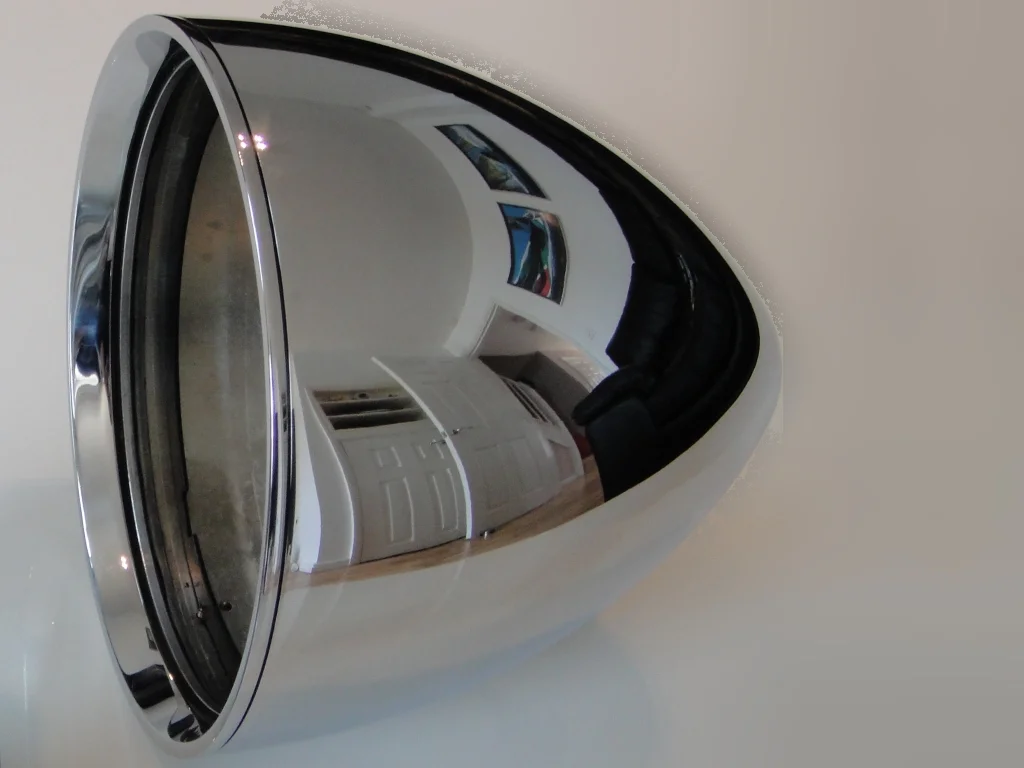

I decided to go for a Harley-style headlight shell.

This is a 7" Concours Bullet headlight from Headwinds http://www.headwinds.com

It is spun from billet Aluminium, heavily chromed then polished to a mirror finish


Attachments

  • 184.jpg
    343 KB · Views: 397

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

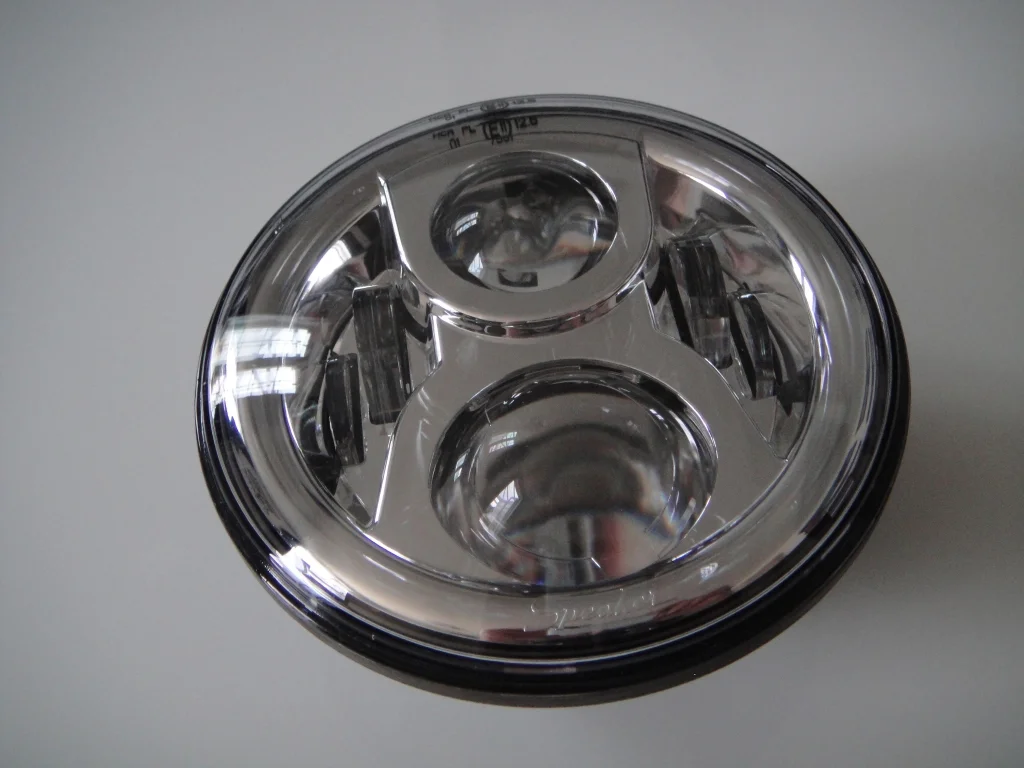

My original plan was to go for a diamond cut tri-bar lens and reflector with a H4 quartz lamp.

However, that was when I was building an ES2 with a Magneto.
With the Commando engine, i am 100% reliant on the battery and charging system, so I will be using LED lighting throughout.

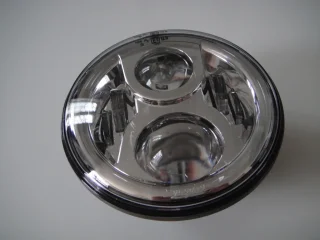

So I have gone for a JW Speaker LED unit http://www.jwspeaker.com
I got this from the guys at Mobile Centre https://www.mobilecentre.co.uk who were very intrigues about what I planned to use it for!!!


These are well made, low profile and give the best spread of light - they also have DOT and ECE approval.
I was very impressed with the quality of light in the demonstrations i saw, plus blown away by how little power they draw vs the amount of light they put out!


It looks a little Mad Max compared to the classic look of the tri-bar, but hopefully i'll get away with it!

I am certainly very pleased with the quality!


Attachments

  • 185.JPG
    498.3 KB · Views: 399

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

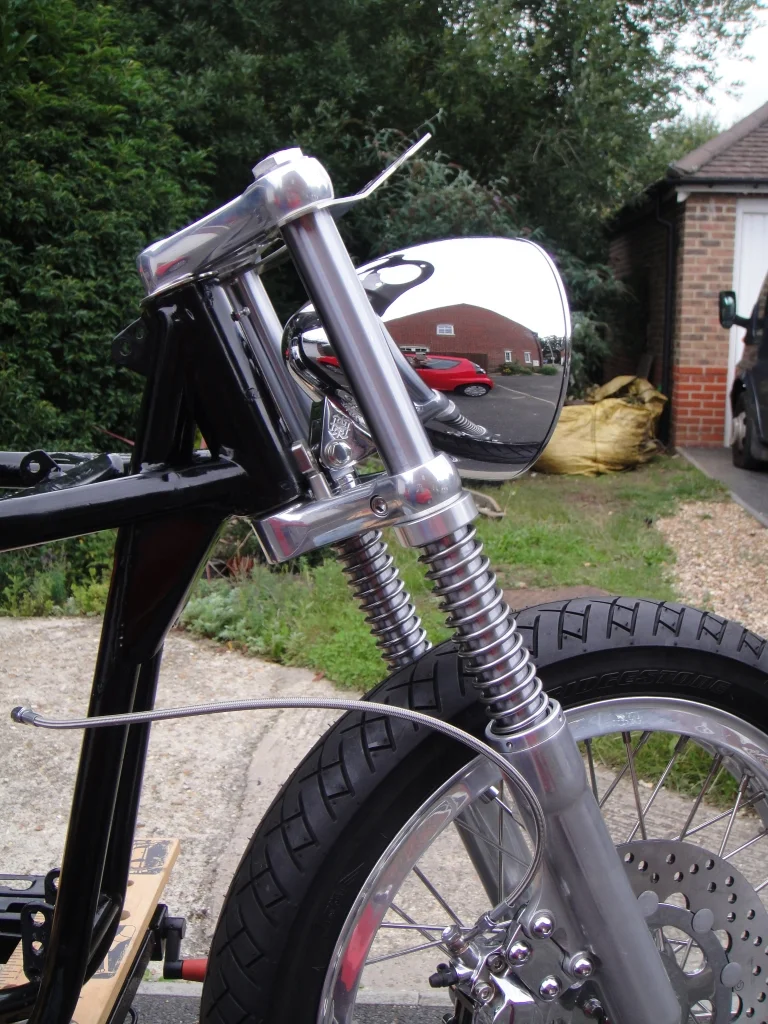

I think the headlight looks good on the bike.

Hopefully you see what i mean now, about dropping the instrument bracket lower to even the space up with the headlight


Attachments

  • 186.JPG
    681.4 KB · Views: 395

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

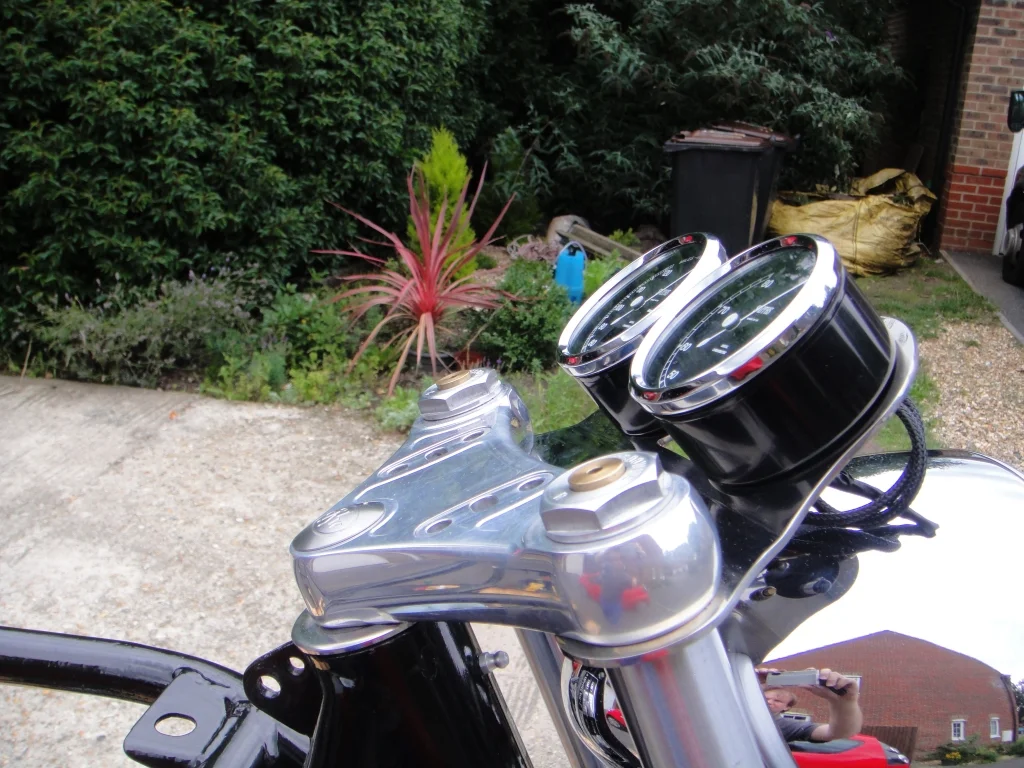

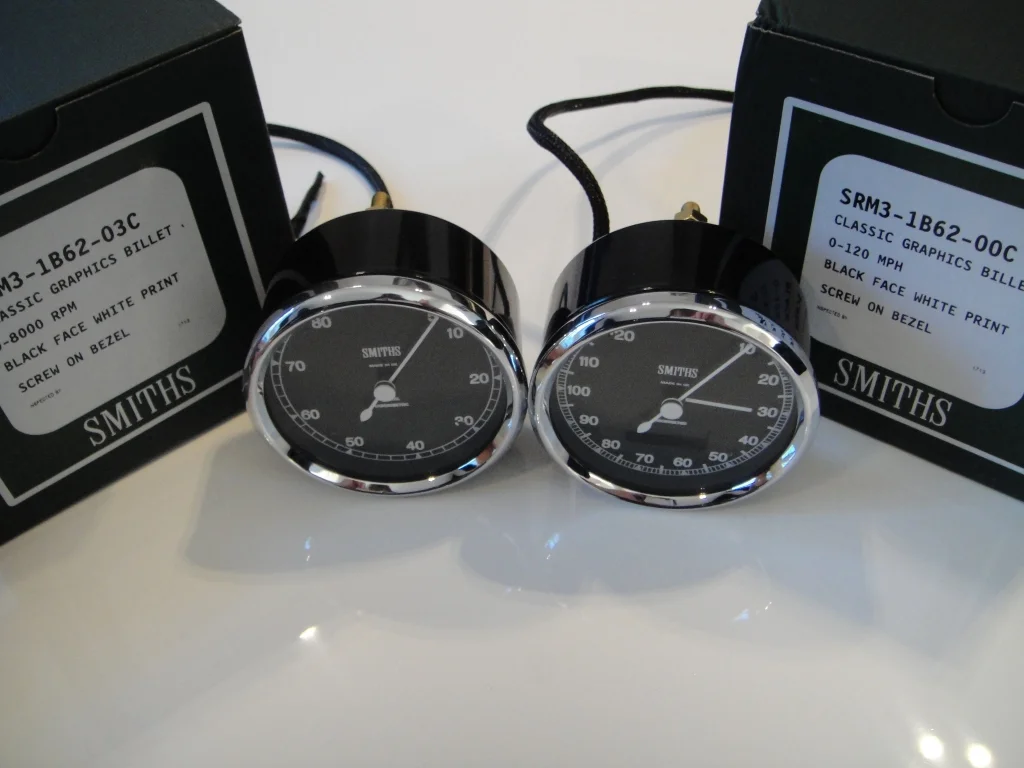

As I mentioned before, i planned from the outset to go for electronic instruments.

In my mind, there was no other choice but the Chronometric Smiths Gauges from Puca http://www.puca.co for this bike!

Whilst the Motogadget gauge is technically awesome - i wanted to nod in the general direction of British
Although they are assembled in the UK, my guess is the internals are mass produced in a big international factory somewhere.


Attachments
