Grant's Featherbed Special

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034
Then I could go out to the bike to see if my measurements were right!!!

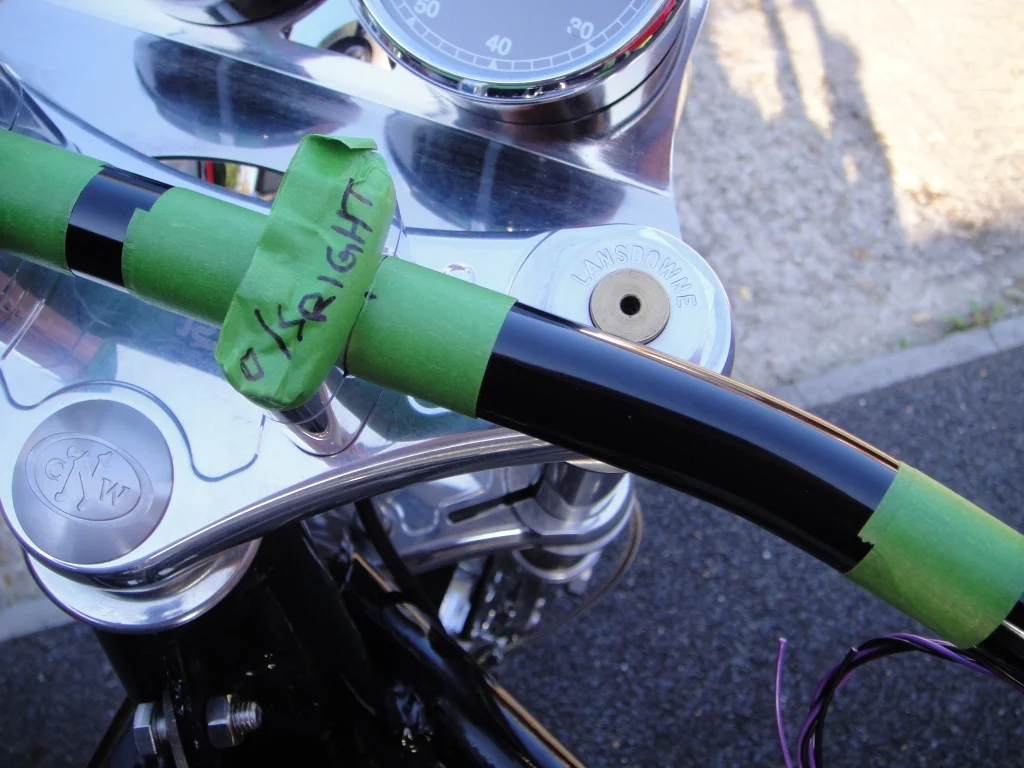

First up was to remove the handlebar clamps

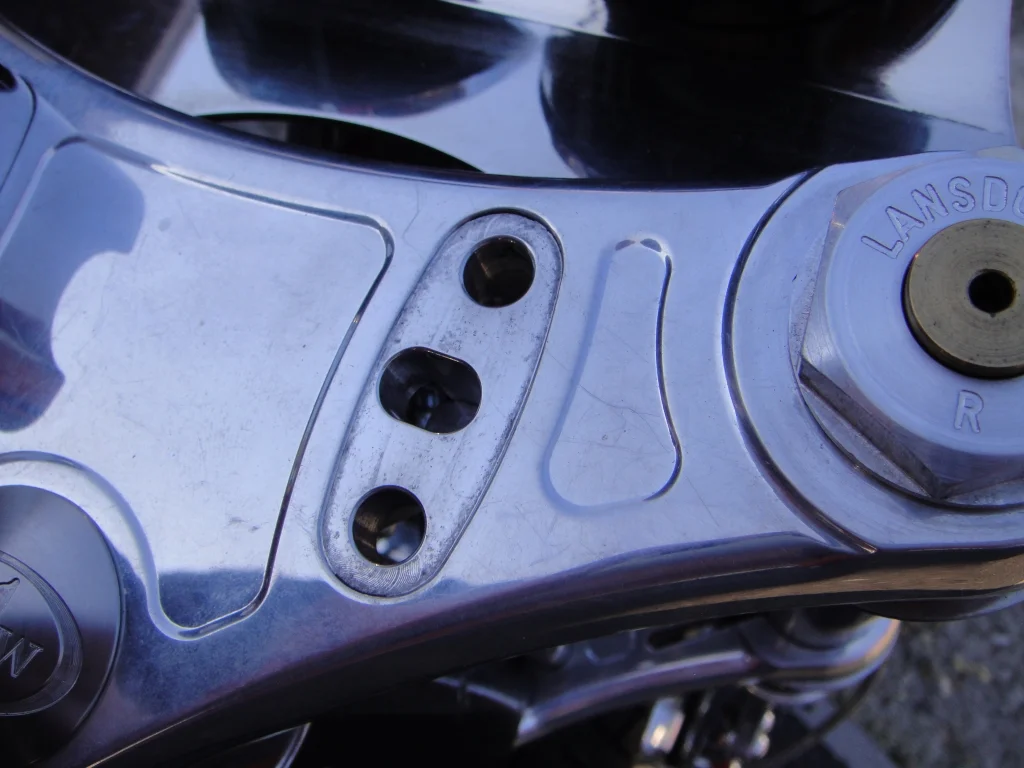

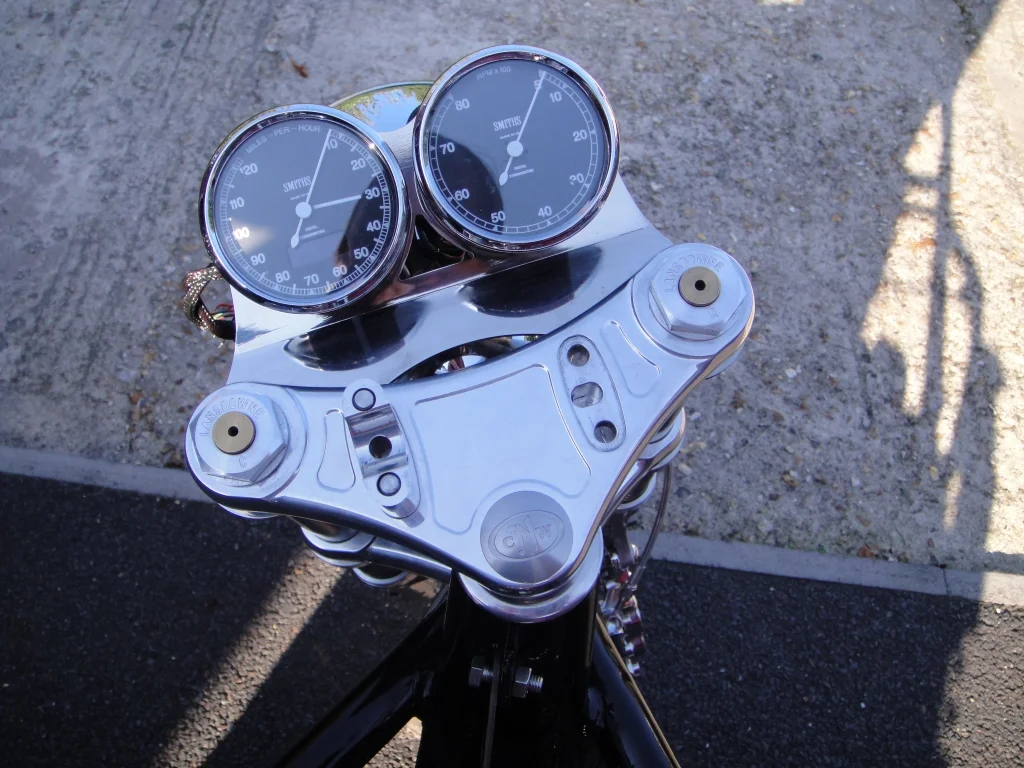

You'll notice the triple trees have through holes - very handy for concealing cables!!!


Attachments

  • 229.JPG
    623 KB · Views: 209
  • 230.JPG
    498.7 KB · Views: 210

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

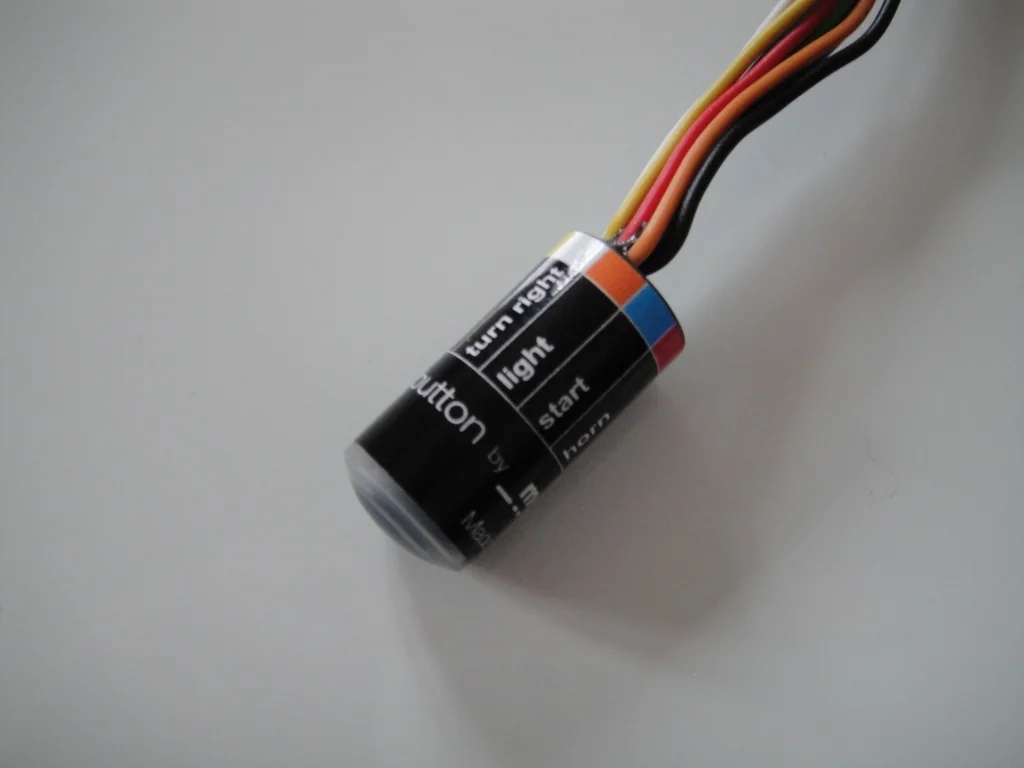

The electrics are from Motogadget http://motogadget.com/en/

The idea is to put this box of tricks inside the bars, and connect all the wires to the switches.
It works like the BUS you get in a modern car, and is a great way of reducing the number of wires used.



So the theory is, I will only have four wires for all of my controls (including the indicator lights)


Attachments

  • 231.JPG
    364.6 KB · Views: 209
  • 232.JPG
    457.3 KB · Views: 212

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034
With all the cables threaded through, I could then fit the bars



I had to be really careful not to pinch the wrires.
I used sleeving, and heatshrink tube wherever possible to prevent any abrasion.


Attachments

  • 233.JPG
    485.7 KB · Views: 219
  • 234.JPG
    540.4 KB · Views: 217

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

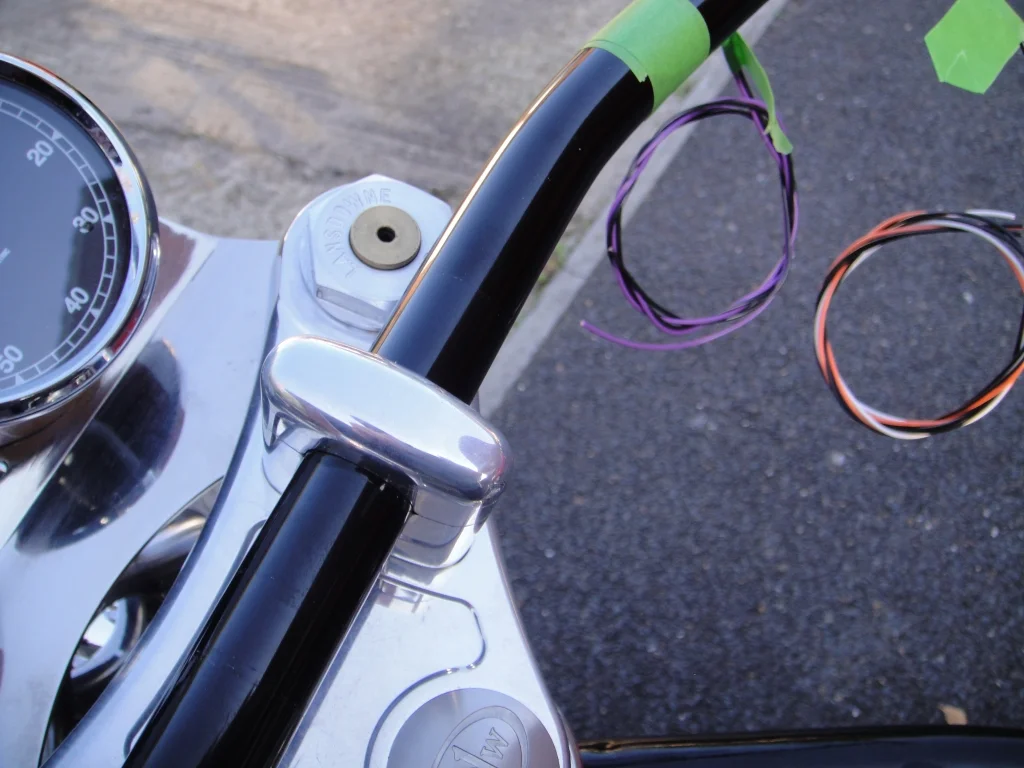

With everything lining up, I could then fit the handlebar clamps, and snug them up tight!


Attachments

  • 235.JPG
    529.1 KB · Views: 218

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

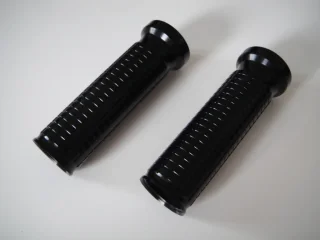

Handlebar grips are these black anodized aluminium ones.



I hope I don't regret not going for nice, soft, squidgy rubber ones!


Attachments

  • 236.JPG
    388.3 KB · Views: 197

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034
The grips look great installed - it took a while to get these fitted and looking right.

They are attached with six teeny weeny grubscrews, and it is really difficult to get them on square.



I got there eventually though!


Attachments

  • 237.JPG
    625.5 KB · Views: 201

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

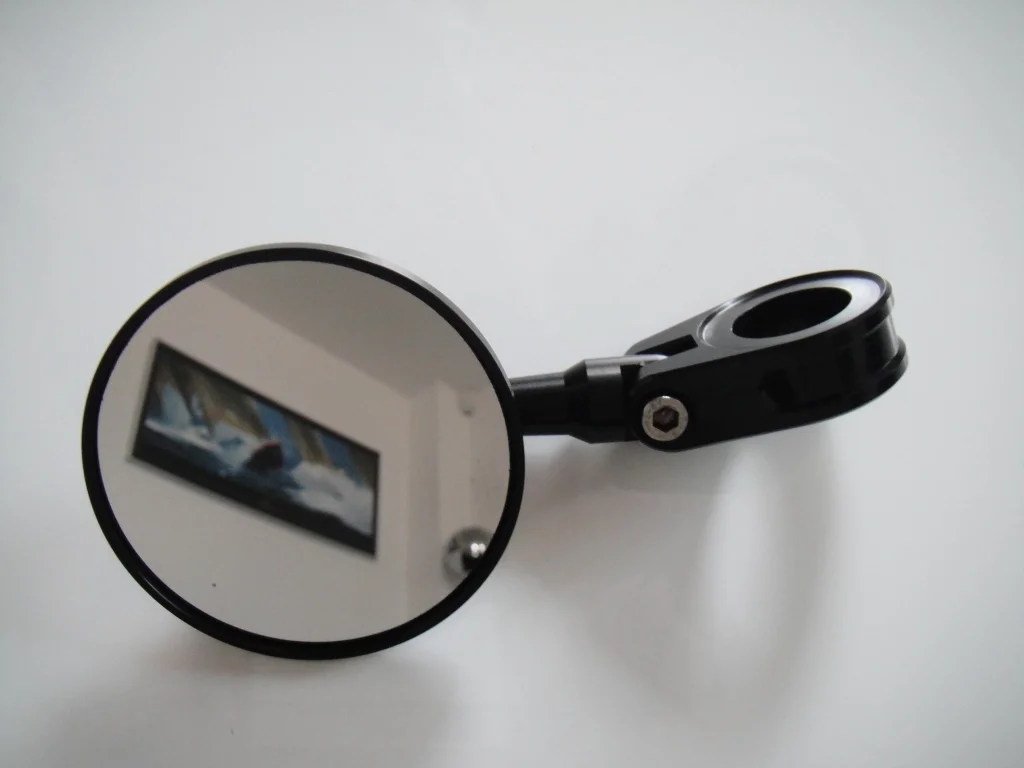

On the right side (we drive on the left in the UK) it is a good idea to fit a mirror.

It isn't the law, but I think it is a great idea for safety sake.

I couldn't go for a bar-end mirror, so got this clamp on one instead

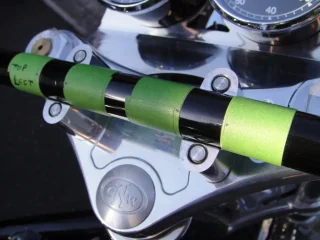

I had to take this into account when I was taking measurements and drilling my holes in the bars, as everything needed to be shifted down by nearly two inches.

Once again, measuring a million times before doing any damage paid off!


Attachments

  • 238.JPG
    368.9 KB · Views: 208
  • 239.JPG
    592.4 KB · Views: 220

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034
I could finally turn my attention to fitting the switches.

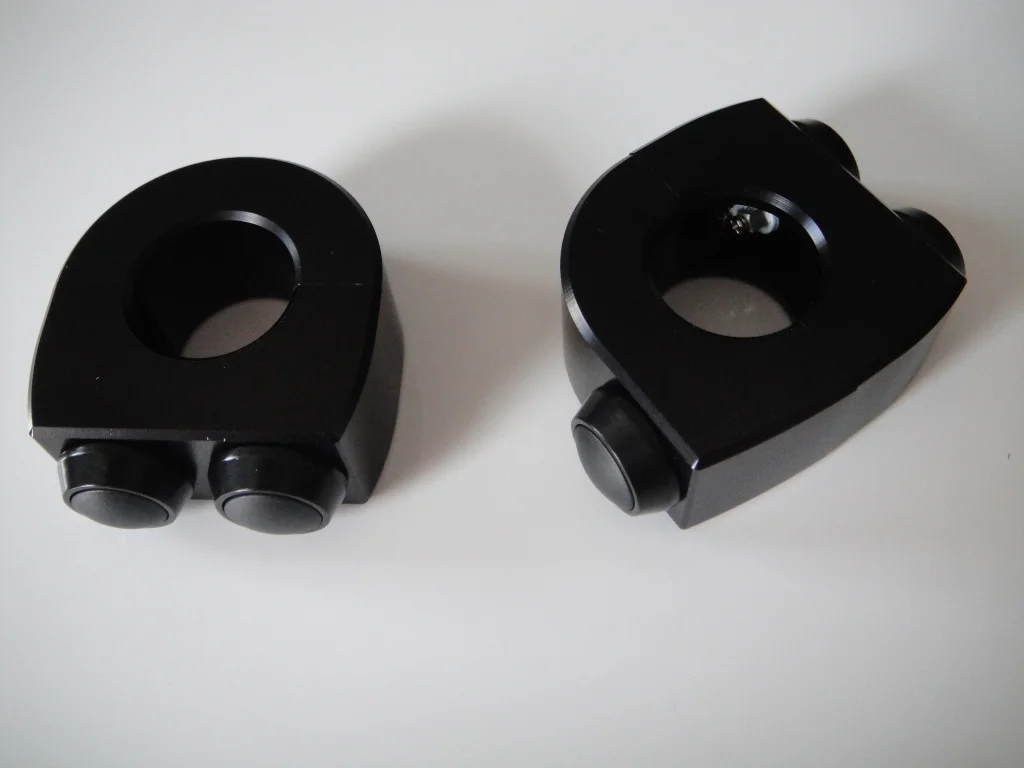

I went for these Motogadget items - hopefully they would look really neat and tidy


Attachments

  • 240.JPG
    363 KB · Views: 214

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

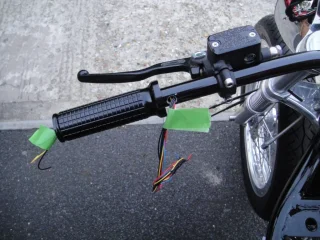

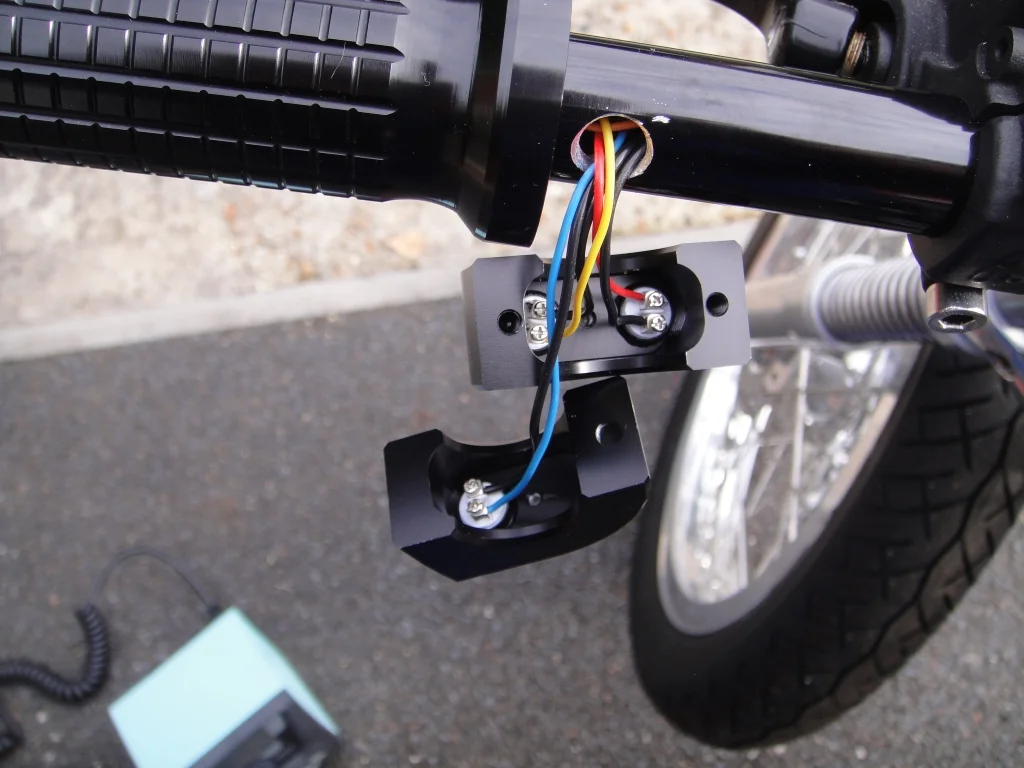

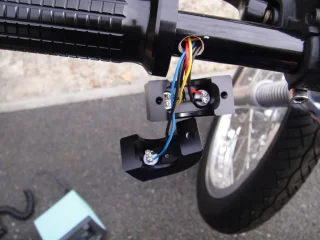

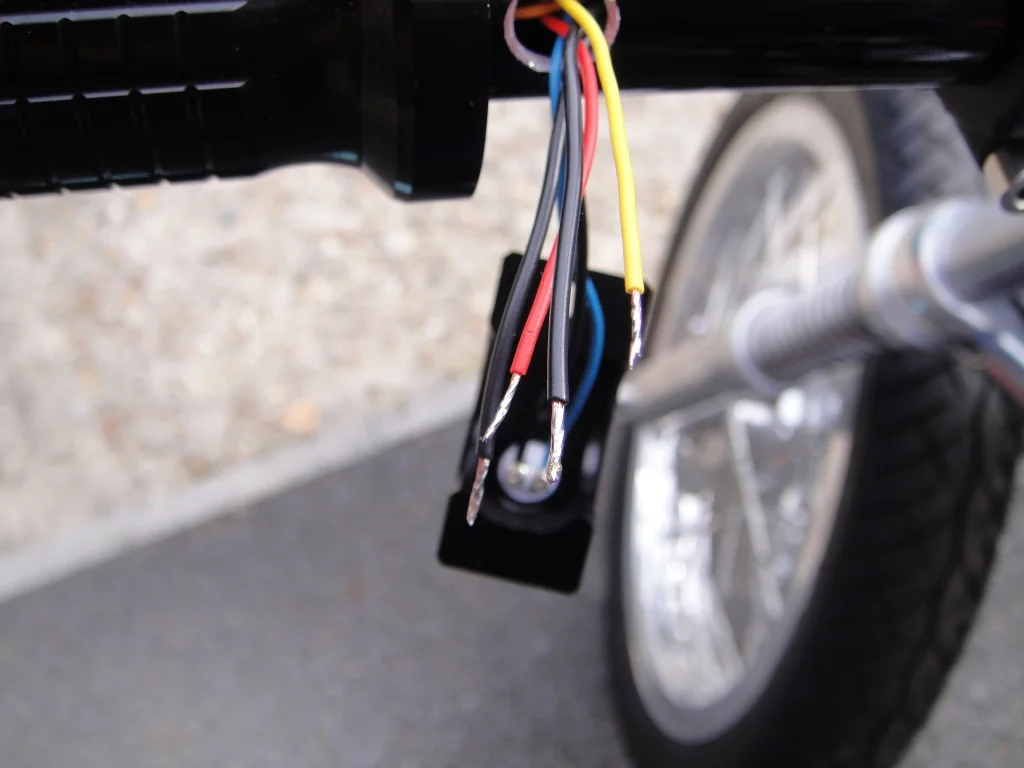

Left side first, I tinned the cables with a good coat of solder.



The terminals on the switches are screw terminated.

I don't like them, and really hope they don't work loose. I think Motogadget should supply them pre-wired with flyleads pre-potted in epoxy.


Attachments

  • 241.JPG
    385.4 KB · Views: 193
  • 242.JPG
    478.2 KB · Views: 186

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034
Left side, terminated and fitted to the bars - I think it looks good!


Attachments

  • 243.JPG
    463.5 KB · Views: 199

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

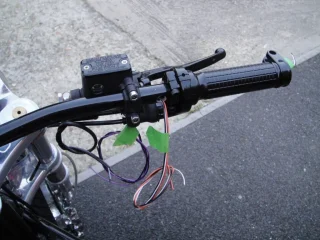

Same procedure for the right side switches


Attachments

  • 244.JPG
    428.9 KB · Views: 413

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

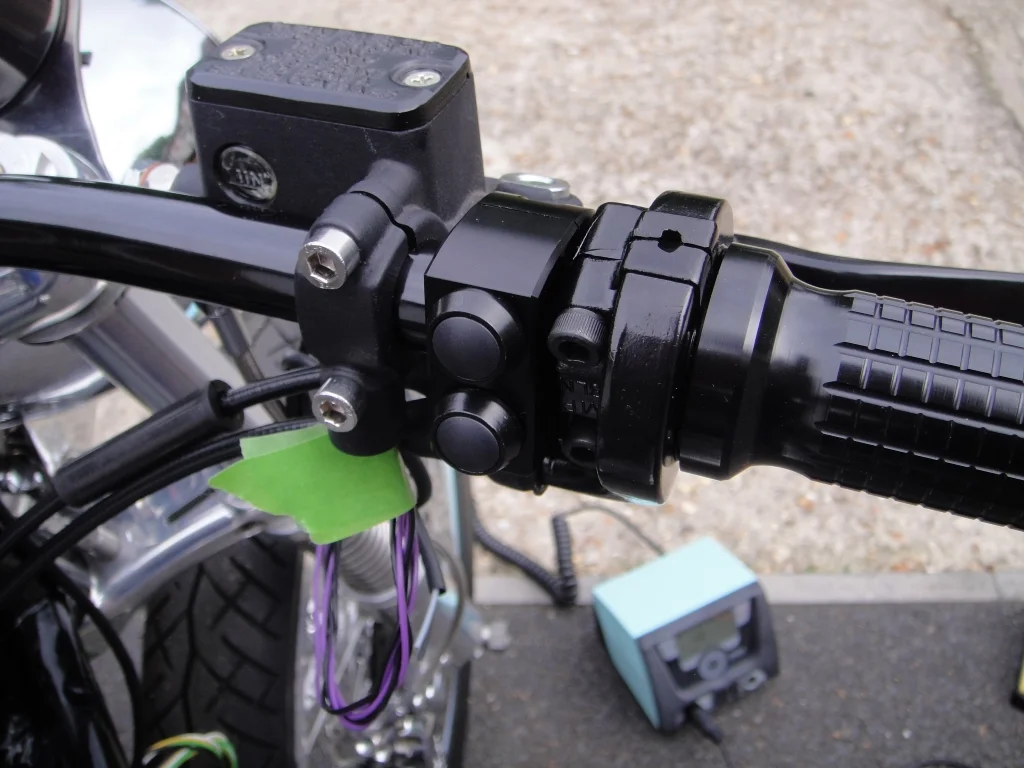

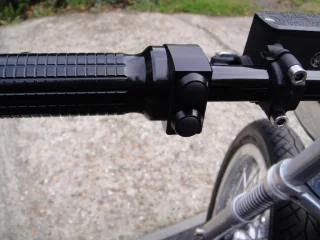

The right side switch is butted up against the throttle control rather than against the grip.

It's not totally symmetrical left and right, but I think it still looks clean and tidy.


Attachments

  • 245.JPG
    475.2 KB · Views: 429

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

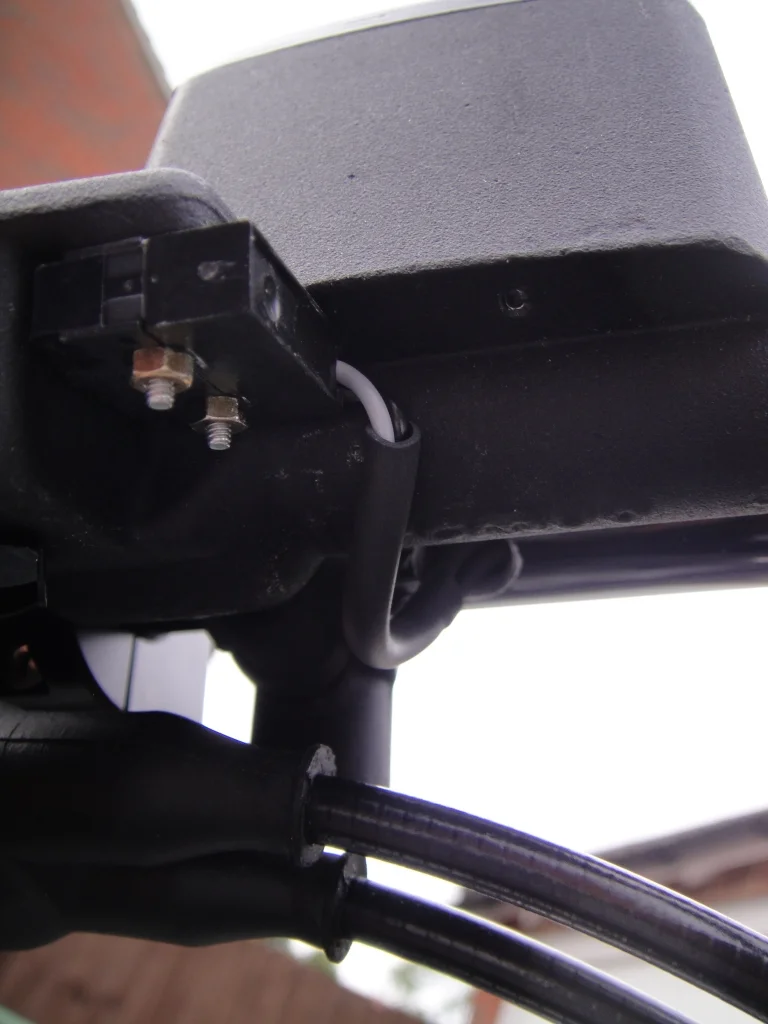

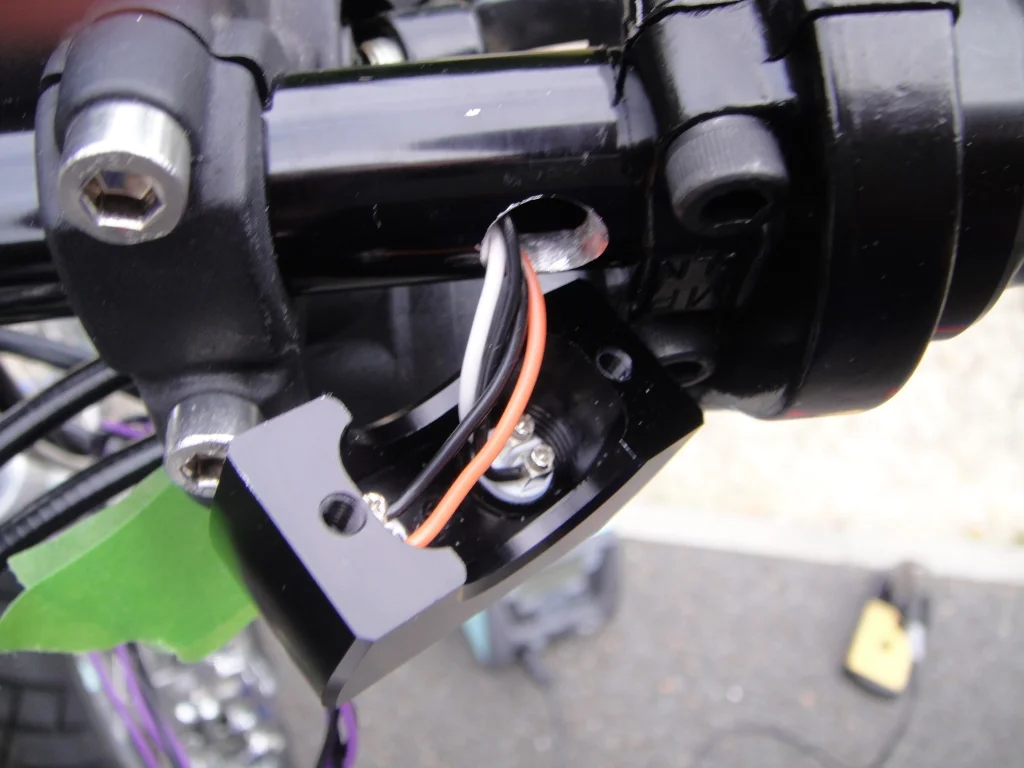

An extra step on the right side was to connect up the wires for the brake light switch - again these are concealed inside the handlebars!


Attachments

  • 246.JPG
    408 KB · Views: 420

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

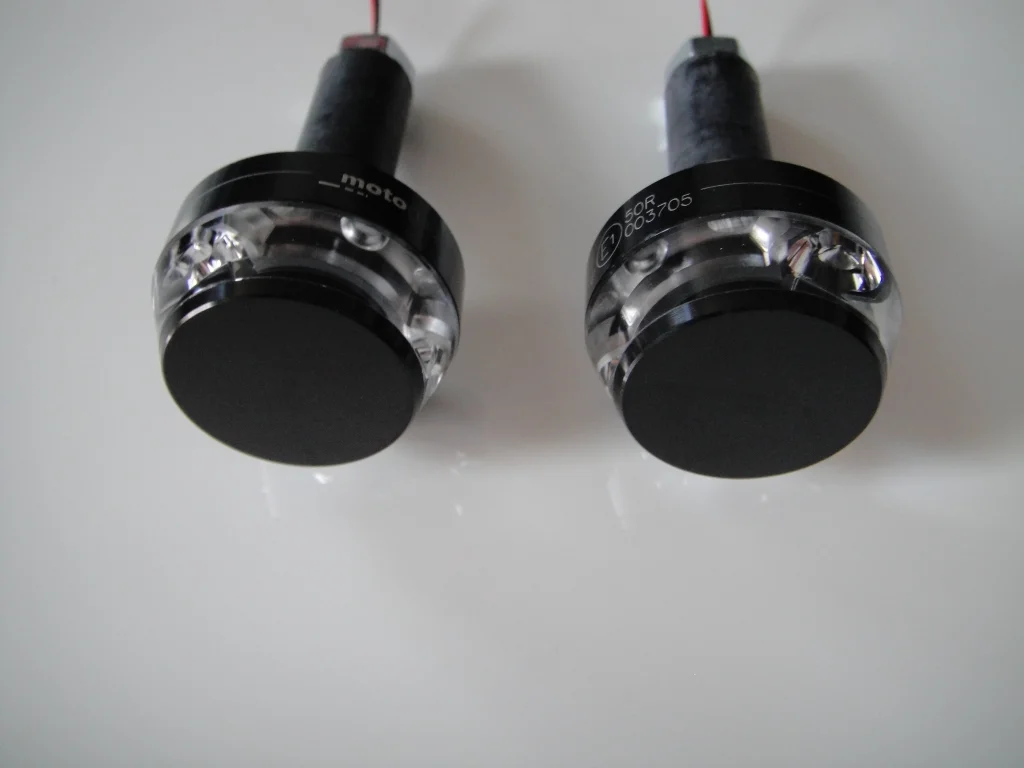

These are the bar-end indicator lights I went for in the end.

They are really low-profile, so hopefully they won't get knocked off!


Attachments

  • 247.JPG
    363 KB · Views: 422

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

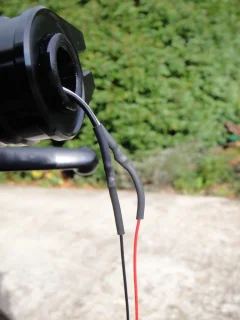

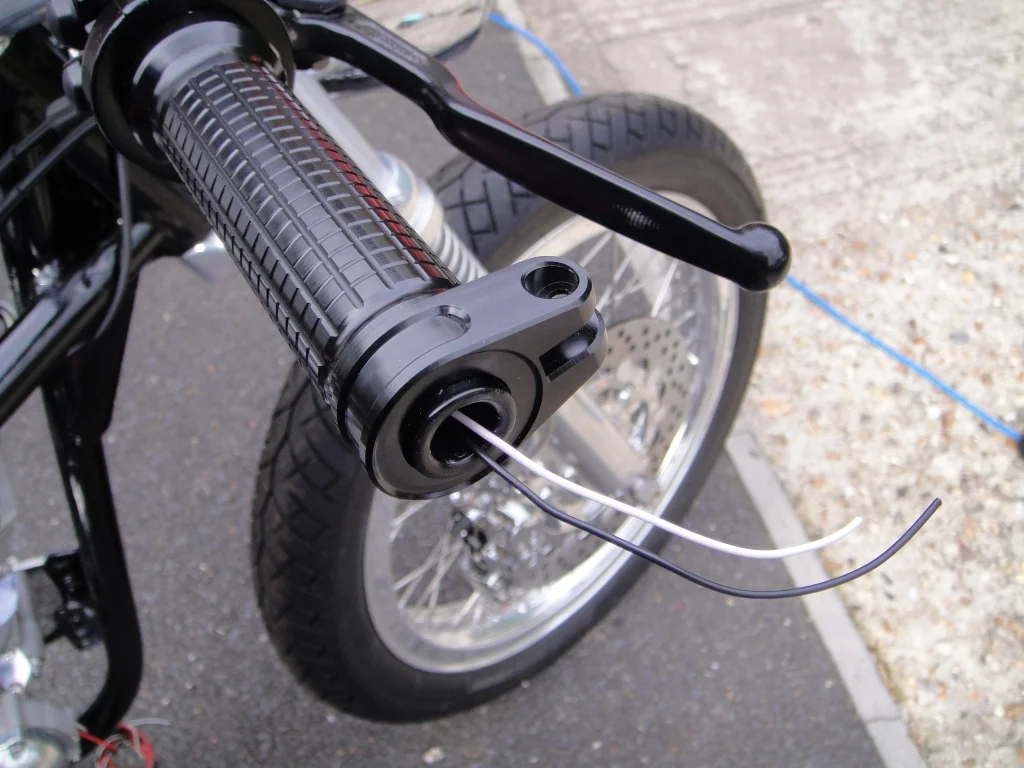

+ve (white) and ground is all it takes to connect them!



I always twist the wires together, solder them, then heatshrink over the top.
Hopefully these will serve as a good strong joint that lasts for many years.


Attachments

  • 248.JPG
    496.6 KB · Views: 435
  • 249.JPG
    431.7 KB · Views: 420

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034
It fits!

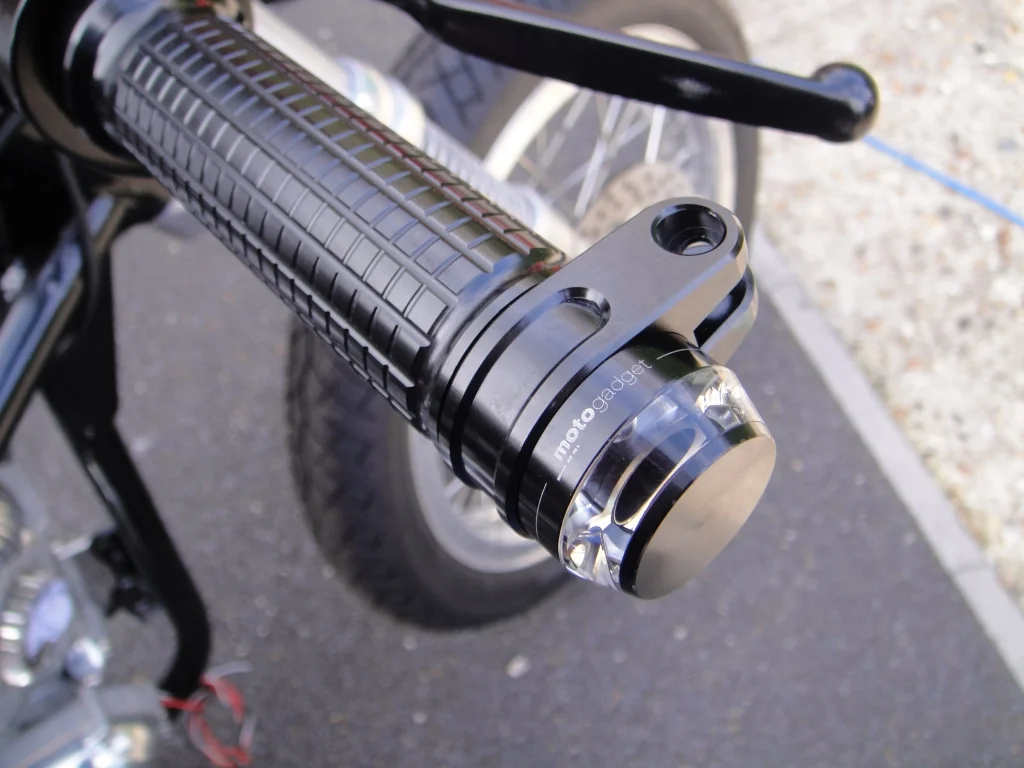

The right indicator light looks great when fitted to the handlebars.


Attachments

  • 250.JPG
    449.9 KB · Views: 420

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

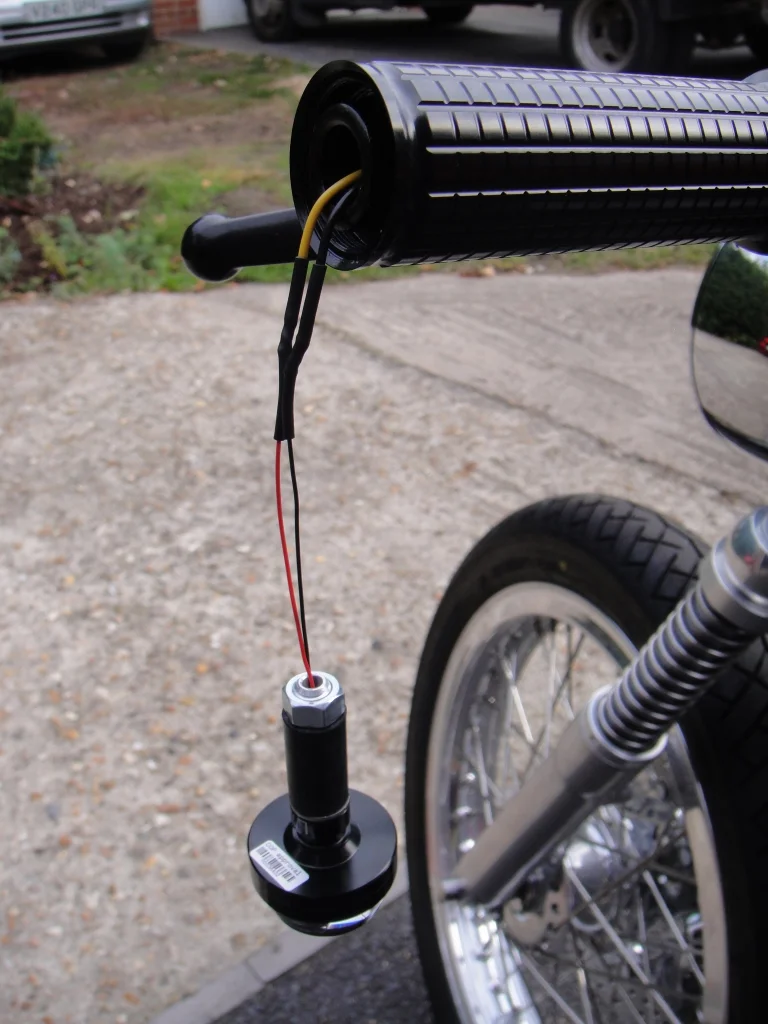

Same procedure on the left side.

+ve is yellow.
The bike will be wired as -ve ground, although I will avoid earthing through the frame and engine, and try to take everything back to the battery/regulator wherever i can.


Attachments

  • 251.JPG
    494.7 KB · Views: 432

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

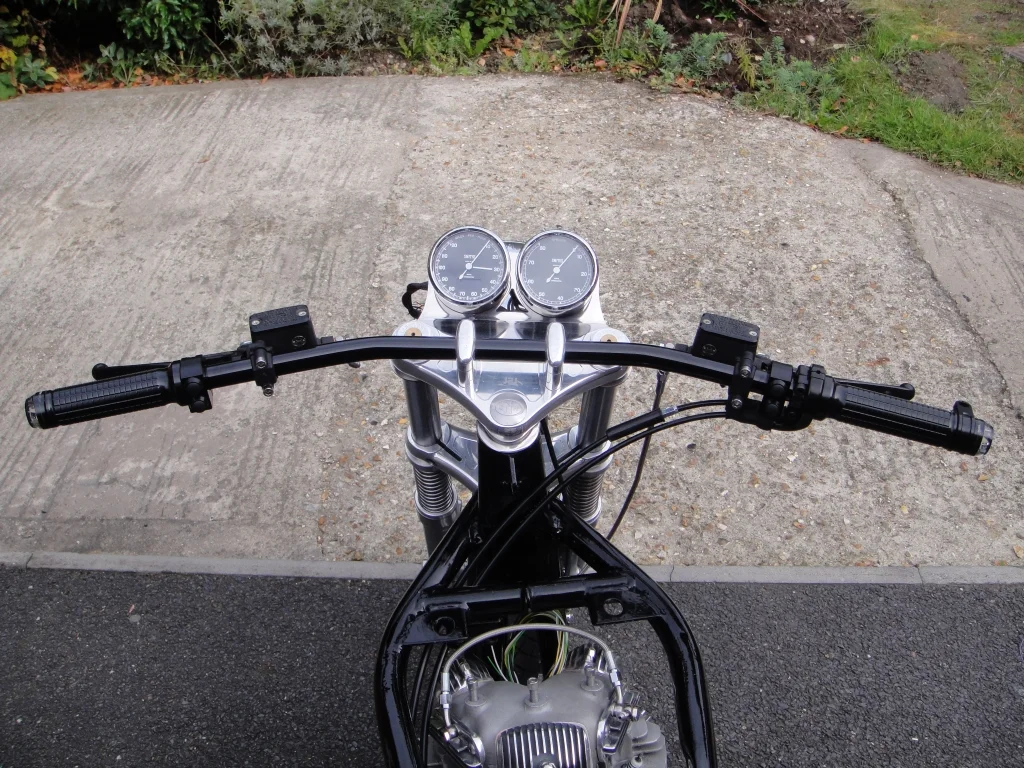

And here they are - the finished handlebars!

I am really pleased with the clean uncluttered look...
...no one will ever appreciate how may hours went into these bars when they walk past my bike!!!


Attachments

  • 252.JPG
    802.5 KB · Views: 427
