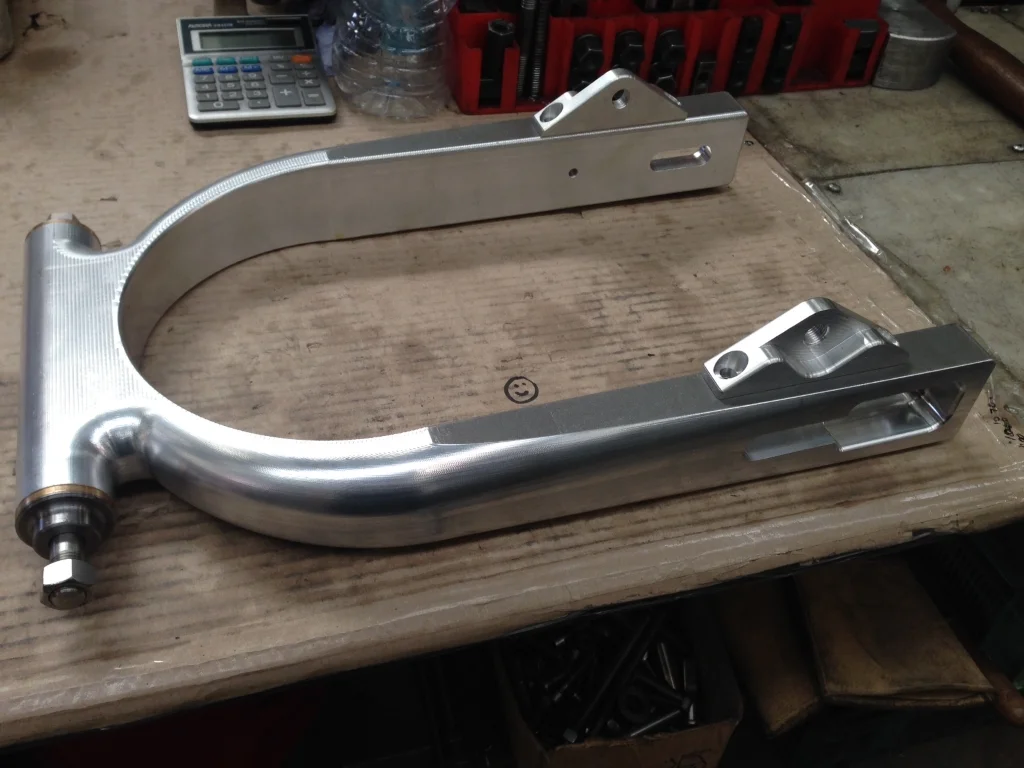

Bronze bushes pressed in


Attachments

  • 213.JPG
    463.6 KB · Views: 236

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

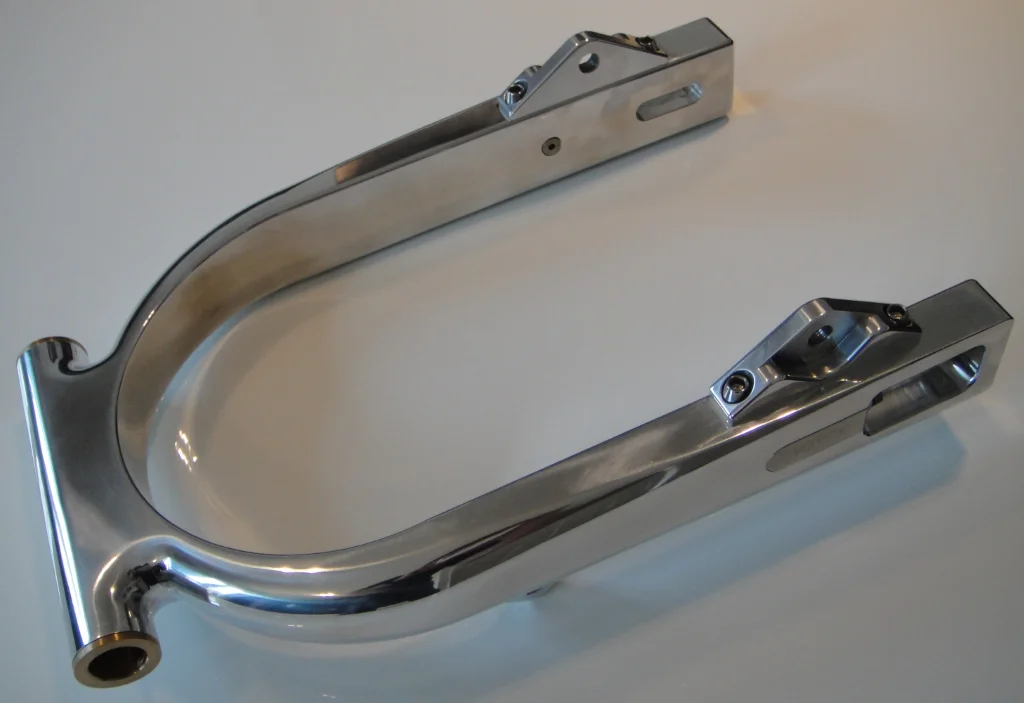

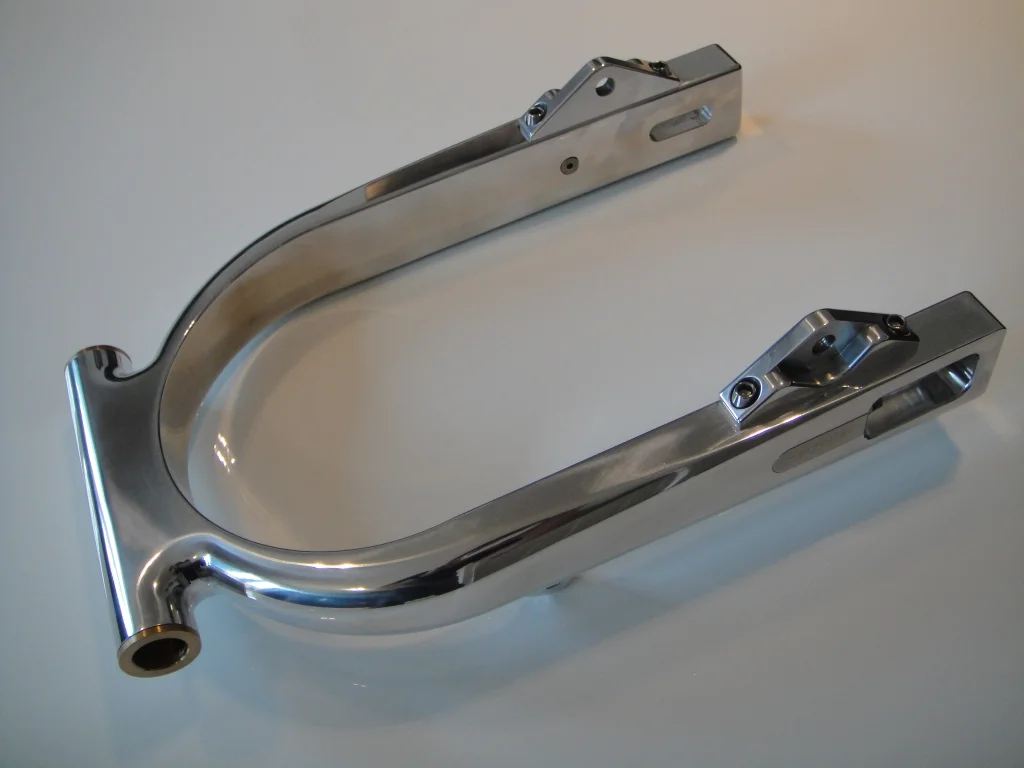

A final sand, buff and polish to remove the machining marks, and we are good to go!


Attachments

  • 214.JPG
    430 KB · Views: 232

Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
14,084
Country flag
Well, I'm pretty sure I ain't never seen a 'machined from solid' swinging arm before !!

Weren't you tempted to try the wooden one ?


guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

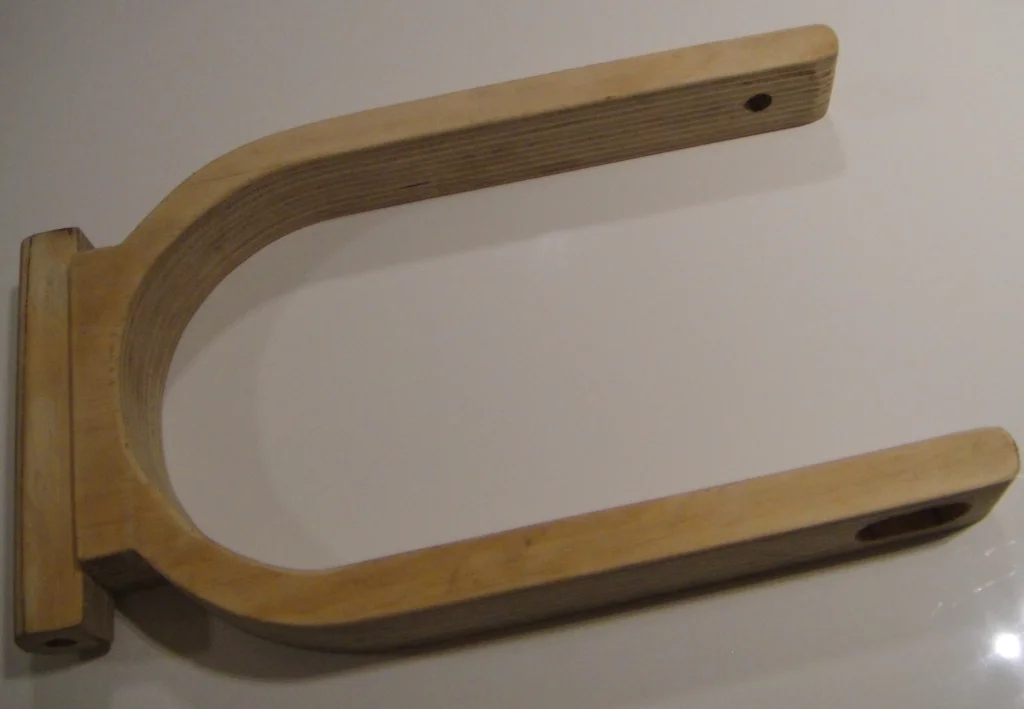

Do you know what - that wooden one is made from birch ply, and I swear to God i'm convinced it would be strong enough to handle a blast up and down the road!!!

Maybe the shock mounts would need strengthening up a bit, as they were only held on by 1/4 inch woodscrews, but the rest would have been fine!!!

Perhaps I could do a steampunk featherbed in the future!!!!


guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

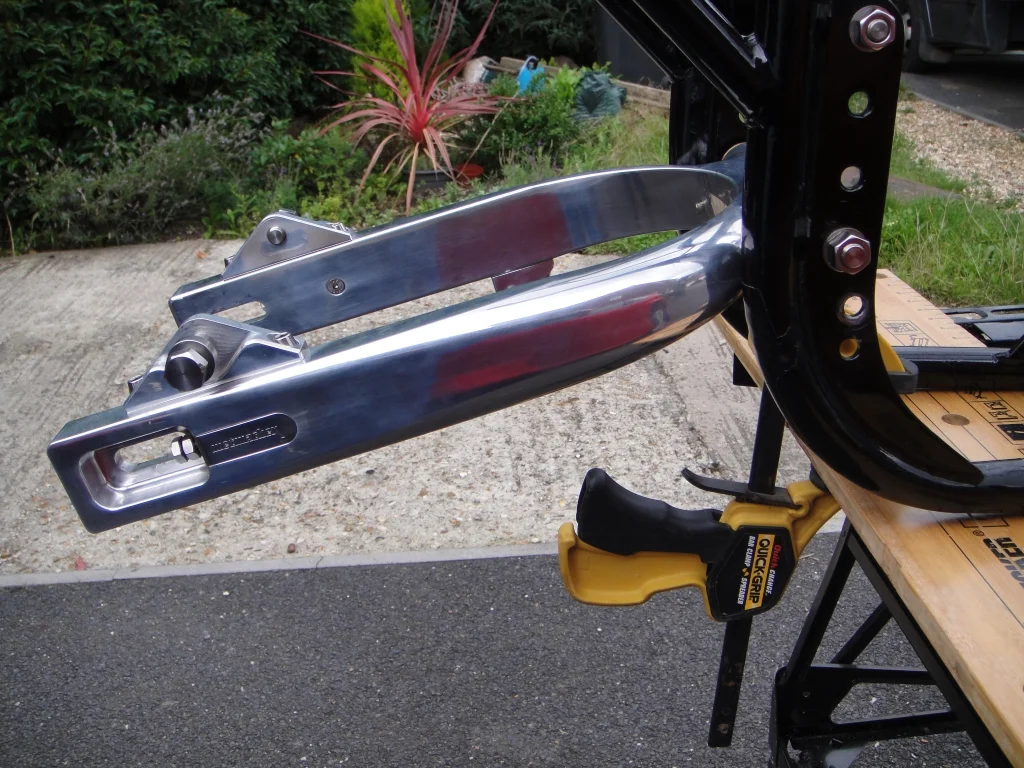

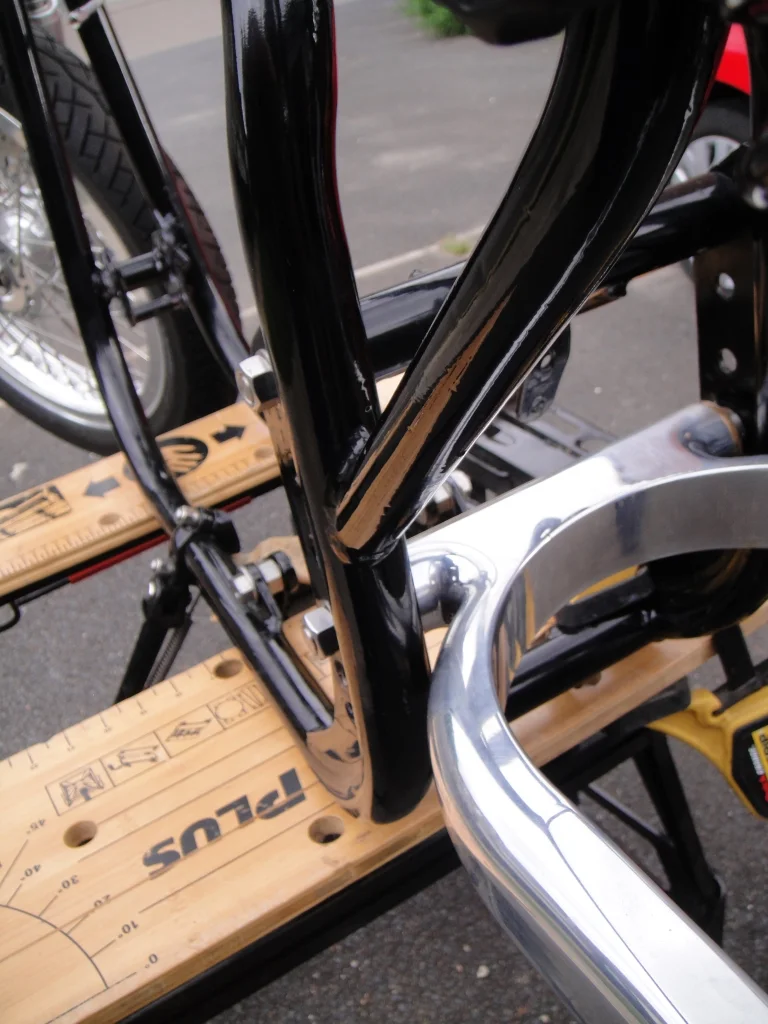

Yes - my measurements were spot on - no shims required for the solid bush!!!


Attachments

  • 216.JPG
    512 KB · Views: 221

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

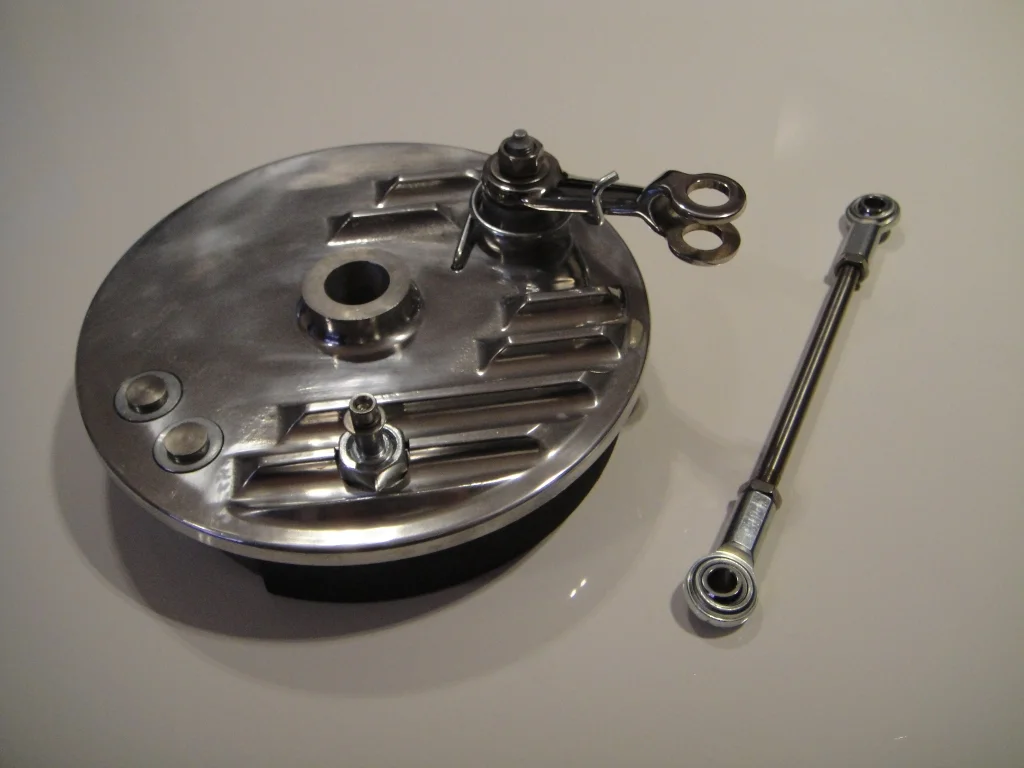

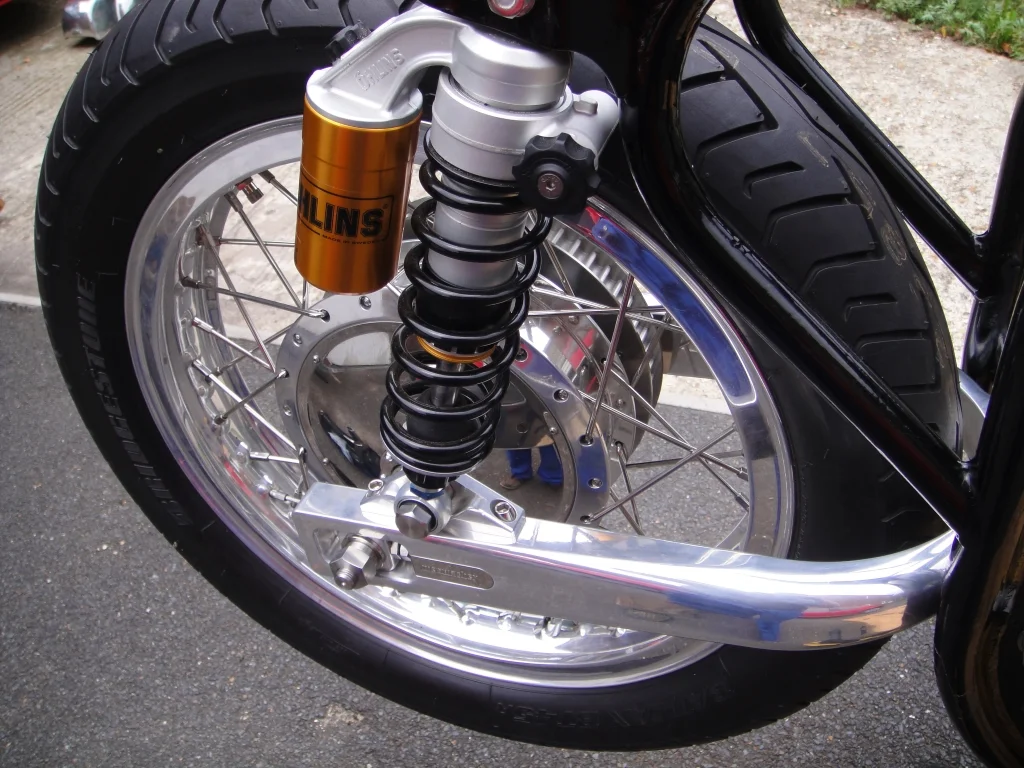

I went for one of Don's (madass140) rear brake plates as the finishing touch!


Attachments

  • 219.JPG
    469.4 KB · Views: 210

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

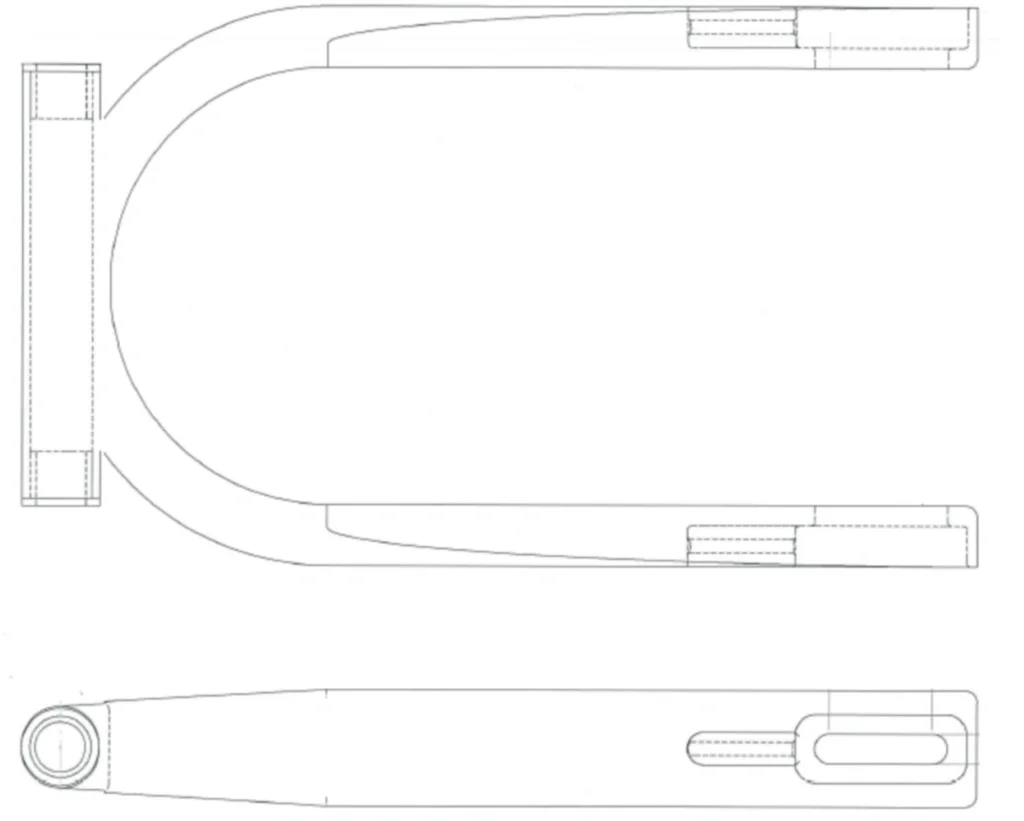

Building this swinging arm has probably been the most enjoyable part of this project so far.

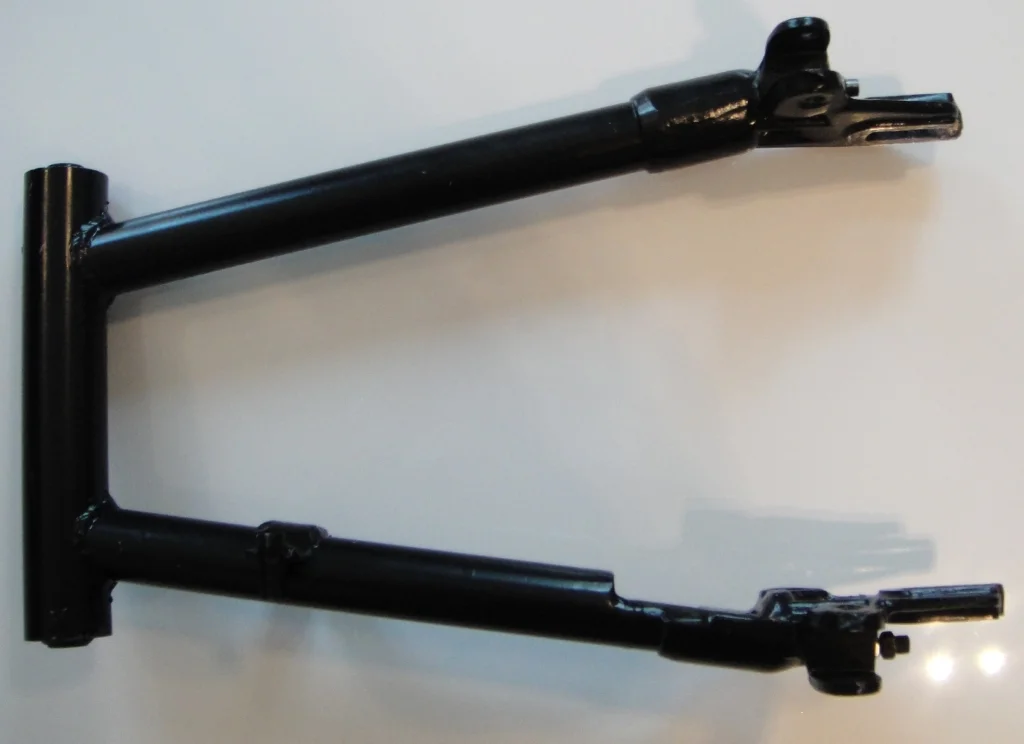

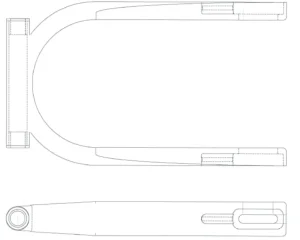

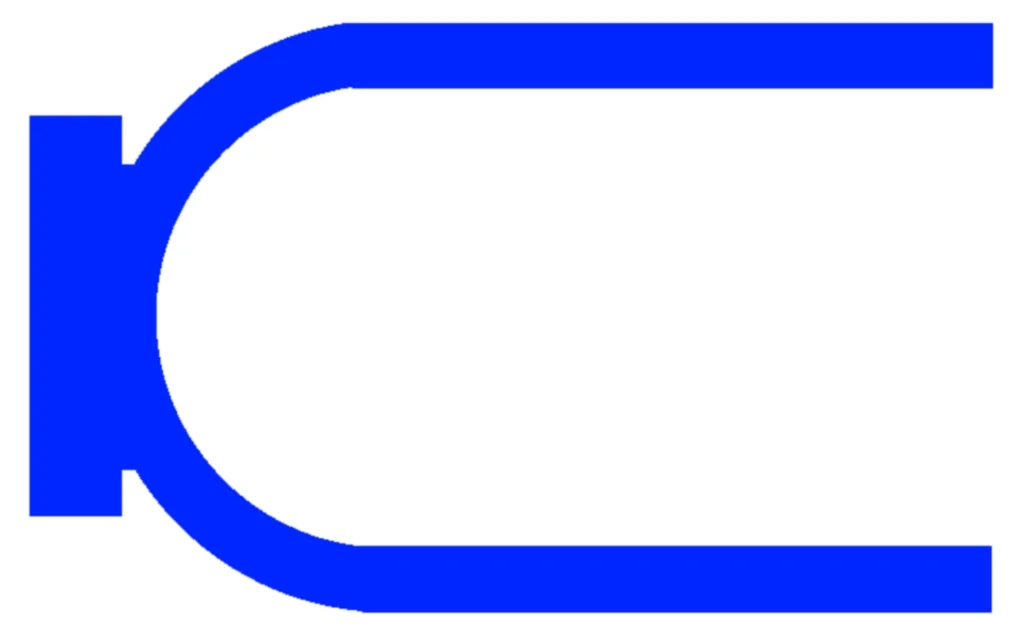

Going from the original, through all the different stages to what I have ended up with has been really rewarding.

Plus I can look at it and say, there isn't another one like it, and it's totally my own!


Attachments

  • 220.jpg
    370.4 KB · Views: 203
  • 221.jpg
    51.2 KB · Views: 214
  • 222.jpg
    391 KB · Views: 210
  • 223.jpg
    84.4 KB · Views: 214
  • 224.jpg
    380.6 KB · Views: 213

Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
14,084
Country flag
Well Morgans have a wooden chassis, so why not a wooden swinging arm??

But seriously, the finished article, all nicely polished and in situ just looks stunning!


p400

VIP MEMBER
Joined
Jul 14, 2014
Messages
1,188
Country flag
gtiller said:

Nice swing arm design. It repeats and compliments the rear frame tube curves.
Great job. Thanks for all this posting and photos. I like the new Ohlins...length, hyd preload, comp and rebound.


guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

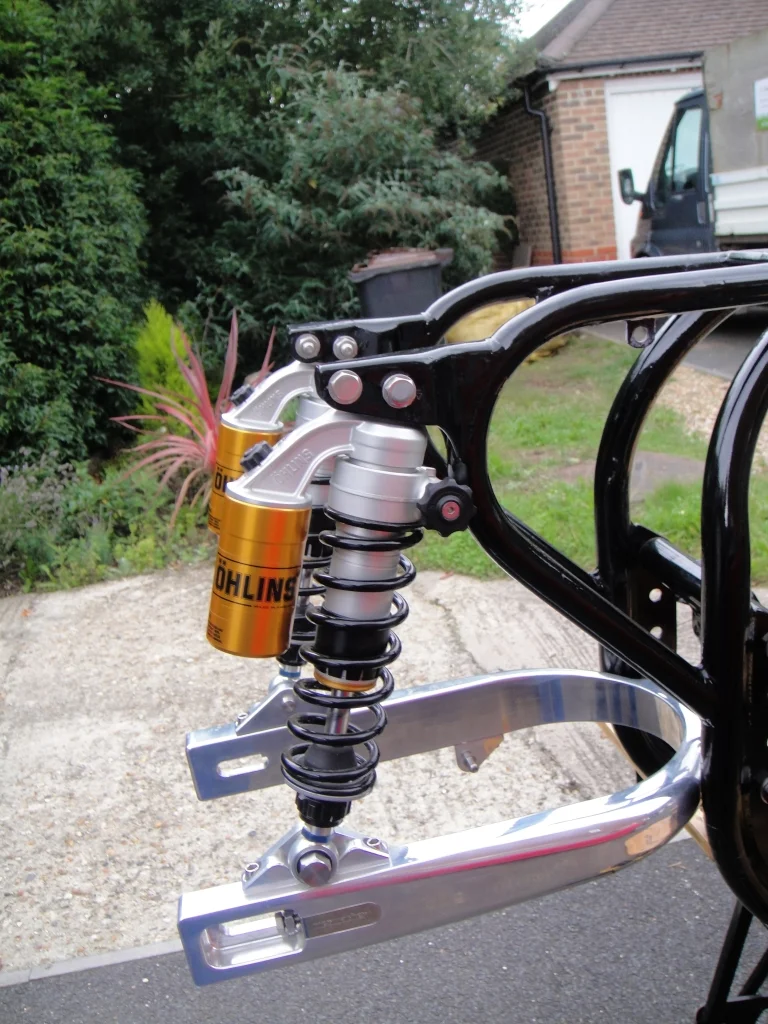

Yes, it is the Öhlins S36P

Length is 305mm and fitment is for a Harly FXD
I was aiming for 300mm, and because these are fully adjustable, i can tune out the additional 5mm easily

The springs were swapped out for the 280-18 kit
the spring rate on these is 102lbs and the length is 200mm

Preload, compression and rebound are all fully adjustable so this will be done by feel to match the front end.


Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
14,084
Country flag
I had a pair of those on a Hyde Harrier, they are very, very good.

However, the sheer amount of adjustability can have you chasing your tail if you're not careful.

I'm sure a man of your calibre will be fine, but for what its worth, my approach was to set everything to the starting point recommended in the book and then follow three rules:

Firstly, understand (and record) the extent of adjustability of each setting.
Secondly, based on this knowledge, adjust compression, rebound and preload settings together pro-rata (shocks are not devices containing 3 seperate functionalities, they are a cohesive 'system').
Finally, always adjust in large amounts, each single click will be unnoticeable to a normal person (I calculated 4 basic settings as a start point, all pro rata, and one of these ended up as my 'ideal' setting).

When you have a good final setting, then fine tune each one individually if required. But in theory, if Ohlins know what hey are doing (ie the cohesive system comment) this should not be necessary


guest76

Guest
Joined
Nov 5, 2012
Messages
1,034
Great advice - thanks for that!

Yes, i will certainly be creeping up on the setup, and only be adjusting one thing at a time!


I am very lucky in that I have a good friend that used to be a motorbike technician on newer jap bikes, plus he is into trials bikes, so knows a think or two about setting up suspension! I fully plan to use and abuse his knowledge when I'm ready!!!!


guest76

Guest
Joined
Nov 5, 2012
Messages
1,034
I have been thinking about Rohan's great advice, and have finally decided that maybe I should have some handlebars on my bike!!!

Although the bike will be Café Racer style, I decided to go for straight(ish) bars instead of clipons.

The idea being, you will be able to ride it for a little longer than a bike with clipons, because you won't have all of your weight on your wrists.

I also like the idea of being sat a little more upright from a safety standpoint.

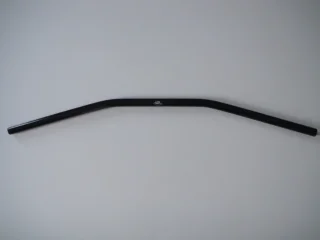

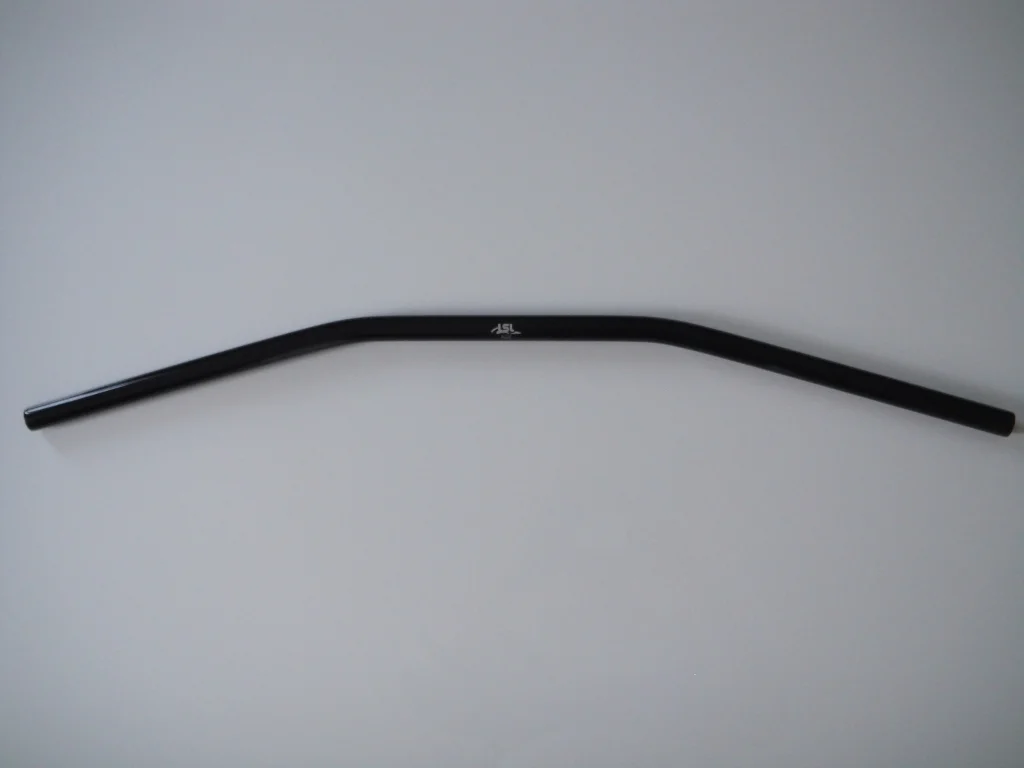

I decided to go for these bars from LSL - they are made of thick walled aluminum, are anodized black and feel really nice.


Attachments

  • 225.JPG
    380.2 KB · Views: 188

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

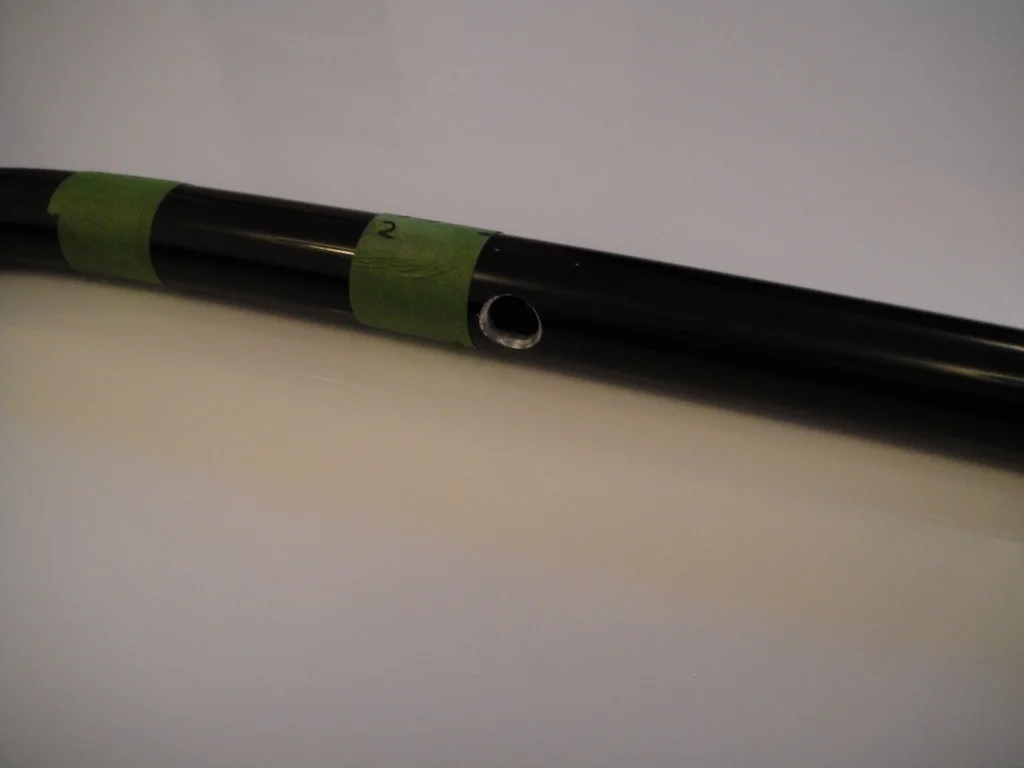

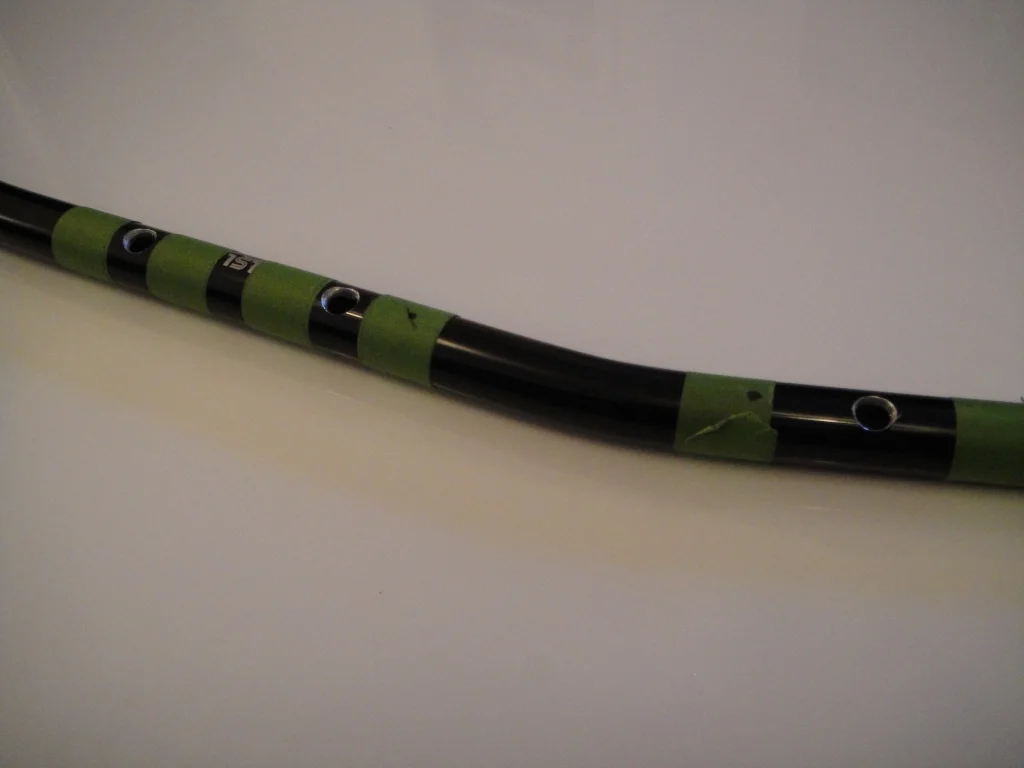

The first thing to do was to mark up the bars for all the controls, then drill some holes.



I spent many hours deburring the holes inside and out, so that the cables won't snag or wear through.



...I swear to god, I am probably now a major shareholder in Dremel the number of miniature grinding stones I went through doing this - hopefully worth it though!


Attachments

  • 226.JPG
    409.2 KB · Views: 171
  • 227.JPG
    433.7 KB · Views: 179

guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

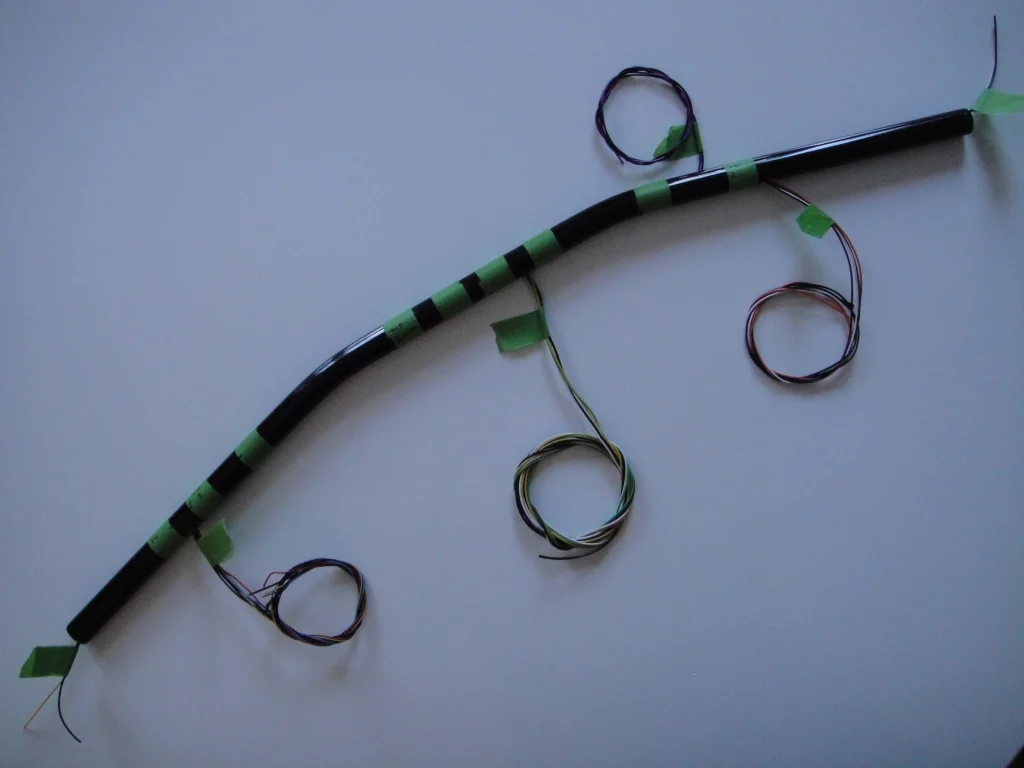

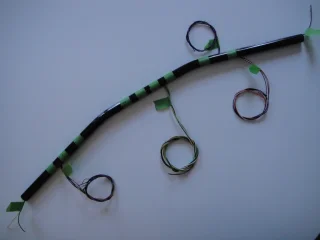

Then it was time to go fishing!



You would not believe how long it took to thread all these cables through the bars!

The bars were sat in my lounge unfinished, and I had to get up in the middle of the night to finish them off!!! Damn that insomnia!!!


Attachments

  • 228.JPG
    455.4 KB · Views: 176
