L.A.B. said:
It needs a sufficient gap to drop the wheel off the drum sprocket paddles. That's if the problem, whatever it is, will allow the wheel and drum sprocket assemblies to separate.
Click to expand...
OK. I don't see what other option I have at this point. I also don't understand the clunking sound when rotating approximately once every revolution.

Cuppy said:
OK. I don't see what other option I have at this point. I also don't understand the clunking sound when rotating approximately once every revolution.
Click to expand...
Try tightening it. If it won't tighten, then it's clear that it's broken or stripped. If stripped, keeping tightening, preferably with an air wrench until it spins freely (wear out the remaining threads). If you cut it, you may have trouble getting it out of the hub and it will be more expensive to sort out. If it's stripped and stuck in the dummy axel, you may not be able to separate the hub and drum.

If you have a welder, you can weld a piece of rebar to it and another piece to that to form a "T" handle. Then feet on the swingarm and wheel while twisting and pulling.

Yes , this is a total teardown after all those years.
All new rubber.
New metal tank.
New drive train.
New layshaft bearing.
New this that and the other.
BIG credit card.
Good luck and proceed.

marshg246 said:
Try tightening it. If it won't tighten, then it's clear that it's broken or stripped. If stripped, keeping tightening, preferably with an air wrench until it spins freely (wear out the remaining threads). If you cut it, you may have trouble getting it out of the hub and it will be more expensive to sort out. If it's stripped and stuck in the dummy axel, you may not be able to separate the hub and drum.

If you have a welder, you can weld a piece of rebar to it and another piece to that to form a "T" handle. Then feet on the swingarm and wheel while twisting and pulling.
Click to expand...
We used your advice somewhat and a knowledgeable Norton neighbor built a giant slide hammer that we bolted to the axle head. Unfortunately it still would not budge so we cut the axle approx. 1/4" from the speedo gearbox and were able to remove the whole assembly for rebuilding.

that'll learn it !

if youve a tame aerospace engineer , a custom set up would improve it . Suppose a NASCAR engineer'd do .
Std thread looks like a coach bolt to me . TRIUMPHS had fine threads . Co Incidently the TRIUMPH CONICAL
rear whell , is a Norton MANX Rip Off . The 75 with the Cup - Fema;le thread Brg Retainers best . As is the early
one piece axle . But its for a open ended swing arm axle slot . Std. on it is similar Q.D. set up . Why Not ! .

Now that the rear wheel is back on I am having clearance issues with the chain with this fat rear tire. I'm guessing I have the standard 530 chain. Would a 520 O-ring or non O-ring chain be narrower?

Cuppy said:
Now that the rear wheel is back on I am having clearance issues with the chain with this fat rear tire. I'm guessing I have the standard 530 chain. Would a 520 O-ring or non O-ring chain be narrower?
Click to expand...
The rollers are 1/4" rather than 3/8" but the overall width of an O- or X-Ring chain is only slightly smaller than a standard 530 chain. A plain 520 might give you 1/16".

Thanks Greg! The tire installed is a 130/90-16. I think I am going to have a narrower tire put on. These sprockets don't have too many miles left either so I will upgrade the chain at that time.

I have decided to go with a 19" rear rim at end of season but all I see is WM2/19. Can someone point me in the right direction to find a WM3? I will have it restrung locally vs sending out to Buchanan.

You can get the rim and spokes from Buchanan and have it strung locally

BTW, here's my journey. Some lessons learned (and still learning :rolleyes:). I went with WM4 18" rear and WM3 19" front rims. They seem well suited for 110 and 120 tires. I do not recomending stringing them yourself or putting the tires on.

www.accessnorton.com

My What Am I Getting Myself Into Combat Build Thread

I picked up my '72 in '95. Had a Triumph TR6 bike in college and always wanted a Norton. When i finally got around to doing something about it, i really didn't care about details, just as long as it was a Norton. So when one came up for sale, pretty much bought it no questions asked. She was...
www.accessnorton.com www.accessnorton.com

TomU said:
You can get the rim and spokes from Buchanan and have it strung locally

BTW, here's my journey. Some lessons learned (and still learning :rolleyes:). I went with WM4 18" rear and WM3 19" front rims. They seem well suited for 110 and 120 tires. I do not recomending stringing them yourself or putting the tires on.

www.accessnorton.com

My What Am I Getting Myself Into Combat Build Thread

I picked up my '72 in '95. Had a Triumph TR6 bike in college and always wanted a Norton. When i finally got around to doing something about it, i really didn't care about details, just as long as it was a Norton. So when one came up for sale, pretty much bought it no questions asked. She was...
www.accessnorton.com www.accessnorton.com
Click to expand...
Did you get the WM4 18" from Buchanan?

Cuppy, wheel builds are expensive. My advice is to research what tyres, and in what sizes, you wish to run. Then purchase rims accordingly. Most tyre companies will tell you what rim widths their tyres are designed for and what the min / max allowance is. You don’t have to guess.

Fast Eddie said:
Cuppy, wheel builds are expensive. My advice is to research what tyres, and in what sizes, you wish to run. Then purchase rims accordingly. Most tyre companies will tell you what rim widths their tyres are designed for and what the min / max allowance is. You don’t have to guess.
Click to expand...
FE,
Earlier in this thread it was suggested lacing an 18" WM3 rim as it will provide a wider selection of tire choices. That's likely the route I will take. I really don't know what a good tyre size is for the rear. Front has the original Dunlop 4.10 H19.

Last edited:
Buchanan's has several choices in WM3/19,
Sun, Excel and Borrani..

You can buy from them without having them lace it if you wish.

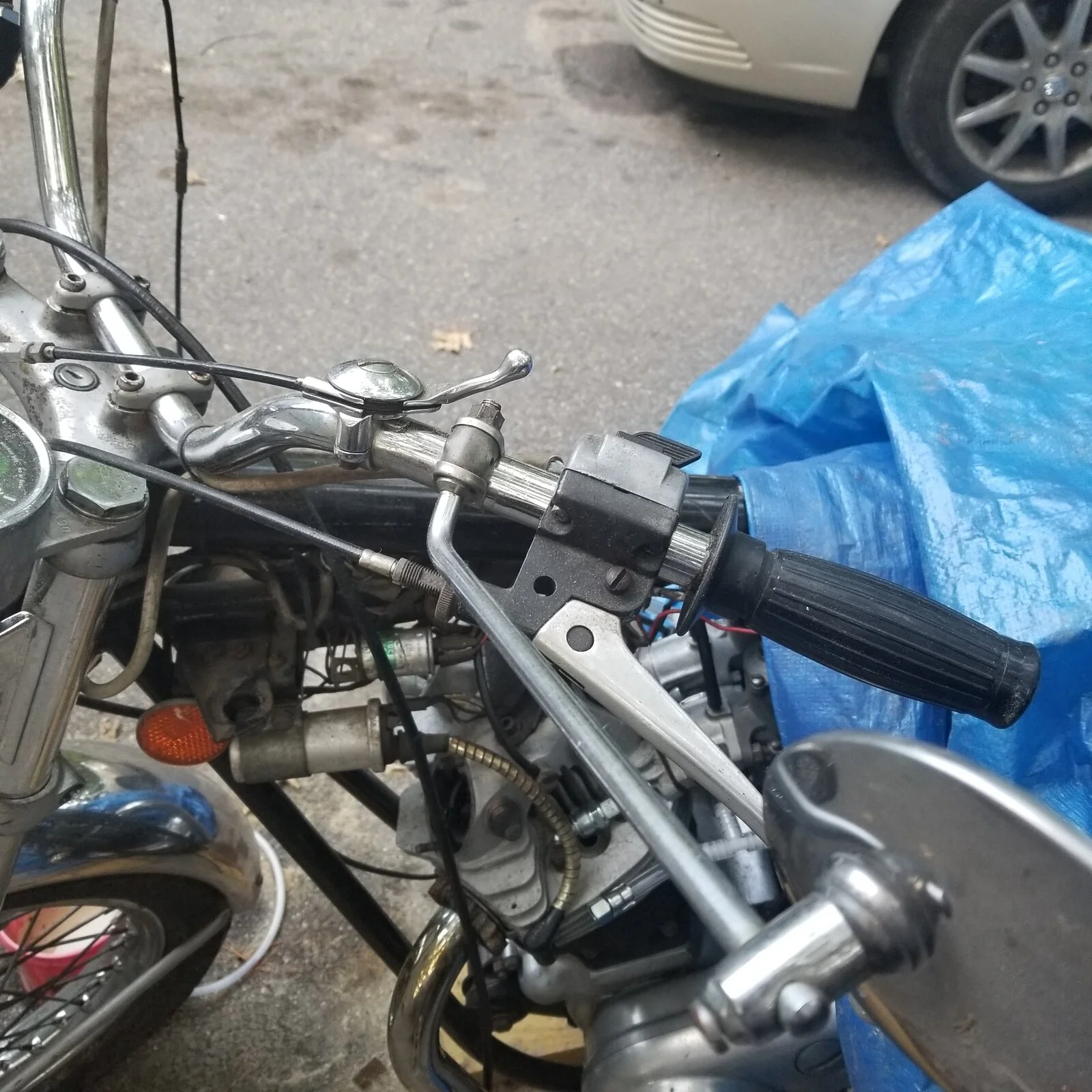

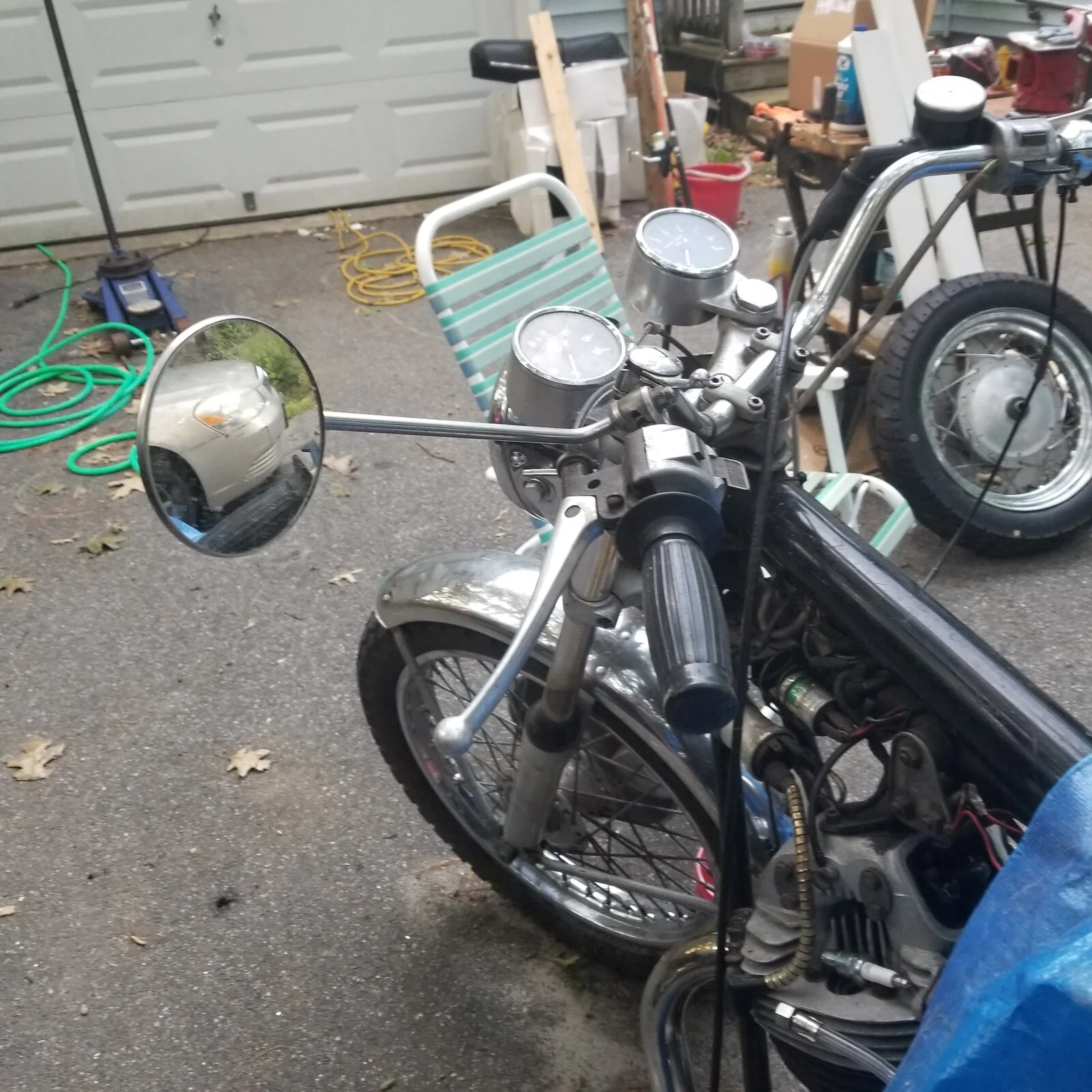

Can anyone explain or comment on where the stock mirror would have been mounted? Here are a few pics of how mine is now mounted on LH and I see no way for RH mounting. There is an approx. 8mm hole through clutch handle but can't find a suitable mirror to fit.
What do most do?
72 Interstate 750
72 Interstate 750

Cuppy said:
OK. With a caliper I measure the hole at .30". I have 3 or 4 new mirrors that measure .38" which I am thinking is a standard size (3/8").
Click to expand...

The normal stem thread was 3/8" UNF so you could tap the hole 3/8" UNF.
"Tapping Drill Size 8.5 mm, 0.3346 inch"

For the right-hand side, you'd have to find a later master cylinder with the threaded mount...
andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk
...or fit a bar-mounted mirror as you have on the left-hand side.

L.A.B. said:
The normal stem thread was 3/8" UNF so you could tap the hole 3/8" UNF
"Tapping Drill Size 8.5 mm, 0.3346 inch"

For the right-hand side, you'd have to find a later master cylinder with the threaded mount...
andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk
...or fit a bar-mounted mirror as you have on the left-hand side.
Click to expand...
Thank you! Very helpful.

Cuppy said:
Thank you! Very helpful.
Click to expand...
Les, you mention the normal stem thread was 3/8" UNF (24 tpi) but I am measuring a stem thread of 3/8" 20 tpi on the 4 new mirrors I have which seems to be an unusual thread count.
