Vernier isolastic adjusting bar.

Dave

Tools You Have Made to Maintain your Norton

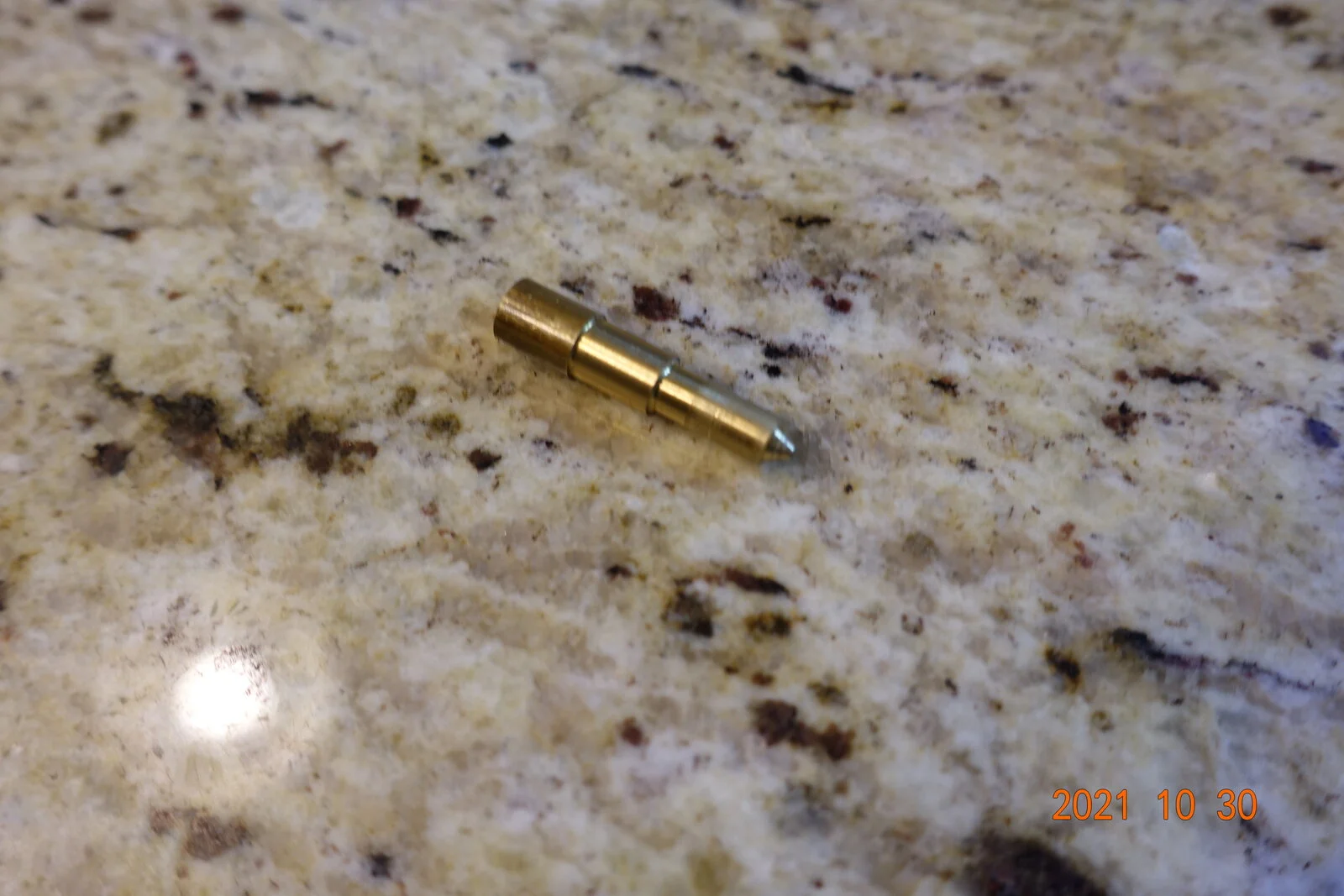

Assembling my Atlas! Carbs wouldn't stop leaking. MTools You Have Made to Maintain your Nortonade this to polish Float jet seat. 600 grit compound

ntst8 said:
The postie did well in these uncertain times, delivery to NZ received thankyou. :)
Click to expand...

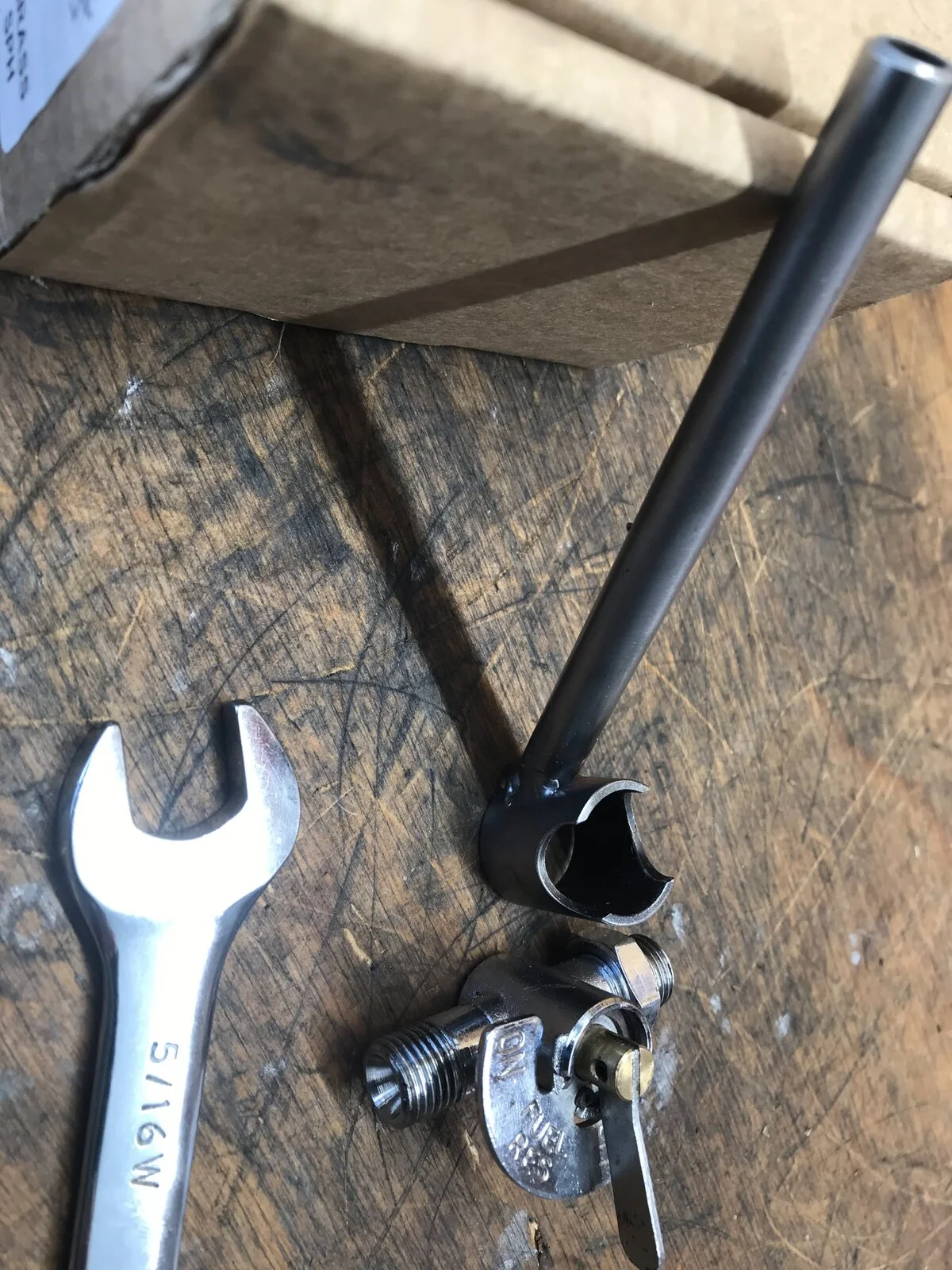

Also received my Petcock tool, excellent addition to the tool kit, highly recommended


Attachments

  • Tools You Have Made to Maintain your Norton
    276.1 KB · Views: 263
Dommie Nator said:
I was told of this method to synch Tridents, which takes a lot longer to get three balls to drop exactly the same time, but can be done on a bench with the carbs and gantry off the bike.
Click to expand...
I drilled & tapped the manifolds of my trident years ago as the "Twist drill method" just didn't cut it for me
then its simple job to use vacuum or mercury manometer to accurately set them

olympus said:
I drilled & tapped the manifolds of my trident years ago as the "Twist drill method" just didn't cut it for me
then its simple job to use vacuum or mercury manometer to accurately set them
Click to expand...
That's what I do on my trident it's been a game changer
Well it was until I fitted mikunis
I found with the amals they had to be balanced with vacuum guages but the mikunis are hugely forgiving and would easily balance with twist drills etc
I can only assume it's the superior fit of the slides in the Miks ?

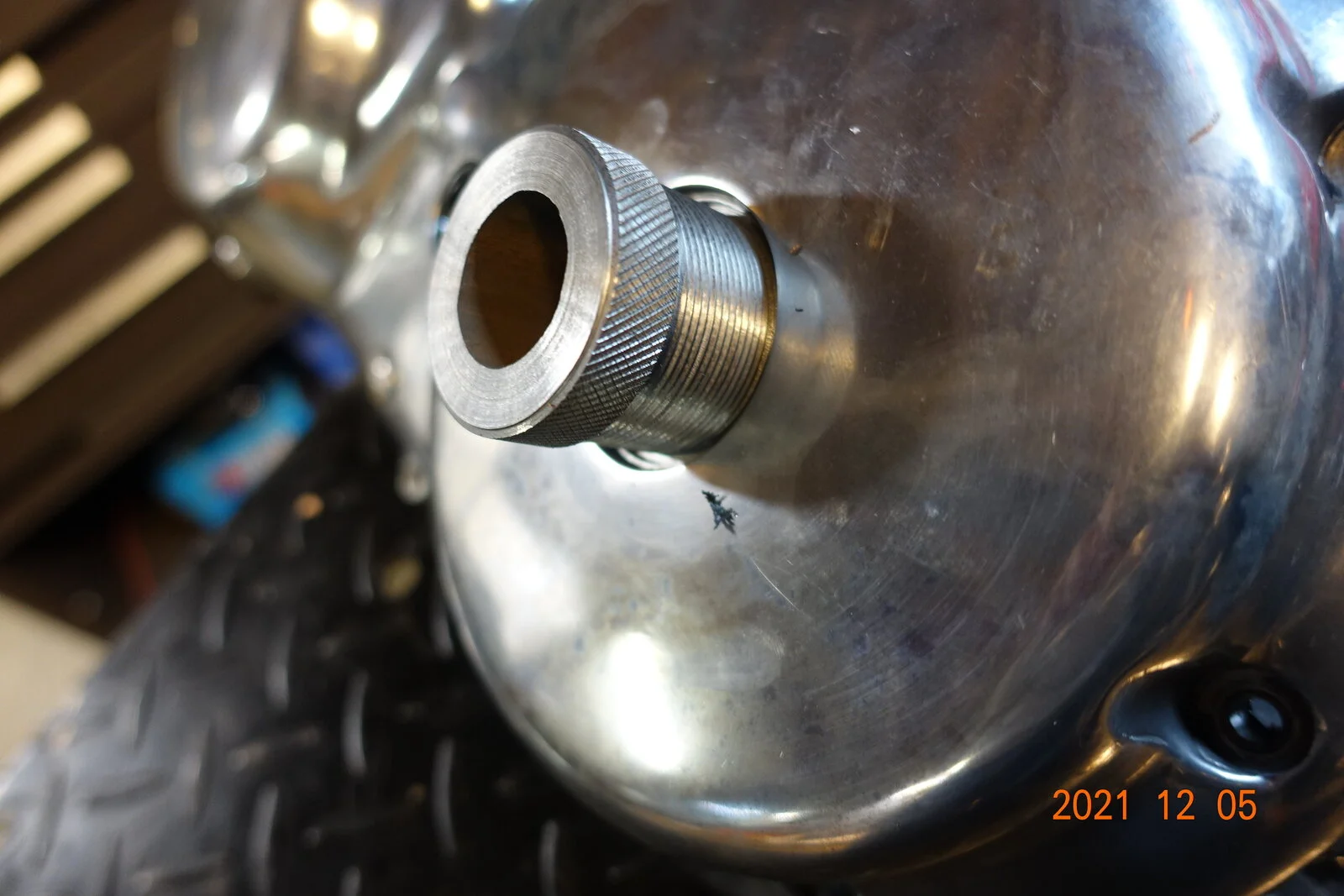

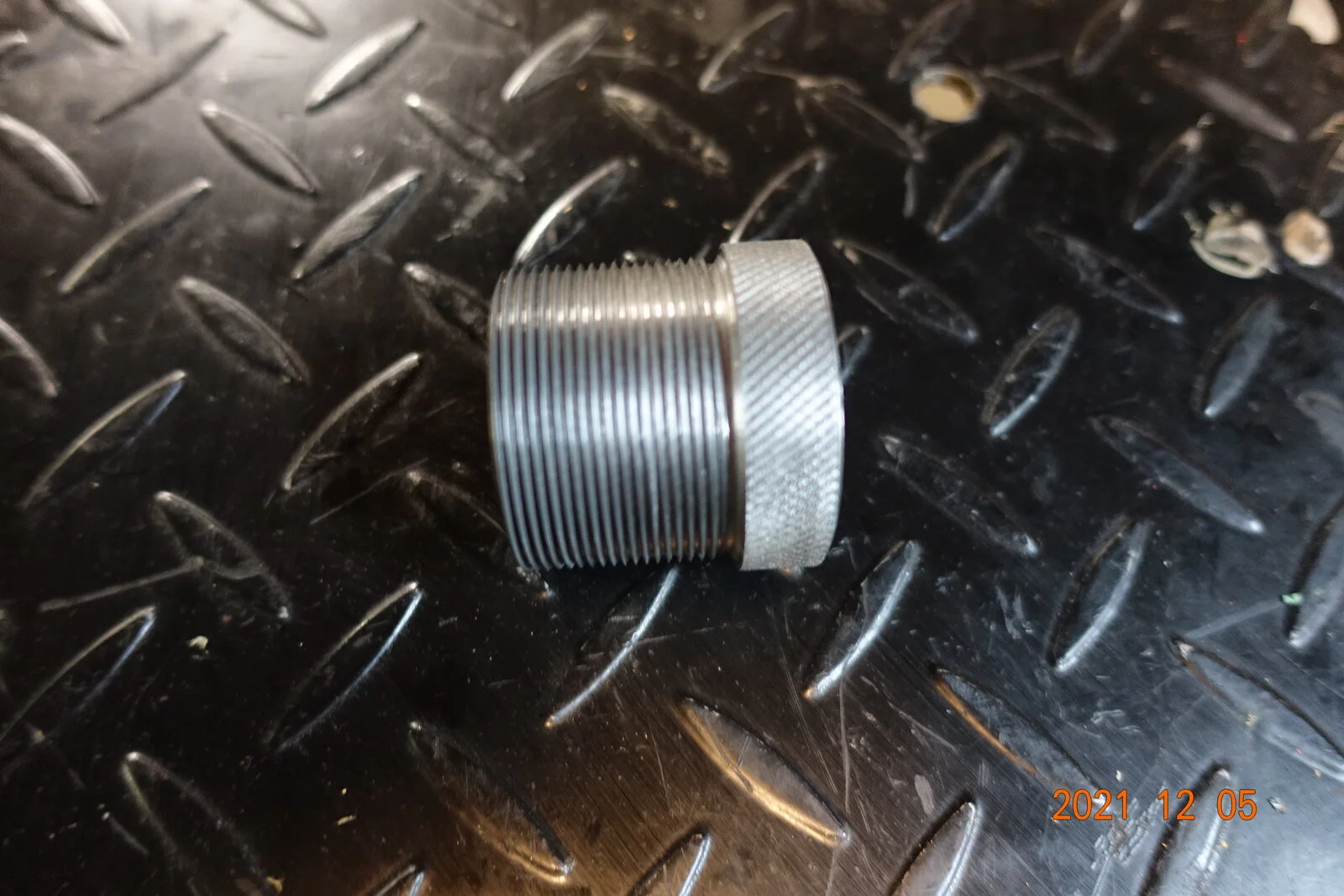

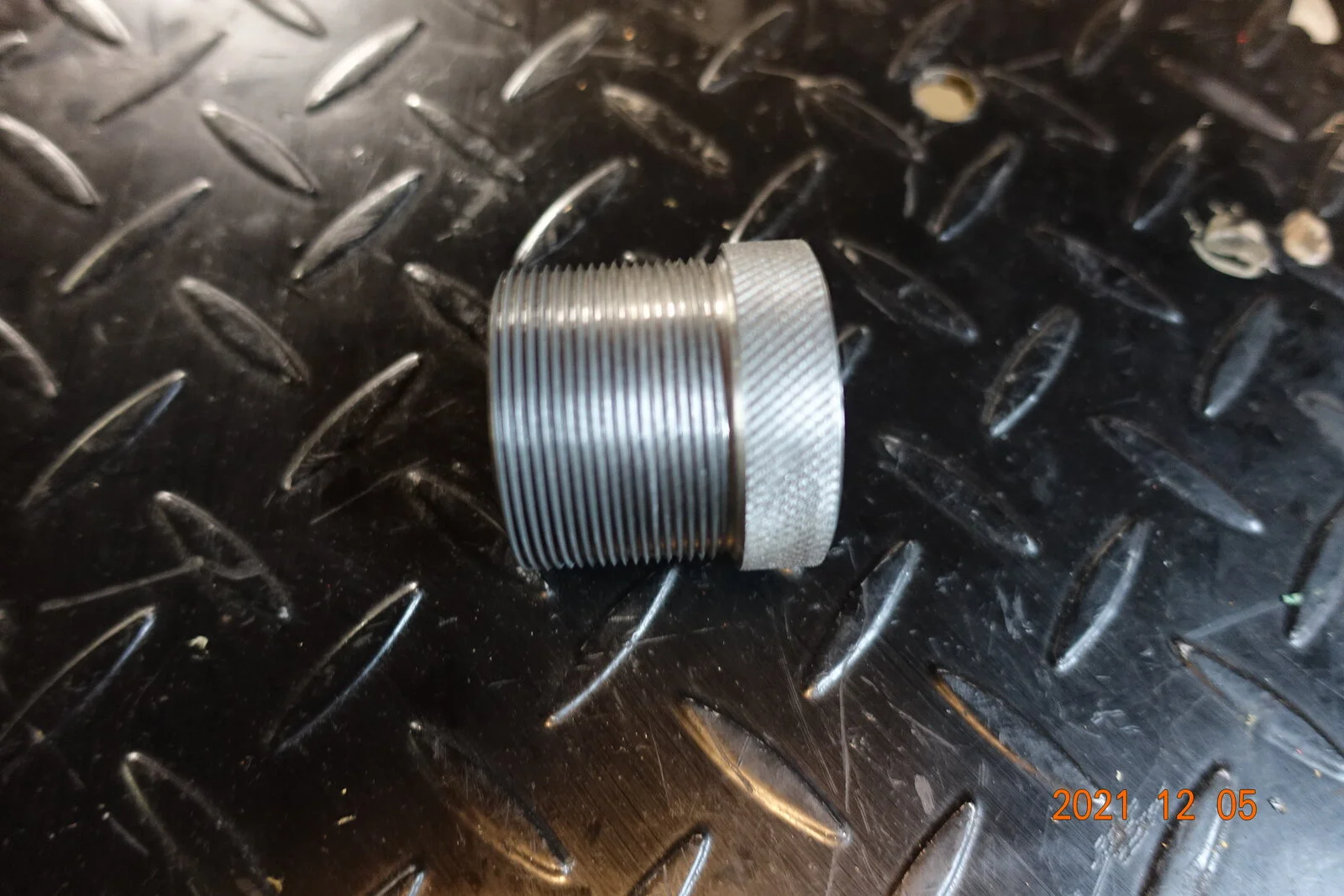

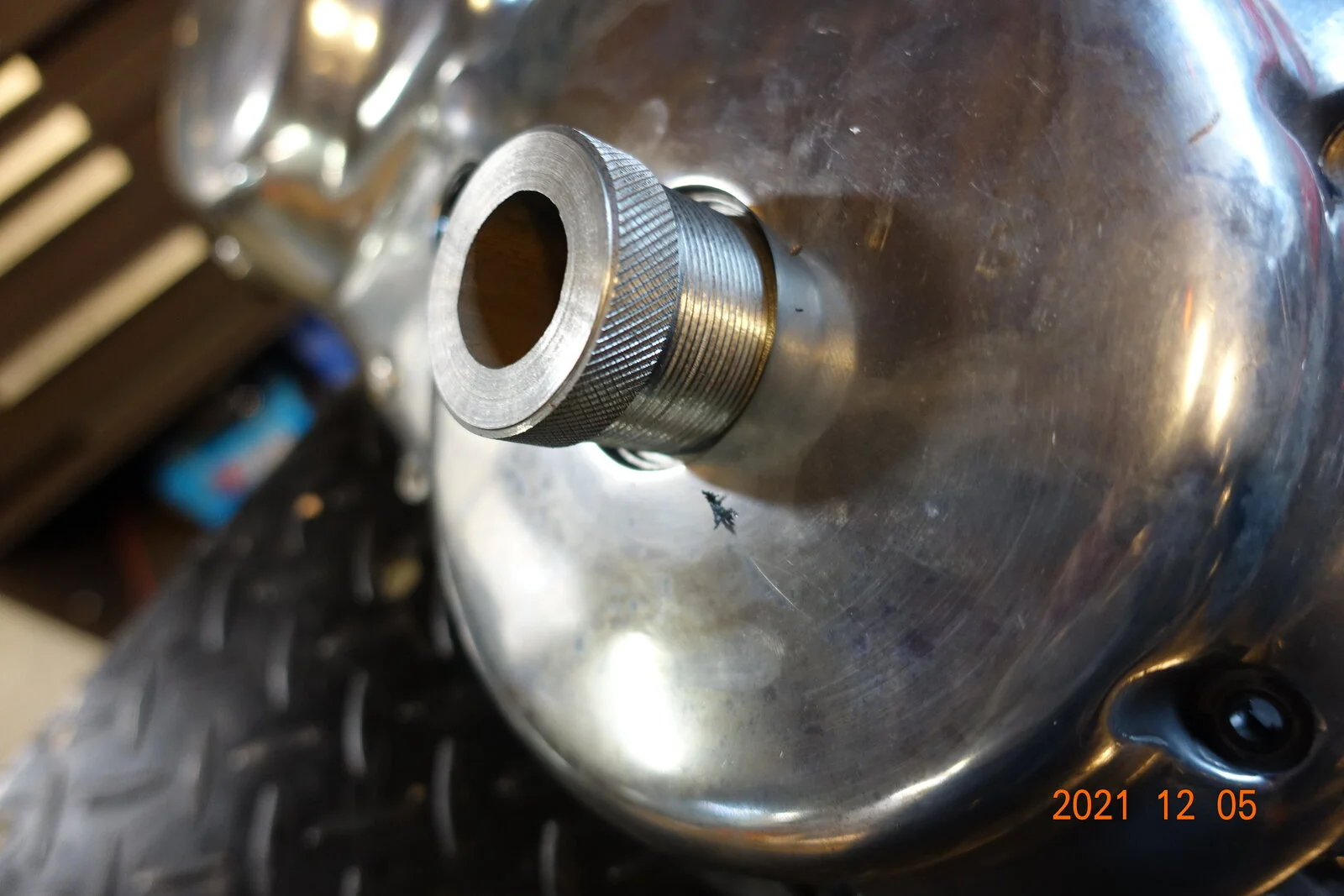

Recently went to remove an outer primary cover on a recent Mk III purchase. It wouldn't budge, and yes for all the skeptics out there I had all the bolts out. I think they used Yamaha Bond to seal it. I hate to see the big screwdriver marks from either prying or driving into crack. Special tool #199! I knurled the outer edge so I wouldn't be tempted to use a wrench and break outer case or strip threads. A little pressure and a little heat it left loose!


Tools You Have Made to Maintain your NortonTools You Have Made to Maintain your Norton

mean gene said:
Recently went to remove an outer primary cover on a recent Mk III purchase. It wouldn't budge, and yes for all the skeptics out there I had all the bolts out. I think they used Yamaha Bond to seal it. I hate to see the big screwdriver marks from either prying or driving into crack. Special tool #199! I knurled the outer edge so I wouldn't be tempted to use a wrench and break outer case or strip threads. A little pressure and a little heat it left loose!


View attachment 83263View attachment 83264
Click to expand...
Gene, Great idea. What is the diameter, thread pitch & length of your tool?

p400 said:
A tool I have that is very handy when servicing the bottom left shock mount on a Commando is an eBay $15 free ship,
Capri Tools Super-Thin Open End Wrench 1/2 x 9/16.
Just grind the 9/16 end to fit the chain guard pocket.

Click to expand...
Sabre and I both mentioned this tool back in posts #109 & #114. Capri wrench is also available on Amazon, see post #114. Craftsman also has entire set of these thin wrenches available.

I was sorting my special tools for a Commando bin and spotted the Pusher.

Its main purpose is to push the rivets out of the steering head data plate. (quietly)
That means if a good data plate was to be reused (frame paint) it could be removed easily with no damage and the original rivets could be reused (maybe in the same hole they came out of)
I read online you could bash the rivets out or grind the rivet and plate into submission (maybe the frame a little also) but thought that to easy.

Tools You Have Made to Maintain your Norton

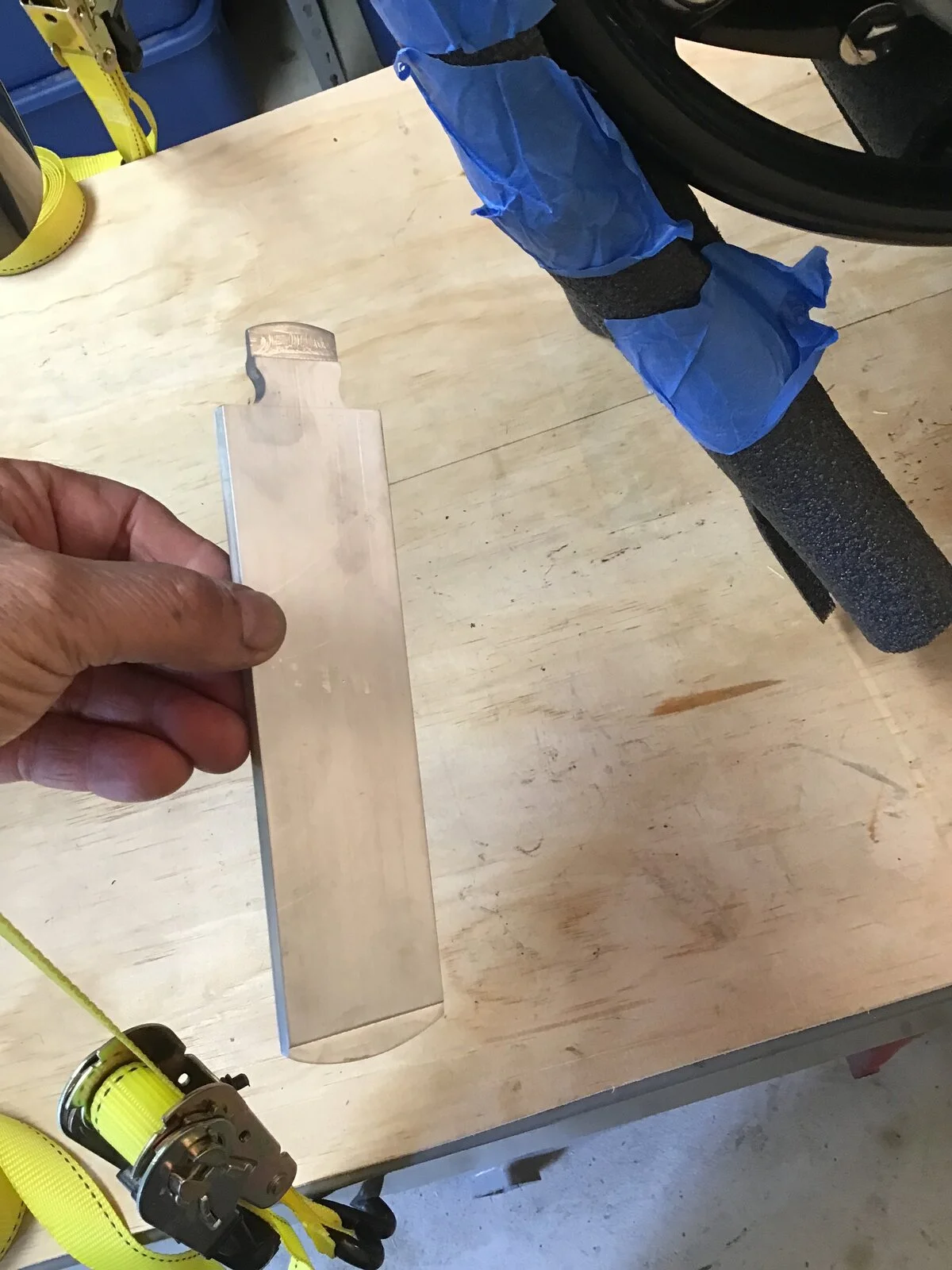

Made this out of aluminum bar stock for primary drive inspection caps …
Tools You Have Made to Maintain your Norton

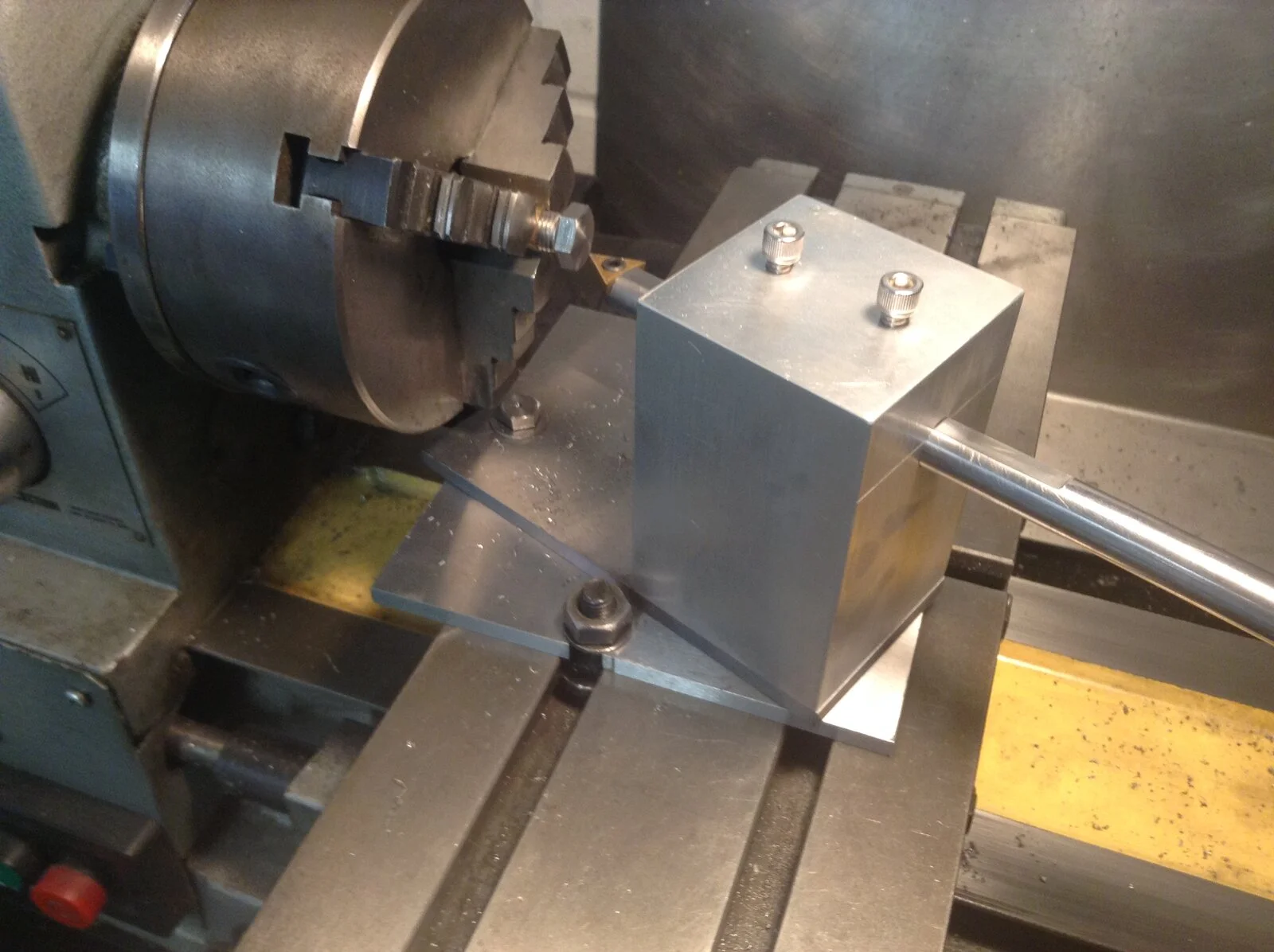

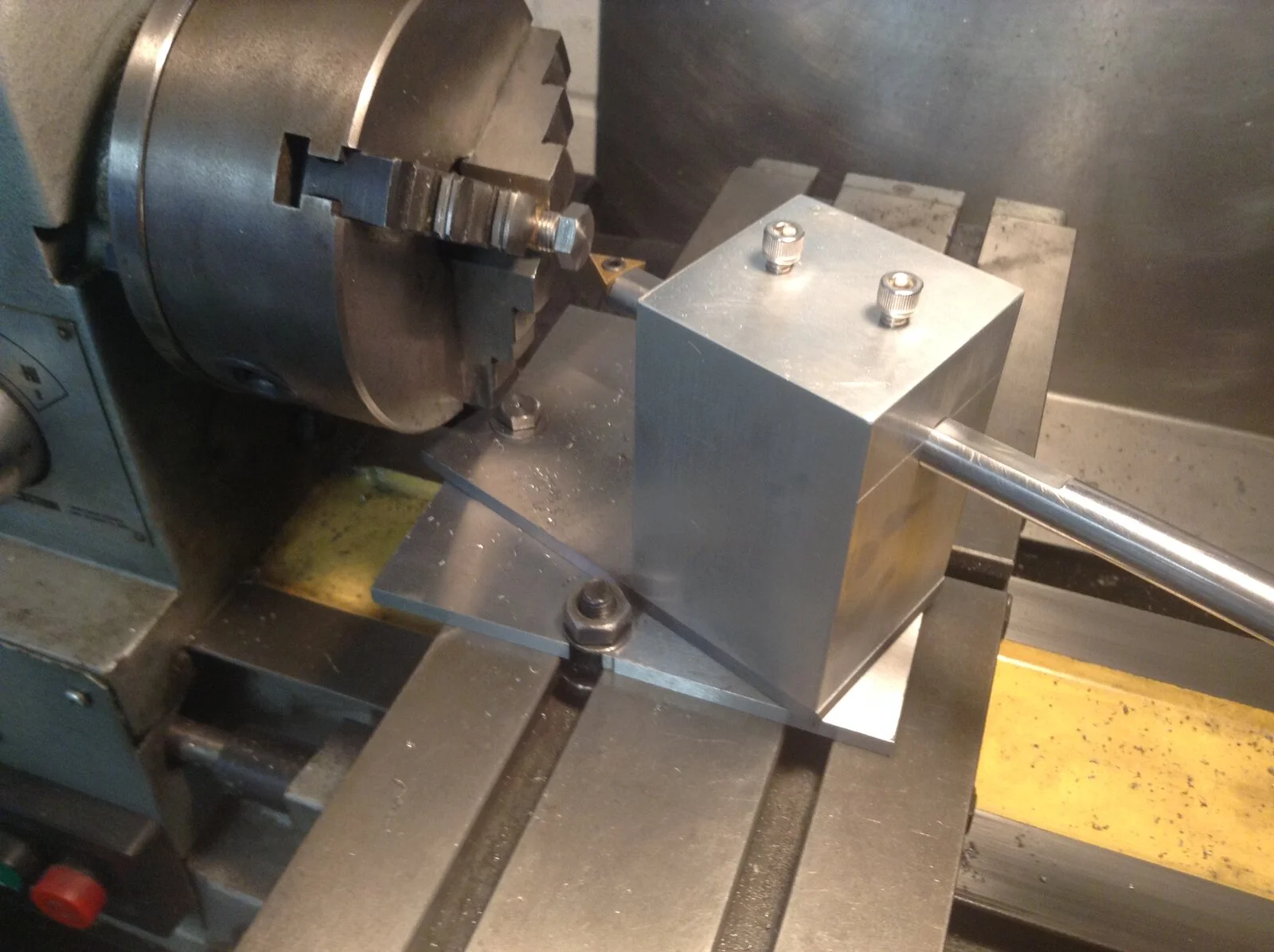

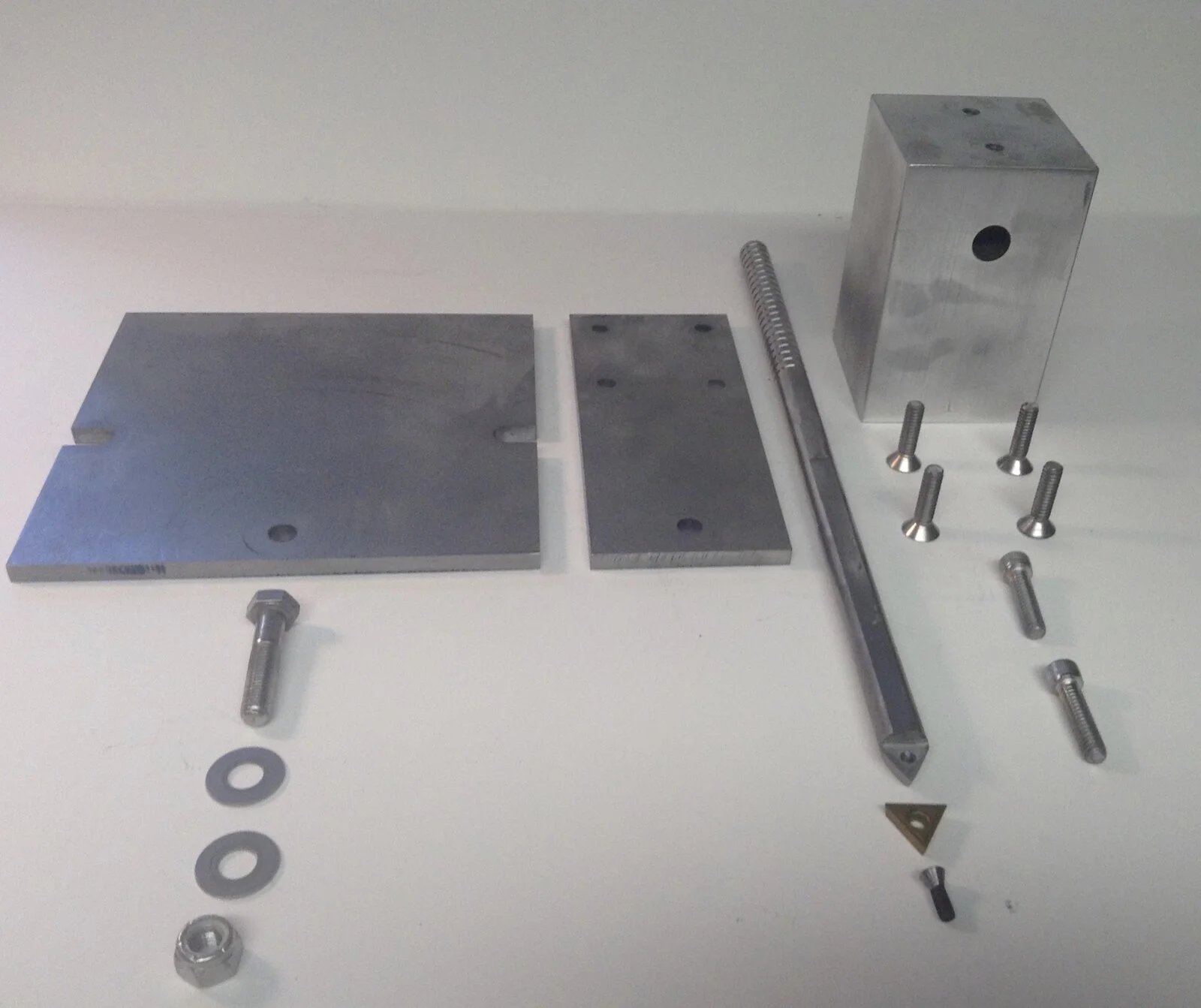

And not for maintenance really but useful … fixture for hemispheric facing ( doming ) bolt heads , etc .
Tools You Have Made to Maintain your Norton

Tools You Have Made to Maintain your Norton

Great for removing the “ made of the cheapest material for
Walmart “ stamp on safety critical fasteners …

I wish I had a small lathe for doming/reproducing fixing bolts. A file and emery paper takes time. Yours look like they come out nice.

Richard Tool said:
Made this out of aluminum bar stock for primary drive inspection caps …
View attachment 83772
And not for maintenance really but useful … fixture for hemispheric facing ( doming ) bolt heads , etc .
View attachment 83773
View attachment 83774
Great for removing the “ made of the cheapest material for
Walmart “ stamp on safety critical fasteners …
Click to expand...
I hope your aluminum creation works better than my steel A.N. one . Just received it in my latest order and the edges were cut so sharp that it ate into the plug slots. Had to bastard file the edges to go in nicely.

Torontonian said:
I hope your aluminum creation works better than my steel A.N. one . Just received it in my latest order and the edges were cut so sharp that it ate into the plug slots. Had to bastard file the edges to go in nicely.
Click to expand...
Yes - that is why I used aluminum.
