Set the Pazon Sure Fire

Frankie17 said:

one thing you may be missing is it is possible to time the pazon ignition on the wrong mark anti clock wise or clock wise

using the wrong static marker may account for PIERODN discrepancy when strobing ?

Click to expand...

If it was set up for the wrong rotation the timing would be so far out it wouldn't start as it would be considerably more than 10 - 20 degrees.

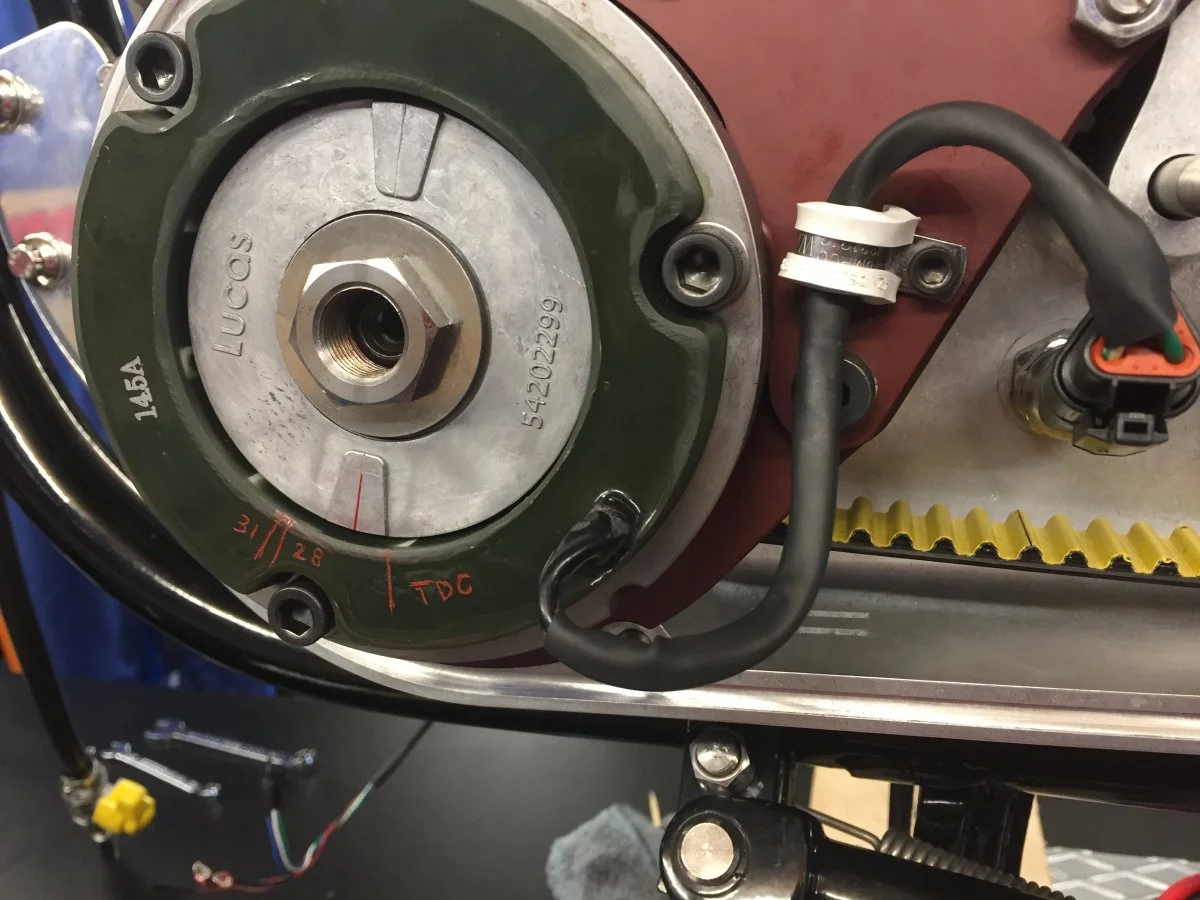

Another source of confusion is the rotor pad. It is very easy (for me) to make a mistake with the strobe light unless the score line in the middle of the pad is marked somehow.
If you use the edge of the pad (which looks the same as the score mark when running and viewed with the strobe), it will be wrong.

@Mr. Rick I painted mine red for that exact reason

I paint the pad on the rotor red and either scribe clean the central slash mark or paint it with black paint.
Make sure your head is square with the window. This, of course, is great fun doing it by yourself whilst
trying to keep the bike running and not melt the wires to the strobe.
