Mikuni VM34 - what is best filter?

Status
Not open for further replies.
Took the filters I've got from VOC spares and fitted to my Honda classic racer over the velocity stacks., twin Mikunis. No rejetting needed. A/F ratio between 12.5 and 13. I think they are made by Ramair and called sock filters.

Mikuni VM34 - what is best filter?

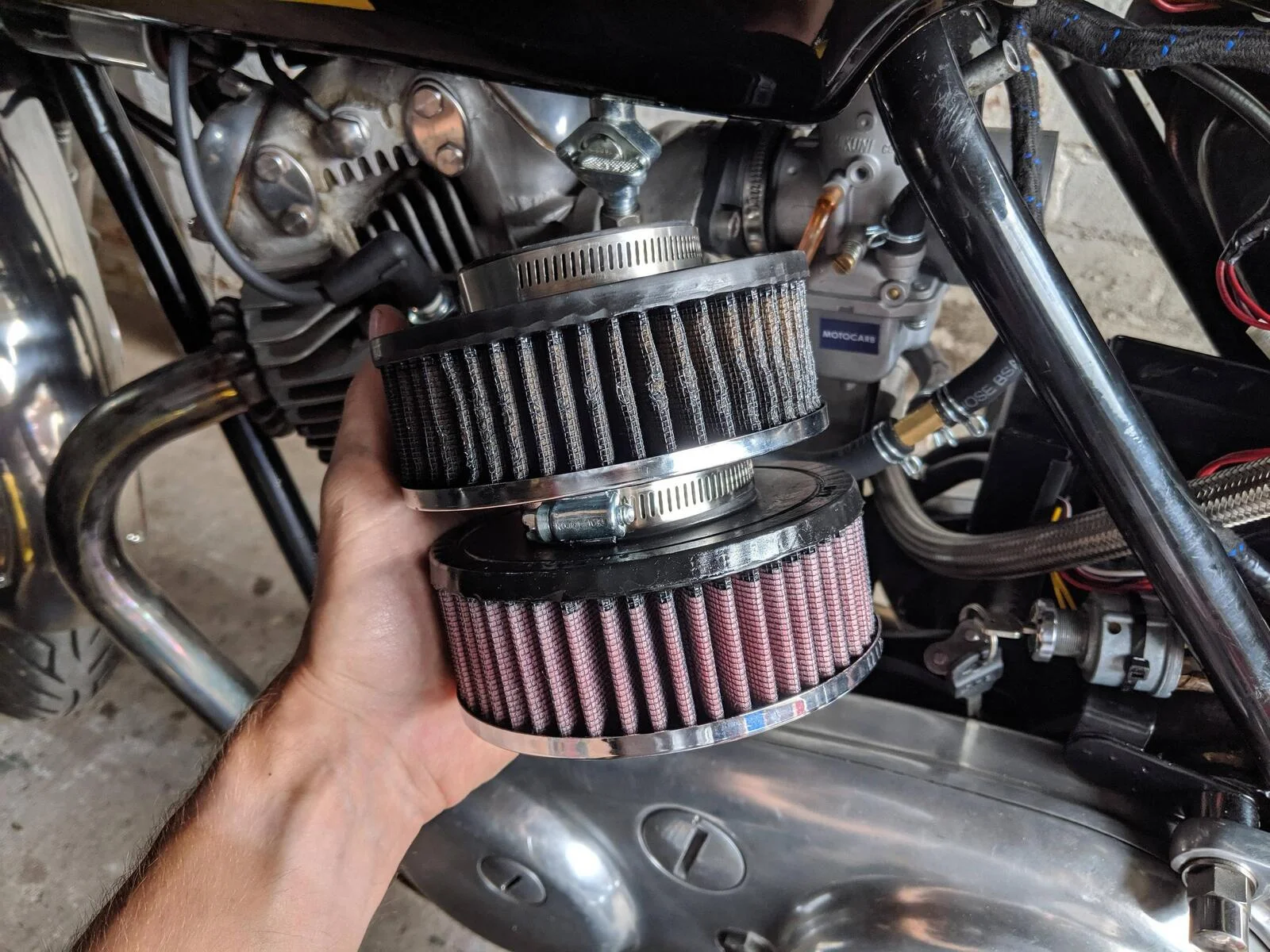

This is the K&N filter I'm using on my VM36. New & old for my comparison. IIRC it's 2" deep. I've always wondered if it's too much?
No such thing as “too much filter area”.

No such thing as “too much filter area”.

True, I get that it can be too small & therefore restrictive. What I should've said was overkill as there a gnat's cock of clearance between the filter & the battery box. It doesn't cause me any issues but I'd prefer to have a little more of a gap to avoid anything rubbing/catching.

True, I get that it can be too small & therefore restrictive. What I should've said was overkill as there a gnat's cock of clearance between the filter & the battery box. It doesn't cause me any issues but I'd prefer to have a little more of a gap to avoid anything rubbing/catching.
Also, consider the WEIGHT of a big filter, a foot away from the engine that flops around. That rubber clamp boot that mounts the entire carb & air filter takes a beating.

I believe this is the one that I use https://www.knfilters.com/rc-1950-universal-clamp-on-air-filter
I bought it about 05 and in my mind it was 1950C.
Air Filter ShapeRound
Filter MaterialCotton Gauze
Flange Inside Diameter2.25 in (57 mm)
Flange Length0.625 in (16 mm)
Flanges1
Flange Offset0.313 in (8 mm)
Flange TypeOffset
Height2 in (51 mm)
Package Contents1 Air Filter, 1 K&N 1/2oz Filter Oil
Package Quantity1
Outside Diameter4.5 in (114 mm)
Top MaterialChrome
Top StyleMetal
Warranty1 Year Limited
WashableYes
Product StyleRound Straight Universal Air Filter
Weight0.7 lb (0.3 kg)

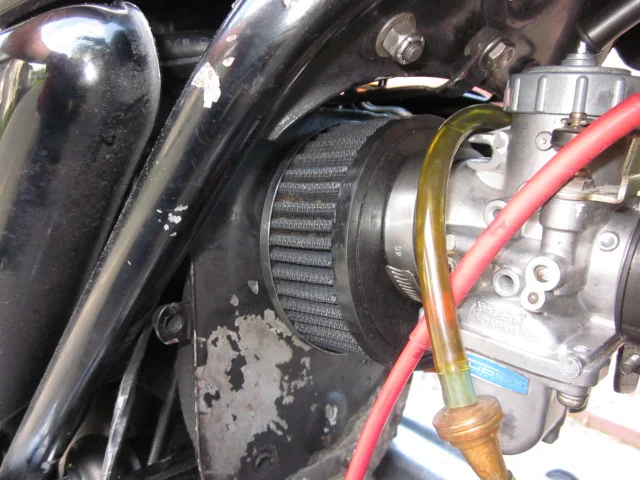

Any way, the offset of the flange allows it to be larger and hang lower.

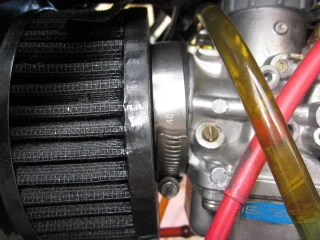

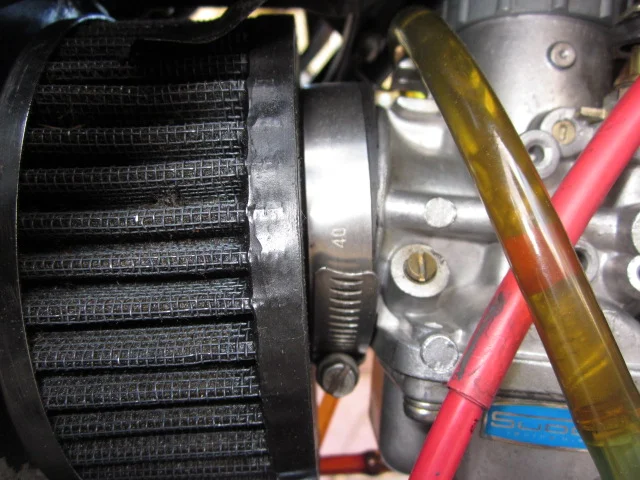

I cut the flange at an angle to allow it to hang perpendicular to the back of the original air filter box.

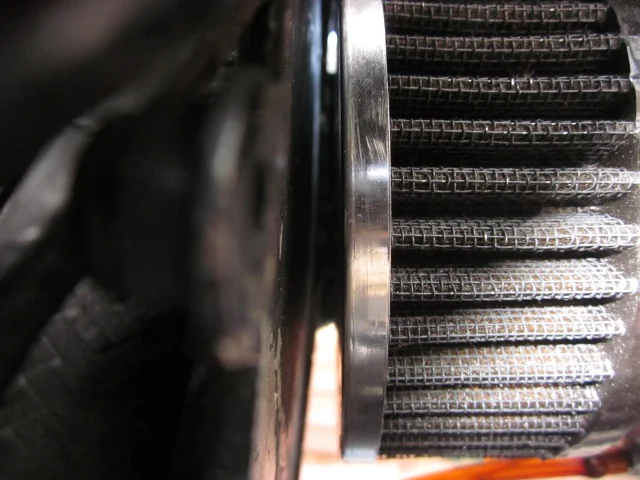

I can see witness marks on the chrome end cap from rubs, but nothing hard, just marks.


Attachments

  • Mikuni VM34 - what is best filter?
    55.2 KB · Views: 305
  • Mikuni VM34 - what is best filter?
    58.2 KB · Views: 280
  • Mikuni VM34 - what is best filter?
    44.8 KB · Views: 277
