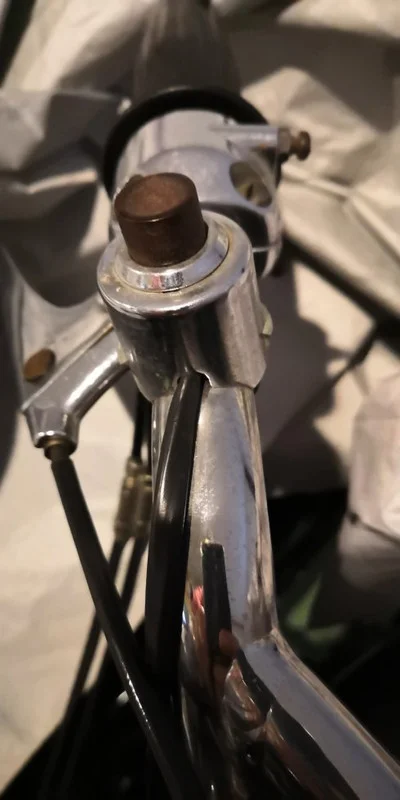

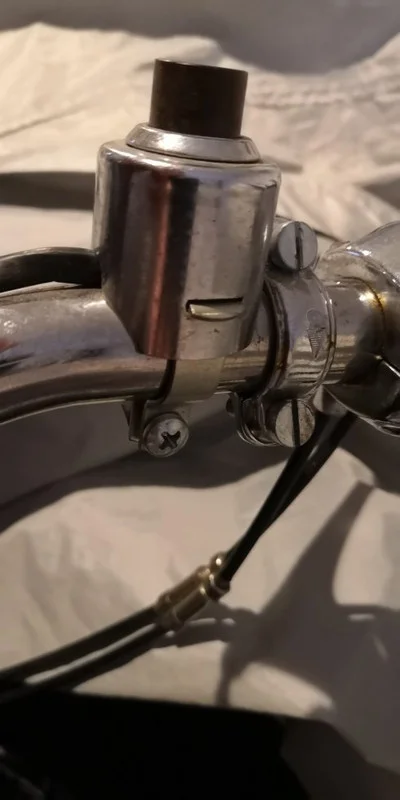

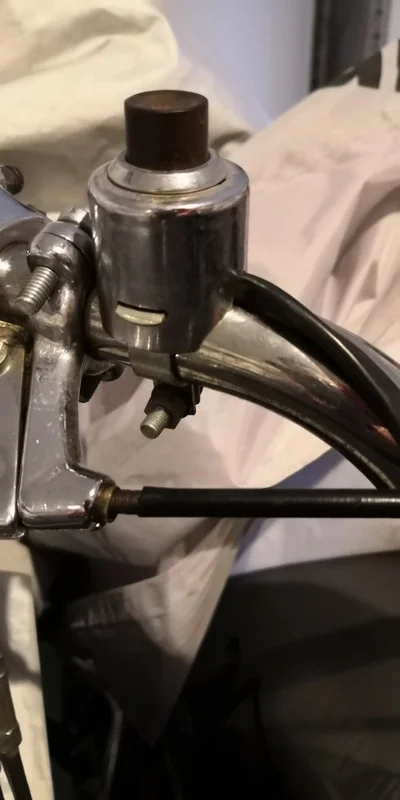

Don't know if it's original but here is one on mine, 1967. Without an enrichener lever.



N

NKN

Joined

Mar 28, 2016

Messages

275

• Dec 6, 2018

• #22

mdt-son said:

Hi Ron,

For those of us not being able to get our hands at a NOS or even a used kill switch housing and have to resort to fabricating one, a dimensional sketch would be highly useful. This would enable me to create a 3D model of the housing.

-Knut

Click to expand...

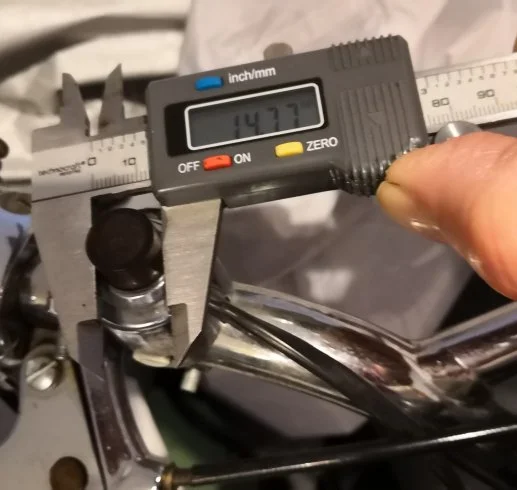

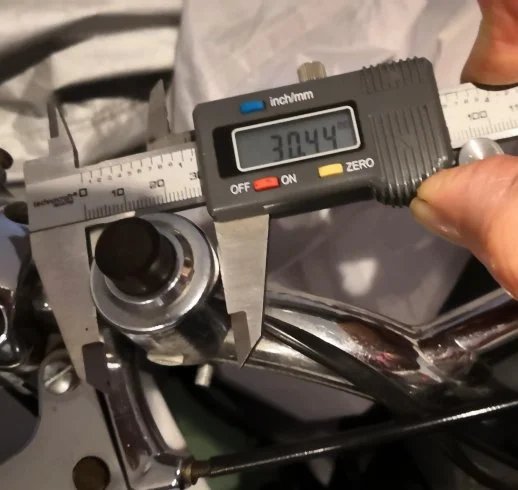

Hi Knut, a little lazy this evening, could this kind of pictures help you?

Could do others of course.



Last edited: Dec 8, 2018

M

mdt-son

VIP MEMBER

Joined

Jan 19, 2012

Messages

2,205

• Dec 9, 2018

• #23

Thanks NKN. Could you do height measurements as well, please? Maximum height transverse to h/bar and min. height at the elliptical edge as well as width of same would be appreciated!

- Knut



N

NKN

Joined

Mar 28, 2016

Messages

275

• Dec 10, 2018

• #24

OK Knut, I'll do this for you.

Christian



N

NKN

Joined

Mar 28, 2016

Messages

275

• Dec 14, 2018

• #25

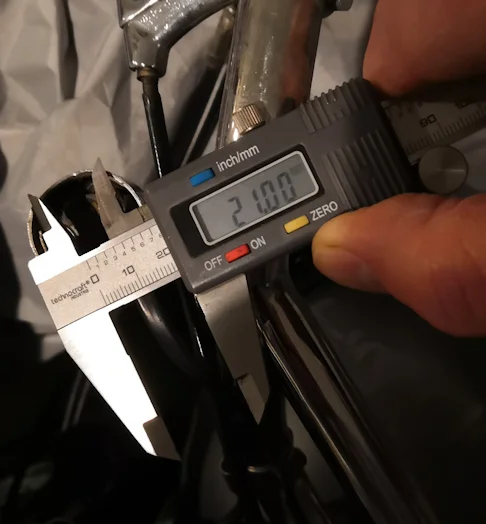

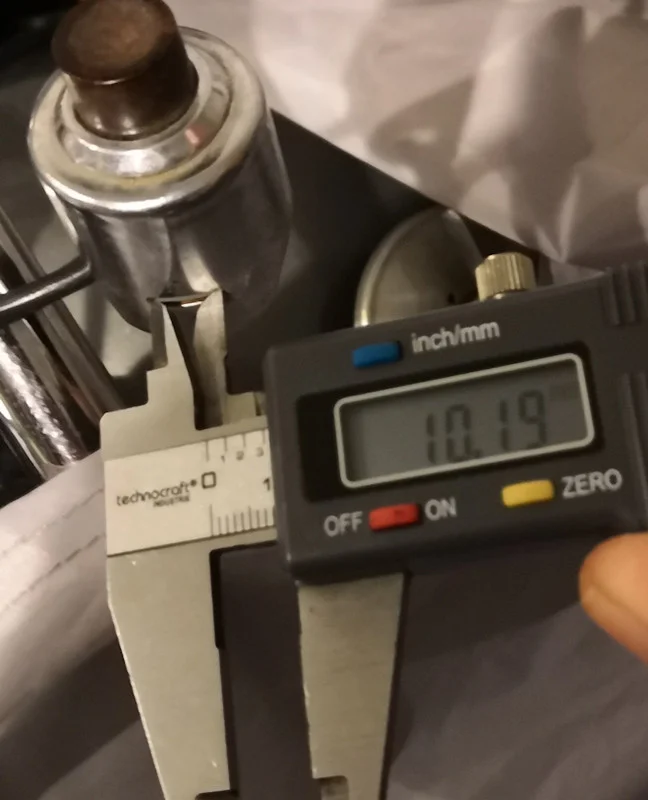

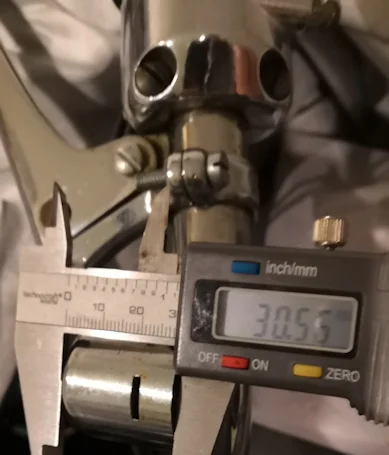

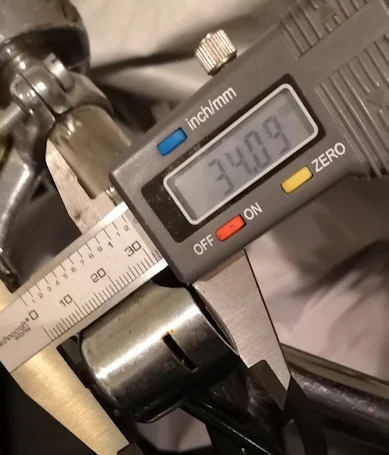

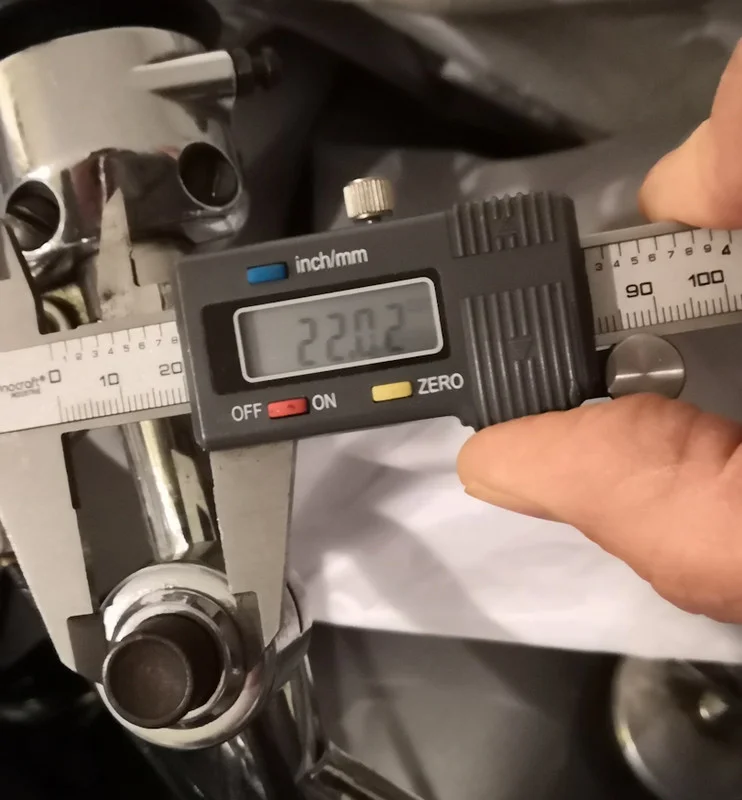

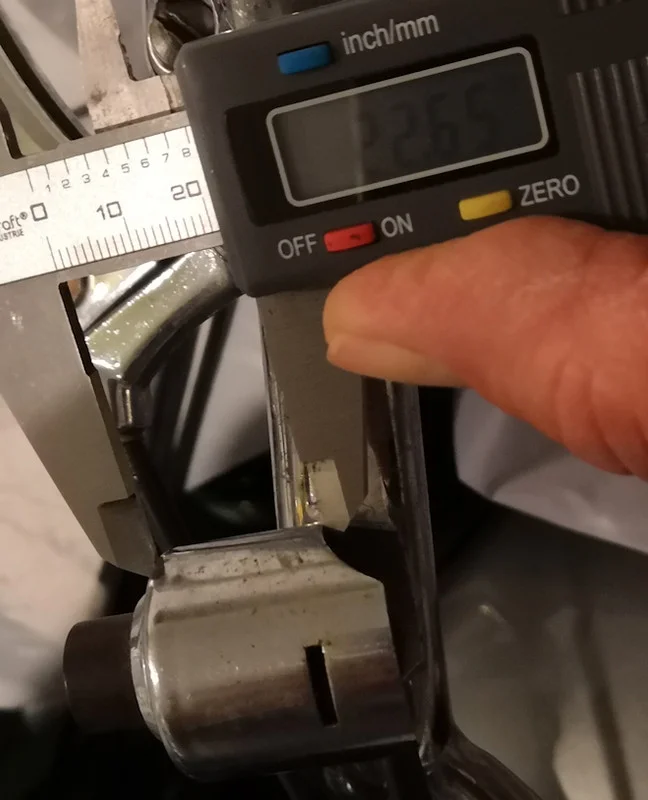

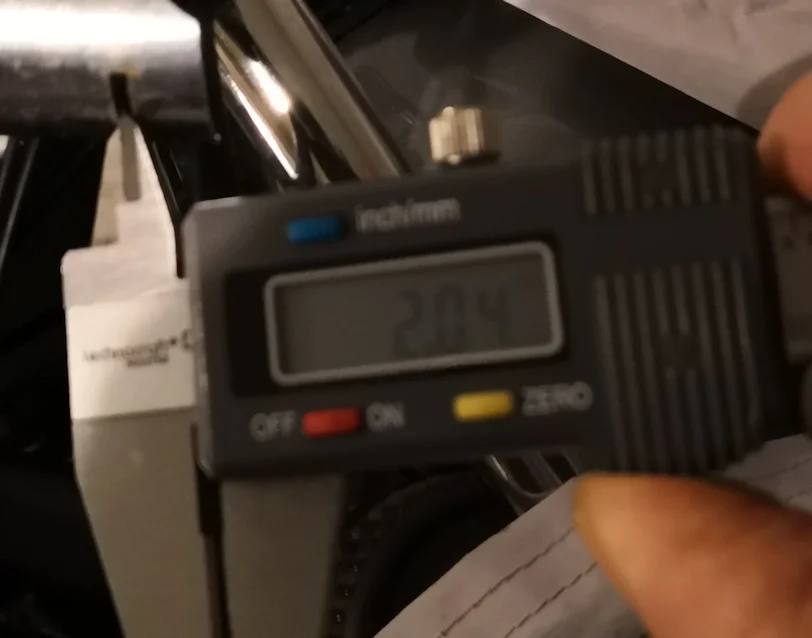

Here we go Knut. 3rd hand was missing, so some are little blurred, others unlightened and some good.

This is full length, withe the little extra around the button.

Humm, cannot put more than 5.



N

NKN

Joined

Mar 28, 2016

Messages

275

• Dec 14, 2018

• #26

If something is missing, or not clear, feel free to ask.

Christian



M

mdt-son

VIP MEMBER

Joined

Jan 19, 2012

Messages

2,205

• Dec 16, 2018

• #27

Many thanks, Christian. Great contribution!

-Knut
