Aftermarket handlebar control switches

NortonDominator2020

NortonDominator2020

Joined
Sep 12, 2022
Messages
260
Country flag
Hello guys,

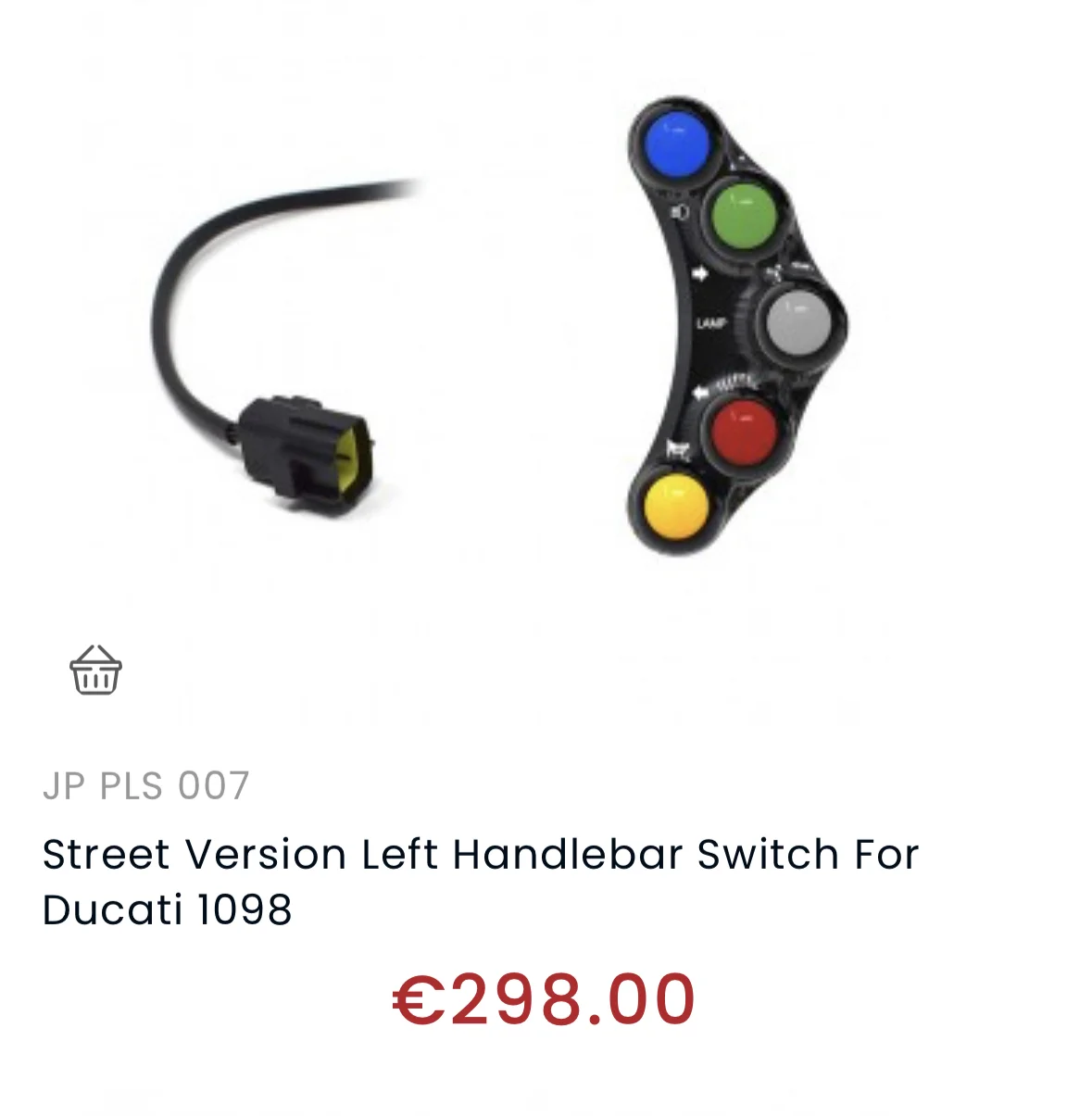

I’m interested to replace the stock switches to a sporty nicer switches like in photos attached.

Anyone did it/have experience with these?
They have some ready plug and play for Ducati 1098 and Aprilia models…
I would like to get the switch unit that will be plug and play rather than start playing with the wires.

The question is, which bike model(Ducati/Aprilia)used our exact switches so I can buy the plug and plug for that model and make the replacement much easier?

Thanks everyone as always!
Michael


Link to their website if anyone is also interested:

Jetprime Plug&Play handlebar switches

Jetprime plug & play handlebar switches for each motorbike, interchangeable with the original one mounted on the motorbike without any modification.
jetprimeshop.it jetprimeshop.it

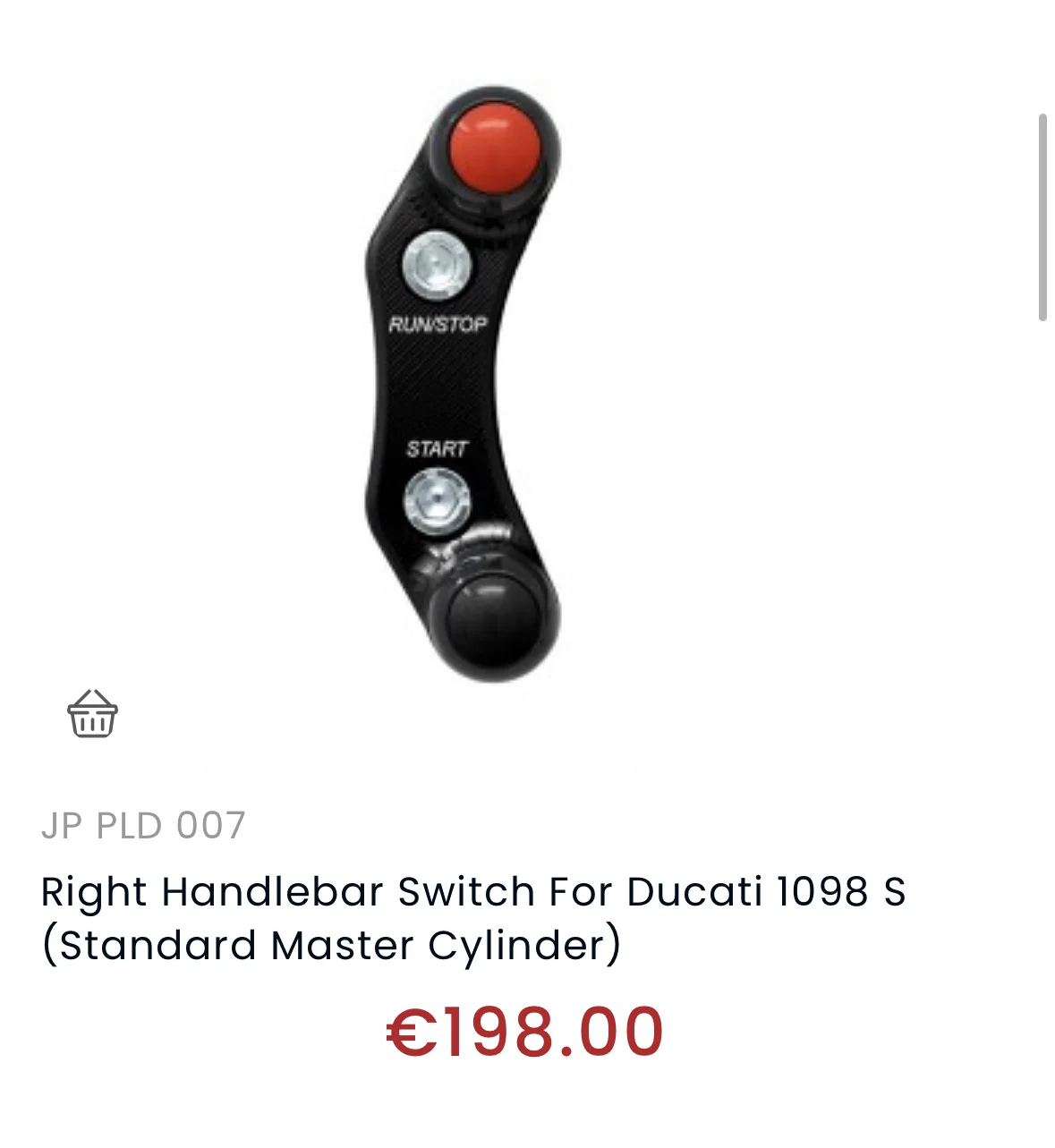

This right side switch goes straight on the Brembo master cylinder instead of the clamp which is very cool!


Attachments

  • Aftermarket handlebar control switches
    261.1 KB · Views: 98
  • Aftermarket handlebar control switches
    248.7 KB · Views: 96
Fast Eddie said:
No one will do things like that plug n play for 961s.
It will get very complicated very fast unless you are (or engage the services of) a competent motorcycle electrician.
Click to expand...
That’s for sure.
I contacted the manufacturer and waiting to hear what he have to say, I have also asked him if these are Canbus as @kommando replied and if it is possible to play with the wires to fit it to any bike… If he can’t find a way for a plug and play I think I will pass on the idea. If I will decide to go with it then I will use a motorcycle electrician to do it.

If its canbus then no chance as you need a canbus decoder, that one of your examples only has one wire it means canbus which is not current based but a data based system like a computer network.

The standard mounted electric controls are Domino series 9A, I don't know which other bikes they are compatible with but knowing the model of the control, maybe you can trace the connector
www.domino-group.com

Dispositivi elettrici On road | Domino Srl & Tommaselli

Domino... dove il successo è di casa! Tante soluzioni per lasciarsi ispirare e personalizzare la propria moto. I prodotti Domino-Tommaselli sono garanzia di unicità su strada.
www.domino-group.com

Voodooo said:
If one is going to do wiring work, I’d recommend motogadget.

Putting rainbow colors on a modern classic looking bike would look odd and out of place to me.

Good luck finding one that’s plug n play
Click to expand...
Motogadget have nice switches but there are much better and nicer compact design switches from other brands, the problem is that all their switches requires an electronic push-button control unit which is ok if you are building a customized bike from start.

For the rainbow colors on the switches, it is customizable and you can ask them to put all black buttons or red for kill and green for start for example. And anyway they give you spares so you can put what ever color you want…

In the past few years most of the customized bike builders are installing on the Caffe Racer or any other classic bike that they build the best and most modern parts and technology and it looks absolutely amazing!!!

Last edited:
NortonDominator2020 said:
Motogadget have nice switches but there are much better and nicer compact design switches from other brands, the problem is that all their switches requires an electronic push-button control unit which is ok if you are building a customized bike from start.

For the rainbow colors on the switches, it is customizable and you can ask them to put all black buttons or red for kill and green for start for example. And anyway they give you spared so you can put what ever color you want…

In the past few years most of the customized bike builders are installing on the Caffe Racer or any other classic bike that they build the best and most modern parts and technology and it looks absolutely amazing!!!
Click to expand...
Exactly why I said if your going to do custom wiring to use the motogadet.

speirmoor said:
Post a pic of the Switches you currently have. They vary across 961's
Click to expand...

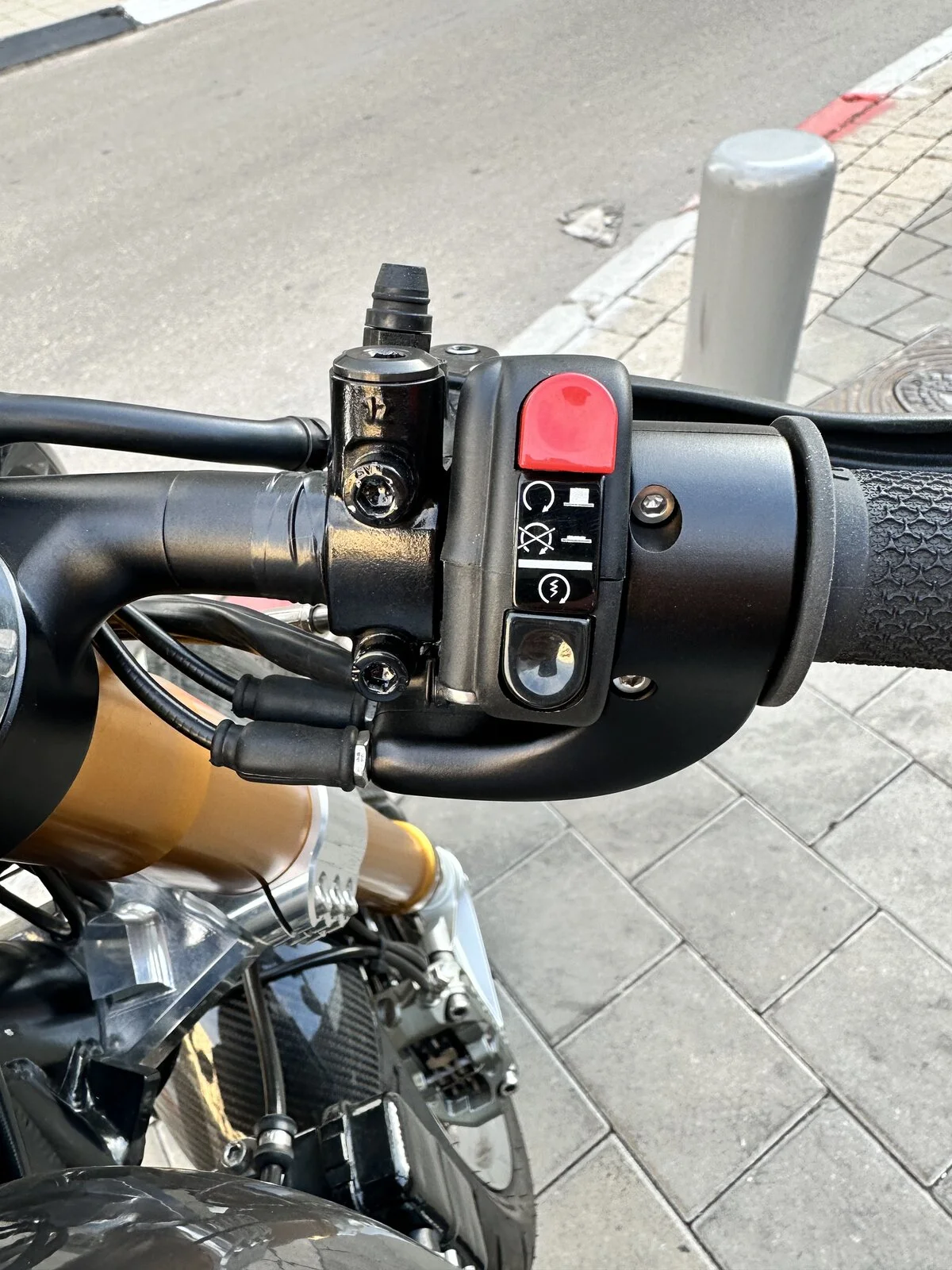

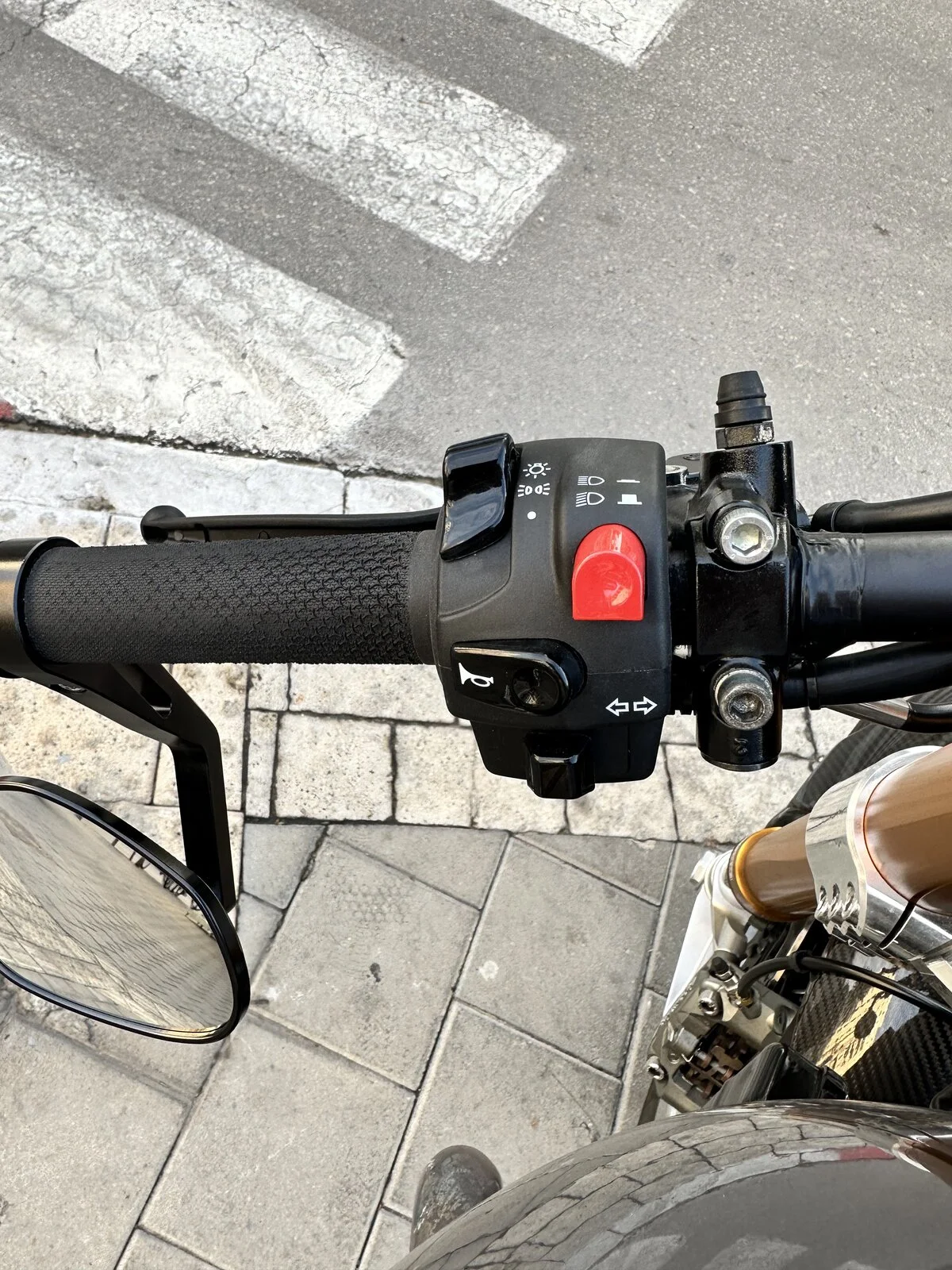

Switches attached.
There is tape on the clip ons so they will not scratch because location of the Brembo and the switches is not yet determined as they need to move a little bit on the clip handle…


Attachments

  • Aftermarket handlebar control switches
    466.6 KB · Views: 84
  • Aftermarket handlebar control switches
    353.5 KB · Views: 86
Voodooo said:
Exactly why I said if your going to do custom wiring to use the motogadet.
Click to expand...

Yes but it requires an electronic push-button control unit and I don’t want to get into that…
I’m waiting for some answers from a few brands, if it is complicated then I will pass on the idea.

NortonDominator2020 said:
Yes but it requires an electronic push-button control unit and I don’t want to get into that…
I’m waiting for some answers from a few brands, if it is complicated then I will pass on the idea.
Click to expand...
I know this. Once again I said “IF ONE IS GOING TO DO WIRING WORK” 🤣

You want something more basic or plug n play.


On another thread you said you were wanting to eliminate gauges and make things clean and minimal.

You could also go with a single gauge that provides all the information you need such as speed, rpm, oil psi, etc. all on one gauge. And you guessed it, made by motogadget lol.

Voodooo said:
I know this. Once again I said “IF ONE IS GOING TO DO WIRING WORK” 🤣

You want something more basic or plug n play.


On another thread you said you were wanting to eliminate gauges and make things clean and minimal.

You could also go with a single gauge that provides all the information you need such as speed, rpm, oil psi, etc. all on one gauge. And you guessed it, made by motogadget lol.
Click to expand...

I understood you but as I said I’m not interested to go into wiring work, if it will be required then I will pass the idea and stay with the stock.
I will not eliminate one gauge from the two we have but I wish it came only with one…

NortonDominator2020 said:
I understood you but as I said I’m not interested to go into wiring work, if it will be required then I will pass the idea and stay with the stock.
I will not eliminate one gauge from the two we have but I wish it came only with one…
Click to expand...
Some Domi racers had a single gauge. All you need is a tachometer. It can also be used as a speedo. Once you know the RPM and in which gear you’re in, you can measure mph / kph.

Example:
If you’re in 5th gear at 2500 rpm and if that’s 50 mph, it’ll always be the same.
Or you could use your phones gps as your Speedo.

Voodooo said:
Some Domi racers had a single gauge. All you need is a tachometer. It can also be used as a speedo. Once you know the RPM and in which gear you’re in, you can measure mph / kph.

Example:
If you’re in 5th gear at 2500 rpm and if that’s 50 mph, it’ll always be the same.
Or you could use your phones gps as your Speedo.
Click to expand...
Yes I know, and Stu also have only one…

I want to enjoy the ride, not to do calculations while I’m riding😂

I’m ok with the two gauges just wished it came with one as I said…

NortonDominator2020 said:
Switches attached.
There is tape on the clip ons so they will not scratch because location of the Brembo and the switches is not yet determined as they need to move a little bit on the clip handle…
Click to expand...
Ok same as mine. I believe they sell these as Universal and not bike specific so I cant find any OEM bike other than ours with them on.
Still not a deal breaker. I'd look to see what connector we have on our switch gear and work backwards from there. Once you know what type connector you can configure whatever way you want without messing anything up from the factory

speirmoor said:
Ok same as mine. I believe they sell these as Universal and not bike specific so I cant find any OEM bike other than ours with them on.
Still not a deal breaker. I'd look to see what connector we have on our switch gear and work backwards from there. Once you know what type connector you can configure whatever way you want without messing anything up from the factory
Click to expand...
Thanks! I’m waiting for answers from a few brands and I will update here…
