Hi everyone,

As I got a lot of tips and inspirations from this site in the past I want to

share my story about installing electronic instruments and the speed sensor on my P11A.

Don’t expect fancy machine work here . My skills and workshop equipment is limited.



After living nearly 30 years with the mechanical Smiths instruments and their well known draw backs I wanted to try the digital ones this time.

The goal is that the conversation should look as stock as possible.



For the speed sensor I like the Comnoz solution. Because it gets rid of the dreaded tach drive internals. Unfortunately it was sold out.

So I had to do it myself.

The sensor is a Motogadget M5 reed switch with 2 magnets.

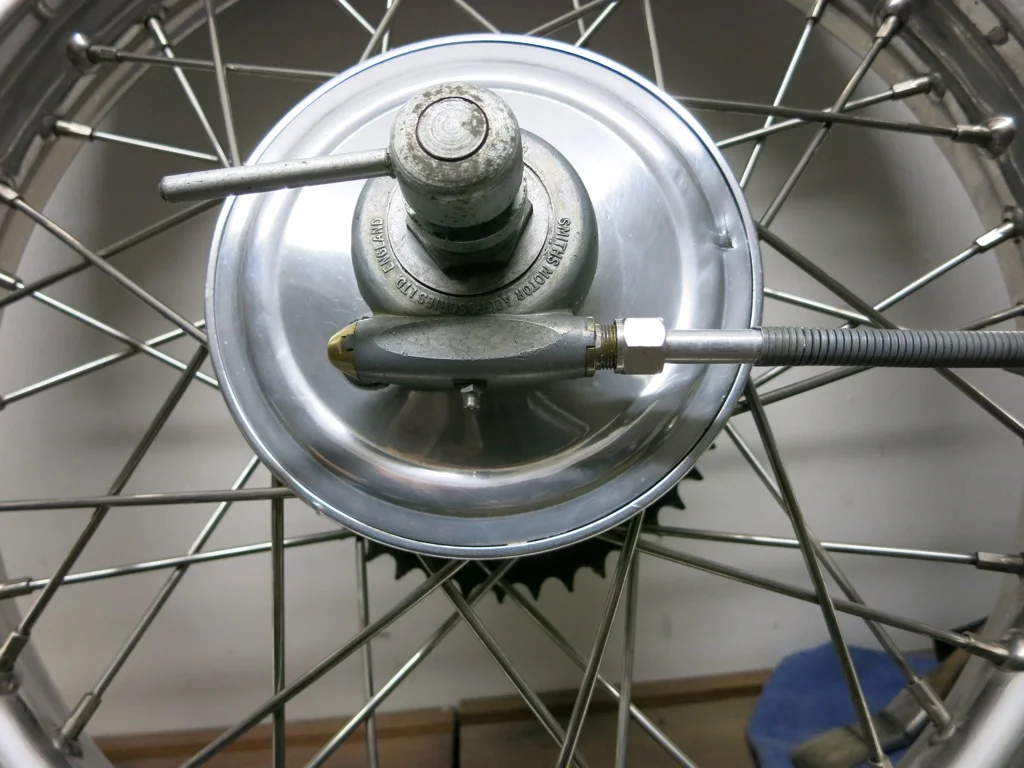

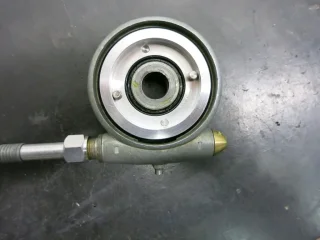

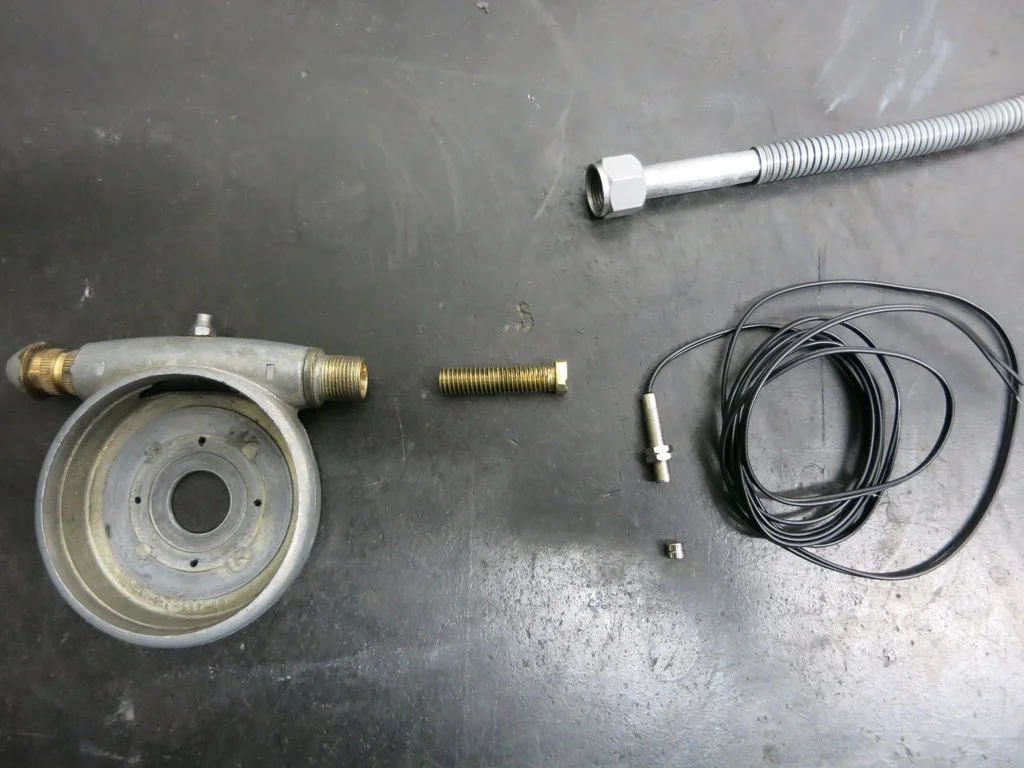

An old defective tach drive was stripped and and the sensor installed.

71149[/ATTACH]']
Digital instruments for a P11

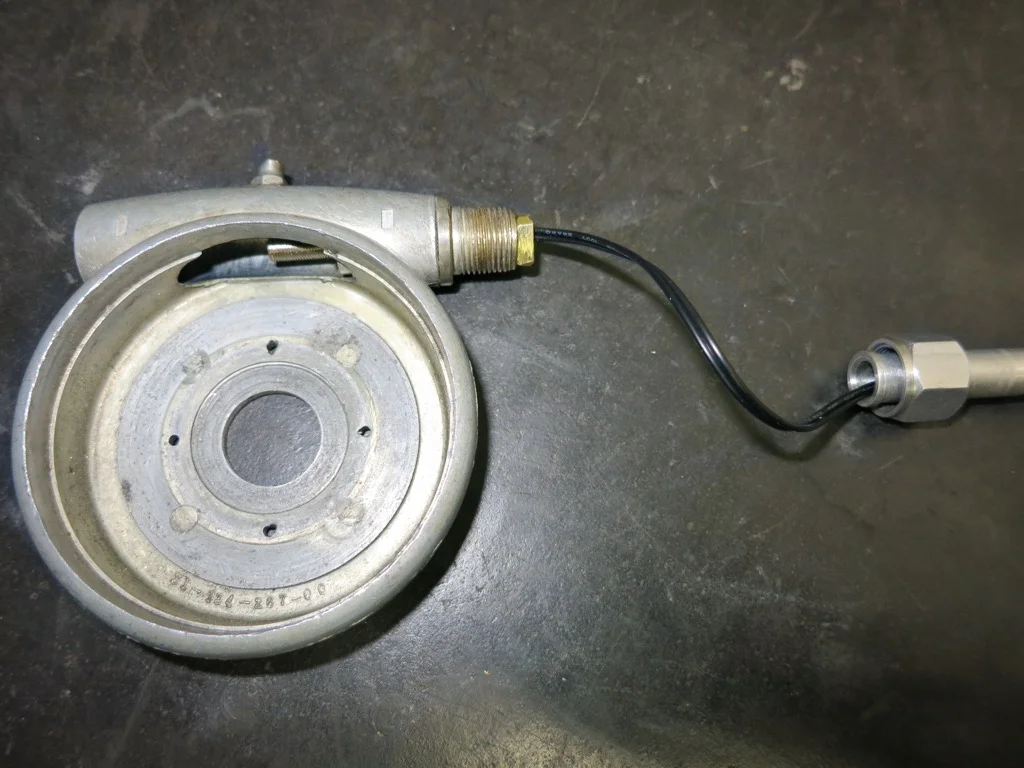

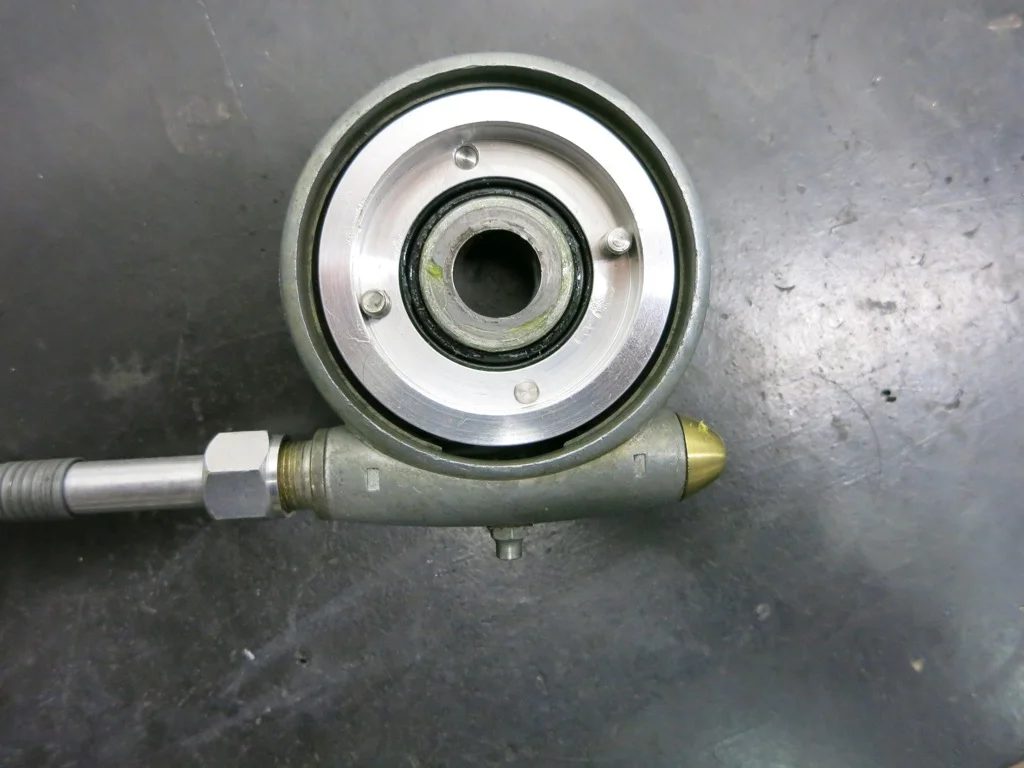

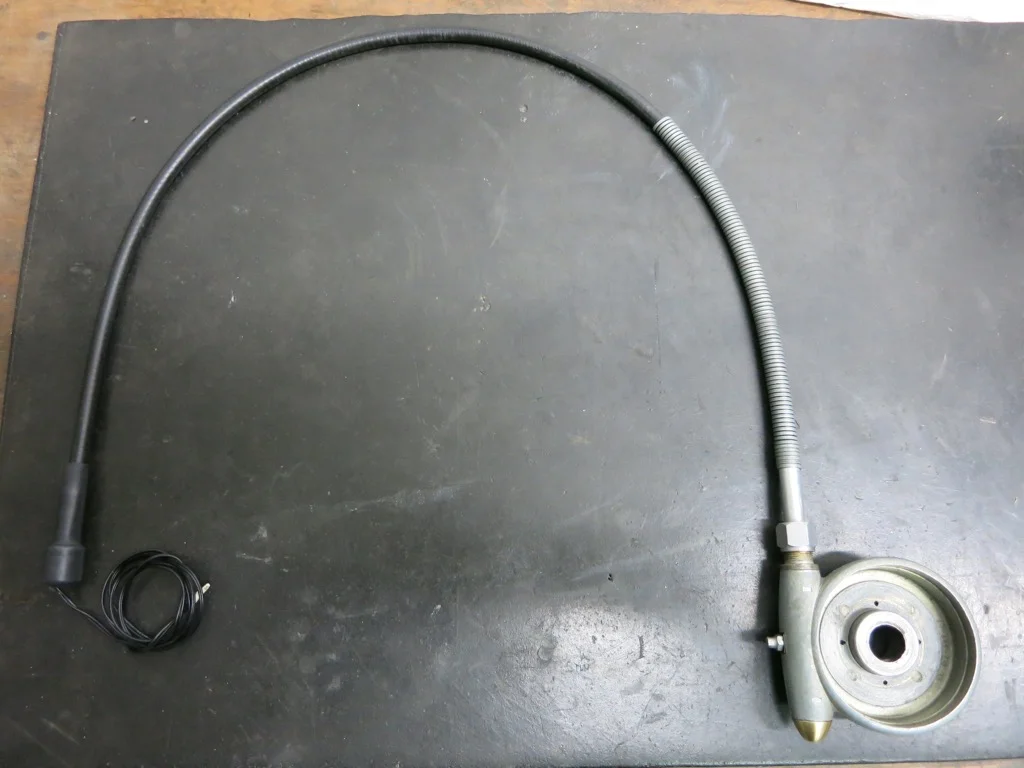

The cable runs inside an old tach drive cable which exits in the battery area.

71151[/ATTACH]']
Digital instruments for a P11


71153[/ATTACH]']
Digital instruments for a P11

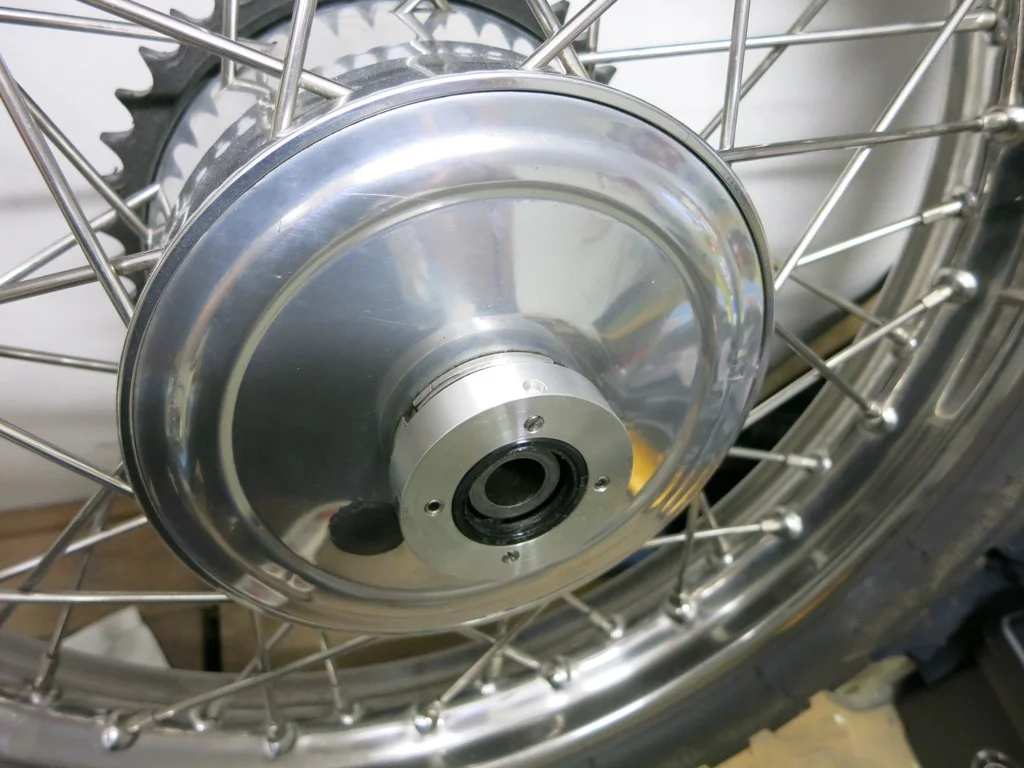

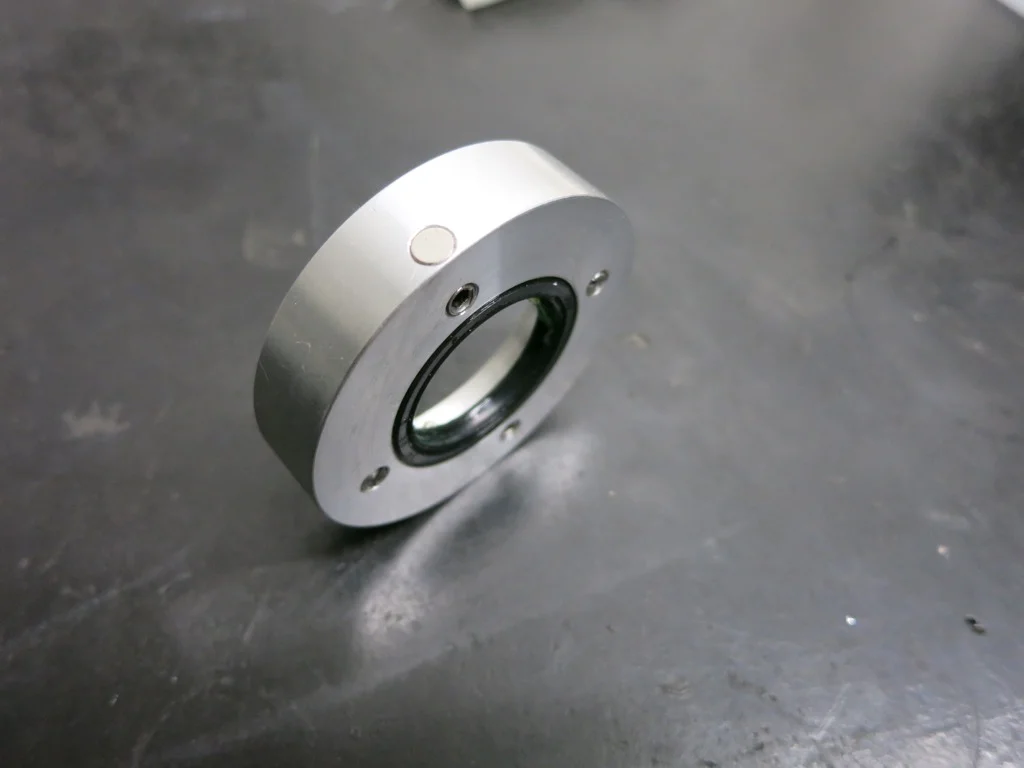

A magnet carrier was made and glued with RTV to the rear wheel.

150 km later it is still in place.

71155[/ATTACH]']
Digital instruments for a P11


Attachments

  • Digital instruments for a P11
    87.9 KB · Views: 215
  • Digital instruments for a P11
    146.2 KB · Views: 221
  • Digital instruments for a P11
    186.2 KB · Views: 226
  • Digital instruments for a P11
    182.8 KB · Views: 237
71157[/ATTACH]']
Digital instruments for a P11


71159[/ATTACH]']
Digital instruments for a P11


71161[/ATTACH]']
Digital instruments for a P11

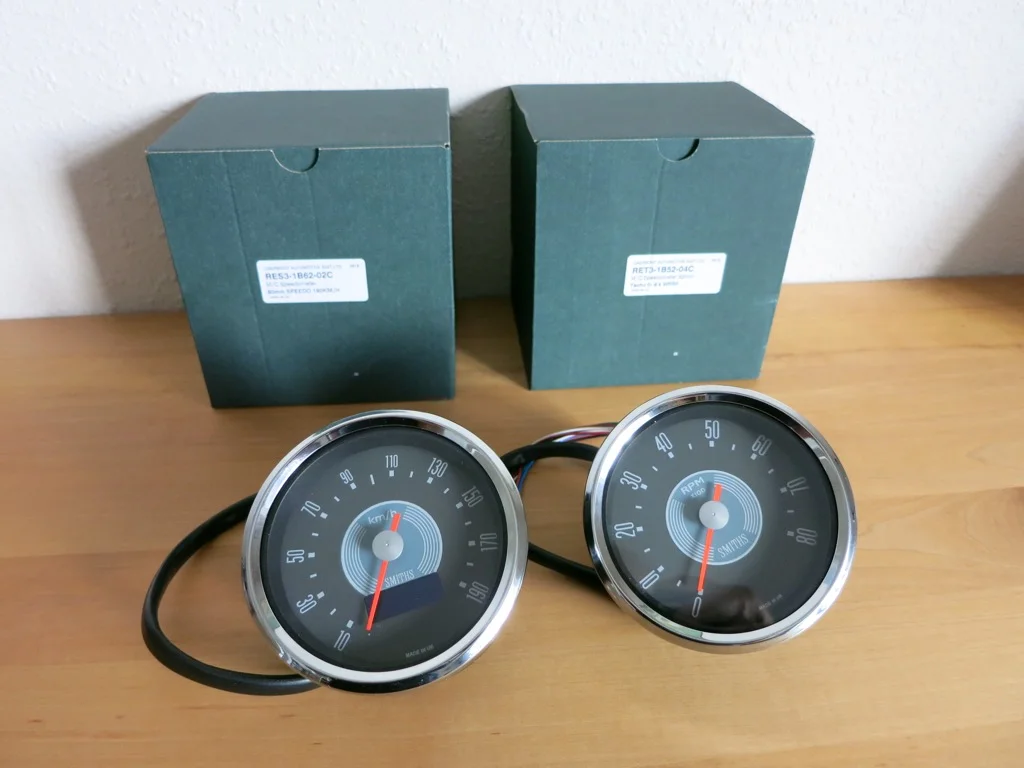

After a 3 months wait the instruments finally arrived from Caerbont.

The speedo is a special with a 190 kmh dial.

71163[/ATTACH]']
Digital instruments for a P11

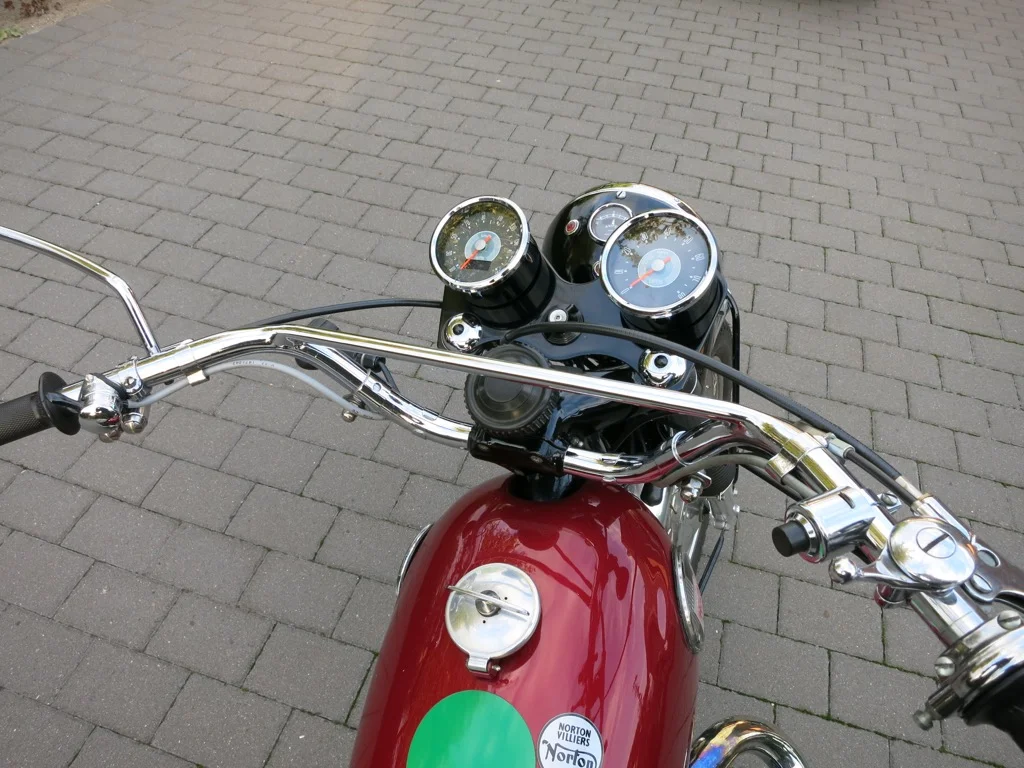

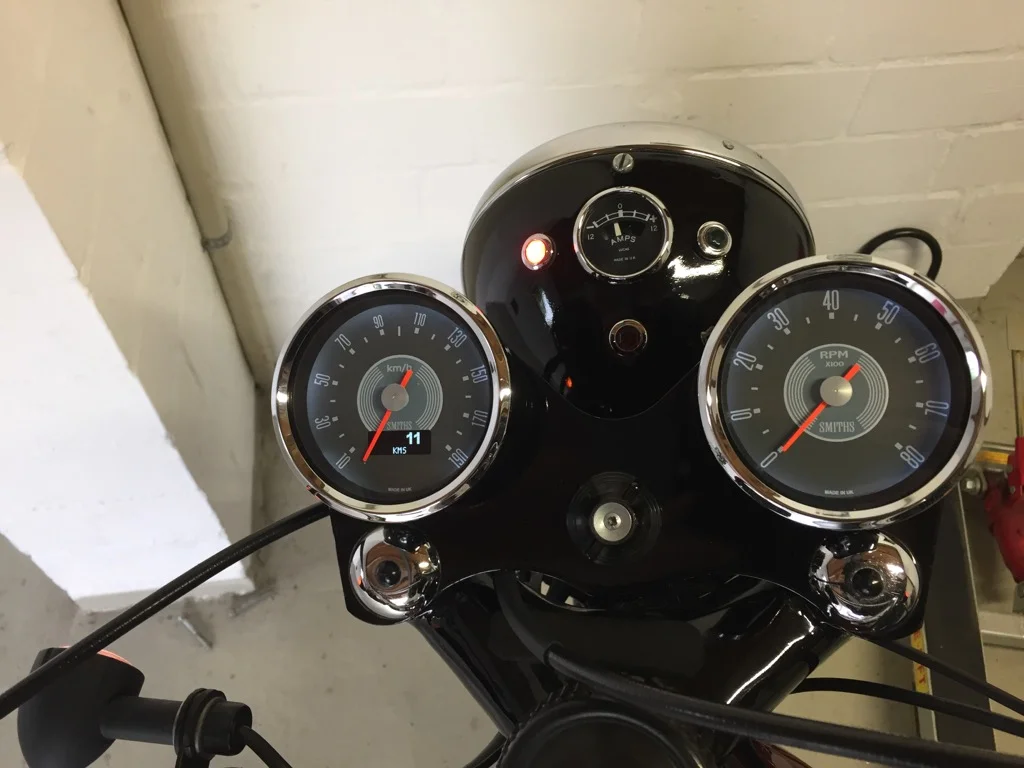

The wiring was a challenge but with the help of the Caerbont technical staff the instruments are now working.

71165[/ATTACH]']
Digital instruments for a P11


Attachments

  • Digital instruments for a P11
    142.8 KB · Views: 248
  • Digital instruments for a P11
    132.6 KB · Views: 239
  • Digital instruments for a P11
    174 KB · Views: 218
  • Digital instruments for a P11
    171.5 KB · Views: 196
  • Digital instruments for a P11
    150.2 KB · Views: 213
Vercu, be careful not to expose the clocks to moisture as I understand they are leaking and really needs to be sealed. / Vorsicht bei Niederschlag, denn die Instrumente sind nicht wasserdicht.

-Knut

Knut, I read that in the forums too.
I hope Smiths have improved their design in the meantime.
At least they advertise them with a new billet case and waterproof to IP67.

71294[/ATTACH]']
Digital instruments for a P11


71296[/ATTACH]']
Digital instruments for a P11


71298[/ATTACH]']
Digital instruments for a P11


After a 3 months wait the instruments finally arrived from Caerbont.

The speedo is a special with a 190 kmh dial.

71300[/ATTACH]']
Digital instruments for a P11


The wiring was a challenge but with the help of the Caerbont technical staff the instruments are now working.

71302[/ATTACH]']
Digital instruments for a P11

You say the instruments are working well, so I have to ask if there is anything left worth saving on this bike?
The last photo indicates that you are moving close to 100 kph toward that wall in front of you with the engine off....
:rolleyes:


Attachments

  • Digital instruments for a P11
    150.2 KB · Views: 206
  • Digital instruments for a P11
    171.5 KB · Views: 209
  • Digital instruments for a P11
    174 KB · Views: 226
  • Digital instruments for a P11
    132.6 KB · Views: 210
  • Digital instruments for a P11
    142.8 KB · Views: 214
The modifications on my bikes are never permanent. It is easy to bring it back to the original state.

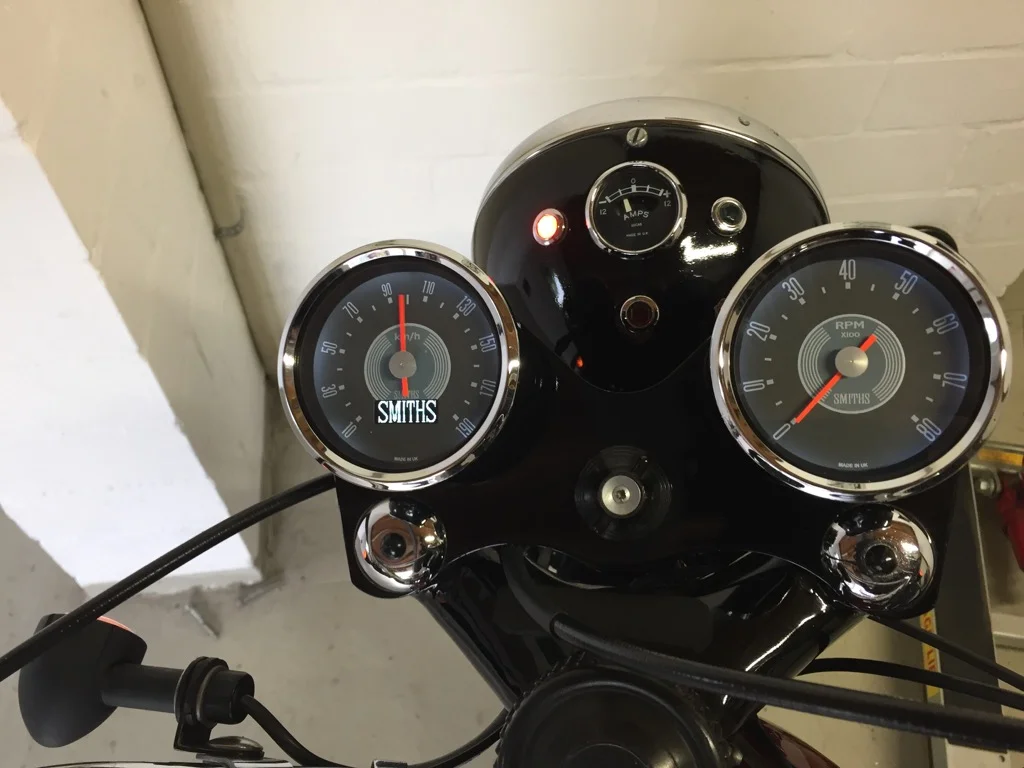

The photo is taken during the startup sequence of the instruments. They swing to the end of the dial and back. The Smiths sign will disappear after that.
And yes the tacho should do that also. The tacho is send back in order to activate this.

Vercu, is there a resettable trip meter as well as an odometer?
Digital instruments for a P11

The Smiths logo disappears after a few seconds. After that you will see the odometer.

Digital instruments for a P11


The kill switch is used to switch between odometer and trip meter.
