'74 Commando 850 refurb

jae

Joined
Nov 5, 2019
Messages
22
Country flag
I think I like the clubman bars on in this orientation


I see why it was said to make sure the master cylinder would work with these bars, but I think I'm going late model on the brakes and switches. I like the digital controlled turn signals and high beam controls with momentary buttons... We'll see what the budget allows once I can figure out the cost of the "knowns" on the list I posted earlier.


jae

Joined
Nov 5, 2019
Messages
22
Country flag

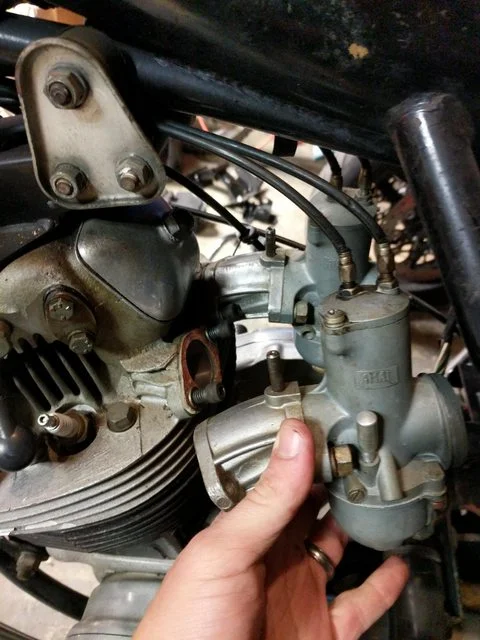

as for those carbs...

they aren't easy to get off.

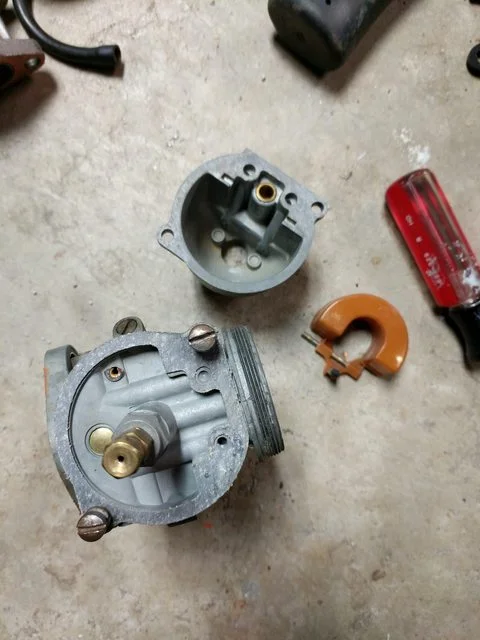

hopeful after the first one came out clean

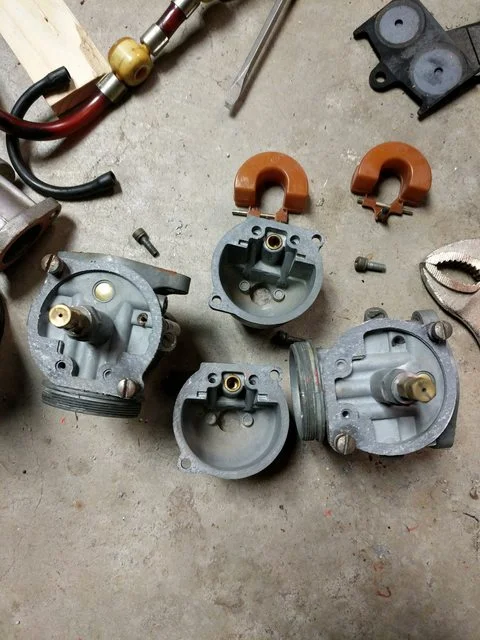

overall, about the cleanest set of carbs I've ever pulled off a bike

Joined
Jan 5, 2019
Messages
2,254
Country flag
Either drained or not had fuel in them since last cleaning. Leaves one optimistic.

I just had a very nice uneventful ride which left me feeling invigorated and optimistic myself...… Just waiting for the sky to fall now.


gortnipper

VIP MEMBER
Joined
Nov 11, 2013
Messages
4,867
Country flag

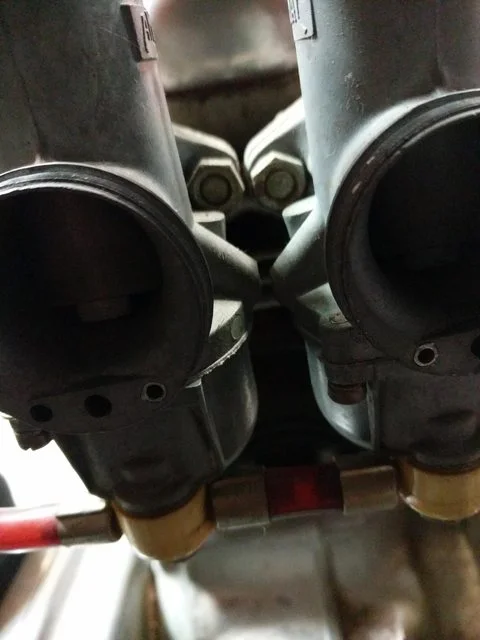

Those should not be nuts/studs on the central carb mounts, but rather Allen head caps. You then use a key with the short end shortened by half to get in there.


L.A.B.

Moderator
VIP MEMBER
Joined
Nov 20, 2004
Messages
17,085
Country flag
Those should not be nuts/studs on the central carb mounts, but rather Allen head caps.

Are you looking at the carb flange nuts/studs? The manifold-to-head fasteners look like normal cap heads.

Joined
Jan 5, 2019
Messages
2,254
Country flag
Don't worry, once you've had those carbs off a few hundred times, it won't be so difficult.:D
Righto there! I've got that routine down to where it's not even a minor nuisance to pull, clean, & install..... I still don't find pleasure in the task though.


jae

Joined
Nov 5, 2019
Messages
22
Country flag
I don't think I've used regular allen keys in a couple of years since buying my set of t-handle hex keys, but there was no way those t-handles would fit in that middle area to get to those inner manifold bolts. Probably took me as long to find the right size allen key as to unbolt that first manifold.


Tornado

VIP MEMBER
Joined
Dec 5, 2017
Messages
2,966
Country flag
I don't think I've used regular allen keys in a couple of years since buying my set of t-handle hex keys, but there was no way those t-handles would fit in that middle area to get to those inner manifold bolts. Probably took me as long to find the right size allen key as to unbolt that first manifold.

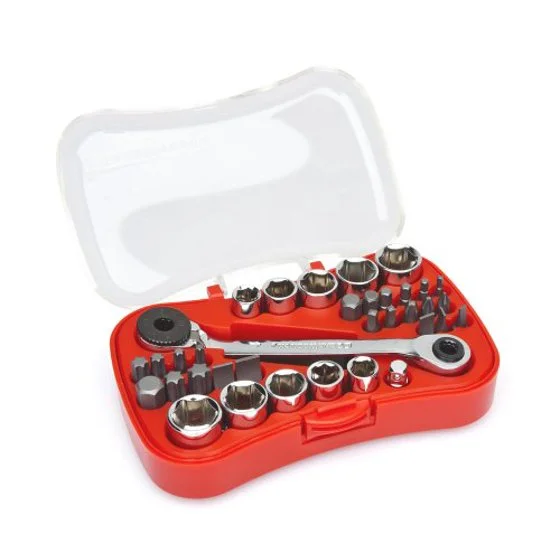

I find a little micro ratchet wrench with hex Allen bit can get intothe mani to head socket bolts reasonably well. No need to remove key, reposition lever arm and insert repeatably to get the bolts out/in.



Tornado

VIP MEMBER
Joined
Dec 5, 2017
Messages
2,966
Country flag
Nice, thanks.
Now I can quit cutting off my hex wrenches.
I'm thinking to grind back the micro kits hex bit as it is a wee bit long such that as bolt come out it gets more difficult to remove the tool. I just get bolts loose enough to complete by finger turning.

Joined
Jan 5, 2019
Messages
2,254
Country flag
Kinda anal, but I've been using the same cut down hex wrench since I got the bike years ago.... Lost about everything else though. Just to move into the new times I've been considering a set of ball-end tee handle doo-dads because my fingers don't bend very well anymore.

Ratchet looks good, but could cause my head to explode from too much new.

Joined
Jan 5, 2019
Messages
2,254
Country flag
I've got large stiff fingers and turning those screws is not the least bit of fun on a cold day. Snap, crackle, pop.... hurting all the way, and a ratchet skins up knuckles when the shakes come on so it becomes a sort of no win scenario for me, but those buggers are coming out if I have to use explosives to get it done.
Right now I'm trying to decide just how much the oil leaking at the pushrod tunnels annoys me because that's going to be a real circus for fingers & shakes. Pray for me because my left boot is catching oil.


grandpaul

VIP MEMBER
Joined
Jan 15, 2008
Messages
12,146
Country flag
I bought a set of ball-end allen wrenches at Sears about 20 years ago, perfect tool for the job. use the long end to get in there, you have to wiggle it around between the rear frame downtubes and web plate, but they JUST fit, and the ball ends let you get the right angle to tweak. Then, you can slip a small nut driver over the short end to give you leverage.

Once or twice I've cut down the outer edge of the inner hole on each intake to first install the insulators and inner screws, then slip the intakes in (with carbs already attached). It helped, but I've since gotten better at it, without having to cut them down...


Scout63

VIP MEMBER
Joined
Nov 24, 2016
Messages
522
Country flag
Great thread. Every bike tells a story. I’m looking forward to this one.


jae

Joined
Nov 5, 2019
Messages
22
Country flag

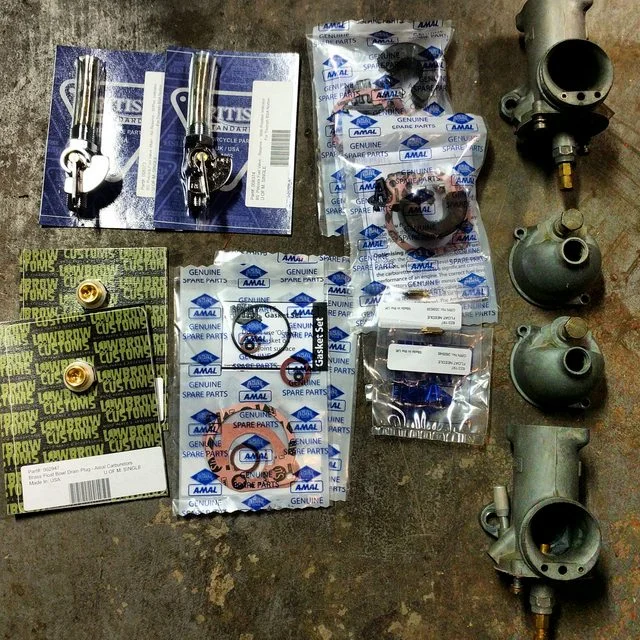

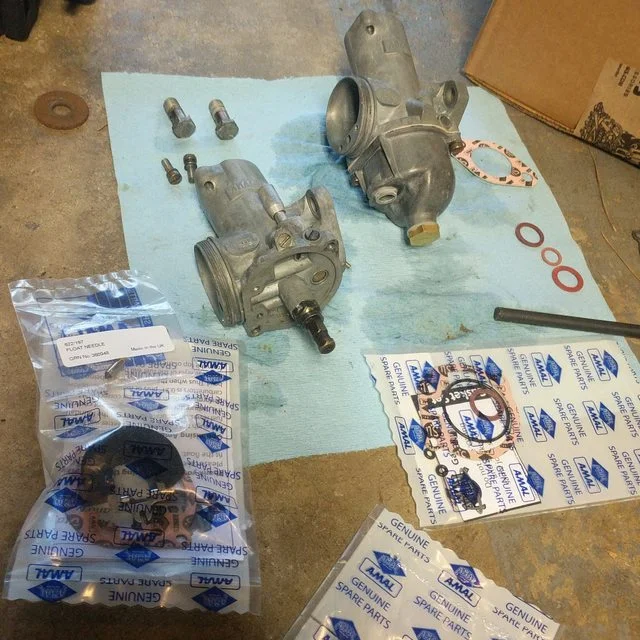

finally getting parts in to get the carbs back together... the plastic float bowl plugs disintegrated when I tried to remove them, so I got some brass plugs to replace them. I also don't know that there was anything wrong with the floats, but figured I'd go ahead and put in some new floats/needles that are supposed to be ethanol safe.



Ran both carbs through the ultrasonic cleaner, then pulled each screw and jet to blow everything out with compressed air, and install new o-rings before reassembly.



Tornado

VIP MEMBER
Joined
Dec 5, 2017
Messages
2,966
Country flag
Be sure to test fuel passages from down bottom of bowls and then from carb body to jets. I had blockage on the fuel side passage in carb body but could still get air or cleaner to spray out jets from the air passage side. I followed Bushmans guide to finally clear it drilling out the blanked side for mixture screw, clearing with some wire poking and pushing a wd40 straw up from carb underside pickup hole, bending past the 90 deg elbow and all the way to the next junction. I sealed up the drilled hole by tapping and fitting a cut off mixture screw with some locktite as sealant.

Here's the Bushman's Tuning Guide for Amal Carbs:
http://www.jba.bc.ca/Bushmans Carb Tuning.html

Last edited:
