“WHICH PARTS FROM OTHER BIKES FIT THE 961”

Did you have to do anything else to disable the unit prior to fitting the resistors?

YES , Once you know your tip over switch is bad or going bad etc. , the swing magnet should be removed along with any other IC's and components soldered on the PCB itself. I do this simply with a wire side cutters , and the rest of the tip switch plastic body and internal support parts you keep for re-assembly . The pc-board should now be ready for you to solder on the resistors and 1/2 watt metal film resistors is what I used and those fit nicely inside the unit. I finish by using some RTV to stabilize the resistors from vibration and shocks .


“WHICH PARTS FROM OTHER BIKES FIT THE 961”

Last edited:
TonyA said:
YES , Once you know your tip over switch is bad or going bad etc. , the swing magnet should be removed along with any other IC's and components soldered on the PCB itself. I do this simply with a wire side cutters , and the rest of the tip switch plastic body and internal support parts you keep for re-assembly . The pc-board should now be ready for you to solder on the resistors and 1/2 watt metal film resistors is what I used and those fit nicely inside the unit. I finish by using some RTV to stabilize the resistors from vibration and shocks .


“WHICH PARTS FROM OTHER BIKES FIT THE 961”
Click to expand...
What a great job, keep up the good work and we'll be reet .

comet said:
Do you know what type of lubricant?
Click to expand...
In the olden days when people repaired things (brakes) you could buy rubber grease or you used to get it inside a wheel cylinder kit.
Girling or Lockheed used to make it.
Hope this helps but check the small print.

MAK said:
In the olden days when people repaired things (brakes) you could buy rubber grease or you used to get it inside a wheel cylinder kit.
Girling or Lockheed used to make it.
Hope this helps but check the small print.
Click to expand...
Vaseline for me, don't tell the Mrs.

I've had a reply from the VDO distributor in the UK.....


Dear Mr Martin, Ref you enquiry on our website dated 3rd April.

Continental did supply 3 gauges to Norton prior to administration these are as follows. Unfortunately we do not offer a repair service but we have stock of new replacement gauges and should you wish to purchase please call our sales desk on 0121 725 1234, feel free to share this information with your members

Part Number / Description / Price

A2C1406820001 / SPEEDOMETER, EURO4, MPH / £155
A2C1406860001 / TACHOMETER, EURO4, RPM / £105
A2C1432490001 / SPEEDOMETER, EURO4, KPH / £155

Regards
Shaun Popple
Head of Distribution Sales & Marketing
Regional Sales Organization UK & Ireland

Continental
Vehicle Networking and Information (VNI)
Business Unit Commercial Vehicles and Services (CVS)

Billing address:

Continental Automotive Trading UK Ltd
Unit 36
Gravelly Industrial Park
Birmingham
West Midlands
B24 8TA

Phone: + 44 (0) 121 7251328
Mobile: + 44 (0) 7802 286303
Telefax:
E-Mail: shaun.popple@continental-corporation.com

http://www.continental-corporation.com
http://www.vdo.com/uk
http://www.cryptontechnology.com
http://www.vdo-fleet.co.uk
http://www.vdoshop.co.uk

Can a UK forum member find out where we can get the front sprocket for the Norton 961 ? I have an inquiry email sent to JT Sprockets . I thought TALON was the best place to start but I think they said not from them . Maybe now that Norton is out of business we can find out where the front sprocket came from ? The rear is no problem just look for BST type 2 from TALON .

Fast Eddie said:
https://coloradonortonworks.net/counter-shaft-sprocket-961.html
Click to expand...


I want the stock 18T size .

Would someone for this forum in the UK be willing to spearhead a "batch buy" of front sprockets from TALON ? TALON said they did make these for Norton but need a quantity of 10 minimum to produce again. I am willing to buy 2 or even 3 if someone here can be the representative to TALON for this ? They will not want to ship overseas so you need to be UK based .

Very nice find. Thank you, Tony. What makes it an upgrade rather than just a replacement? Temp range?

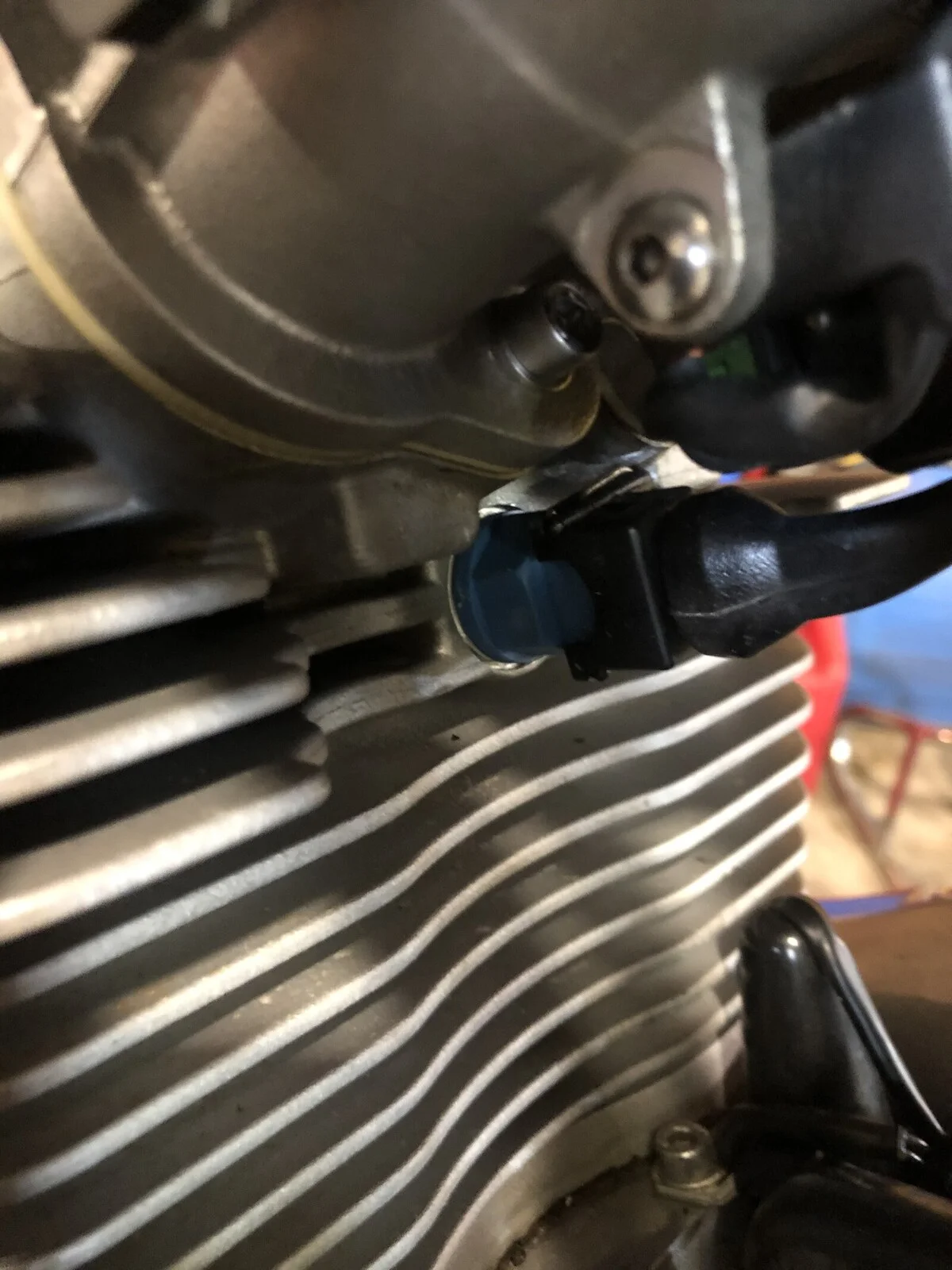

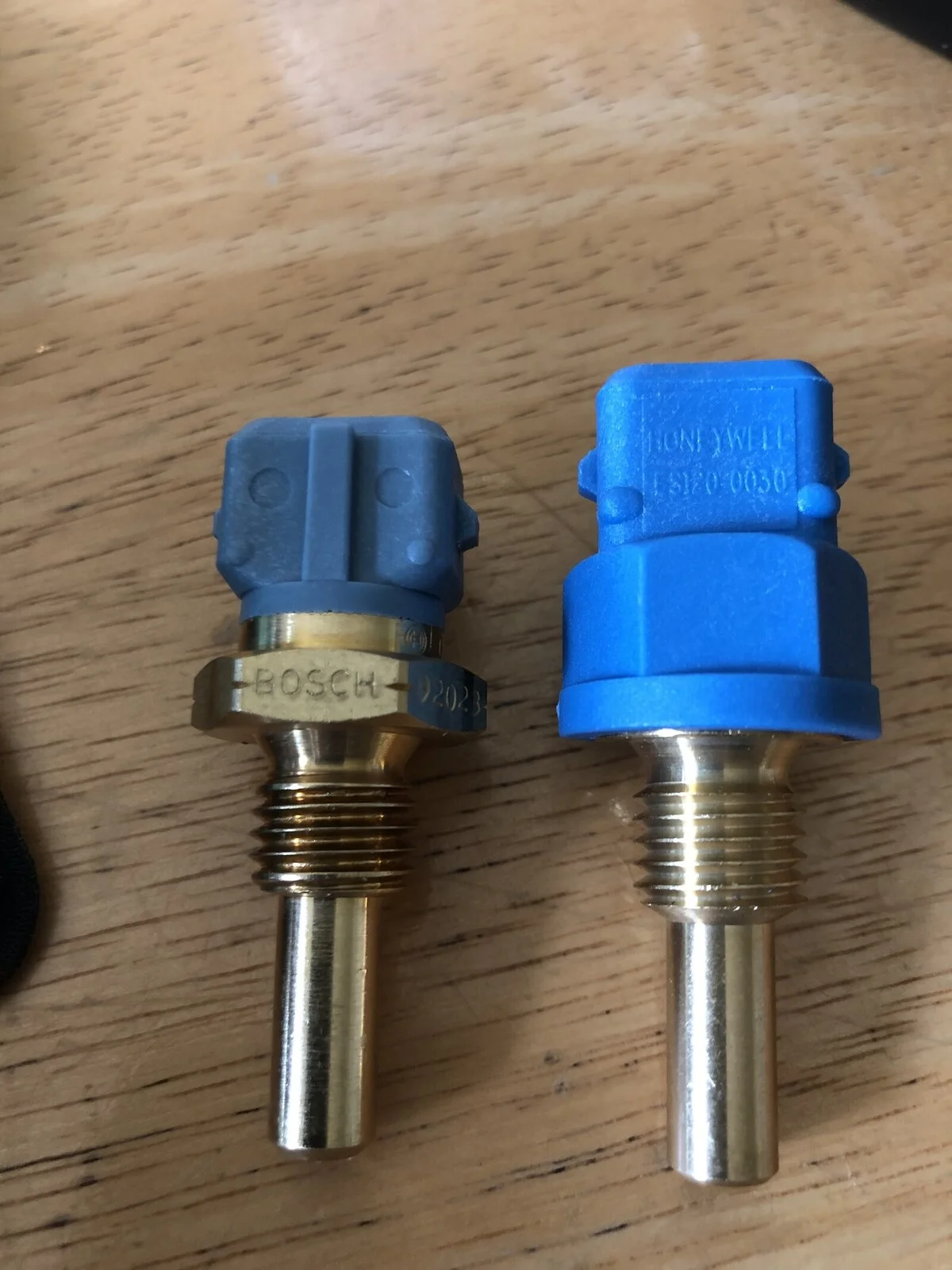

YES , +150C not just +130C like Bosch. Some seemed concerned that the Bosch could get stressed by repeated over temps. It would require a very hot summer day in traffic to do this. Its just another option , I wouldn't worry about it. But if you're going to replace your head temp sensor you may consider this one. It is a current and available Honeywell product available from a variety of suppliers on line .

Or as previous threads suggest use the JUMO one that's rated -50'c to 270'c and was the NORTON stock part prior to there recent demise.

I can't get those , not available to me in the USA . If you have a source please post it . The 150C version should be more than enough range based on my findings .

Last edited:
