Recommendations for a replacement battery for a 961

cliffa said:

Actually 4 reasons - I just cannot leave things alone. My wife calls it "Titting around"

Click to expand...

TonyA said:

I can think of a few more reasons to move your battery to the new location :
1. Keep the weight down lower on the machine .
2. No more worries about touching off a big arc blast under your alloy gas tank.
3. A good use of open space , I thought about putting a oil tank reservoir there for extra capacity especially for those with the long steep descents that are starving the oil supply.

Click to expand...

TonyA said:

I can think of a few more reasons to move your battery to the new location :
1. Keep the weight down lower on the machine .
2. No more worries about touching off a big arc blast under your alloy gas tank.
3. A good use of open space , I thought about putting a oil tank reservoir there for extra capacity especially for those with the long steep descents that are starving the oil supply.

Click to expand...

City Garage said:

1. Not going to matter with a lithium.
2. this was the worst placement for this motorcycle yet others like BMW have it mounted under the tank/over the engine
3. Tony this is the best idea Ive heard for any 961 mod. oil box with two fittings run the return into one and the other back to the oil tank in frame

Click to expand...

cliffa said:

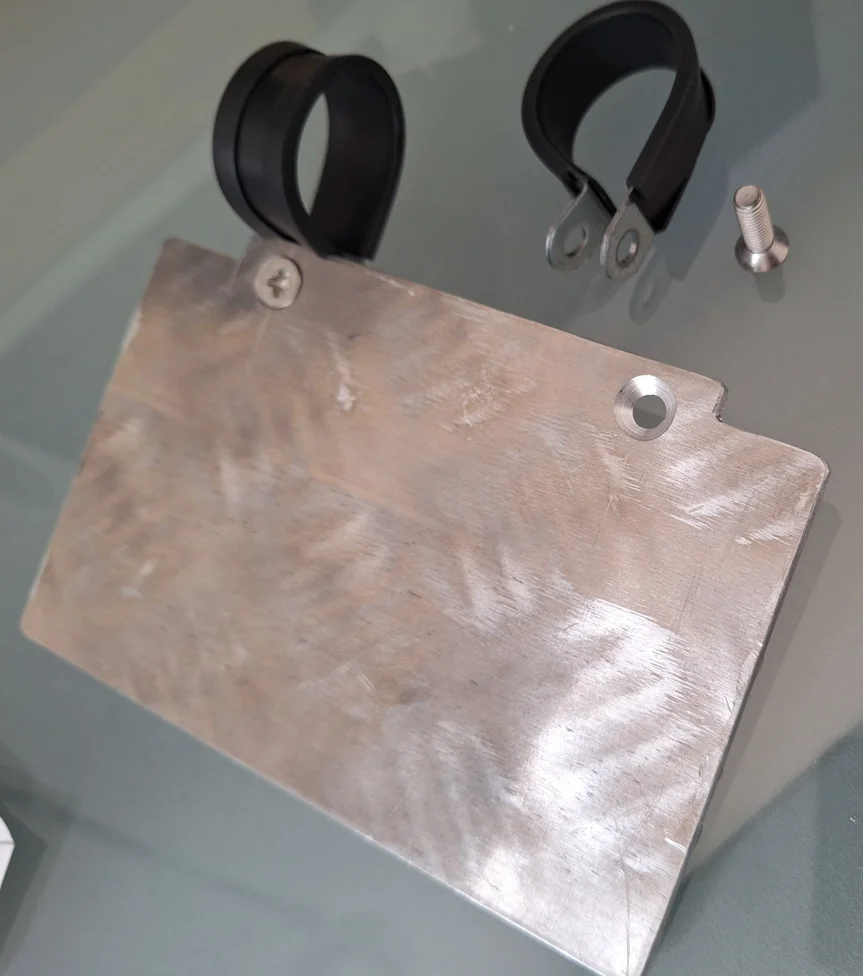

I got back to the battery relocation today after a slight change of plan. Instead of a flat plate, the tray is now an "L" shape and has a padded front to it. I made a rear retainer strap out of aluminium (aluminum), and drilled the bottom of the airbox to accept an M6 spider nut. Those airboxes must be really thick, as the nut couldn't reach all the way inside it I used a nut and bolt to spread it, and is seems to be secure enough, but there isn't much load on it anyway. The bottom of the strap just hooks over a stud sticking out of the tray. I made some new starter cables ( see here) and will fit them tomorrow. In the original battery position I will install an isolating switch pointing downwards. I'll post pics of that when it's done.

Click to expand...

cliffa said:

I got back to the battery relocation today after a slight change of plan. Instead of a flat plate, the tray is now an "L" shape and has a padded front to it. I made a rear retainer strap out of aluminium (aluminum), and drilled the bottom of the airbox to accept an M6 spider nut. Those airboxes must be really thick, as the nut couldn't reach all the way inside it I used a nut and bolt to spread it, and is seems to be secure enough, but there isn't much load on it anyway. The bottom of the strap just hooks over a stud sticking out of the tray. I made some new starter cables ( see here) and will fit them tomorrow. In the original battery position I will install an isolating switch pointing downwards. I'll post pics of that when it's done.

Click to expand...

peebee said:

So your not going to reinstate the hugger I guess.

Click to expand...

cliffa said:

There is plenty of clearance actually, so it will be going back on after I’ve cleaned up some rust around the mounting holes. I think the hugger holds water underneath causing the rust. I was thinking of ways to stop that. Maybe a rubber or foam gasket?

Click to expand...

cliffa said:

I got back to the battery relocation today after a slight change of plan. Instead of a flat plate, the tray is now an "L" shape and has a padded front to it. I made a rear retainer strap out of aluminium (aluminum), and drilled the bottom of the airbox to accept an M6 spider nut. Those airboxes must be really thick, as the nut couldn't reach all the way inside it I used a nut and bolt to spread it, and is seems to be secure enough, but there isn't much load on it anyway. The bottom of the strap just hooks over a stud sticking out of the tray. I made some new starter cables ( see here) and will fit them tomorrow. In the original battery position I will install an isolating switch pointing downwards. I'll post pics of that when it's done.

Click to expand...

cliffa said:

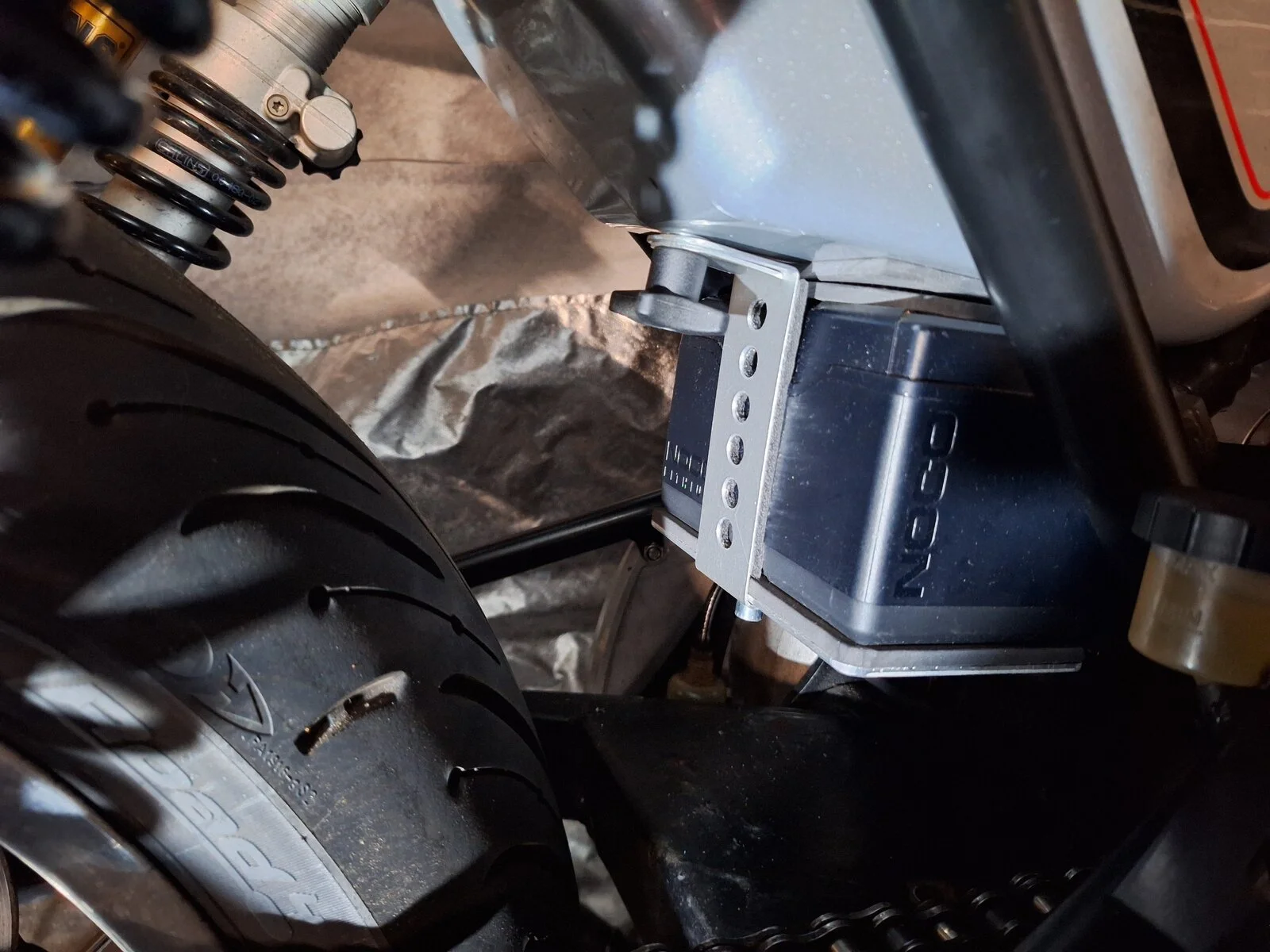

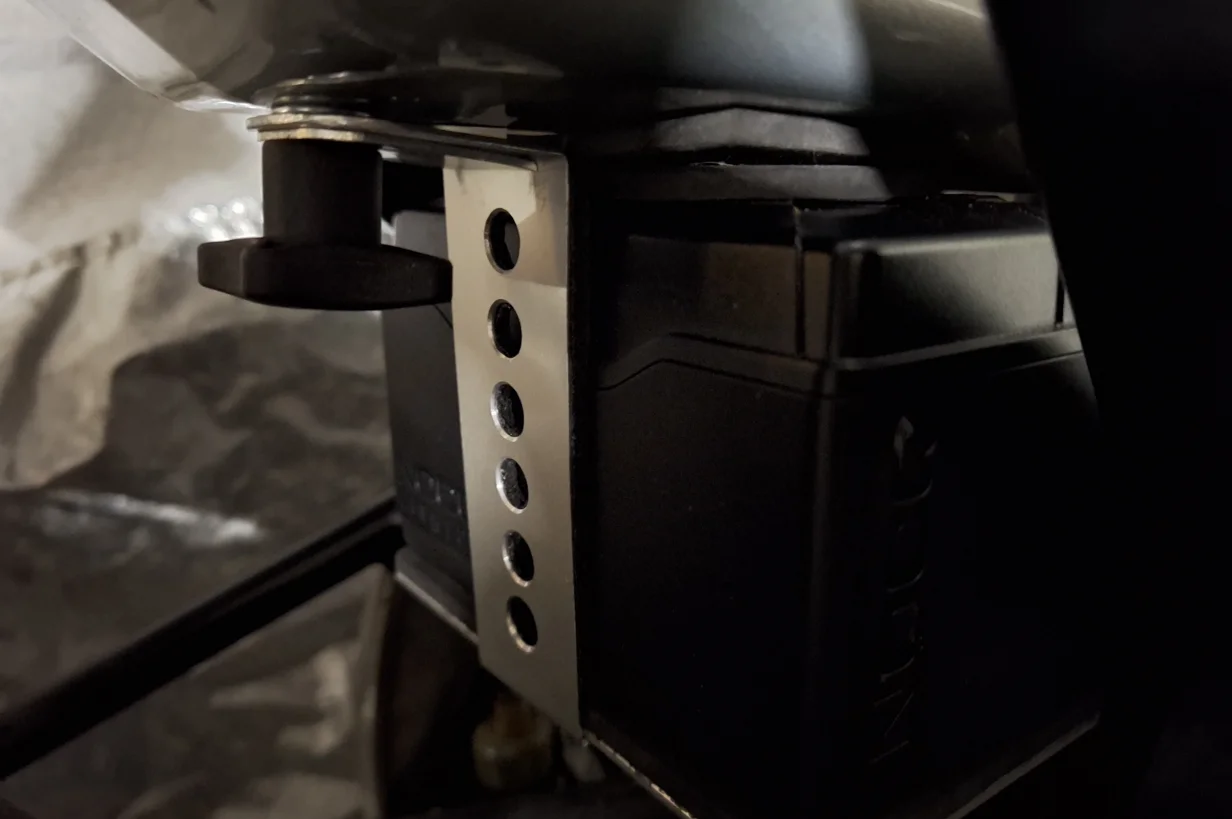

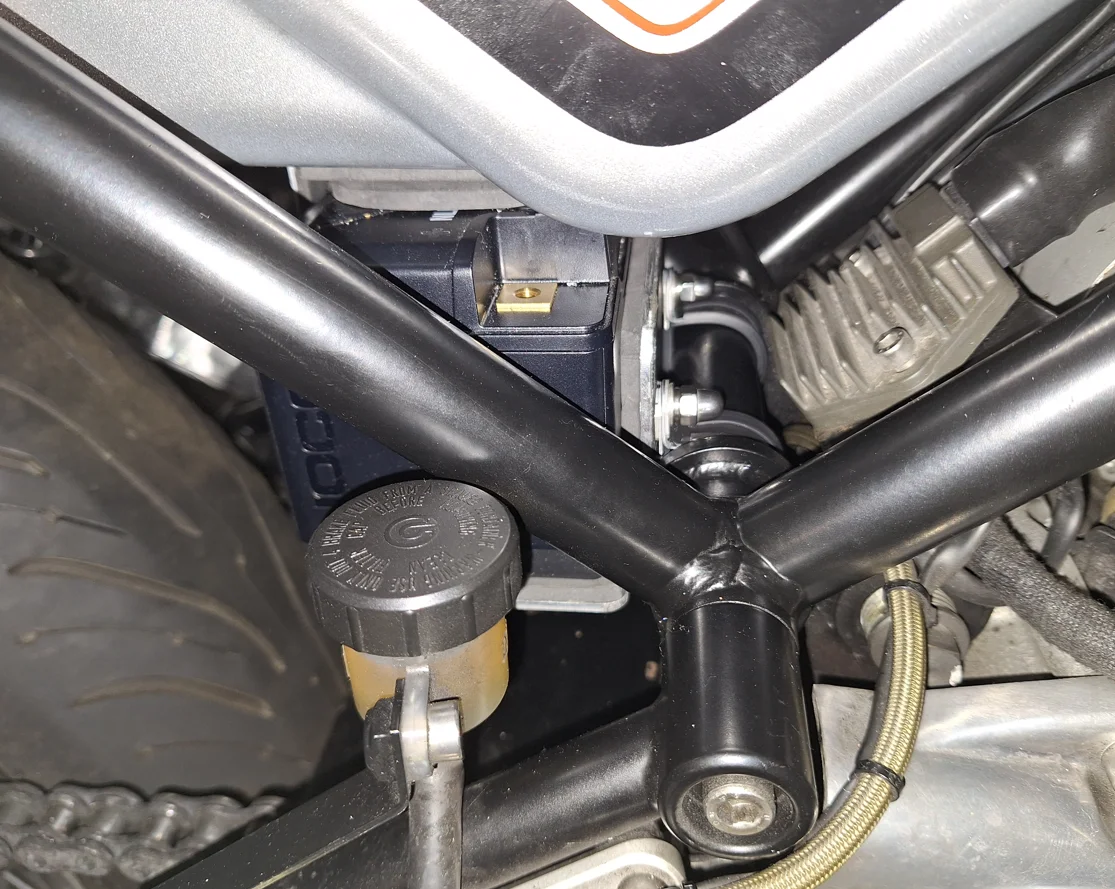

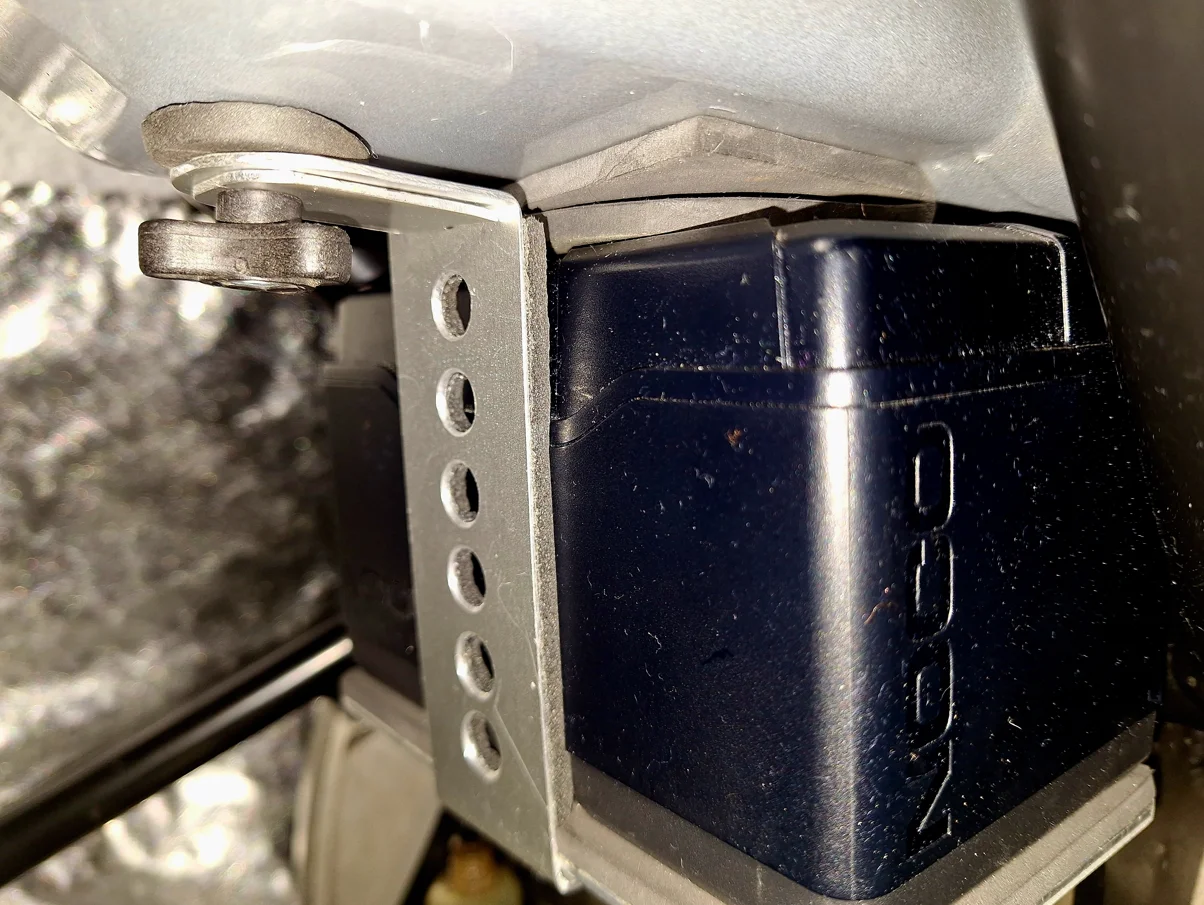

All done ( well 95%)....

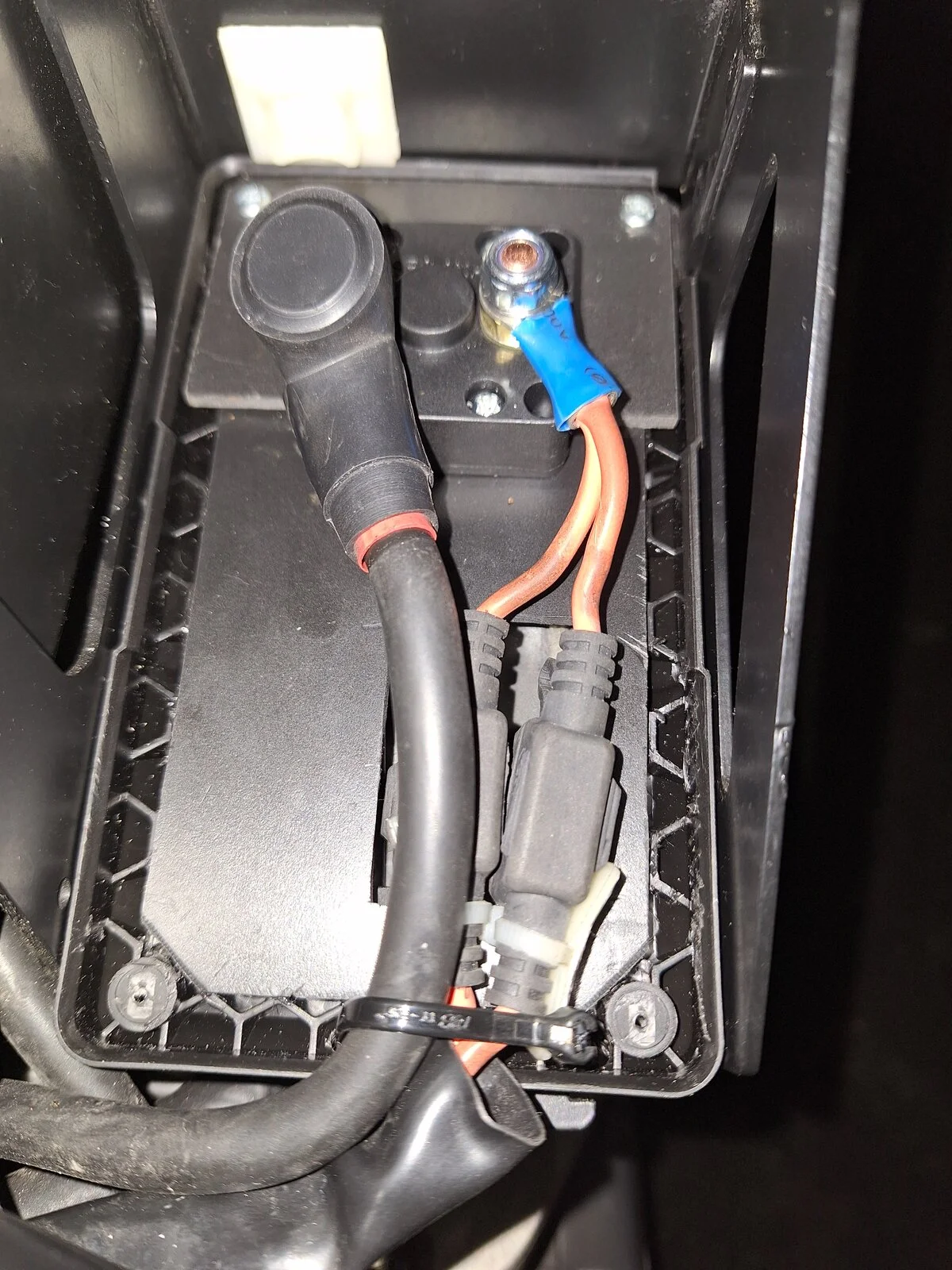

The old battery location now houses an isolation switch facing down through the rubber screen. The two fuses also face down and can be accessed without removing the tank. Thinking back, embarrassingly I don’t think I’ve ridden or even started the 961 for 6 or 7 months. So, the acid test, isolating switch to “on” (no smoke) ignition on, press the starter button, and she fired up immediately, and settled to an even tickover. Needless to say I’m very pleased with the result. Time will tell whether it was worth it.

Click to expand...
