I thought I would share this with you all.

We were going to the Begonia rally & on to the South of France for the International rally in 1991, 2 up & camping gear on my '71 roadster & came up with this rack.
Luggage Rack (2010)


Luggage Rack (2010)


Luggage Rack (2010)


Luggage Rack (2010)


Luggage Rack (2010)

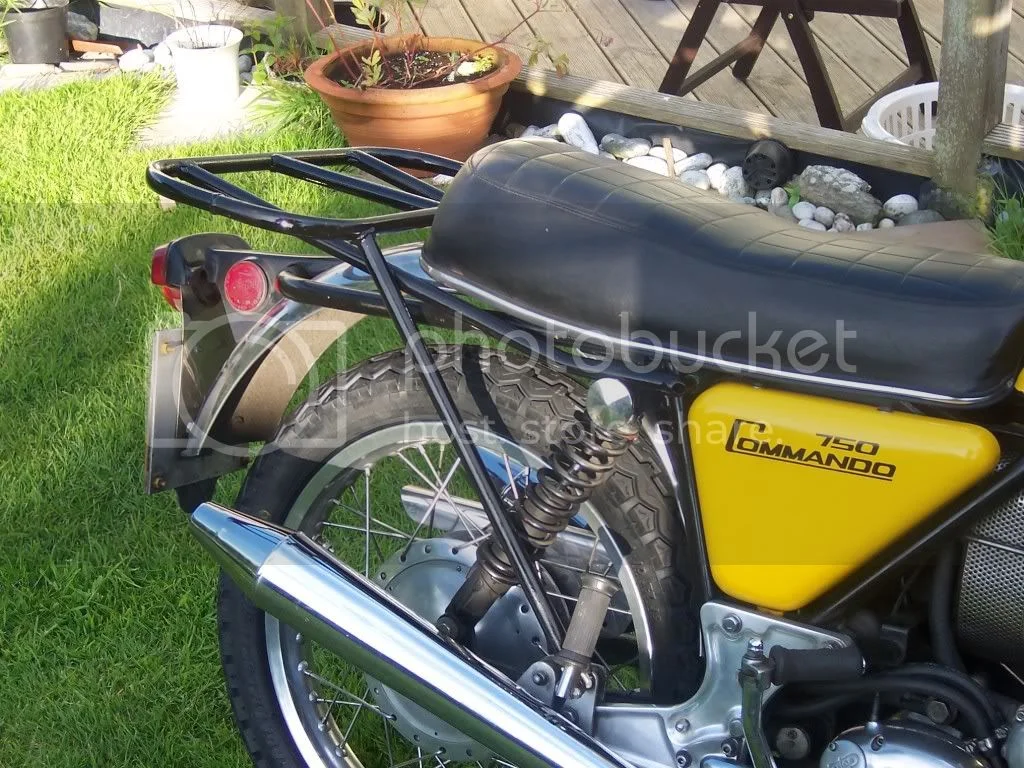

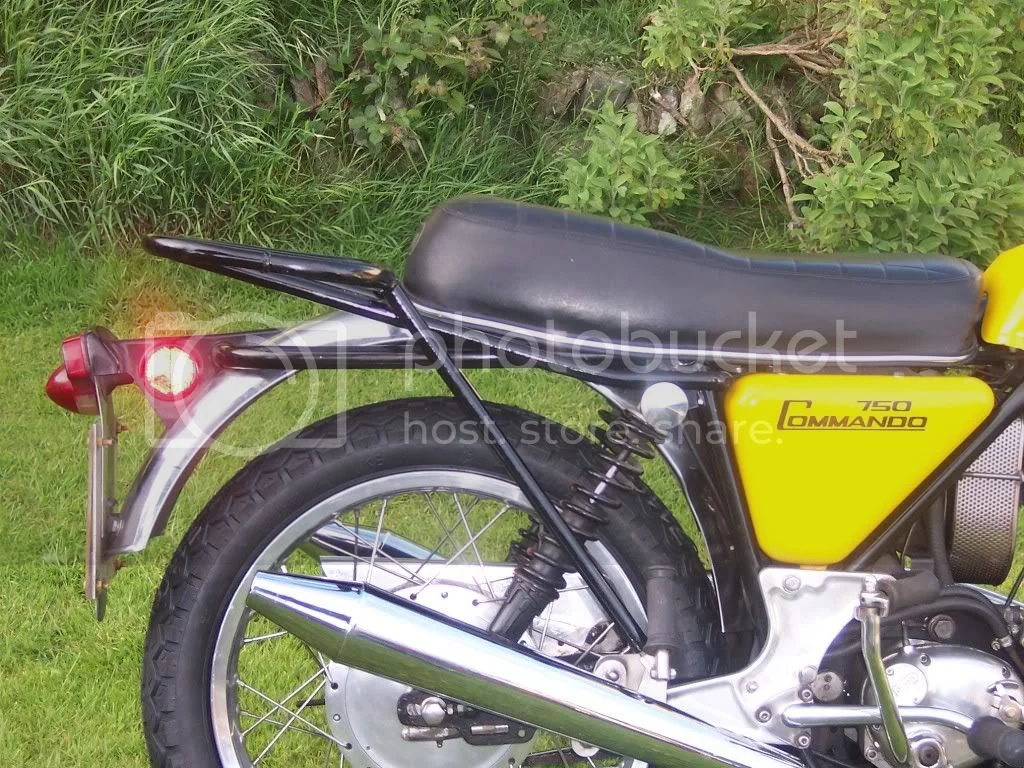

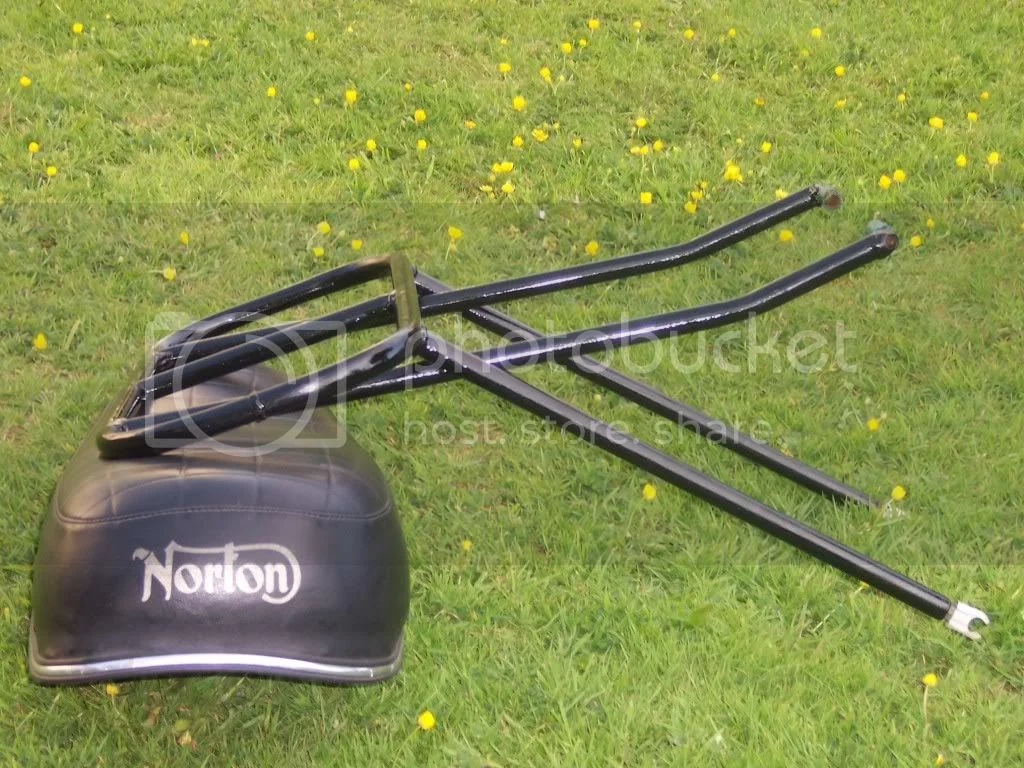

It looks fairly ordinary but can be removed with no tools in less than a minute. Remove the seat & left side side panel, lift the rack up from the footrest mountings until vertical & the left side front mounting can swing forward enough to lift above the frame tube, then just slide the right front mounting out.

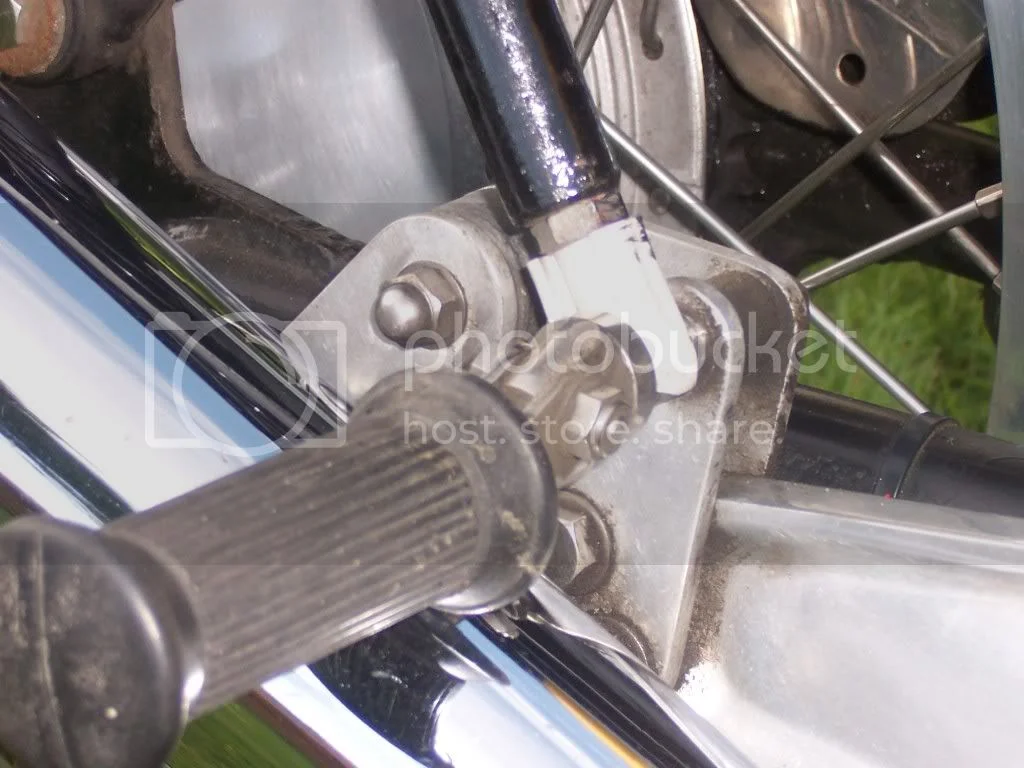

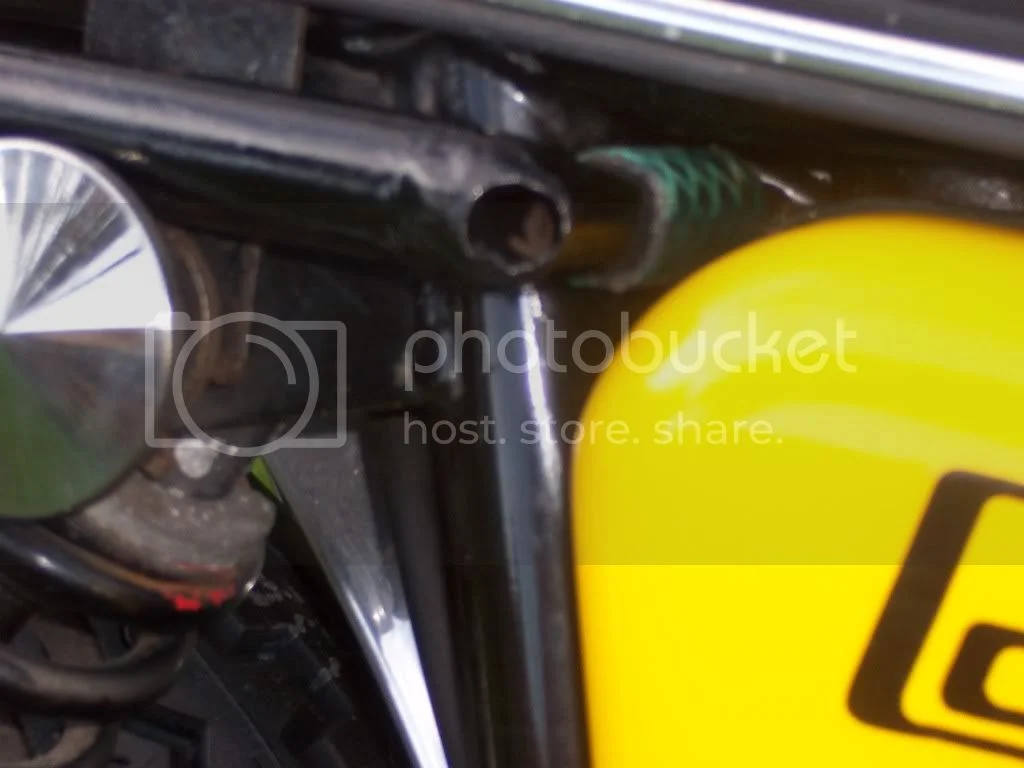

When in position, the load is taken by the frame directly in front of the top shock mount & the pillion footrest mountings. It cant come un-hooked at the top mountings because the seat knobs prevent the tubes from moving outwards.

When you get to your destination you can restore the classic lines of your Commando within a minute, & easily re-fit the rack for the next stage of your trip.


Hope someone finds this useful.

Bob.
