Rickman Enfield Engine removal

Onder · Dec 30, 2023

I was worried that it might indent the soft babbit. 50 years ago I used it on poured babbit rods and it
left a nice divot. For all I know the Plastigauge might have been life expired and the temperature in
the garage cold as a well digger's ass. This time we made sure the iron bits were low 60s F. and the
Plastigauge new.

Onder · Dec 30, 2023

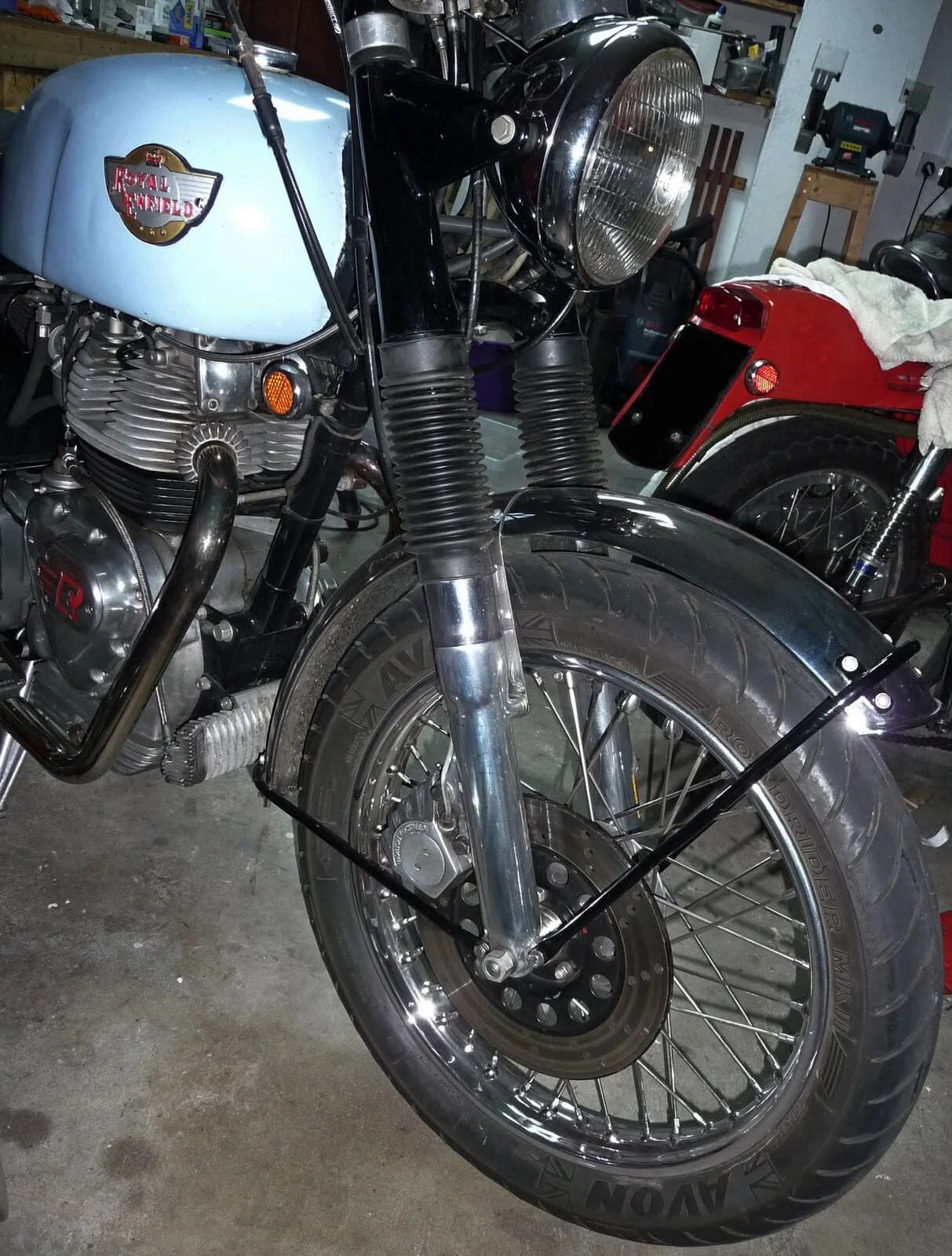

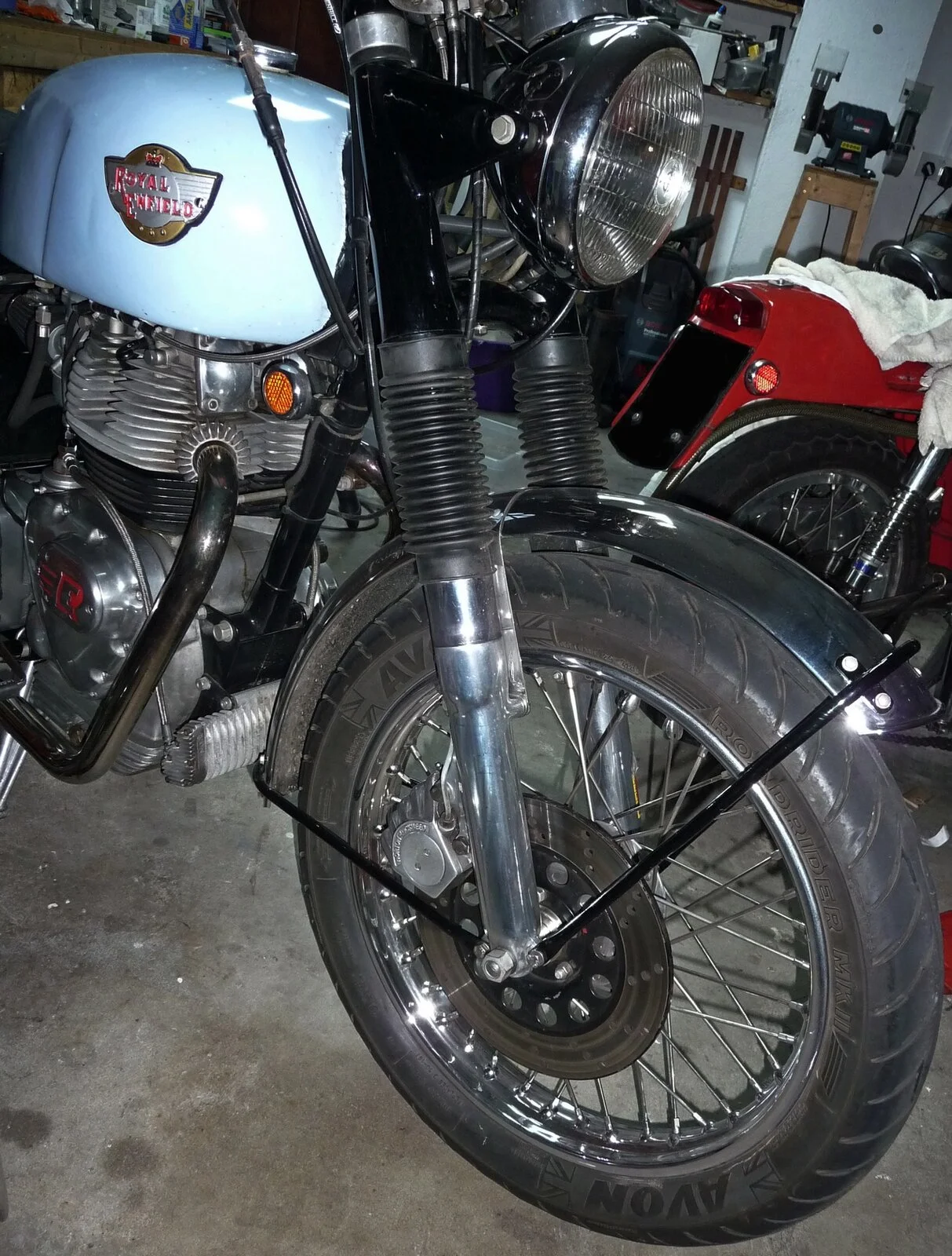

Response to Matchless: not sure about your stanchions but the later models are same as Commando
diameter. But they are different length I think . I had spares and put a Commando front end with disc on to the Series2. It makes riding it a completely new experience. Joyous indeed!

Fast Eddie · Dec 30, 2023

Have you found owt that could be causing your pressure and leakage issues yet ?

Onder · Jan 1, 2024

Nope. Right now nothing at all obvious. And the crank isnt out because I cannot get the cases split. My fault entirely as I used Permatex Ultra Gray. No it does not leak at all but
it is now glued together for the ages it seems. That stuff is good to 500F so there goes the
heating the cases routine. Same issue with my Trident and I got that apart with a puller but the total area of case interface is a lot smaller than an Interceptor.
Im not amused. Any suggestions?

Fast Eddie · Jan 1, 2024

I can’t help you mate. I also hate it when this happens and am interested in any pearls of wisdom that’s are offered up.

But it’s certainly a reminder not to use that stuff again. I use Wellseal, but even that can be tricky to separate after a while. Hence conversations elsewhere about Loctite 518.

Onder · Jan 1, 2024

Rest assured it was 518 on the last bike and will be forever more. Live, suffer, learn.

Fast Eddie · Jan 1, 2024

Onder said:
Rest assured it was 518 on the last bike and will be forever more. Live, suffer, learn.

Did you use 518 on the cases faces (ie face to face with no gasket)? And has it done the job?

Onder · Jan 1, 2024

Used on the T150v no gasket. No leaks.

cliffa · Jan 1, 2024

Onder said:
Nope. Right now nothing at all obvious. And the crank isnt out because I cannot get the cases split. My fault entirely as I used Permatex Ultra Gray. No it does not leak at all but
it is now glued together for the ages it seems. That stuff is good to 500F so there goes the
heating the cases routine. Same issue with my Trident and I got that apart with a puller but the total area of case interface is a lot smaller than an Interceptor.
Im not amused. Any suggestions?

Some sort of silicone caulk remover, such as this? ...

2x Rapide Silicone Sealant Remover Spray Fast Acting Bath Sink Kitchen Toilet UK | eBay

Its silicone sealant remover spray is perfect for removing old and unsightly silicone and sealants from around kitchen surfaces and especially bathrooms.

www.ebay.co.uk

Onder · Jan 1, 2024

I have some made by the Loctite mother company. Will have a go but you are asking it to
get between two machined surfaces that are bolted together. Which is why I thought to immerse it in a pail of diesel. Since the rods and mains are still in there I hate to do that.

cliffa · Jan 8, 2024

Onder said:
I have some made by the Loctite mother company. Will have a go but you are asking it to
get between two machined surfaces that are bolted together. Which is why I thought to immerse it in a pail of diesel. Since the rods and mains are still in there I hate to do that.

Any luck?

Onder · Jan 9, 2024

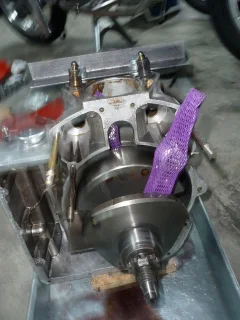

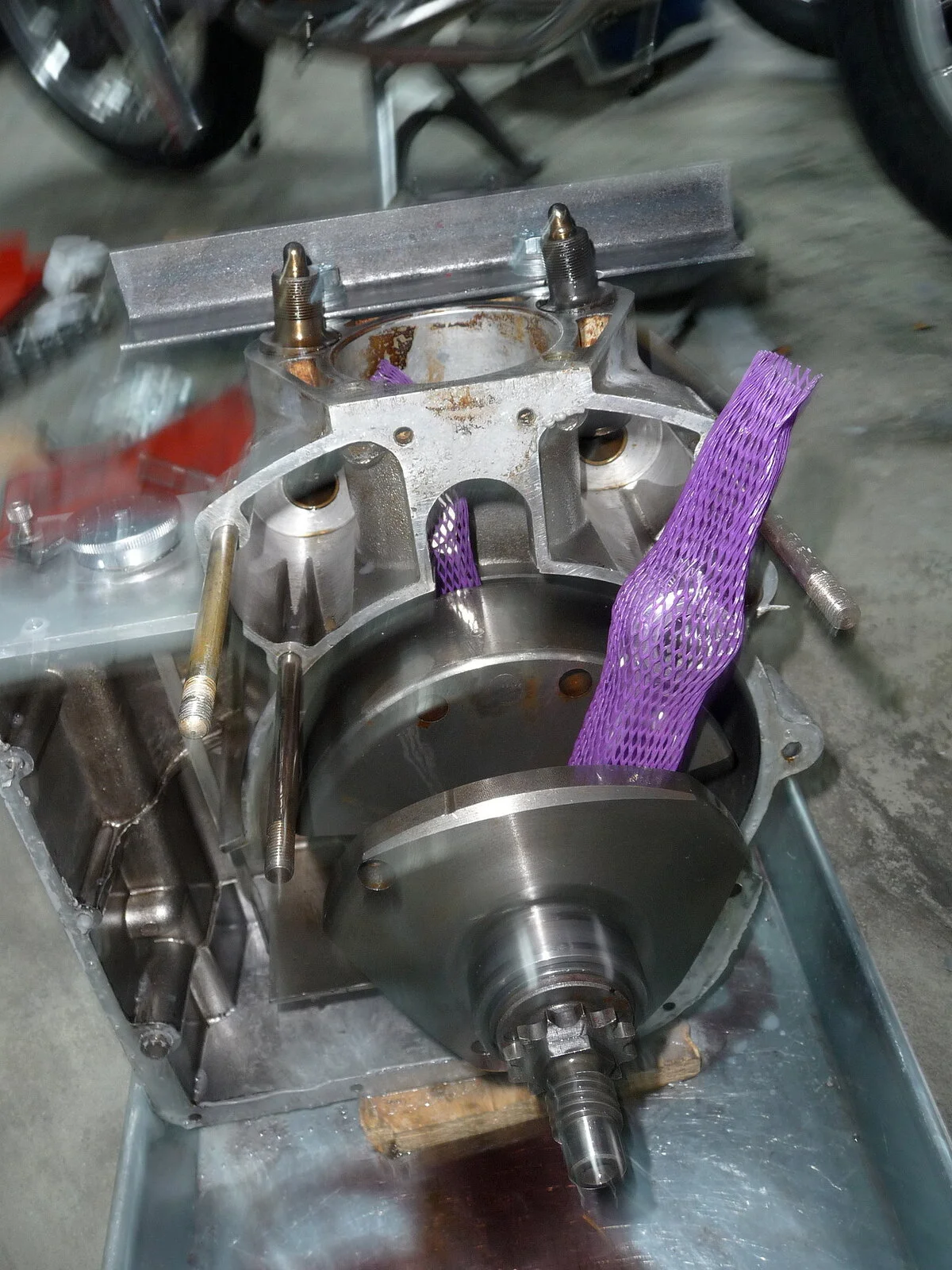

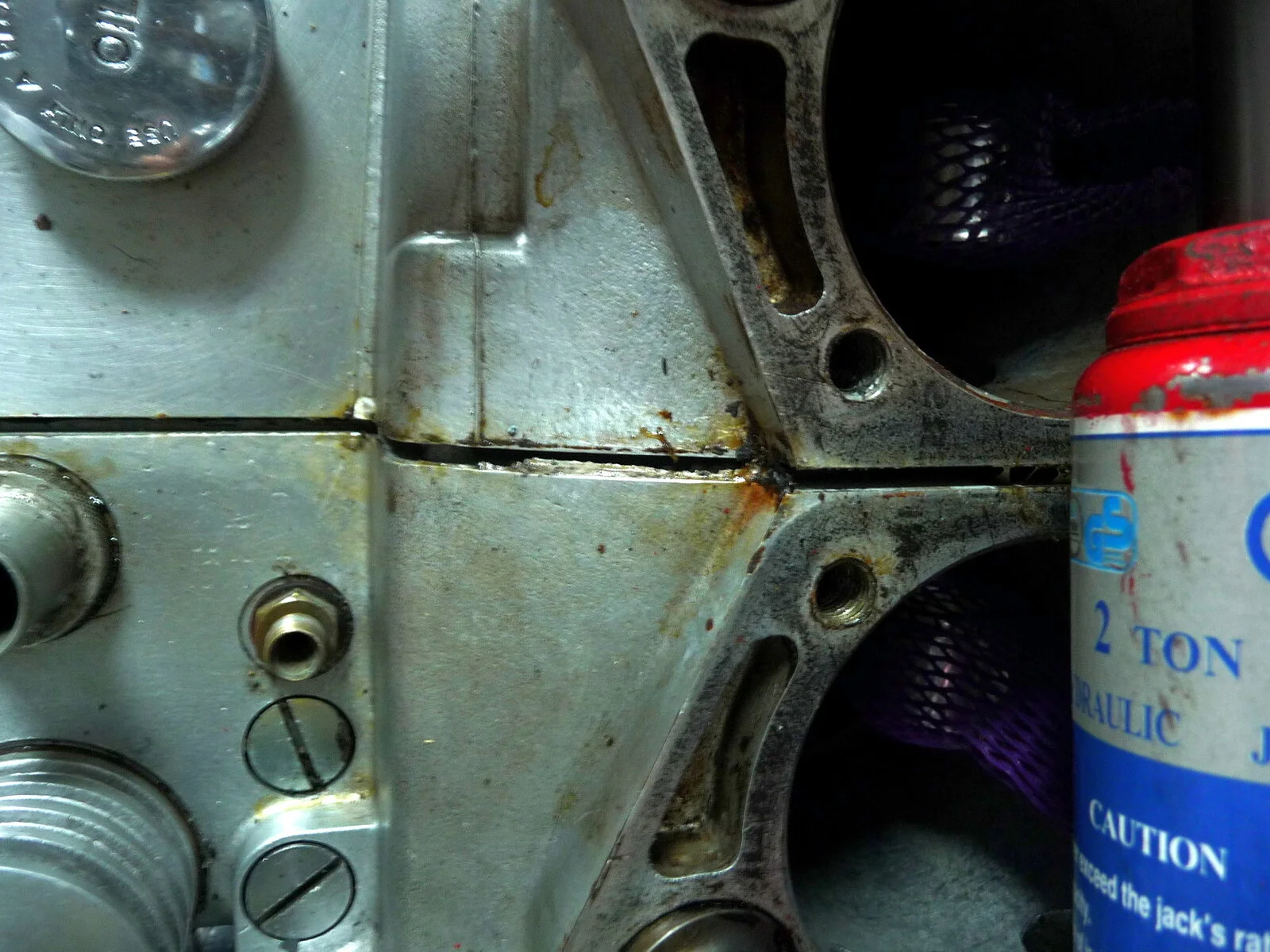

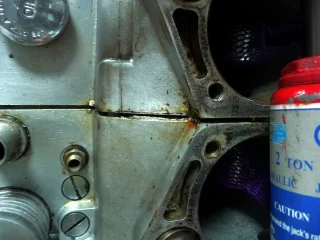

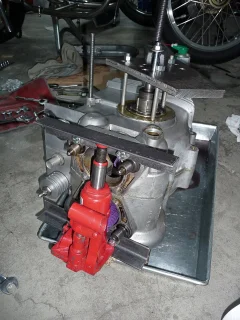

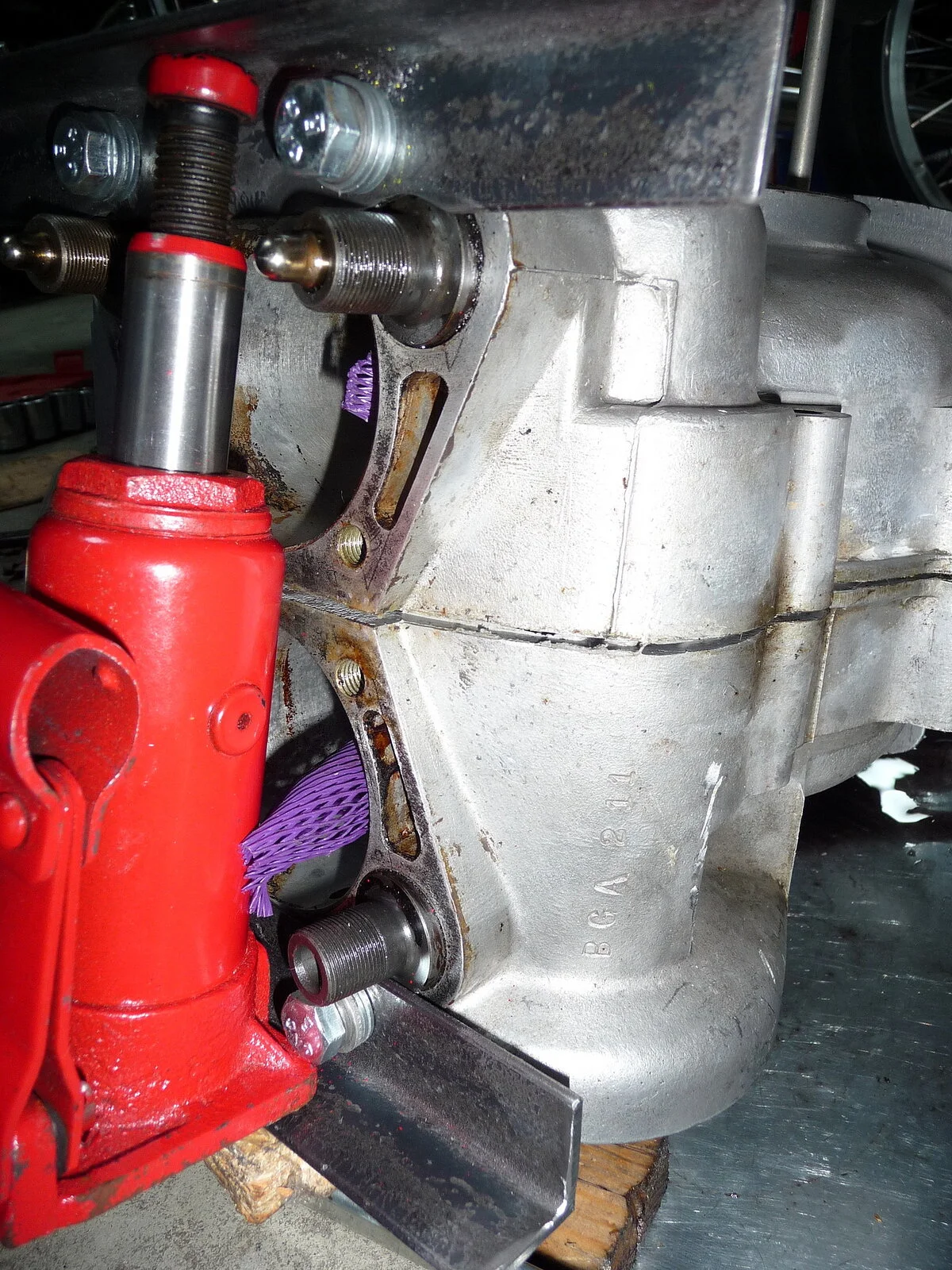

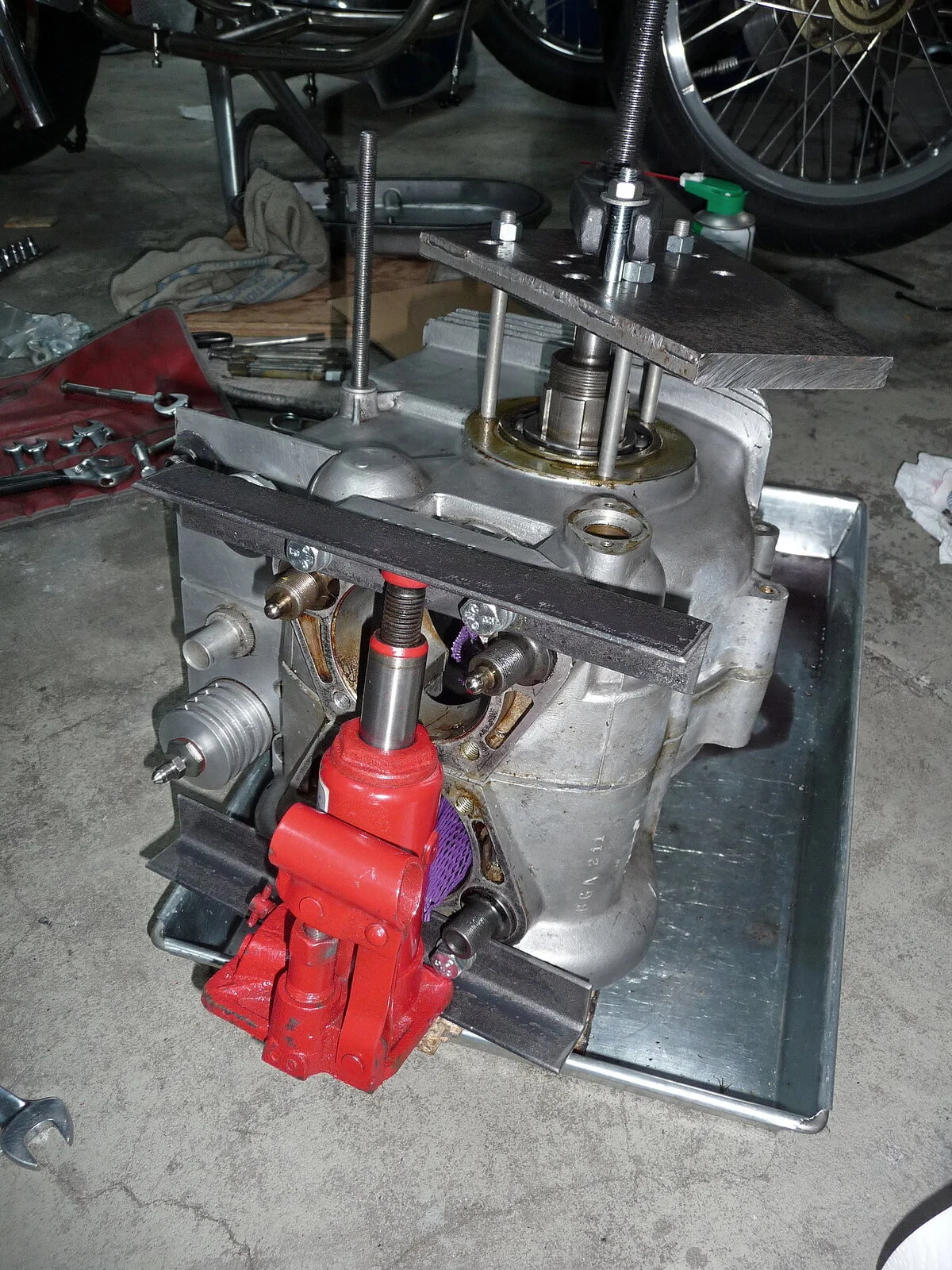

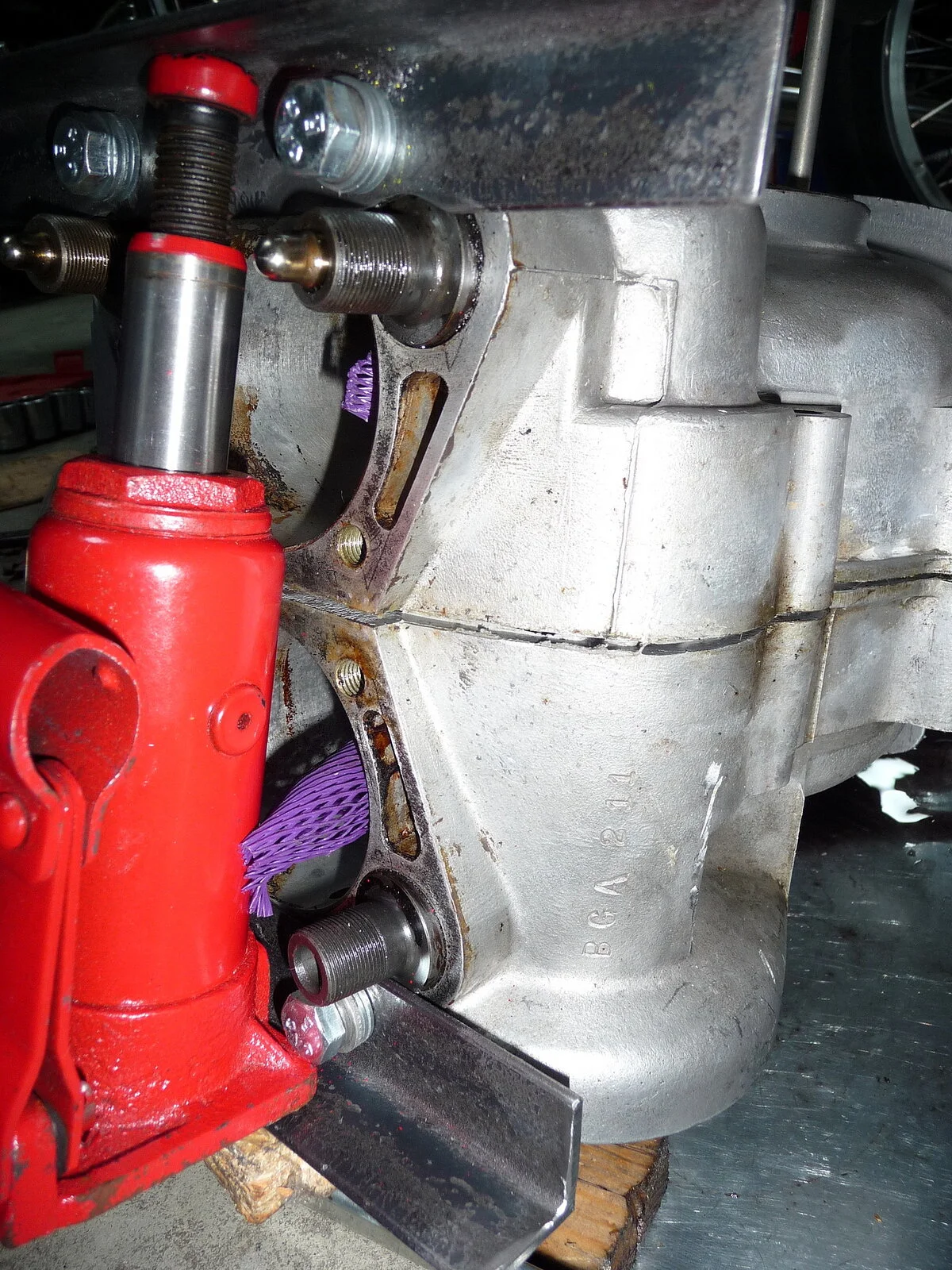

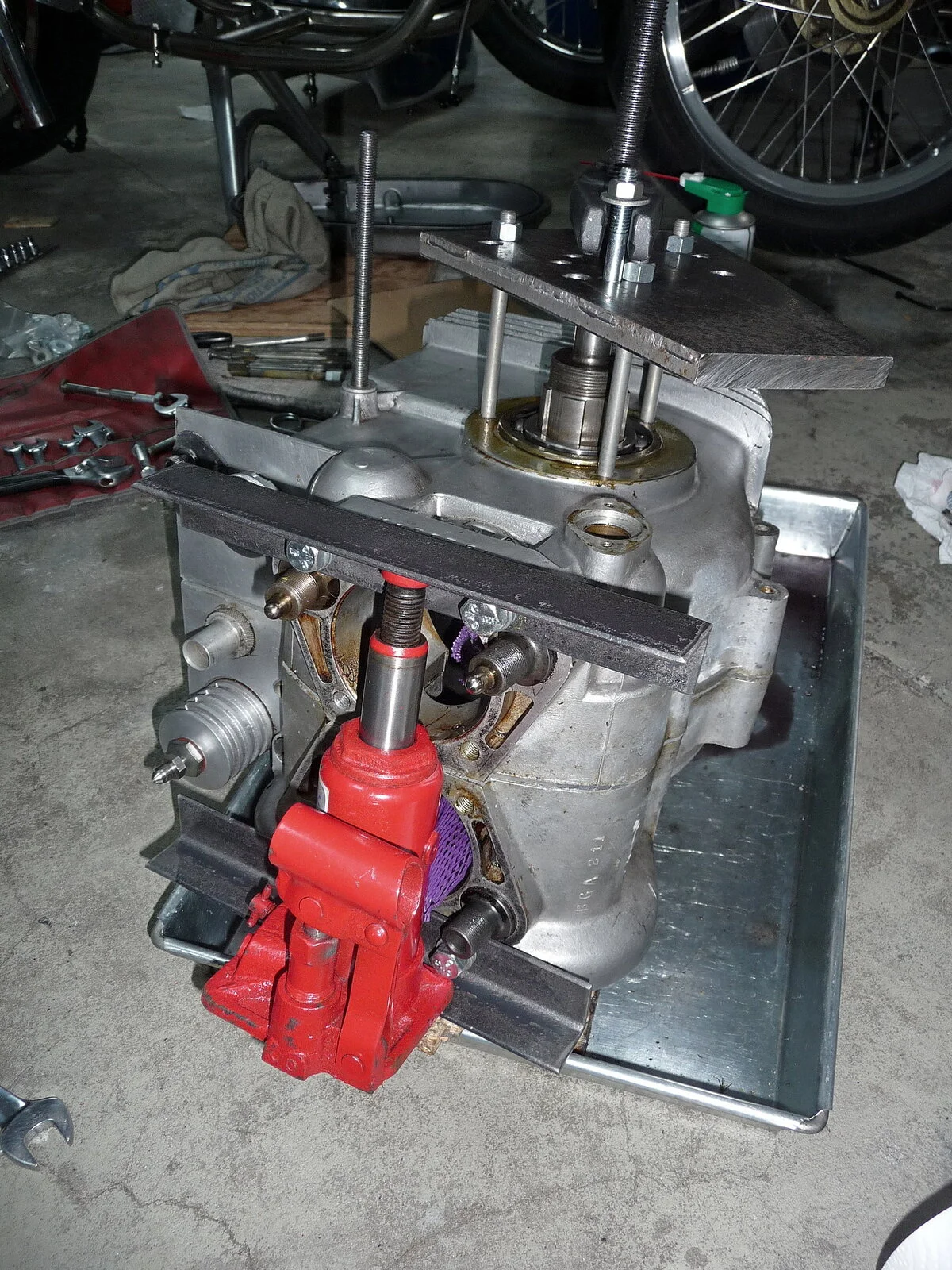

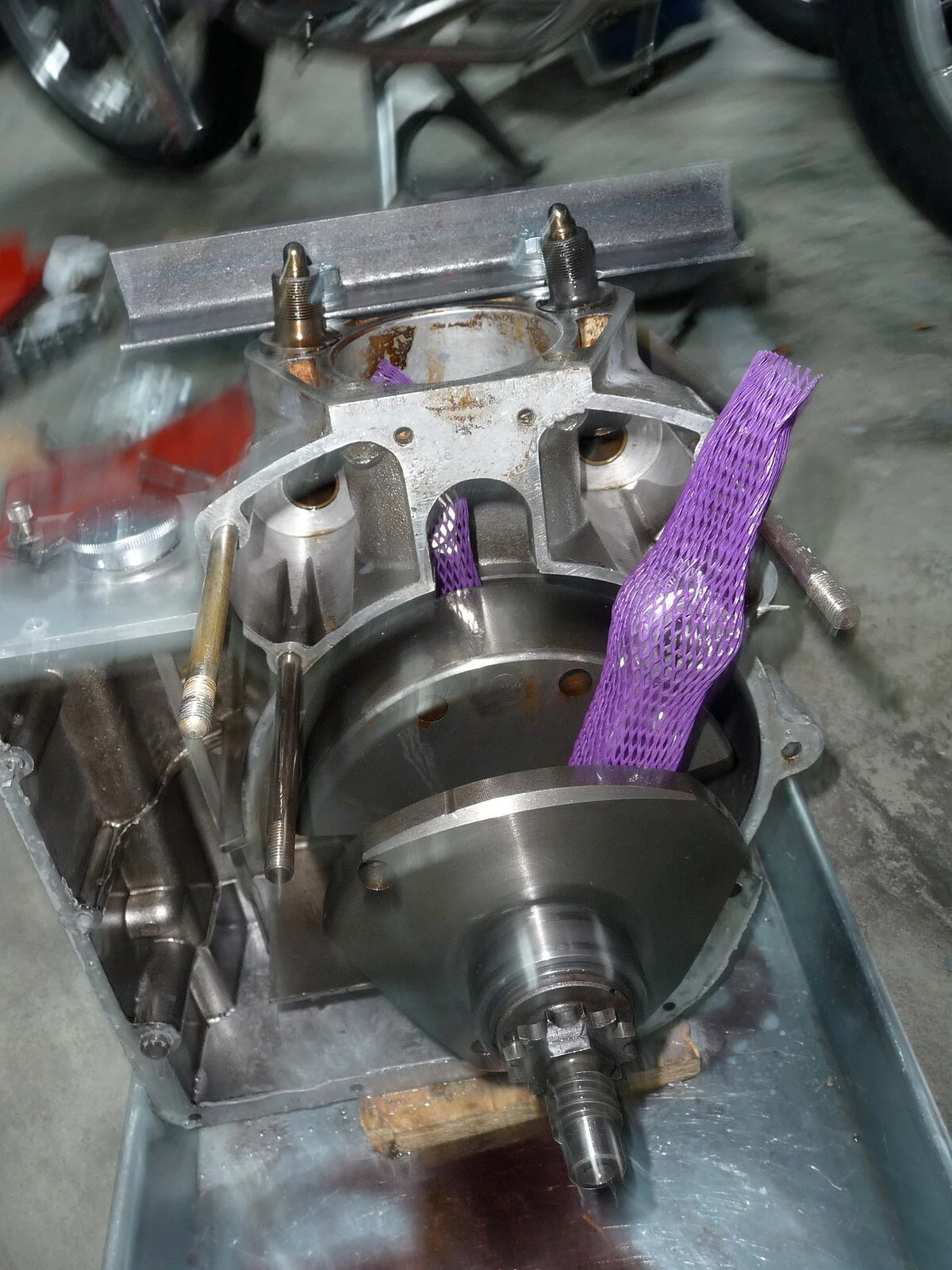

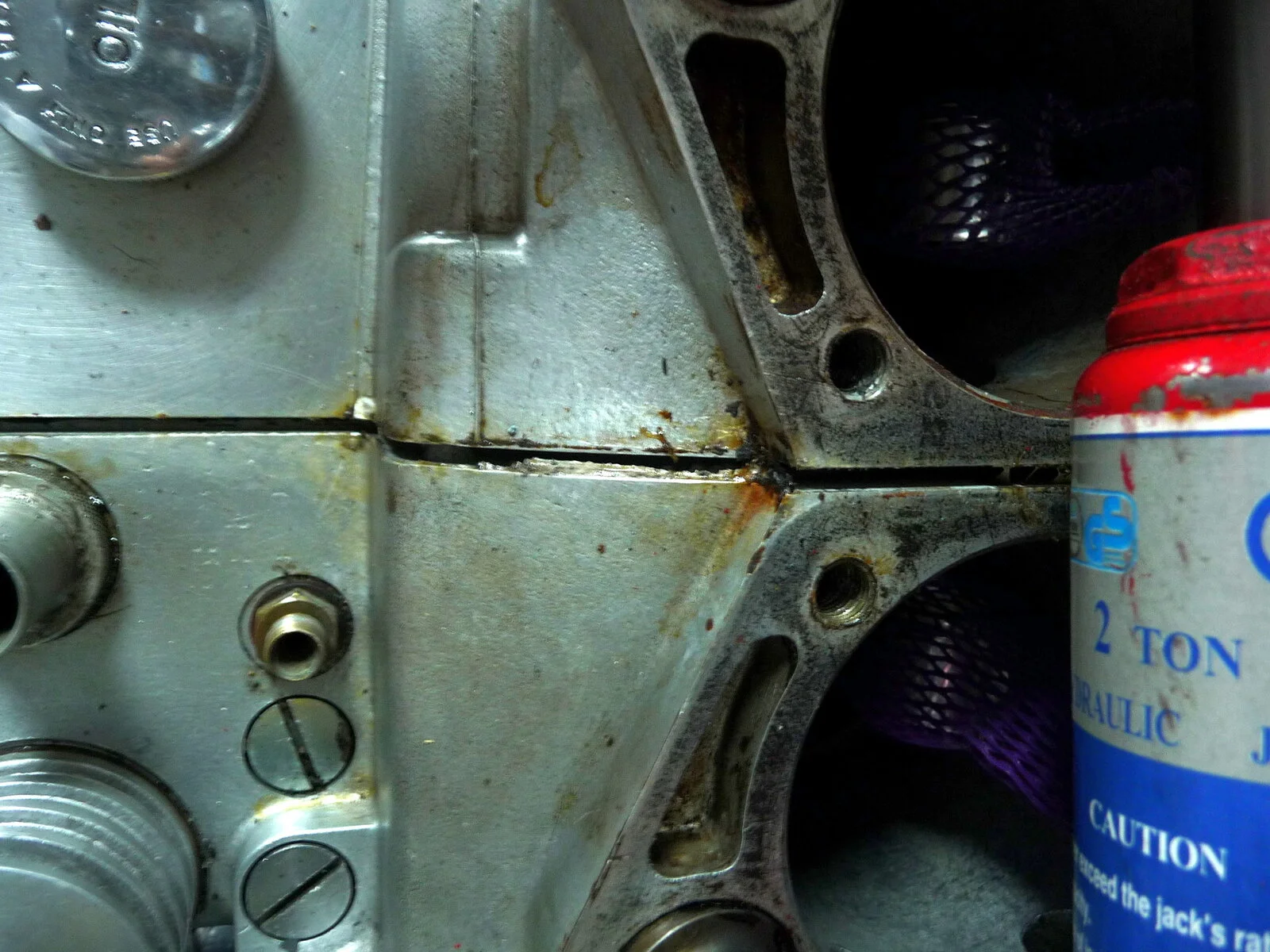

Moments ago.....you can see the approach and the results in the attached.

cliffa · Jan 9, 2024

That is a very clever solution

Any idea what the gasket goo is?

I have to say, from what I’ve seen of that engine I’m pretty impressed. Really beefy crank, and the castings look very good quality.

Onder · Jan 10, 2024

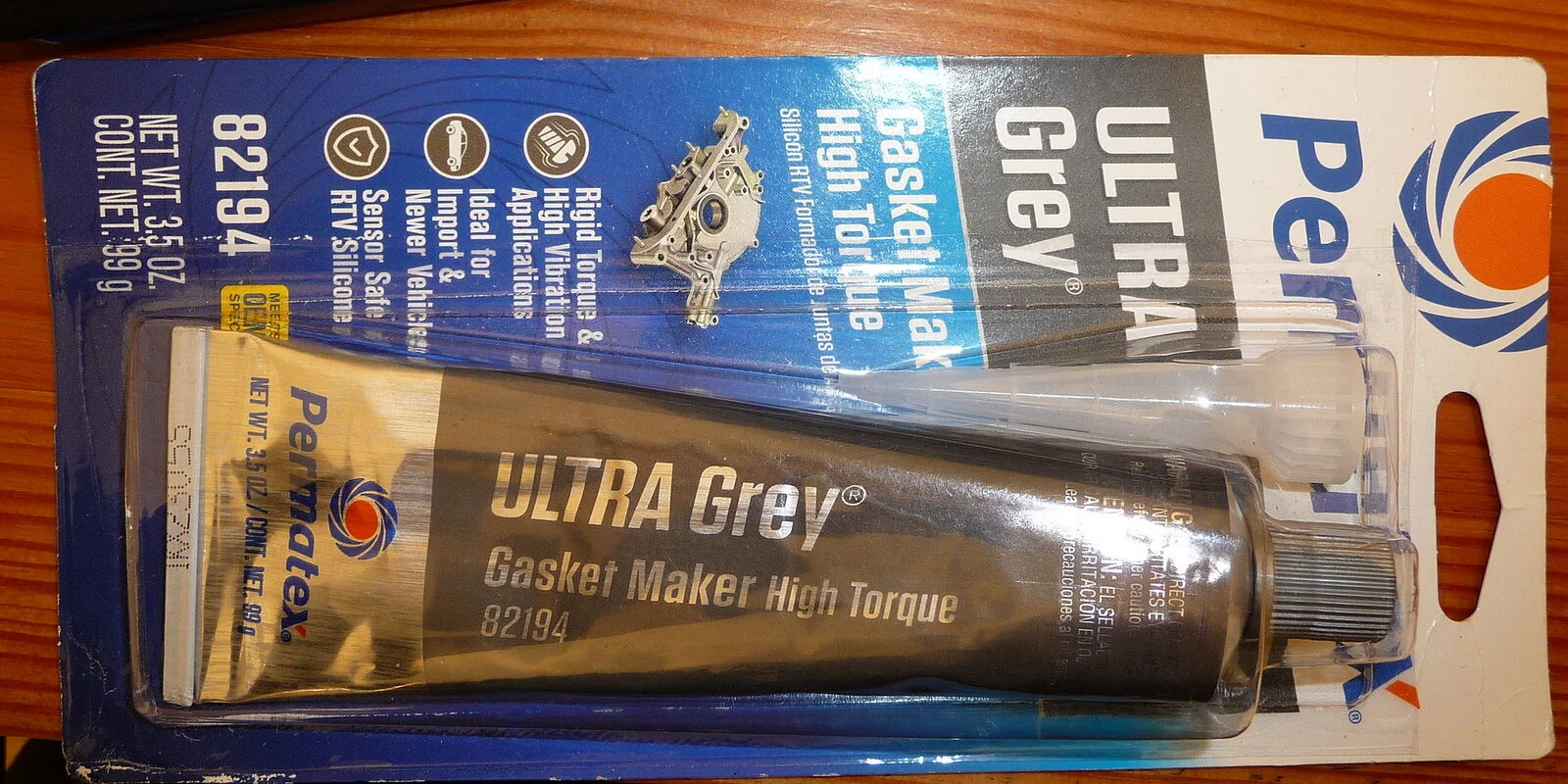

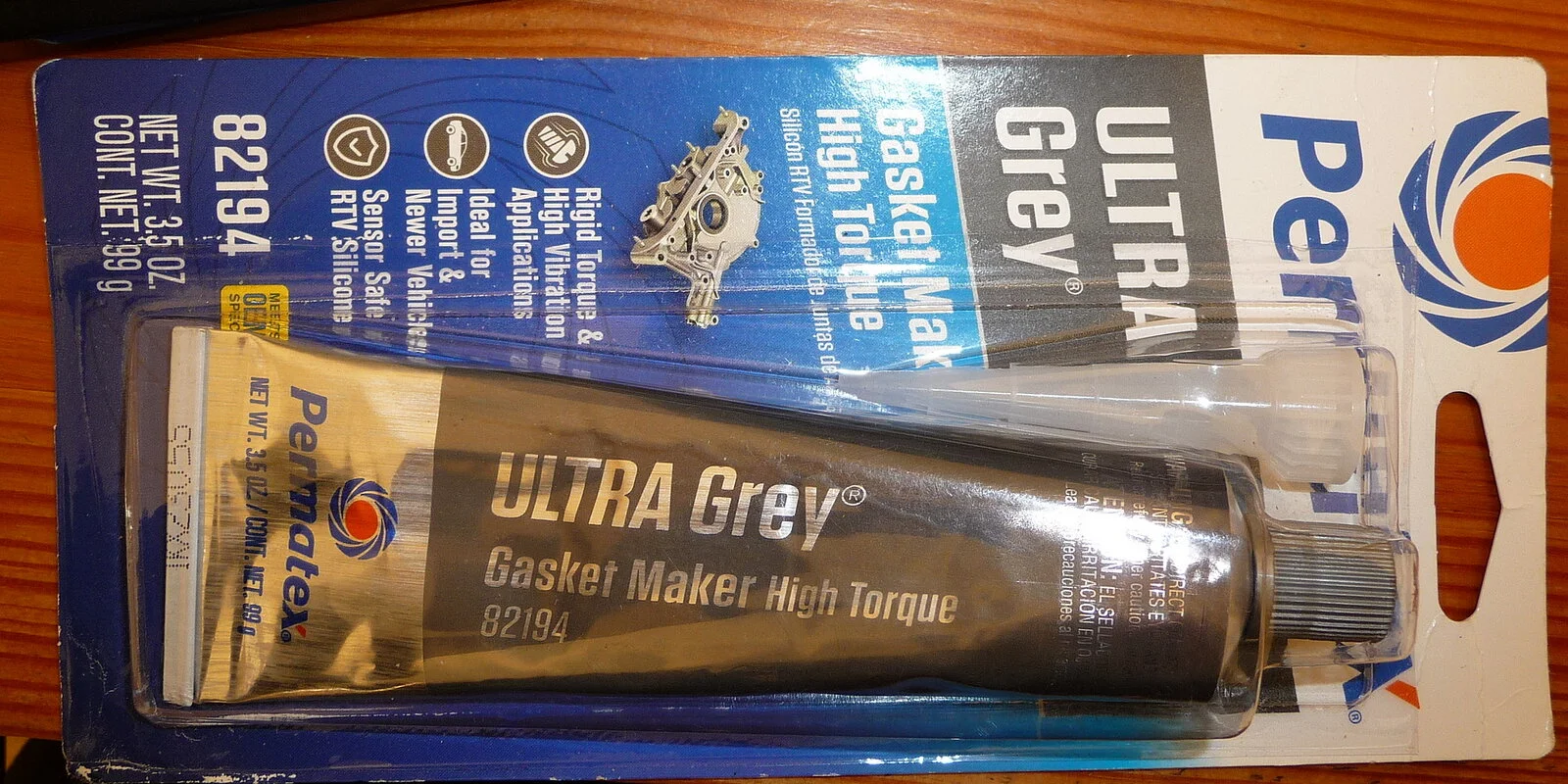

Permatex Ultra Grey. It sure doesn't leak....

The Interceptor is a very mixed bag. Simply let down by so many problems all happening at once. Mostly no
money for development. Weak lubrication system is biggest problem. Next one is head design led to hot
running. Clutch was wonderfully easy and smooth but not up to the power on tap. Gearbox agricultural in
all ways but durability. Too heavy as most bikes were at the time.
I've said all this before, sorry to sound like a broken record. Er, wow, does that comment date me or what? :-(

cliffa · Jan 22, 2024

Hi Onder, did you find any smoking guns?

Onder · Feb 3, 2024

Hmmm. Yes the one that was pointed at my foot, now pointed at my head.

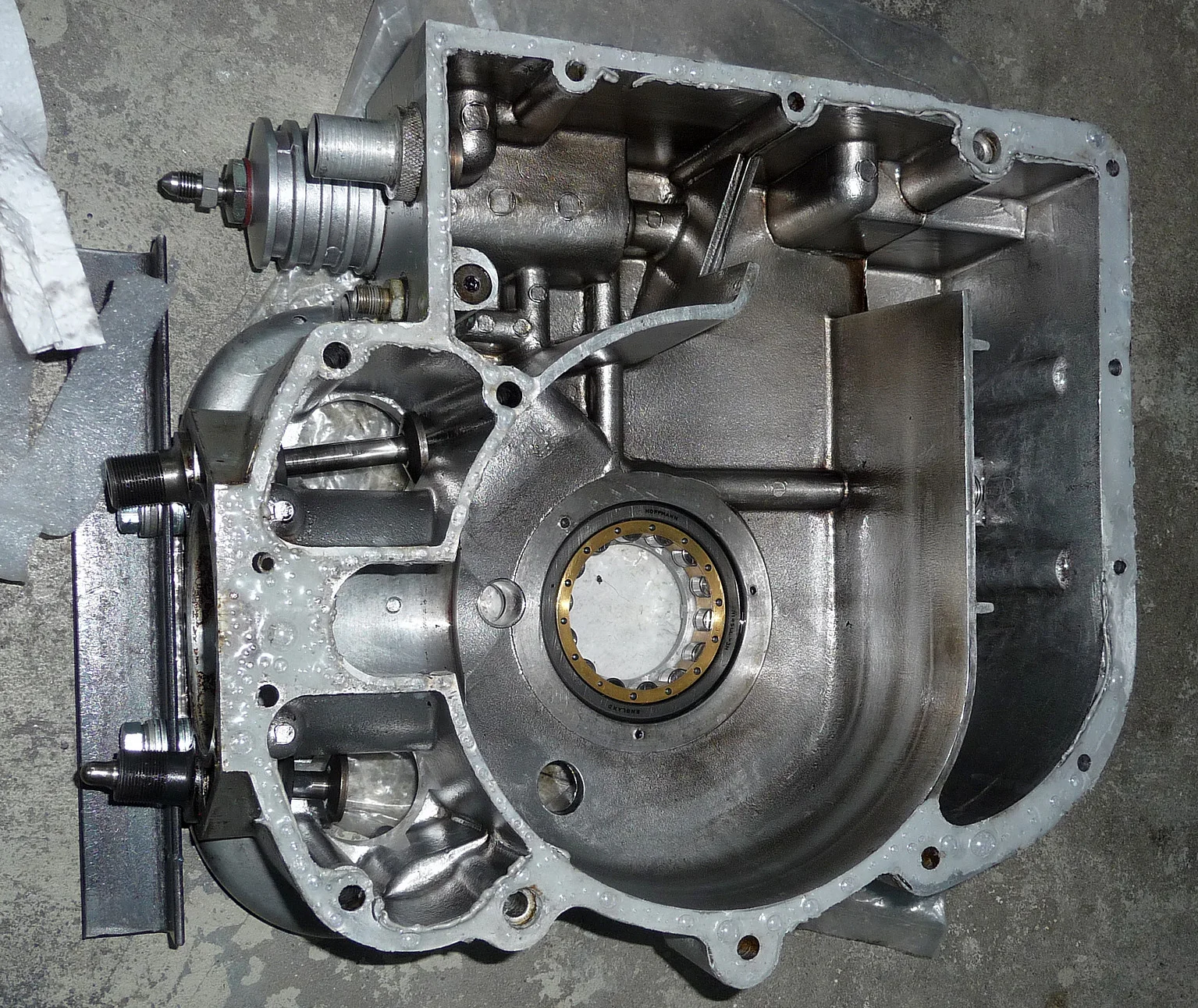

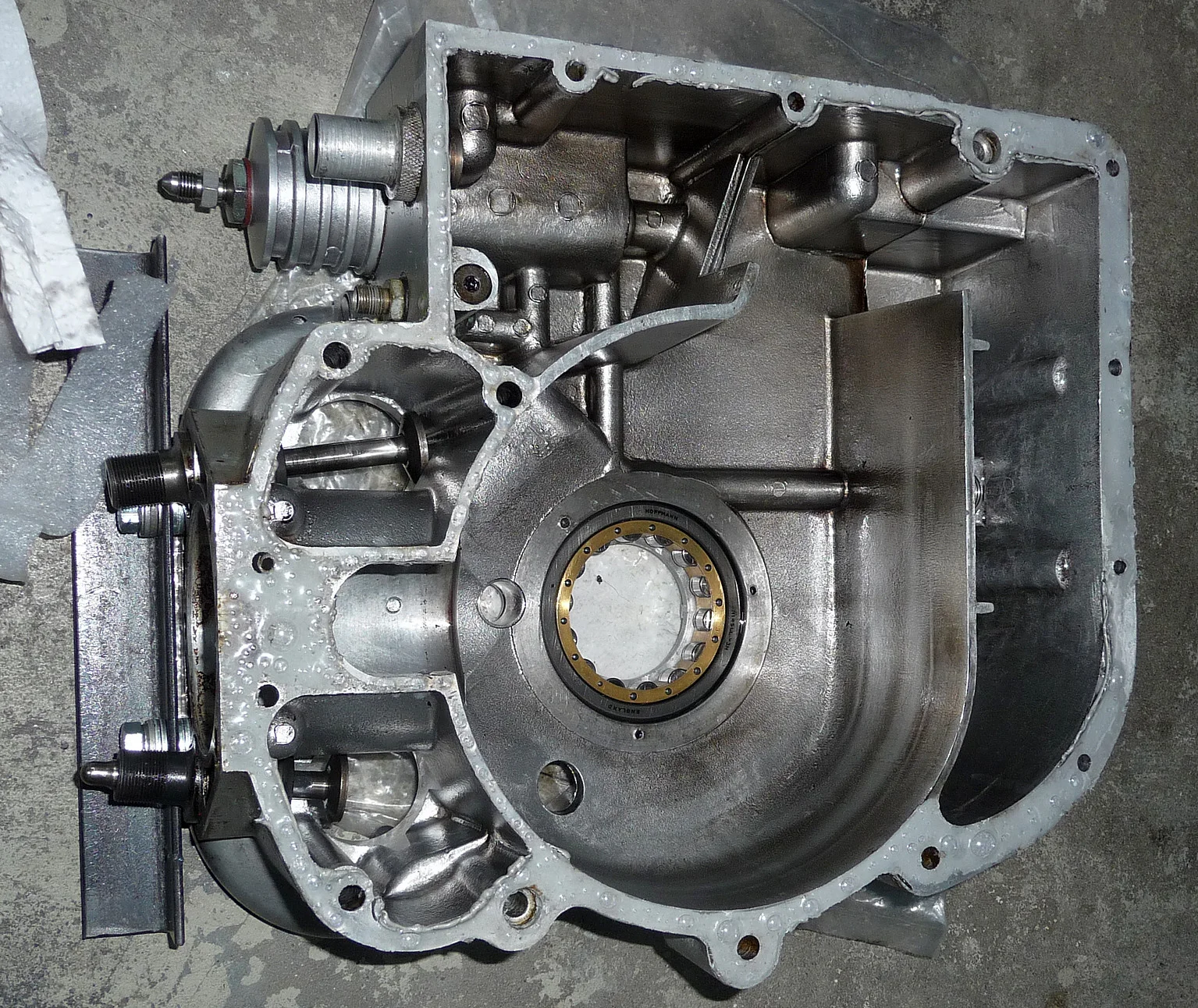

After managing to part the cases and not break anything, I pulled the rods off and used plastigauge.
This is an inexact science but it should assist in giving a person (me) without a full set of measuring instruments an idea of what is what.
I got 1.5 thou clearance on the Timing Side and a bit more, say 1.7, on the Drive Side. Bear in mind that the Series 2 Interceptor called for a slightly looser DS in a faint attempt at ensuring that side got sufficient oil.

Would you think the clearances mentioned are excessive?

cliffa · Feb 4, 2024

“Would you think the clearances mentioned are excessive?”

If you are asking me, I’m afraid I have no idea, but it seems ok. Out of interest, I downloaded the Interceptor II manual from Hitchcocks, and it doesn’t state what the clearance should be (as far as I could see). Is there an official figure?

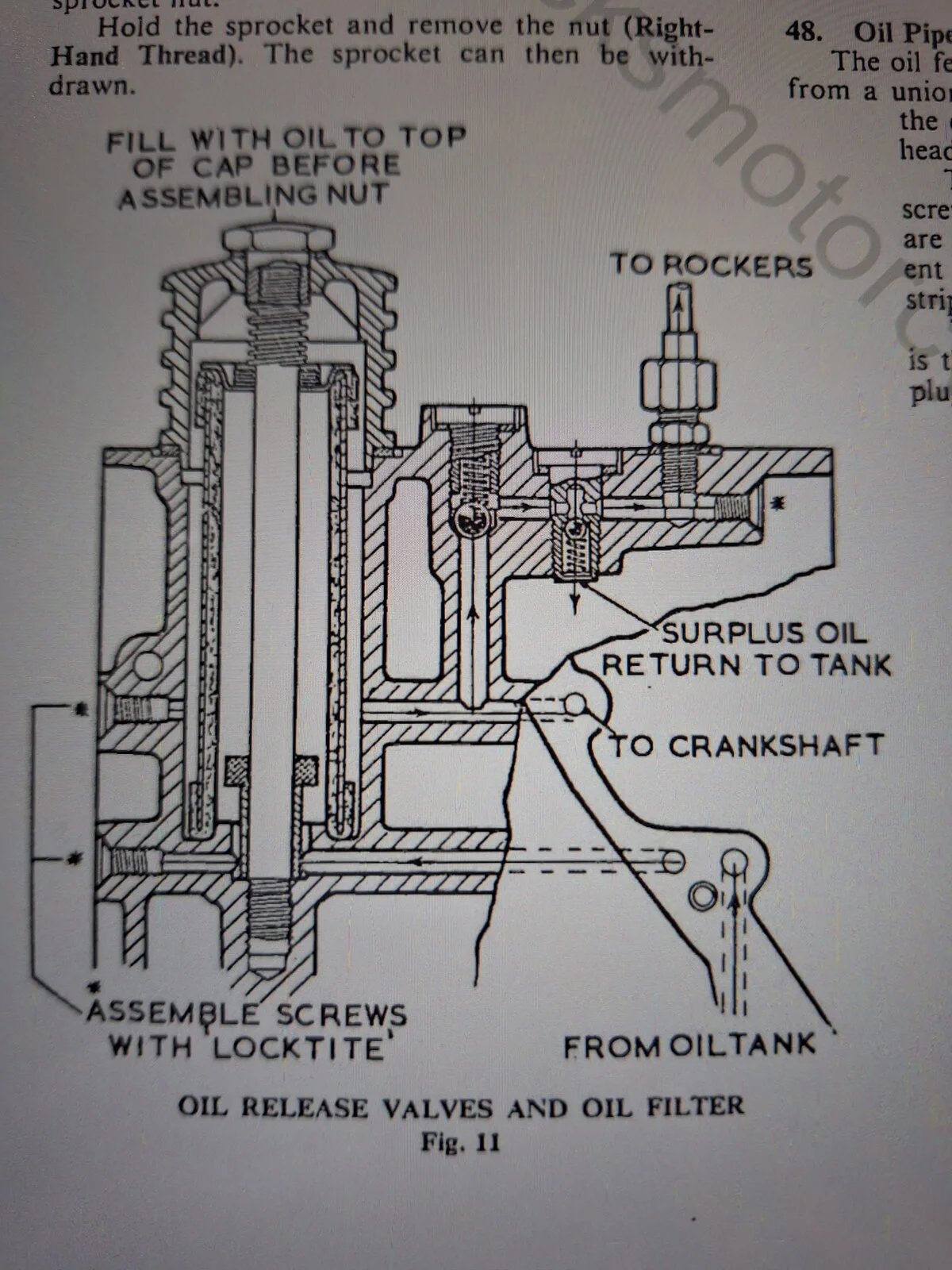

Going back to your original posts, it seems to imply that the top end is over oiling and the bottom end the reverse. In the manual I see each feed have their own OPR valve. Is it possible you have those (or components of) reversed?
