JPN Colour Scheme

Status
Not open for further replies.
htown16 said:

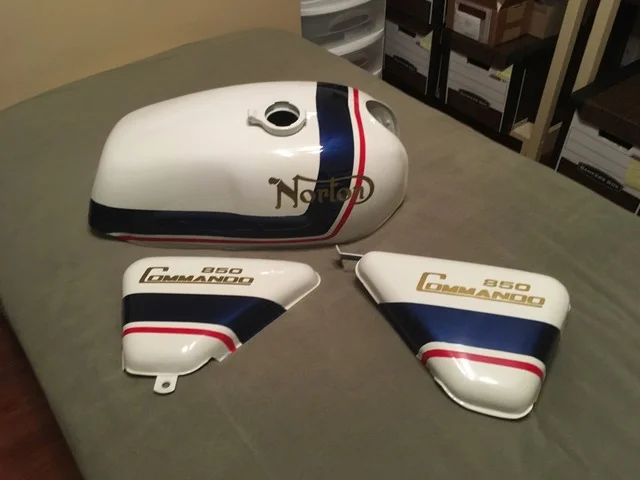

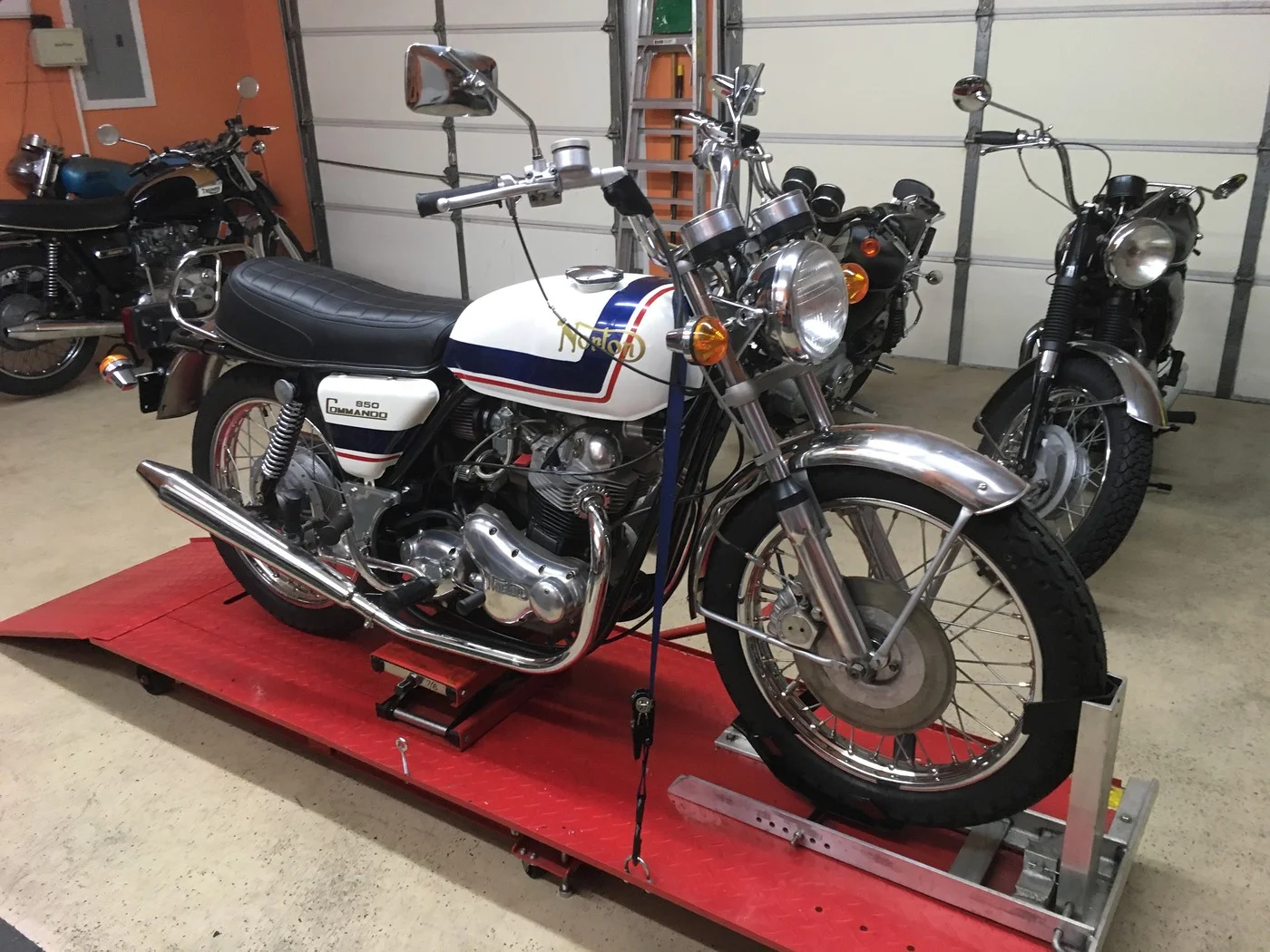

My rattle can paint job. Paint was Duplicolor from Autozone. Topped with SprayMax 2k clear. If you're interested I will check for the codes as I still have a can of each. As noted tank lines are not parallel with tank bottom but are parallel with ground and match base of seat. The side covers were installed and then the lines marked with a level with bike sitting on wheels. Always do that to install sidecover decals.
JPN Colour Scheme
Hosted on Fotki
JPN Colour Scheme
Hosted on Fotki
Click to expand...

Nice job. Looks great!

MichaelB said:
That looks great! Be almost criminal to strip it.
Original paint jobs are becoming less and less.
Click to expand...

‘Almost’ ?!

It would be totally criminal to paint strip that !

Joe, if it’s showing it’s age, and to afford it’s protection for even longer, a good painter could clear coat your original paint, making it look great and preserving it for another 50 years !

YING said:
Leone
I have the Napa Auto Parts numbers if you are still looking
Mike Yingling
Click to expand...
Yes that would be appreciated, I don't know the NAPA number would translate here in New Zealand, but any information like that nay well prove to be helpful.

nortriubuell said:
IMO, I wouldn't bother with all the "legwork" you may expend. Just call Brent (forum member here) ... and have him do it. Then you KNOW you will NOT be disappointed. Period. Save yourself some possible grief.

https://vintage-vendor.com/
Click to expand...
Not a viable option here in New Zealand, plus I have an excellent panel beater/painter that I am always happy with.


htown16 said:
My rattle can paint job. Paint was Duplicolor from Autozone. Topped with SprayMax 2k clear. If you're interested I will check for the codes as I still have a can of each. As noted tank lines are not parallel with tank bottom but are parallel with ground and match base of seat. The side covers were installed and then the lines marked with a level with bike sitting on wheels. Always do that to install sidecover decals.
JPN Colour Scheme
Hosted on Fotki
Click to expand...

htown16, please post the colours you used. the list from England has colours which may not even be available in NA because the cars they are for never made it over here.

thanks.

PS; my 74 came in the JPN colours when new. so i have a dog in this fight...

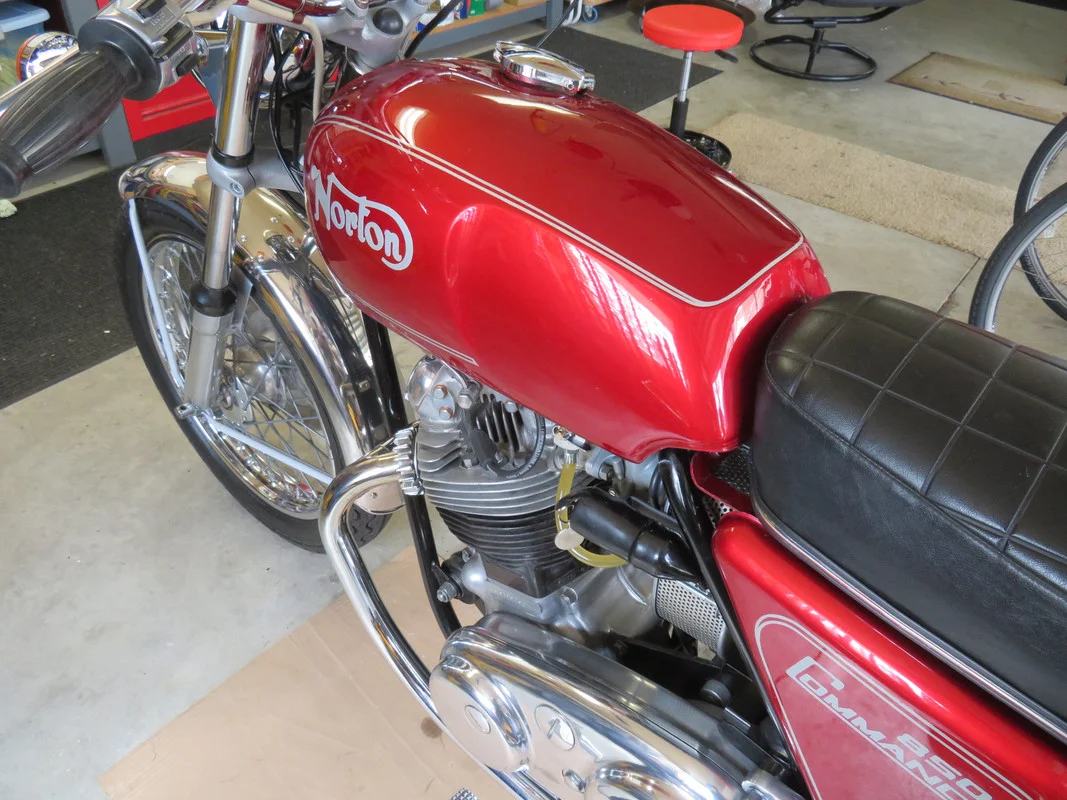

joe czech said:
same here - I was thinking about a JPN colors repaint on mine, but my original paint, although showing it's age, still looks fairly decent for 45 year old lacquer. didn't have the heart to take paint stripper to it. so, CAR it stays... ;)
Click to expand...
That is way too nice to strip. If you want JPN colors, find an extra tank and side covers and paint them. Then if you decide you like the JPN scheme better you can sell your original set, probably for enough money to pay for your repainted set.

I have a set of NOS Interstate covers in candy red. They are still in the original wrapping. I really like that color. I have a couple steel Interstate tanks in primer. Some day I'll paint one to match the covers.

First a disclaimer, these are not guaranteed to be a match to the factory colors. I studied lots of pictures and tested different colors to get an eyeball match. One thing I noticed on most of the pictures is that the blue is pretty dark, in fact on some pictures it looks black. This is a pretty dark blue. Anyway here is what I used.
Duplicolor BNS0562 Super White.
Duplicolor BFM0306 Ford Cardinal red
Duplicolor BFM0340 Ford Royal blue
Spraymax 2K clear coat.

htown16 said:
First a disclaimer, these are not guaranteed to be a match to the factory colors. I studied lots of pictures and tested different colors to get an eyeball match. One thing I noticed on most of the pictures is that the blue is pretty dark, in fact on some pictures it looks black. This is a pretty dark blue. Anyway here is what I used.
Duplicolor BNS0562 Super White.
Duplicolor BFM0306 Ford Cardinal red
Duplicolor BFM0340 Ford Royal blue
Spraymax 2K clear coat.
Click to expand...

thanks

joe czech said:
same here - I was thinking about a JPN colors repaint on mine, but my original paint, although showing it's age, still looks fairly decent for 45 year old lacquer. didn't have the heart to take paint stripper to it. so, CAR it stays... ;)

JPN Colour Scheme
Click to expand...
If decide to sell the three pieces , I would be interested, and I would help locate paintable good replacements

These 2 colours that Htown posted are available in the UK as are other versions of the colour names, thank you Mr Ford for being a tight arse ;)

Duplicolor BFM0306 Ford Cardinal red
Duplicolor BFM0340 Ford Royal blue

Pics of colour chart with other codes

Red

JPN Colour Scheme


Blue

JPN Colour Scheme

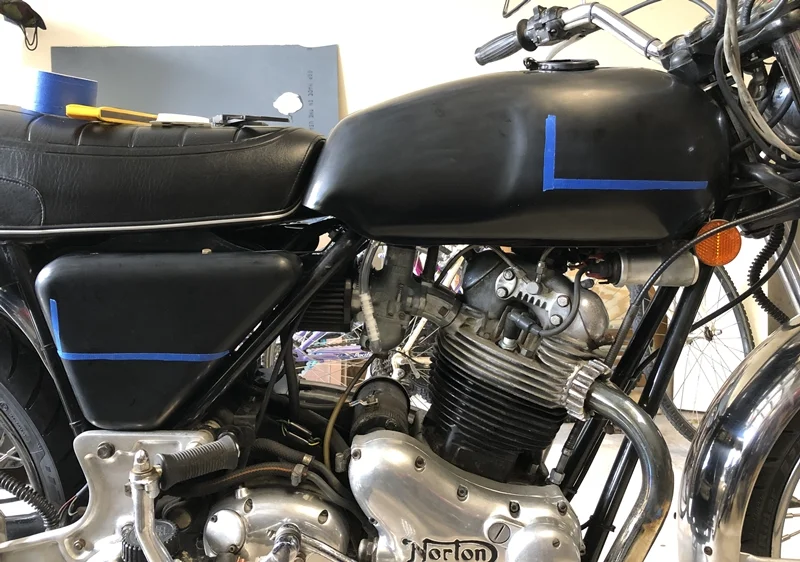

ABSOLUTELY set the bike on level ground, on the centerstand, and chock tires as required for overall level (check with a level on the top of the Z-plate).

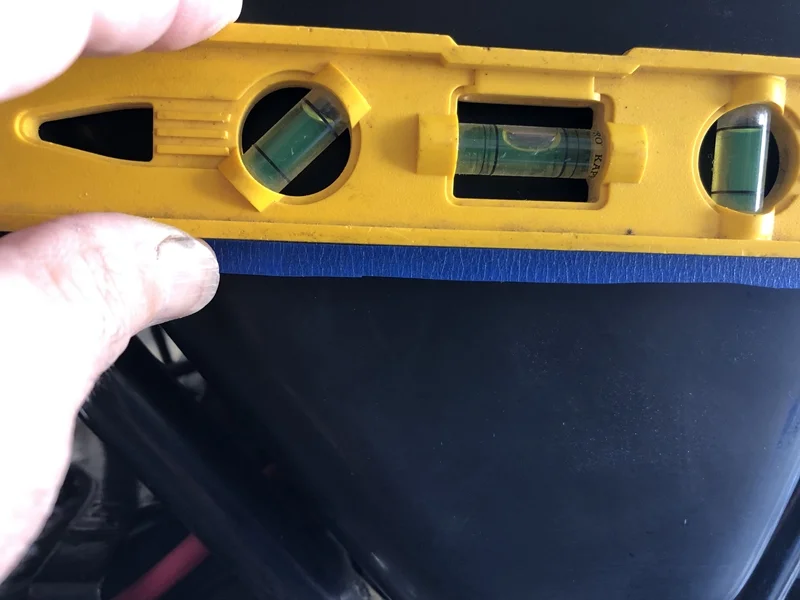

Then get your masking tape and level, and mark the tank and sidecovers top & bottom of main striping locations, with a thin line of tape. Also both sidecovers with another thin line at bottom of decal locations.

JPN Colour Scheme


JPN Colour Scheme

JPN Colour Scheme

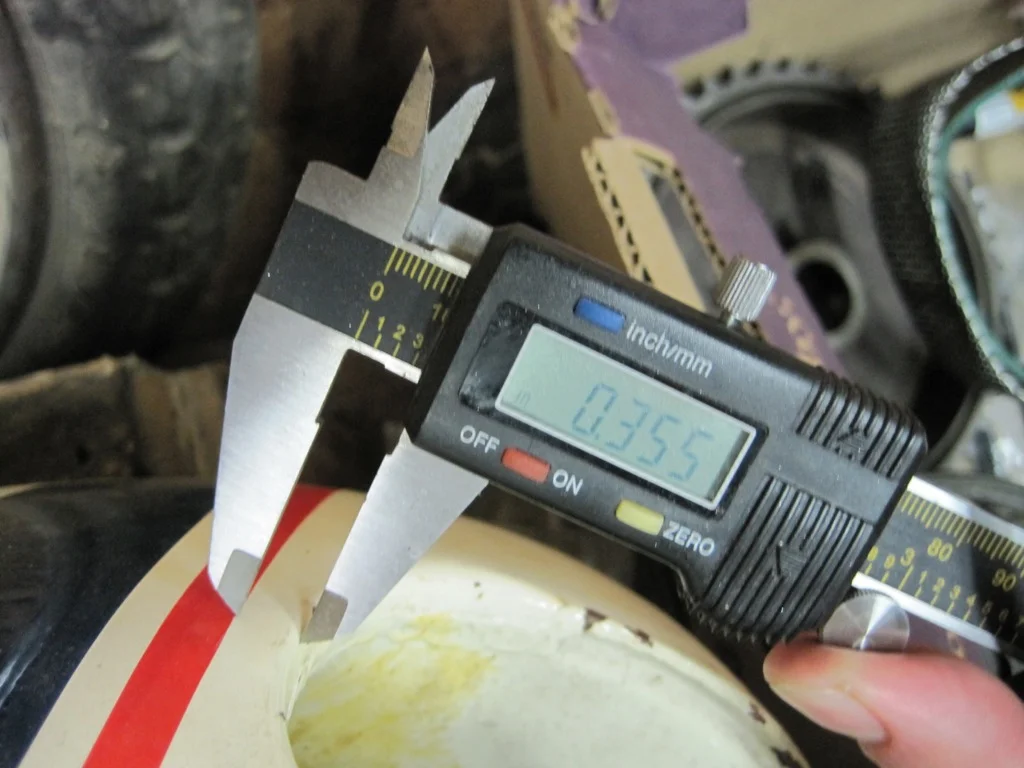

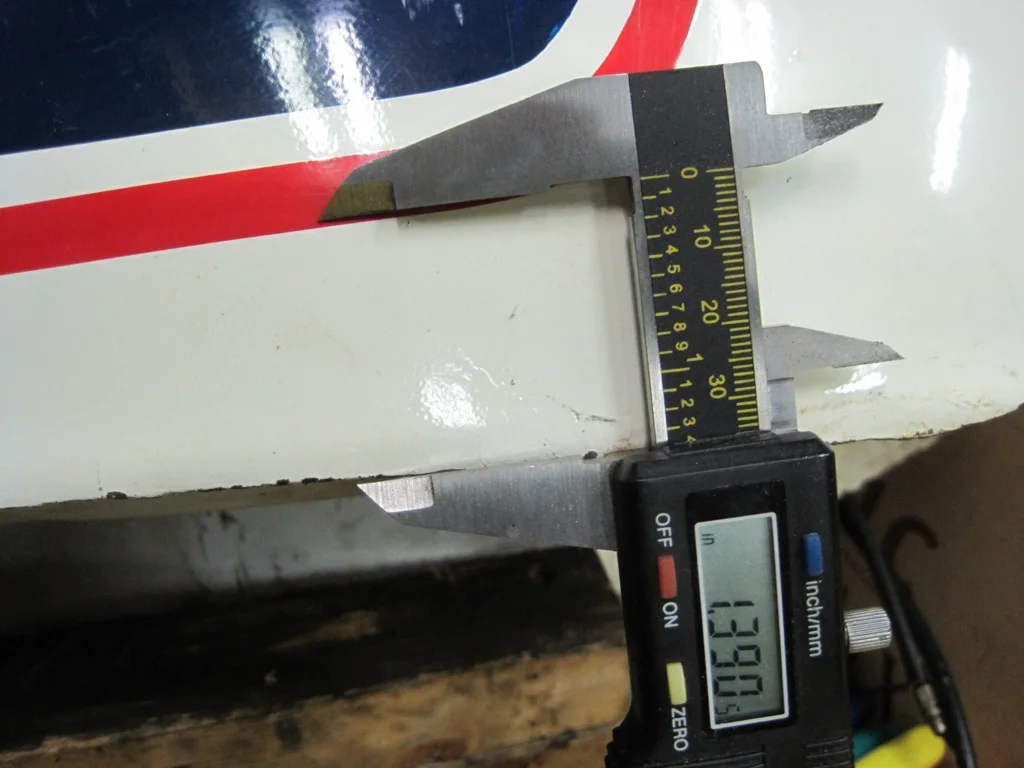

You could use a laser level. I checked the decals that had already been applied to mine. I'm not certain they are the right height but they'll do.

joe czech said:
same here - I was thinking about a JPN colors repaint on mine, but my original paint, although showing it's age, still looks fairly decent for 45 year old lacquer. didn't have the heart to take paint stripper to it. so, CAR it stays... ;)

JPN Colour Scheme
Click to expand...
Keep it original, looks great

Dave
