Fast Eddie said:
SURELY… there has to be proper discs available ??

Honestly… slotting / opening up the holes is not a proper fix in this application.

Think of it as a floating disc!

TonyA · Feb 24, 2023

City Garage said:
Ok, but so far this issue is on one bike, one hub? or is it two bikes, one hub? Or are my movies getting mixed up??

Front-wheel only?

This morning I took off discs from two spoke front wheels we have in the shop and the spacing was fine. Cast hubs.

Hi Lance , What years were they ? I just received the Aecindia Norton 961 wheels . No measurements taken yet !

Stephen_Spencer · Feb 24, 2023

TonyA said:
Hi Stephen , Thanks for taking the time to show this. We will pretty much have this all in the open soon. Can you recall how the brake discs holes lined up on the Honho hubs ? Do you have a photo of the rear and does it show any witness marks ? Looks like you have (had) the wheels I am trying to install ! The Honho Black rims India .

Hey Tony,

No recollection of any problems with the original fit. Nothing was mentioned when the dealer fitted the carbon wheels and no indication of misalignment - no witness marks apparent.

Good luck with your purchase - here’s hoping they bolt straight on.

TonyA · Feb 24, 2023

TonyA said:
Hi Lance , What years were they ? I just received the Aecindia Norton 961 wheels . No measurements taken yet !

Two bikes , both 2010's fitting 2015 cast hubs I think .

City Garage · Feb 24, 2023

TonyA said:
Hi Lance , What years were they ? I just received the Aecindia Norton 961 wheels . No measurements taken yet !

14 and 15

cliffa · Feb 25, 2023

TonyA said:
Two bikes , both 2010's fitting 2015 cast hubs I think .

That's interesting, thanks for checking. Two bikes so far affected and only front hubs I believe. The wheels I got are from a 2015, and the wheels @Clive-961 bought are from a 2021 bike. Mine has Brembo discs and I presume his does as well as it's a 2010 bike.

TonyA · Feb 25, 2023

TonyA said:
Hi Lance , What years were they ? I just received the Aecindia Norton 961 wheels . No measurements taken yet !

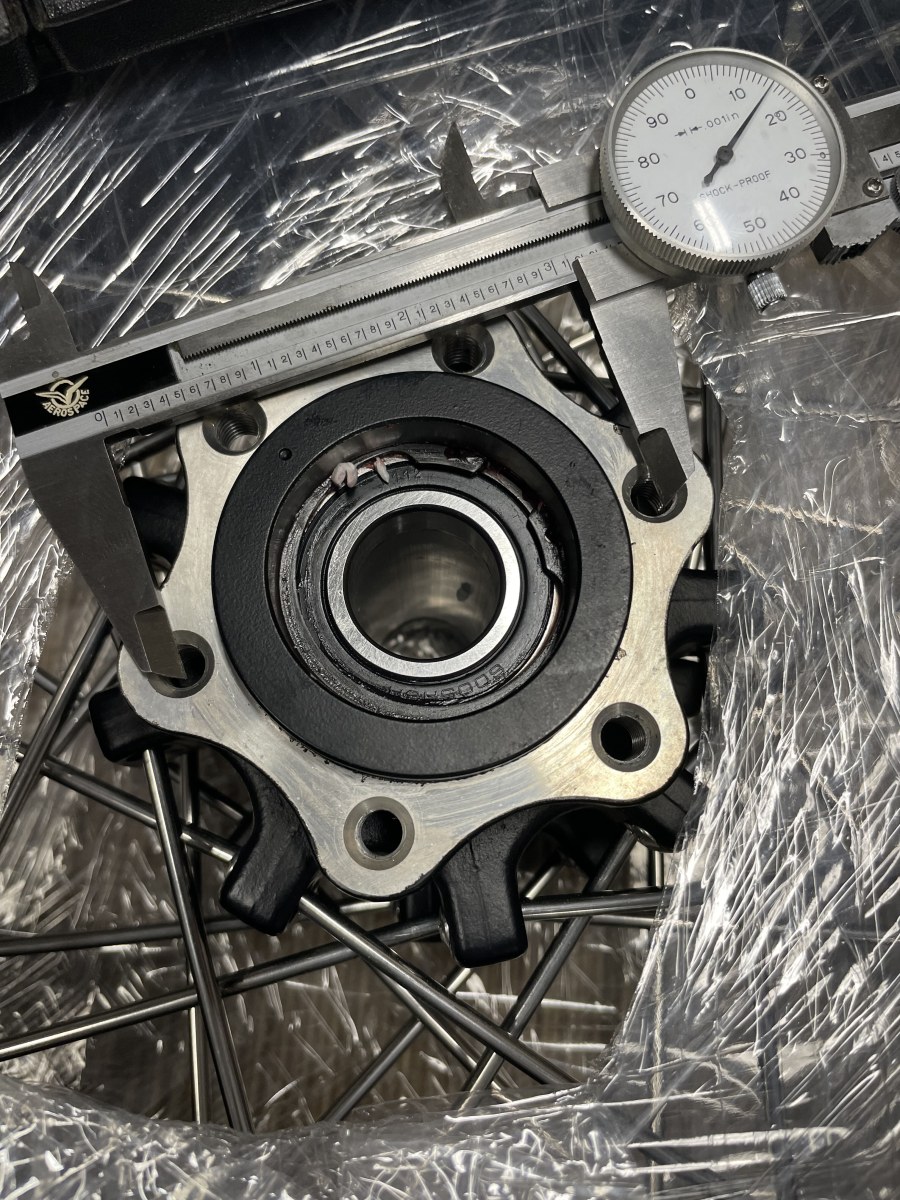

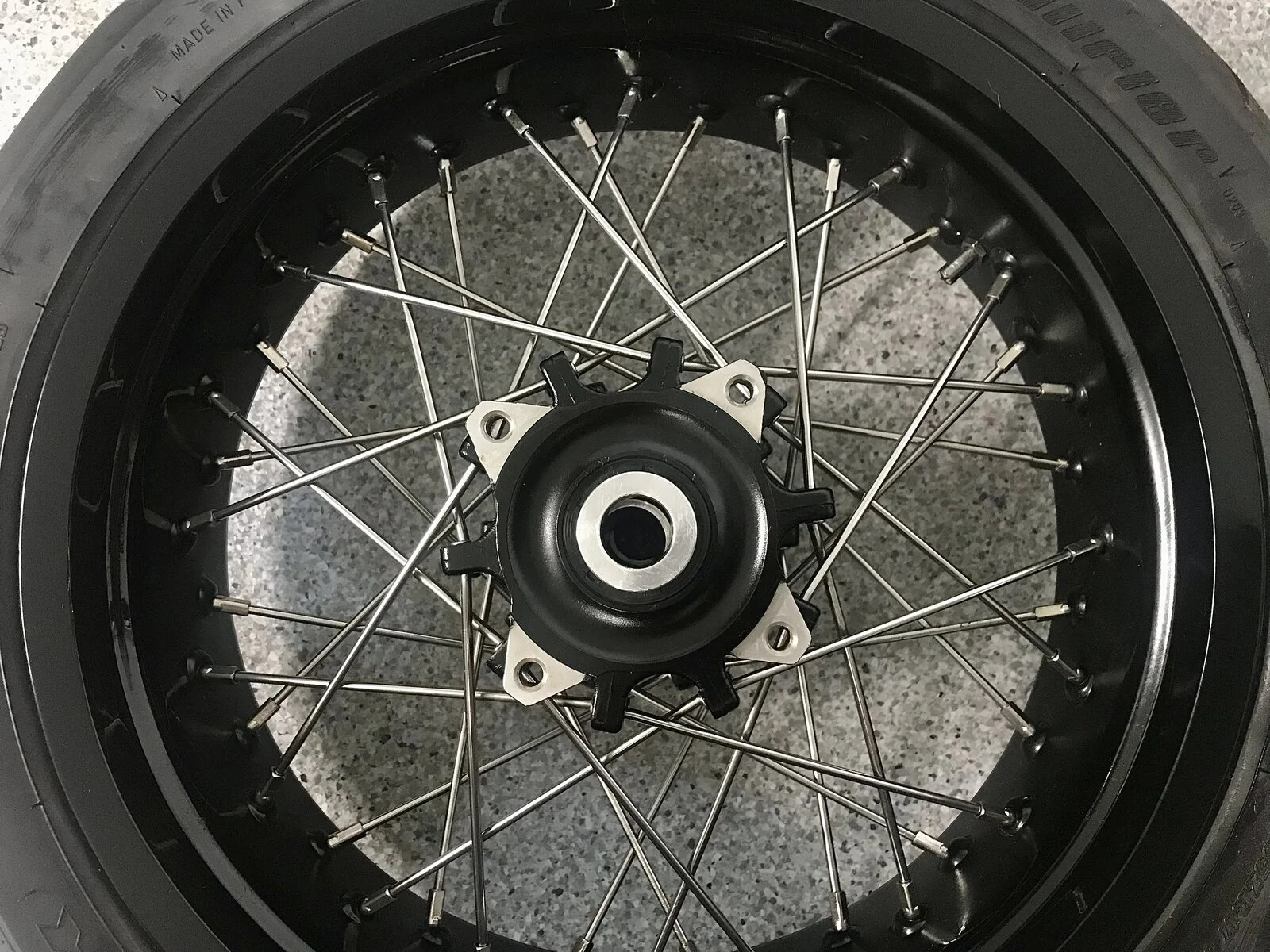

These wheels are from AECINDIA , late model Norton 961 cast hubs (circa 2018) measurements are in inches 3.115 in. = 79.121mm approx. center to center Front Wheel

***IMPORTANT PLEASE READ (but don't panic)***

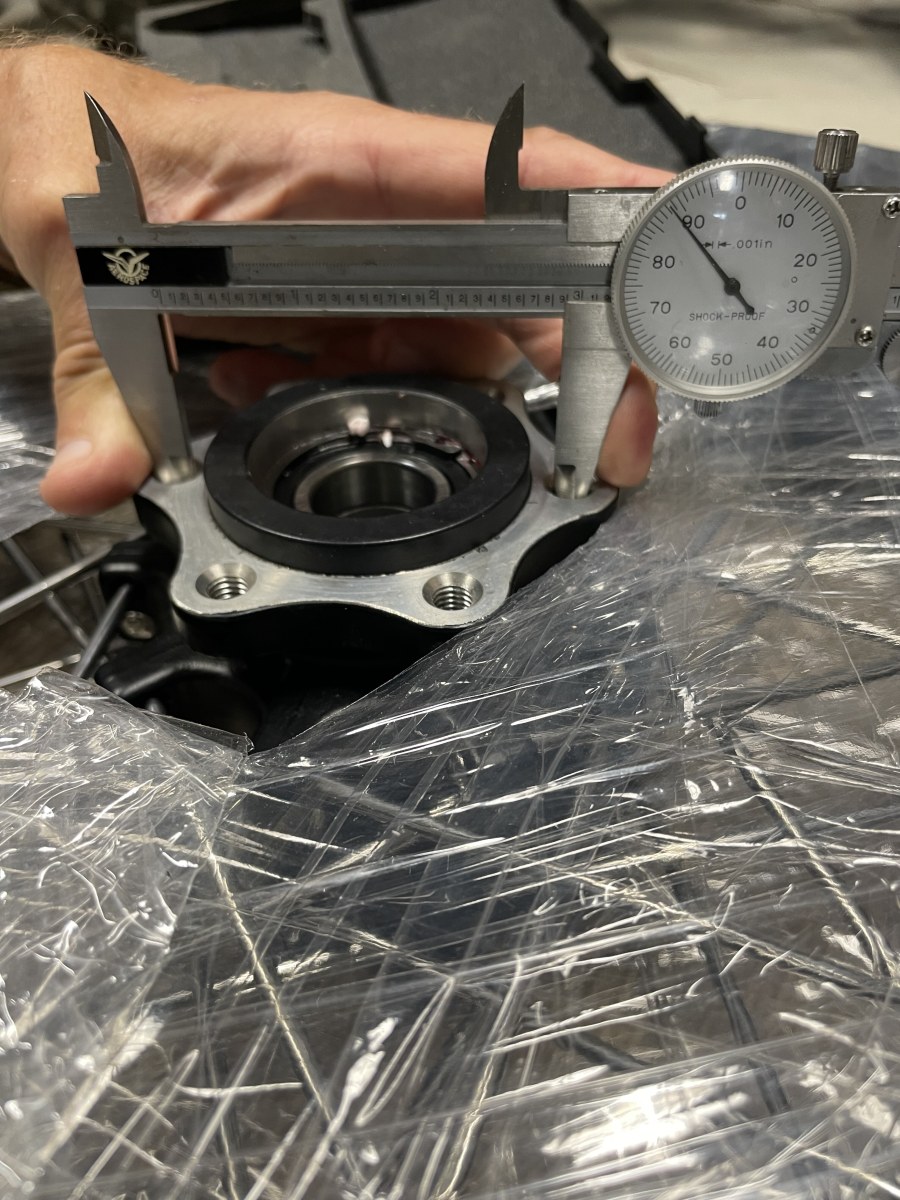

Inside measurement 2.888 inches = 73.36 mm

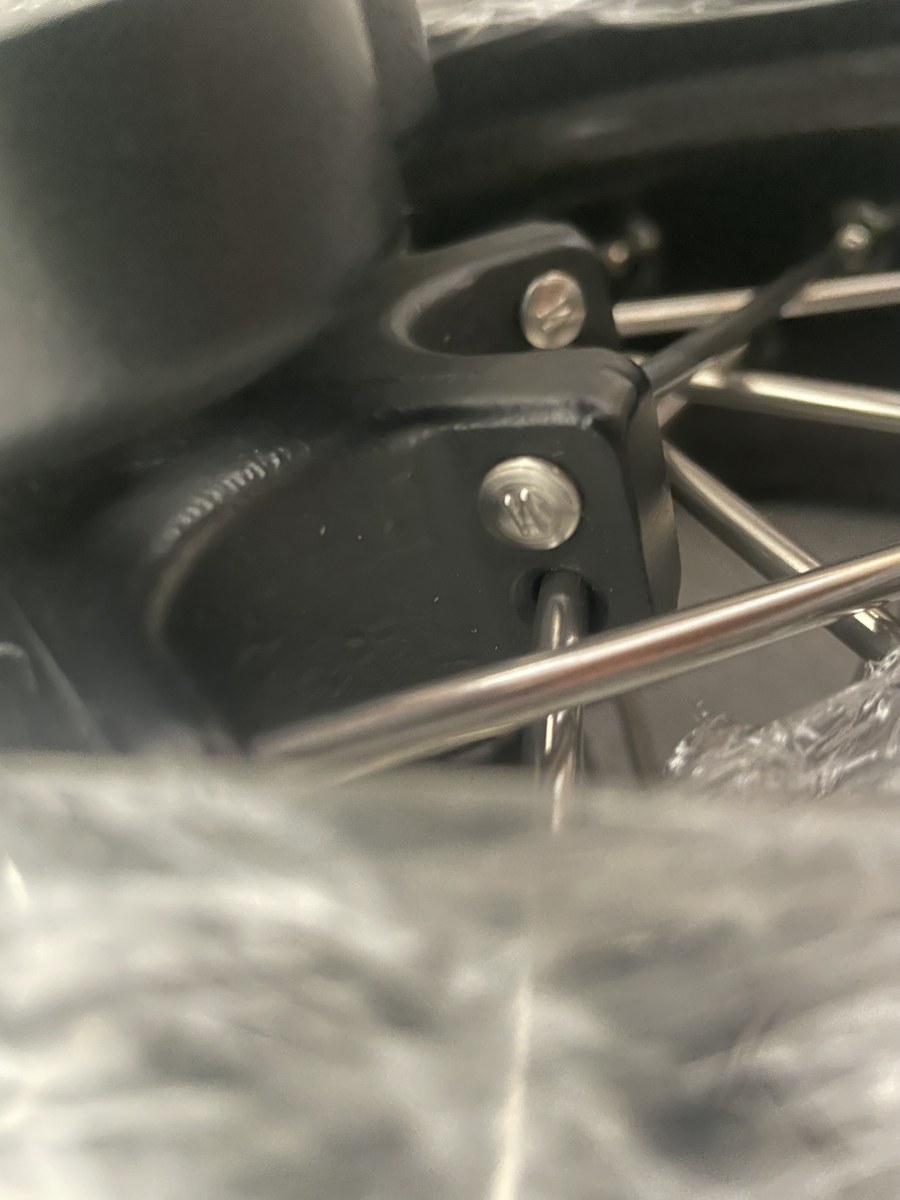

Here are the N marked on each spoke , Voodooo said his bike has these (kind of marcus registrada) Norton Spokes .

I will eventually show how the brake disc holes line up but I can't do it now.

cliffa · Feb 26, 2023

TonyA said:
These wheels are from AECINDIA , late model Norton 961 cast hubs (circa 2018) measurements are in inches 3.115 in. = 79.121mm approx. center to center Front Wheel

Inside measurement 2.888 inches = 73.36 mm

Here are the N marked on each spoke , Voodooo said his bike has these (kind of marcus registrada) Norton Spokes .

I will eventually show how the brake disc holes line up but I can't do it now.

So it looks like there was some quality control going on. I’m pretty certain you wont have any issues with alignment Tony

Fast Eddie · Feb 26, 2023

Is that the same bolt spacing as your old wheel Tony?

TonyA · Feb 26, 2023

Fast Eddie said:
Is that the same bolt spacing as your old wheel Tony?

Don't know yet .

TonyA · Mar 7, 2023

Fast Eddie said:
Is that the same bolt spacing as your old wheel Tony?

It is the same bolt spacing .

TonyA · Mar 7, 2023

cliffa said:
That's interesting, thanks for checking. Two bikes so far affected and only front hubs I believe. The wheels I got are from a 2015, and the wheels @Clive-961 bought are from a 2021 bike. Mine has Brembo discs and I presume his does as well as it's a 2010 bike.

Cliffa , Was there only one seal on the front hub of your wheel r/h side ? I wondered why they didn't put a seal on the other side l/h side ?

cliffa · Mar 8, 2023

TonyA said:
Cliffa , Was there only one seal on the front hub of your wheel r/h side ? I wondered why they didn't put a seal on the other side l/h side ?

Hi Tony, glad the discs line up

Both bearings on mine are sealed, but no other seals or dust covers. On the right it has a short stepped spacer ( step inwards) and on the left a longer parallel spacer. I don’t actually remember seeing any circlips either. I’ll take a look tonight.

TonyA · Mar 8, 2023

cliffa said:
Hi Tony, glad the discs line up
Both bearings on mine are sealed, but no other seals or dust covers. On the right it has a short stepped spacer ( step inwards) and on the left a longer parallel spacer. I don’t actually remember seeing any circlips either. I’ll take a look tonight.

Hi Cliffa , I am not referring to the sealed bearings . Don't you have a seal on the r/h side of the front hub in addittion to the sealed bearings ? The circlip side l/h side does not have a outboard seal like the r/h side does and I wondered why . Maybe Stu Knows why .

cliffa · Mar 8, 2023

TonyA said:
Hi Cliffa , I am not referring to the sealed bearings . Don't you have a seal on the r/h side of the front hub in addittion to the sealed bearings ? The circlip side l/h side does not have a outboard seal like the r/h side does and I wondered why . Maybe Stu Knows why .

Hi Tony, apologies you are correct there is a seal with a small spacer inserted on the right side only.

TonyA · Mar 10, 2023

cliffa said:
The wheels I got are from a 2015, and the wheels @Clive-961 bought are from a 2021 bike.

A 2021 wheel did not fit ? Wow , whats happening here ? Any other details from from Clive-961 ? I would have thought the front hub disc hole spacing was resolved by then ?

TonyA · Mar 13, 2023

cliffa said:
Hi Tony, apologies you are correct there is a seal with a small spacer inserted on the right side only.

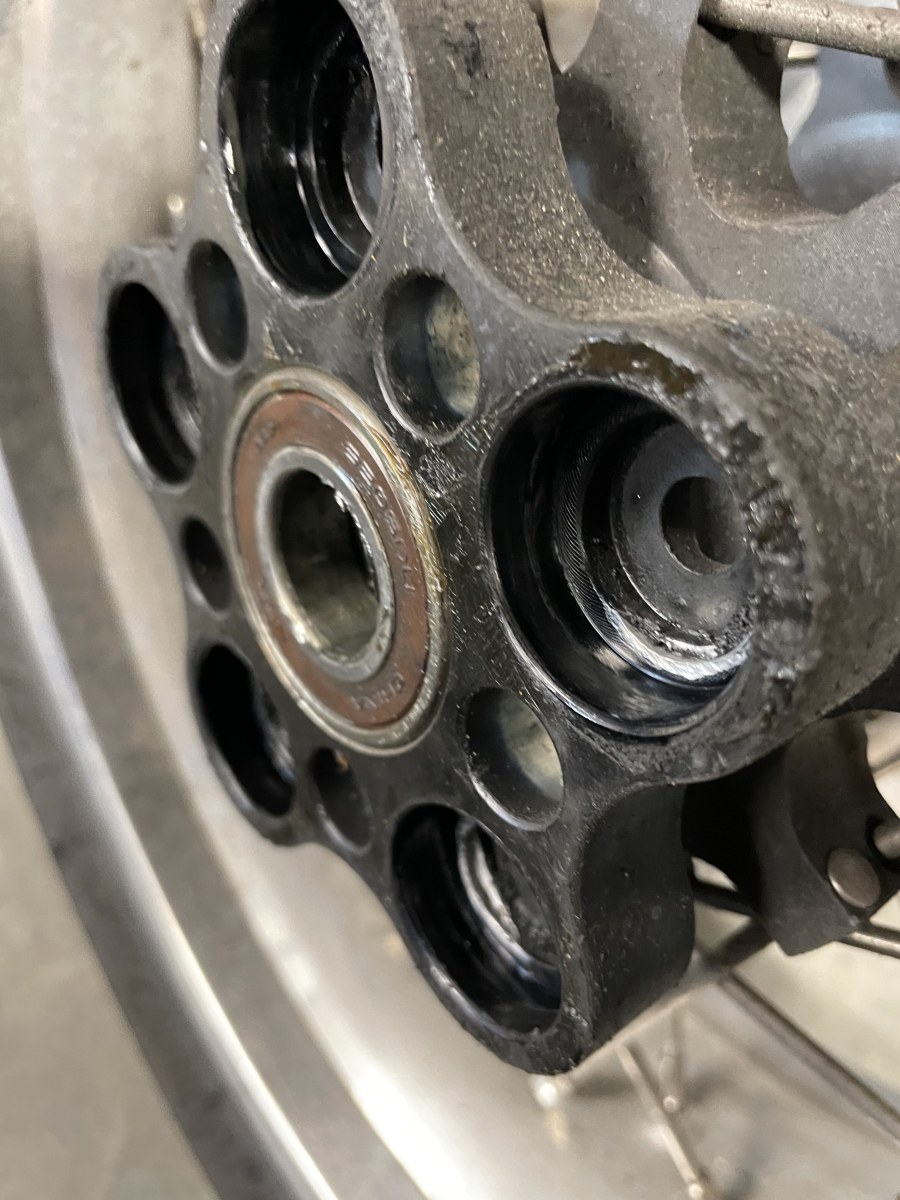

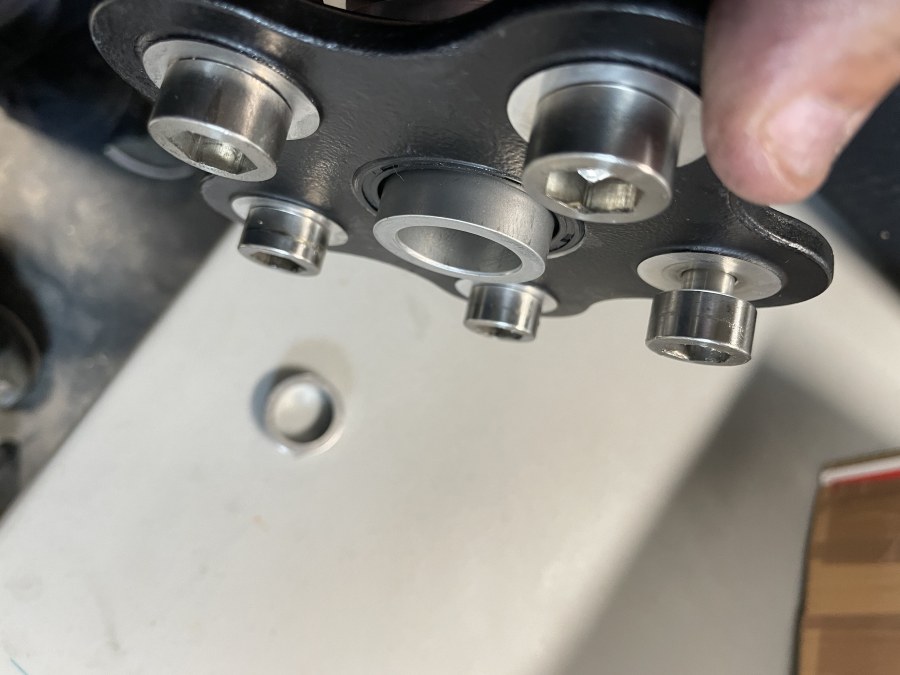

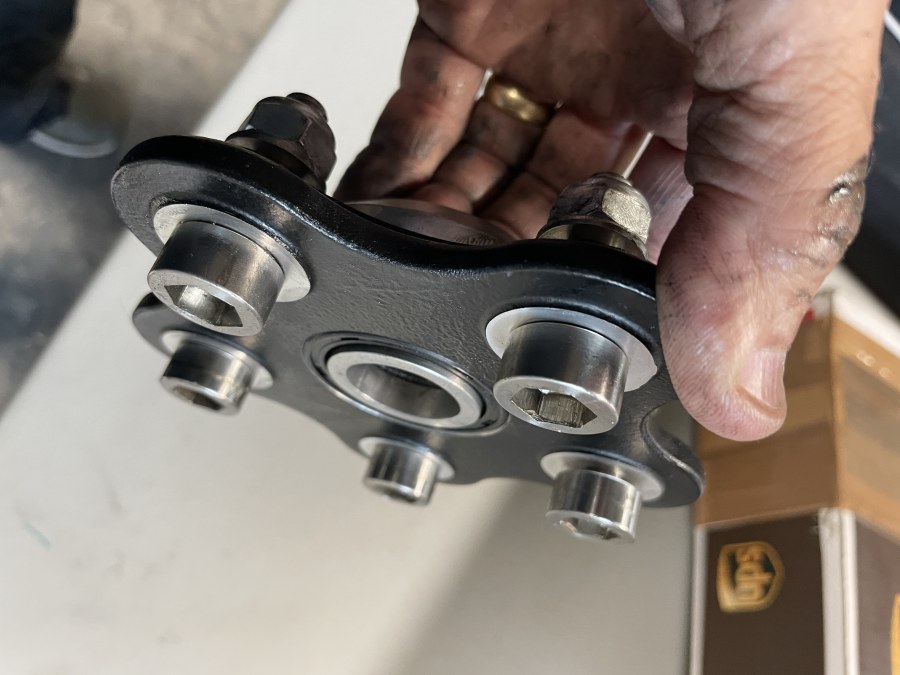

Ok , there is more but not bad news . Did you change the rear hub also Cliffa ? When switching to a cast rear hub you must have the proper spacer between the sprocket carrier and the r/h side of the hub. Please look at this : machined (Talon) rear hub is flush with the face .

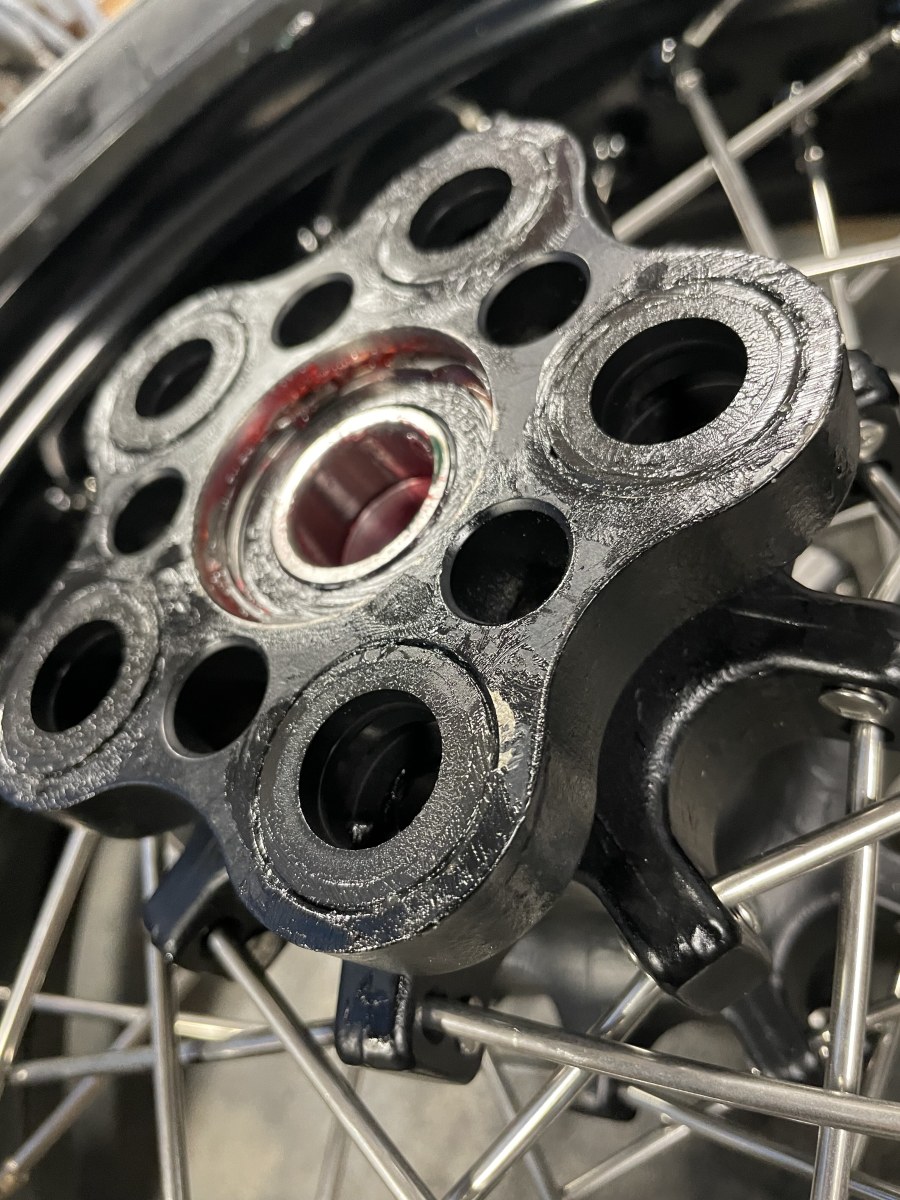

The cast hub bearing is recessed from the face and has correspondingly shorter internal hub spacer .

Lucky for me I had the correct spacer from when I ordered my spare sprocket carrier from Birmingham Norton which they included .

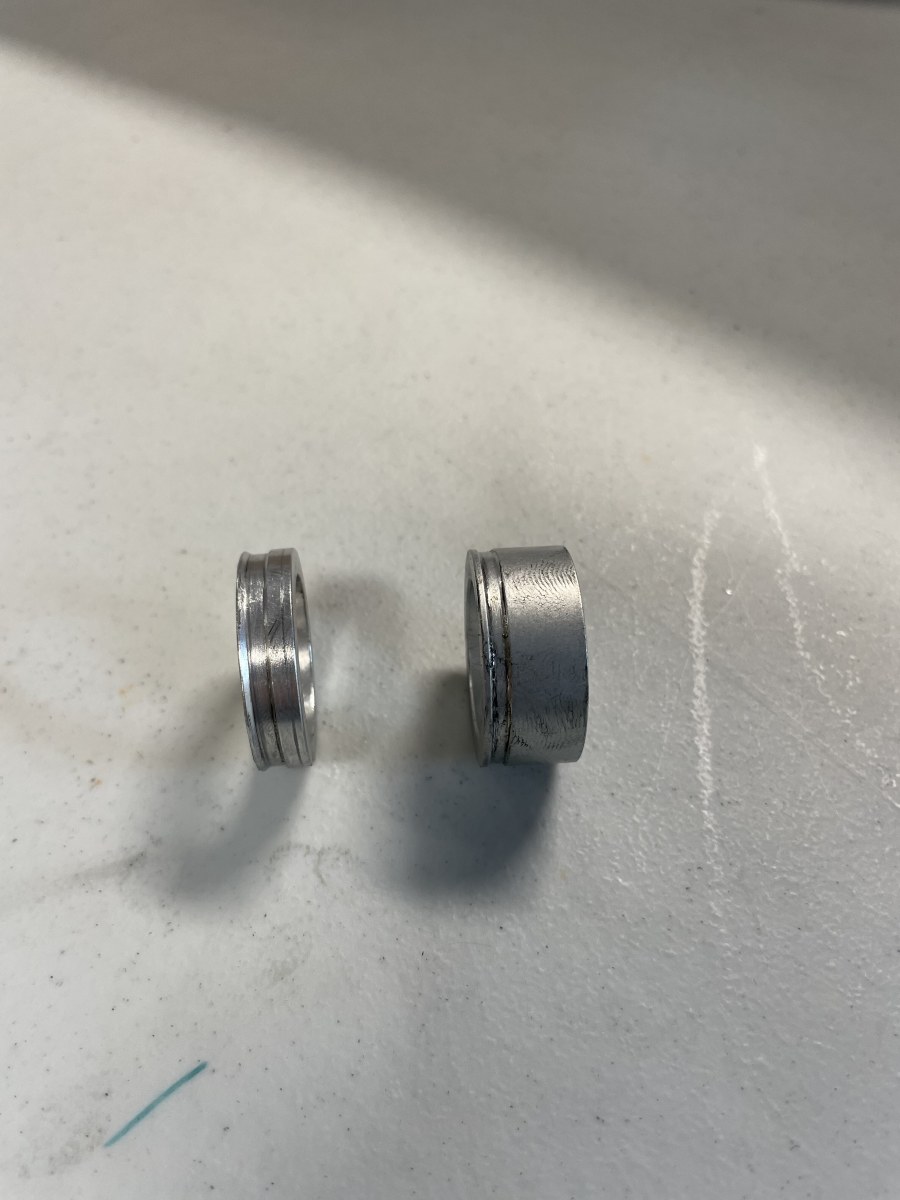

As you can imagine you need the correct (longer) spacer.

Stephen_Spencer · Mar 13, 2023

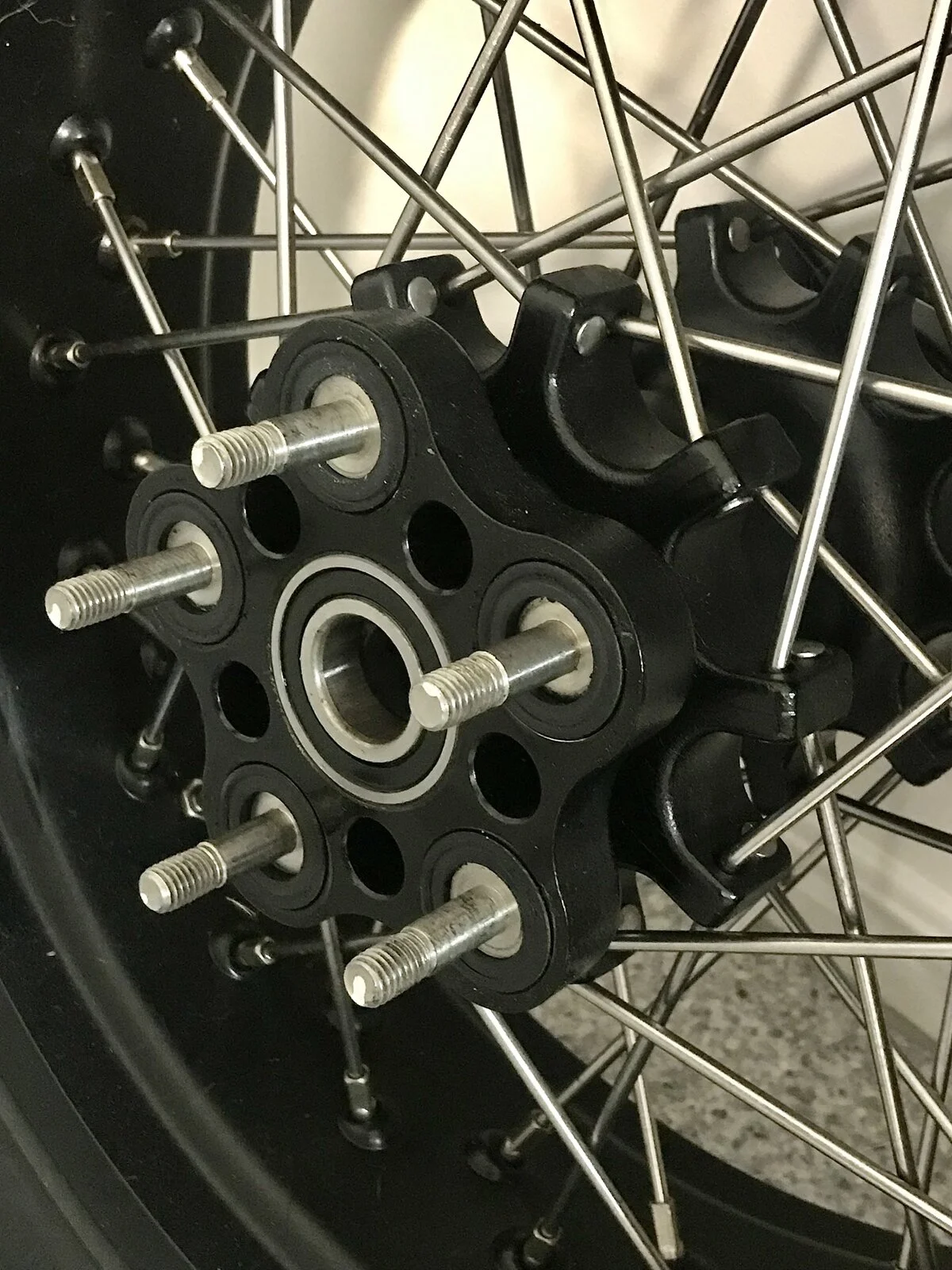

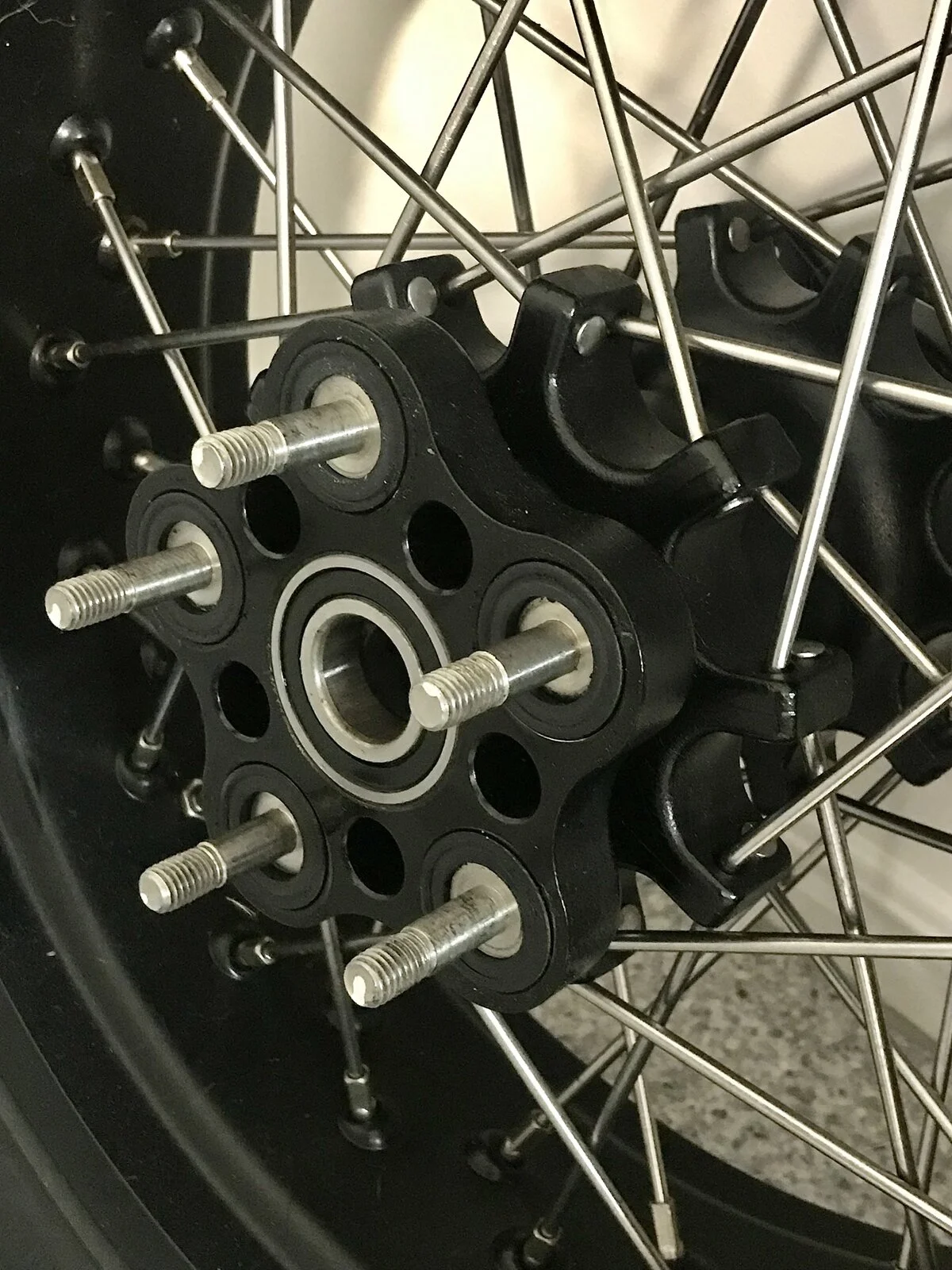

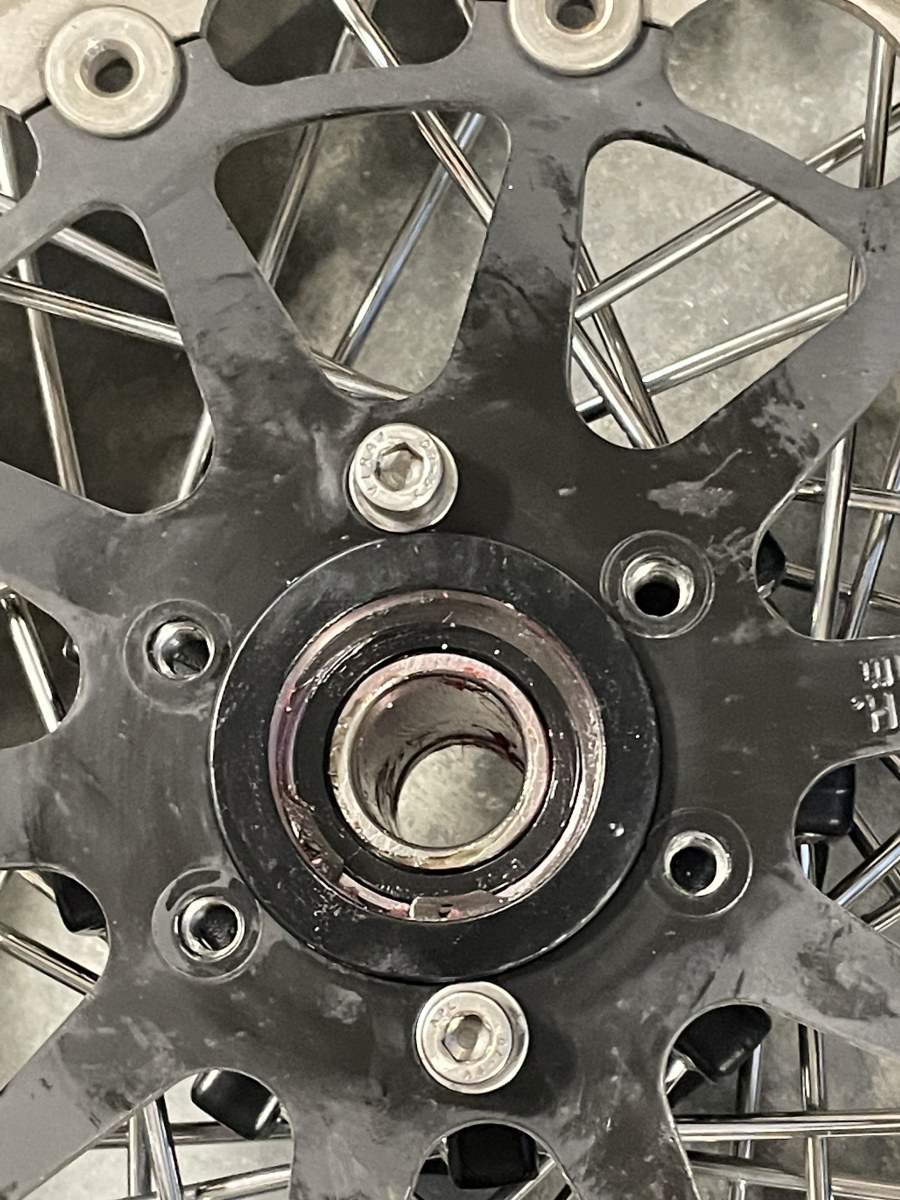

Hey guys - I may be complicating things again (I have previous

!) but my cast hub bearing appears to be flush?

Gojuu · Mar 13, 2023

Stephen_Spencer said:
Hey guys - I may be complicating things again (I have previous !) but my cast hub bearing appears to be flush?

View attachment 104690

@Stephen_Spencer how long did you clean that for before you posted it?

Stephen_Spencer · Mar 13, 2023

Gojuu said:
@Stephen_Spencer how long did you clean that for before you posted it?

Only two full days Gj - which shows amazing restraint on my behalf I’m sure you’d agree

!
