I'm a newbie wishing to know what I have. (2013)

Chris Larkin said:

GrandPaul - Your basic, simple wiring harness, mentioned above. As I disassemble my 73' 850 I become more stressed about all the hanging (not connected) wiring. I believe in "less is more" making me curious about the harness you refer too.

Click to expand...

Positive ground with EI


Negative ground with EI

Chris Larkin said:

GrandPaul - Your basic, simple wiring harness, mentioned above. As I disassemble my 73' 850 I become more stressed about all the hanging (not connected) wiring. I believe in "less is more" making me curious about the harness you refer too. May we talk about it, please. chrislarkin@cox.net or 619 204-7505 (San Diego, CA)

Click to expand...

Also see this thread

https://www.accessnorton.com/NortonCommando/wiring-diagrams.28184/

grandpaul said:

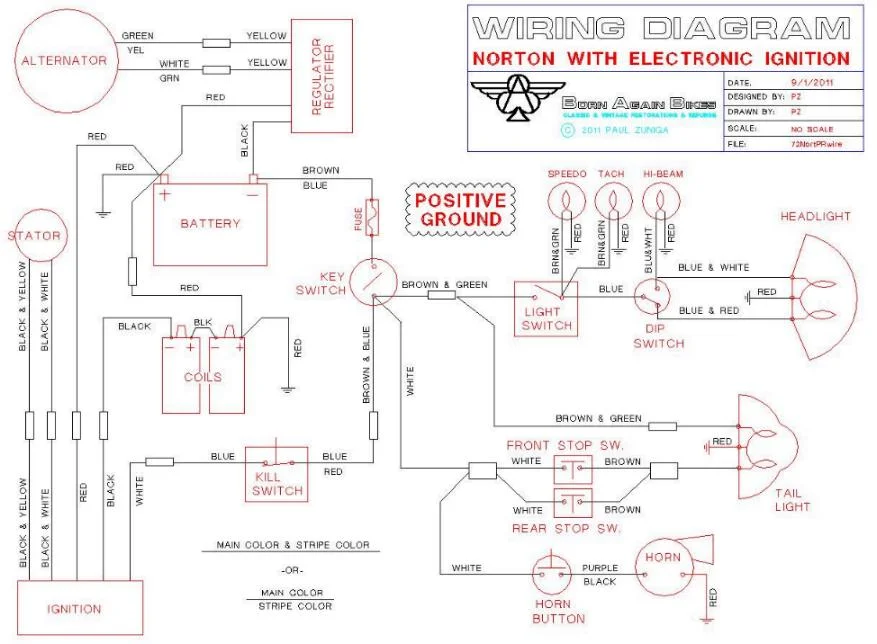

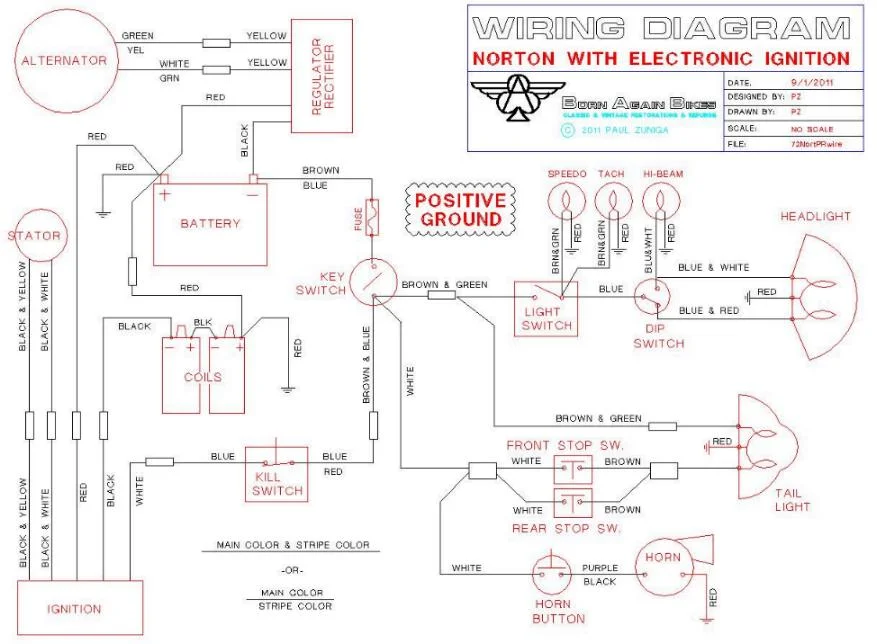

Positive ground with EI
View attachment 14868

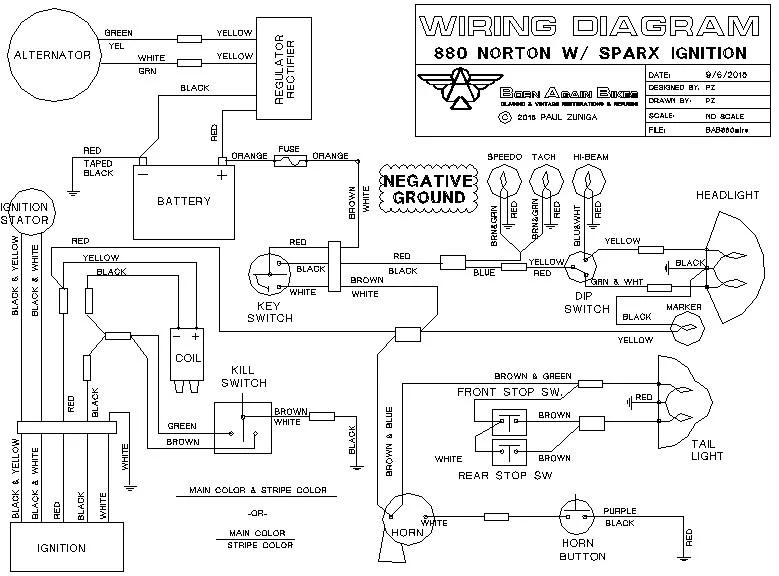

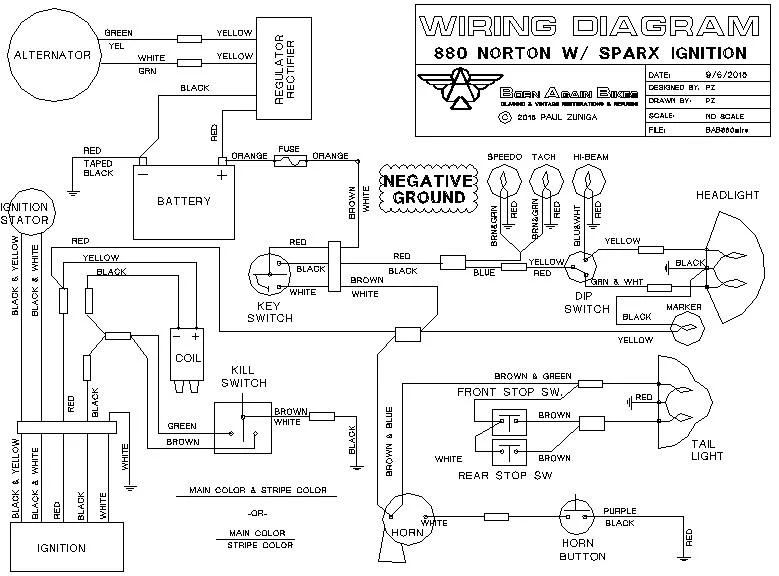

Negative ground with EI
View attachment 14870

Click to expand...

Thank you very much for the diagram, sadly it's like reading Sanskrit for me. Right now I'm replacing the isolastics - front, rear and head steady - and while the bike is stripped down was considering ripping out old wiring and installing a new, simpler harness. I've installed a tri spark ignition (successfully), and believe I am capable. I'll look for videos on installing a new harness – any suggestions, or maybe I just leave it alone?

gortnipper said:

Also see this thread

https://www.accessnorton.com/NortonCommando/wiring-diagrams.28184/

Click to expand...

Thank you - This is helpful... now I need a chum to assist / guide me with a new wiring installation. Thank you

Just follow one wire at a time from whatever component, thru it's switch, back to the battery.

Wiring aside, for now.

I read all the responses, pictures (most) appear to have suffered from the "Photo Bucket" syndrome, thankfully not contagious...Did I miss something?

So, Joel, have you got it running? Have you kept up with the guy who gave it to you; I hope you haven't named it "Christine"

Best.
