Engine troubles

Charlotte said:
So….. a broken rocker arm bolt. Thank goodness it happened in front of the shop. I’m not sure why this would happen. I did check the rocker arm shaft and bushing for ”feel”. There might be a very slight friction when rotating the rocker arm on the shaft but I dont know if it would cause a broken bolt.
I will probably need a new adjuster ball bolt. But I’ll cross that road soon
I think I remember someone had a problem with a rocker arm bushing so I’ll look at that too.
I do feel a bit better that I’ve found the problem.
I think that I should be able to get that broken part of the bolt out too with out taking the head off. Thats good.
And the broken bolt stayed in place! Also good!!
The adventure continues…….
Click to expand...
Awesome news...simple fix. I'd probably replace all the rocker shaft bolts, as they're easily sourced and cheap...plus you dont know why thst one snapped, maybe over torqued.

U
Stu Bodycote said:
Awesome...would be well up for that
Click to expand...

I was surprised when I rode my pals 750 roadster, very smooth, lots of torque,pulled in top gear rapidly from 30mph , engine rebuilt over 30 yrs ago
Engine troubles
Engine troubles

cliffa said:
Nice find, ( well if you can call it that) but well done !!

I would definitely bottom out a bolt and measure how much is still proud.

By the way, If you still have your primary open make sure the starter ring gear is secure.
Click to expand...
Hi Cliffa
Thanks on the suggestion. Can I check the starter ring by hand?
Or carefully with a bar?

Stu Bodycote said:
Awesome news...simple fix. I'd probably replace all the rocker shaft bolts, as they're easily sourced and cheap...plus you dont know why thst one snapped, maybe over torqued.
Click to expand...
Thanks Stu
I’m on the hunt for better replacement bolts. And I think I’ve found some!!

Stu Bodycote said:
His compression test showed slightly low numbers tbh, hence my recommendation of a cylinder leak down.
As a comparison, I just pulled No1 plug out of my bike..
Obviously lots of variables here, but certainly higher than the figures the OP was quoting.
Click to expand...
These numbers are definitely better then what I saw with mine. Once everything is back together, I’ll see if I can source a leak down tester. Or maybe I shouldn’t do that…. I probably wont lose any sleep then!!

Tolerances were all over the place chap, which is most probably why some guys have oil breather concerns and others dont. If it runs ok, leave it alone.

Charlotte said:
Hi Cliffa
Thanks on the suggestion. Can I check the starter ring by hand?
Or carefully with a bar?
Click to expand...
I think you'll be able to feel if it's loose, but I guess you could carefully use a lever between the ring and drive gears and see if it feels ok. It's also worth looking at these threads if you haven't seen them before.

www.accessnorton.com

Another clutch basket failure.

Well, Richard-7 warned us all about the possibility of failure in the rivets holding the clutch basket to the drive gear, and I've just had it happen to me. The loud noises in the primary of my 2014 961 Sport seemed like they were getting louder, so I finally pulled the primary to take a look...
www.accessnorton.com www.accessnorton.com
www.accessnorton.com

Starter Ring Gear -- ISSUE

I'm not sure if this is a known problem or not but it is a potential problem that should be noted. The RING GEAR (the gear that the starter is driving/spinning) can come loose as it is held on with five shoulder bolts and threebond. The problem, in my opinion from an engineering view is, the...
www.accessnorton.com www.accessnorton.com

Not to frighten you, more for awareness.

Charlotte said:
So….. a broken rocker arm bolt. Thank goodness it happened in front of the shop. I’m not sure why this would happen. I did check the rocker arm shaft and bushing for ”feel”. There might be a very slight friction when rotating the rocker arm on the shaft but I dont know if it would cause a broken bolt.
I will probably need a new adjuster ball bolt. But I’ll cross that road soon
I think I remember someone had a problem with a rocker arm bushing so I’ll look at that too.
I do feel a bit better that I’ve found the problem.
I think that I should be able to get that broken part of the bolt out too with out taking the head off. Thats good.
And the broken bolt stayed in place! Also good!!
The adventure continues…….
Click to expand...
You have probably already done this , But make sure the Rocker Arm is not seized on the shaft . The rocker arms should move smoothly. The extra force required to move the rocker might cause the bolt to break .

TonyA said:
You have probably already done this , But make sure the Rocker Arm is not seized on the shaft . The rocker arms should move smoothly. The extra force required to move the rocker might cause the bolt to break .
Click to expand...
Hi Guys
I’ll take a closer look at the starter ring gear. Its tight to the touch but I’ll use some gentle force and see if there’s any play in it.
Regrading the rockers and spindles… The one that failed is pretty smooth but there is a bit of “notchiness”. I dont think that it would be the cause because its not THAT “notchy”( imho). I havent checked the other rockers yet but I am going to.

BritTwit said:
Shayne,

Did you check beneath your seat for a OBD2 plug?
Before you start to make changes to, or replace anything, first try to get a OBD reader on the bike to check for error codes.
Could save you time, effort, and money.
Click to expand...
Hi Brit
I did check for an OBD and my set doesn’t have one
Thanks for the idea.

A couple more things while I’m thinking of it.

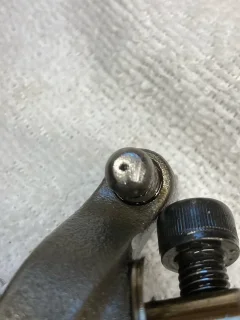

I’m going to need another rocker arm adjuster bolt(with the ball at the end). Mine is a bit ”peened” over. I have Dave C looking for one too but if he doesn’t find one would anyone have access to a replacement?

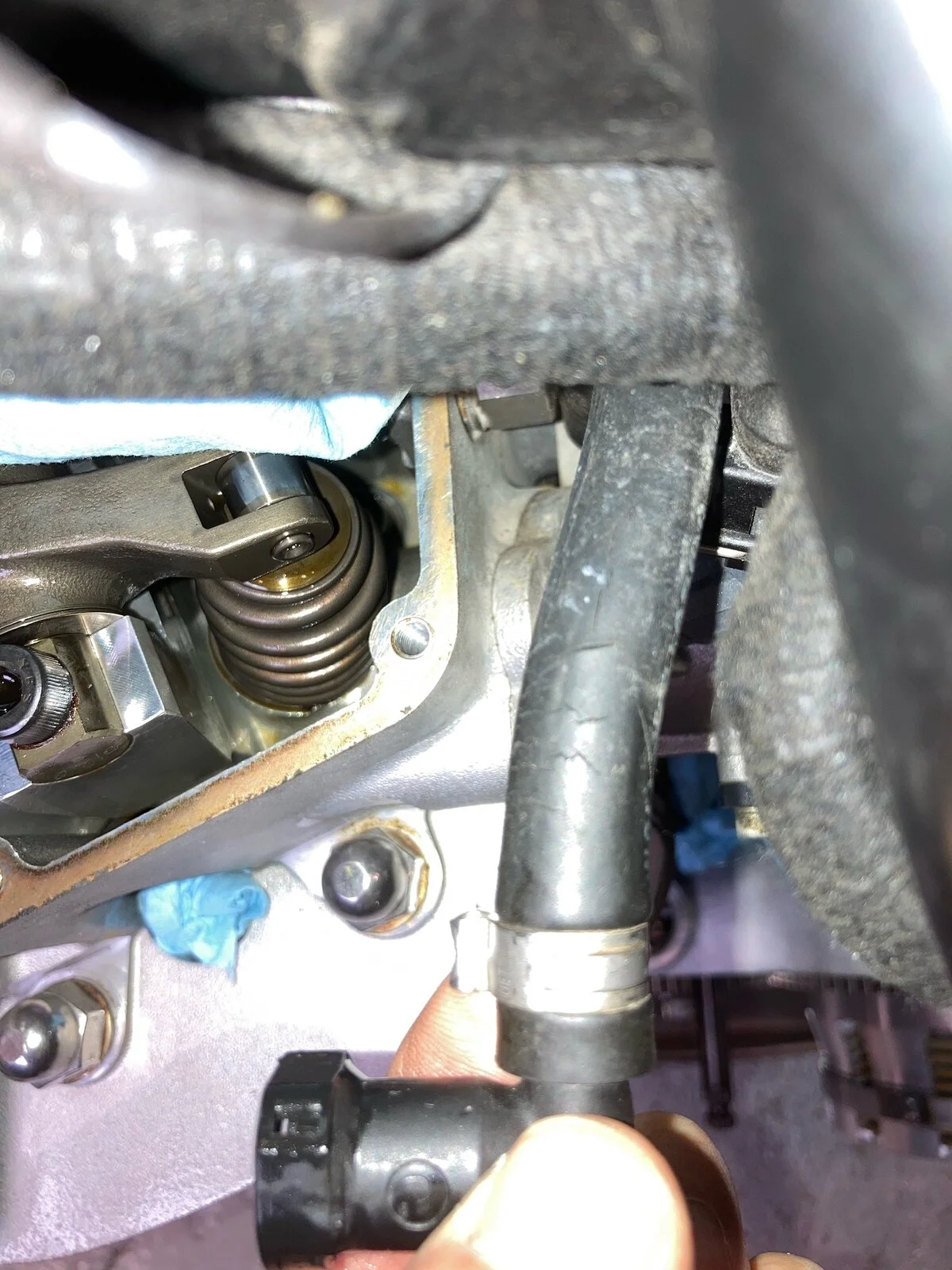

Also, I was looking at my rubber fuel line that goes from the tank quick connector to the fuel rail and I was a bit surprised to see some cracking. It might worth a look on the bikes.
Thanks again for all the ideas


Attachments

  • Engine troubles
    163.8 KB · Views: 211
  • Engine troubles
    200 KB · Views: 216
Charlotte said:
A couple more things while I’m thinking of it.
I’m going to need another rocker arm adjuster bolt(with the ball at the end). Mine is a bit ”peened” over. I have Dave C looking for one too but if he doesn’t find one would anyone have access to a replacement?
Also, I was looking at my rubber fuel line that goes from the tank quick connector to the fuel rail and I was a bit surprised to see some cracking. It might worth a look on the bikes.
Thanks again for all the ideas
Click to expand...
Ollie Thiel had rockers when I asked. He may sell an entire rocker too ?

City Garage said:
its interesting because the bikes sent to the US were a mixed sort
Click to expand...

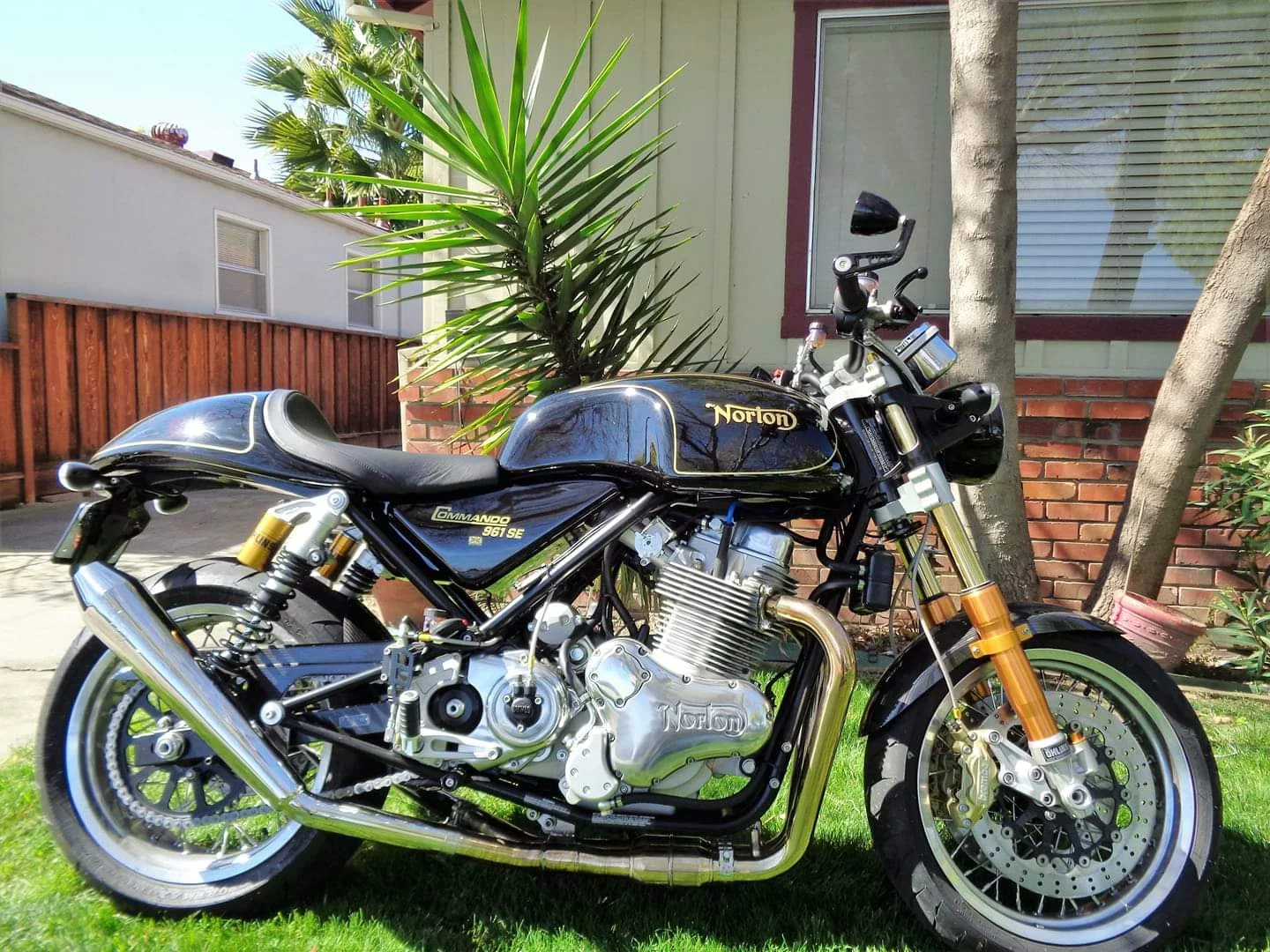

Just seen this SE on Facebook.... did all your SE's have spoked wheels, as UK models were carbon BST's?


Attachments

  • Engine troubles
    309.9 KB · Views: 191
