Have you verified no spark to that cylinder ? Is it an ignition issue ?
Bike cutting out
- Thread starter Dave2dogs
- Start date

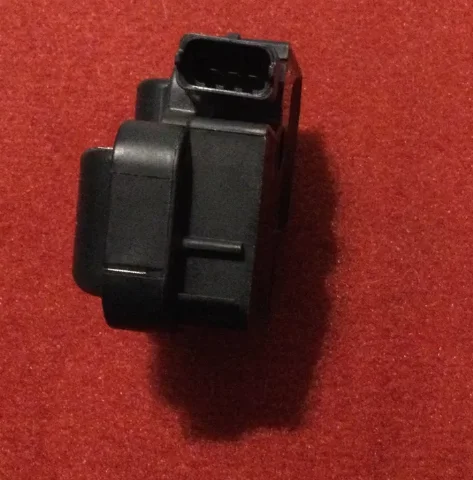

Hi Tony, no not yet. No spark on left cylinder. Bike already has a replacement Bosch coil pack but are cheap enough to replace so will try that and see if that cures it. Seems to be 1 problem after another. I’ve only had the bike a month
cliffa
VIP MEMBER
- Joined
- May 26, 2013
- Messages
- 4,129
Hi Dave, I think I’d whip the tank off again and see if there is anything amiss. There is a connector feeding the coil pack which may have got disturbed. Also have a look at the loom near the rear of the tank, and make sure it isn’t being crushed. Mine was, so I put a thicker rubber pad under the tank so it just clears it.Hi Tony, no not yet. No spark on left cylinder. Bike already has a replacement Bosch coil pack but are cheap enough to replace so will try that and see if that cures it. Seems to be 1 problem after another. I’ve only had the bike a month
cliffa
VIP MEMBER
- Joined
- May 26, 2013
- Messages
- 4,129
I don't remember exactly. Possibly on the coil pack itself?
- Joined
- Jan 16, 2015
- Messages
- 5,856
Take out both plugs connect to the boots, ground them to the head while cranking the engine over . Check for spark at the plugs gaps make sure of this before going further.Hi Tony, no not yet. No spark on left cylinder. Bike already has a replacement Bosch coil pack but are cheap enough to replace so will try that and see if that cures it. Seems to be 1 problem after another. I’ve only had the bike a month
Hi Tony, tried that. If I swap the ht leads at the coil end the opposite side sparks which I guess means only one of the two coils is working or there is no power to that coil
- Joined
- Jan 16, 2015
- Messages
- 5,856
OK so try a coil and ohm out the wires leading to it from the ECU.
Do you have the service manual ?
Measure the primary winding resistance as follows:
o Connect the tester between the coil terminals.
o Set the tester between the coil terminals.
Measure the secondary winding resistance as follows:
o Remove the plug cap by turning it counter-clockwise.
o Connect the tester between the spark plug lead and terminal.
o Set the tester to the 1 k Ω range and read the tester.
o Measure primary winding resistance
o Measure secondary winding resistance
o Ignition coil [C]
Ignition Coil Winding Resistance
Primary: 0.14~ 0.22 Ω Secondary: 3.8 ~ 5.8 kΩ
Last edited:
cliffa
VIP MEMBER
- Joined
- May 26, 2013
- Messages
- 4,129
Hi Dave, this video should help. It’s not an identical coil, but the principle is the same.
- Joined
- Jan 16, 2015
- Messages
- 5,856
The manual is available on the site . Correct Cliff ?Thank you, will it a try in the morning
- Joined
- Jan 16, 2015
- Messages
- 5,856
Hi , Use Cliffa's video as a guide . Center pin on the primary plug is the 12V common. So measure like it shows center pin to each pin L and R of it for very low ohms . Then measure the seconday like the video showsin the higher K ohms range. You may need to replace the coil to be sure. Thanks for the video Cliff !
cliffa
VIP MEMBER
- Joined
- May 26, 2013
- Messages
- 4,129
Yes, that and many more Tony
Dave, loads of manuals and info here..
Modern Norton
www.accessnorton.com
Workshop manual..
Resource icon
Wiring diagram ( not sure if it will match your bike exactly)
Resource icon
Tony, do you have any earlier wiring schematics by any chance? We only seem to have Euro 3 & 4 versions on here.
- Joined
- Jan 16, 2015
- Messages
- 5,856
I have the SC ECU pre and post Dec 2013 and 2016 Euro 3 OMEX on paper only and Euro 4 in PDF . I need to get them converted to PDF .Yes, that and many more Tony
Dave, loads of manuals and info here..
Modern Norton
Workshop manual..
Resource icon
Wiring diagram ( not sure if it will match your bike exactly)
Resource icon
Tony, do you have any earlier wiring schematics by any chance? We only seem to have Euro 3 & 4 versions on here.
cliffa
VIP MEMBER
- Joined
- May 26, 2013
- Messages
- 4,129

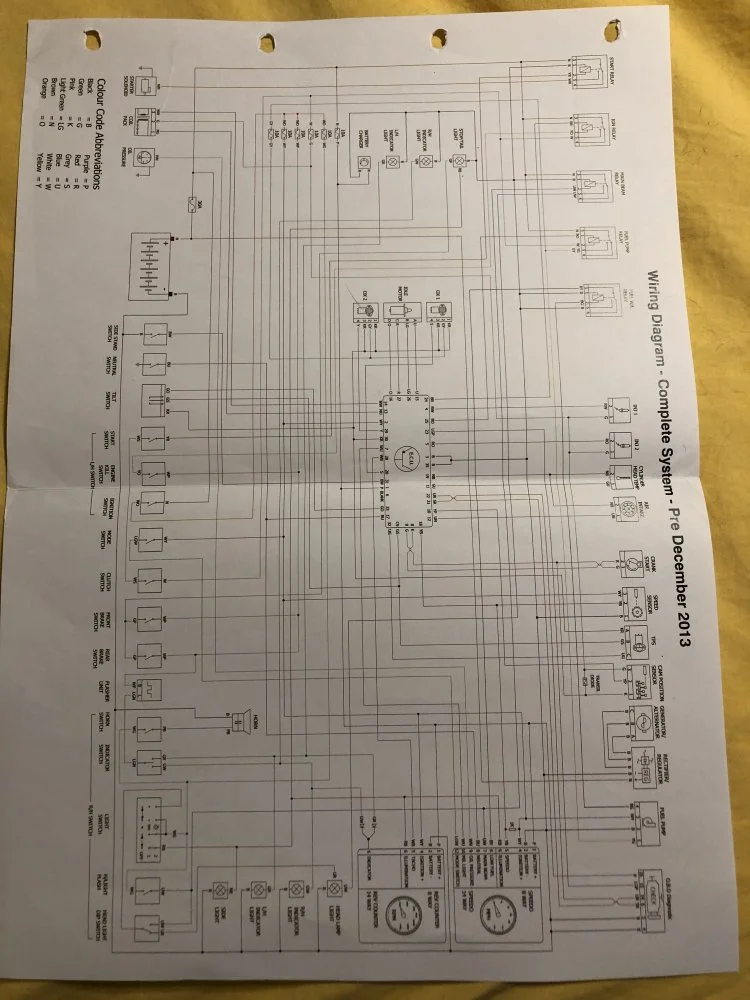

Hi Tony, I found a picture of the relevant diagram you’d posted previously.
Dave, in the diagram, the coil pack is above the color chart. Power is on the centre pin, and the signal wires go back to pins 13 & 14 on the ecu. I can’t make out the wire colours, but hopefully Tony can tell us a bit later. Have you checked that the ECU plug is fully home?
IMPORTANT - Before doing anything with the ECU disconnect the battery!!
Dave, in the diagram, the coil pack is above the color chart. Power is on the centre pin, and the signal wires go back to pins 13 & 14 on the ecu. I can’t make out the wire colours, but hopefully Tony can tell us a bit later. Have you checked that the ECU plug is fully home?
IMPORTANT - Before doing anything with the ECU disconnect the battery!!
Last edited:
