71 Norton Rescue attempt

Status
Not open for further replies.
Motion Pro tool used instead of butchering a timing cover when removing /fitting cam shaft sprocket. One end fits in the intermediate gear spindle and I slipped an 8mm 1/4 inch drive socket on the other pin and that wraps around the back of the case. Great tool. Multiple other holding uses. http://www.motionpro.com/motorcycle/partno/08-0008/ and other reputa
71 Norton Rescue attempt
ble parts suppliers.

Northton said:
auldblue said:
North ton



J
Click to expand...
Hi. It was some kind of black glue . Whats wrong with farming? Its the second oldest profession!
Click to expand...

Ah the curse of the DPO, makes life interesting, but as for farming being the second oldest profession sometimes it feels like the oldest profession , only you are paying everybody else to screw you.
Good wee tool that, I chopped an old cover £20 at a jumble.
Best of fortune with the build.

J

Welcome to the forum!

Great deal you got, and nice to see steady progress with photos.

Northton said:
Had to lift the bike up by the barrel to free it from the case


If you loosen the cylinder base bolts evenly, it should lift the barrel, breaking the cylinder loose from engine case....
Click to expand...

Northton said:
Motion Pro tool used instead of butchering a timing cover when removing /fitting cam shaft sprocket. One end fits in the intermediate gear spindle and I slipped an 8mm 1/4 inch drive socket on the other pin and that wraps around the back of the case. Great tool. Multiple other holding uses. http://www.motionpro.com/motorcycle/partno/08-0008/ and other reputa
71 Norton Rescue attempt
ble parts suppliers.
Click to expand...

I have one of those...great for removing and installing clutches, holding all those funky parts that I used to use a screwdriver or a penny stuck in the gears. :D

That is a really funky Kawasaki...what do you do about that on the registration? Would drive me nuts. In fact it is driving me nuts :D

I think that left rear shock might be from a Kawasaki :D

dennisgb said:
Northton said:
Motion Pro tool used instead of butchering a timing cover when removing /fitting cam shaft sprocket. One end fits in the intermediate gear spindle and I slipped an 8mm 1/4 inch drive socket on the other pin and that wraps around the back of the case. Great tool. Multiple other holding uses. http://www.motionpro.com/motorcycle/partno/08-0008/ and other reputa
71 Norton Rescue attempt
ble parts suppliers.
Click to expand...

I have one of those...great for removing and installing clutches, holding all those funky parts that I used to use a screwdriver or a penny stuck in the gears. :D

That is a really funky Kawasaki...what do you do about that on the registration? Would drive me nuts. In fact it is driving me nuts :D

I think that left rear shock might be from a Kawasaki :D
Click to expand...
Got the registration sorted out. It is now in my name. The shock is from a cb750 honda I am fixing up. I have the Norton shocks on a shelf after a little paint and polish.

Tires mounted, rims polished
71 Norton Rescue attempt
Tin foil and water tip from a member of the forum. [im
71 Norton Rescue attempt
[/img]

I like what you are doing (its so shiny) 8) . I have the same avons but I went with WM4 alloy rims.
Keep up the good work.
Cheers,
Thomas
CNN

looking good.
reminds me of how the 73 I am working on looked when I got

71 Norton Rescue attempt


keep up the good work. should you find your self riding that beauty to be in barrie next summer, drop me a line.

I know you have already buttoned up the bottom end, but I would strongly recommend dismantling it removing and separating the crankshaft and cleaning out the sludge trap in the middle. Make sure you mark the left and right crank cheeks in relation to the flywheel as they can bolt up either way, but the factory balance holes are only relevant in the original orientation. You should always renew the con-rod nuts when you take them off as they are a single-use lock nut.

Thanks Static. If it ends up even half as nice as yours I will be very happy. Thanks Dave. Did both those things as I am following Mick Hemmings engine rebuild video. Very Helpful.... Plus you don`t have to squint at the small print in the manual :wink:

Does this clearance look OK ? Installing the head. Had to back off this 1 valve adjuster to the max to get the head onto the jug. All rods are in their pockets top and bottom. Had to wiggle the crank to get it to this point. Wondering if I can tighten down the head and that tiny crack will get taken up by the valve spring ? Thanks in advance.
71 Norton Rescue attempt
71 Norton Rescue attempt

Got some nice silicone rocker cover gaskets and stainless hardware from Rocky Point Cycle and one of Jim's sump breathers.
71 Norton Rescue attempt

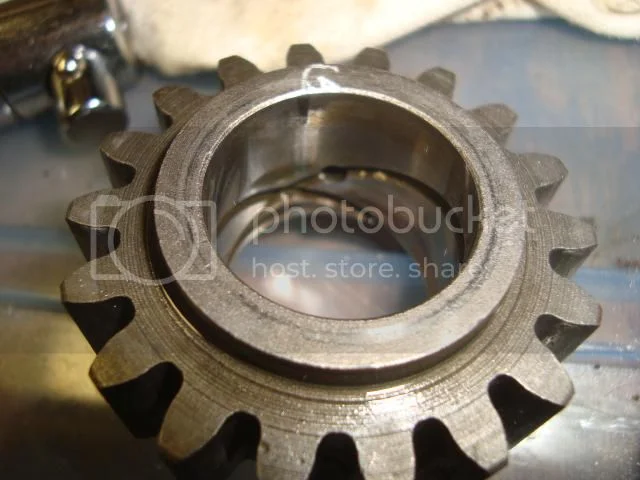

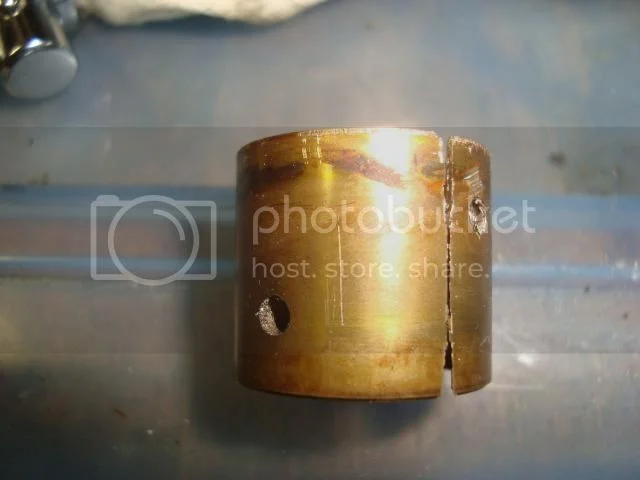

Got my gearbox rebuilt with new bearings and 1 new bushing that was seized in the 2nd gear and had to be carefully hack sawed out.
71 Norton Rescue attempt
71 Norton Rescue attempt
71 Norton Rescue attempt

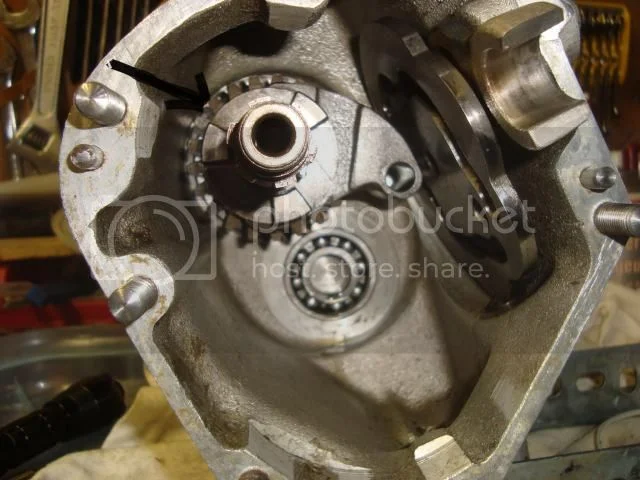

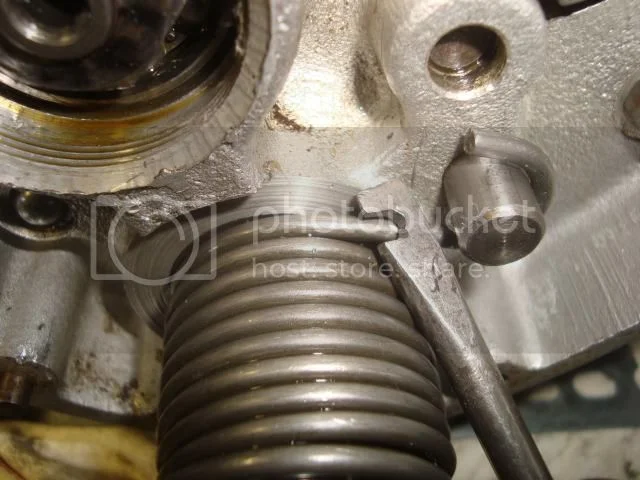

Did not realize I did not have the main shaft and bearing fully seated which caused a no shift situation after I slid all the gears back in. Another tap with the mallet got things lined up so the cam plate could move the gears into place. Only took about a dozen tries! Notched an old screwdriver to get the kick start spring on and off.
71 Norton Rescue attempt

71 Norton Rescue attempt

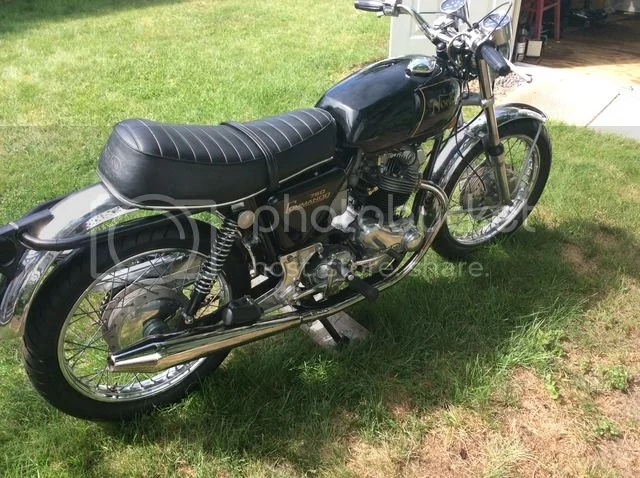

Has been awhile since I posted last. Finally got it running this a.m. First couple of kicks got a backfire but a few later it came to life with a roar! Just need to get it safetied, plated and insured. Whenever I had a problem, a search here usually found the answer quickly, like this morning when I had no spark on my Boyer. Had it plugged into the wrong white yellow wire! Such a wealth of knowledge here! Many Thanks!

Too bad you missed a few pix during that time warp, but great that it's up and running.

Northton said:
71 Norton Rescue attempt
71 Norton Rescue attempt
. Has been awhile since I posted last. Finally got it running this a.m. First couple of kicks got a backfire but a few later it came to life with a roar! Just need to get it safetied, plated and insured. Whenever I had a problem, a search here usually found the answer quickly, like this morning when I had no spark on my Boyer. Had it plugged into the wrong white yellow wire! Such a wealth of knowledge here! Many Thanks!
Click to expand...

Its a beauty, :D
