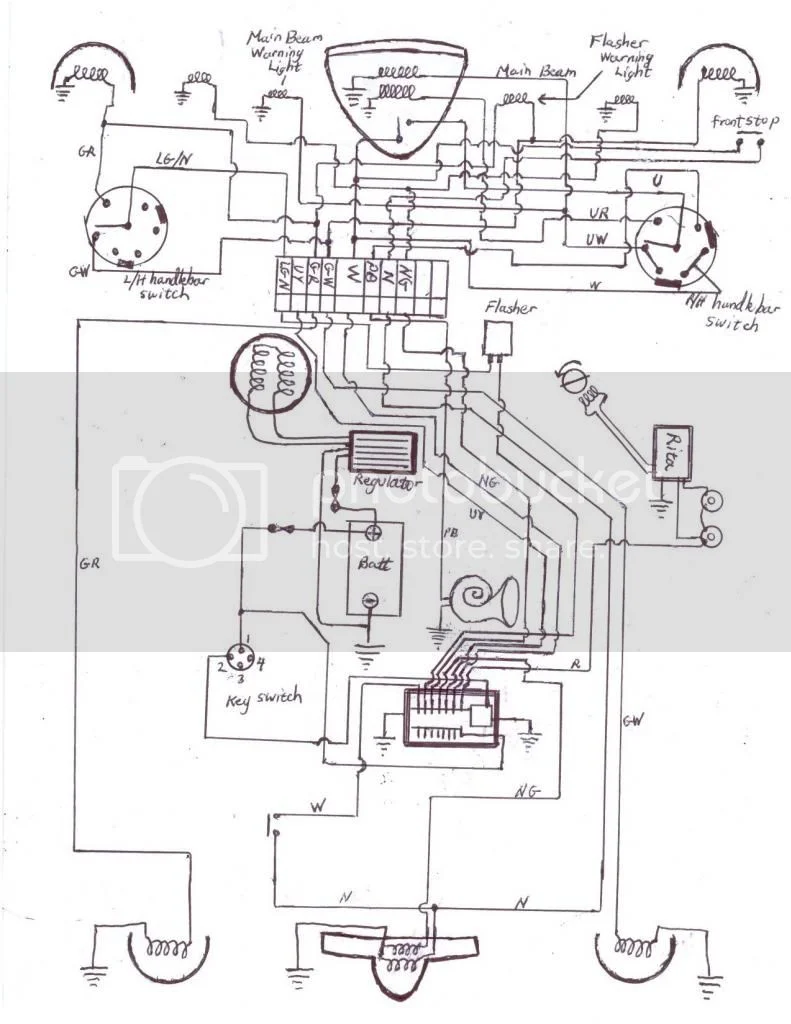

Sorry it took me so long to reply. Here is my wiring schematic as I actually wired the bike. It is the Fuze Blocks FZ1 and I love the little unit. The only job the key switch has is to turn on the relay in the FZ1. In case voltage were ever to go so low that the battery could not turn on the relay then all you have to do is take the cover off and move a fuse to the constantly powered side.
I took apart two old wiring harnesses to get the correct color wires out of them. I also wired a kill switch which is not on the drawing. It is a Honda style switch which stays off when you push it. All the power to the Rita goes an extra 3 feet or so through that switch before coming back to the Rita.
