067688 double row bearing

"I doubt that you would need to worry about buying a single row anymore.
I don't believe anyone makes a single row bearing with the double bearing dimensions any more."

I'm sure of that

comnoz said:

I doubt that you would need to worry about buying a single row anymore.
I don't believe anyone makes a single row bearing with the double bearing dimensions any more.

Click to expand...

http://simplybearings.co.uk/shop/p6255/ ... backstep=1

SKF 622032RS1 Rubber Sealed Deep Groove Ball Bearing 17x40x16mm

Click to expand...

http://www.aotengbearing.com/p/skf-deep ... p7785.html

Inner Diameter (d) 17 mm
Outer Diameter (D) 40 mm
Thickness (B) 16 mm

SKF deep groove ball bearings 62203-2RS1 bearings specification:

Deep groove ball bearings, single row, seal on both sides

Click to expand...

Well, I guess they do.
So you better watch out -the single row bearing is definitely not up to the task.
Mine did not lock up -it just got so wobbly in ~300 miles that the sprocket started rubbing the swingarm. Jim

L.A.B. said:

comnoz said:

I doubt that you would need to worry about buying a single row anymore.
I don't believe anyone makes a single row bearing with the double bearing dimensions any more.

Click to expand...

http://simplybearings.co.uk/shop/p6255/ ... backstep=1

SKF 622032RS1 Rubber Sealed Deep Groove Ball Bearing 17x40x16mm

Click to expand...

http://www.aotengbearing.com/p/skf-deep ... p7785.html

Inner Diameter (d) 17 mm
Outer Diameter (D) 40 mm
Thickness (B) 16 mm

SKF deep groove ball bearings 62203-2RS1 bearings specification:

Deep groove ball bearings, single row, seal on both sides

Click to expand...

Click to expand...

I have noticed there are several single row bearing both sealed an unsealed it the size needed. An if you are not sure if you have a double or single row type sealed bearing by its code number then pulling out the seals may be the only way to know but of course most people (including me) would not really wish to do this as it would defeat the object.
There is only a "budget" bearing listed on the Simply Bearings site with seals but the load ratings quoted are the same for all the double row types (not that i know what the ratings should be but just one appears no better or worse than another).
So it looks like the budget is the only easily available one at just £17.94 including VAT an free postage i have ordered one so its there when I get around to do the job over winter. I will keep a close eye on it though when in use. The old bearing is fine an probably the one Norton put in so the new one is not really needed an will have to last well to prove itself.

toppy said:

An if you are not sure if you have a double or single row type sealed bearing by its code number then pulling out the seals may be the only way to know but of course most people (including me) would not really wish to do this as it would defeat the object.

Click to expand...

The rubber seals can usually be removed and replaced quite easily.

[video]https://youtu.be/gCXMICrjKd4[/video]

just as LAB posted

62203 is single row 4203 is double row ( dimensions the same ) fit the 62203 and it is not suitable for application

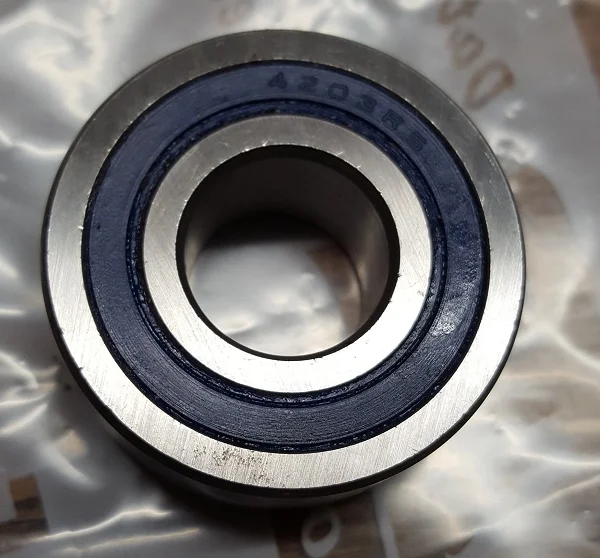

I popped the seal on the 4203 2RS I got from NorCom, and it is indeed a double row. Seal is blue, not black like some of the other bearings I got from him.



Chinese made for a German company was what I was told.

What about the ones from Walridge? Anyone know, I have one in each wheel?

DogT said:

What about the ones from Walridge? Anyone know, I have one in each wheel?

Click to expand...

Well, you said they were 4203(2)RS: :wink:

rear-wheel-bearings-t4356.html#p38046

Also:
brk-sprkt-dbl-row-sld-brng-replacement-t13379.html#p158409

I'm glad you can remember 7 years ago. Seems I have heard of some that poo-poo the Walridge double row bearings though. I'm not going to worry about it. Thanks.
