XS type reed valve

Joined
May 5, 2017
Messages
490
Country flag
For over 20 years I used a reed valve from an oxy acetylene torch fitted to the blanking plate where the electric start was supposed to go on my 750
snipped
Baz, any chance you could give us a link to the oxy acetylene torch valve you referenced above?

Joined
Jan 25, 2014
Messages
157
Country flag
If you can whittle metal somewhat, one of the cheapest reed sets i've come across is the inlet reed block for a mini moto bike. Looks very similar to the reed block in the CNW breather. I got two off ebay for less than £5


baz

VIP MEMBER
Joined
May 26, 2010
Messages
2,923
Country flag
Baz, any chance you could give us a link to the oxy acetylene torch valve you referenced above?
Erm the one I had got thrown out a couple of years ago

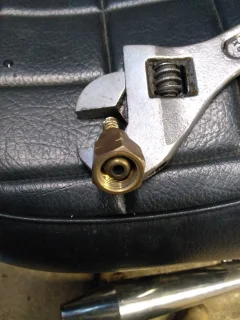

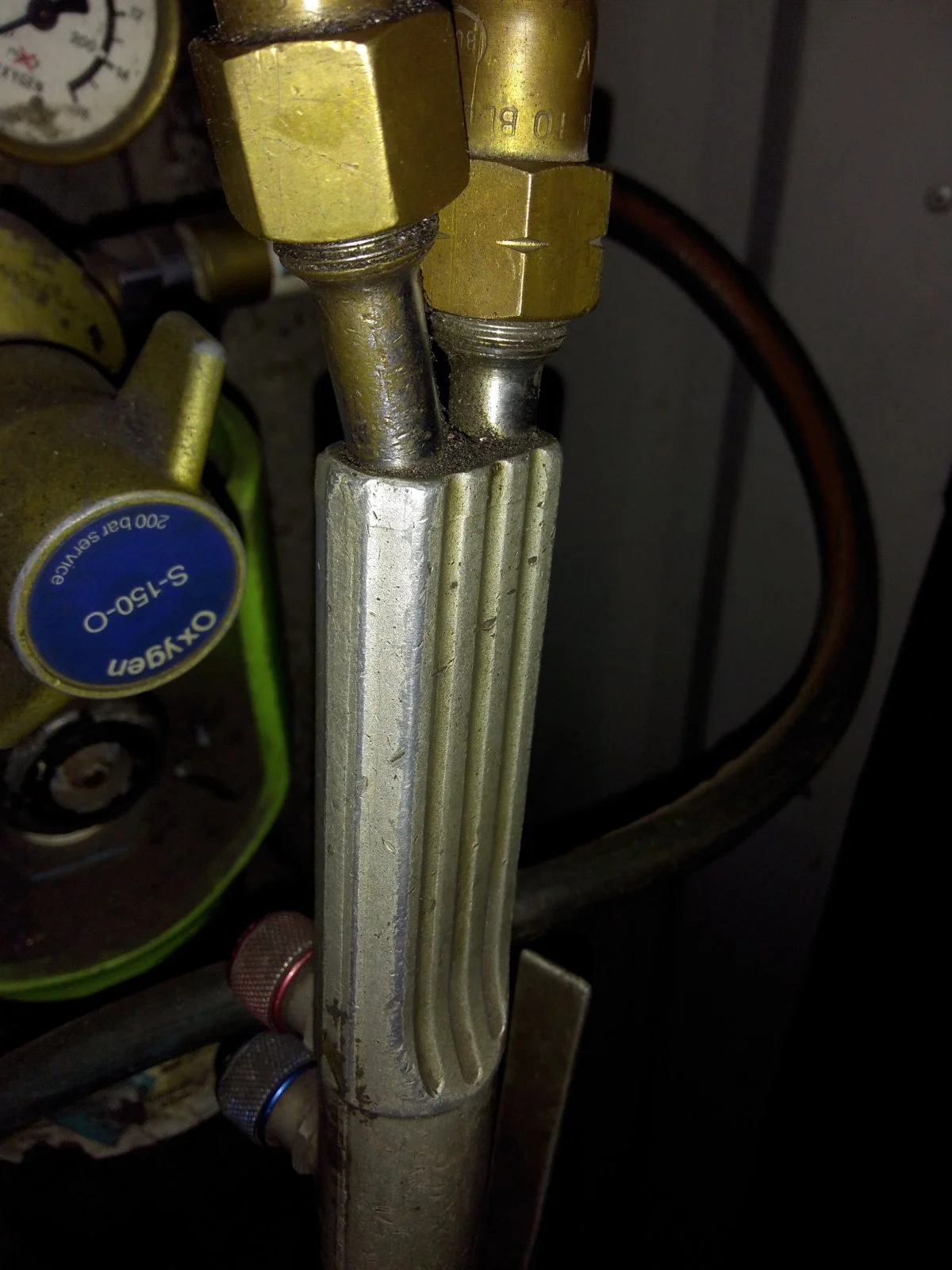

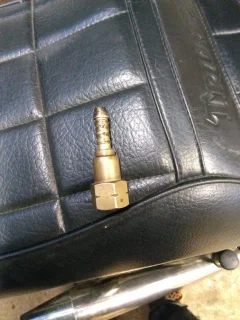

Basically it's the hose fitting on the torch end of an acetylene hose
I think I removed a wire clip to remove the threaded end
The barbed end I made an interference fit into the timing cover blanking plate

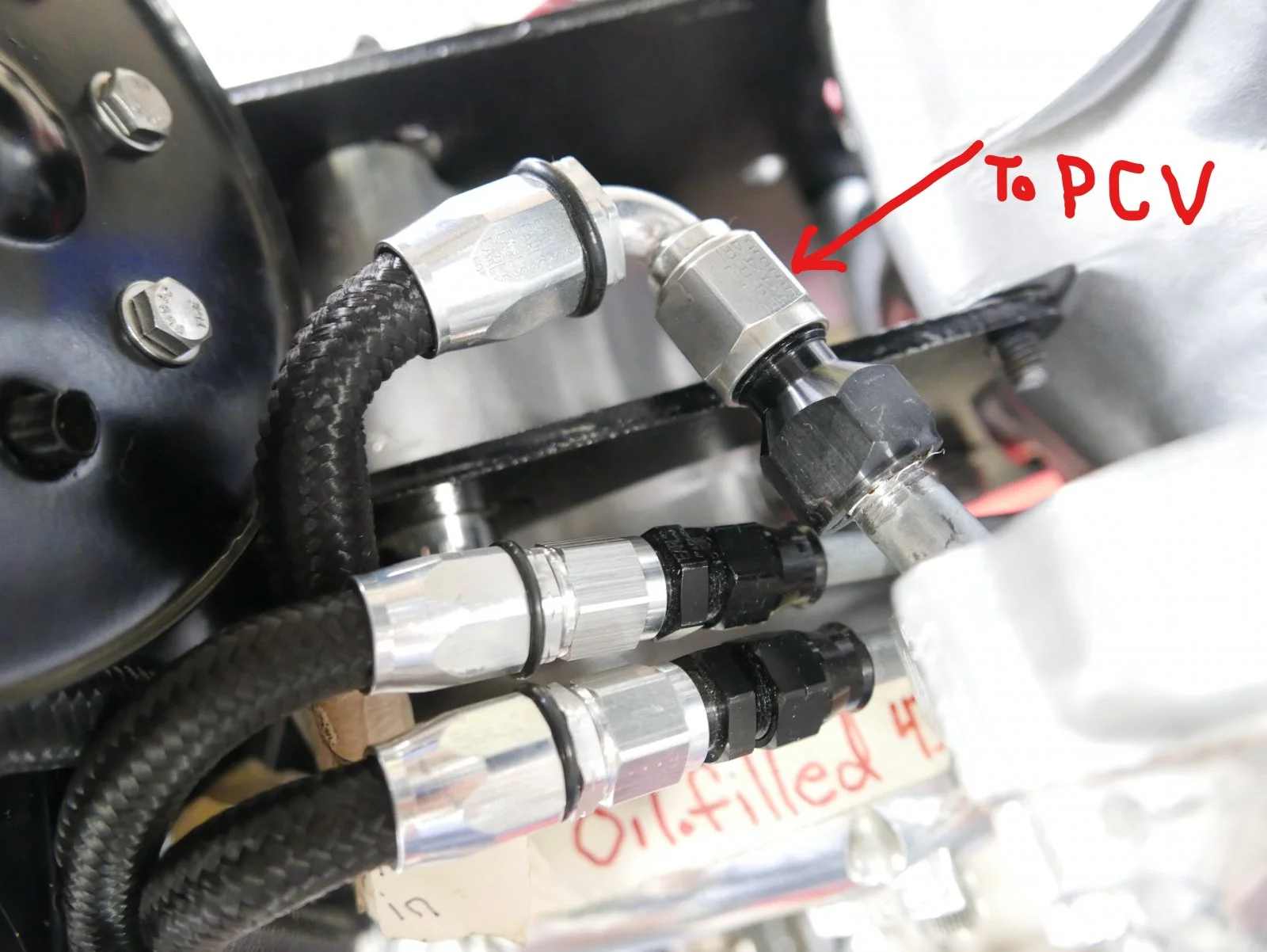

I had a hose from this teed into the rotrary timed breather from the camshaft so both were combined
When I fitted the Alton I initially went back to just the standard rotary breather but I started getting small oil leaks from the crankcase and cylinder base

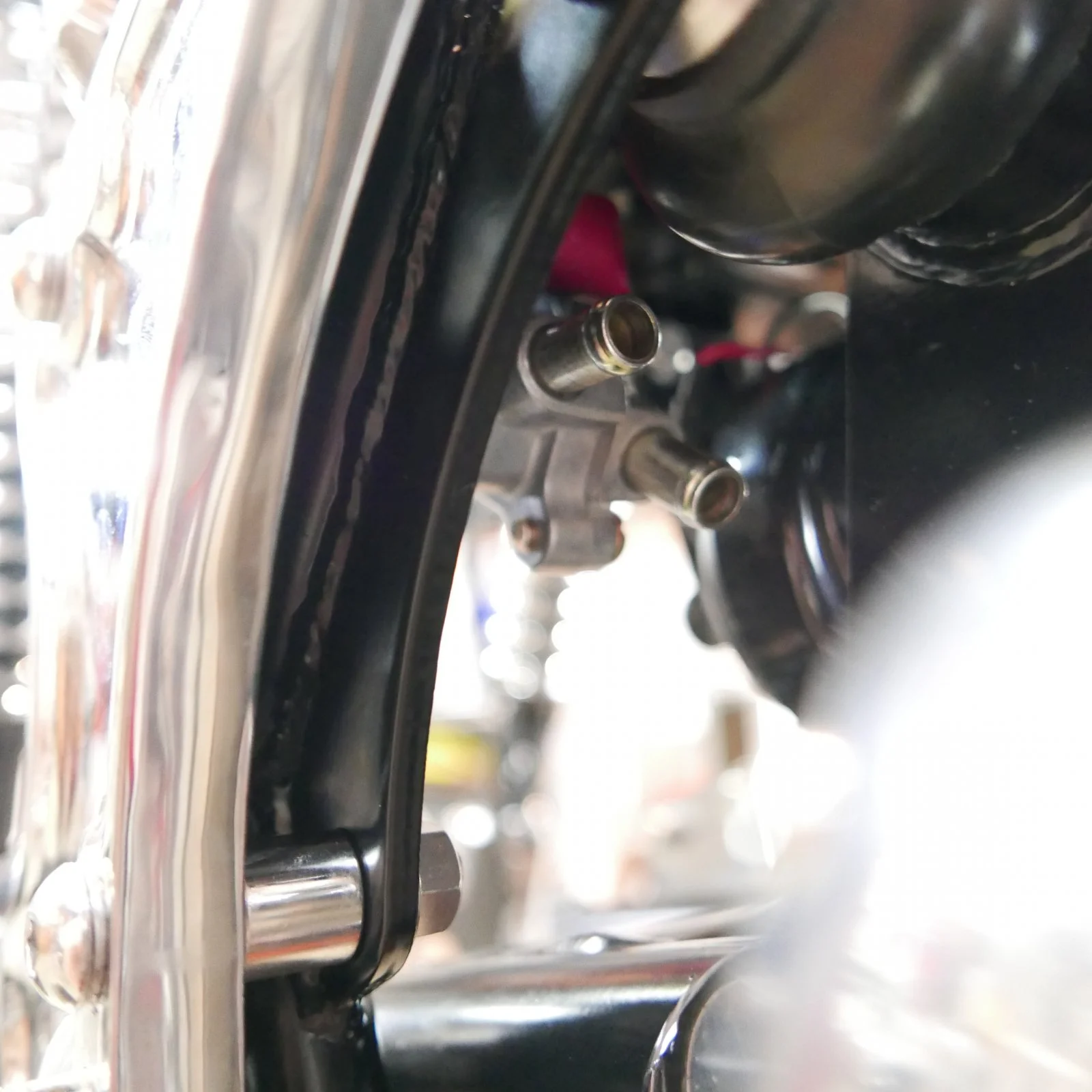

So I fitted the Yamaha one in its place


Attachments

  • IMG_20210209_164542511.jpg
    329.5 KB · Views: 76
  • IMG_20210209_164559929.jpg
    288.9 KB · Views: 57
  • IMG_20210209_164739252.jpg
    228.4 KB · Views: 91
Last edited:
Joined
May 5, 2017
Messages
490
Country flag
If you can whittle metal somewhat, one of the cheapest reed sets i've come across is the inlet reed block for a mini moto bike. Looks very similar to the reed block in the CNW breather. I got two off ebay for less than £5
And for those of us in North America

Reed valve with free shipping


cliffa

VIP MEMBER
Joined
May 26, 2013
Messages
2,035
Country flag
Cliff, thanks for the eBay links. However, with currency exchange, shipping, customs [lots of reports of the agents taking advantage of Brixit] I can probably buy the 90 degree angle unit, new from M.A.P. Cycle for about the same money. [Thanks for the links htown16] When I reported the $92 price for the straight through valve, I had not done any price comparisons. Turns out the first link Google sent me to, is way over priced. I just found another source with USA warehouse priced at a more reasonable $42.13

MegaZip sourced Air Injection Valve

That was only the 2nd place I found. Hopefully it's available elsewhere for even less. ;)

Having read MikesXS installation instructions for the 90 degree angle valve, installing it "Intake side up" on a Commando would be difficult. I believe that the straight through Yamaha valve offers more options regarding where to install it.



Dave, The eBay links below suggests that Mike's valve is used on Kinroad & Skyteam scooters. Probably used on others as well.

90 Degree EGR aka Air Injection Valve

Less Expensive 90 Degree Air Injection Valve

Both the above links refer to these as EGR valves, so I understand where kommando got the term. Without either a repair manual, parts catalog or at least an exploded view, I can not determine how they are originally used. That said, I've never seen a reed valve used in a real EGR [exhaust gas re-circulation] system. True EGR meters a small amount of exhaust gas back into the intake manifold. This is done only when the throttle is open and the engine is fully warmed up. The purpose is to lower the combustion chamber temperature. This is done to reduce oxides of Nitrogen from being released out the exhaust.
Air Injection systems simply use the weak vacuum created between exhaust pulses in a piston engine to draw filtered air from the air cleaner into the exhaust. This is done to help burn any un-burned hydrocarbons leaving the engine. The air injection valve simply prevents the exhaust gases from backing up into the air cleaner.
Two different systems meant to do two different jobs. I suspect that calling these valves EGR valves came from a poor translation of Chinese, Japanese or Korean into English.
No problemo. I can see that would be pretty expensive in the end. I bought one from Mikes XS in the past. Really terrific service I have to say. When you look inside they are all the same, there is just a stainless reed petal, and a rubber seal. Have you considered the Comstock / NYC valve ? that is really the cream of the crop

https://nycnorton.com/product/reed-valve-breather-kit/

Although I think grandpaul's is realy neat, and probably stops the condensation that can build up in some remote locations.


Cheers,

cliffa.

Last edited:

Saber

VIP MEMBER
Joined
Mar 1, 2019
Messages
157
Country flag
You can take the Yamaha 125 valve apart and use just the half with the reed valve in
Screw it to the redundant electric start blanking plate on a 750
That way you shouldn't get it clogged up with emulsified oil because you get full heat transfer
Clogged up? I have a mikes XS. Is it recommended to clean or rinse them out periodically?


baz

VIP MEMBER
Joined
May 26, 2010
Messages
2,923
Country flag
Clogged up? I have a mikes XS. Is it recommended to clean or rinse them out periodically?
I'd guess it depends on your climate and whether you do long or short trips
Maybe someone that has one will chime in
Cheers

Joined
May 7, 2005
Messages
5,117
Country flag
You can drill a small hole of say 2mm to allow oil to drain back but being so small it hardly affects the valves function of being one way.

Joined
Feb 10, 2009
Messages
2,305
Country flag
I have one on a Triumph twin and I oriented the outlet pipe vertically upwards.

Seems like obviously correct way, to me.

Joined
May 5, 2017
Messages
490
Country flag
You still have to build a housing like Jim Schmidt did. At that point unless you have a mill you might as well just buy a complete valve.
Correct. I was merely pointing out another source available to those of us in North America. The valve originally linked to does not ship to the USA. I really like Paul's style of valve. However, I do not wish to drill or drill and tap the crankcase. I prefer to not modify the crankcases to allow the bike to be later converted back to pure stock, if I desire. I figure the day may come in the future, where I am no longer interested in speed. [Parish the thought! :eek:]
Almost forgot, my local Yamaha dealer quoted me $40.99 for the YZF-R125 air injection valve I mentioned on the previous page. He said it might take up to 60 days to obtain. That saves a bit of money and eliminates shipping and customs issues.


Saber

VIP MEMBER
Joined
Mar 1, 2019
Messages
157
Country flag

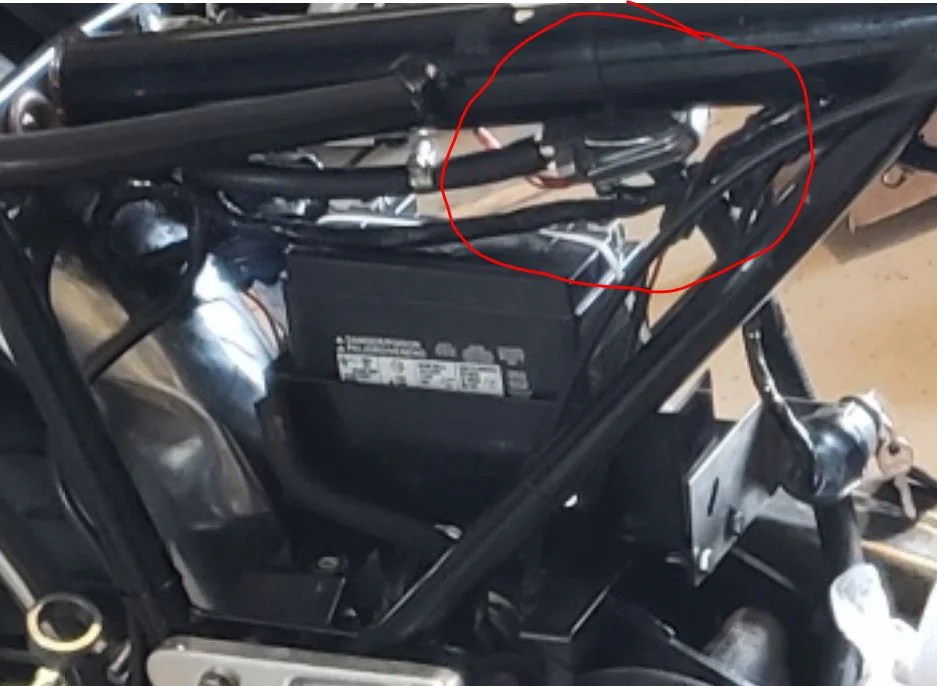

This is how mine is oriented, outlet is generally horizontal. Has anyone experienced clogging / build up of gunk or has anyone cleaned or rinsed one out with evidence of gunk in there?


Attachments

  • norton reed valve.JPG
    norton reed valve.JPG
    75 KB · Views: 74
Joined
Apr 15, 2009
Messages
11,310
Country flag
I have mine as close to the crankcase as possible but then I have a 72 so that’s possible. When I took it last apart there was no gunk at all. Further away you are from the engine may be different.


Lineslinger

VIP MEMBER
Joined
Feb 26, 2017
Messages
721
Country flag
This is how mine is oriented, outlet is generally horizontal. Has anyone experienced clogging / build up of gunk or has anyone cleaned or rinsed one out with evidence of gunk in there?

The XS I installed didn't clog but the line on the inlet side of the valve did. It had been sitting for a while during the winter and had the oil/water goo clogging it.
Compressed air cleared it.


Joined
May 5, 2017
Messages
490
Country flag
Who did you purchase that valve from? Mikes XS? I ask, because in Mikes installation instructions, there is mention of an early and a late style. Both are shown but it doesn't clarify which is early and which is late. One style has inlet and outlet at 90 degrees. The other style has both inlet and outlet pointing the same direction, similar to your valve.

Joined
Aug 8, 2005
Messages
2,170
Country flag
Lineslinger,
I use to have a Mike's XS reed valve up in the battery compartment but I soon discovered that the oil in the tank would get milky and when drained when doing an oil change, there would be water at the bottom on the oil tank. That reed valve needs to be physically attached to the engine to keep the condensation at bay.
I went to the Comstock design at the back of the 850 engine and never had issues since. the heat from the engine helps cook off any condensate. Where you mounted it up near the oil tank makes it act like a water trap for condensation, IMHO.
I don't drain the wet sump plug either with the Comstock design, as it quickly discharges any excess oil in the sump rapidly back into the oil tank. About 30 seconds is all it takes and then all I see after that is the steady percolator pattern of oil return from the rear tube from the oil pump return line. YMMV
Cheers,
Tom
