What Kind Of Stator Do I Have
- Thread starter Dan1950
- Start date
- Status
- Joined
- Nov 20, 2004
- Messages
- 20,415
It could be either a three-wire single-phase stator in which case it will have six laminated internal pole pieces and five mounting holes or (more likely) a three-phase stator with nine pole pieces and three mounting holes.
Which rectifier or regulator/rectifier does it have?
A single-phase (two-wire) RM21 would be the standard stator.
Which rectifier or regulator/rectifier does it have?
A single-phase (two-wire) RM21 would be the standard stator.
- Joined
- Aug 19, 2021
- Messages
- 1,456
3 mounting holes and Podtronics regulator.
- Joined
- Nov 20, 2004
- Messages
- 20,415
Three mounting holes and a Podtronics (with three yellow wires connected to the three stator wires?) should be either a 10.5A or 14.5A/16A three-phase RM24 stator.
Lucas Stator RM24 12V 10.5A | Triumph T140 | 47252
Genuine Lucas alternator stator p/n 47252. Fits Triumph T140 pre electric start models RM24, 12 volt, 10.5 A, 150 watt, 3-phase.
www.rexs-speedshop.com
Lucas 12 Volt 14.5A High Output Stator | RM24 | 47244
Genuine Lucas 47244 high output 3-phase stator. RM24 fitting pattern 12 volt, 14.5 amp version for electric start models.
www.rexs-speedshop.com
- Joined
- Aug 19, 2021
- Messages
- 1,456
Neither of those look exactly like what I have. I'll have a closer look at things when I get back out into the garage.Three mounting holes and a Podtronics (with three yellow wires connected to the three stator wires?) should be either a 10.5A or 14.5A/16A three-phase RM24 stator.
Lucas Stator RM24 12V 10.5A | Triumph T140 | 47252
Genuine Lucas alternator stator p/n 47252. Fits Triumph T140 pre electric start models RM24, 12 volt, 10.5 A, 150 watt, 3-phase.Lucas 12 Volt 14.5A High Output Stator | RM24 | 47244
Genuine Lucas 47244 high output 3-phase stator. RM24 fitting pattern 12 volt, 14.5 amp version for electric start models.
- Joined
- Aug 19, 2021
- Messages
- 1,456

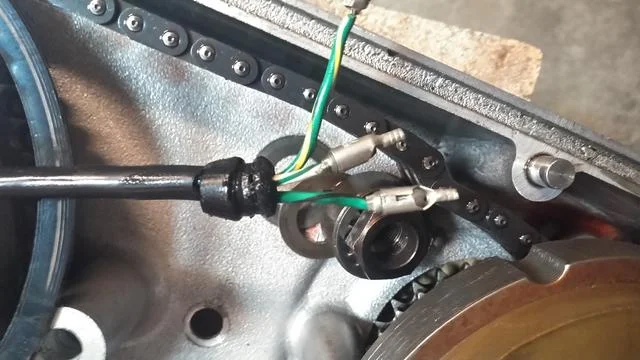

Here are some pictures.Three mounting holes and a Podtronics (with three yellow wires connected to the three stator wires?) should be either a 10.5A or 14.5A/16A three-phase RM24 stator.
Lucas Stator RM24 12V 10.5A | Triumph T140 | 47252
Genuine Lucas alternator stator p/n 47252. Fits Triumph T140 pre electric start models RM24, 12 volt, 10.5 A, 150 watt, 3-phase.Lucas 12 Volt 14.5A High Output Stator | RM24 | 47244
Genuine Lucas 47244 high output 3-phase stator. RM24 fitting pattern 12 volt, 14.5 amp version for electric start models.
- Joined
- Nov 20, 2004
- Messages
- 20,415
It has to be a 3-phase (high or low output?) RM24 stator.
The three Podtronics to stator (AC) wires are normally yellow as previously mentioned (have they been extended with lengths of black wire?), with red positive and black negative.
The three Podtronics to stator (AC) wires are normally yellow as previously mentioned (have they been extended with lengths of black wire?), with red positive and black negative.
- Joined
- Aug 19, 2021
- Messages
- 1,456

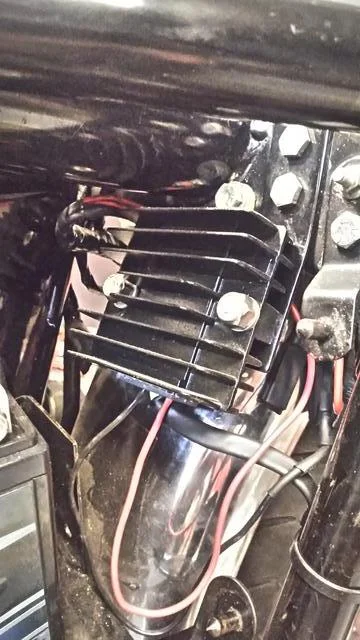

I think you may be right. A close look at this photo seems to reveal yellow wires peaking out from under the shield tube.It has to be a 3-phase (high or low output?) RM24 stator.
The three Podtronics to stator (AC) wires are normally yellow as previously mentioned (have they been extended with lengths of black wire?), with red positive and black negative.
baz
VIP MEMBER
- Joined
- May 26, 2010
- Messages
- 7,895
Were the 3 wires from the stator connected to the 3 yellow wires? If so you have a 3 phase set upI think you may be right. A close look at this photo seems to reveal yellow wires peaking out from under the shield tube.
- Joined
- Aug 19, 2021
- Messages
- 1,456

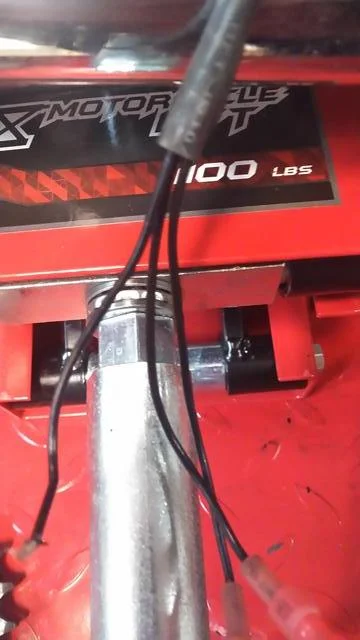

Yes but the ends of the wires at the bottom frame rail are black. The connectors are such that the Gr/Y wire can only be connected to a specific lead from the regulator as is normal with the Podtronics. I'm aware of the fact that the A/C leads from the stator are not lead specific for the other 2 leads.. I do recall that the 3 wire stator on my '67 A65T had 2 that were combined for 12v applications, thus only 2 leads on the OEM rectifier.
- Joined
- May 7, 2005
- Messages
- 7,160
For a 3 phase alternator feeding a 3 phase rect/regulator any of the 3 alternator wires can be connected to any of the 3 wires to the rect/regulator. Its only with an earlier single phase alternator with 3 wires that you need to worry about which way these 3 wires connect to the 2 wires of the single phase rect/regulator.
- Joined
- Aug 19, 2021
- Messages
- 1,456
The bike has numerous upgrades.
Old Britts oil pressure gage
CNW oil tank mod
Hagon shocks
Kegler swing arm pivot clamps
MK III head steady
MK III kick start
LED instrument lights
Tri-Spark ignition/coils
Podtronics regulator
