Speedo and Tach cables fouling the headlamp ears?

L.A.B. said:
I notice the ignition switch is missing its cover (although that could be intentional, perhaps not got around to fitting it yet).
andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk
Click to expand...
Still got lots to do in that area, just checking fit with some parts while I wait for the postman.

EstuaryBoy said:
I know camera angles can be deceptive (it never lies, but CAN bend the truth), and I don't know how 'original' my bike is, but...

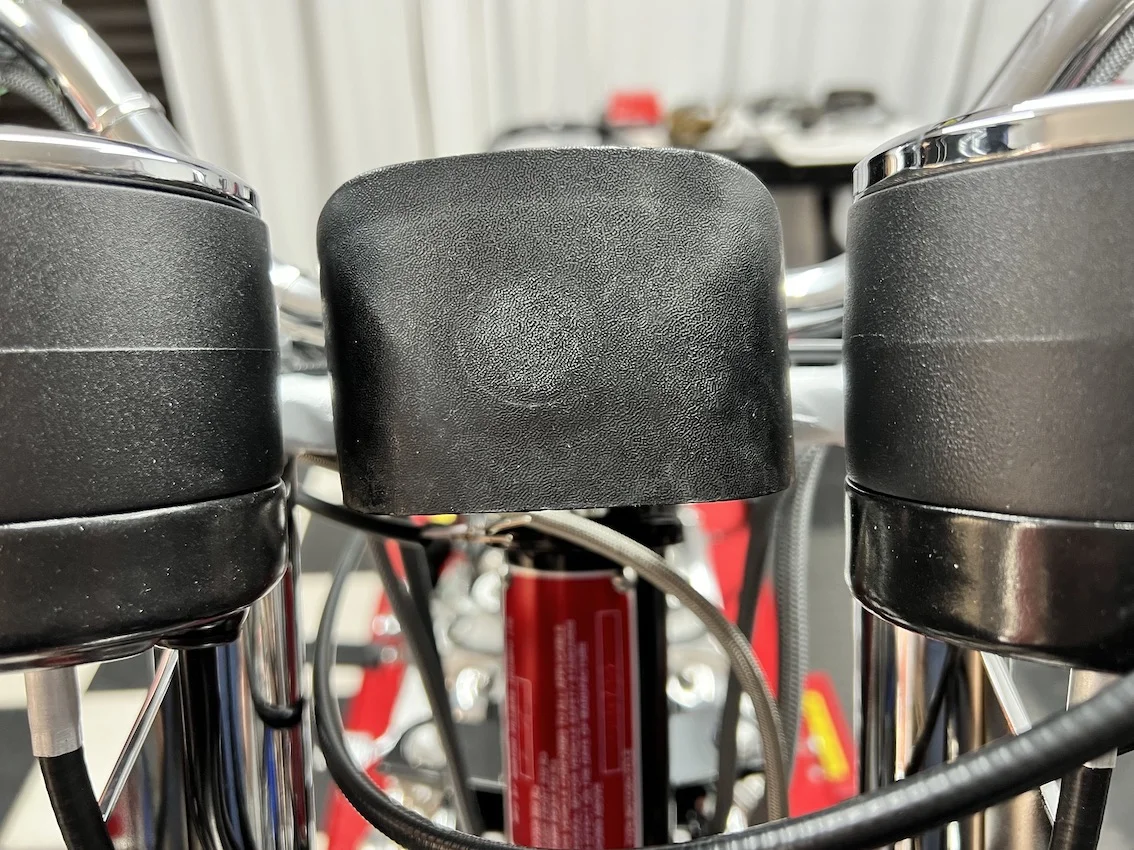

How wide is your warning light binnacle? Looks a little 'dumpy' compared to the one I have, and your clocks appear to be more splayed....
Again, totally inconclusive and may be just the differing pictures, but I wonder if any 'pattern' parts in the mix may add up to anomalies??
Click to expand...
You were bang-on with this, the Andover pattern replacement dash is 3/4" wider than the original, and much bigger all round. I had this kicking around from my last MK3 build so decided to use it as the original was cracked and missing the holes for the bolts. Hadn't really looked closely at it until now.

I'm not going to fit it as it's nothing like the original and will now look out for an original part.

L.A.B. said:
That's the latest replacement type and does look wider than the original console.
andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk
Click to expand...
Yes, you are correct, it is wider.

Bilko said:

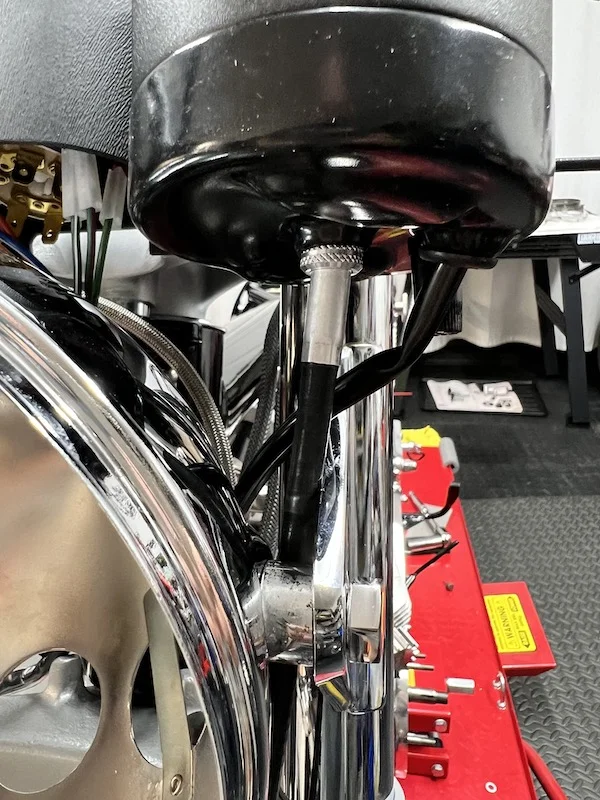

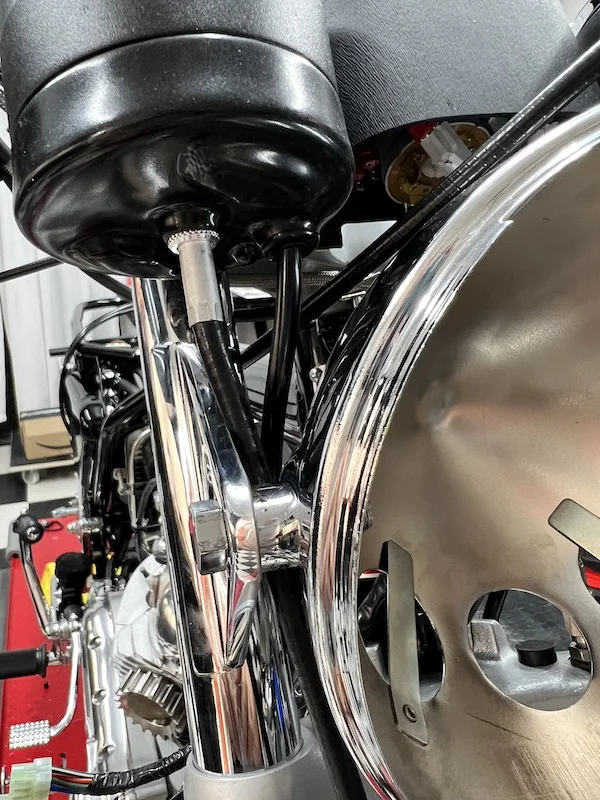

Just quickly fitted the headlamp shell using the original 5/8" spacers and I think it looks okay.View attachment 107644View attachment 107643
Click to expand...
Word of caution! I have Veglia’s on my MK3 and they were set-up exactly like this inside the ears with a noticeable inwards bend on the Tachometer cable. Anyway, I decided to change the Tachometer cable as the heat guard protector was discoloured and the outer cable was noticeably wearing on the head lamp ear. When I removed it the drive cable snapped right up inside the Tachometer and needed to be professionally removed by a specialist which was very expensive. The bend in the cable stressed the inner drive cable and caused mine to fracture. I now run the Tachometer cable on the outside of the ears. The speedo cable however doesn’t seem to bend nearly as much so that remains on the inside.

L.A.B. said:
That's the latest replacement type and does look wider than the original console.
andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk
Click to expand...
It's a shame money was spent to tool up for it and not get it right..
This is probably how it will be from now on.

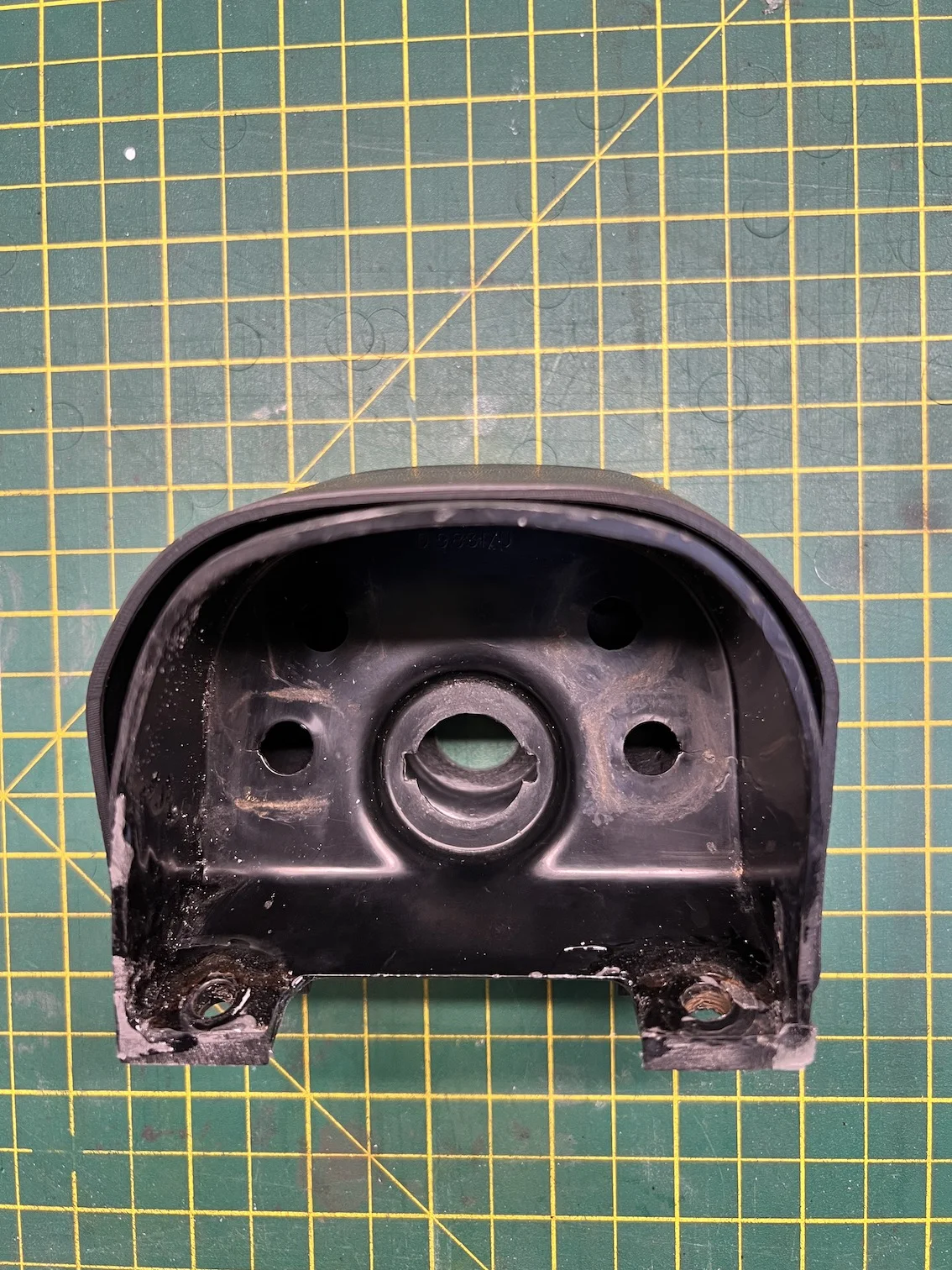

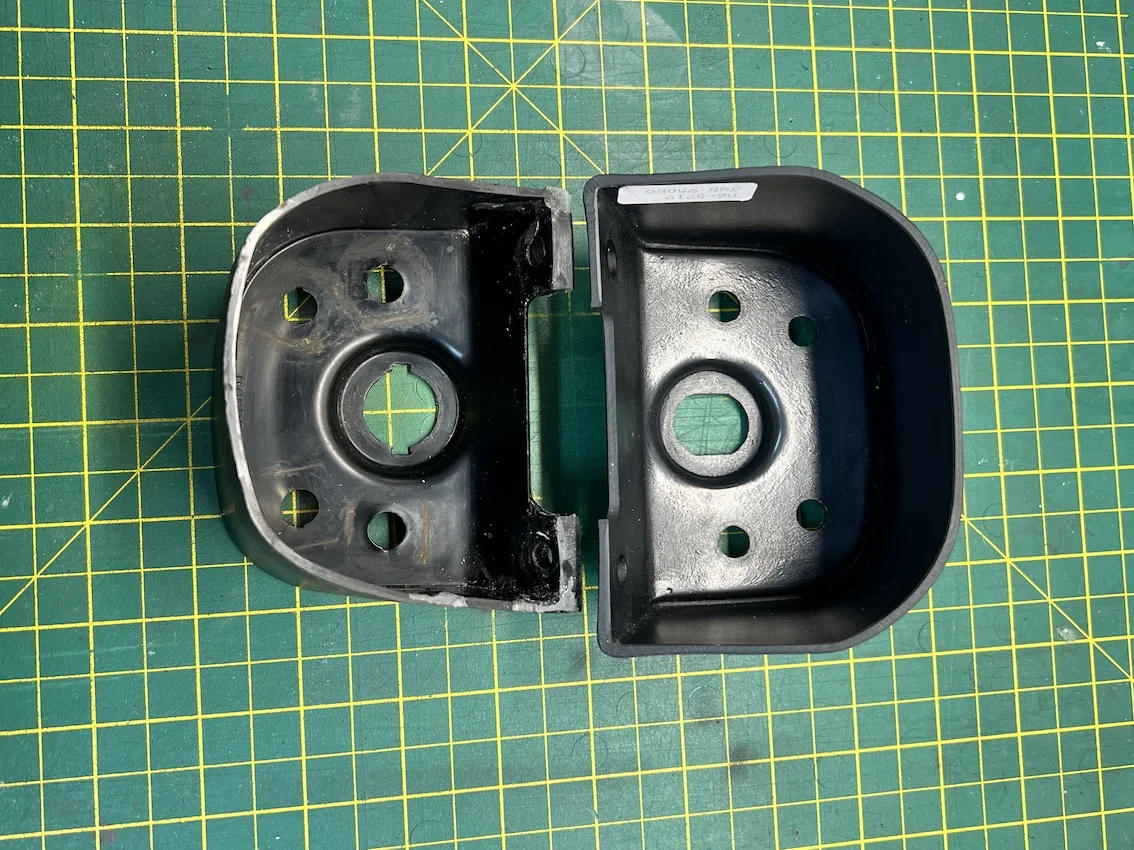

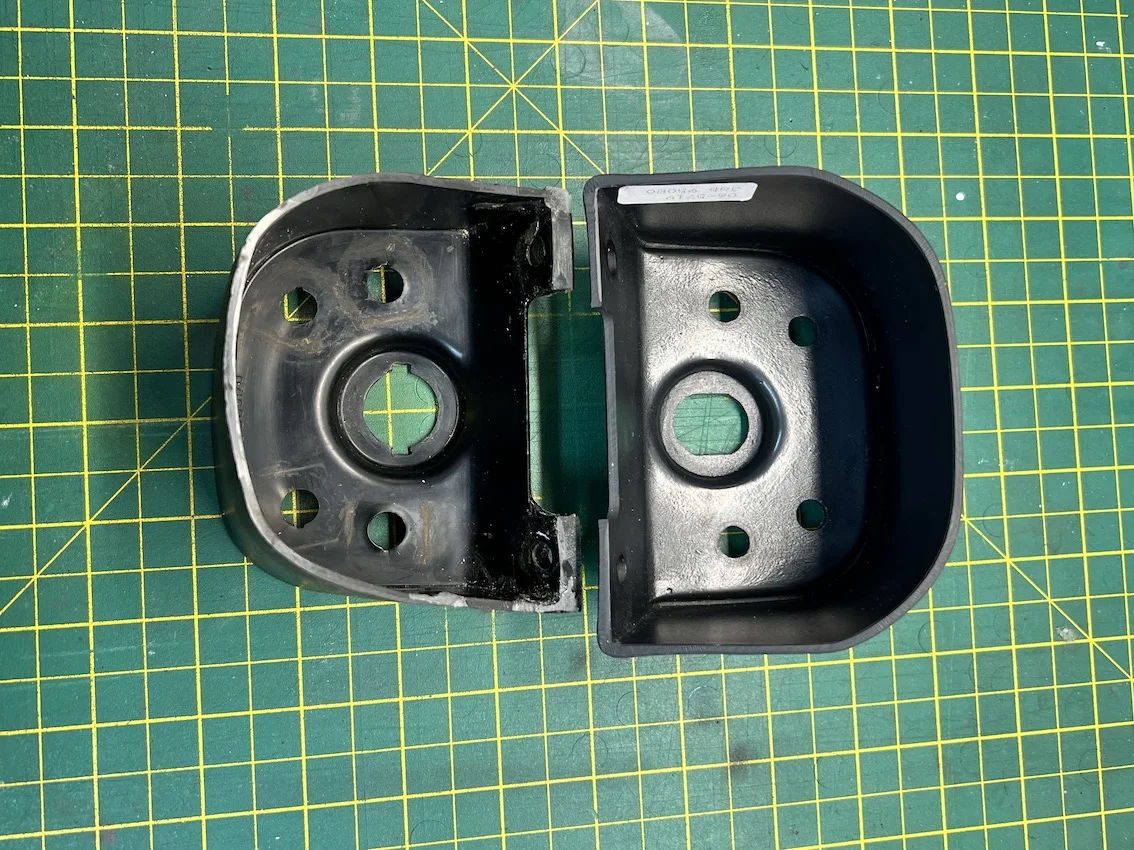

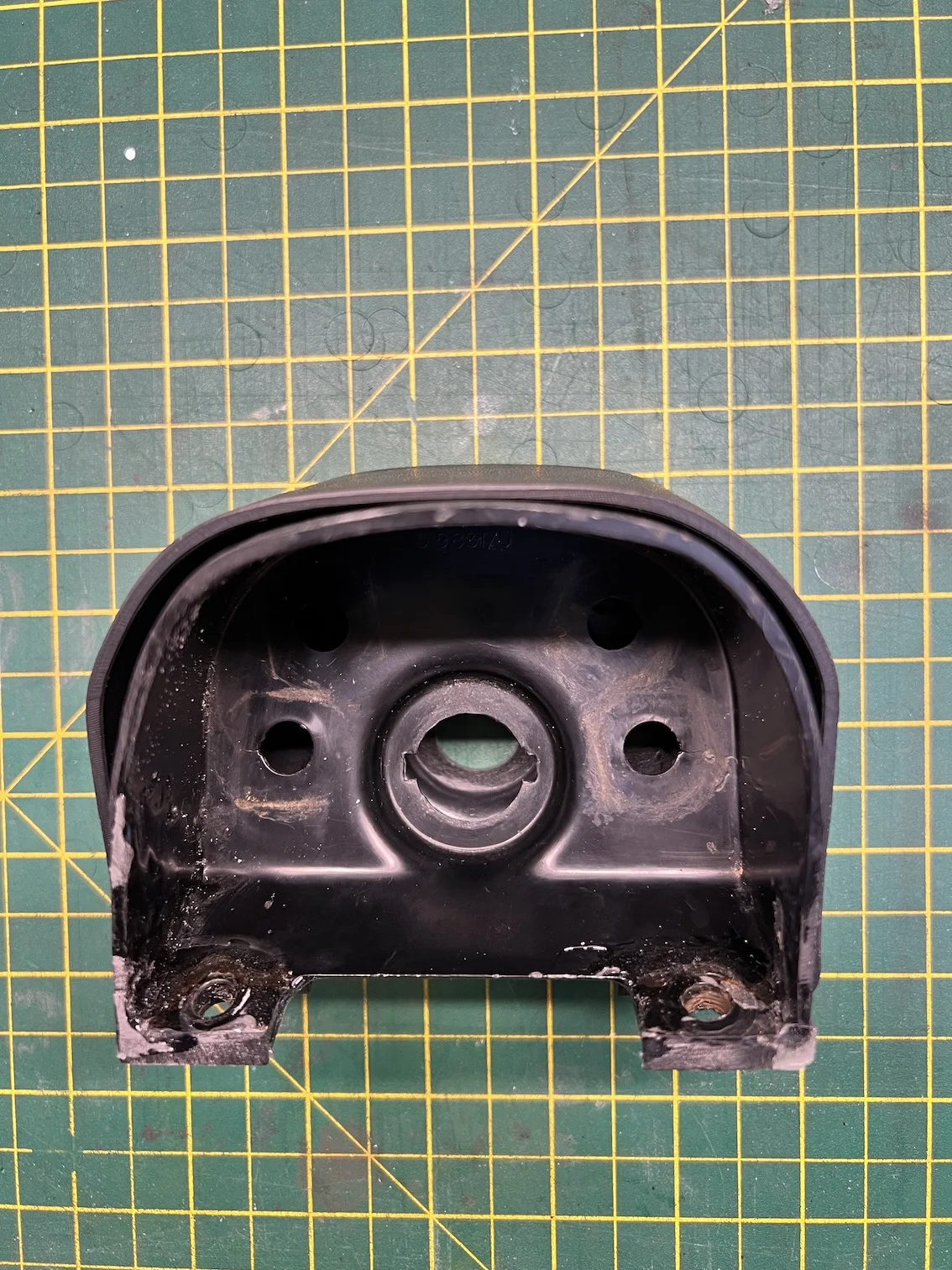

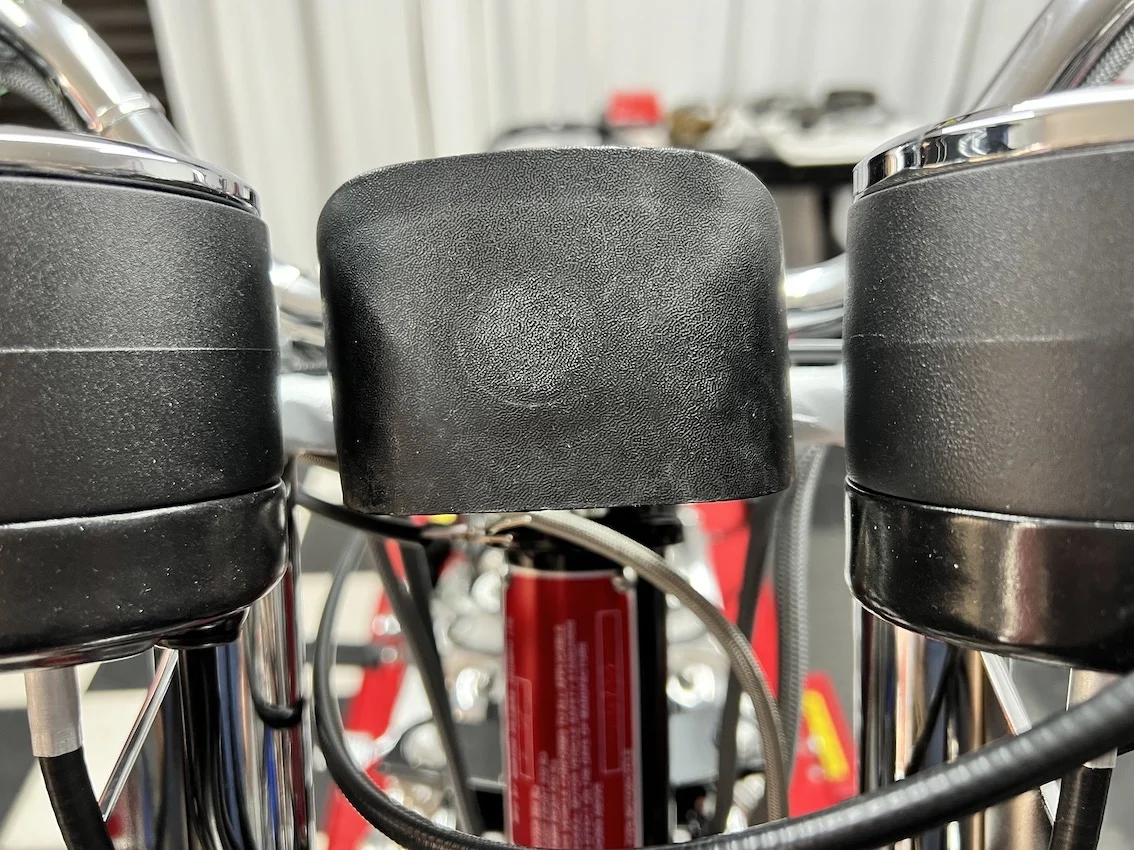

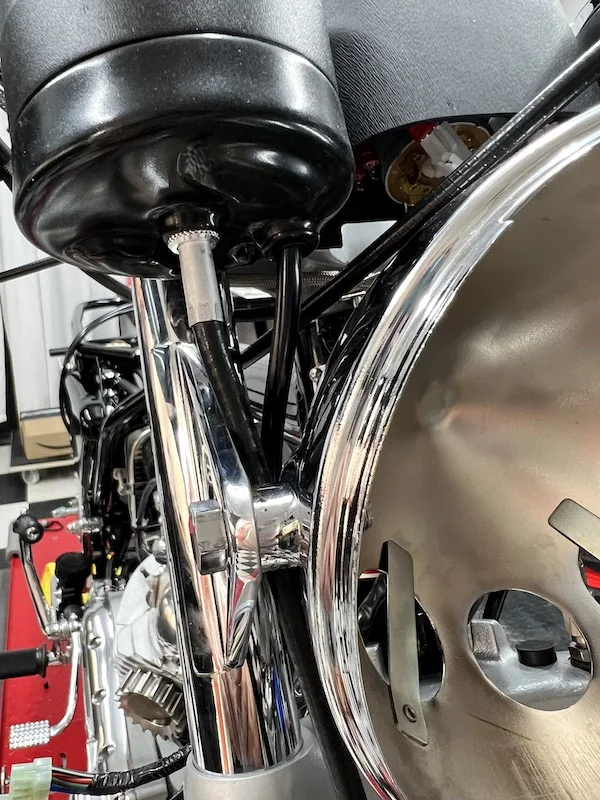

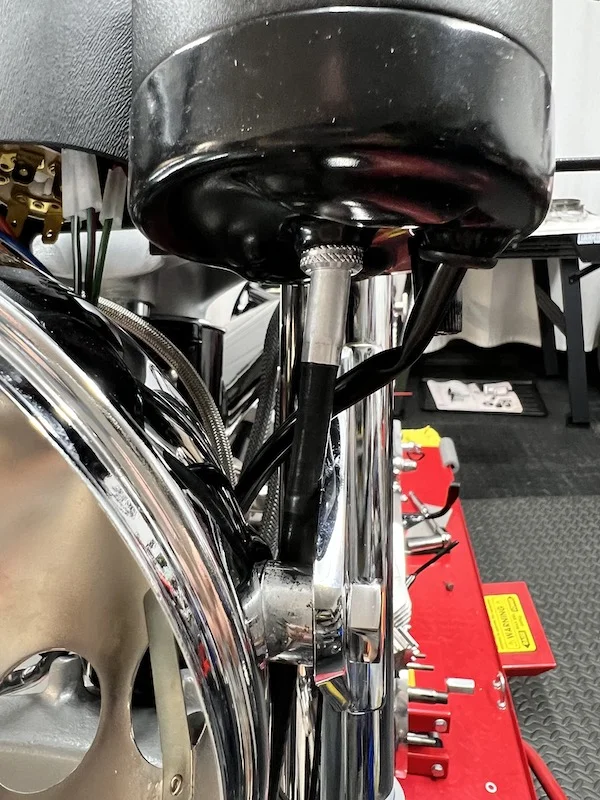

Just switched out the Andover part for my old original and difference is huge. You can easily fit the original console inside the Andover one! cables now easily clear the ears, even with the 7/16" spacers.

MichaelB said:
It's a shame money was spent to tool up for it and not get it right..
This is probably how it will be from now on.
Click to expand...
My thoughts exactly. Almost £40 for a part that causes all sorts of issues with other components, potentially causing cables to break.

cliffa said:
It looks as though some opportunist is watching this thread o_O


www.ebay.co.uk

Norton commando MK3 complete console | eBay

Original complete Norton commando MK3 console with 2 original keys. Don’t know if it’s working, NOS or used, it was in old Harley NOS parts box.
www.ebay.co.uk
Click to expand...
I saw the £500 console on eBay and thought it might be a joke. Managed to source a (hopefully) nice one from the States for a lot less!


Attachments

  • Speedo and Tach cables fouling the headlamp ears?
    592.2 KB · Views: 75
  • Speedo and Tach cables fouling the headlamp ears?
    323.6 KB · Views: 71
  • Speedo and Tach cables fouling the headlamp ears?
    389.2 KB · Views: 66
concours said:
Is there other possible reason this repop wasn't even CLOSE to being correct? Another model?
Click to expand...

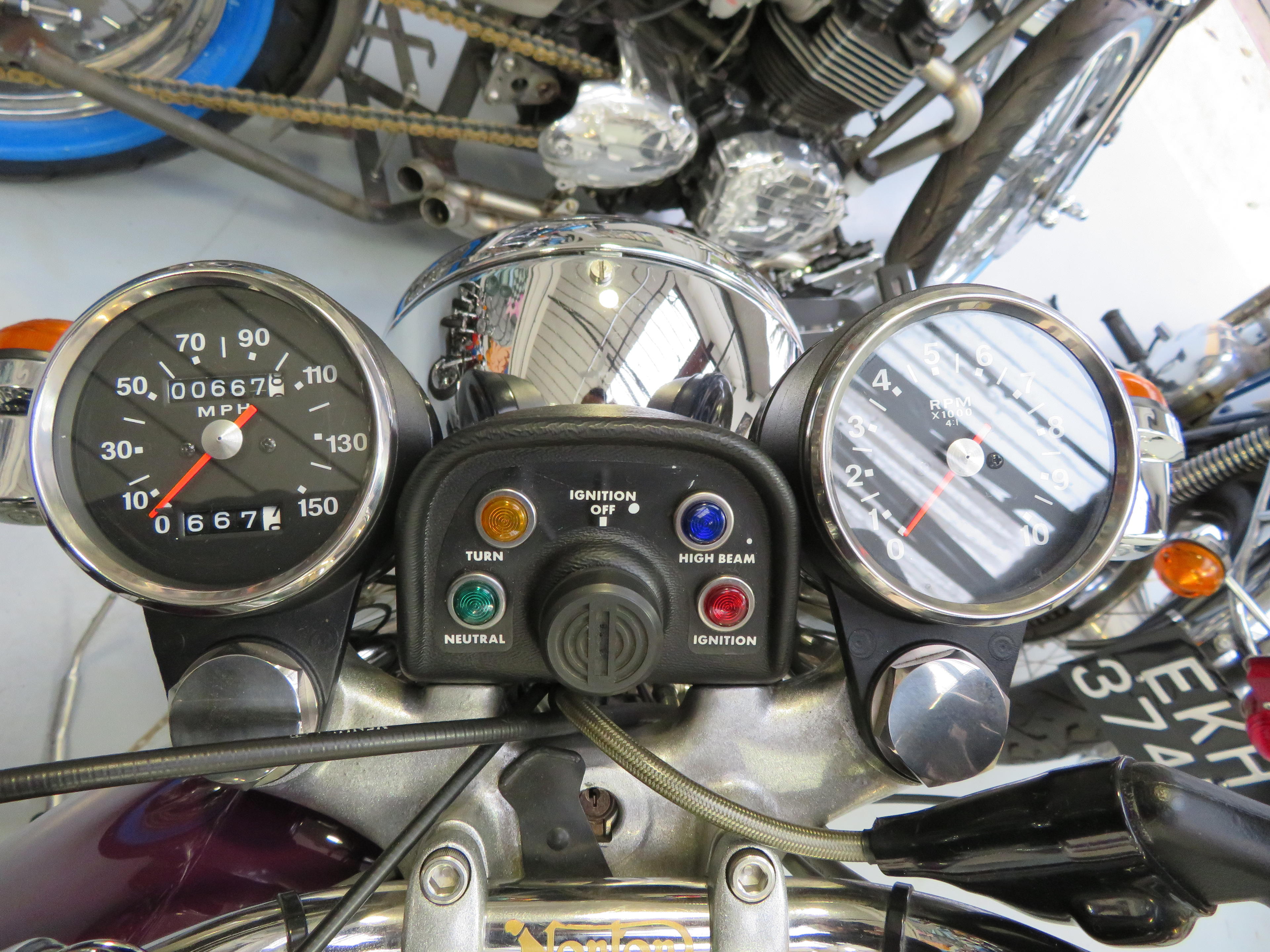

I seem to remember Norvil were the first to fit/sell that particular 'style'(?) of console (a few years ago, now).

www.bonhams.com

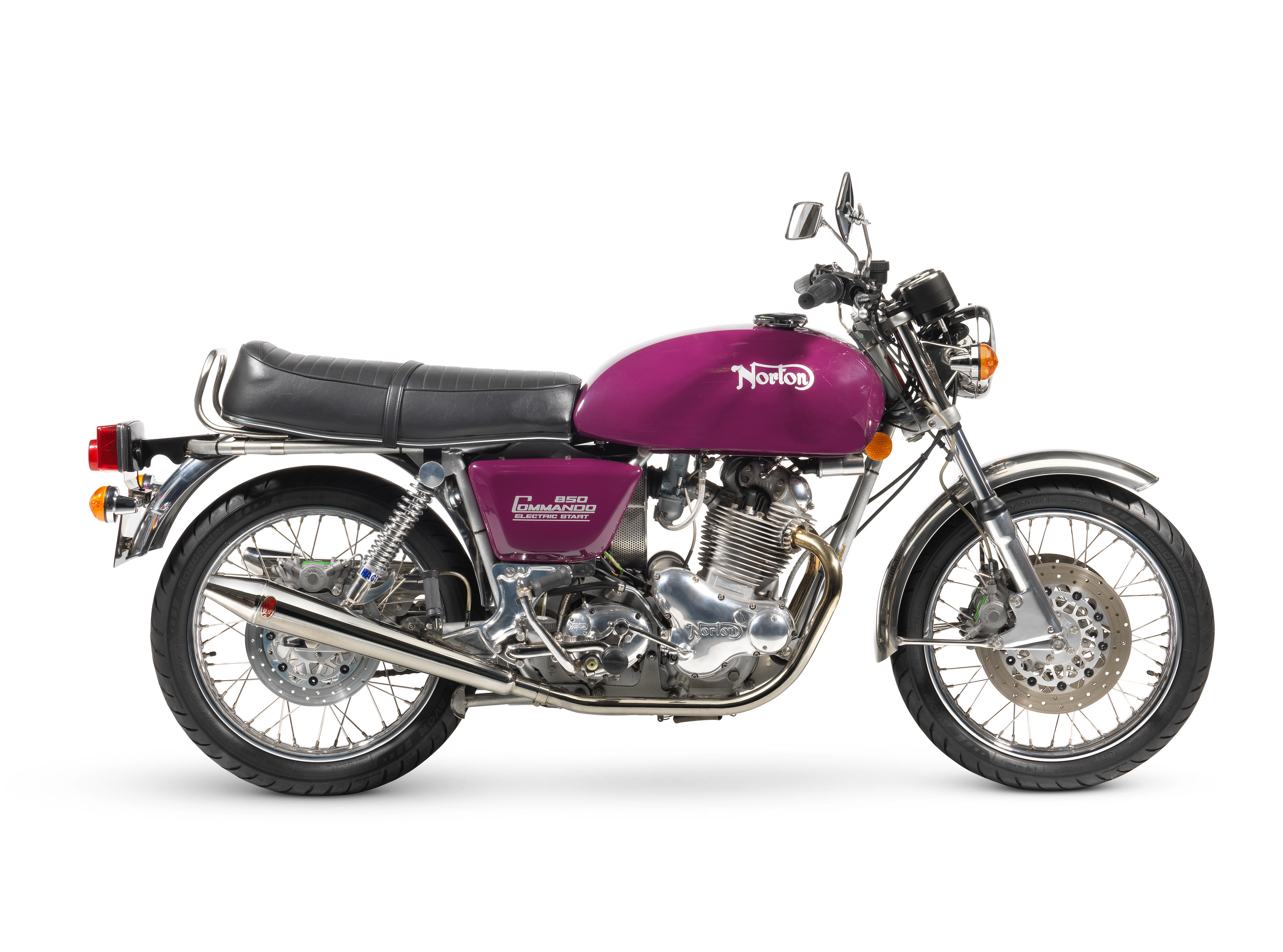

Bonhams Cars : 2014 Norvil Commando 850 Interstate ES Frame no. NV010613JB Engine no. NV0106JB

The success of the revitalised Norton has garnered much attention in recent years; meanwhile, at its factory in Burntwood, Staffordshire, marque specialists the Norvil Motorcycle company is still building the original Norton Commando in its various guises. Indeed, such is the volume of demand...
www.bonhams.com www.bonhams.com
Speedo and Tach cables fouling the headlamp ears?


www.bennetts.co.uk

Norton Commando 850 Roadster (1975) - Classic Review

The ride experience is unique. It just is. The smoothness is uncanny.
www.bennetts.co.uk www.bennetts.co.uk
Speedo and Tach cables fouling the headlamp ears?

Bilko said:
Just switched out the Andover part for my old original and difference is huge. You can easily fit the original console inside the Andover one! cables now easily clear the ears, even with the 7/16" spacers.


My thoughts exactly. Almost £40 for a part that causes all sorts of issues with other components, potentially causing cables to break.


I saw the £500 console on eBay and thought it might be a joke. Managed to source a (hopefully) nice one from the States for a lot less!
Click to expand...
Absolutely ridiculous!

The binnacle / console would be a very good candidate for 3D plastic printing, but even on the earlier bikes I don't like the way the edge of the ears rub on the cables. I have plastic edge trim on mine.

cliffa said:
The binnacle / console would be a very good candidate for 3D plastic printing, but even on the earlier bikes I don't like the way the edge of the ears rub on the cables. I have plastic edge trim on mine.
Click to expand...
Both of my MK 111's have original style consoles , one replaced recently . Original . Talk to Mike at Walridge Motors . Not cheap .
I gave up on the instruments cable routings / issues and made the leap to Smith's electronic units . Still have the originals that work fine .
