Dunstall tuning notes say that the earlier narrow gear pump was "the better unit for racing..." but modified to take the wider later pump scavenge gears.

late pump gear width-feed.250"/scavenge.416" (measured .401.406.412) feed-scavenge ratio 1.666

early pump gear width-feed186"(3/16")/scavenge.312"(5/16") feed scavenge ratio 1.666

dunstall
early pump gear width-feed186"(3/16")/scavenge .416" feed scavenge ratio 2.236

I own only one early narrow oil pump. It is a zinc/potmetal body. Did they make narrow gear iron ones?

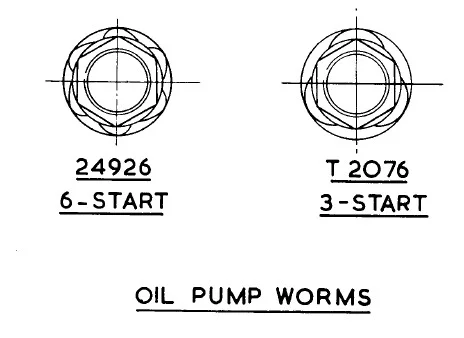

Reference is made here to 3 start & 6 start gear.???..I take it this is to do with the gearing ratio of the pump & crank scroll gears. ?

Reference is made here to 3 start & 6 start gear.???..I take it this is to do with the gearing ratio of the pump & crank scroll gears. ?

Yes.
Rocker Shaft Orientation



The 6 start gear ran the pump at twice the RPM's of the 3 start so double the volume of oil if there was no back pressure.

late pump gear width-feed.250"/scavenge.416" (measured .401.406.412) feed-scavenge ratio 1.666

early pump gear width-feed186"(3/16")/scavenge.312"(5/16") feed scavenge ratio 1.666

dunstall
early pump gear width-feed186"(3/16")/scavenge .416" feed scavenge ratio 2.236

I own only one early narrow oil pump. It is a zinc/potmetal body. Did they make narrow gear iron ones?
Does this take into account that from mid 1966 Norton opened up the holes and fitted a bigger holed oil pump feed block to the crankcase?
