original paint roadster side panels - need pics

Joined
Feb 21, 2019
Messages
956
Country flag
Yes, "if".
well, i can't prove that my paint is original, but then again, nobody can prove otherwise. my tank and side covers are cleared, so as far as i'm concerned, there's no "IF's" about it! sorry if i've wasted anyone's time with my appalling questions. time fo me to move on.... ;)

Last edited:

L.A.B.

Moderator
VIP MEMBER
Joined
Nov 20, 2004
Messages
17,085
Country flag
well, i can't prove that my paint is original, but then again, nobody can prove otherwise.

I wasn't disagreeing or attempting to "prove otherwise" just doubting that whoever did the paintwork for the factory (as I doubt they did it themselves) would have sprayed much if any clear lacquer over Candy as that is already a tinted lacquer applied over a silver(usually) base coat.


maylar

VIP MEMBER
Joined
May 13, 2007
Messages
4,018
Country flag
As a painter who started in that discipline in the 70's when lacquer was king, I can say that any candy or metallic paint needs to be clear coated. The color of candy paints depends on the thickness of the translucent color coat, and wet sanding the orange peel etc. (cut & buff) would leave a blotchy effect. Same with metallics, the process of wet sanding would expose metal flakes which creates an uneven blotchy appearance. There are no single stage metallic paints, unless you create your own.

I can say for certain that the candy apple red that my bike came with definitely had a clear coat.


L.A.B.

Moderator
VIP MEMBER
Joined
Nov 20, 2004
Messages
17,085
Country flag
Same with metallics, the process of wet sanding would expose metal flakes which creates an uneven blotchy appearance. There are no single stage metallic paints, unless you create your own.

Yes, metallics usually have the colour in the base coat along with the flakes and clear is applied on top.

Joined
May 7, 2005
Messages
5,603
Country flag
Clearcoats were introduced in the 80's as a solution of the older lacquers lack of durability. Any Norton tank that has a clearcoat is not OEM, it may be just the clearcoat is applied over the Factory paint or a full repaint but not original.


Basecoat/Clearcoat Automotive Topcoats

As previously discussed, thermoplastic acrylic lacquer automotive coatings, given their excellent appearance, were the major automotive topcoat used in the 1950-70s. However, these lacquer topcoats did have one significant drawback: they had weak exterior durability. After about one to two years’ exposure, the coatings would begin to degrade, and aggressive waxing was needed to “bring back the shine” of these systems. By the 1980s, the automotive manufacturers were requesting better durability for automotive topcoats, as consumers were now expecting their cars to last at least five years, and they wanted the car to continue to look like it did when they first saw it in the showroom. At the same time, the Environmental Protection Agency began to promulgate new volatile organic compound (VOC) regulations that limited the amount of solvent that an automotive facility could emit into the atmosphere. The high VOC content and weak durability of acrylic lacquer coatings were no longer acceptable in the automotive marketplace.

And if you want to match the Factory finish 100% you had better not get perfect pinstrip, it needs to have flaws and wobble.


jaydee75

VIP MEMBER
Joined
Jul 2, 2012
Messages
829
Country flag
I apologize, I may be wrong about clear since you have candy color.
All I know for sure is my black had no clear whatsoever on it and I bought it new.
jaydee


Beach

VIP MEMBER
Joined
Aug 27, 2013
Messages
543
Country flag
Joe, you said your stripes were applied after the clear. If your bike has clear on it it is not original.
jaydee
My 74 black with gold pinstripe tins were clearcoated from the factory. This was an untouched paint job, bike had 4000 miles and I'm 2nd owner.


Richard Tool

VIP MEMBER
Joined
Aug 3, 2019
Messages
790
Country flag
Regarding the “ factory original “ placement of the Commando lettering on side panels ( parallel to ground or top edge of panels) I agree that parallel to ground looks right and was likely what was wanted by the factory - however this was a dying industry and I can’t believe that they wouldn’t move product out the door because some new worker put a decal on wrong .
My 72 750 Combat roadster was all original when I acquired it and the Norton script on the tank was clearly placed a little higher with the “D “ lining than I have seen on others so proof positive that these things occurred. Not trying to start trouble or be argumentative here - just offering food for thought.


L.A.B.

Moderator
VIP MEMBER
Joined
Nov 20, 2004
Messages
17,085
Country flag
Joe, you said your stripes were applied after the clear. If your bike has clear on it it is not original.
jaydee

I think what Joe was referring to is clear lacquer on the Candy and not 'clearcoat' that, logically would be applied over the pinstripes (and decals?) as the pinstripes in his pics look to be on top of the paint surface.


marshg246

VIP MEMBER
Joined
Jul 12, 2015
Messages
1,513
Country flag
I think what Joe was referring to is clear lacquer on the Candy and not 'clearcoat' that, logically would be applied over the pinstripes (and decals?) as the pinstripes in his pics look to be on top of the paint surface.
Agree

AFAIK, there was no clearcoat at that time. There was clear lacquer which was simply lacquer without pigment and (again AFAIK) that's what was used on the "candy" paint jobs.


mean gene

VIP MEMBER
Joined
Dec 21, 2020
Messages
365
Country flag
Choosing not to continue the original/repaint debate, How many people (probably women) did the pinstriping? It almost looks like one person did them all.


ILLF8ED

VIP MEMBER
Joined
Dec 30, 2003
Messages
3,170
Country flag
David -

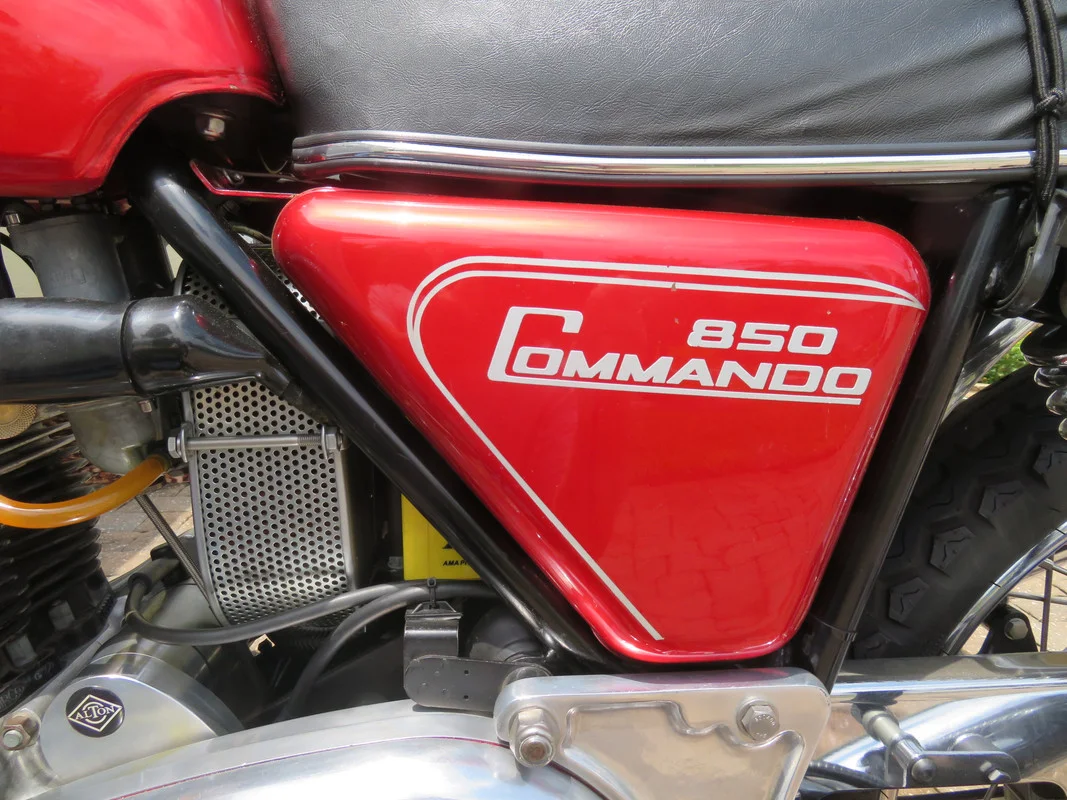

sorry, don't understand the "open end of the 7" thing. all photographs show the pin strips close together. so, from what you're saying, my side cover is either non-original, or repaint, a replacement part, or ???.

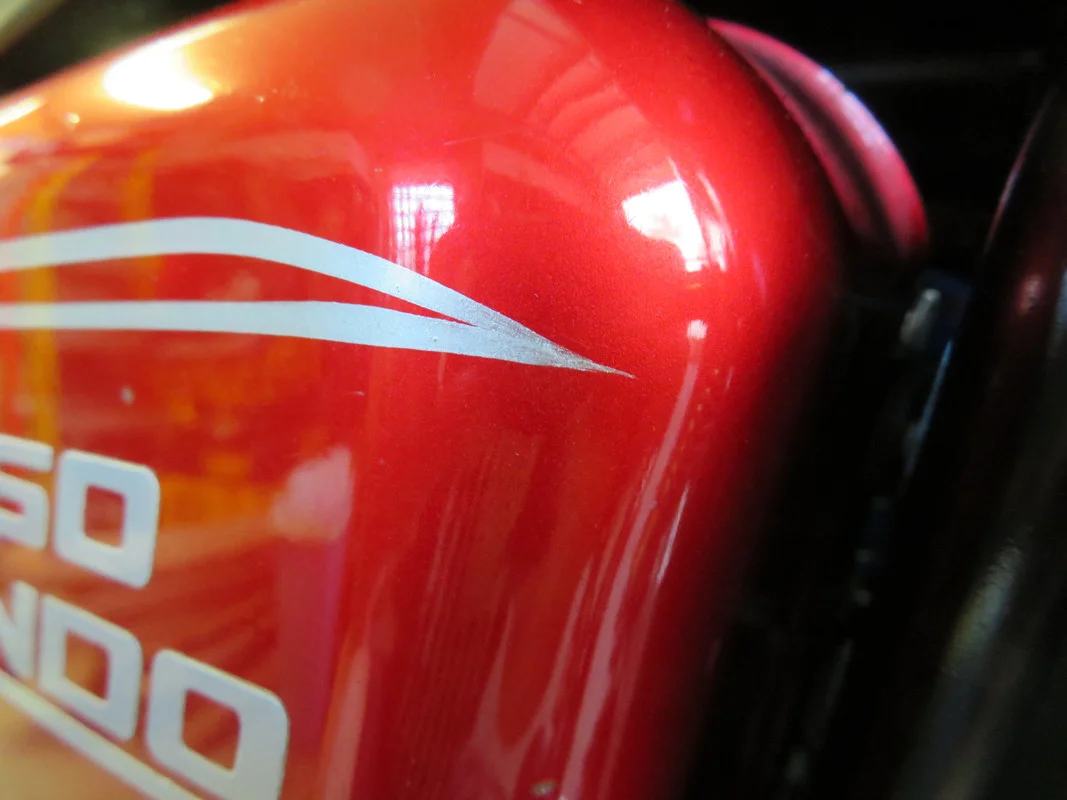

here's a pic of the pin stripe where it comes together. from what i can tell, it was hand painted after the clear. my stripes are well worn most likely from years of cleaning, polishing, and waxing,



this has me puzzled, and you have injected more doubt in my bikes originality -- i have to assume the pin stripe and decale stickers were applied at some time after the paint process, and before side cover's assembly to the ftame. the factory would have to have some sort of alignment jig to orient the label to an imaginary horizontal line, unless the "commando" sticker was applied during final assembly, after the side covers were installed. i'm assuming the horizontal line is the axle to axle centerline.
These stripes are correct. The “7” or boomerang is the shape of the stripe. A triangle with a missing side…the “open” part. The 850 decals deteriorate and your’s have probably been replaced which is why they are parallel to the top of the side cover instead of parallel to the ground.


mean gene

VIP MEMBER
Joined
Dec 21, 2020
Messages
365
Country flag

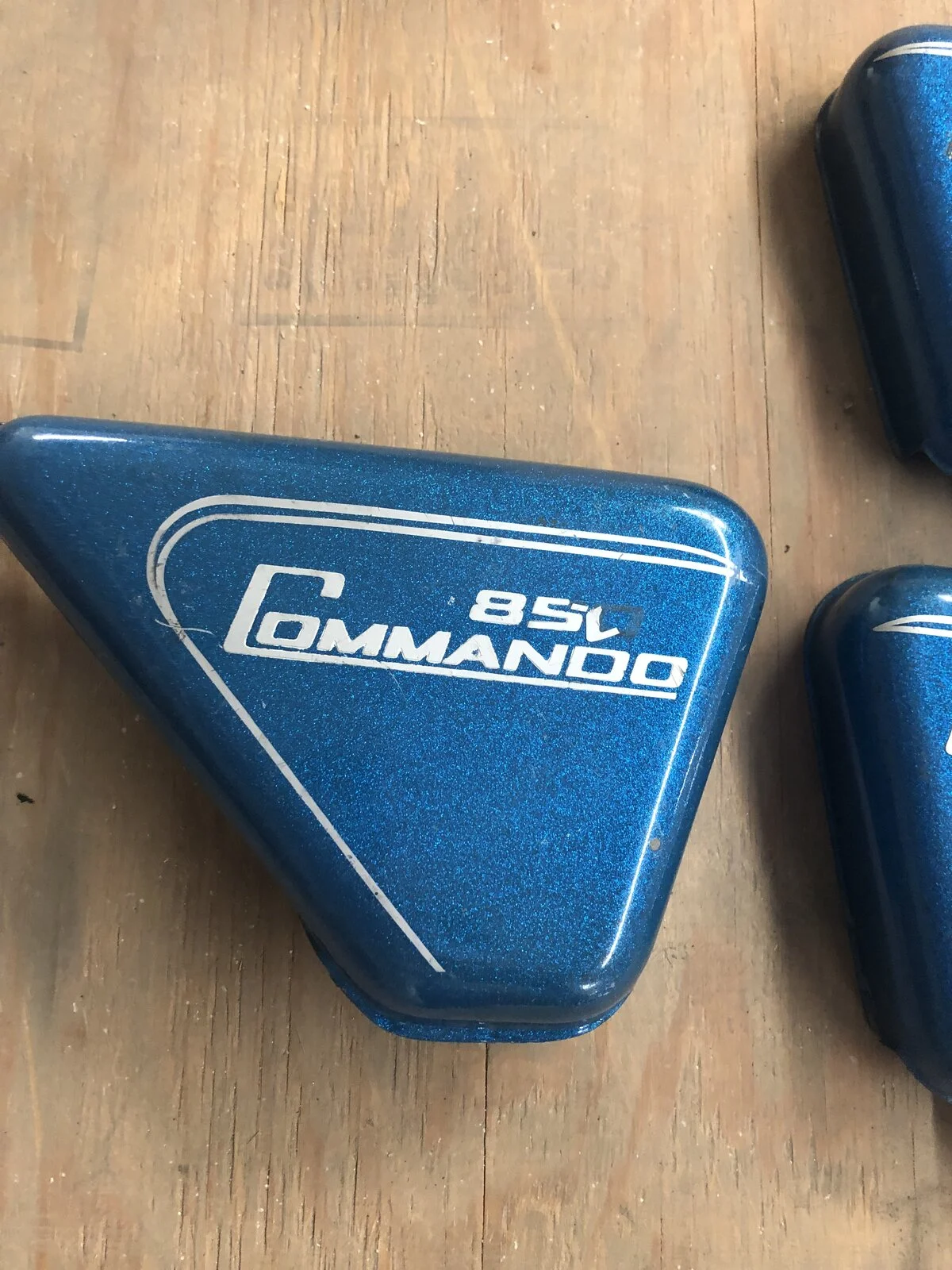

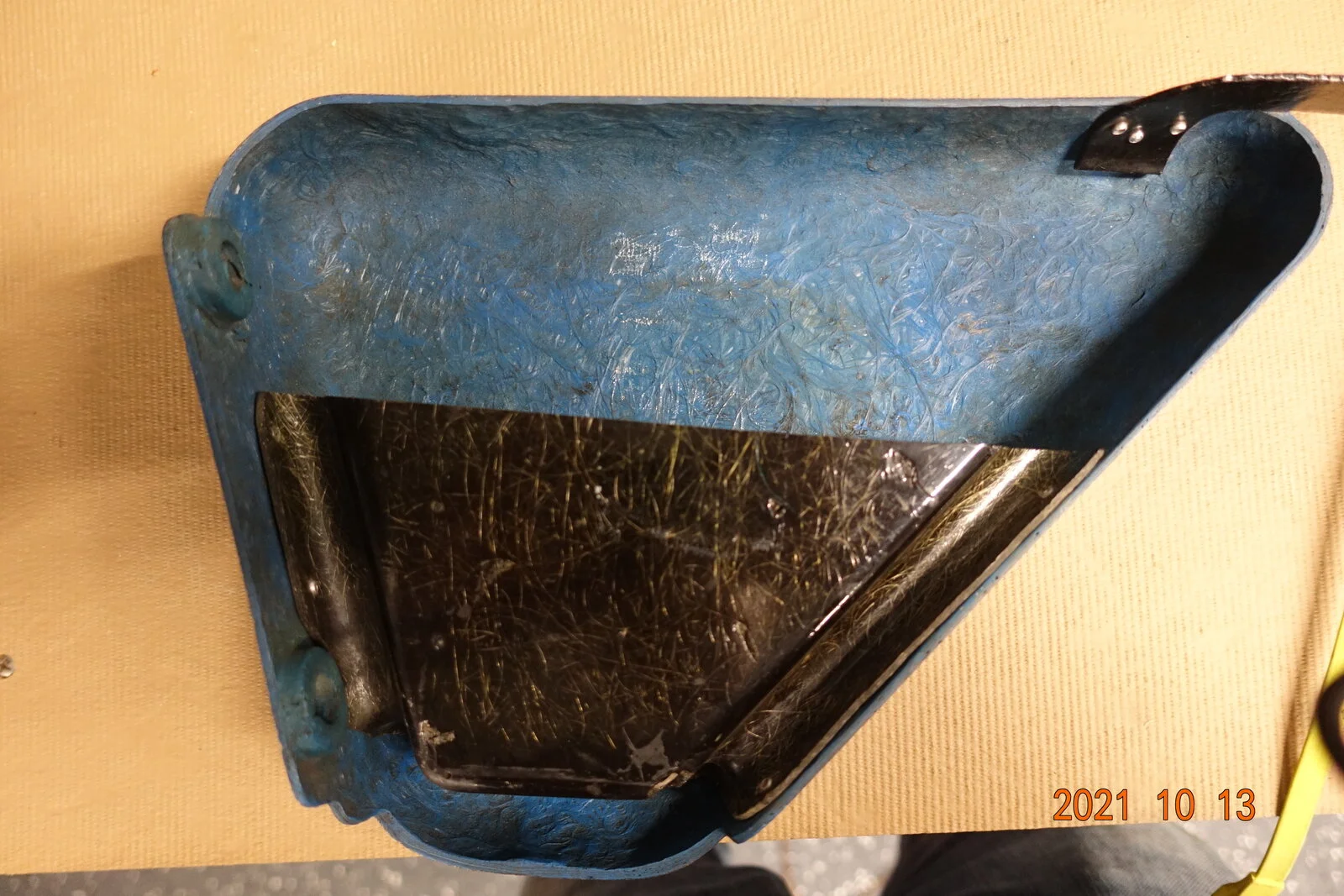

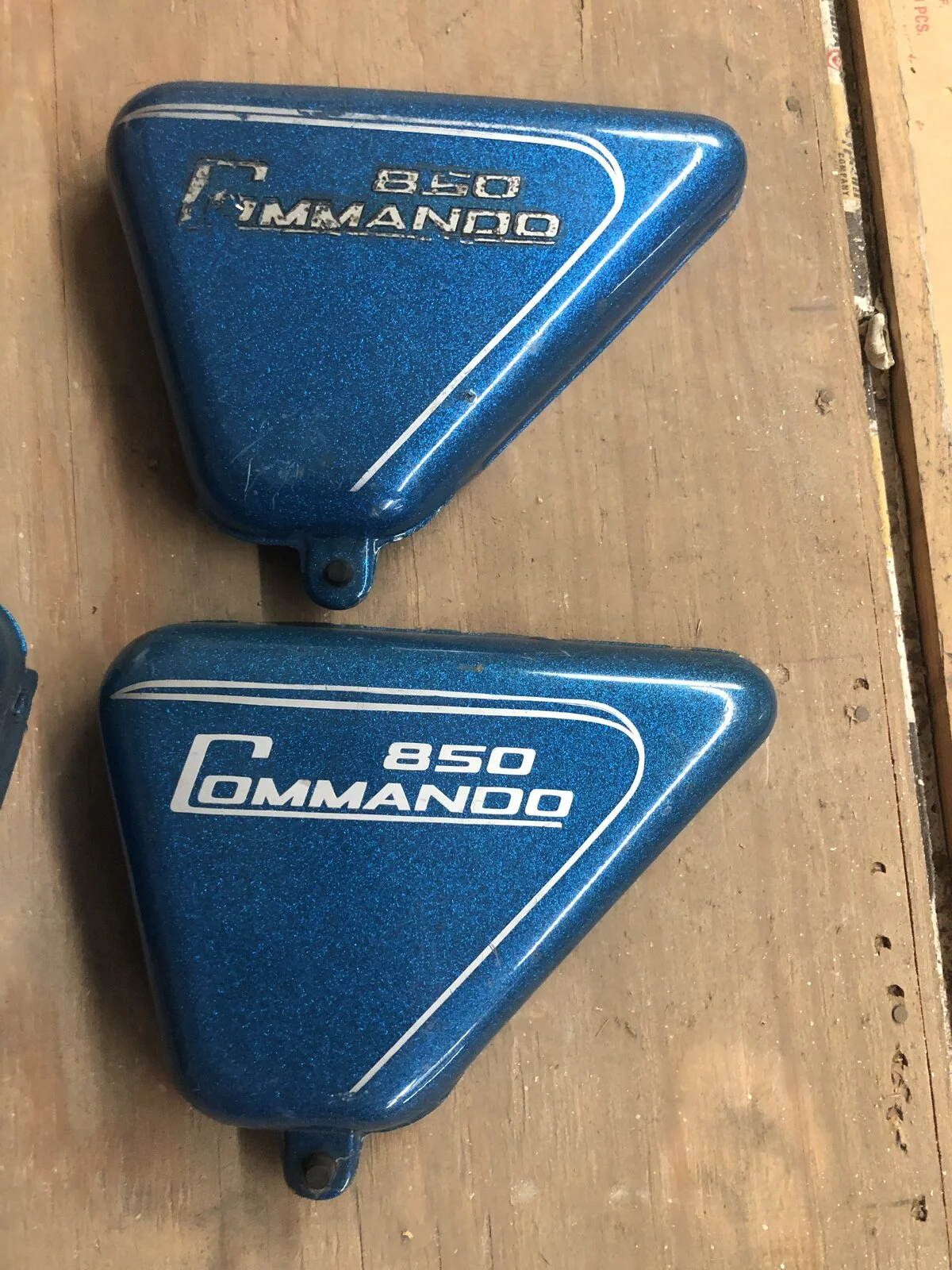

These look to be steel. My disco ball has glassfiber. You got the tank? is it for sale DSC04267.JPG


MichaelB

"Sons of Arthritus"
VIP MEMBER
Joined
Jan 14, 2004
Messages
1,665
Country flag
Yes, they are steel. Been collecting them as they come up.
I have a few sets. No tank.

However, I did buy the 'Disco Ball' set from Marsh..

Joined
Jun 28, 2009
Messages
1,715
Country flag
Metalflake finishes definitely had a (rather thin) clear topcoat, and from recollection of stripping a candy red sidepanel I don't believe it was clear coated; Candy tends to be high gloss as applied. The plain colours definitely weren't; fibreglass sidepanels were just the gelcoat colour.
I think the maxim of 'whatever's the cheapest way to guarantee a 12 month finish' applied.


maylar

VIP MEMBER
Joined
May 13, 2007
Messages
4,018
Country flag

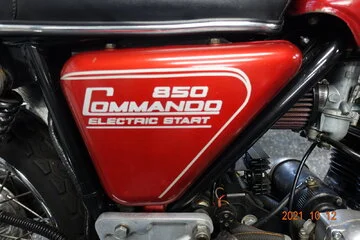

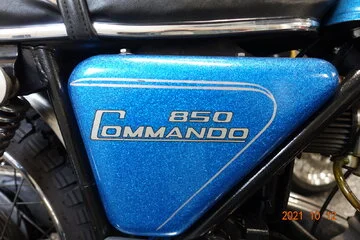

Gene's pictures...



Show the same side cover being at different angles. The blue one seems to be parallel with the ground, while the red one "points upward". As the right side panel covers the oil tank, I wonder what's different between these machines? Or are the side panels shaped differently?


marshg246

VIP MEMBER
Joined
Jul 12, 2015
Messages
1,513
Country flag
Gene's pictures...



Show the same side cover being at different angles. The blue one seems to be parallel with the ground, while the red one "points upward". As the right side panel covers the oil tank, I wonder what's different between these machines? Or are the side panels shaped differently?
Notice that the blue one, on the right side is parallel to the frame tube and the red one is not. This implies that the oil tank is mounted differently or the spacers under the top edge of the cover are different lengths.
