Oil Hose Clamp Alternatives

These are my favorite




Gates Fuel Injection Hose Clamp for 5/16 - 3/8" I.D. Hose | Pegasus Auto Racing Supplies

Fuel injection is an important system to keep clamped and sealed properly. These protect the hose and clamp tighter than a standard worm clamp.
www.pegasusautoracing.com www.pegasusautoracing.com


Most any auto parts store has them.


Last edited:
I too use fuel injection clamps now. Until recently if I had the original clamps Norton and Triumph used and they were not rusty I used them.

Then came I bike I finished for a guy two years ago. He kept having a leak at the oil filter. Over time, I changed oil filters several times, I changed the oil filter mount, I changed the hoses - nothing would stop that annoying leak. So, I had him leave the bike and rigged a bench test platform. Washed all the parts so they were spotless. Installed two new hoses. Filled the whole thing through the return line and waited. I couldn't believe my eyes! One hose was leaking. I tighten the clamp more and the leak got worse! Then I changed the only thing I had never changed - the OEM hose clamps - problem solved!

Sorry, can't find the picture - the clamp had a bulge opposite the screw. As it tightened the sides pulled in but the bulge got bigger and squeezed the hose away from the pipe. I know it doesn't sound possible but I watched it happen. I'm guessing that the bulge was "work hardened".

Hose clamps do wear anytime I pull a hose off I always inspect the hose clamp the worm gears do wear from use or over tightening them to rust, they can also tighten out of true and all, but I have never had one fail when being used, but you also got to use good quality hose clamps when working at the Tec College (TAFE) they only buy the best and I am glad I built up my stock pile over the years and not just hose clamps ;) 🤫

I've used the standard worm-type clamps at pressures above 200PSI with no leaks. I have no idea what they are "rated" for or even if a rating system exists.

MexicoMike said:
I've used the standard worm-type clamps at pressures above 200PSI with no leaks. I have no idea what they are "rated" for or even if a rating system exists.
Click to expand...
The reason for me wanting to change is the ss worm type seem to cut into and damage the hose.
The EFI ones seem to have slight flares at the ends as well as no "slots" (worm drive) which may give the hose an easier life.
I have ordered a few so will find out.
Cheers

Last edited:
marshg246 said:
I too use fuel injection clamps now. Until recently if I had the original clamps Norton and Triumph used and they were not rusty I used them.

Then came I bike I finished for a guy two years ago. He kept having a leak at the oil filter. Over time, I changed oil filters several times, I changed the oil filter mount, I changed the hoses - nothing would stop that annoying leak. So, I had him leave the bike and rigged a bench test platform. Washed all the parts so they were spotless. Installed two new hoses. Filled the whole thing through the return line and waited. I couldn't believe my eyes! One hose was leaking. I tighten the clamp more and the leak got worse! Then I changed the only thing I had never changed - the OEM hose clamps - problem solved!

Sorry, can't find the picture - the clamp had a bulge opposite the screw. As it tightened the sides pulled in but the bulge got bigger and squeezed the hose away from the pipe. I know it doesn't sound possible but I watched it happen. I'm guessing that the bulge was "work hardened".
Click to expand...

You are not alone in terms of a quirky change fixing the problem.

Mark Savage said:
I've just replaced the oil hoses. They were the herring bone type but I wasn't sure if they were original or not but they seemed rock hard.
I used these clamps from fleabay.
www.ebay.co.uk

Single Ear O-Clips Clamps - Stainless Steel - OETIKER 167 - 7.0mm - 22.6mm | eBay

Find many great new & used options and get the best deals for Single Ear O-Clips Clamps - Stainless Steel - OETIKER 167 - 7.0mm - 22.6mm at the best online prices at eBay! Free delivery for many products.
www.ebay.co.uk
Click to expand...
Can you explain how to use these Oetiker clamps please . I don't see the tightening method .

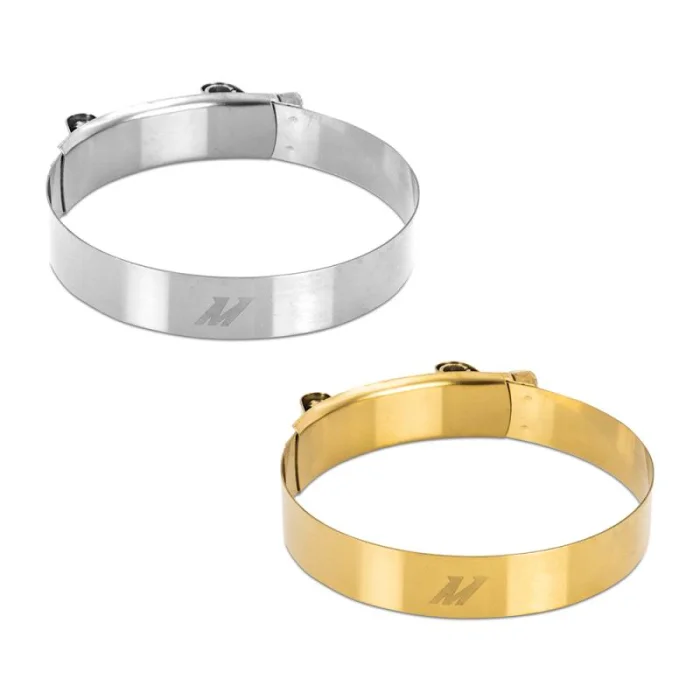

Great thread - really impressed with some of the solutions I am seeing. Not much to offer, but I use a Mishimoto clamp for the oil filter (not the gold one!) and HPS fuel injection clamps for the oil and breather.


Torontonian said:
Can you explain how to use these Oetiker clamps please . I don't see the tightening method .
Click to expand...
You need a special crimp tool which pinches the ears together. These tools have become commonplace with the popularity of PEX tubing for domestic water piping..

They are single use clamps, and difficult to remove.....need to be cut off with a Dremel tool,

The main advantage is that they apply a high clamp force and will withstand high fluid pressure within the tube.

Slick

BTW ..... once you use PEX with these clamps, you will never go back to PVC pipe and solvent weld glue.

NorLuck said:
I’m working towards all AN style clamps/fittings as I think they look cleaner. I also have a bit more flexibility as my oil tank is built into the gas tank so tons of room to figure out placement of filter etc.
Click to expand...
The Andover ones for oil hoses are worm drive - are these what you're referring to?
Oil Hose Clamp Alternatives

Well, small stuff, I know - but may have significant consequences.

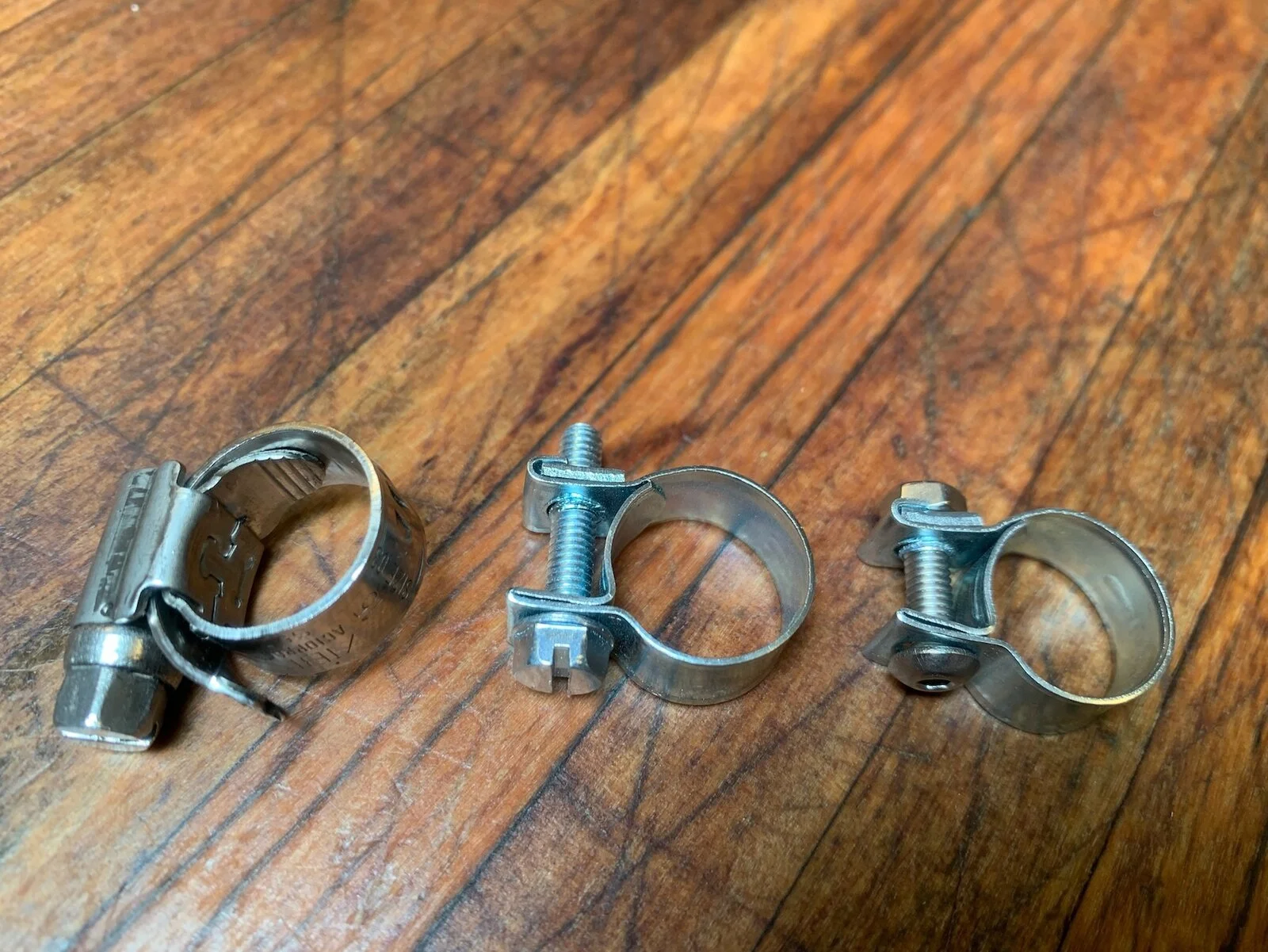

First photo shows:
Left - worm drive clamp that came off (you can see the thick, overlapping - it had damaged the hose)
Middle - EFI clamp as purchased (14-16mm)
Right - EFI clamp with shorter ss screw and locknut (loctite blue used on these)

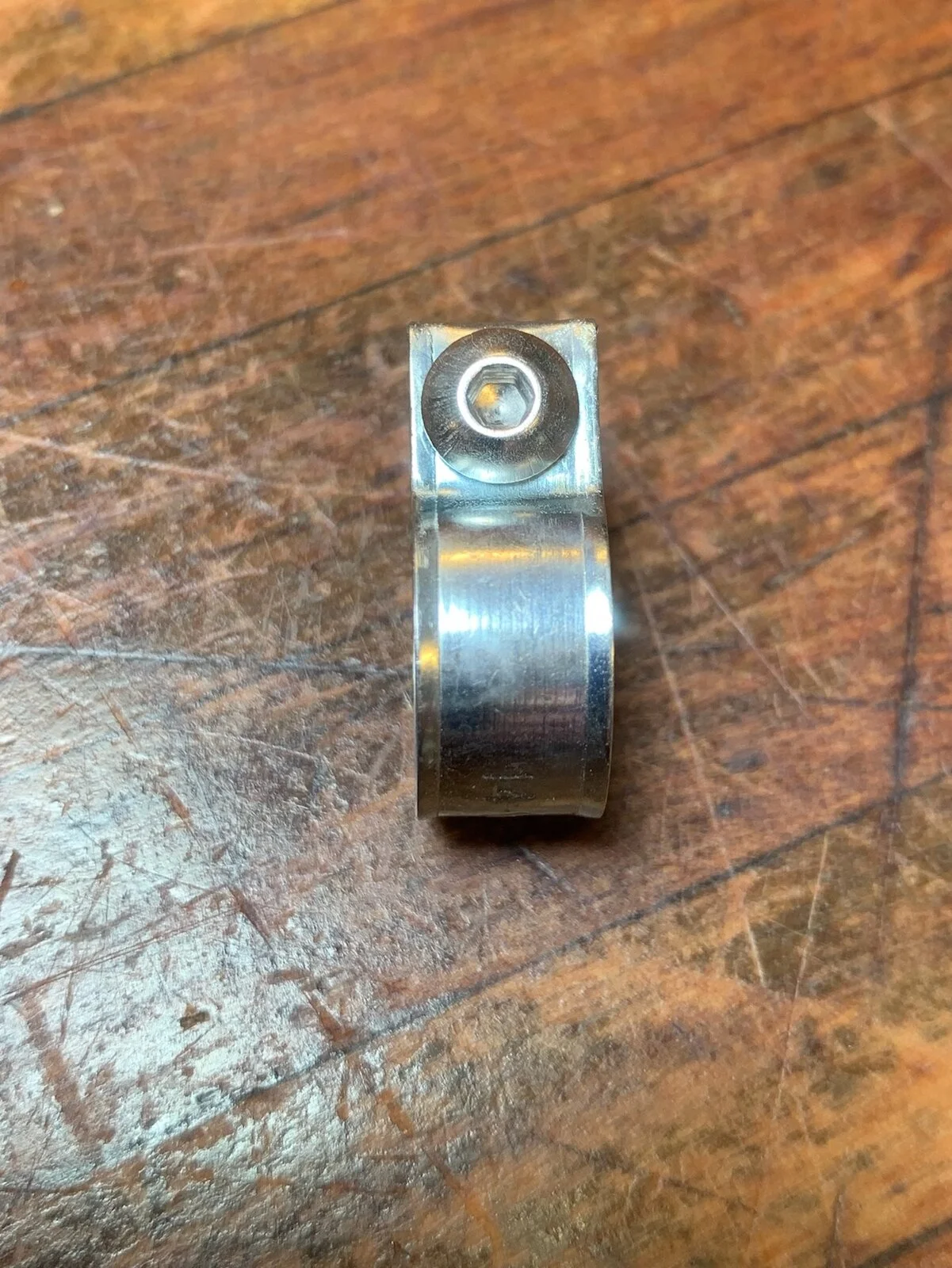

Other photo shows the "flare"either side of the EFI clamp - will be easier on the hoses.

The thinner material and shape of the new clamps will, in my opinion, better clamp the hose without damage.

The other advantage of these is they have minimal protrusion - less barking of hands during cleaning!
Cheers
Clamps 1.JPG
Clamps 2.JPG

Last edited:
Last night, I threw away the "hillbilly hosecutter" clamps supplied with the kit I was fitting.


Attachments

  • Oil Hose Clamp Alternatives
    196.6 KB · Views: 118
Yakatak said:
I just insert a small screwdriver and pop the outer ring off of the locking pin. Easy peasy.
Click to expand...
That's what i do. Pretty easy. Only problem is when you can't get get at it with a screwdriver at it (important to position them so you can) and the fact that they're destroyed when removed. Other than that, they're great clamps.

And the only time you'll need to remove them is when you need to replace the hose.
