Well got my elec and water back yesterday after 1 month, no Internet just satellite fone, so I got plenty to do.

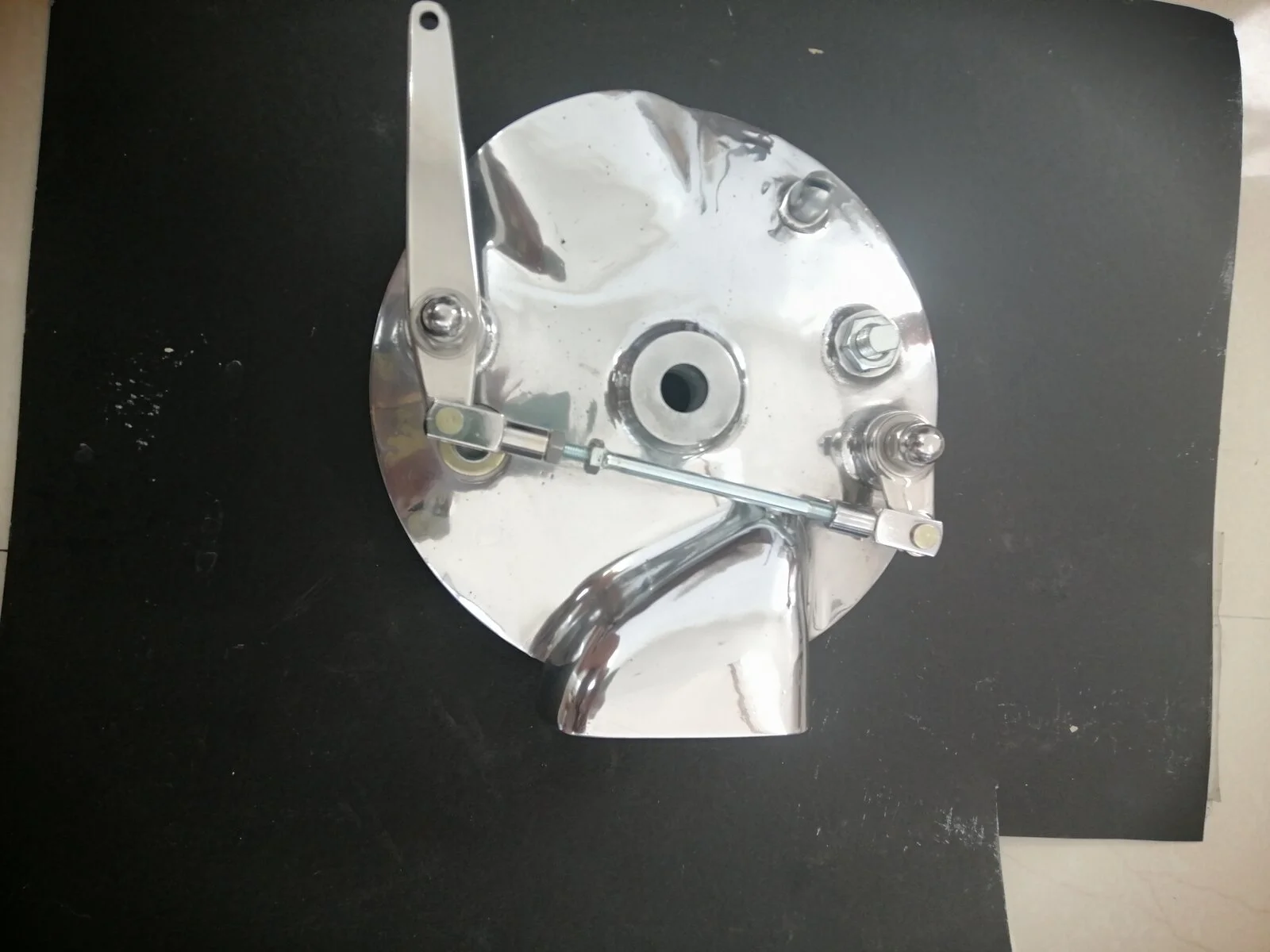

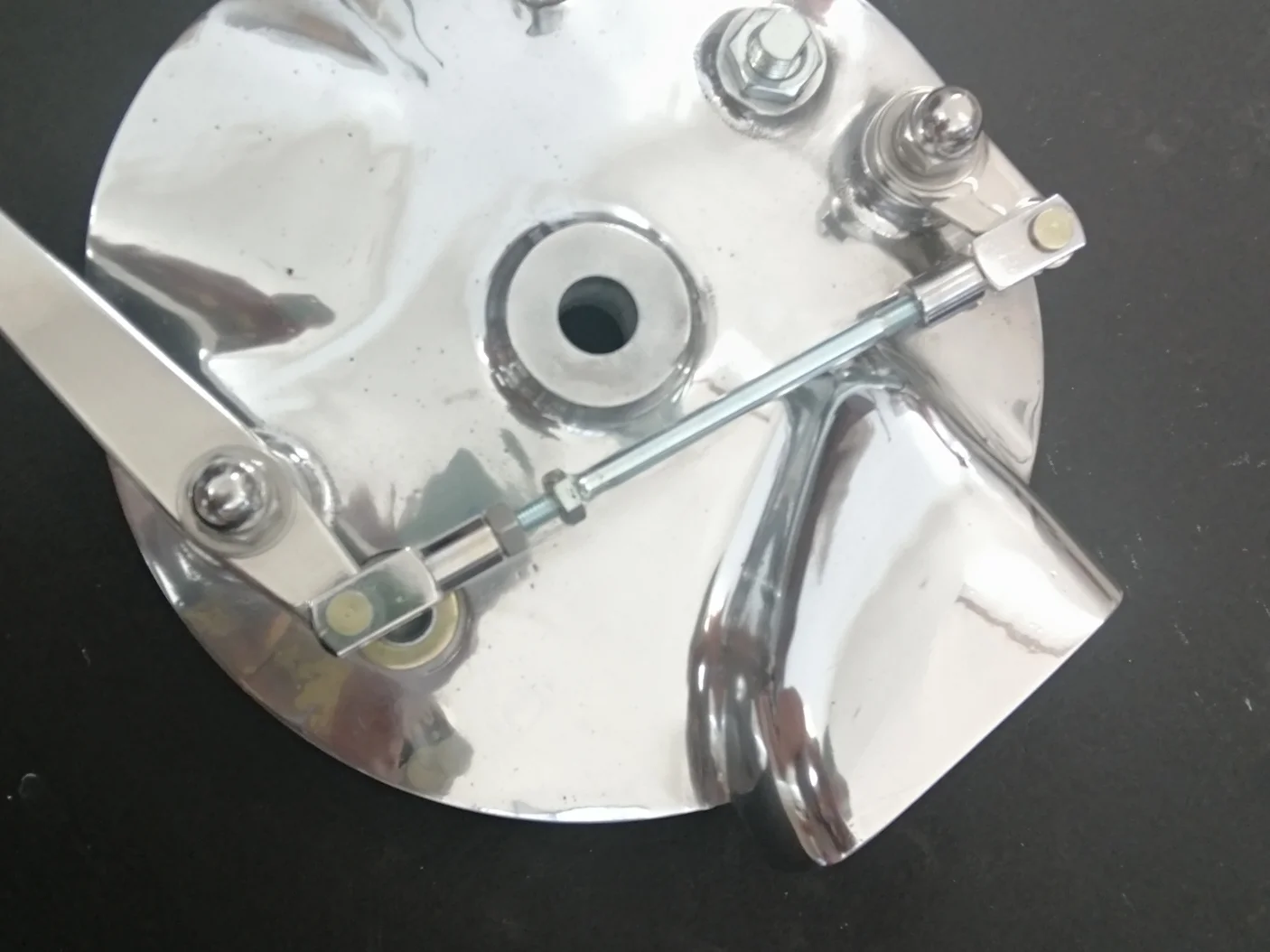

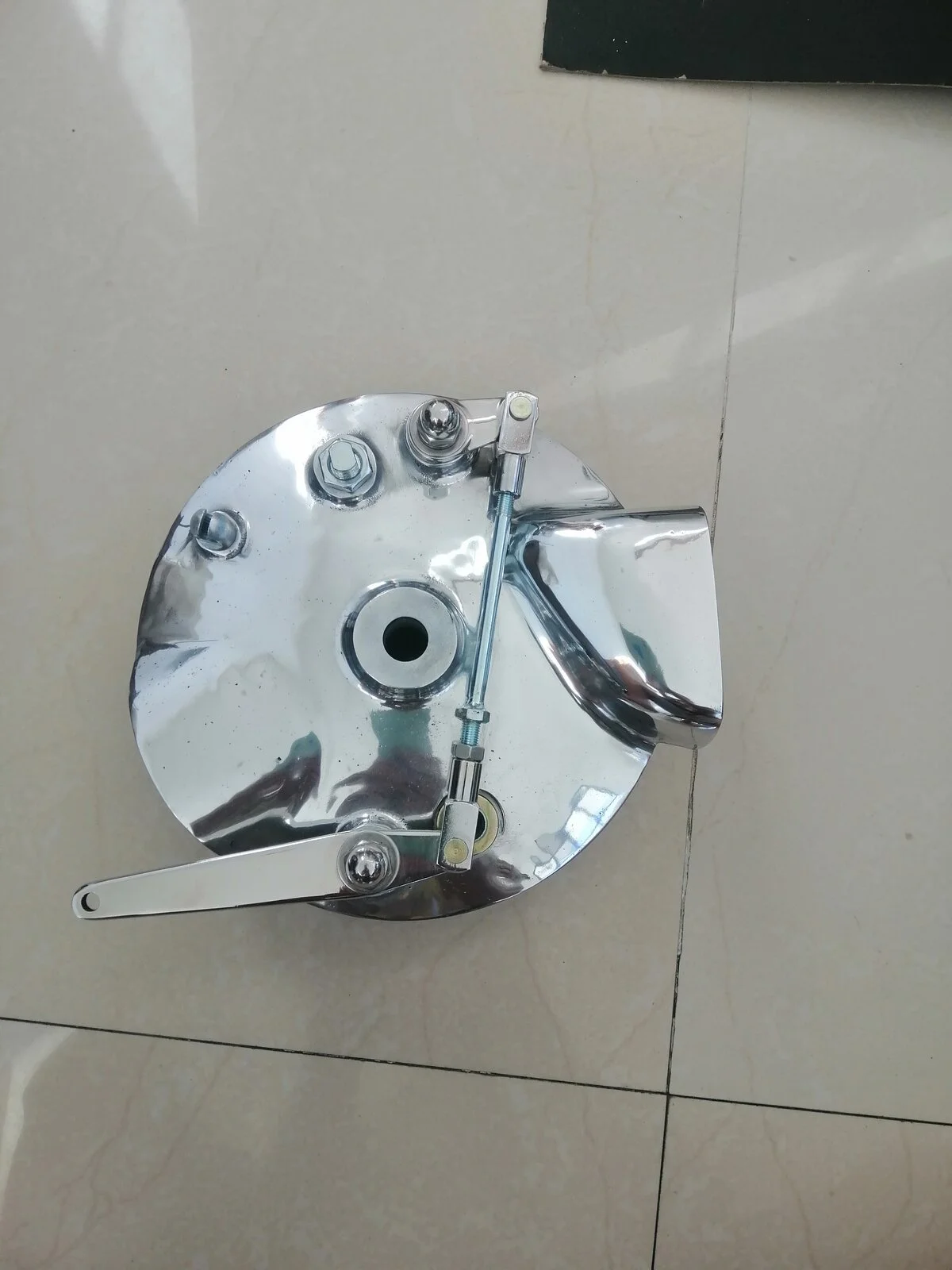

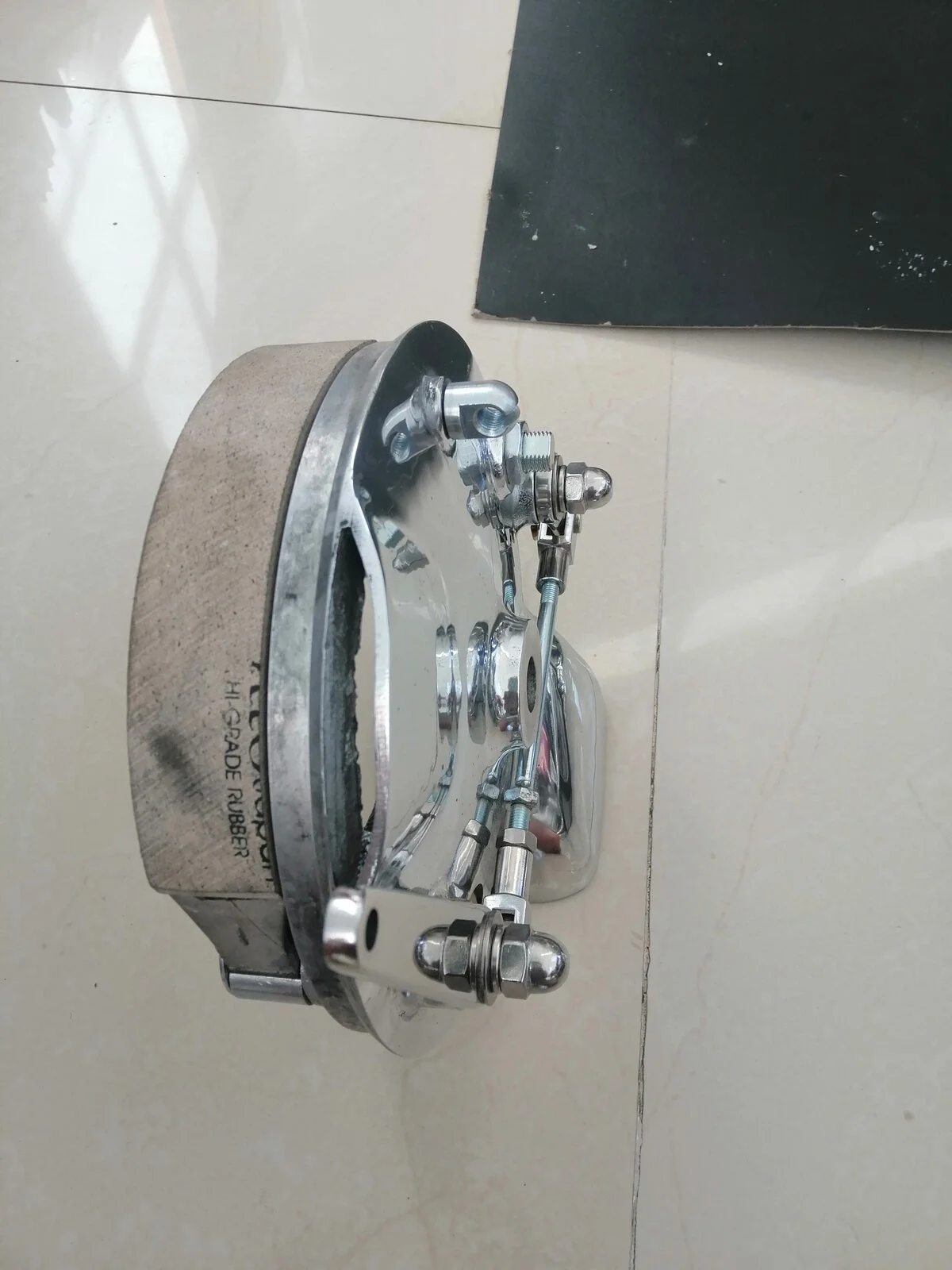

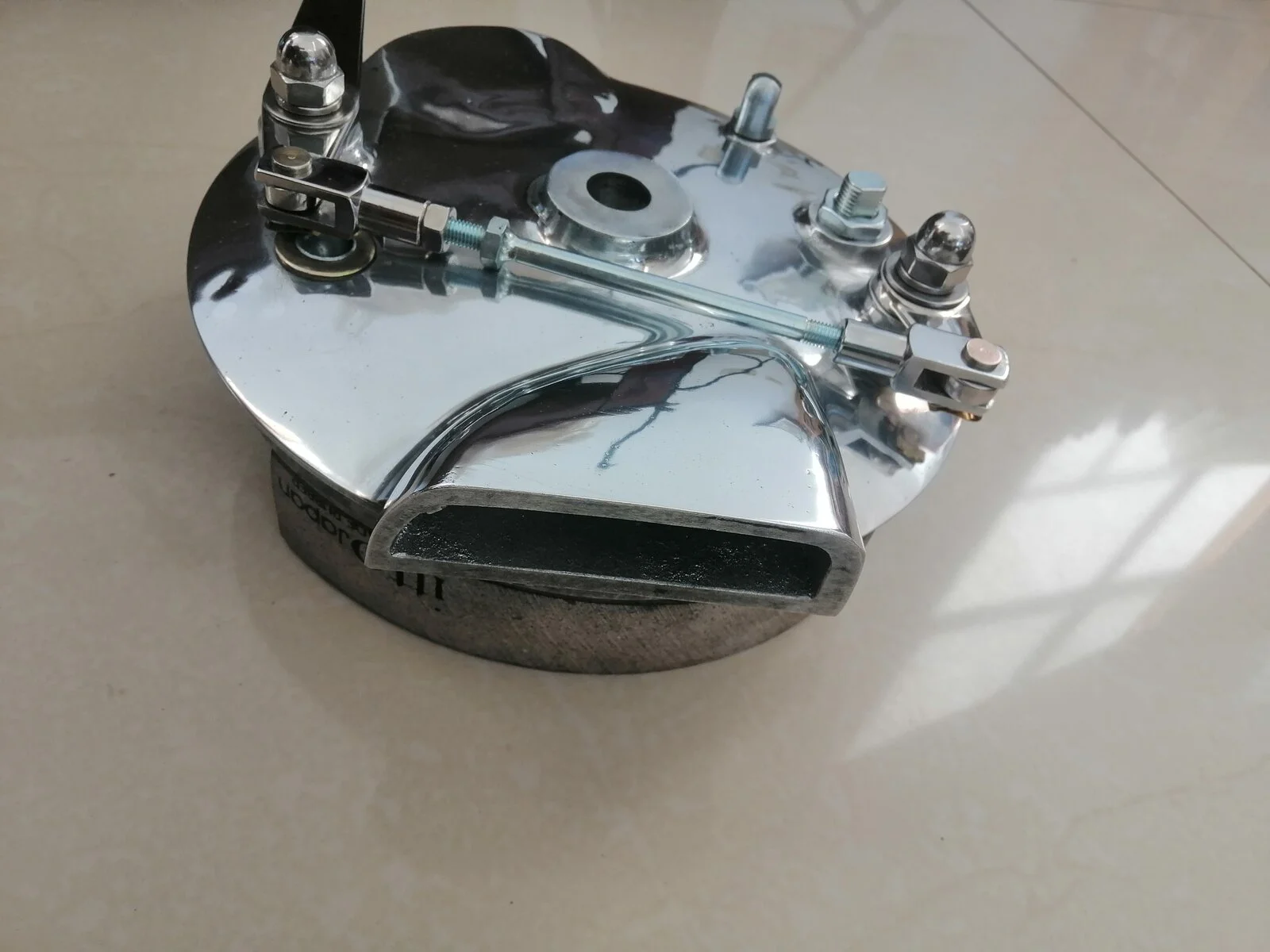

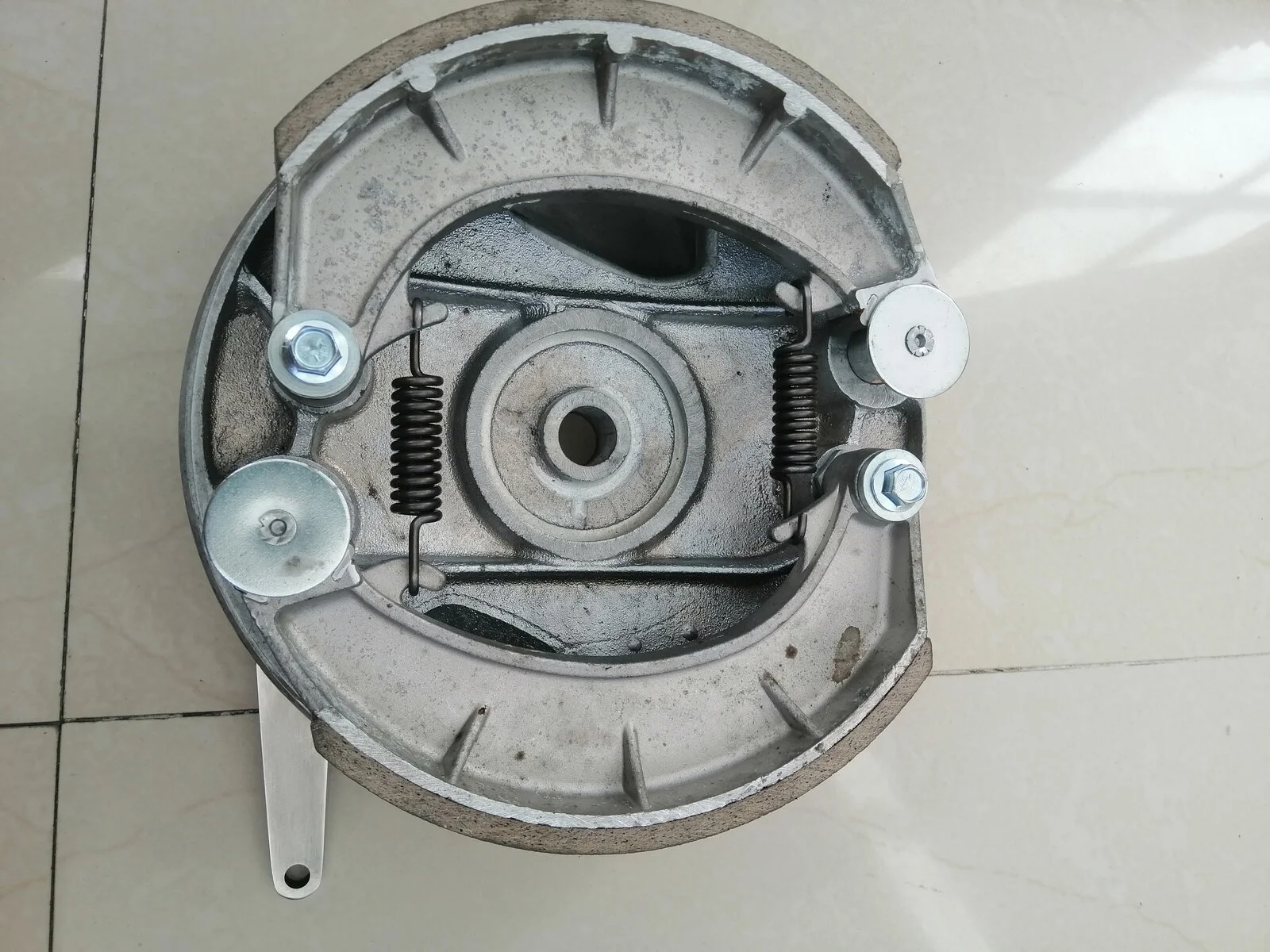

Here is a new brake for 64 to 71's.its a new casting with entry and exit air scoops, still have to make the mesh screens for the front. Stainless levers, long one is 20mm longer for more leverage. Not for the bean counters but more for the cafe guys
Don


Attachments

  • IMG_20220115_081727.jpg
    321 KB · Views: 68
  • IMG_20220115_081717.jpg
    169.4 KB · Views: 66
  • IMG_20220115_081946.jpg
    301.1 KB · Views: 68
  • IMG_20220115_081701.jpg
    156.5 KB · Views: 70
  • IMG_20220115_081646.jpg
    153.3 KB · Views: 70
  • IMG_20220115_081710.jpg
    159.7 KB · Views: 78

robs ss

VIP MEMBER
Joined
Aug 16, 2016
Messages
1,818
Country flag
Well got my elec and water back yesterday after 1 month, no Internet just satellite fone, so I got plenty to do.
Here is a new brake for 64 to 71's.its a new casting with entry and exit air scoops, still have to make the mesh screens for the front. Stainless levers, long one is 20mm longer for more leverage. Not for the bean counters but more for the cafe guys
Don
Very nice Don - sort of "Tickle" with a Triumphesque scoop.


madass140

VIP MEMBER
Joined
Nov 6, 2011
Messages
2,102
Country flag
Very nice Don - sort of "Tickle" with a Triumphesque scoop.

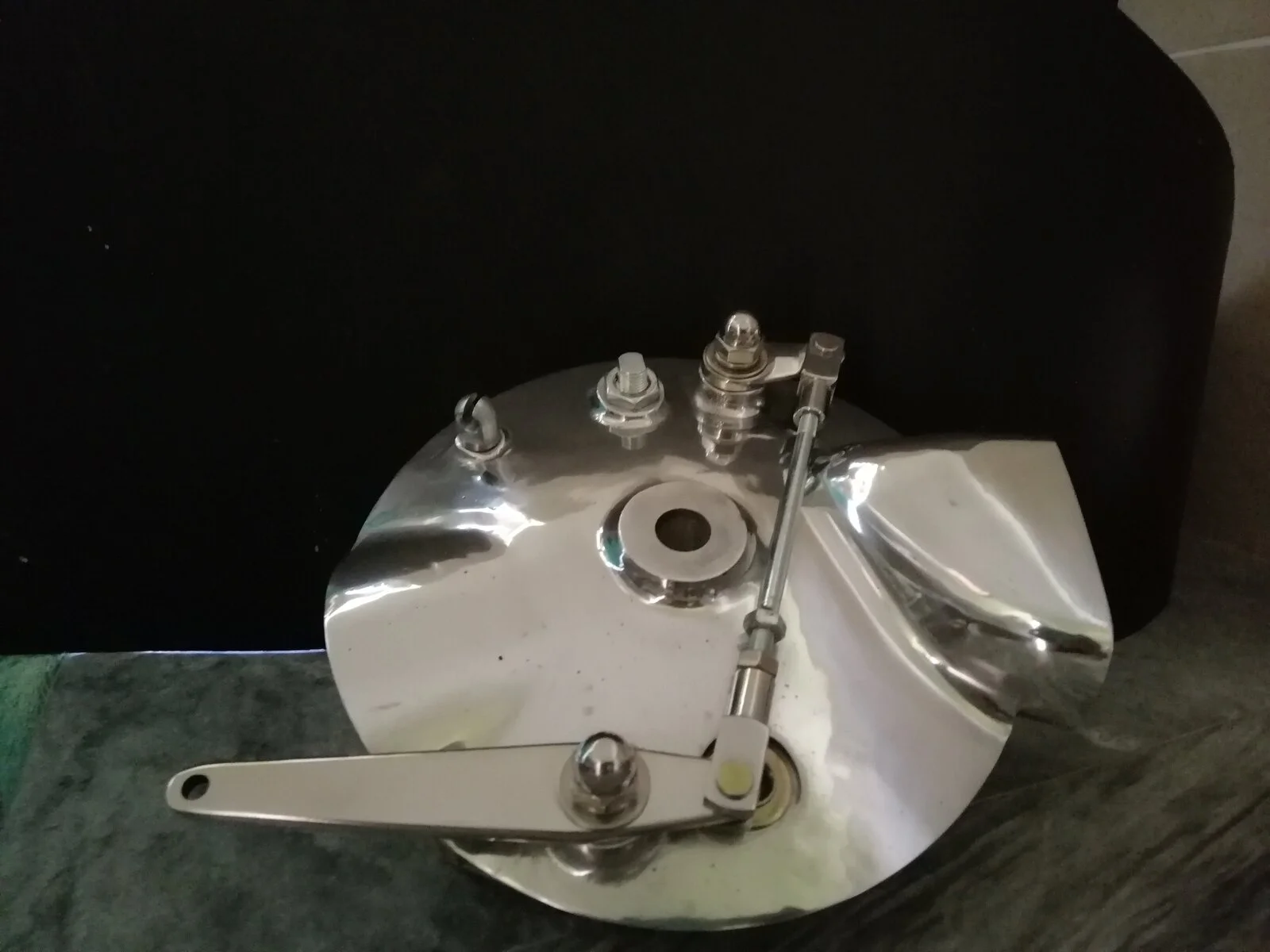

Well, I had a John Tickle brake and thought I would make one very similar using Commando shoes but that wasn't possible, the Tickle brake is very different and has its own shoe design.
I have a large stock of Commando shoes so I used the Commando casting as my base to work from.


Attachments

  • IMG_20220115_095437.jpg
    135 KB · Views: 63

Chris

VIP MEMBER
Joined
Jan 21, 2008
Messages
1,362
Country flag
As the owner of a Tickle brake that I brought with parts missing! I can confirm Don's information. Lol how I laughed when I discovered this!
That's really nice Don & practical & just clever.
