Narrow Air Cleaner (2019)

Status
Not open for further replies.
I still think the RGM narrow (as in post #1) looks the best, though I do get that it costs big bucks to get to the states.

Bonzo said:
I still think the RGM narrow (as in post #1) looks the best, though I do get that it costs big bucks to get to the states.
Click to expand...
What gives me pause is not having ready access to replacment fitlers for the RGM setup. If they were to offer a reuseable/cleanable filter with it, now we're talking....

Tornado said:
What gives me pause is not having ready access to replacment fitlers for the RGM setup. If they were to offer a reuseable/cleanable filter with it, now we're talking....
Click to expand...
The RGM one does work, but just. It's 1.9" which makes the boots have to stretch a little too far. The K&N E-3410 works well as they are 2-1/16", but they are discontinued and the last two bought were 1-3/4" which does not work (right part number, wrong filter in the box).

See post #96 where I woke this thread back up.

I tried before to get K&N to make me custom filters, but they never sent the quote. The guy I talked to the other day is supposedly the custom "guy". We'll see if he provides a quote as promised. A 2-1/8 washable filter would provide 3/4" more clearance for installing and would look normal to most.

Y'know I actually thought the RGM kit came with slightly longer boots to bridge the wider gap, but I can see they're the part Nos as the standards.

Bonzo said:
Y'know I actually thought the RGM kit came with slightly longer boots to bridge the wider gap, but I can see they're the part Nos as the standards.
Click to expand...
Ya, I thought the same and bought them - not longer. Since I had to use it, I used a 3/16" spacer (06.2170) behind each of the bottom rear air filter mounting bolts, and two instead of one for the top bracket. That made the carb side of the air cleaner as far away from the carbs as a 2-1/6" filter would make it. The boots work fine then. The carb-end of the boots has a slot just inside. You screw the carb adapter sleeves (03.3027) on "backwards" and their flange goes in the slot - the boots are very stable.

marshg246 said:
Ya, I thought the same and bought them - not longer. Since I had to use it, I used a 3/16" spacer (06.2170) behind each of the bottom rear air filter mounting bolts, and two instead of one for the top bracket. That made the carb side of the air cleaner as far away from the carbs as a 2-1/6" filter would make it. The boots work fine then. The carb-end of the boots has a slot just inside. You screw the carb adapter sleeves (03.3027) on "backwards" and their flange goes in the slot - the boots are very stable.
Click to expand...
Nice tip on the adapter sleeve.

There's this too https://www.rgmnorton.co.uk/buy/extended-carb-thread-protector-velocity-stack_5160.htm

I'd be tempted to keep the standard parts and substitute the RGM narrow filter gauze/bolts https://www.rgmnorton.co.uk/buy/air-filter-perforated-gauze-bolts-for-narrow-element-1-9_1672.htm and filter https://www.rgmnorton.co.uk/buy/narrow-version-of-commando-air-filter-element-67-74-1-9_1674.htm rather than buy the whole kit, but I'm in the uk so cheap post.

johnm said:
Photo installed with CNW starter.

I do not think the thinner one would fit with the CNW starter.
Click to expand...
Johnm,
You did a beautiful job on that. I am also running a CNW Estart with their smaller filter but really like the way you put the screen on.After you cut and shaped the screen,how did you attach the cut ends?
Thanks, Mike

YING said:
Johnm,
You did a beautiful job on that. I am also running a CNW Estart with their smaller filter but really like the way you put the screen on.After you cut and shaped the screen,how did you attach the cut ends?
Thanks, Mike
Click to expand...
Hi. Just overlapped very slightly at the bottom and a couple of spot welds.

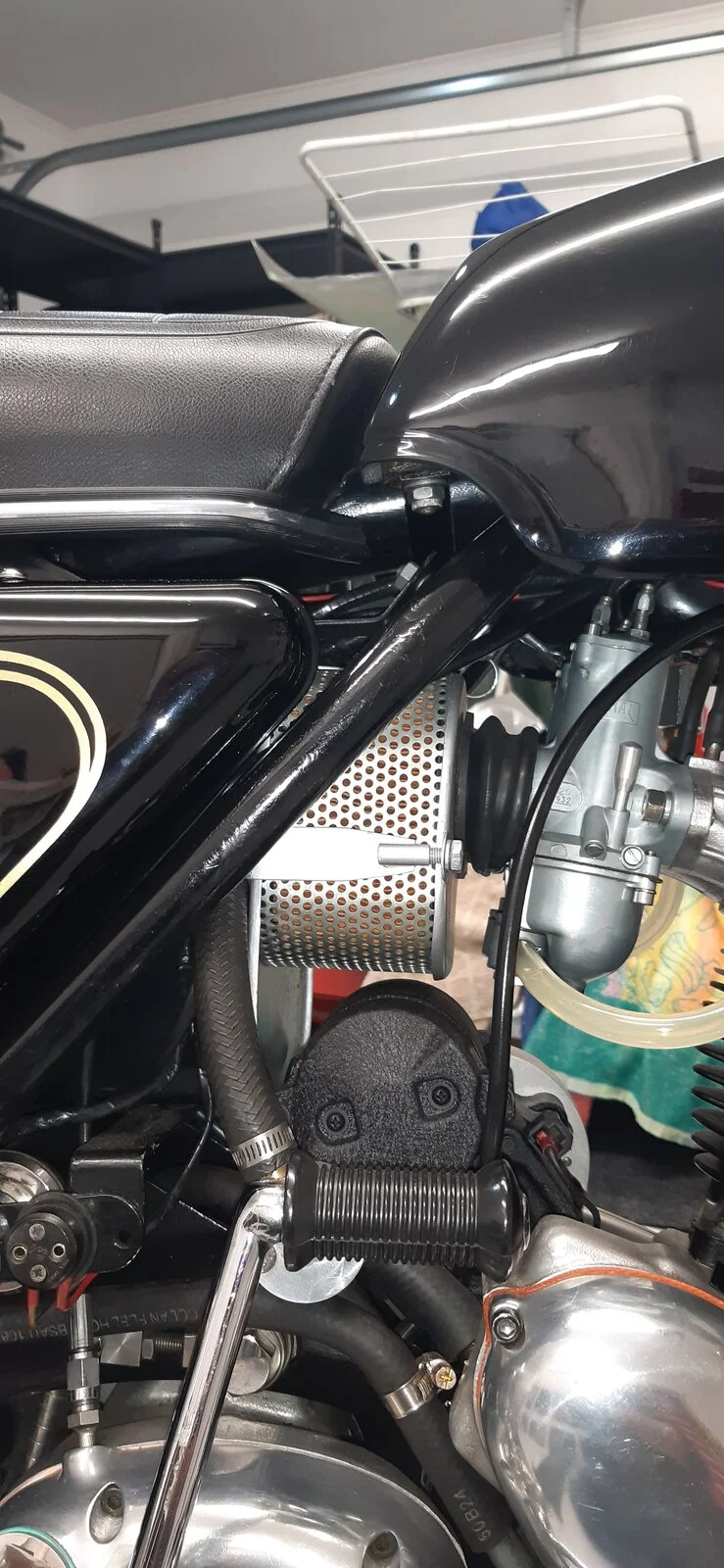

This is what it looks like on a roadster tank and side panels


Attachments

  • Narrow Air Cleaner (2019)
    181.7 KB · Views: 153

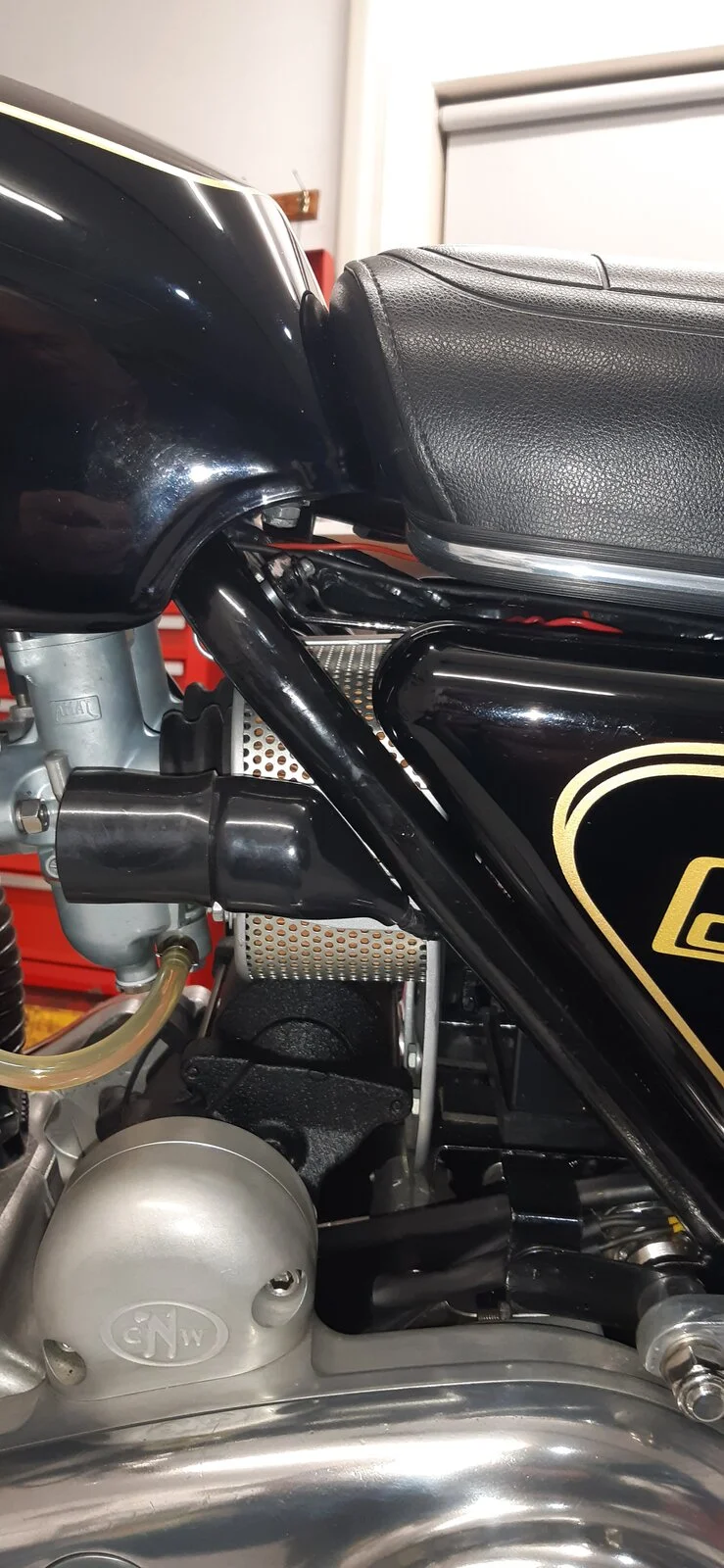

This is what it looks like on a roadster tank and side panels


Attachments

  • Narrow Air Cleaner (2019)
    154.2 KB · Views: 158
