MK III manuals

Status
Not open for further replies.
maylar

maylar

VIP MEMBER
Joined
May 13, 2007
Messages
4,213
Country flag
Is there an online workshop manual, or at least a schematic, for the MK 3?

https://www.accessnorton.com/NortonCommando/technical-information.2265/

http://britmoto.com/manuals/Manuals/850_man.pdf

MK III manuals

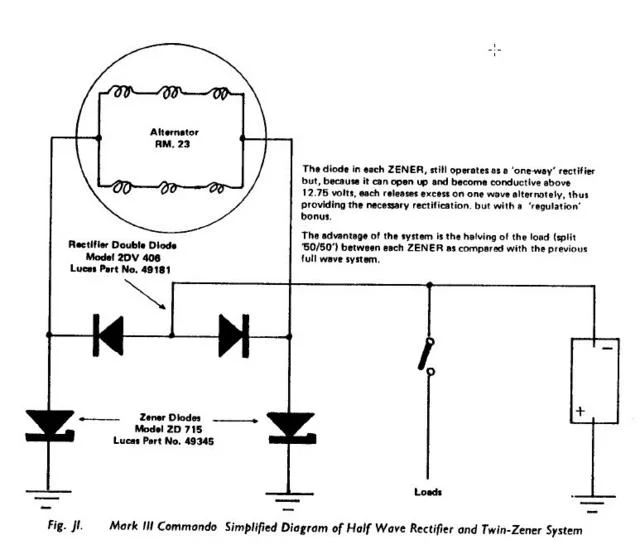

OK, so it's a dual diode rectifier and the zeners handle the positive half cycle. Thanks.

I don't see any MKIII stuff in the tech section.

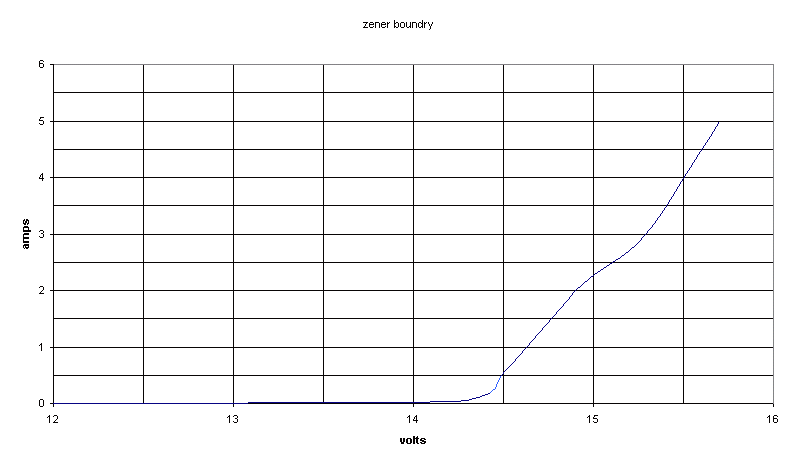

49345 zener diode is slightly misrepresented in the factory write-up. Rather than 12.75...it is closer to a 14.3v zener.
I've tested many of them...
And remember the threads are 1/4-26 ?CEI or BSF?
But surely NOT 1/4-28unf
MK III manuals

Last edited:
Status
Not open for further replies.
