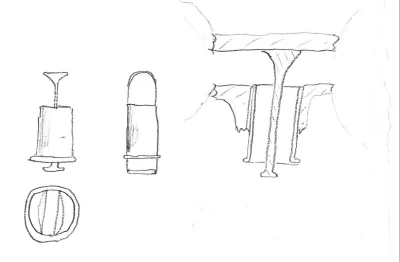

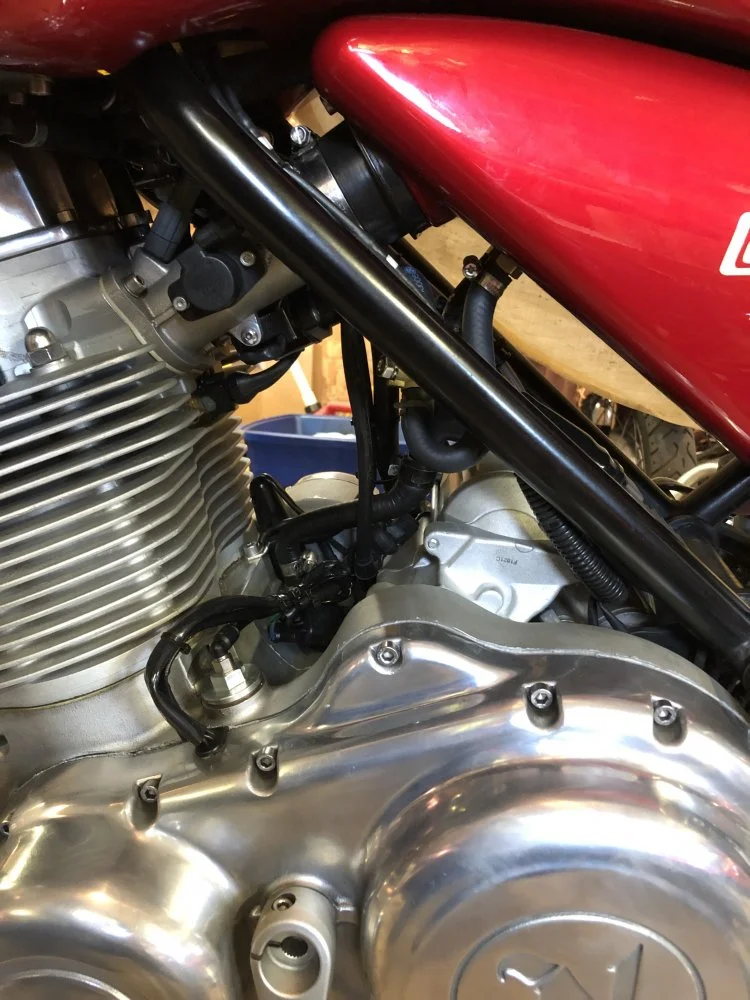

Only air 'should' pass through the IAC assembly. But the system is more dynamic than it might appear. Some air is also passing through the throttle butterfly's. During the engine cycle, valves are opening and closing, pressure is rapidly changing and because both cylinders are linked together via the IAC tube there are situations where there is such a pressure differential between the throttle bodies that charge laden air flows between the throttle bodies rather than down the IAC pipe. Remember at idle there is a relatively small amount of air flowing into the engine so it's easy for one cylinder to influence the other if joined (as they are by the shared IAC tube).
I know this to be the case since by measuring the AFR in each exhaust I can observe firstly with the stock setup that:

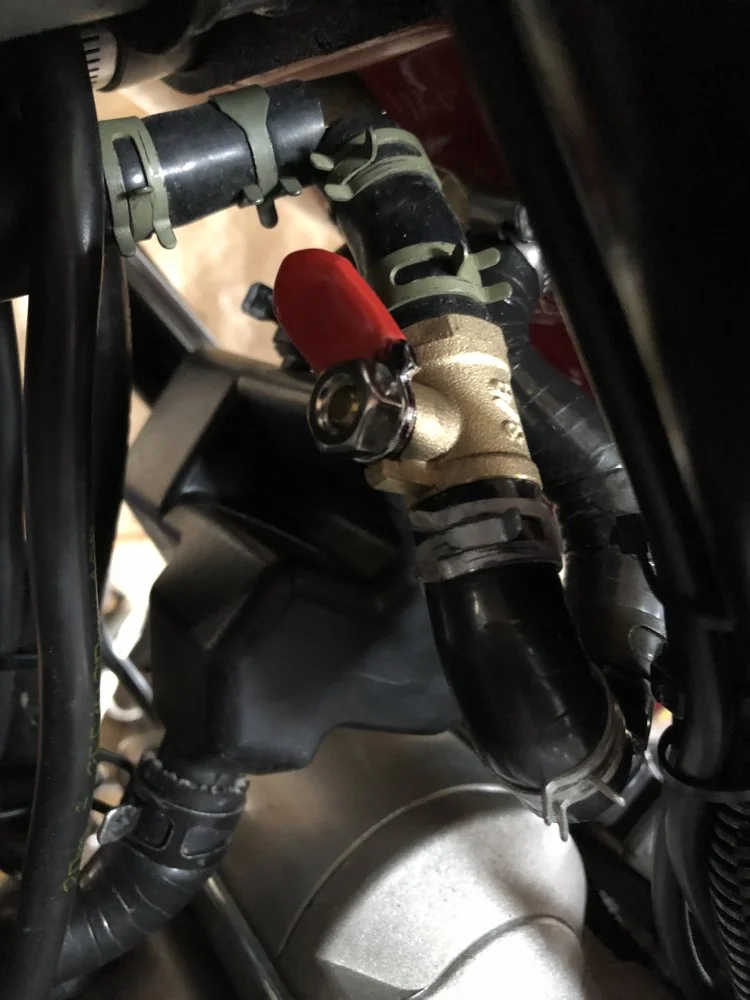

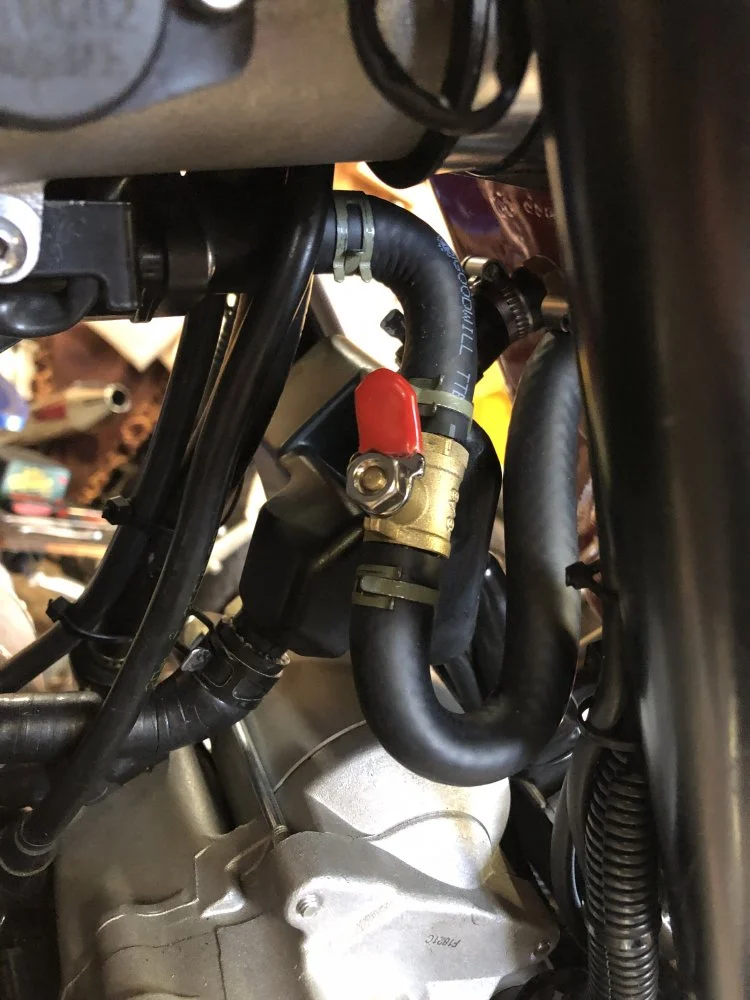

I'm reposting the first video from this thread. This shows the process as in action. First few seconds are with the stock setup - sensor 1 (cyl. 1), showing very lean (26:1 AFR). After that I block the shared IAC tube (remember I'm not blocking the intake so much as blocking the shared passage between the throttle bodies). Once that is done the AFR in both cylinders is perfect. The next part at around the 53 sec mark shows me adding fuel to injector 1 and you can see the sensor 1 lambda number drop as the cylinder runs richer (as it should).
To finally put this to rest here's another video. We pick up the action with the engine idling in factory stock condition. I then switch on cyl. 1's o2 sensor, as it's reading lean it immediately starts adding fuel (the 'Closed loop corr 1%' number starts increasing). But instead of seeing the lambda number for cyl. 1 begin to drop we instead see the lambda number for cyl. 2 drop from around lambda 1 (14.7:1) to .85 (12.5:1) - cyl. 1's lambda improves a touch but you can see the number dancing all over the place as further validation that some crazy things are happening in that intake port/throttle body with fuel coming and going in all directions!
I know this to be the case since by measuring the AFR in each exhaust I can observe firstly with the stock setup that:
- Cyl. 1 runs very lean (AFR over 26:1) and cyl. 2 very rich - (both fuel injectors have been professionally tested and swapped between cylinders).
- I can increase the amount of fuel coming from cyl. 1's injector and when I do so, cyl. 2's AFR goes richer and cyl. 1 is essentially unchanged - I have checked to ensure the injectors are wired up correctly.
- The AFR in both cylinders normalises - i.e. is approx. the same in both cylinders.
- If I now increase the amount of fuel coming out of injector 1 then I see the AFR for cyl. 1 go richer - exactly as it should.
I'm reposting the first video from this thread. This shows the process as in action. First few seconds are with the stock setup - sensor 1 (cyl. 1), showing very lean (26:1 AFR). After that I block the shared IAC tube (remember I'm not blocking the intake so much as blocking the shared passage between the throttle bodies). Once that is done the AFR in both cylinders is perfect. The next part at around the 53 sec mark shows me adding fuel to injector 1 and you can see the sensor 1 lambda number drop as the cylinder runs richer (as it should).
To finally put this to rest here's another video. We pick up the action with the engine idling in factory stock condition. I then switch on cyl. 1's o2 sensor, as it's reading lean it immediately starts adding fuel (the 'Closed loop corr 1%' number starts increasing). But instead of seeing the lambda number for cyl. 1 begin to drop we instead see the lambda number for cyl. 2 drop from around lambda 1 (14.7:1) to .85 (12.5:1) - cyl. 1's lambda improves a touch but you can see the number dancing all over the place as further validation that some crazy things are happening in that intake port/throttle body with fuel coming and going in all directions!
