Head flow testing.

Status
Not open for further replies.

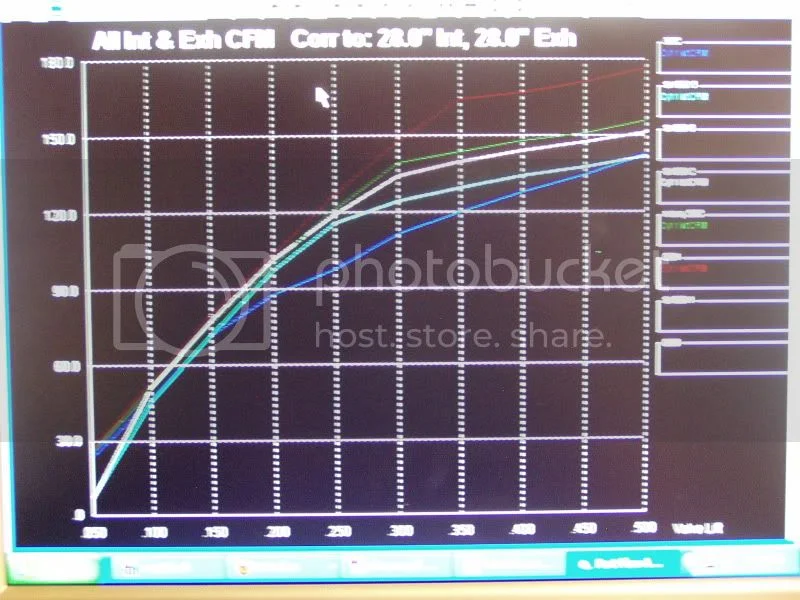

Well here are the results from the Maney stage 2 head. It has a 1.615 valve and a 34 mm port.

red line Maney stage 3 head w /1.690 valve
drk green Maney stage 2 head w / 1.615 valve
white is my Fullauto with the 1.560 valve and a port cleanup
lt. green is the out of the box fullauto
blue is a RH4 with an unknown port job

Head flow testing.


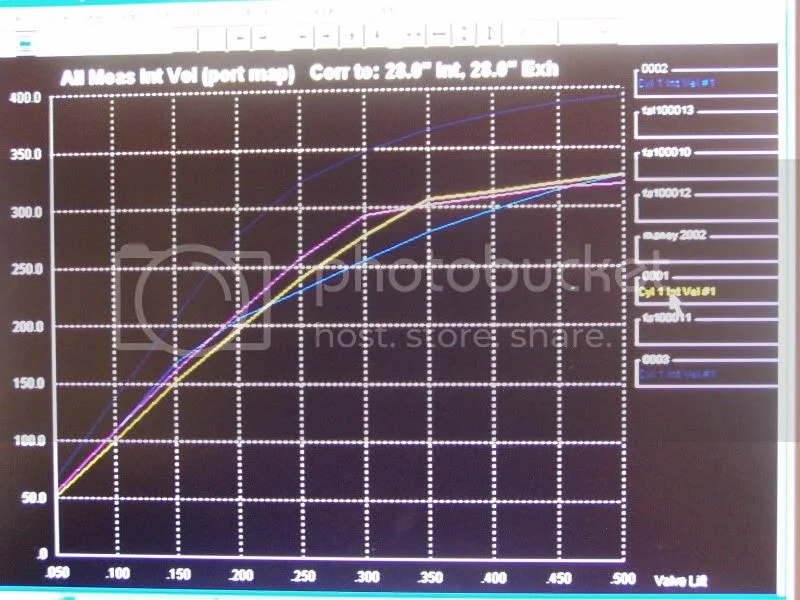

And the velocity numbers
drk blue is the stock fullauto
Violet is the Maney stage 3
Yellow is the Maney stage 2
light blue is the RH4
Head flow testing.

Fullauto said:
Carbonfibre said:
Epoxy doesnt work for long in exhaust ports, but Ti putty from ITW is fine used for inlet ports. Exhaust ports need to be welded, but on a head such as the Norton there is no real point in altering the exhaust, as this will make little difference.
Click to expand...
Click to expand...

Check the difference between a standard Norton exhaust port and one of Jim's design and tell me that it won't make much difference. The standard Norton exhaust ports are the wrong shape and far too big as they are.[/quote

Surely a good ignition system, and modern carburetion is doing to make a great deal more difference, and cost far less money to do?

Carbonfibre said:
Fullauto said:
Carbonfibre said:
Epoxy doesnt work for long in exhaust ports, but Ti putty from ITW is fine used for inlet ports. Exhaust ports need to be welded, but on a head such as the Norton there is no real point in altering the exhaust, as this will make little difference.
Click to expand...
Click to expand...

Check the difference between a standard Norton exhaust port and one of Jim's design and tell me that it won't make much difference. The standard Norton exhaust ports are the wrong shape and far too big as they are.[/quote

Surely a good ignition system, and modern carburetion is doing to make a great deal more difference, and cost far less money to do?
Click to expand...


So would replacing the bike with a half worn out crotch rocket but what is the point?

So would replacing the bike with a half worn out crotch rocket but what is the point?
Click to expand...

No kidding cosmoz, delivery is everything to me and many many others who prefer their Commando over faster low maintenance appliances that buzz valve train to crank firing order on fat tires that turn greasy when leaned past 45' and look like angry cartoon insects to Ms Peel- who like a bat swooping past to gobble em up like pretty fishing lures to collect. Do observe the sports bikes that can out run race Commando's in the straights, don't see them doing very well in twisties compared to less powerful supermortords. Carbonfiber, bless his doubting Thomas educated attitude, is exactly the target Ms Peel has in her sights to wipe the smirks off real quick, even on the bee line sprints beyond what elites can accelerate to on more technical tracks like Barbers, because there are real turns at the end and they tend to wheelie unless power cut back. Main advantage I see in moderns is they have water cooling so can tolerate sustained fuel burn better. Faster exit flow and smaller exit ports = less heat into engine. In Ms Peel set up this could mean over 17:1 effective CR.

Food for thought on Cdo's air cornering limits. Texas Mile and efforts to stream line cars exterior and air flow through grill for cooling got me hunting around on race air craft which can generate thrust from their oil and engine radiators and even spray mist on cooling fins. Many must use air deverters to get air or mixtures to make fast turns with least flow separation and turbulence resistance. So what if a curved mid stream vane was placed to help the intake mixture make the turn into valve bowl? Also vortexes tend to concentrate flow into jets, so vortex generator ahead of the vane might also energize the flow to take a turn faster w/o getting as upset.

I've had mental picture set up to test explosive exhaust flow releases by using a big firecracker or hair spray like potato canon chamber to break through a pressure membrane like valve opening at max PSI heated piston shoving out flow. I'd measure by both the sound and the distance exhaust pipe could toss the 'tator out : )
