Front wheel reassembling

NKN · Aug 29, 2018

Wondering if they kept the old look of it by purpose or if they did it on the same lathe with the same cutting tool than 50+ years before?

NKN · Aug 29, 2018

p400 said:
So I just ordered 02-9221 spacer from Baxter Cycle.

Are you sure it's the only thing you need?

NKN · Aug 29, 2018

p400 said:
we need an exploded view of the front hub and axle.

Or someone who never changed the front tyre and is ready to do it know. And make some pictures

p400 · Aug 29, 2018

NKN said:
Or someone who never changed the front tyre and is ready to do it know. And make some pictures

I always need another part, but nothing comes to mind except tire.

I ordered a new 400 x 18 Dunlop K70 from Dennis Kirk today for the rear. front still looks new.

elefantrider · Aug 30, 2018

NKN said:
How did you find it? Was looking at this section https://andover-norton.co.uk/en/shop-drawings/19 without seeing anything.

I used the search engine.

elefantrider · Aug 30, 2018

NKN said:
Wondering if they kept the old look of it by purpose or if they did it on the same lathe with the same cutting tool than 50+ years before?

My guess is the original looked better!!

NKN · Aug 30, 2018

p400 said:
I always need another part, but nothing comes to mind except tire.

I ordered a new 400 x 18 Dunlop K70 from Dennis Kirk today for the rear. front still looks new.

Was talking about changing a never changed front tyre to have a chance to see IRL all the parts going on or with the spindle, and their position.

elefantrider said:
My guess is the original looked better!!

Ron L · Aug 30, 2018

NKN said:
Do you know if this wheel comes from a P11, a P11A, or a P11 Ranger?

P11/P11A. They are identical (very early P11 omitted the cover). Ranger 750 the same except for fins.

NKN · Aug 30, 2018

elefantrider said:
I used the search engine.

Just discovered that the search engine is not working that well if you're not logged in...

p400 · Aug 31, 2018

My 02-9221 spacer arrived from Baxter Cycle today.
Pretty quick order fill/ship.
Also very satisfying to get obscure vintage Norton parts with just an online order.

02-9221 thickness = 0.130"
02-9221 OD = 1.250"
02-9221 ID = 0.760"
appears zinc plated, beveled ID and OD on one side only.

mdt-son · Aug 31, 2018

Gosh. The person who made this didn't master his lathe. Typical signs of resonance (wrong feed and/or rotational speed). Bob Schanz at Domiracer had many Norton parts replicated. Baxter bought a lot of the Domiracer inventory. Machining performed at the AMC factory was in a different league.

-Knut

elefantrider · Aug 31, 2018

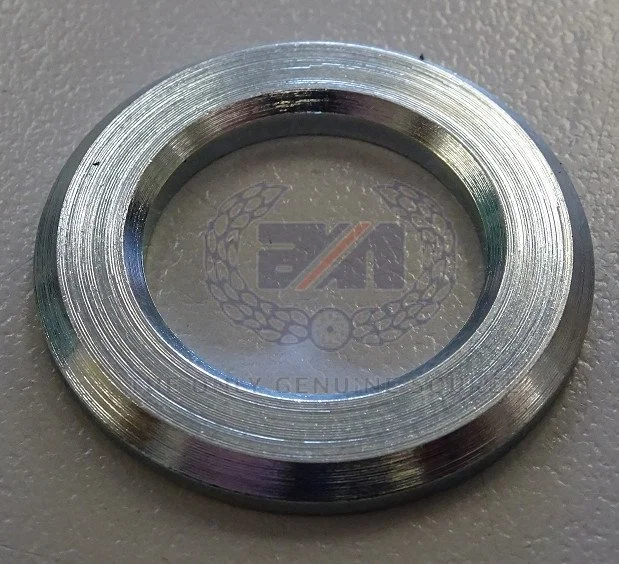

Looks like the part Andover sells, just different lighting and background.

NKN · Aug 31, 2018

mdt-son said:
Gosh. The person who made this didn't master his lathe. Typical signs of resonance (wrong feed and/or rotational speed). Bob Schanz at Domiracer had many Norton parts replicated. Baxter bought a lot of the Domiracer inventory. Machining performed at the AMC factory was in a different league.

-Knut

And tool sharpening...

p400 said:
02-9221 thickness = 0.130"
02-9221 OD = 1.250"
02-9221 ID = 0.760"
appears zinc plated, beveled ID and OD on one side only.

Thanks for the size ;-)

elefantrider said:
Looks like the part Andover sells, just different lighting and background.

Couldn't resist

.
.
.

Junglebiker · Sep 2, 2018

Made fast and with cheaper tooling so that it costs you less...

elefantrider · Sep 3, 2018

If anyone has an original piece laying around, maybe they can take a photo and post on here for a quality comparison to the repro.

I would but this part is missing on both my bikes.

p400 · Sep 3, 2018

I have an original spacer/washer on my P11, but have not chosen to disassemble at this time. I will post data later. I have a new K70 due in tomorrow, so maybe after that change out I can flip the bike and look at revising my front assembly, and get a look at the OEM spacer.

NKN · Sep 8, 2018

To close all the spitfull tongues, mine first

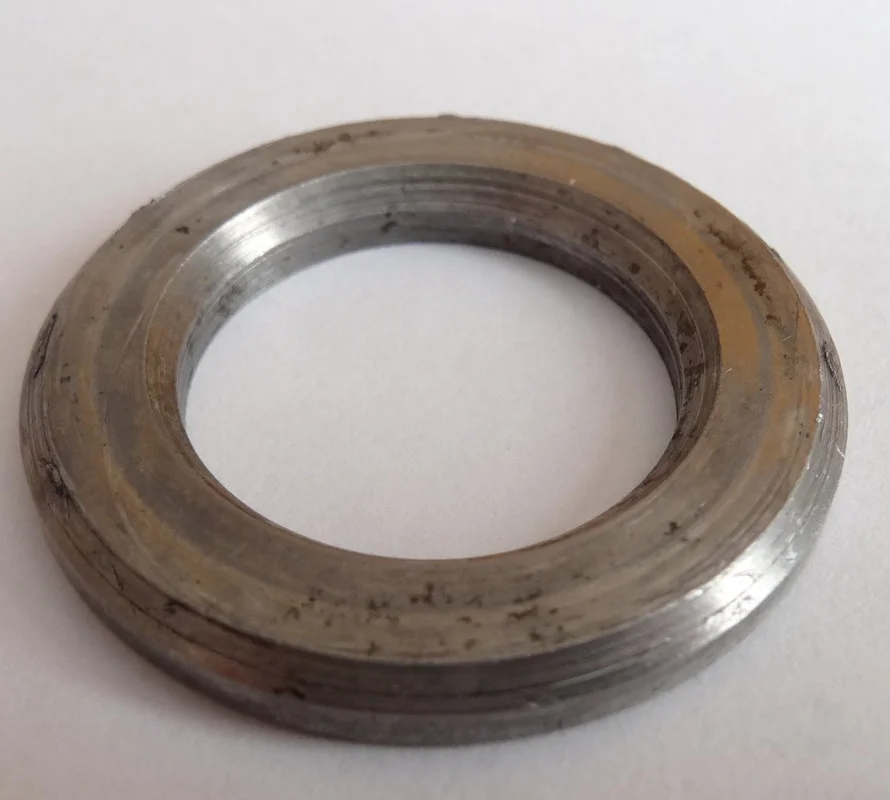

Here is my front wheel spacer/washer, not that bad after all those years...

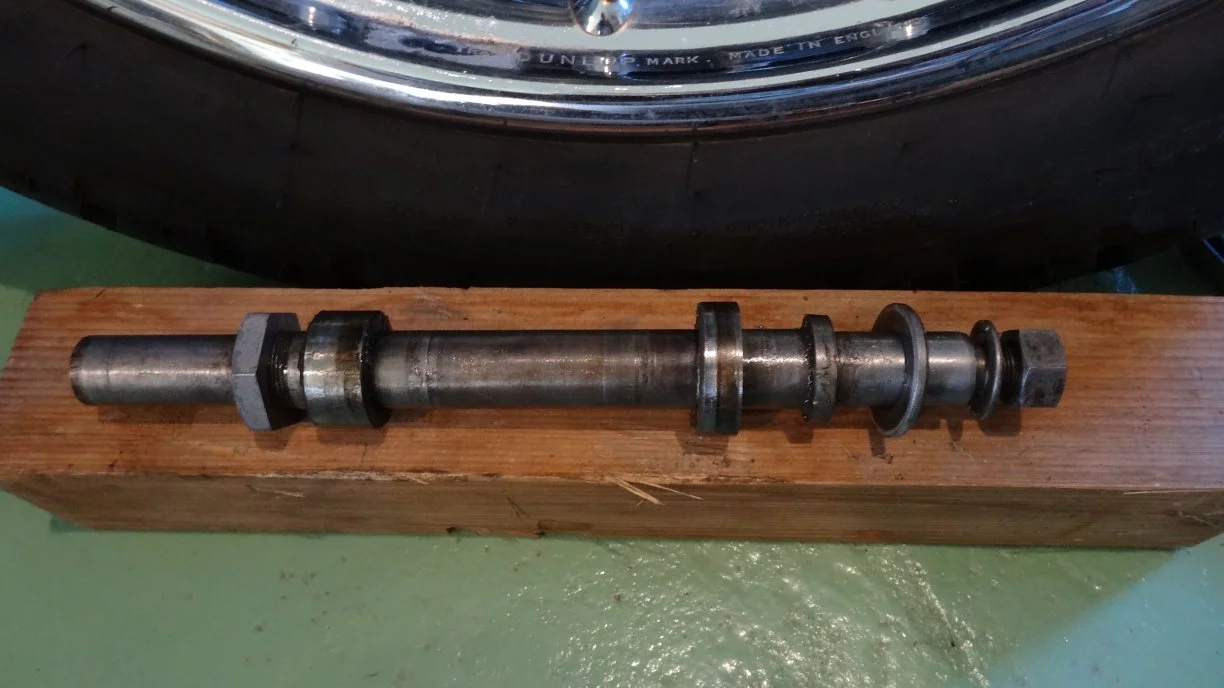

And here is my front axle. Could somebody tell me if it's the correct way to put all the washers/spacers and if something is missing?

Except seals, bearings and the central part.

Would also need to know the part number of the two seals on each side of the hub.

One looks to be 02.9263, and the other is???

Ron L · Sep 8, 2018

Beveled spacer (02-9221) goes on the wheel side of the of the machined stop/spacer of the axle, not the axle nut side.

p400 · Sep 8, 2018

NKN · Sep 9, 2018

Yes of course, as shown before

Front wheel reassembling
